Miyata 615 Terry style

This is a new one to me. Took a drive earlier today to pick it up. 24" front wheel. I had two 610s previously but never a 615. I am coming up dry with my search for 24" road tires. It is in quite good condition otherwise.

I think if I merely flip the DUI bars down I will triple my investment.









Narhay is offline
Old 07-05-20, 04:19 PM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,137

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2028 Post(s)
Liked 354 Times in 244 Posts
Nutzy!!!

What's the seat tube length on that one?
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 07-05-20, 04:55 PM
  #3
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,370

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 139 Times in 98 Posts
Originally Posted by The Golden Boy View Post
Nutzy!!!

What's the seat tube length on that one?
Looks to be a '88 model. If that is the case, the frame is called out in the '88 catalog as a 46cm.
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 07-05-20, 05:02 PM
  #4
desconhecido
Senior Member

Join Date: Mar 2010
Posts: 1,779
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 117 Times in 92 Posts
You can get tires from Terry, though they're not free nor close to it. I've seen them offered other places as well. Check the ISO diameter on the tire that's on the bike, though, as there are a bunch of different 24" sizes. Probably it's 520 mm, but it doesn't hurt to double check.

Back a couple years ago there was one of these Miyatas for sale in Dallas for $50 and I was considering buying it. At that time, there were several sources I found for the tires. A quick search today only turns up Terry.
desconhecido is offline
Old 07-05-20, 05:12 PM
  #5
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,970

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 472 Post(s)
Tagged: 0 Thread(s)
Quoted: 6409 Post(s)
Liked 956 Times in 628 Posts
My daughter in law has a Centurion Terry knockoff. I've been fixing it up so I bought a spare Pasela tire and tube from terrybicycles dot com for her. I thought the prices were reasonable. The tires are hard enough to find so it seemed like a good idea to have a spare on hand.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-05-20, 05:16 PM
  #6
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Originally Posted by Cougrrcj View Post
Looks to be a '88 model. If that is the case, the frame is called out in the '88 catalog as a 46cm.
I had an '82 610 with caliper brakes, suntour components and a 5 speed freewheel despite 126mm spacing and not a lot else to differentiate it as a touring bike. The '85 was a much more purpose built bike with front rack mounts and cantilevers but both '82 and '85 still used 27" tires. This 88 builds on that (no fork mounts) but has 700c rear and indexed shifting but still maintains the shimano light action of the '85.

A blast from the past https://www.bikeforums.net/classic-v...yata-610s.html
Narhay is offline
Old 07-05-20, 05:30 PM
  #7
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 526

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 28 Times in 19 Posts
Very cool!
John Nolan is offline
Old 07-06-20, 08:57 AM
  #8
stardognine
Senior Member

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,689

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 697 Post(s)
Likes: 0
Liked 263 Times in 196 Posts
Originally Posted by Narhay View Post
I had an '82 610 with caliper brakes, suntour components and a 5 speed freewheel despite 126mm spacing and not a lot else to differentiate it as a touring bike. The '85 was a much more purpose built bike with front rack mounts and cantilevers but both '82 and '85 still used 27" tires. This 88 builds on that (no fork mounts) but has 700c rear and indexed shifting but still maintains the shimano light action of the '85.

A blast from the past https://www.bikeforums.net/classic-v...yata-610s.html
Hey, I recently bought an ‘85 (according to the previous owner) six ten, and it’s very much like you describe. It has 27” tires and cantilever brakes, as well as low-rider racks, but “only” two sets of bottle mounts. 🤔 I’ll have to get a bolt-on bottle cage, at some point, for where they’re missing on the seat tube. 🙄😉

I put Specialized Armadillo All Condition tires on (27” x 1 1/4”) for $45 each, but they’re probably worth it. That’s “roughly” the diameter of a 700x37, only a bigger circle. 🤔😉
stardognine is offline
Old 07-12-20, 02:20 PM
  #9
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
For anyone keeping score the Miyata 615 uses a 520 tire in the front. I just ordered a 700c x 25 rear and 24 x 1 (520) front Panaracer Paselas and spare 24" tube from Harris Cyclery. I also picked up a couple Sturmey Archer bits for my Raleigh Superbe while I was at it.

Should begin the teardown shortly.
Narhay is offline
Old 07-12-20, 06:04 PM
  #10
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,788

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 99 Times in 59 Posts

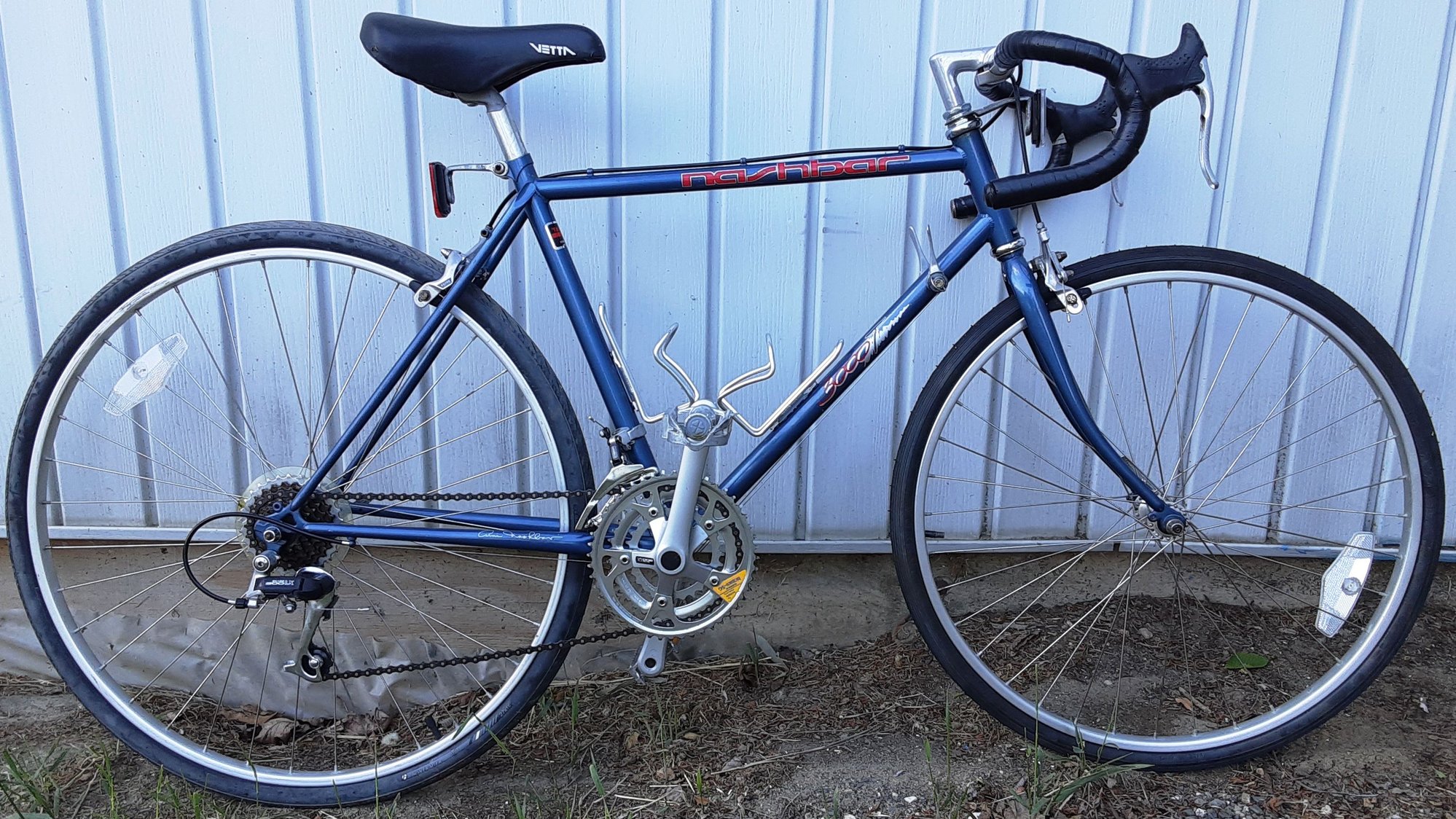

What size is the front tire? I recently overhauled a Nashhbar 'Terry-style' bike and the front was an off the wall iso 547.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 07-12-20, 06:07 PM
  #11
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Originally Posted by top506 View Post
What size is the front tire? I recently overhauled a Nashhbar 'Terry-style' bike and the front was an off the wall iso 547.

Top
The existing tire had a 520 marking on it so that made it easy. I spent a bunch of time looking it up online searching through threads. Then I went outside for a minute and looked at the tire instead.
Narhay is offline
Old 07-15-20, 09:33 PM
  #12
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts

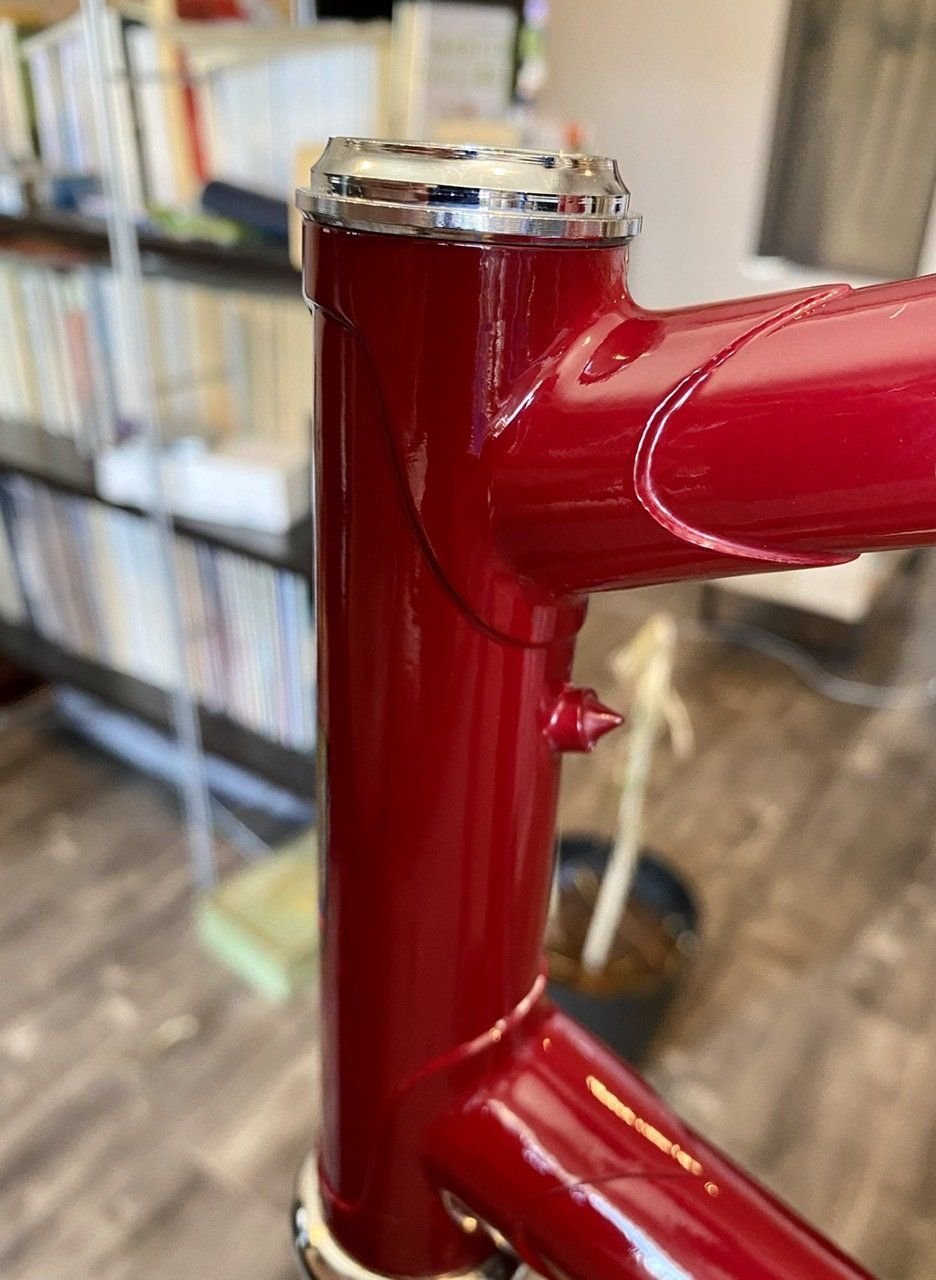

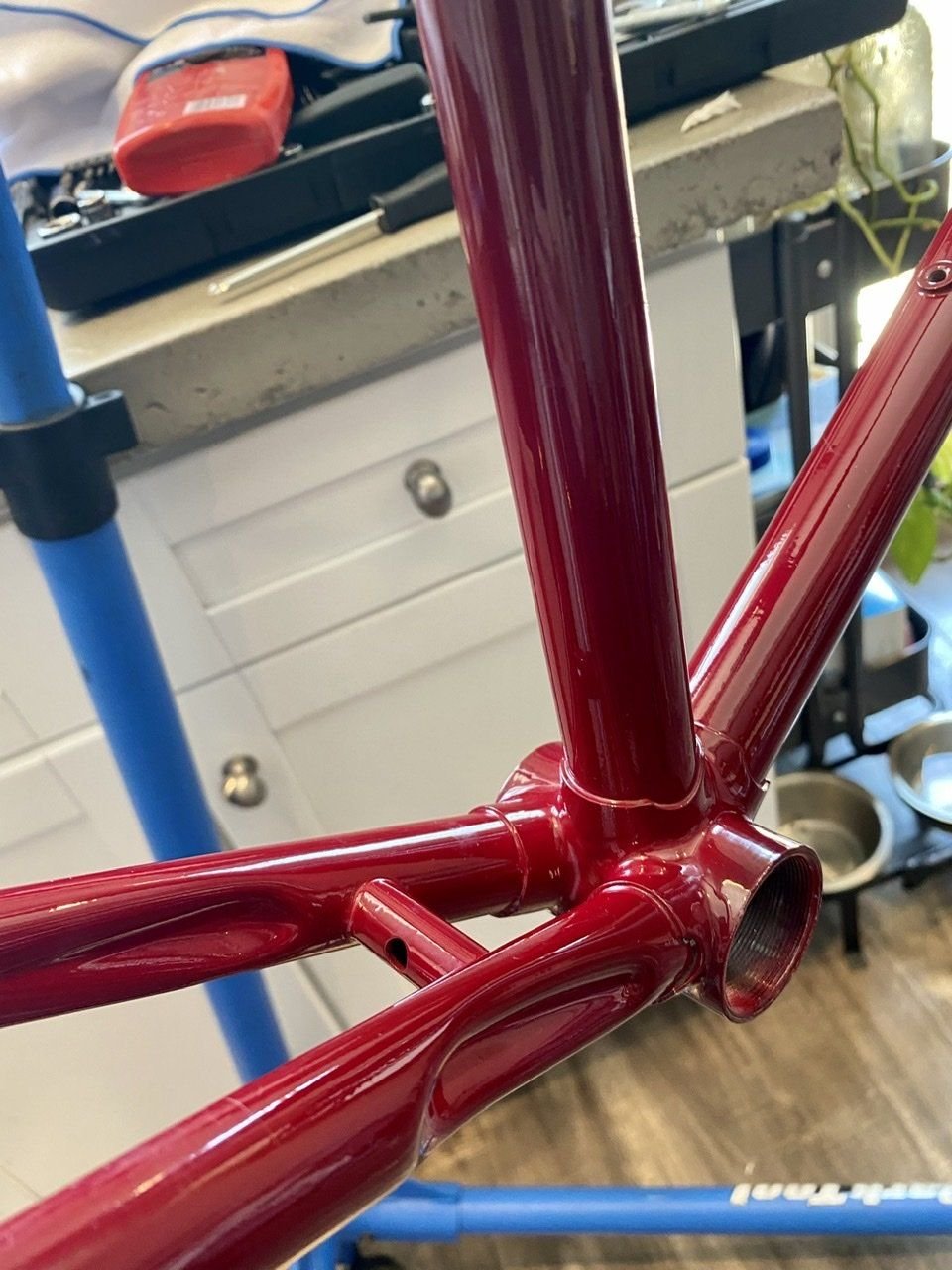

Started the rebuild process on this. So far everything cleaned up and came apart very nicely​​​​. Unfortunately the original 3S bottom bracket was pooched so the search for the symmetrical 127 equivalent will begin.

Really amazed with how well the paint came up.







I also finally flipped the bars down.

Last edited by Narhay; 07-15-20 at 09:45 PM.
Narhay is offline
Old 07-15-20, 11:58 PM
  #13
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 720
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 170 Times in 95 Posts
Is this the 60 or the 57, a little hard to tell somehow. Really looks like a 58 haha. As you saw in my other post, I'm also building one of these up and its the 57. Now, I am 5'"11 and I typically ride a 58, but some frames I really want only came in 22.5, so this is going to sort of me by testing ground as to whether when I drop money for those frames I go for the 22.5 or up to the 60.

Yours looks equally as immaculate as mine. This paint. holds up so well. Did you use a polishing compound on the chrome and metal bits? What polish/wax did you use on the frame?

Here's mine. I like how different this burgundy shows up under varying light.






Last edited by polymorphself; 07-16-20 at 12:04 AM.
polymorphself is offline
Old 07-16-20, 04:43 AM
  #14
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Nice work on yours. The burgundy really did age well.

I used mothers polish and finished with turtle wax. I cant take too much credit as even with a wet paper towel the paint started coming out nicely.

I am 6'2" and I've set my lower limit at 59cm, but even then with a longer stem and seatpost. You may be alright with the 22.5cm if you can get a taller stem in the end.
Narhay is offline
Likes For Narhay:
Old 07-16-20, 05:55 AM
  #15
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 273

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 43 Times in 20 Posts
When I redid my 88 that I sold to a member here, my spindle was toast too. I went to the co-op and was dissatisfied with the 3S. For some reason, the stock 3S was off. I eventually used a 3NN I believe. It was symmetric ant didn’t need the bit of extra on the NDS but gave a real nice chainline. Point being, don’t be certain the 3S is best. The 3N or 3P would also have been appropriate with the 88 that I did.

Milo is going through the 88 I redid, so perhaps he will chime in on it too.
sd5782 is offline
Old 07-16-20, 06:43 AM
  #16
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 652 Times in 447 Posts
Originally Posted by top506 View Post
What size is the front tire? I recently overhauled a Nashhbar 'Terry-style' bike and the front was an off the wall iso 547.

Top
The St. Tropez I recently had come through had a 28-547 tire on it. The 28 was no longer made but I was able to pick up a 32-547 gumwall Kenda in stock locally at Ben's.
dedhed is offline
Old 07-16-20, 07:45 AM
  #17
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,788

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 99 Times in 59 Posts
I went the same route. Bike now wears 32s all around:




Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 07-16-20, 06:35 PM
  #18
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Originally Posted by top506 View Post
I went the same route. Bike now wears 32s all around:




Top
The slightly larger wheel has better aesthetic proportions to me. Perhaps when mine is built and set up accordingly without the flipped bars it will look better in my eyes.
Narhay is offline
Old 07-18-20, 12:11 PM
  #19
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Originally Posted by sd5782 View Post
When I redid my 88 that I sold to a member here, my spindle was toast too. I went to the co-op and was dissatisfied with the 3S. For some reason, the stock 3S was off. I eventually used a 3NN I believe. It was symmetric ant didn’t need the bit of extra on the NDS but gave a real nice chainline. Point being, don’t be certain the 3S is best. The 3N or 3P would also have been appropriate with the 88 that I did.

Milo is going through the 88 I redid, so perhaps he will chime in on it too.
That is good to know. I was able to dig up a 122.5mm UN70 bottom bracket from a box of parts which would have been the 3N equivalent. I may put a spacer on the drive side and see if that works ok. I'll keep you updated with how the chainline works out.
Narhay is offline
Old 07-18-20, 08:35 PM
  #20
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Originally Posted by Narhay View Post
That is good to know. I was able to dig up a 122.5mm UN70 bottom bracket from a box of parts which would have been the 3N equivalent. I may put a spacer on the drive side and see if that works ok. I'll keep you updated with how the chainline works out.
The FC-B124 crank inner chainring bolt heads barely do not clear the chainstay with a 122.5mm UN70 bottom bracket. I also managed to crack the thin aluminum flange on it during install so that probably didn't help.
Narhay is offline
Old 07-19-20, 06:36 AM
  #21
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Minus the bottom bracket and waiting for the tires we are slowly getting there. I hate cleaning chainrings but it is now done.





Narhay is offline
Old 07-21-20, 09:25 PM
  #22
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
Wrapped this one up just now. New panaracers arrived and I was able to find a UN55 BB locally.















Narhay is offline
Likes For Narhay:
Old 07-22-20, 08:52 AM
  #23
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,228
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Likes: 0
Liked 186 Times in 126 Posts
I was able to find another orphan Miyata dustcap in my collection and it found a new home. Kind of neat years later it finds itself on another Miyata.

Narhay is offline
Old 07-22-20, 05:55 PM
  #24
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,970

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 472 Post(s)
Tagged: 0 Thread(s)
Quoted: 6409 Post(s)
Liked 956 Times in 628 Posts
What are your plans for the bike?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-22-20, 05:57 PM
  #25
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,370

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 139 Times in 98 Posts
Purty!
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
