Rivnuts or braised bottle attachment?

I want to add water bottle attachments to my World Voyageur. If I ship it to a frame shop to stretch it to 130 and have the alignment checked I will have braise ons added. If not what do you all think about rivnuts?
Captain Paul is offline
Old 07-02-20, 07:29 PM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,136

Bikes: A few

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 1541 Post(s)
Liked 336 Times in 247 Posts
Not to a World Voyageur frame(rivnut)
3speedslow is offline
Old 07-02-20, 07:39 PM
  #3
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,343

Bikes: It's complicated.

Mentioned: 906 Post(s)
Tagged: 0 Thread(s)
Quoted: 2764 Post(s)
Liked 703 Times in 399 Posts
Originally Posted by Captain Paul View Post
I want to add water bottle attachments to my World Voyageur. If I ship it to a frame shop to stretch it to 130 and have the alignment checked I will have braise ons added. If not what do you all think about rivnuts?
All that alignment work won't damage any paint. Brazing will, of course. If you can get a good paint match on your World Voyageur, you could just do a touch-up job on it. You could always try the rivnuts, if they spin loose, brazed on bottle mounts can be added. I did exactly that for ollo_ollo recently.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 07-02-20, 09:16 PM
  #4
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,108
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 656 Post(s)
Liked 160 Times in 106 Posts
I used rivnuts on my Gran Sport about 8 years ago, following Gugieís logic. So far they are holding just fine.
due ruote is offline
Old 07-03-20, 07:14 AM
  #5
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,510

Bikes: old school 531c & Campy

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1067 Post(s)
Liked 741 Times in 456 Posts
I use Velo Orange down tube clamps and their stainless, old school cages. I currently have two bikes setup like this, but have had others. Only one day did one come loose on a ride, which was fortunately resolved at a hardware store on the road. I also really like the look of cages fixed to handlebars at the stem.

Personally, I wouldn't drill a nice frame unless I was going to tour off-road, and other solutions couldn't work. I did use a rivnut successfully a couple times after buying a flip with only one good down tube boss.
SurferRosa is offline
Likes For SurferRosa:
Old 07-03-20, 10:46 PM
  #6
rjhammett
Senior Member

rjhammett's Avatar

Join Date: Dec 2011
Location: Saint Paul, Minnesota
Posts: 2,036

Bikes: 92 Colnago Master PIU, 85 Fuso, 92 Bridgestone RB-1, 83 Pinarello Record, 92 Tommaso, 92 Merckx MX Leader, 90 Serotta Colorado II, 99 Tommasini Sintesi, 90 Pinarello Montello, 89 Tommasini Super Prestige, 08 Look 585 and 8 more

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 122 Times in 67 Posts

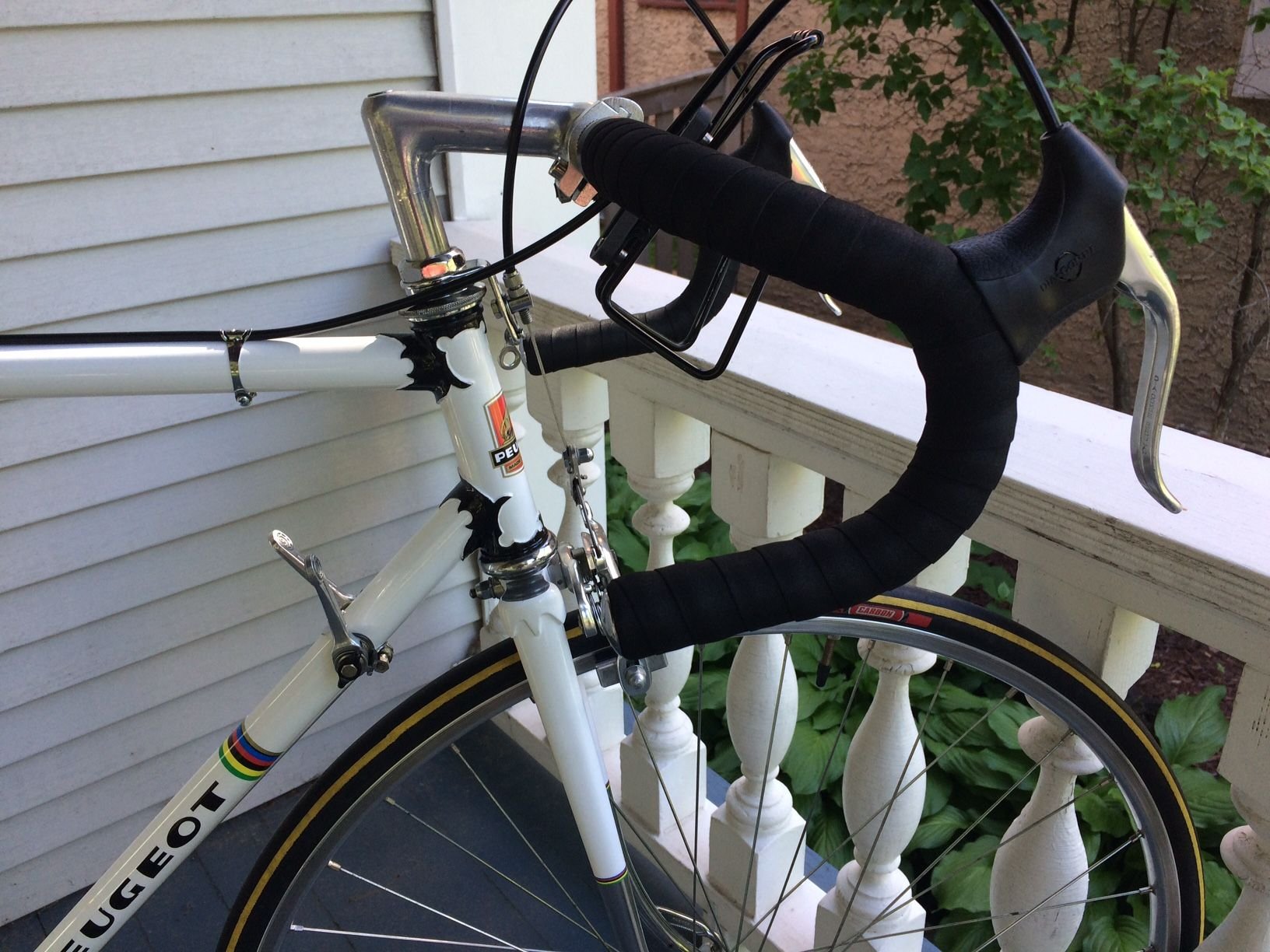

My answers for bikes without bottle mounts and not wanting to wreck the decals.


rjhammett is offline
Likes For rjhammett:
Old 07-03-20, 11:31 PM
  #7
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,199

Bikes: https://www.theheadbadge.com

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Liked 806 Times in 524 Posts
Originally Posted by rjhammett View Post
My answers for bikes without bottle mounts and not wanting to wreck the decals.
Arguably easier to use too.

-Kurt
__________________







cudak888 is offline
Old 07-03-20, 11:55 PM
  #8
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 803

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Liked 382 Times in 232 Posts
If you do go with rivnuts, my pro-tip is not to use stainless ones. The stainless rivnuts I've used were impossible to "set" using anything but a press or vise, which required access to the backside of the rivnut (or the special rivnut setting tool, which is probably expensive). Aluminum or brass ones can bet "set" with just a screw and a nut.
scarlson is offline
Likes For scarlson:
Old 07-04-20, 12:04 AM
  #9
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,547

Bikes: Ď87 Marinoni SLX Sports Tourer, Ď79 Miyata 912 by Gugificazione

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Liked 68 Times in 51 Posts
I’ve been using these Zefal Gizmos for a second water bottle mount on my ‘79 Miyata’s seattube for years without concern. They are very secure - haven’t touched ‘em for at least 10 years. Yes, it helps that it’s a black bike, so black electrical tape basically doesn’t show. I see there’s a Mk II version know and can’t comment of those.

Dfrost is offline
Likes For Dfrost:
Old 07-04-20, 03:15 PM
  #10
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 37 Times in 21 Posts
Originally Posted by scarlson View Post
If you do go with rivnuts, my pro-tip is not to use stainless ones. The stainless rivnuts I've used were impossible to "set" using anything but a press or vise, which required access to the backside of the rivnut (or the special rivnut setting tool, which is probably expensive). Aluminum or brass ones can bet "set" with just a screw and a nut.
I own a Jeep so I use rivnuts all the time, the small rivnuts use a tool no more expensive that a standard river gun itís the big ones that require the expensive tool
Germany_chris is offline
Old 07-04-20, 11:01 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,335

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Likes: 0
Liked 250 Times in 194 Posts
Originally Posted by scarlson View Post
If you do go with rivnuts, my pro-tip is not to use stainless ones. The stainless rivnuts I've used were impossible to "set" using anything but a press or vise, which required access to the backside of the rivnut (or the special rivnut setting tool, which is probably expensive). Aluminum or brass ones can bet "set" with just a screw and a nut.
Stainless steel also promotes corrosion of any non-stainless bolt (unless it's titanium). Might even promote corrosion of the steel tube, though this is less likely because of the frame's large surface area dissipating any electrolytic current.

I sure wouldn't drill and riv-nut a double-butted frame, but heavier straight-gauge tubing might be ok.
