Old 02-14-20, 06:49 AM
  #26
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,015

Bikes: A bunch of old bikes and a few new ones

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 4518 Post(s)
Liked 807 Times in 573 Posts
Originally Posted by jonwvara View Post
I bet that rust will come right off. I'd try the Evaporust waterbed method. It's worked really well for me the times I've tried it. French bikes rule.
That will take a lot of evaporust won't it? I thought that's why people will use an OA bath because it's less expensive.
bikemig is online now
Old 02-14-20, 07:15 AM
  #27
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,159

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 435 Post(s)
Liked 117 Times in 73 Posts
Originally Posted by bikemig View Post
That will take a lot of evaporust won't it? I thought that's why people will use an OA bath because it's less expensive.
It takes about a gallon and a half of evaporust.

https://www.bikeforums.net/classic-v...evaporust.html

And it doesn't even use up that gallon and a half, since you can pour it back into the original jugs for re-use later.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 02-14-20, 07:26 AM
  #28
TugaDude
Senior Member

TugaDude's Avatar

Join Date: Nov 2010
Posts: 2,304
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 90 Times in 80 Posts
I'm enjoying this thread! I love the photos and the original spec. sheet, the photo of the racing team, all of it. Can't wait to see more.
TugaDude is offline
Old 02-14-20, 10:38 AM
  #29
Roypercy
Senior Member

Roypercy's Avatar

Join Date: Sep 2011
Location: Brooklyn NY
Posts: 399

Bikes: 1987 Schwinn Super Sport

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 13 Times in 8 Posts
Very cool. I'm envious! I love the eccentricities of a French bike. Can't wait to see more
Roypercy is offline
Old 02-14-20, 02:45 PM
  #30
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Thanks all for inspiring confidence.

A required Helicomatic tool arrived today, complete with built-in bottle opener. Perfect ;")

crank_addict is offline
Old 02-15-20, 08:01 AM
  #31
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,786

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 90 Times in 56 Posts
With a Gitane, a Motobecane, and a Pug in the barn I would have been all over this.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 02-15-20, 08:06 AM
  #32
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,015

Bikes: A bunch of old bikes and a few new ones

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 4518 Post(s)
Liked 807 Times in 573 Posts
Originally Posted by top506 View Post
With a Gitane, a Motobecane, and a Pug in the barn I would have been all over this.

Top
I'm with you. You can never have too many French bikes.

I've looked around on and off for a Follis. This bike would have tempted me as well.
bikemig is online now
Old 02-15-20, 08:37 AM
  #33
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,522
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1383 Post(s)
Liked 348 Times in 274 Posts
I think you will like how the bike handles.
that rear derailleur ... every time I see one I am reminded of the movie Brazil for some reason.
repechage is offline
Old 02-15-20, 10:56 AM
  #34
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,919
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 165 Times in 101 Posts
Originally Posted by crank_addict View Post
Thanks all for inspiring confidence.

A required Helicomatic tool arrived today, complete with built-in bottle opener. Perfect ;")
good heavens... isn't it hard to find a good Helicomatic freewheel? I don't suppose they designed the cogs to be compatible with some other brand??
About the only way you could have made life harder would be to use a Cinelli Bivalent hub and freewheel.

Steve in Peoria
steelbikeguy is offline
Old 02-19-20, 11:04 PM
  #35
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Peeled it down with a bit nuisance and seized aluminum crank caps.

Prior service shows an attempt with a poor Allen wrench and was partially rounded out. So, what to do? Cut a slice across the cap and with a screwdriver, tap one half of it counterclockwise. Both sides done, the rest disassembled with ease. Surprisingly, the bearings were well greased and in great condition. The Nervar bottom bracket spindle is beastly and uses plastic bearing cages. No spindle protective sleeve. (Pics later)

Frame bath with mild liquid formula Bar Keepers Friend. Note difference of the clean in progress right seat stay vs the left. Chrome has rough areas but overall, the frame is solid and ding free. Paint chipped and flaws, I'm not planning to touch it up. Cleaner wax and done.

The insides are getting an overnight white vinegar soak with follow up Seafoam coating.

crank_addict is offline
Likes For crank_addict:
Old 02-19-20, 11:17 PM
  #36
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,015

Bikes: A bunch of old bikes and a few new ones

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 4518 Post(s)
Liked 807 Times in 573 Posts
This is going to clean up nicely.
bikemig is online now
Old 02-19-20, 11:26 PM
  #37
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts

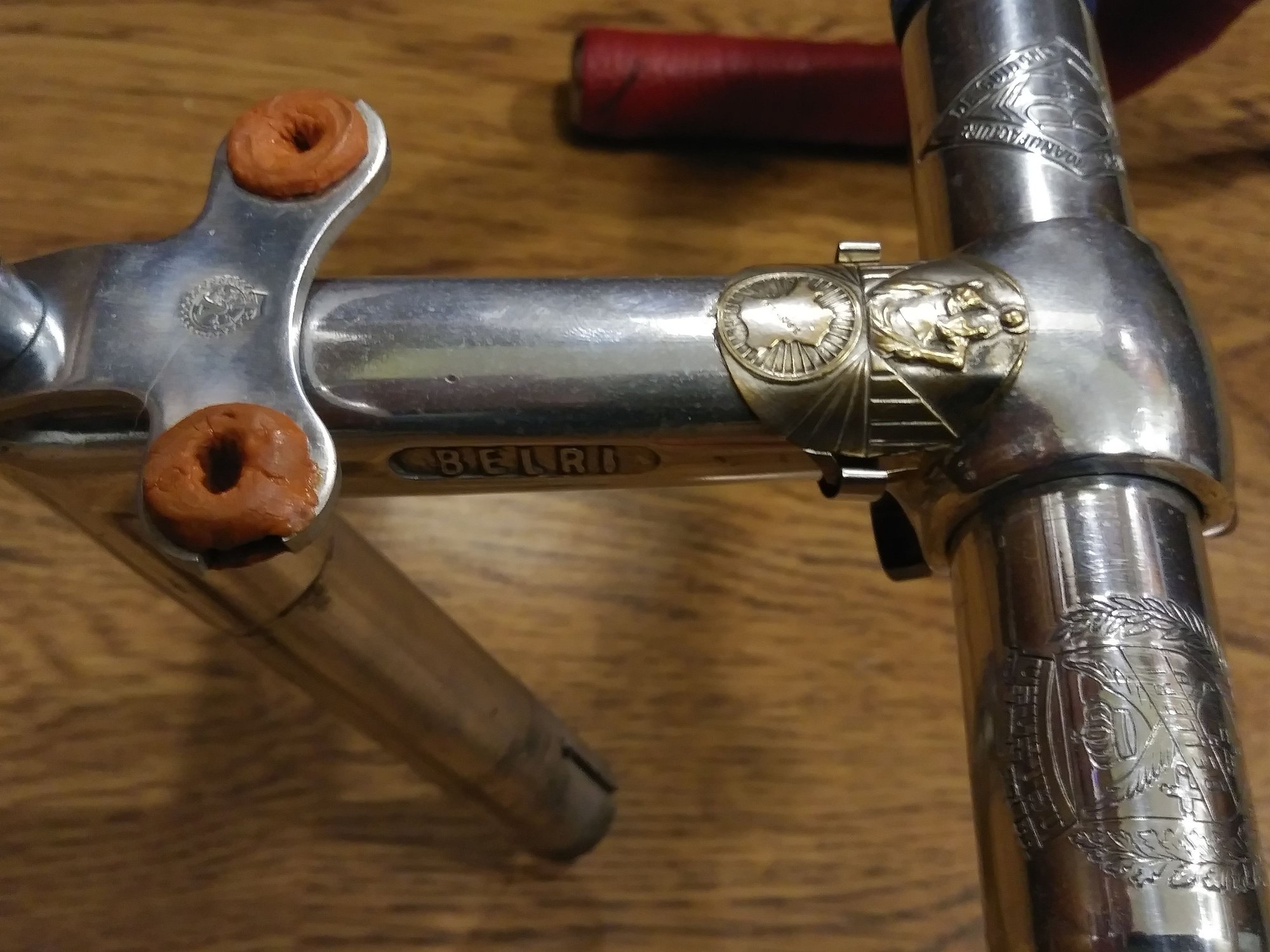

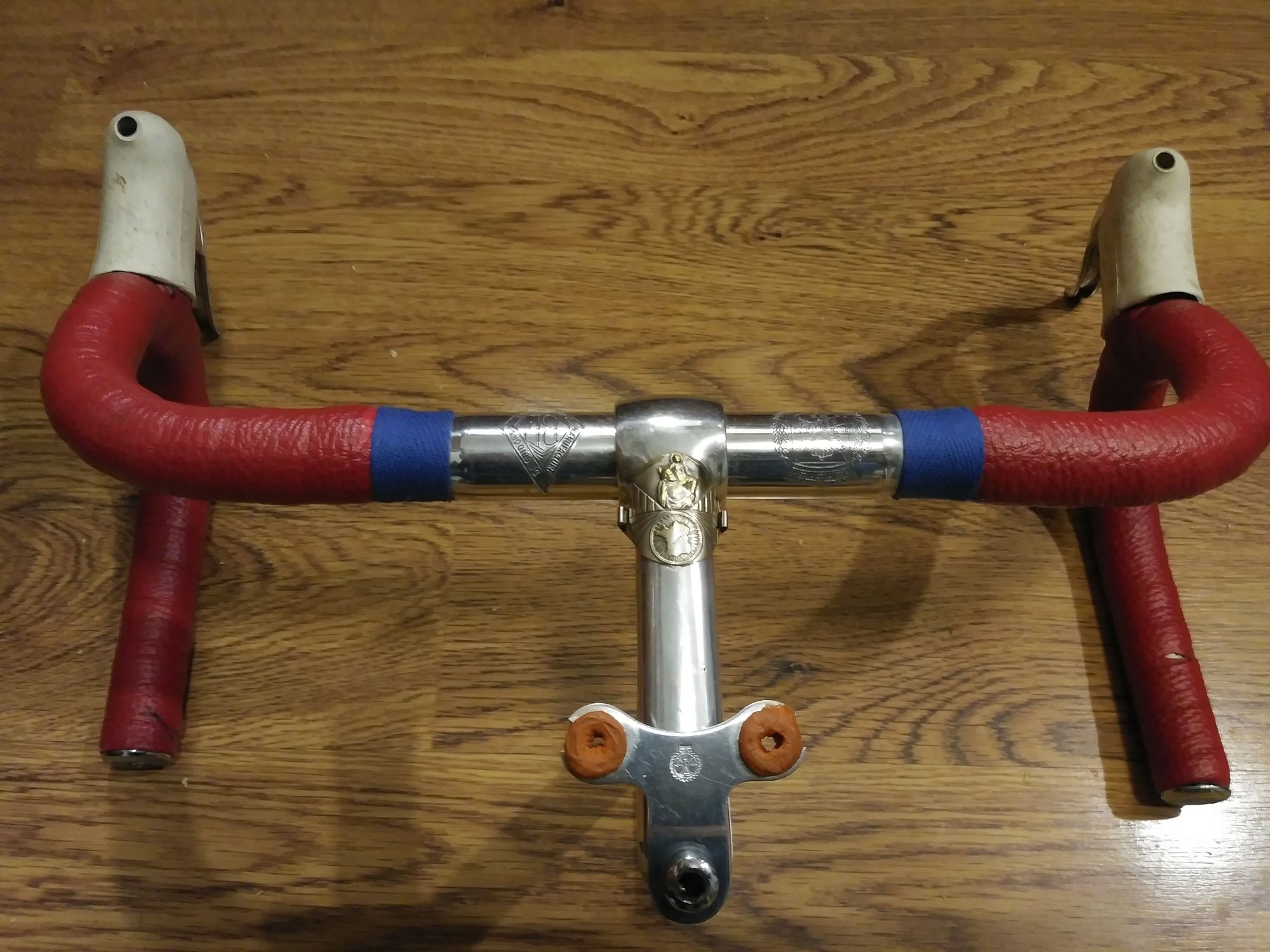

Embellished stem and handlebar fun.

Likely the handlebar wrap is original and thought why not just leave it?! Not perfect but fits the bikes overall appearance. Going with flying French flag colors by keeping the white AME hoods, red wrap and using blue cable.

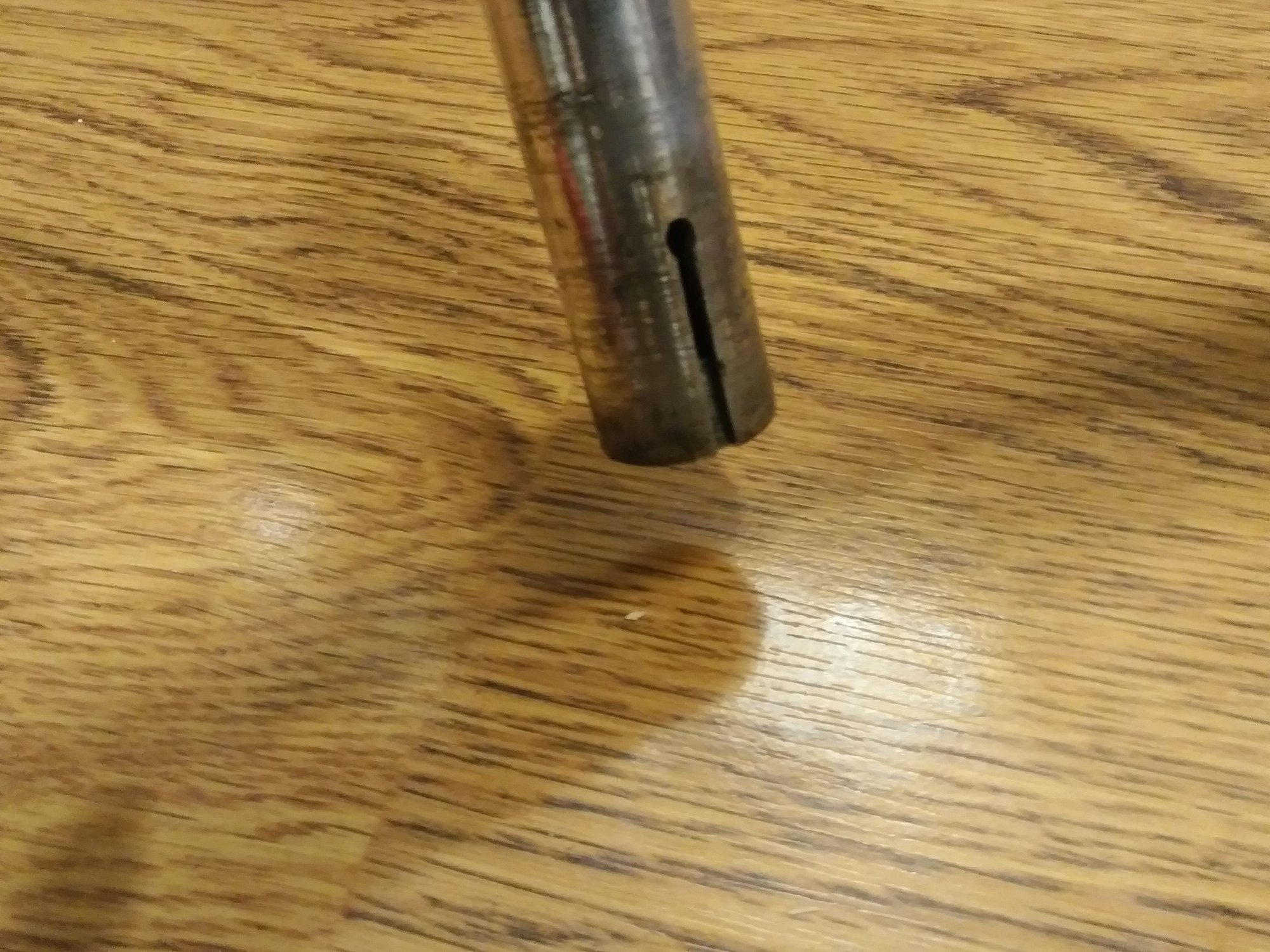

Drilled the customary small holes at the stem split to prevent any potential stress risers. Belleri on stem is spelled different from handlebar. Mothers polish for a quick rescue.

The original long stem bolt was snapped at the top! Now replaced.

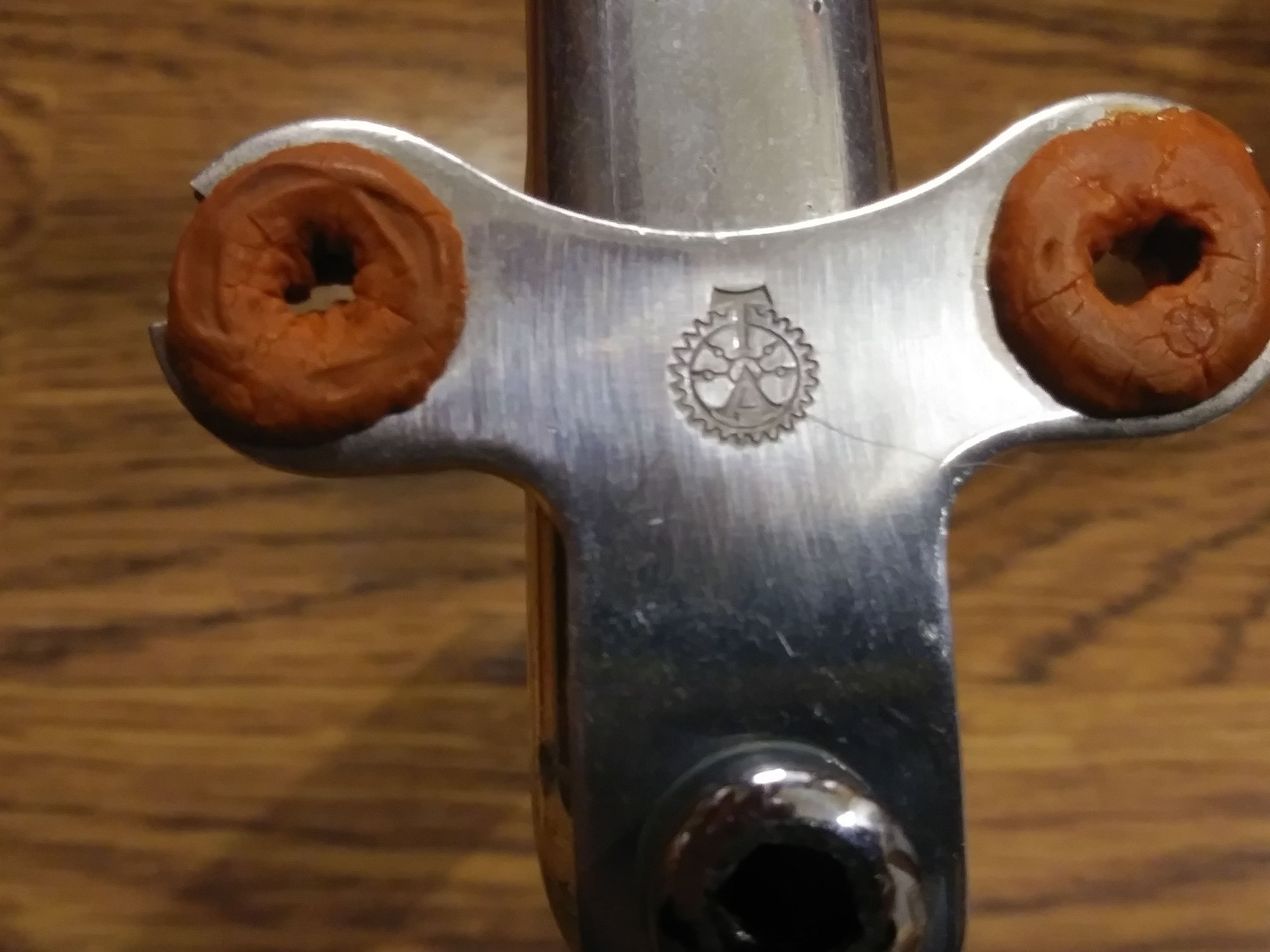

Had the TA stem cable guide stashed away and figured this is appropriate here.







Last edited by crank_addict; 02-20-20 at 01:01 AM.
crank_addict is offline
Likes For crank_addict:
Old 02-20-20, 12:24 AM
  #38
Nemosengineer
Hair Ball

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 350

Bikes: Teledyne Titan, Bob Jackson World Tour, AlAn Record Ergal, 3Rensho Katana.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Liked 215 Times in 113 Posts
Originally Posted by crank_addict View Post
Embellished stem and handlebar fun.

Had the TA stem cable guide stashed away and figured this is appropriate here.


Here is a link to replacement silicone grommets for the TA cable guide, these are the correct orange color and the same size and fit as the originals.

https://www.mcmaster.com/1061t25

Best Wishes: Mike
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Likes For Nemosengineer:
Old 02-20-20, 07:05 AM
  #39
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,015

Bikes: A bunch of old bikes and a few new ones

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 4518 Post(s)
Liked 807 Times in 573 Posts
I've never seen the TA stem cable guide. Zip ties are lighter and cheaper for a weight weenie build but not really period correct,

So are there some threads on drilling holes on the stem split to relieve any potential stress risers? I haven't read about this. I have to admit, bar or stem failure on an old bike is something I think a little bit about. It's such a bad place for a parts failure. It's one of the reasons why I like running a new Nitto bar and stem on my builds.
bikemig is online now
Likes For bikemig:
Old 02-20-20, 07:16 AM
  #40
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,975
Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Liked 226 Times in 173 Posts
Originally Posted by bikemig View Post
So are there some threads on drilling holes on the stem split to relieve any potential stress risers? I haven't read about this. I have to admit, bar or stem failure on an old bike is something I think a little bit about. It's such a bad place for a parts failure. It's one of the reasons why I like running a new Nitto bar and stem on my builds.
Same concept as cracks in concrete. Drill a hole at the end of the split to terminate the cracking. Only with concrete/masonry you'd probably use a filler, or self-leveling sealant if it's a floor.

In the case of stems, you'll notice a lot of them already have a 'cul de sac' at the end of the split in the stem, this is to prevent cracking. A few varieties of stems didn't have this and are prone to cracking at the 'end of the road' unless you drill a 'cul de sac' at the end. I prefer using a step bit (uni-bit, whatever you prefer) at the end of the split to get a nice, round bulb where it needs to be.
__________________
███████████████

francophile is online now
Old 02-20-20, 07:21 AM
  #41
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,975
Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Liked 226 Times in 173 Posts
PS: Kurt has a great write-up on death stems here: https://theheadbadge.blogspot.com/20...-and-atax.html

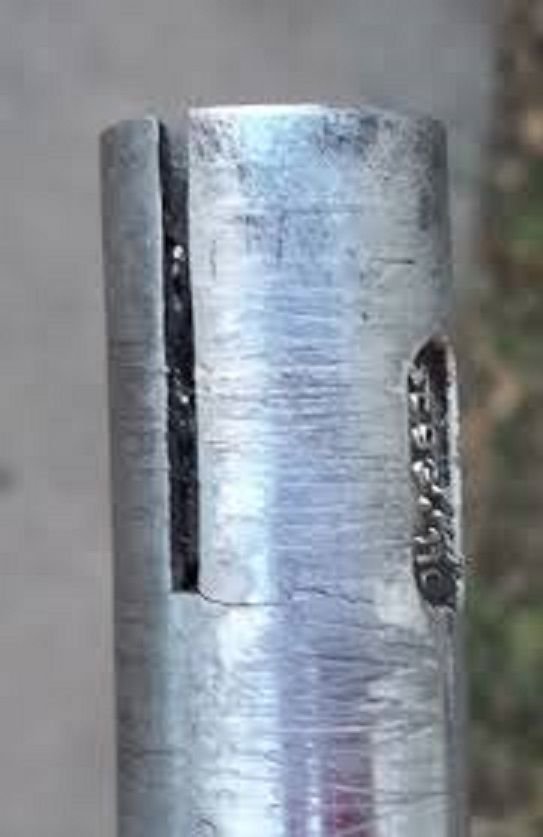

Many companies were guilty, pretty sure this is a 3TTT stem here, you can see where it's cracking, at the corner, 90° angles are a common fatigue point, focused stress, and why the drill-out trick is a good preventative measure.:

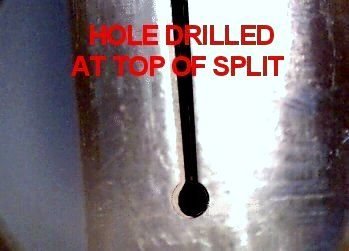

And here's an instructional picture from Chas:

__________________
███████████████

francophile is online now
Likes For francophile:
Old 02-20-20, 10:27 AM
  #42
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,919
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 165 Times in 101 Posts
Originally Posted by crank_addict View Post
Embellished stem and handlebar fun.

Likely the handlebar wrap is original and thought why not just leave it?! Not perfect but fits the bikes overall appearance. Going with flying French flag colors by keeping the white AME hoods, red wrap and using blue cable.

Drilled the customary small holes at the stem split to prevent any potential stress risers. Belleri on stem is spelled different from handlebar. Mothers polish for a quick rescue.

The original long stem bolt was snapped at the top! Now replaced.

Had the TA stem cable guide stashed away and figured this is appropriate here.

nice looking stuff! Indeed, it would be a shame to get rid of the tape.
I always thought the TA cable guide was an interesting device. Not sure how much difference it makes, but kind of fun.
Plus... it is one more vote for the "cables behind the bars" configuration!
I hope you can find new grommets for it, though.

Steve in Peoria
steelbikeguy is offline
Old 02-20-20, 01:40 PM
  #43
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts

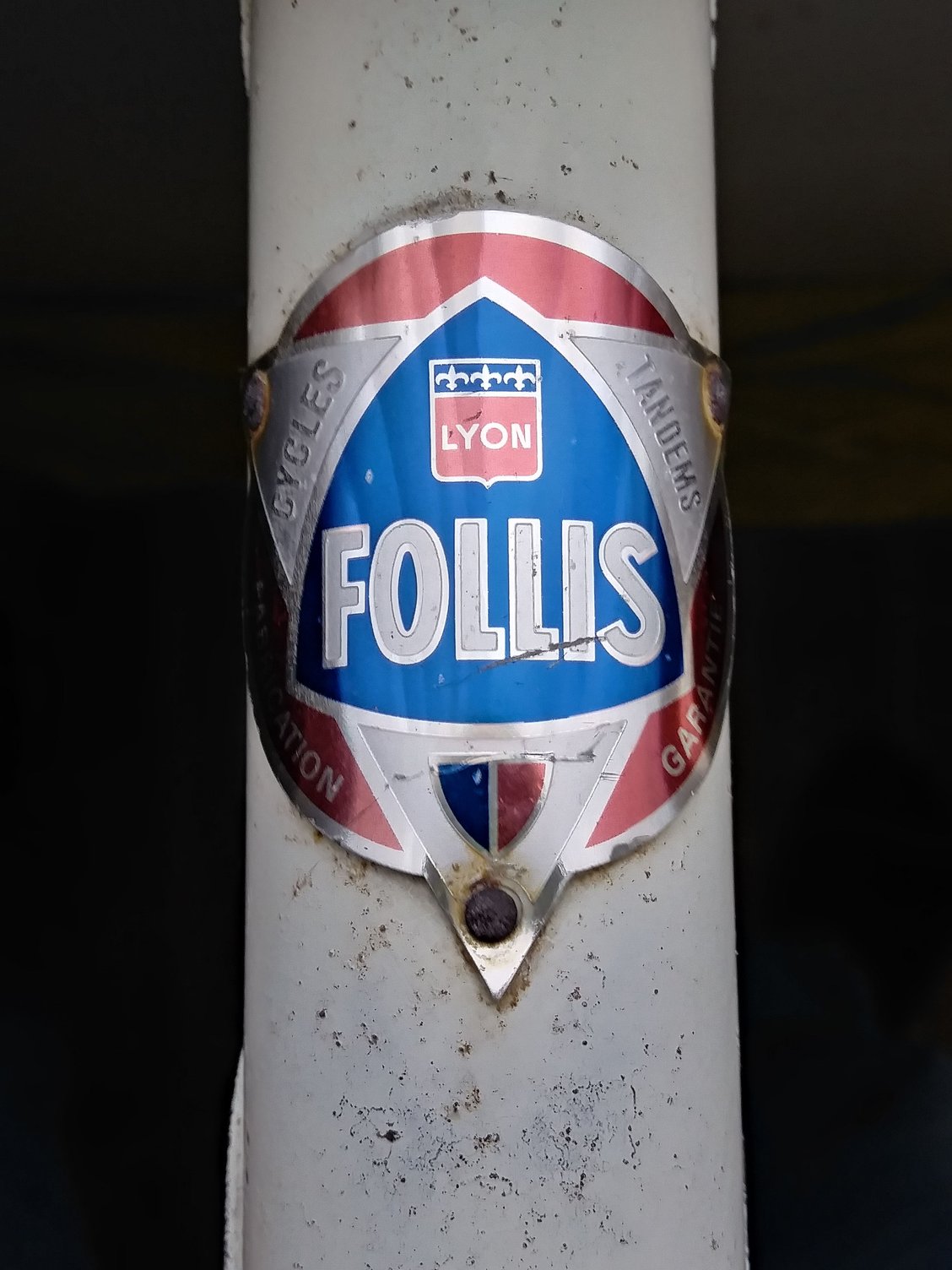

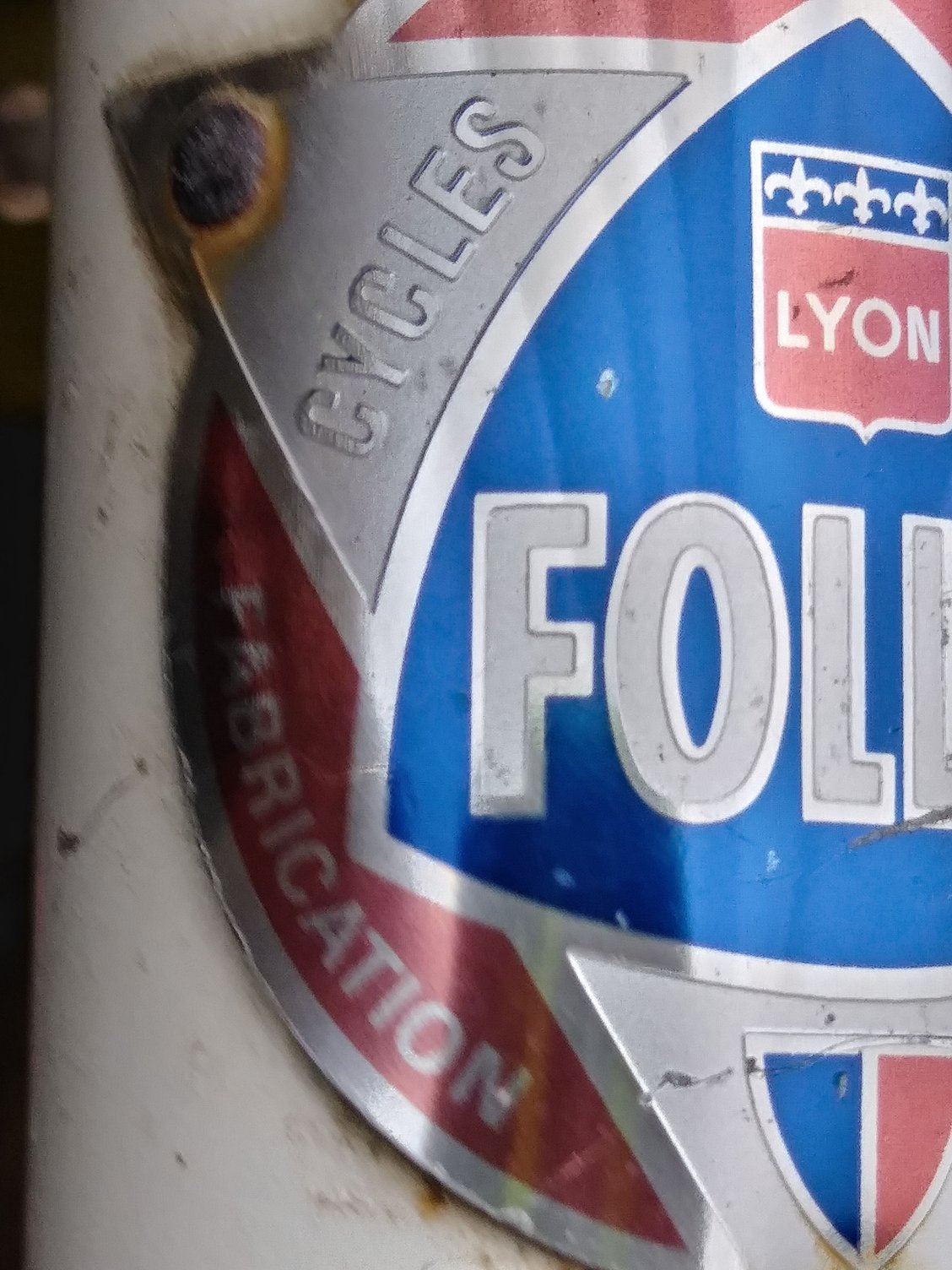

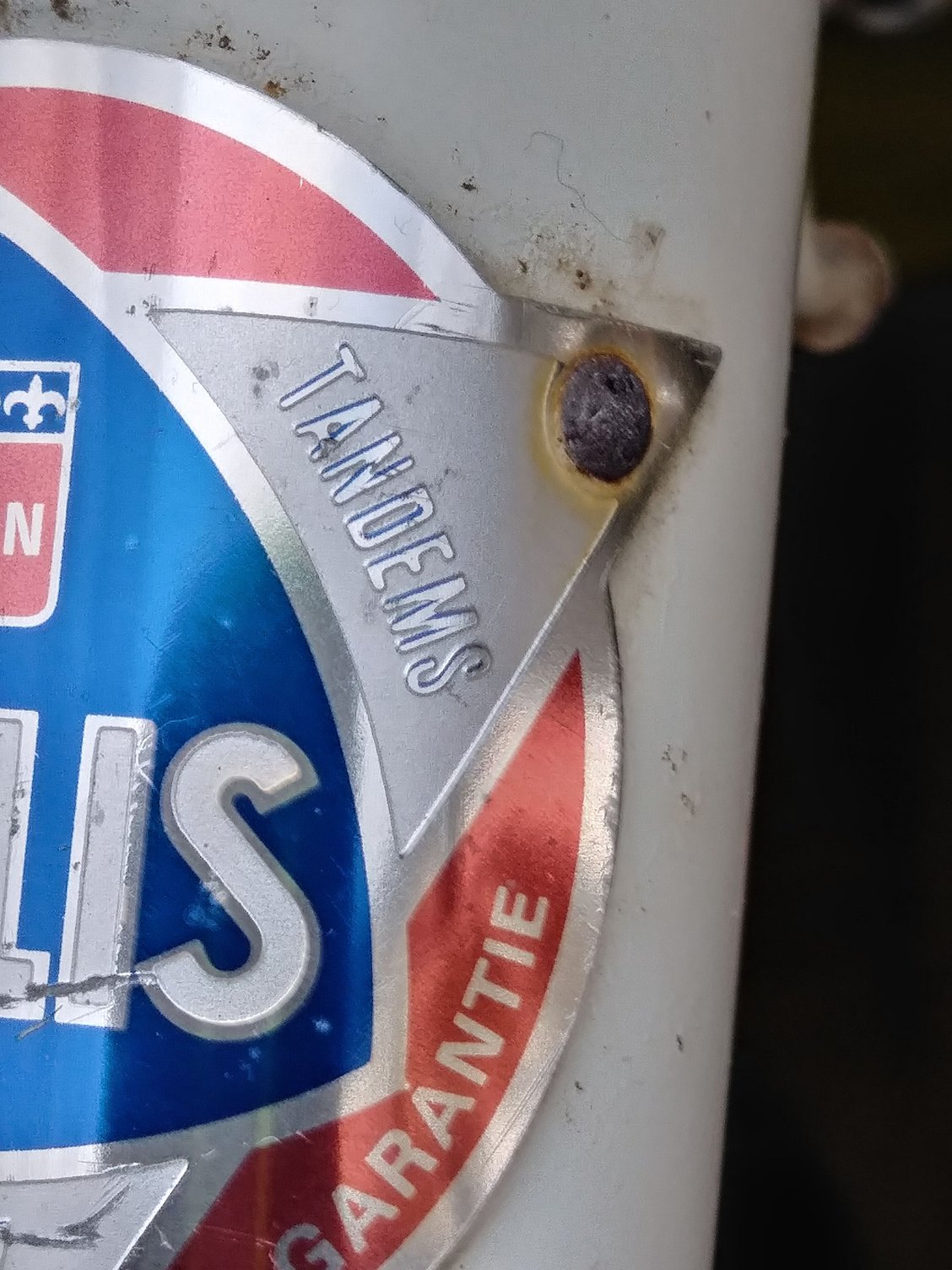

Dig the headbadge denoting 'tandem'.

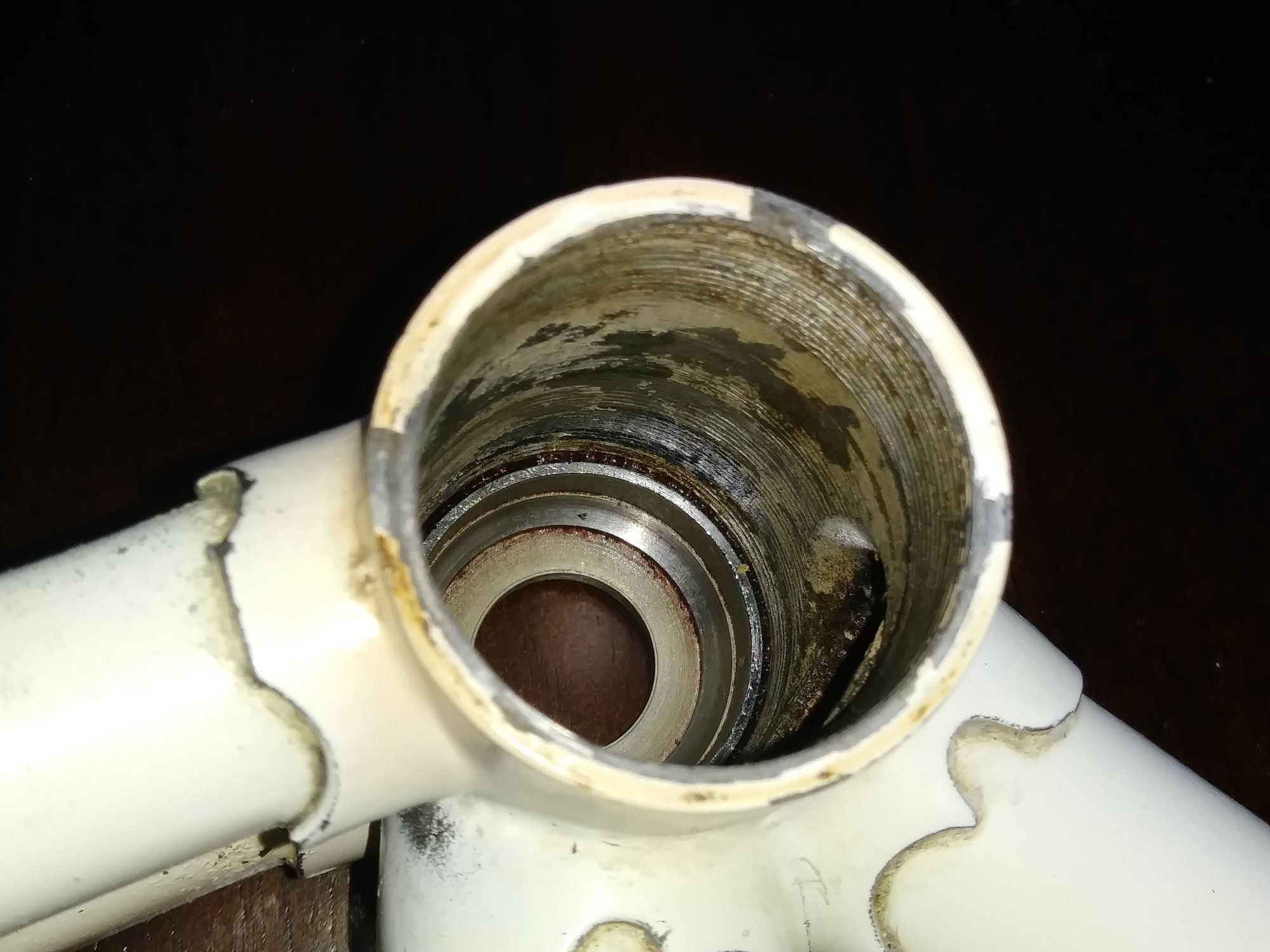

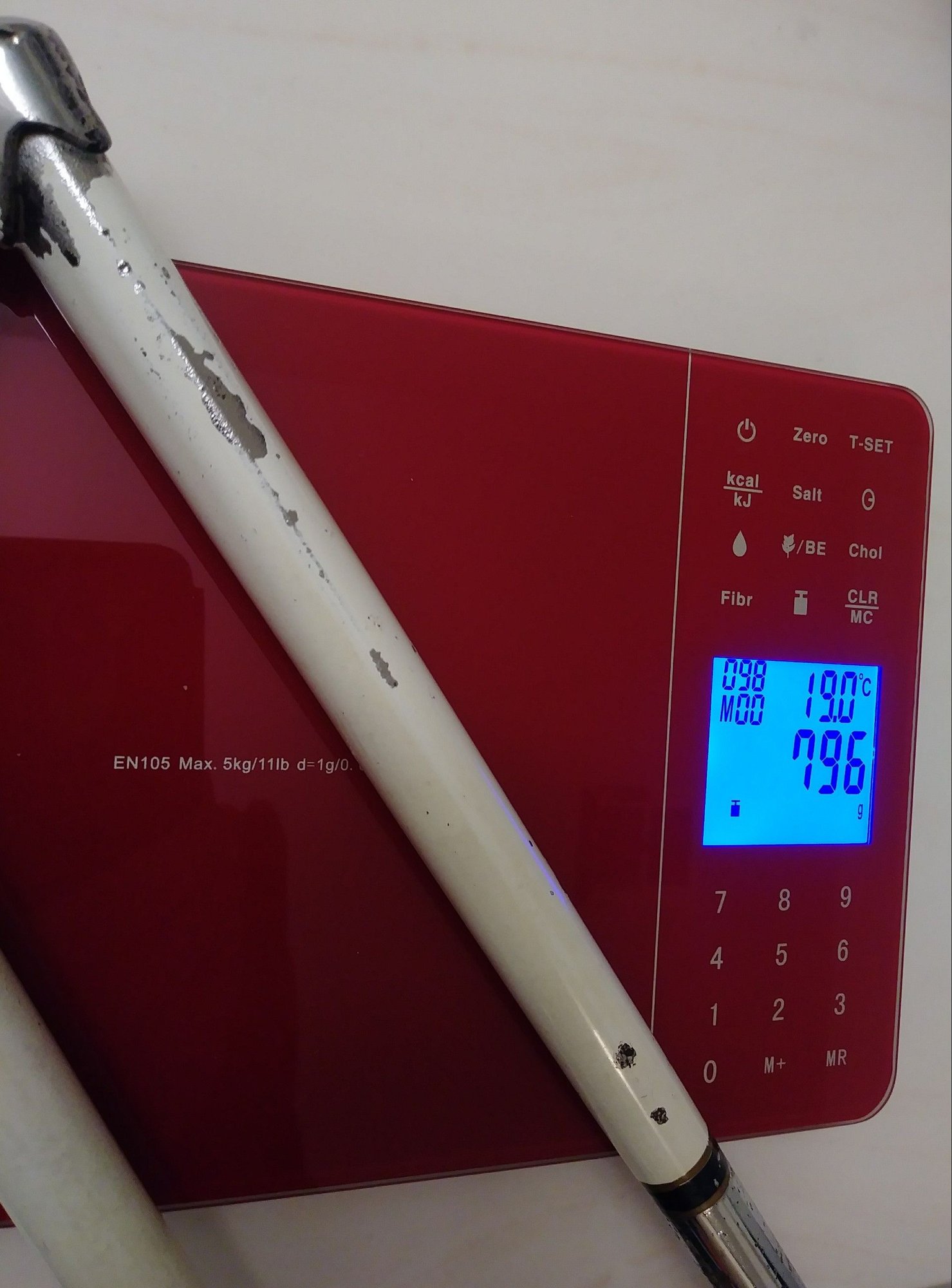

Inside of Pepe le Pew tubes are decent. Odd there's no gas vent holes or access to the seat stay tubes, so no way to spray protectant for the insides. I suppose could drill a small hole but will leave it for now. Frame structure is sound.


crank_addict is offline
Likes For crank_addict:
Old 02-20-20, 02:38 PM
  #44
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Not wanting to rethread the crank, these Atom pedals with the 'droit' threads arrived. They spin nice though will get a full service.



Last edited by crank_addict; 02-20-20 at 02:46 PM.
crank_addict is offline
Old 02-20-20, 06:27 PM
  #45
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,011

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1158 Post(s)
Liked 365 Times in 280 Posts
This started with a tubular tire purpose.....just goes to show that tubies are the devil "tubies rhyme with T and stand for Trouble, right here in C&V city"
__________________
Looking for more time to ride what I have
squirtdad is offline
Likes For squirtdad:
Old 02-20-20, 08:26 PM
  #46
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Originally Posted by squirtdad View Post
This started with a tubular tire purpose.....just goes to show that tubies are the devil "tubies rhyme with T and stand for Trouble, right here in C&V city"
Indeed!

The irony, er contrary is I'm planning to use Belgium made Weinmann concave 700c hookless clinchers. Situation awareness, we continue on...

Frame is spiffed enough with corrosion removed and coated inside and out. With chrome degraded in many areas, it wouldn't pay to redo but for a complete coverage of paint. I like and accept the way it is, looking forward to the next phase of component clean and service.

As if it matters.... call it a 6 plus pounder-

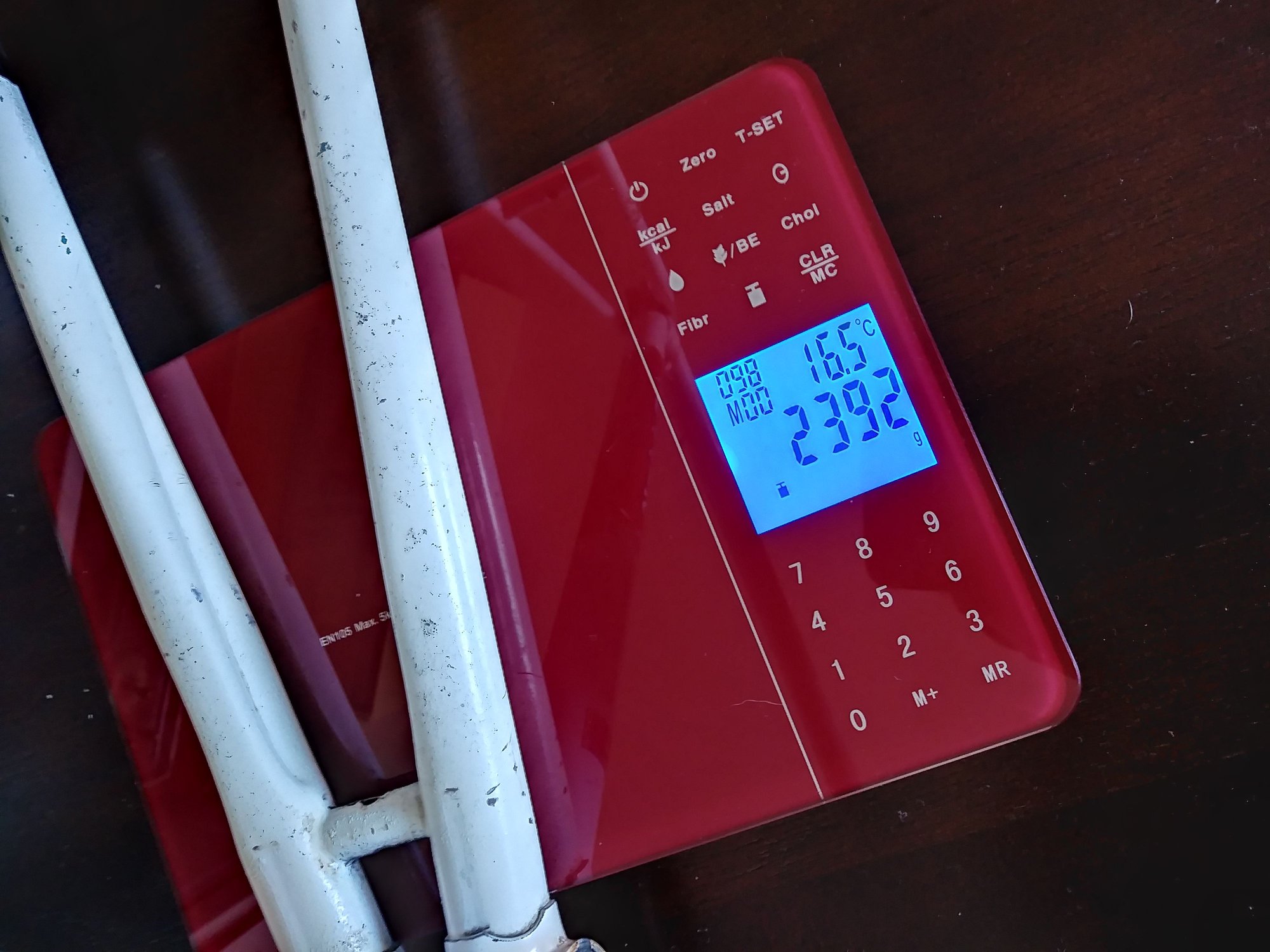

Follis 172 fork

Follis 172 frame
crank_addict is offline
Old 02-24-20, 02:37 PM
  #47
crank_addict
Senior Member
Thread Starter

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Not much to update other than the frame is ready for the build. When first seeing the exterior, I was concerned of corrosion on the insides, however its now really clean and oil fogged.


Last edited by crank_addict; 02-24-20 at 02:42 PM.
crank_addict is offline
Likes For crank_addict:
Old 02-24-20, 02:48 PM
  #48
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,549

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Liked 358 Times in 237 Posts
Night and day.
TenGrainBread is offline
Old 02-24-20, 04:25 PM
  #49
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,941

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 471 Post(s)
Tagged: 0 Thread(s)
Quoted: 6393 Post(s)
Liked 948 Times in 621 Posts
Originally Posted by TenGrainBread View Post
Night and day.
Seriously. I didn't know one could do this.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 02-24-20, 06:00 PM
  #50
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,015

Bikes: A bunch of old bikes and a few new ones

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 4518 Post(s)
Liked 807 Times in 573 Posts
A Follis is on the short list of bikes I'd like to own; this is a cool project.
bikemig is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
