Mystery Red Lugged Road Bike

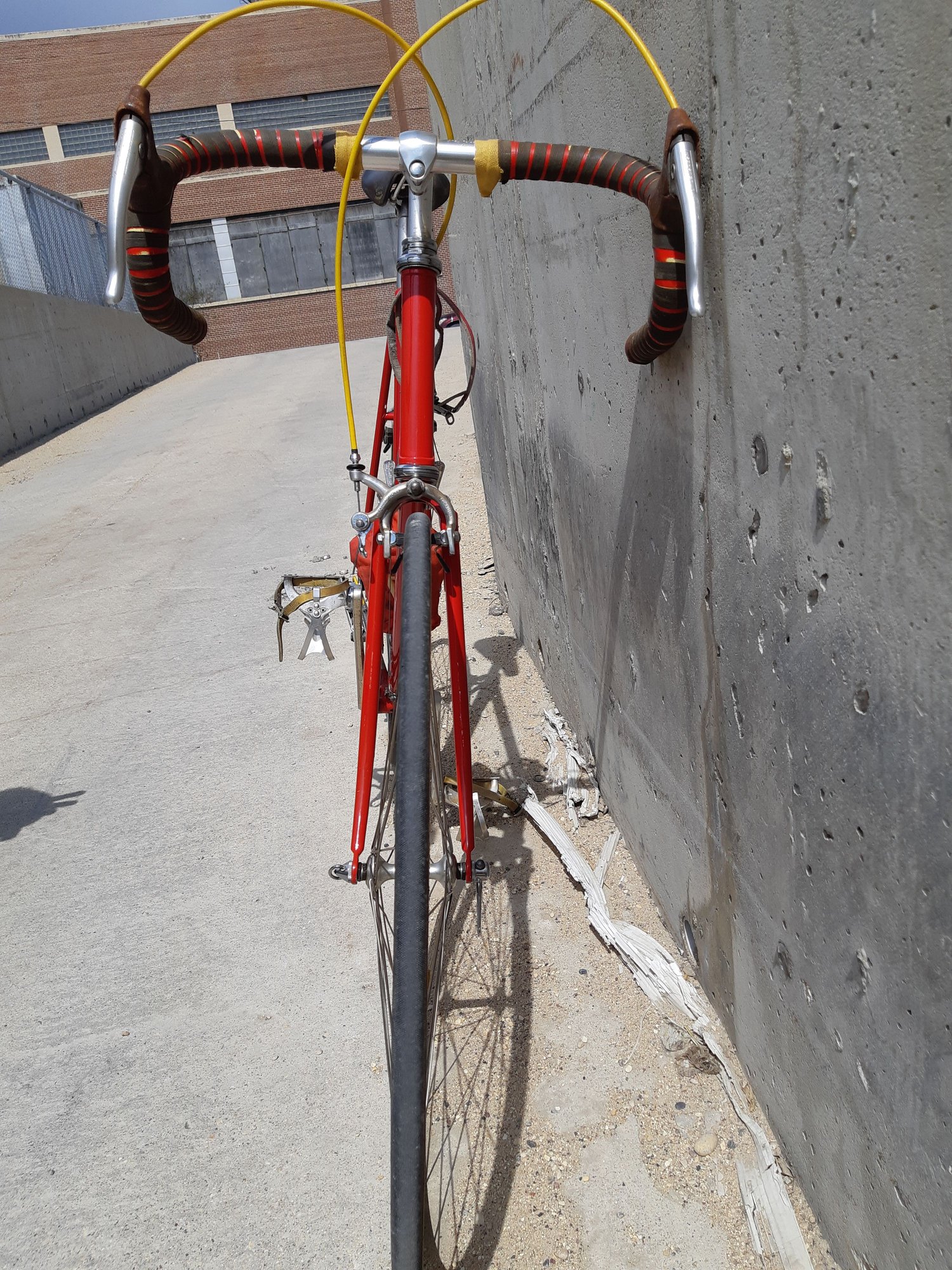

Hey all , this lovely bike got donated to our local bike co-op recently and we can not figure out what the heck it is! It's an interesting mash of parts (mostly Campy and Dura Ace) and looks like it's been repainted (though with some stickers applied afterwards) The "R" cutout in the BB should be a pretty big giveaway but my cursory searching has come up with nothing solid. I would guess it's from the 70's but I couldn't say for sure. I could post more photos if folks wanted , we're going to tear it down and give it a full repacking and cleaning before doing much else with it.

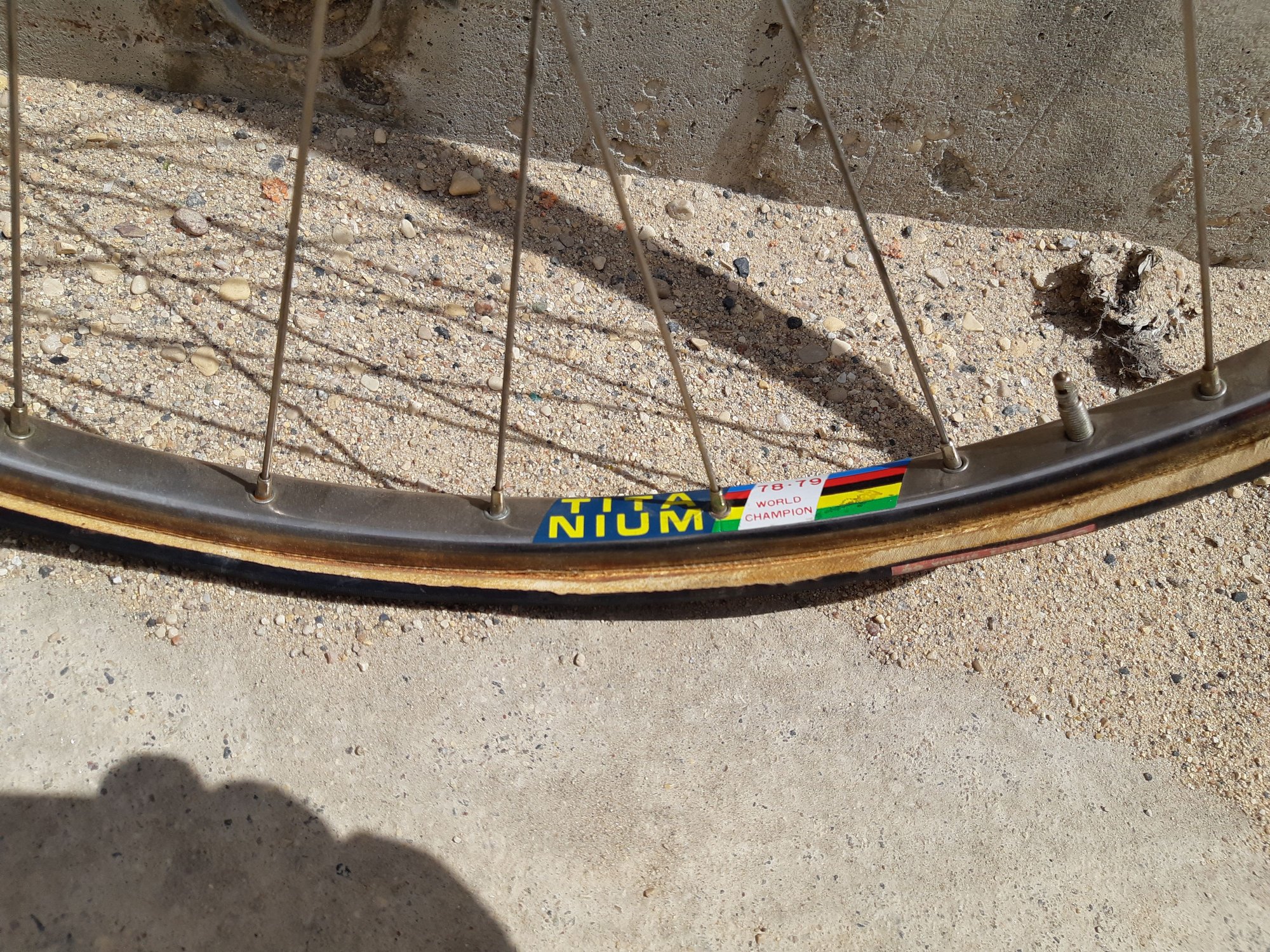

It also came along with a set of these wild titanium rim tubular wheels. Never seen these before.



sauze is offline
Old 10-01-19, 01:06 PM
  #2
Mountain Mitch
Senior Member

Mountain Mitch's Avatar

Join Date: Sep 2012
Location: Back-of-beyond, Kootenays, BC
Posts: 657

Bikes: Specialized Roubaix Expert Road and Specialized Stump Jumper FS Mountain; De Vinci Caribou touring, Intense Tracer T275c, Surly Moonlander, Cramerotti

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 37 Times in 23 Posts
I’m gonna go out on a limb here and guess a Japanese made Raleigh from the mid seventies.
Mountain Mitch is offline
Old 10-01-19, 01:20 PM
  #3
seypat
Senior Member

Join Date: Oct 2010
Posts: 4,892
Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 321 Times in 227 Posts
I can't help with the brand. Just wanted to say that visually, that bike is a stunna!
seypat is offline
Old 10-01-19, 01:26 PM
  #4
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,898
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 205 Times in 157 Posts
1060 Corsa dropouts out back, that could date to mid-70s IIRC

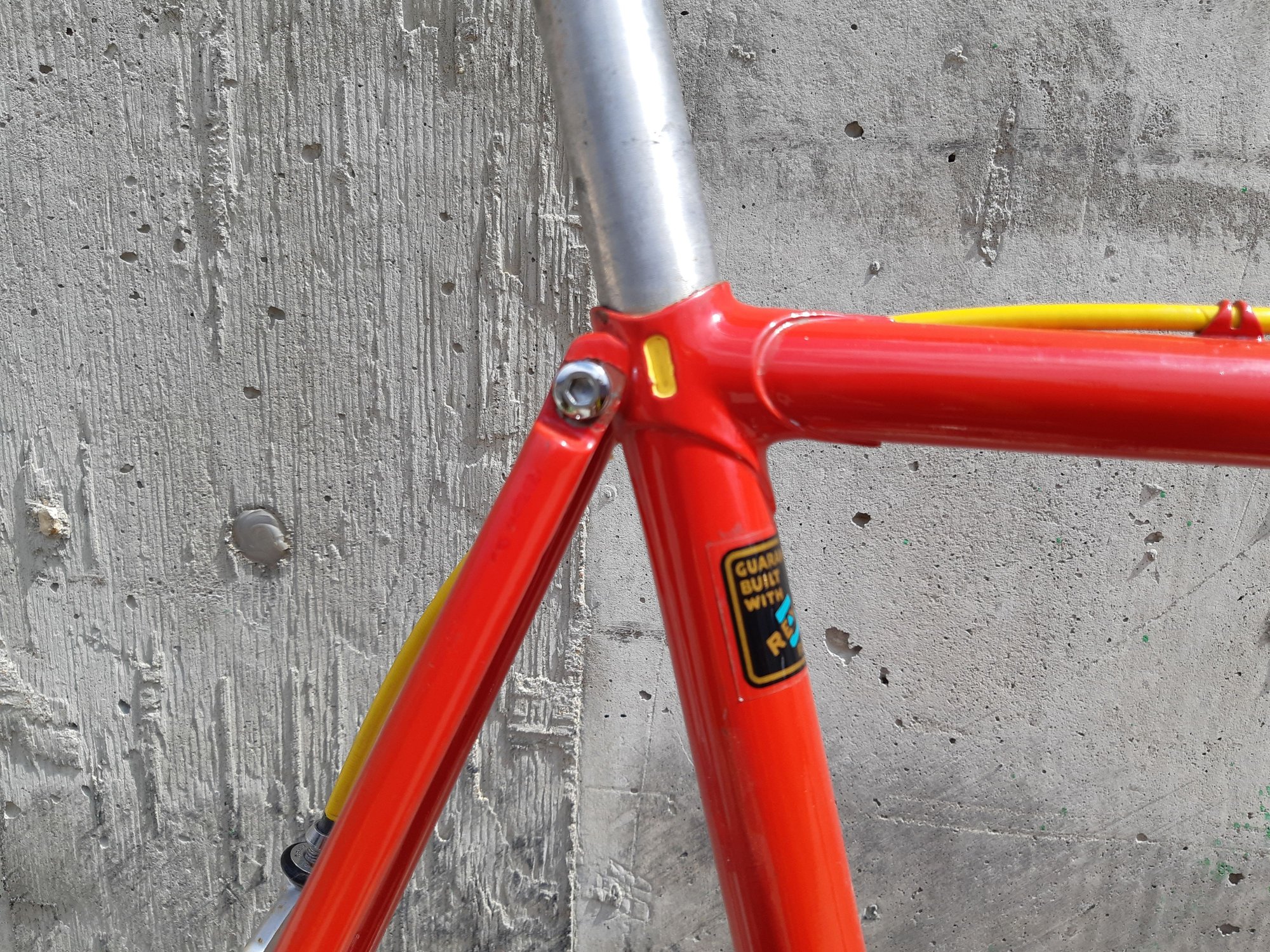

Seat stays at cluster reminds me of the treatment Cinelli, Toressini (thus Torpado, Italvega etc., right?) and others used on their 70s bikes.

Looks like maybe powdercoat, and way too thick. Cutout in BB doesn't ring a bell. Sad to see the BB guides shaved, the under-chainstay stop ignored, and someone used a clamp on chrome, wtf? (edit: Probably because BB guides are shaved, duh!)

Nice looking though. Any info on the BB or steer tube threading?

Could be really cool to have it stripped, fresh BB guides brazed on, and a repaint.

Last edited by francophile; 10-01-19 at 01:56 PM.
francophile is offline
Old 10-01-19, 01:29 PM
  #5
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,524

Bikes: Mostly English - predominantly Raleighs

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 98 Times in 75 Posts
Originally Posted by Mountain Mitch View Post
I’m gonna go out on a limb here and guess a Japanese made Raleigh from the mid seventies.
Not a chance. The "R" on the bottom bracket isn't the style of a Rossin either.

Raseza, perhaps? (that's a guess)
__________________
In search of what to search for.

Last edited by USAZorro; 10-01-19 at 01:41 PM.
USAZorro is offline
Old 10-01-19, 01:40 PM
  #6
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,744

Bikes: old school 531c & campy

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Liked 377 Times in 240 Posts
Originally Posted by sauze
I would guess it's from the 70's.

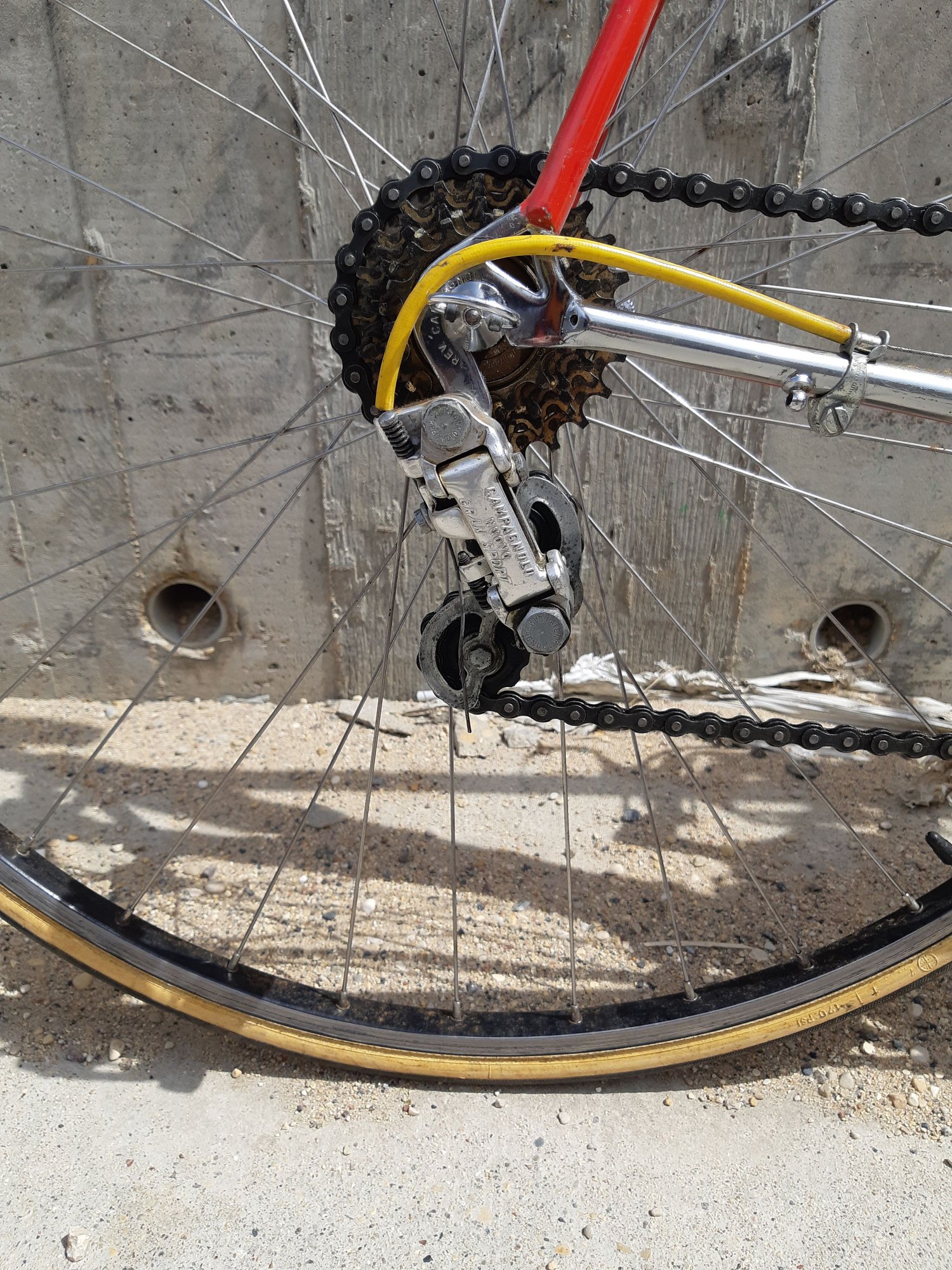

The 6-speed, two sets of bottle bosses, rear drops, and shifter bosses tell me mid '80s, at least.

But the nutted calipers say otherwise. The rear caliper mount and nut looks odd.
SurferRosa is offline
Old 10-01-19, 01:43 PM
  #7
seypat
Senior Member

Join Date: Oct 2010
Posts: 4,892
Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 321 Times in 227 Posts

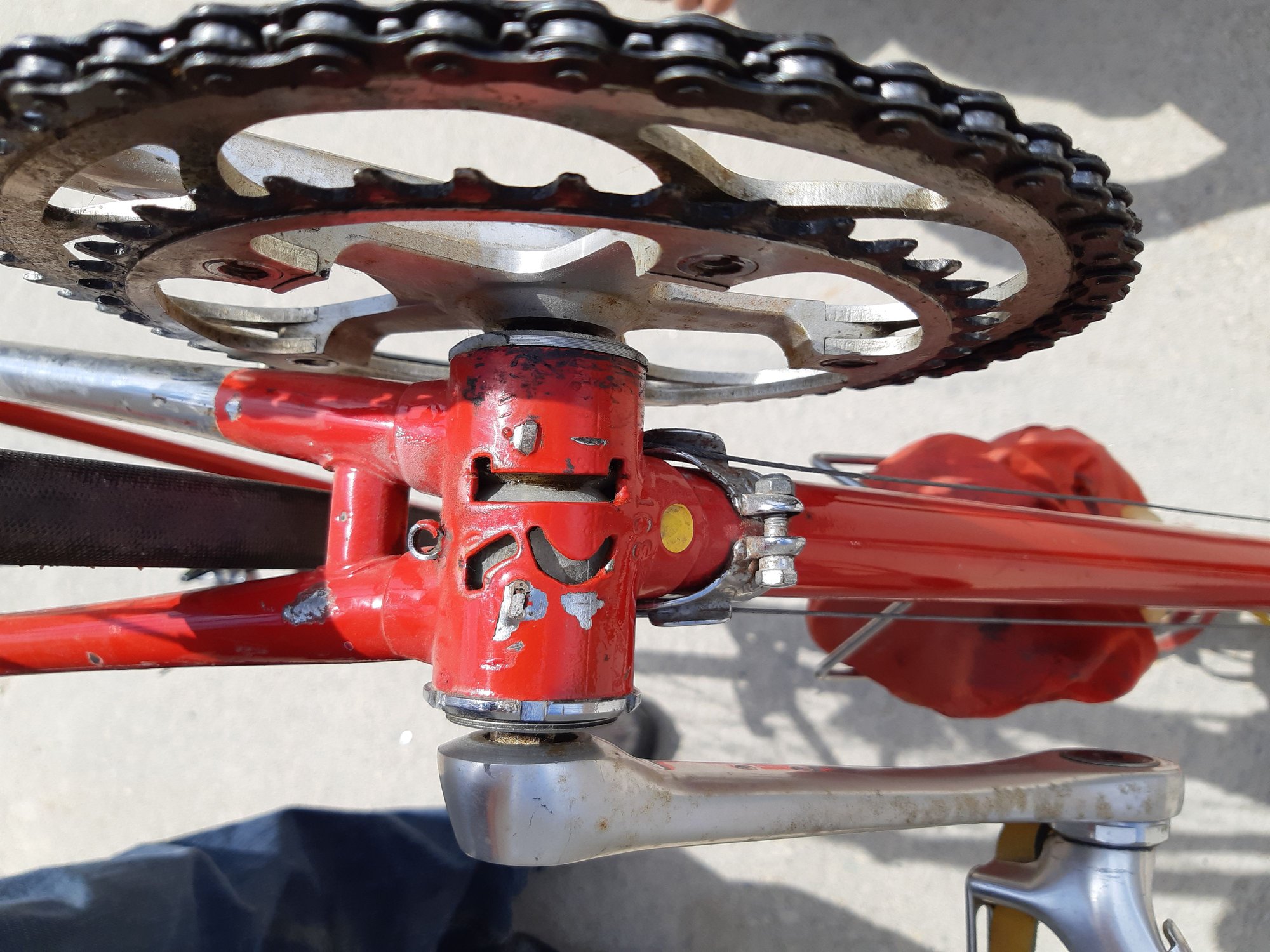

What is the round circle thing on the back of the BB shell? Is that a 3 digit serial # between the yellow dot and the R cutout?
seypat is offline
Old 10-01-19, 01:44 PM
  #8
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,898
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 205 Times in 157 Posts
Not Razesa, I've got one, different styling.

I'm thinking Raysport. And just to add to the mystery, check this. https://www.bikeforums.net/classic-v...elli-copy.html

Definitely a lot of Cinelli-esque elements here, but not a Cinelli either.
francophile is offline
Likes For francophile:
Old 10-01-19, 01:45 PM
  #9
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,898
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 205 Times in 157 Posts
Yup, it's a Raysport.

CC Bicycle Gallery: Jay Blankenbiller's 1975 Raysport Super Corsa

Same R on that one. Same elements too.

More info: http://www.cyclofiend.com/cc/2005/cc...port_info.html

"These are essentially a quite nice Cinelli Super Corsa copy from Mexico from about 1975, but with a tighter wheelbase, and vertical Campy rear dropouts. Very responsive but comfortable frames (steel is real!), no eyelets on the dropouts, not for wide tires, fenders, or 'touring.'"
francophile is offline
Likes For francophile:
Old 10-01-19, 01:50 PM
  #10
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,898
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 205 Times in 157 Posts
Last reply, I promise: CC Bicycle Gallery: Marcus Coles' RaySport
francophile is offline
Likes For francophile:
Old 10-01-19, 02:14 PM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,078

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1980 Post(s)
Liked 325 Times in 234 Posts
Originally Posted by SurferRosa View Post
The 6-speed, two sets of bottle bosses, rear drops, and shifter bosses tell me mid '80s, at least.
Braze-ons could have been added later. 6-cog freewheels have been available since the early 70s at least, and the Campagnolo 1060 dropouts since the 1960s. So it could be much earlier than 1980s.

The Cinelli-style seat lug is interesting, and consistent with Raysport, as mentioned above.
JohnDThompson is offline
Old 10-01-19, 02:18 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,078

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1980 Post(s)
Liked 325 Times in 234 Posts
Originally Posted by seypat View Post
What is the round circle thing on the back of the BB shell?

Cable guide for under the bottom bracket cable routing. The bare metal patches likely once had similar loops, perhaps drewed off to allow the bike to be used on a trainer.
JohnDThompson is offline
Old 10-01-19, 02:23 PM
  #13
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,744

Bikes: old school 531c & campy

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Liked 377 Times in 240 Posts
Originally Posted by JohnDThompson View Post
6-cog freewheels have been available since the early 70s.
I associate them with 126mm spacing.
SurferRosa is offline
Old 10-01-19, 02:29 PM
  #14
J.Higgins
aka NoControl

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 1,905

Bikes: Bilenky Tourlite, Peter Mooney

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 147 Times in 107 Posts
Originally Posted by francophile View Post
Yup, it's a Raysport.
Nailed it.

I was going to guess Roberts.
__________________
"I have never been lost, but I will admit to being confused for several weeks" -Daniel Boone

"You can't go back and change the beginning, but you can start where you are and change the ending" -C.S. Lewis

"Sobriety sucks." -Me
J.Higgins is offline
Old 10-01-19, 02:31 PM
  #15
seypat
Senior Member

Join Date: Oct 2010
Posts: 4,892
Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 321 Times in 227 Posts
Originally Posted by JohnDThompson View Post
Cable guide for under the bottom bracket cable routing. The bare metal patches likely once had similar loops, perhaps drewed off to allow the bike to be used on a trainer.
Thanks. That's a shame about the drewing.
seypat is offline
Old 10-01-19, 02:37 PM
  #16
seypat
Senior Member

Join Date: Oct 2010
Posts: 4,892
Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 321 Times in 227 Posts
Originally Posted by JohnDThompson View Post
Braze-ons could have been added later. 6-cog freewheels have been available since the early 70s at least, and the Campagnolo 1060 dropouts since the 1960s. So it could be much earlier than 1980s.

The Cinelli-style seat lug is interesting, and consistent with Raysport, as mentioned above.
I have a 72 Condor that the PO sent back to their shop in the mid 80's for some modernizing. The modernizing included rear DOs to 130, cable guides and shifter bosses. They also repainted/decaled, then sent it back. It is hard to nail down a bike's past.
seypat is offline
Old 10-01-19, 02:41 PM
  #17
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 4,950

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Likes: 0
Liked 94 Times in 62 Posts
To be specific, it is a later production Raysport Super Corsa. Earlier production had 1010 dropouts. It would originally have had chrome lugs. IIRC, they are chrome plated but the chain stay was not exposed chrome.

Example of a NOS frame below.


P2221599 by L Travers, on Flickr


P2221601 by L Travers, on Flickr


P2221597 by L Travers, on Flickr
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 10-01-19, 07:25 PM
  #18
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,179

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 50 Times in 36 Posts
The front derailleur cable guide looks to be snapped off, as opposed to shaved off.

The rear was deliberately removed.

Once either was damaged, the clamp-on guide bracket became a necessity.
Bad Lag is offline
Old 10-01-19, 08:20 PM
  #19
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,898
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 205 Times in 157 Posts
@CV-6 you and others may enjoy this. Someone was fortunate enough to be able to do a very explicit side-by-side of the Cinelli vs. Raysport. I found this actually really damn intriguing. If I had the choice, based on the features alone and being completely honest, I would've chosen the Raysport over the Cinelli.

Velo Classics: Cinelli vs. Raysport
francophile is offline
Old 10-01-19, 08:36 PM
  #20
sauze
Senior Member
Thread Starter

sauze's Avatar

Join Date: May 2010
Location: Winnipeg
Posts: 949
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks so much for the links and info everyone! Raysport is totally it , I'll make sure I take some more pictures when it's all cleaned up / ready to ride!
sauze is offline
Likes For sauze:
Old 10-01-19, 08:50 PM
  #21
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 4,950

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Likes: 0
Liked 94 Times in 62 Posts
Originally Posted by francophile View Post
@CV-6 you and others may enjoy this. Someone was fortunate enough to be able to do a very explicit side-by-side of the Cinelli vs. Raysport. I found this actually really damn intriguing. If I had the choice, based on the features alone and being completely honest, I would've chosen the Raysport over the Cinelli.

Velo Classics: Cinelli vs. Raysport
I am familiar with it. I think he has a similar entry with Windsor and Cinelli. Or maybe all three. EDIT: Just looked at it again and saw he is comparing a Criterium model as opposed to a Super Corsa.

I bought my Raysport because of the St Louis connection. They also had a Turismo, Criterium, and Strada model. One SC was made into a pista. You really don't see the others much. IIRC, the Strada was a Masi copy. I do like th ride of my Raysport and should really ride it more. Too many choices. As my son, says, "First World problem"

We do have a member who has examples of the others.....

OP. Nice find. Enjoy.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos


Last edited by CV-6; 10-01-19 at 09:02 PM.
CV-6 is offline
Old 10-01-19, 09:32 PM
  #22
Nemosengineer
Hair Ball

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 270

Bikes: Teledyne Titan, Bob Jackson World Tour, AlAn Record Ergal, 3Rensho Katana.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 124 Times in 69 Posts
Originally Posted by sauze View Post
Hey all , this lovely bike got donated to our local bike co-op recently and we can not figure out what the heck it is! It's an interesting mash of parts (mostly Campy and Dura Ace) <SNIP>

It also came along with a set of these wild titanium rim tubular wheels. Never seen these before.




I have seen those rims before... Araia TITAACE, On a national champions 3-Rensho track bike, You have struck C&V GOLD!!! Those rims go for about $600 EACH on Ebay, worth even more as a set, also that wheel in your photo may have titanium spokes as they appear identical to the titanium spokes on the 3-Rensho. Unbelievably rare.








: Mike

Last edited by Nemosengineer; 10-01-19 at 09:53 PM.
Nemosengineer is offline
Likes For Nemosengineer:
Old 10-02-19, 09:44 AM
  #23
Mountain Mitch
Senior Member

Mountain Mitch's Avatar

Join Date: Sep 2012
Location: Back-of-beyond, Kootenays, BC
Posts: 657

Bikes: Specialized Roubaix Expert Road and Specialized Stump Jumper FS Mountain; De Vinci Caribou touring, Intense Tracer T275c, Surly Moonlander, Cramerotti

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 37 Times in 23 Posts
I hate to bring up mere practical considerations but it seems to me that the cutaway R in the BB shell would allow dirt easy access to the BB.
Mountain Mitch is offline
Old 10-02-19, 10:15 AM
  #24
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,264

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1516 Post(s)
Liked 410 Times in 297 Posts
Originally Posted by Mountain Mitch View Post
I hate to bring up mere practical considerations but it seems to me that the cutaway R in the BB shell would allow dirt easy access to the BB.
That's what BB sleeves are for.

merziac is online now
Likes For merziac:
Old 10-02-19, 02:16 PM
  #25
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,867
Mentioned: 252 Post(s)
Tagged: 1 Thread(s)
Quoted: 1901 Post(s)
Liked 171 Times in 151 Posts
Originally Posted by SurferRosa View Post
I associate them with 126mm spacing.
-----

By the mid-'70's Maeda was offering narrow six blocks; i.e. six in the space of five.

So riders with 120mm spaced frames could pilot machines with twelve or eighteen speed drive trains.


-----
juvela is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
