Campy Chorus Brakes

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Campy Chorus Brakes

Old 05-12-18, 08:33 AM
  #1
Suntour1985
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Mid New Jersey
Posts: 9

Bikes: 1972 Peugeot PX10, 1984 Perfromance Superbe Pro, Assenmacher Custom frame w/ Superbe Pro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Campy Chorus Brakes

Hi. I am looking to add Campy components to a custom Assenmacher frame from the 90's. I was wondering if there is a big difference in the performance of dual pivot brakes over non dual pivots. I love the look of the original Campy Chorus brakes, not crazy about the later versions. I currently have later Superbe Pro so I would assume the non dual pivot Campys would comparable. Any opinions? Thanks.
Suntour1985 is offline
Old 05-12-18, 11:13 AM
  #2
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,627

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 363 Post(s)
Liked 100 Times in 75 Posts
Hoo, boy! This will open a lively discussion.

I believe that dual pivot brakes are a fantastic and very welcome improvement over even the best single pivots, and I’ve had excellent Suntour Superbe calipers decades ago. First time I tried dual pivots I was inadvertently locking up the brakes, while on the hoods. That would have been unheard of with single pivots. That isn’t to say that dual pivots are overly sensitive, just noticeably more powerful, IMHO, of course.

The other big improvements in road bike braking:
Aero levers - the benefit is that the cable routing in the lever improves the mechanical advantage
Good brake pads - I’m a huge fan of Kool Stop pads in the salmon compound, and they’re easy to swap with the modern insert-type pad holders. There was a recent thread about “Best Brake Pads”.
lined cable housings - reduces friction and doesn’t need any lube that can attract contaminants

One thing to note about Campy dual pivots - they rely on the quick release at the brake lever, so there isn’t one at the caliper.

Last edited by Dfrost; 05-12-18 at 11:23 AM.
Dfrost is offline
Old 05-12-18, 03:00 PM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,961

Bikes: Too many to list here check my signature.

Mentioned: 136 Post(s)
Tagged: 2 Thread(s)
Quoted: 1783 Post(s)
Liked 588 Times in 360 Posts
I am not crazy about daul pivots (PD) brakes. I had ev3en taken them off a bike and put those lovely Chorus brakes on it. The DPs will certainly stop you 'on a dime' as they say but I ride fast enough to need to stop that fast. I think properly set up, clean and with good pads the Chorus Monoplanor brakes are the best looking and working brake
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 05-12-18, 05:49 PM
  #4
kunsunoke
spondylitis.org

kunsunoke's Avatar

Join Date: Mar 2013
Location: Fleetwood, PA, USA
Posts: 890

Bikes: '90 Bridgestone MB-1; '85 Trek 600; '01 Cinelli Supercorsa; '89 Bridgestone RADAC 3100; '87 Tommasini Super Prestige; '13 Lynskey R2300; '84 Serotta Nova Special

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 30 Times in 22 Posts
Light action dual pivots are pretty good with brifters or sprung light-action aero levers. Got the Chorus brakes on one bike and they don't work significantly differently from Shimano's dual pivot offerings.

Advantages of dual-pivot brakes are ease of tuning and adjustment. Old-school brakes require more tuning and may flex more, but set up with proper pads and proper toe-in they work just as well. More force at the lever is the obvious disadvantage.
kunsunoke is offline
Old 05-13-18, 07:12 AM
  #5
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,425

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 74 Times in 59 Posts
Originally Posted by Bianchigirll View Post
I think properly set up, clean and with good pads the Chorus Monoplaner brakes are the best looking and working brake
I agree with this and have arthritis in my hands making excessive force an issue if it is needed.
easyupbug is offline
Old 05-13-18, 08:11 AM
  #6
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,278

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2070 Post(s)
Liked 427 Times in 287 Posts
I greatly prefer dual pivot brakes.

Actually, I love cantilevers more.

When I did up my Trek 400 Elance, I put a dual pivot on the front and a single pivot in the rear. Just cuz I thought it was adorable.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-13-18, 02:35 PM
  #7
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 1,986
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Likes: 0
Liked 108 Times in 73 Posts
I've owned the Chorus Monoplanar brakes, and about every other Campagnolo and Shimano brake going back to the 70s.

The old Chorus brakes are inferior in every respect to a set of dual-pivot brakes, regardless of the vintage or manufacturer. The best single pivots (Dura-Ace 7402) are inferior to any duals: they have roughly 25% less stopping power (with the same cables/housings and pads) and they do not self-center. An added negative with the Monoplanars is I cannot figure out how to take the slop out of them when the washers (invariably) wear. I have taken apart and successfully reassembled/tuned every road brake made over the last 30 years, but these stump me.

Best dual-pivots: Dura-Ace 7403. These are old enough to perhaps classify as vintage. When you disassemble these for servicing, be careful about unleashing a shower of small balls in the 2 thrust bearings.
Dave Mayer is offline
Likes For Dave Mayer:
Old 05-13-18, 03:53 PM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,759

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2262 Post(s)
Liked 660 Times in 444 Posts
Dual pivot calipers have more mechanical advantage than single pivot side-pull calipers, so they require less hand strength to stop. If you're accustomed to dual pivot calipers and ride a bike with single pivot side-pulls, the increased force needed may be disconcerting. But if you're accustomed to using single pivot side-pulls, they're not a problem. Most of us who were riding in the period before dual pivot calipers became popular managed to live long enough to reproduce, after all.
JohnDThompson is online now
Old 05-13-18, 04:02 PM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,200
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Likes: 0
Liked 154 Times in 119 Posts
I have single pivots on my bikes (with a couple of Deltas), no dual pivots......and I'm alive and kicking.....
Sure, the dual pivots are stronger brakes, but us single pivot troglodytes manage quite well....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 05-13-18, 06:59 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,726
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1452 Post(s)
Liked 395 Times in 313 Posts
My son's bike has Chorus Monoplaner calipers. I am impressed by them. I rate them between the ubiquitous Campagnolo Record single pivot caliper and their later dual pivots. I appreciate the lighter force required with the dual pivots. I have set up one otherwise Classic Super Record equipped bike with dual pivots, there is an issue with opening up the caliper to exchange wheels, the dual pivots have no integral quick release. The Campagnolo eccentric cam was a terrific design.
repechage is offline
Old 05-13-18, 10:27 PM
  #11
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,200
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Likes: 0
Liked 154 Times in 119 Posts
Originally Posted by repechage View Post
My son's bike has Chorus Monoplaner calipers. I am impressed by them. I rate them between the ubiquitous Campagnolo Record single pivot caliper and their later dual pivots. I appreciate the lighter force required with the dual pivots. I have set up one otherwise Classic Super Record equipped bike with dual pivots, there is an issue with opening up the caliper to exchange wheels, the dual pivots have no integral quick release. The Campagnolo eccentric cam was a terrific design.
I do miss the eccentric cam quick release that 's not present on my later 80's Campy brakesets, that include Chorus Monoplanars. I found it a bit ironic that Campy resorted to lever mounted QR's on them when I thought that approach to caliper QR's died with the old Weinmanns....
Those teenie tiny QR buttons on the Campy levers are not the easiest to deal with when you are in a hurry and have sweat all over you hands....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 05-14-18, 01:39 AM
  #12
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,595
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2146 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Dual pivots work better - I ride both and the difference is pretty obvious. The most powerful Campy single pivot break is the original Athena, because it is so stiff. But the Chorus worked pretty well, too. If you want to use old Chorus they will work fine, just not as well as dual pivots.
Kontact is offline
Old 05-14-18, 10:14 PM
  #13
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,627

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 363 Post(s)
Liked 100 Times in 75 Posts
I’ve come up with a theory relating to single-pivot versus dual pivot preferences:

If you typically ride in the drops, then single pivots are more likely to be “just fine” since they tend to operate pretty well from this position.

But if you’re more of an “on the hoods” rider, then the improved mechanical advantage of dual pivots will be very welcome.

We can probably agree that brake pads and cables/housings are much better now, and benefit just about any caliper design.
Dfrost is offline
Old 05-15-18, 07:37 AM
  #14
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,385
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1431 Post(s)
Liked 278 Times in 191 Posts
Originally Posted by Bianchigirll View Post
I am not crazy about daul pivots (PD) brakes. I had ev3en taken them off a bike and put those lovely Chorus brakes on it. The DPs will certainly stop you 'on a dime' as they say but I ride fast enough to need to stop that fast. I think properly set up, clean and with good pads the Chorus Monoplanor brakes are the best looking and working brake
It's funny how people can see things so differently. I had always thought the Monoplaners had a rather "Bulbous" look about them. I took them off my Cinelli and replaced them with the dual pull Record Ti series. What a difference. They look better stop much better and are a full 50 grams lighter. Something to be said for progress.
Wileyone is offline
Old 05-15-18, 08:27 AM
  #15
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,200
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Likes: 0
Liked 154 Times in 119 Posts
Originally Posted by Wileyone View Post
It's funny how people can see things so differently. I had always thought the Monoplaners had a rather "Bulbous" look about them. I took them off my Cinelli and replaced them with the dual pull Record Ti series. What a difference. They look better stop much better and are a full 50 grams lighter. Something to be said for progress.
You might be mistaking the later Athena calipers for the Chorus, The Athena looks similar, but has chunkier looking caliper arms. that does look a bit bulbous. the Chorus on the other hand looks just right, combine that with the cool Monolanar design and the unique cantenary arch shape that the two arms form and it is one of the he nicest looking sidepull brakeset that Campy came out with in the 80's.

__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 05-15-18, 09:21 AM
  #16
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,385
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1431 Post(s)
Liked 278 Times in 191 Posts
Nope those are the ones...
Wileyone is offline
Old 05-15-18, 09:58 AM
  #17
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,200
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Likes: 0
Liked 154 Times in 119 Posts
Originally Posted by Wileyone View Post
Nope those are the ones...
If you still have them I'll be glad to get them off your hands as I'm currently building up another 1st gen Chorus Gruppo...
Chombi1 is offline
Old 05-15-18, 10:33 AM
  #18
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,385
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1431 Post(s)
Liked 278 Times in 191 Posts
Originally Posted by Chombi1 View Post
If you still have them I'll be glad to get them off your hands as I'm currently building up another 1st gen Chorus Gruppo...
No sorry they have been traded off.
Wileyone is offline
Old 03-02-20, 03:36 AM
  #19
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,099
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 507 Post(s)
Liked 417 Times in 267 Posts
Jumping in here.

How do you know if a bike is C&V? It will have a small area of paint missing where the front brake has collided with the down tube.

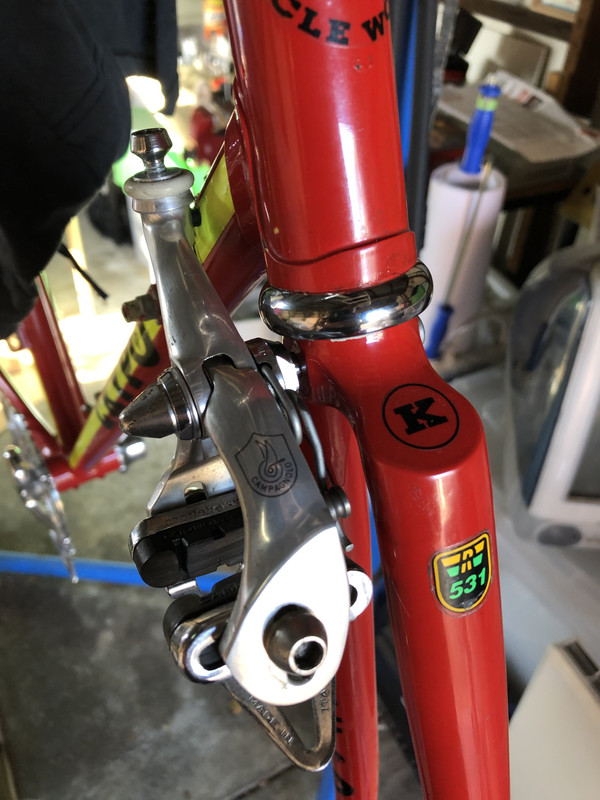

I was cleaning up some (2nd gen?) Chorus Monoplaner brakes today and noticed the front brake has a small rubber stop on one of the cable arms to prevent damage to the down tube should the fork rotate too far.

Was this on all 2nd gen Chorus brakes or has someone added it? My 1st gen Monoplaners (with the slimmer arms) don’t have it.

Neat detail.




Last edited by P!N20; 03-02-20 at 05:02 AM.
P!N20 is offline
Old 03-02-20, 12:32 PM
  #20
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,144

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 313 Times in 208 Posts
Bianchigirll , repechage , Chombi1 , P!N20 - What brake mounts and pads do you use? EDIT: Never mind! found the other thread with the answers

I like them too. They appear to almost blend in.
P1010581, on Flickr
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 03-02-20 at 12:52 PM.
SJX426 is offline
Old 03-02-20, 02:06 PM
  #21
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,793

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 543 Post(s)
Liked 168 Times in 99 Posts
Originally Posted by P!N20 View Post
Jumping in here.

How do you know if a bike is C&V? It will have a small area of paint missing where the front brake has collided with the down tube.

I was cleaning up some (2nd gen?) Chorus Monoplaner brakes today and noticed the front brake has a small rubber stop on one of the cable arms to prevent damage to the down tube should the fork rotate too far.

Was this on all 2nd gen Chorus brakes or has someone added it? My 1st gen Monoplaners (with the slimmer arms) don’t have it.

Neat detail.



My 1974 Campy Record brakes also have that stop. It protects against mild bumps, but smack the brake into the downtube hard enough and it'll damage the paint and possibly put a dent in the tube.
davester is offline
Old 03-02-20, 06:04 PM
  #22
retrodude
Senior Member

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 90

Bikes: 1984 & 1990 Marinoni Specials - 2008 Kona Dogma - 1976 Schwinn Suburban

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 68 Times in 25 Posts
I've only ever ridden single pivot calipers (regularly). I've ridden dual pivot enough to not have a reason to switch. I like my vintage bikes vintage and currently ride Triomphe (which look right with my Super record group bike) and Delta calipers. My 1st generation Chorus calipers are resting on a shelf for now but they are all I used for 30 years. I find the Triomphe and Delta's perform much the same. Using modern Kool Stop rubber and set up properly I have no reason to ever want better braking.
retrodude is offline
Old 03-02-20, 06:31 PM
  #23
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,726
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1452 Post(s)
Liked 395 Times in 313 Posts
Originally Posted by davester View Post
My 1974 Campy Record brakes also have that stop. It protects against mild bumps, but smack the brake into the downtube hard enough and it'll damage the paint and possibly put a dent in the tube.
the little bump pad was a feature starting on the short reach front caliper.
I saw in 1974 a DeRosa that had these then rare unobtanium calipers. The interesting item was the adjuster wheel was like used on the G.S. Calipers later- save the central part chrome, not Cad plated. Did not work well.
there obviously was a fast production change back to the Record O ring style.
the little bump pad remained on the short reach front caliper though, but it is prone to vanishing.

that was a very cool DeRosa- full Panto- $950. Which at the time was outrageous. But if you wanted to be like Eddy...

I am surprised by the durability of this thread.
my son still likes his Monoplaners. His next bike will not have them- the reach is too big.
will move to a dual pivot front by Tekro and a Campagnolo Record with a drop bolt rear most likely. He still locks up the rear too often. As I write, maybe a set of Weinmann centerpulls...
with mod pads and holders.
He needs a calm and stable bike so a 1950’s Italian road bike should fill the bill. With index shifting. I bought a terrific bike for cheap but it is too agile for him.
a good excuse to paint it like his favorite steam locomotive. A GS-4 class in Daylight colors.
repechage is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
SamSpade1941
Classic & Vintage
58
08-02-17 04:36 PM
curbowman
Classic & Vintage
24
01-15-17 11:15 AM
Narhay
Classic & Vintage
16
08-05-15 11:49 AM
EBH
Classic & Vintage
4
10-24-13 01:58 PM
minority
Classic & Vintage
2
01-12-10 05:43 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
