Claw Rear Derailleur Sliding

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Claw Rear Derailleur Sliding

Old 09-24-17, 06:20 PM
  #1
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Claw Rear Derailleur Sliding

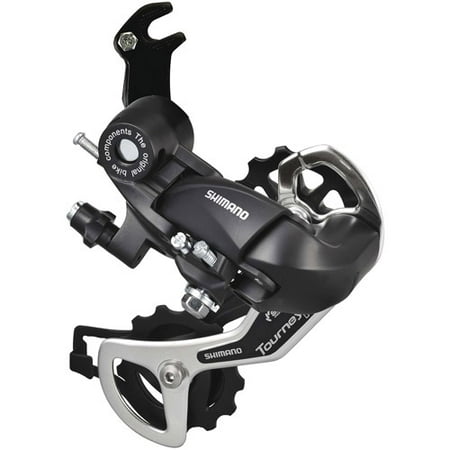

Working on a Fuji Odessa Mountain Bike. Tried installing claw derailleur in more than 1 position on dropout. Maybe the closest to success was when I pinned in about the same way the dropout opens up. But, even in that position, when I tried to change gears the derailleur turned upward and turned about 180 degrees, hitting the cassette. Please advise.
eric044 is offline
Old 09-24-17, 06:31 PM
  #2
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Will look for a B screw and these new (to me) methods of setting H and L.
eric044 is offline
Old 09-24-17, 07:48 PM
  #3
maddog34
Senior Member

maddog34's Avatar

Join Date: Jul 2015
Location: NW Oregon
Posts: 1,373

Bikes: !981 Trek 930R Custom, Diamondback ascent with SERIOUS updates, and a trek 6700 with updates

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 1 Time in 1 Post
from the info i found online... your frame SHOULD have a Derailleur hanger that is separate from the aluminum frame, and then a direct mount rear derailleur attaches to that hanger with a large shouldered allen bolt... it sounds like you are trying to mount a derailleur with a built in hanger on it("claw")... you will need to post a pic of what you are referring to for any of us to be able to accurately answer your question... i'm presently dealing with a similar "repair" of a mongoose xr100 MTB... and in my caser, someone not only installed a "claw" der., but they also used a ROAD derailler that simply won't work on an MTB.... sigh... swapping on a tourney der....
maddog34 is offline
Old 09-24-17, 07:55 PM
  #4
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by maddog34 View Post
from the info i found online... your frame SHOULD have a Derailleur hanger that is separate from the aluminum frame, and then a direct mount rear derailleur attaches to that hanger with a large shouldered allen bolt... it sounds like you are trying to mount a derailleur with a built in hanger on it("claw")... you will need to post a pic of what you are referring to for any of us to be able to accurately answer your question... i'm presently dealing with a similar "repair" of a mongoose xr100 MTB... and in my caser, someone not only installed a "claw" der., but they also used a ROAD derailler that simply won't work on an MTB.... sigh... swapping on a tourney der....


Hanger looks the same. Mine is older, maybe a bit different.
eric044 is offline
Old 09-24-17, 08:41 PM
  #5
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,630

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Liked 443 Times in 316 Posts
Not sure what you mean by more than one position. That bolt on top either threads into the frame or catches an insert that goes into the drop. It should pretty much lock in when it's tightened down
curbtender is offline
Old 09-24-17, 09:22 PM
  #6
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by curbtender View Post
Not sure what you mean by more than one position. That bolt on top either threads into the frame or catches an insert that goes into the drop. It should pretty much lock in when it's tightened down
Doesn't seem to reach any hole near the dropout. Had it off to the side recently and was shifting okay. Only took it off the dropout to try to change wheel position (wheel was drifting to left). Maybe I need a different derailleur.
eric044 is offline
Old 09-24-17, 09:49 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,293

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Liked 978 Times in 662 Posts
You need the nut that fits in the axle slot. REAR DERAILLEUR HANGER ADAPTOR CLAW FOR MOST DERAILLEUR TYPES, SHIMANO, SRAM | eBay

or you're missing #27 https://wheelsmfg.com/derailleur-hang...rers/fuji.html
Attached Images
File Type: jpg
dedhed is offline
Old 09-24-17, 09:57 PM
  #8
maddog34
Senior Member

maddog34's Avatar

Join Date: Jul 2015
Location: NW Oregon
Posts: 1,373

Bikes: !981 Trek 930R Custom, Diamondback ascent with SERIOUS updates, and a trek 6700 with updates

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by curbtender View Post
Not sure what you mean by more than one position. That bolt on top either threads into the frame or catches an insert that goes into the drop. It should pretty much lock in when it's tightened down
that style frame has vertical dropouts, as far as we know, so far.... the "claw" type hanger/der. won't work... the bike i just finished had a similar issue... the axle would not seat in all the way... wheel was cock eyed because of that mismatch.

once again... aluminum frames typically have replaceable der. hangers... waiting to see a pic of the OP's bike....

Eric... are the dropouts VERTICAL, or HORIZONTAL on your frame?
maddog34 is offline
Old 09-24-17, 10:04 PM
  #9
maddog34
Senior Member

maddog34's Avatar

Join Date: Jul 2015
Location: NW Oregon
Posts: 1,373

Bikes: !981 Trek 930R Custom, Diamondback ascent with SERIOUS updates, and a trek 6700 with updates

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 1 Time in 1 Post
horizontal dropout with intergrated der. hanger...
https://i.stack.imgur.com/KoX0T.jpg

vertical dropout with replaceable hanger...
https://gzmyu4ma9b-flywheel.netdna-s...ke-Dropout.jpg

vertical dropout with integrated hanger...
https://www.machinehead-software.co.u...ertdropout.jpg

Last edited by maddog34; 09-24-17 at 10:21 PM.
maddog34 is offline
Old 09-25-17, 09:27 AM
  #10
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by maddog34 View Post
that style frame has vertical dropouts, as far as we know, so far.... the "claw" type hanger/der. won't work... the bike i just finished had a similar issue... the axle would not seat in all the way... wheel was cock eyed because of that mismatch.

once again... aluminum frames typically have replaceable der. hangers... waiting to see a pic of the OP's bike....

Eric... are the dropouts VERTICAL, or HORIZONTAL on your frame?
The frame has vertical dropouts. Maybe it is for horizontal dropouts. But, I realized my washer may have been getting in the way. It was working before, so, after reversing the washer and the b screw it may work again.
eric044 is offline
Old 09-25-17, 03:21 PM
  #11
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 3,002
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 472 Times in 334 Posts
A picture says a thousand words for issues like this.
__________________
-Oh Hey!
Troul is offline
Old 09-25-17, 03:29 PM
  #12
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,968
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13044 Post(s)
Liked 1,729 Times in 1,308 Posts
Originally Posted by Troul View Post
A picture says a thousand words for issues like this.
Or more than a thousand words.

Something has been hacked together, as I don't believe the "claws" were ever sold with vertical dropouts.
CliffordK is offline
Old 09-25-17, 04:17 PM
  #13
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 3,002
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 472 Times in 334 Posts
Originally Posted by CliffordK View Post
Or more than a thousand words.

Something has been hacked together, as I don't believe the "claws" were ever sold with vertical dropouts.
You must study common core math?

Hodgepodged only if the op isn't the original owner.
__________________
-Oh Hey!
Troul is offline
Old 09-25-17, 06:44 PM
  #14
eric044
Senior Member
Thread Starter

Join Date: Sep 2015
Location: Maryland
Posts: 345

Bikes: Nashbar Race SIS, Spalding Road Step Through Single Speed, Kent Road Single Speed, 630 Cruiser, Fuji Odessa mountain bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nice friction shifters (not sure if original), Sugino crank (appears to be upgrade), and I'll try to replace with same model derailleur with a different attachment. Not original owner.
