Is this rim unsafe to ride?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is this rim unsafe to ride?

Old 12-16-19, 09:05 PM
Occam's Rotor
Thread Starter
wgscott's Avatar
Join Date: Jul 2013
Posts: 5,249
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 444 Times in 263 Posts
Is this rim unsafe to ride?

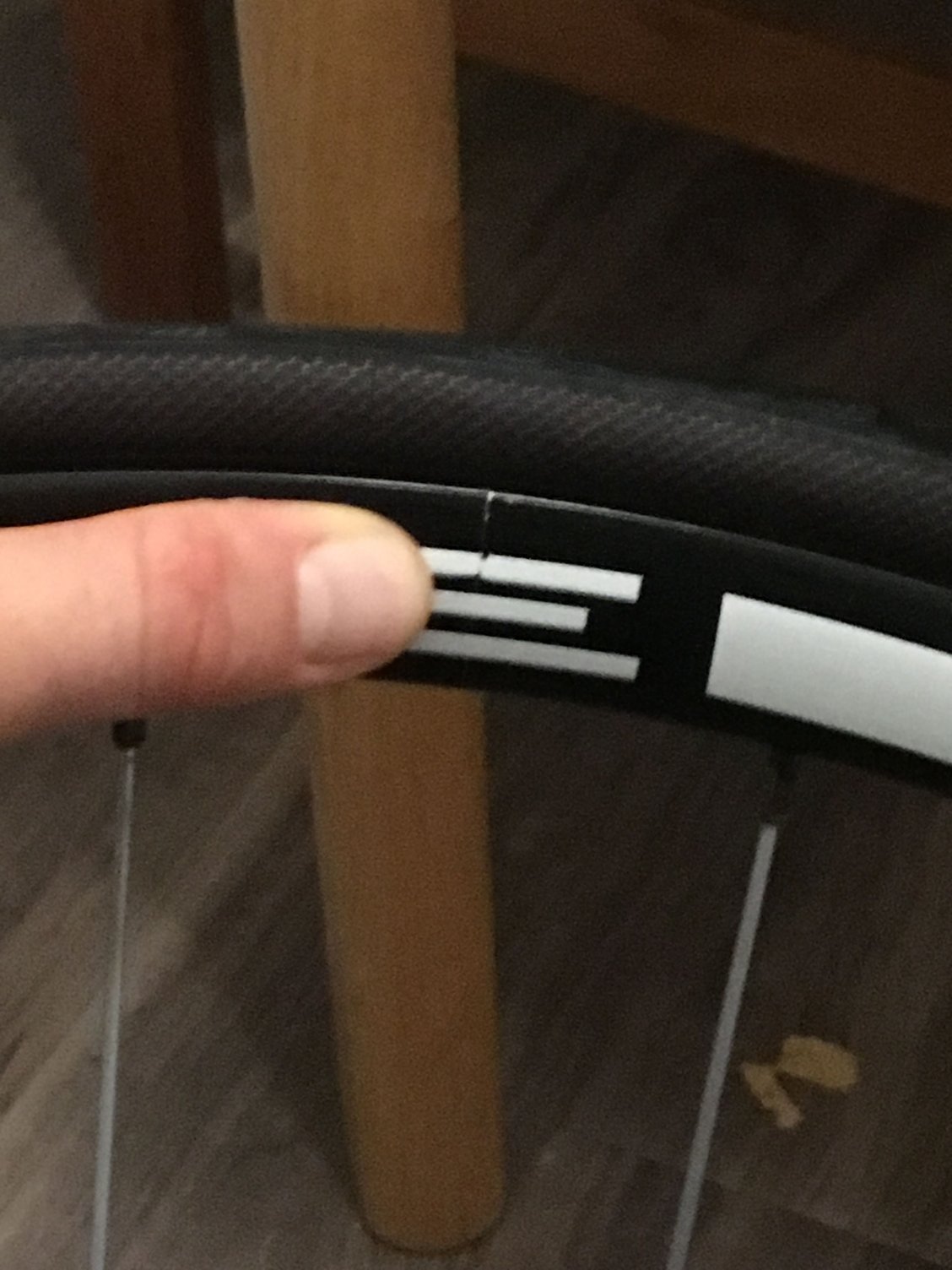

My kid is 700 miles away, in Portland, where he commutes to work on a bike. It has HED rims. He was putting on some new gatorskin tires, which apparently are a real PITA to mount, even with a tire jack. He got the tire mounted, but heard a loud cracking sound, and sent me some less-than-stellar iPhone photos of what looks to be the seam in the rim:

I told him to get it checked by a mechanic before he rides it. Am I being an over-cautious parent, or is this a concern?

This last one is a "positive control", i.e., the rear wheel's seam:
wgscott is offline
Old 12-16-19, 11:53 PM
Senior Member
woodcraft's Avatar
Join Date: Apr 2012
Location: Nor Cal
Posts: 4,773
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1262 Post(s)
Likes: 0
Liked 253 Times in 154 Posts
Hard to say if it's significant without seeing it/ feeling it,

but failure basically means a flat tire so I wouldn't worry too much, especially for commuting.
woodcraft is offline
Likes For woodcraft:
Old 12-17-19, 12:58 AM
Senior Member
Join Date: Mar 2010
Posts: 137
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 53 Times in 35 Posts
Definitely the rim is toast. Either aluminum or carbon itís cracked and displaced and ready for a catastrophic failure. I am generally not a fear monger however in this case itís pretty clear.

I have always had issues with the tightness of Continental tires and how difficult they are to mount and itís why I wonít ride them anymore.
velopig is offline
Likes For velopig:
Old 12-17-19, 03:10 AM
Senior Member
Join Date: Dec 2019
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 20 Times in 17 Posts
I would avoid riding it except very carefully to the bike shop. If the front wheel goes there's a good chance of a fall as it's what you're using to stay upright.
guy153 is offline
Likes For guy153:
Old 12-17-19, 06:11 AM
Senior Member
dsbrantjr's Avatar
Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,813

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 896 Post(s)
Liked 227 Times in 181 Posts
Just an observation, the rim is under compression when the tire is inflated, so the edges of the seam are being pressed together, not pulled apart. So, I think that the chances of sudden disintegration are slim. But for peace of mind have it inspected hands-on, preferably by de-mounting the tire, tube and rim tape, and making a thorough inspection of the interior to check for cracking, etc. If your son has the thick Velox cloth type of rim tape, substituting Continental Easy Tape, Kapton tape or filament-reinforced packing tape would make tire mounting easier.
dsbrantjr is offline
Likes For dsbrantjr:
Old 12-17-19, 06:29 AM
Senior Member
Join Date: Dec 2019
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 20 Times in 17 Posts
It's in compression on the major diameter but tension on the minor diameter. Either way it's a matter of when not if it breaks.
guy153 is offline
Likes For guy153:
Old 12-17-19, 06:58 AM
Senior Member
Join Date: Jan 2013
Posts: 1,327

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 46 Times in 40 Posts
W/o seeing it up close that rim wall is in tension, I think all Hed are welded, no sleeves or pins, so a weld failure. I would agree not good for anything but an easy ride to a shop or what could be an exciting ride to work.
easyupbug is offline
Likes For easyupbug:
Old 12-17-19, 08:37 AM
Mother Nature's Son
delbiker1's Avatar
Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,317

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 230 Times in 148 Posts
Only makes sense to get it checked out by someone experienced enough to know what the condition is. If it fails when someone is riding it, that could really be catastrophic.
delbiker1 is offline
Likes For delbiker1:
Old 12-17-19, 08:43 AM
Senior Member
jadocs's Avatar
Join Date: Jul 2018
Location: USA
Posts: 1,499

Bikes: Ti, Mn Cr Ni Mo Nb, Al, C

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 286 Times in 192 Posts
It's definitely cracked, you can clearly see it in pic #2 . It is toast.
jadocs is offline
Likes For jadocs:
Old 12-17-19, 09:11 AM
Moe Zhoost
Half way there
Moe Zhoost's Avatar
Join Date: Sep 2015
Location: Durham, NC
Posts: 1,754

Bikes: Many, and the list changes frequently

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 526 Post(s)
Liked 214 Times in 130 Posts
HED rims have welded seams so a "loud cracking sound" and the pictures are pretty indicative that the weld has cracked. It's hard to tell from the pics, but it looks like only the bead area is affected. If so, the overall integrity of the rim may not be that bad, but I'd certainly not ride it much without getting some good, knowledgeable opinions. You mention a tire jack in your post, but don't say whether your son was actually using one. I have a VAR one and would guess that the tool would break far earlier than the rim weld.

On the positive side, you don't have to wonder about what to get him for Christmas.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 12-17-19, 09:15 AM
Retro Grouch
Senior Member
Retro Grouch's Avatar
Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,624

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1336 Post(s)
Liked 197 Times in 124 Posts
An interesting question.

If this was a cheap rim it wouldn't even blip my radar. That looks like the seam where the rim extrusion was joined. Betting the valve stem hole is exactly opposite. If nothing else, the tire beads alone are going to hold the rim together.
This, however, isn't a cheap rim. Consequently I'd be interested in hearing what HED has to say about it. I'd be more concerned about value for the money than about the rim falling apart.
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 12-17-19, 10:26 AM
Occam's Rotor
Thread Starter
wgscott's Avatar
Join Date: Jul 2013
Posts: 5,249
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 444 Times in 263 Posts
Thanks, everyone.

I think a replacement would probably be prudent. He also had jaw surgery two years ago, so we have that as an investment to protect.

The HED rim isn't their Belgium plus, it is a bit cheaper. I think HED Flanders C2+ Disc alloy

Assuming I am reading correctly, the rim is pinned rather than welded, which could explain what is in the photo.

Here is the bike: https://www.rei.com/product/893055/d...egra-bike-2016

(Some of the listed specs are wrong (eg: brifters are 105), so that is where the "I think" comes from.)
wgscott is offline
Likes For wgscott:
Old 12-17-19, 11:53 AM
Wilfred Laurier
SeŮor Member
Wilfred Laurier's Avatar
Join Date: Feb 2013
Posts: 4,998
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 247 Times in 179 Posts
Even welded rims have a pin that holds them together before the seam is welded, but that rim looks pinned, and the seam is often uneven on pinned rims, although I wouldn't like it on a HED rim, but would accept it on a single-wall alloy on a cheap bike.

Anyhoo, the spoke tension will hold the rim together, along with the pin. If it were rim brakes then it would be noticeable when braking. With disc brakes I see no reason not to continue using that rim.
Wilfred Laurier is offline
Likes For Wilfred Laurier:
Old 12-17-19, 12:37 PM
SE Wis
dedhed's Avatar
Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,859

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 972 Post(s)
Liked 316 Times in 230 Posts
dedhed is offline
Likes For dedhed:
Old 12-17-19, 12:43 PM
Juan Foote
LBKA (formerly punkncat)
Juan Foote's Avatar
Join Date: Jan 2010
Location: Jawja
Posts: 3,513

Bikes: Spec Roubaix SL4, GT Traffic 1.0

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1021 Post(s)
Liked 56 Times in 44 Posts
I echo that is appears the weld broke/cracked. It also appears that the tire didn't seat properly or is not yet inflated in that first pic?
For the cost and piece of mind of even another inexpensive rim, I wouldn't take chances on that.
Juan Foote is offline
Likes For Juan Foote:
Old 12-17-19, 12:49 PM
Senior Member
squirtdad's Avatar
Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,659

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1002 Post(s)
Liked 227 Times in 170 Posts
I am super conservative about these things. If it were my kid I would say don't ride. Loud noise and then notable crack displacement = broken rim to me. get a new rim/or wheel
Looking for more time to ride what I have
squirtdad is offline
Likes For squirtdad:
Old 12-17-19, 01:13 PM
7-speed cultist
ThermionicScott's Avatar
Join Date: Aug 2011
Location: CID
Posts: 19,875

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 2679 Post(s)
Liked 552 Times in 398 Posts
And we're sure the loud noise wasn't just the tire seating? It can be startling to people who are new to this.
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 12-17-19, 02:24 PM
Senior Member
Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,464
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 39 Times in 29 Posts
Why not contact HED with a photo? They may choose not to give an opinion without seeing in the flesh or they could even say that they may replace it for free but I would definitely contact them first.
Crankycrank is offline
Likes For Crankycrank:
Old 12-17-19, 05:01 PM
Senior Member
ramzilla's Avatar
Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 2,818

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 70 Times in 61 Posts
That's probably the construction joint of the wheel where the two ends of the extruded hoop are joined together. That should be a pretty smooth spot. Most wheel manufacturers hide the joint under a sticker. Not a good thing if it's beginning to separate.
ramzilla is offline
Likes For ramzilla:
Old 12-17-19, 05:04 PM
Senior Member
Ghazmh's Avatar
Join Date: Jan 2014
Location: The banks of the River Charles
Posts: 1,202

Bikes: 2019 Honey Allroads Ti, 2018 Seven Redsky XX, 2017 Trek Boon 7, 2016 Soma Smoothie, 2014 Trek 520, 2006 Gary Fisher Montare

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 361 Post(s)
Liked 100 Times in 71 Posts
I would replace it before riding the bike again.
Ghazmh is offline
Likes For Ghazmh:
Old 12-17-19, 05:15 PM
Senior Member
rumrunn6's Avatar
Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 24,378

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 3558 Post(s)
Liked 575 Times in 413 Posts
How far is the commute? What are/is his backup commute options?
rumrunn6 is offline
Old 12-17-19, 08:23 PM
Senior Member
stardognine's Avatar
Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 2,349

Bikes: 1995 Cannondale Killer V

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 591 Post(s)
Likes: 0
Liked 164 Times in 129 Posts
Originally Posted by Crankycrank View Post
Why not contact HED with a photo? They may choose not to give an opinion without seeing in the flesh or they could even say that they may replace it for free but I would definitely contact them first.
This, but only AFTER replacing the rim. You (or your son) can certainly find a temporary front rim cheaply, and mention that in your conversations with HED.
stardognine is offline
Likes For stardognine:
Old 12-17-19, 08:51 PM
Mad Honk
Senior Member
Join Date: May 2019
Location: Bloomington, IN
Posts: 698

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Liked 162 Times in 130 Posts
My experience with rims is that they are almost all put together with a steel pin between the two ends being joined together. Even those welded together. So my assessment is that the rims are not unsafe, but may not have a smooth braking surface. For that reason I would contact the manufacturer. When breaking rims apart for recycling there is always a steel pin holding them together. Using a rare earth magnet will expose the pin in the joint, so get one, they are around for next to free, and put it on the rim joint. That will tell you if it is safe to ride. Smiles, MH

Last edited by Mad Honk; 12-18-19 at 04:03 PM.
Mad Honk is online now
Likes For Mad Honk:
Old 12-17-19, 09:13 PM
Senior Member
CliffordK's Avatar
Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,107
Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 10629 Post(s)
Liked 558 Times in 444 Posts
If this was a standard 30 year old low profile vintage aluminum rim, I wouldn't think twice about riding it (other than brake bumping)). Perhaps even sanding down any irregularities.

The current new rim depends on the construction. I'm very surprised that is a pinned joint rather than a welded joint.

Nonetheless, it doesn't look particularly concerning at the seam. As mentioned above, the spokes will hold everything in place. Plus the tire and air.
CliffordK is online now
Likes For CliffordK:
Old 12-17-19, 09:15 PM
Senior Member
Join Date: Sep 2017
Posts: 1,246
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Liked 386 Times in 219 Posts
Don't lose sleep wondering. Have the kid ride the bus tomorrow and then take the wheel to a shop. Worst-case scenario is a new rim (maybe $50 for something economical) and another $50 or so to have it re-laced with the existing spokes and hub. That's cheaper than a single trip to the ER.

+1 on velopig 's comment on Continental tires. I've tried 'em and always found them be (1) hard to mount, and (2) lousy tires. Small sample size, but large enough for me.
Koyote is offline
Likes For Koyote:
