Identify partial Campy group set?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Identify partial Campy group set?

Old 11-24-19, 10:53 PM
  #1
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,983
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked 29 Times in 24 Posts
Identify partial Campy group set?

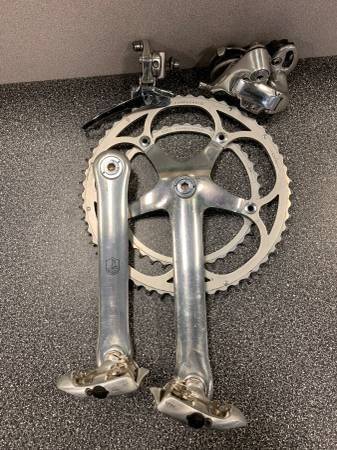

Hi. This is a CL sale; Seller claims its Campy Record but I'm not sure. The FD is Chorus but not sure about the Cranks. I am going to do more searching via Ebay.
Can anyone identify if the cranks are indeed Record? The seller has other components for sale; but seems like a mixed set.
Thanks. '

__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0

Last edited by vintagerando; 11-24-19 at 10:57 PM. Reason: spelling
vintagerando is offline
Old 11-24-19, 10:54 PM
  #2
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 813
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 169 Times in 131 Posts
Cranks are Corsa Record aka C-Record. (Although after a while they dropped the C and they just became Record.)

http://velobase.com/ViewComponent.as...=115&AbsPos=13

Hard to see the derailleurs, I'd take a guess at 8 speed Chorus or Record - to be honest there wasn't much different between the two during that era - Athena also looked similar.

Last edited by P!N20; 11-24-19 at 11:12 PM.
P!N20 is offline
Old 11-25-19, 12:35 AM
  #3
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,983
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked 29 Times in 24 Posts
Originally Posted by P!N20 View Post
Cranks are Corsa Record aka C-Record. (Although after a while they dropped the C and they just became Record.)

VeloBase.com - Component: Campagnolo C-Record (1987-1994)

Hard to see the derailleurs, I'd take a guess at 8 speed Chorus or Record - to be honest there wasn't much different between the two during that era - Athena also looked similar.
Thanks for info. Seller also has 8sp (?) Record Ergos, and brake calipers. Could be a good deal if he'll package the cranks, FD, RD, BB, brakes and shifters.
I think I'll do some more research on the going values for this group set.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-25-19, 06:41 AM
  #4
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,448

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 104 Times in 72 Posts
8s Ergos are great. You can run the whole setup with Shimano 7 speed hub/cassettes (Campy 8s gears are tougher to source). Google "Shimergo."
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 11-25-19, 07:30 AM
  #5
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,172

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 155 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 203 Times in 145 Posts
The easy way to ID those Campy cranks is there are only 4 visible chainring bolts. The fifth screws in from behind the crank arm. Also they take different chainrings than the other sets because of the bolt alignment.

verktyg
verktyg is offline
Old 11-25-19, 02:23 PM
  #6
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 813
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 169 Times in 131 Posts
Originally Posted by verktyg View Post
Also they take different chainrings than the other sets because of the bolt alignment.
No they don’t. 135 BCD is all they require.
P!N20 is offline
Old 11-25-19, 03:10 PM
  #7
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,983
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked 29 Times in 24 Posts
Originally Posted by jeirvine View Post
8s Ergos are great. You can run the whole setup with Shimano 7 speed hub/cassettes (Campy 8s gears are tougher to source). Google "Shimergo."
Hmm. Interesting. I think I'll make an offer. Compents have been for sale for weeks on CL
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-25-19, 06:43 PM
  #8
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,600

Bikes: Numerous

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 977 Post(s)
Likes: 0
Liked 176 Times in 104 Posts
Yes Record cranks with the 5th arm of the spider “hidden” behind the crank arm. Ergo or downtube shifters, either way, very nice groupset. I’ve never tried the 7 speed Shimano angle and use 8 speed Campy cassettes. Wheels manufacturing makes spacers so that you can use 8 speed Shimano cassettes and free hubs. The only challenge with the Campy 8 speed is that not all Campy cassettes work on every 8 speed freehub. Plenty of good info on that here and Branford bike site. Look up “Exa Drive” to get you started.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘85 Pinarello Record
Spaghetti Legs is offline
