Question for DIY bike builders
#1
Senior Member
Thread Starter
Question for DIY bike builders
I had some time on my hands, and was looking around CF bikes. One thing lead to another and I went down a rabbit hole a bit. Got idea of building my own CF bike using Chinese made frame and some parts. Dont want this to be another discussion if they are safe or not (plenty of those threads around, and topic has been beaten to death) but I do have general question when it comes to DIY bike building from scratch. Since I am new to road riding, bought 1st road bike in over 15 years few months ago, and have very basic knowledge of bike parts, would this be a good idea? I would start this process sometimes next year, at least 6 months from now, and plan on reading, researching and asking questions as much as possible, so that I have knowledge needed. I am still not sure however if even at that point building my own bike would make sense. Could I do this safely and properly? How would you proceed in my place? I was playing with idea of getting old used bike and rebuilding it, to learn how parts interact and work with each other, but covid has made that impossible. I am looking at several hundred $ for cheap bike locally here.
Thanks for the help.
Thanks for the help.
#2
Klaatu..Verata..Necktie?
Join Date: May 2007
Location: SF Bay Area
Posts: 17,960
Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 10424 Post(s)
Liked 11,896 Times
in
6,094 Posts
Building up your own bike can be very rewarding. When you're done, it's more "yours" than any other bike you'll ever own!
There are plenty of used frames on Ebay. The key is knowing what size frame you need, and being able to judge condition from the pictures. Another thing is, although many of the parts simply bolt on, there are some like headsets and bottom brackets that may require specialized tools. I built up an old steel frame I bought on Ebay, and also took down another bike to have the frame repainted and then built it up again. In both cases, I had a local bike shop handle the headset and bottom bracket, and handled the rest myself.
There are plenty of used frames on Ebay. The key is knowing what size frame you need, and being able to judge condition from the pictures. Another thing is, although many of the parts simply bolt on, there are some like headsets and bottom brackets that may require specialized tools. I built up an old steel frame I bought on Ebay, and also took down another bike to have the frame repainted and then built it up again. In both cases, I had a local bike shop handle the headset and bottom bracket, and handled the rest myself.
__________________
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
Likes For genejockey:
#3
Senior Member
Join Date: Apr 2010
Location: Mountain View, CA USA and Golden, CO USA
Posts: 6,341
Bikes: 97 Litespeed, 50-39-30x13-26 10 cogs, Campagnolo Ultrashift, retroreflective rims on SON28/PowerTap hubs
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 325 Times
in
226 Posts
I had some time on my hands, and was looking around CF bikes. One thing lead to another and I went down a rabbit hole a bit. Got idea of building my own CF bike using Chinese made frame and some parts. Dont want this to be another discussion if they are safe or not (plenty of those threads around, and topic has been beaten to death) but I do have general question when it comes to DIY bike building from scratch. Since I am new to road riding, bought 1st road bike in over 15 years few months ago, and have very basic knowledge of bike parts, would this be a good idea?
It's a good idea if you want Campagnolo or something you can't buy new. E.g. I like triple cranksets with tight cogsets, 2010 Campagnolo Ultrashift levers, and 2003-2006 other parts. I built wheels with retroreflective rims, a power meter in back, and dynamo hub up front. Nearly everything aluminum is silver anodized, and anything black is carbon fiber so scrapesdon't show.
Buy a bottom bracket tool because bottom brackets are a wear item you'll replace occasionally.
You can improvise on your headset or pay a shop to do it once - I'm still on the same headset I had installed in 1997 with 37,000 miles since I stopped eschewing bike computers in 2010 and unknown number before then.
Last edited by Drew Eckhardt; 09-10-20 at 02:44 PM.
Likes For Drew Eckhardt:
#4
Senior Member
Join Date: Sep 2014
Location: Norman, OK
Posts: 837
Bikes: Casati Laser, Colnago Tecnos, Ciöcc Exige, Black Mountain Cycles Road
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 177 Times
in
78 Posts
I was in your position several years ago. Since then I have not purchased a complete bike. I like being able to decide exactly how I want the bike, or at least I want to be the one deciding where to save money. Like @genejocky, I don't have the tools to install a traditional headset or pressed bottom bracket. I would take those to a local shop to be installed. If you have a carbon steering tube, I would also take that to the shop to be cut (once you are sure of the length that you want.) Apart from all that, it's not rocket science. There are lot's of helpful Youtube videos out there and I also rely pretty heavily on Lennard Zinn's Zinn and the Art of Road Bike Maintenance. Some frames are very straight-forward and build up without any issues, while others are kind of quirky and might make you have to stop and think. A little patience and some basic mechanical skills are all it takes though.
Make sure you have a torque wrench if you're working with carbon fiber.
Make sure you have a torque wrench if you're working with carbon fiber.
Likes For Oldguyonoldbike:
#5
Pennylane Splitter
Join Date: Sep 2012
Location: Orange County, California
Posts: 1,879
Bikes: Yes
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1797 Post(s)
Liked 1,439 Times
in
989 Posts
I always wanted to build a bike from the frame up, got my chance when a nice old MTB I had developed a crack in its frame. Bought a Nashbar aluminum frame, a new steel fork, and put it together with mostly parts I already had. BB is a simple square taper, headset I put in using one of the DIY/all-thread methods you can find on YouTube (Al or steel frame only, not CF. It works, but it takes about 1-hour and some care to put it in and get it set correctly). The bicycle is about 4 years old and works great as my commuter. I also built a 'roadie' the same way, with a Nashbar CX frame, ride it regularly with no issues. CF frames are mostly 'integrated ' headsets, so that would make the tough part of a build a lot easier than what I did.
FWIW: Too bad Nashbar is now defunct, those frames were a bargin for the price they charged, even better if you could catch a sale event.
FWIW: Too bad Nashbar is now defunct, those frames were a bargin for the price they charged, even better if you could catch a sale event.
#6
Zip tie Karen
Join Date: Aug 2009
Location: Fair Oaks Ranch, TX
Posts: 7,004
Bikes: '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '18 Velobuild VB-R-022, '21 Tsunami SNM-100
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1465 Post(s)
Liked 1,542 Times
in
806 Posts

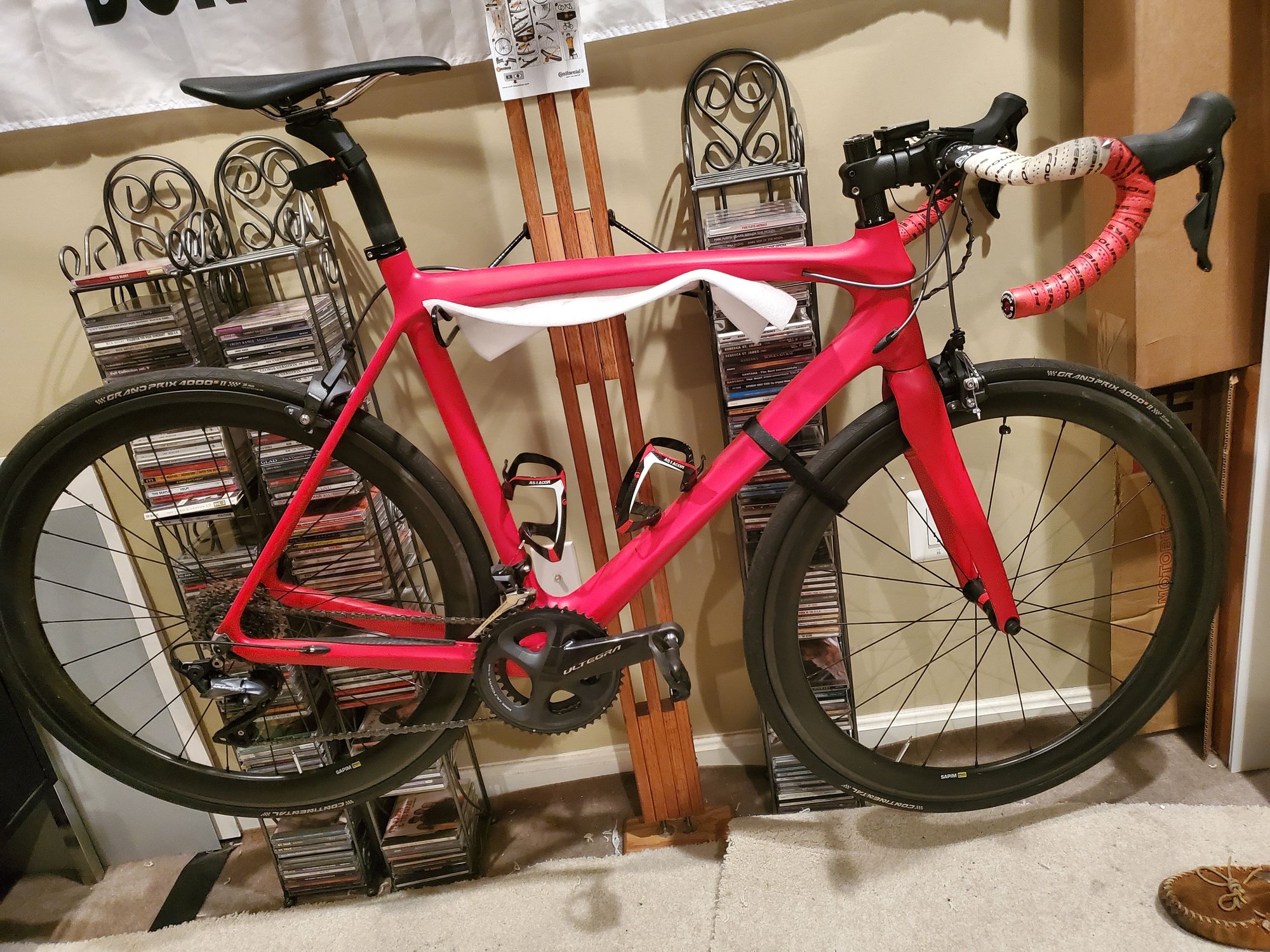

I Did It Last Summer...
I purchased the Chinese frame from a friend for $180 (I think). Ultegra R8000 throughout. Wheelset is DT Swiss 240s laced to carbon 50s. I think that my total was $1800. It weighs 17 pounds and rides really nicely. Climbs well. Descends well. I didn't need to build it. I simply felt like it. Glad that I did.
Likes For Phil_gretz:
#7
Senior Member
Thread Starter
Interesting take from another person I read. His thought is that it makes no sense for me to do this, as main reason people do these builds is to control every component they select. They know why make x/model x is better choice than make y/model y, Since I dont have than knowledge, there is no point of building it myself. While I never thought of it that way, it kinda does and does not make sense. I get what he is saying, but in all honesty I dont remember reading in any threads that main reason people built these bikes was because they can control each nut and bolt used. Is he correct in his view?
Thanks again for all the help and info so far.
Thanks again for all the help and info so far.
#8
Junior Member
Building bikes is fun! It doesn't really take much in the way of specialty tools until you get to the bottom bracket - otherwise, you can get by with a basic set of hand tools for the most part.
My philosophy has always been to buy the tools/manuals instead of taking it (bike, car, motorcycle, etc) to a shop so that I'll have the tools on hand next time I need them. It's far cheaper and more satisfying than paying someone else to do the work.
And without ragging on the Chinese frames (there certainly are good ones out there but, you really want to know what you're looking at before you buy) I would suggest looking on e-bay for "new old stock" brand name frames - there are tons of great deals on brand new carbon frames for around the same price as the no-name stuff. I scored this brand new, never built BMC RM01 frame for $400 shipped to my door from a bike ship in Huntington Beach. It was 3 years old at the time.
Do your research before you buy - that way you'll be ready to pull the trigger when that great deal pops up.
My philosophy has always been to buy the tools/manuals instead of taking it (bike, car, motorcycle, etc) to a shop so that I'll have the tools on hand next time I need them. It's far cheaper and more satisfying than paying someone else to do the work.
And without ragging on the Chinese frames (there certainly are good ones out there but, you really want to know what you're looking at before you buy) I would suggest looking on e-bay for "new old stock" brand name frames - there are tons of great deals on brand new carbon frames for around the same price as the no-name stuff. I scored this brand new, never built BMC RM01 frame for $400 shipped to my door from a bike ship in Huntington Beach. It was 3 years old at the time.
Do your research before you buy - that way you'll be ready to pull the trigger when that great deal pops up.
Likes For BHG6:
#9
Klaatu..Verata..Necktie?
Join Date: May 2007
Location: SF Bay Area
Posts: 17,960
Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 10424 Post(s)
Liked 11,896 Times
in
6,094 Posts
Interesting take from another person I read. His thought is that it makes no sense for me to do this, as main reason people do these builds is to control every component they select. They know why make x/model x is better choice than make y/model y, Since I dont have than knowledge, there is no point of building it myself. While I never thought of it that way, it kinda does and does not make sense. I get what he is saying, but in all honesty I dont remember reading in any threads that main reason people built these bikes was because they can control each nut and bolt used. Is he correct in his view?
Thanks again for all the help and info so far.
Thanks again for all the help and info so far.
__________________
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
#10
Senior Member
Thread Starter
Building bikes is fun! It doesn't really take much in the way of specialty tools until you get to the bottom bracket - otherwise, you can get by with a basic set of hand tools for the most part.
My philosophy has always been to buy the tools/manuals instead of taking it (bike, car, motorcycle, etc) to a shop so that I'll have the tools on hand next time I need them. It's far cheaper and more satisfying than paying someone else to do the work.
And without ragging on the Chinese frames (there certainly are good ones out there but, you really want to know what you're looking at before you buy) I would suggest looking on e-bay for "new old stock" brand name frames - there are tons of great deals on brand new carbon frames for around the same price as the no-name stuff. I scored this brand new, never built BMC RM01 frame for $400 shipped to my door from a bike ship in Huntington Beach. It was 3 years old at the time.
Do your research before you buy - that way you'll be ready to pull the trigger when that great deal pops up.
My philosophy has always been to buy the tools/manuals instead of taking it (bike, car, motorcycle, etc) to a shop so that I'll have the tools on hand next time I need them. It's far cheaper and more satisfying than paying someone else to do the work.
And without ragging on the Chinese frames (there certainly are good ones out there but, you really want to know what you're looking at before you buy) I would suggest looking on e-bay for "new old stock" brand name frames - there are tons of great deals on brand new carbon frames for around the same price as the no-name stuff. I scored this brand new, never built BMC RM01 frame for $400 shipped to my door from a bike ship in Huntington Beach. It was 3 years old at the time.
Do your research before you buy - that way you'll be ready to pull the trigger when that great deal pops up.
Likes For cvrle1:
#11
Senior Member
Join Date: Jul 2020
Location: Parts Unknown
Posts: 356
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 325 Post(s)
Likes: 0
Liked 109 Times
in
72 Posts
Interesting take from another person I read. His thought is that it makes no sense for me to do this, as main reason people do these builds is to control every component they select. They know why make x/model x is better choice than make y/model y, Since I dont have than knowledge, there is no point of building it myself. While I never thought of it that way, it kinda does and does not make sense. I get what he is saying, but in all honesty I dont remember reading in any threads that main reason people built these bikes was because they can control each nut and bolt used. Is he correct in his view?
Thanks again for all the help and info so far.
Thanks again for all the help and info so far.
I would assume that if you are embarking on this project, you will research and learn what brake system, crankset, wheels, and so on will be best for you. So your friend is not correct to say that there is no reason for you to build a bike. Building up your own bike can be a great learning experience, and that in an of itself is a good reason to try it. Starting with your level of knowledge and building out a complete bike from the frame up is basically the bicycle equivalent to compiling Gentoo. You should do it.
#12
Mother Nature's Son
Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 3,115
Bikes: 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 2001 Lemond Tourmalet, 2014? Soma Smoothie
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 853 Post(s)
Liked 1,434 Times
in
816 Posts
Regarding above post, he is correct in his view, in that it is just that, his view. Building a bike can be, and is for me, very rewarding when it is done. Acquiring needed tools, while not a huge expense, comes at a cost. Acquiring specific, individual components can definitely get expensive, with that cost increasing if improper, non compatible parts are purchased. For me, there is also the frustration that can occur when things are not working out as one thought they would. Not if, but when, mistakes are made, keep it in perspective and learn from it.
If you are wanting to do this to save money, probably not happening. If the purpose is to challenge yourself, to gain the knowledge of bike mechanics, for self satisfaction and sense of accomplishment, they are all valid and good reasons to do it. Figure out what you want, why you want it, and what you expect in the end. Come up with a budget and do as much research as you can regarding all the components/parts, and make sure you know what size is needed for you. Not just the frame, but also things like the stem, handlebar, saddle, etc. Have a plan with the understanding that the plan may need to be amended as the process progresses.
If you are wanting to do this to save money, probably not happening. If the purpose is to challenge yourself, to gain the knowledge of bike mechanics, for self satisfaction and sense of accomplishment, they are all valid and good reasons to do it. Figure out what you want, why you want it, and what you expect in the end. Come up with a budget and do as much research as you can regarding all the components/parts, and make sure you know what size is needed for you. Not just the frame, but also things like the stem, handlebar, saddle, etc. Have a plan with the understanding that the plan may need to be amended as the process progresses.
Likes For delbiker1:
#13
For The Fun of It
Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,851
Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 2135 Post(s)
Liked 1,646 Times
in
828 Posts
There are several reasons to build a bike from the frame up. In most cases you won't save money unless you are willing to settle for NOS type parts. You also have to factor in the cost of tools.
The benefits are many fold.
For me, building for myself was the only way to get exactly what I wanted. I have really found favor with mechanical discs for example. That really narrows the field down dramatically, and it typically narrows it to lower end bikes. Then there are plenty of other places where I could build what I couldn't buy. Building brings a certain level of pride and satisfaction with it. Another benefit is that you'll learn how to wrench on bikes in the process. That will save you money on adjustments, repairs and replacements.
You may find certain things that you don't want to do or don't want to buy the tools to do yourself. For me that is headset press stuff.
On a closing note, I am not generally good at e-learning. I function much better in a master/apprentice or student teacher environment. The instructional videos from Park Tools have been very useful. Much to my surprise, I have used them with good results.
The benefits are many fold.
For me, building for myself was the only way to get exactly what I wanted. I have really found favor with mechanical discs for example. That really narrows the field down dramatically, and it typically narrows it to lower end bikes. Then there are plenty of other places where I could build what I couldn't buy. Building brings a certain level of pride and satisfaction with it. Another benefit is that you'll learn how to wrench on bikes in the process. That will save you money on adjustments, repairs and replacements.
You may find certain things that you don't want to do or don't want to buy the tools to do yourself. For me that is headset press stuff.
On a closing note, I am not generally good at e-learning. I function much better in a master/apprentice or student teacher environment. The instructional videos from Park Tools have been very useful. Much to my surprise, I have used them with good results.
Likes For Paul Barnard:
#14
Junior Member
Building a bike from the frame up may be more expensive initially, but you'll also acquire many tools that are essential to maintenance (and familiarity with those tools). Chains and cables are annual maintenance (or more often at higher mileages), and all but the best bottom brackets seem to need replaced every few years at most. Investing in the tools (and knowledge) to build a bike now ensures cost savings over time. (You can always learn to wrench on a new, complete bike as components wear -- but many owners seem to shy away from taking that initial step.)
Likes For Bulette:
#15
Senior Member
Join Date: Oct 2015
Location: San Diego, California
Posts: 4,077
Bikes: Velo Orange Piolet
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 2228 Post(s)
Liked 2,011 Times
in
972 Posts
This guy built a bike from cheap Chinese carbon parts:
https://www.youtube.com/channel/UCYu...lrDmFj2gNuAwZw
He identifies what worked for him and what didn't, and does talk about the caveats of "cheap Chinese carbon".
Ł1279.55, 7.65 kilos.
https://www.youtube.com/channel/UCYu...lrDmFj2gNuAwZw
He identifies what worked for him and what didn't, and does talk about the caveats of "cheap Chinese carbon".
Ł1279.55, 7.65 kilos.
Last edited by tyrion; 09-10-20 at 03:47 PM.
Likes For tyrion:
#16
Senior Member
Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,806
Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1943 Post(s)
Liked 2,164 Times
in
1,323 Posts
You say you are going to do research and that is the best thing you can do. I’d start with the bike you have now. Since you bought your first bike in 15 years a few months ago and how you want to build a bike, that one sure missed the mark.
You should still be in the best thing I did stage or just leaving it if you really liked the bike. Even then a lot of people who love their bike will look to upgrade it first. So figure out what you wish you had bought.
You may also want to test out other bikes that you may want to buy complete instead of building as it probably will cost more to build. I’ve built bikes and it is a lot of fun, but don’t plan to have everything fit perfectly. That only happens if you transfer from basically the same frame. You will end up with parts that don’t work.
John
You should still be in the best thing I did stage or just leaving it if you really liked the bike. Even then a lot of people who love their bike will look to upgrade it first. So figure out what you wish you had bought.
You may also want to test out other bikes that you may want to buy complete instead of building as it probably will cost more to build. I’ve built bikes and it is a lot of fun, but don’t plan to have everything fit perfectly. That only happens if you transfer from basically the same frame. You will end up with parts that don’t work.
John
Likes For 70sSanO:
#17
Senior Member
Thread Starter
You say you are going to do research and that is the best thing you can do. I’d start with the bike you have now. Since you bought your first bike in 15 years a few months ago and how you want to build a bike, that one sure missed the mark.
You should still be in the best thing I did stage or just leaving it if you really liked the bike. Even then a lot of people who love their bike will look to upgrade it first. So figure out what you wish you had bought.
You may also want to test out other bikes that you may want to buy complete instead of building as it probably will cost more to build. I’ve built bikes and it is a lot of fun, but don’t plan to have everything fit perfectly. That only happens if you transfer from basically the same frame. You will end up with parts that don’t work.
John
You should still be in the best thing I did stage or just leaving it if you really liked the bike. Even then a lot of people who love their bike will look to upgrade it first. So figure out what you wish you had bought.
You may also want to test out other bikes that you may want to buy complete instead of building as it probably will cost more to build. I’ve built bikes and it is a lot of fun, but don’t plan to have everything fit perfectly. That only happens if you transfer from basically the same frame. You will end up with parts that don’t work.
John
#18
Dirty Heathen
Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 2,182
Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 SoftRide, 1989 Klein, 1989 Black Lightning #0033
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 889 Post(s)
Liked 906 Times
in
534 Posts
While the idea of a clean-sheet build has a certain 'I made it myself' appeal, unless you've got a really specific plan, or a couple key 'signature' components, we've seen a lot of first-time builders get lost down the rabbit hole of availability or compatability that takes more time, money and/or skill to get out of than they want to spend. Getting the big parts like wheels, bars, and driveline is pretty easy, it’s the little stuff like seat posts, headsets, cable jewelry and other small parts that can nickel and dime a build to a standstill.
Take a look at what kind of riding you're doing with your current bike, and what it is and isn't good at. Maybe a whole other style of bike might be in order. A lot of today's niche bikes are very similar (functionally) to bikes that have been around for decades, if you do some mods and component swaps. Modding older bikes can also let you build a fleet of 'mission-specific' bikes for a fraction of the cost of new or nearly-new machines.
Fat-tire Drop-bar Fire-road / Adventure bike?An MTB from the 7/8/9 speed era would be a good start, there are a lot of them around, they’re sturdy, versatile, and many of them were pretty well spec’ed. If you can find an XC race bike (NORBA era) they'll be fast, light, and tough, too. Swap in some 'Dirt-Drop' bars, a short stem, and brifters or barcons, and you're ready to shred some gravel.
If a classy, swept-back cafe-racer / path-bike is what you’re after, then look for a Japanese road bike from the late 70’s -early 80’s, Add a Brooks saddle, and North Roads bars (or Moustache bars, if you're feeling daring) Filigree and pinstriping depends on whether you're going for the British, French or Italian style. Skinny Jeans will be required.
Need speed and style? Try updating a classic racing bike with modern wheels and running gear. There was a 1989 Cannondale Black Lightning on here a couple years back that had been updated to full (2017-spec) Shimano R5800 group (in black-on-black, of course) That bike was a rocket back in the day, but this made it not only faster, but easier to ride, too.
Actually, it's often easier to do a radical overhaul on an older race bike, because they were a little more 'standard' than modern, Aero / 'Superbikes' that may be designed to only use a specific component / group / setup.
Take a look at what kind of riding you're doing with your current bike, and what it is and isn't good at. Maybe a whole other style of bike might be in order. A lot of today's niche bikes are very similar (functionally) to bikes that have been around for decades, if you do some mods and component swaps. Modding older bikes can also let you build a fleet of 'mission-specific' bikes for a fraction of the cost of new or nearly-new machines.
Fat-tire Drop-bar Fire-road / Adventure bike?An MTB from the 7/8/9 speed era would be a good start, there are a lot of them around, they’re sturdy, versatile, and many of them were pretty well spec’ed. If you can find an XC race bike (NORBA era) they'll be fast, light, and tough, too. Swap in some 'Dirt-Drop' bars, a short stem, and brifters or barcons, and you're ready to shred some gravel.
If a classy, swept-back cafe-racer / path-bike is what you’re after, then look for a Japanese road bike from the late 70’s -early 80’s, Add a Brooks saddle, and North Roads bars (or Moustache bars, if you're feeling daring) Filigree and pinstriping depends on whether you're going for the British, French or Italian style. Skinny Jeans will be required.
Need speed and style? Try updating a classic racing bike with modern wheels and running gear. There was a 1989 Cannondale Black Lightning on here a couple years back that had been updated to full (2017-spec) Shimano R5800 group (in black-on-black, of course) That bike was a rocket back in the day, but this made it not only faster, but easier to ride, too.
Actually, it's often easier to do a radical overhaul on an older race bike, because they were a little more 'standard' than modern, Aero / 'Superbikes' that may be designed to only use a specific component / group / setup.
Likes For Ironfish653:
#19
Senior Member
Interesting take from another person I read. His thought is that it makes no sense for me to do this, as main reason people do these builds is to control every component they select. They know why make x/model x is better choice than make y/model y, Since I dont have than knowledge, there is no point of building it myself. While I never thought of it that way, it kinda does and does not make sense. I get what he is saying, but in all honesty I dont remember reading in any threads that main reason people built these bikes was because they can control each nut and bolt used. Is he correct in his view?
Thanks again for all the help and info so far.
Thanks again for all the help and info so far.
Building your own is not some anal compulsive itch to scratch, though, I suppose for some it may be, but creating something yourself and learning in the process brings a sense of accomplishment.
I come from the old school, where your dream bike was hand built by a frame master and measurements were taken, questions were asked and in a few months you had your dream bike.
Today I see incredible amounts of money spent on clone bikes made by anonymous factory workers, from who knows where.
So, building my own, just keeps that personal touch.
Plus it's good to know that no matter what breaks on my bike, I am capable of repairing it.
#20
Senior Member
Join Date: Jan 2016
Posts: 3,448
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 874 Post(s)
Liked 2,287 Times
in
1,278 Posts
My cycling hobby is about exercise and the process of building/ restoring the bikes I ride. I am one of those vintage road bike people that enjoys finding neglected , retired racers and breathing new life into them. Every bike I own has been built by me. I completely take them apart and build them back up to make sure everything is good. I change whatever I need to make the bike dependable and comfortable for me. I try to stay original but my intent is to have a bike I want to ride. I now own bikes that I could only dream of owning in the seventies when I could not afford a full Campagnolo racer. Joe joesvintageroadbikes.wordpress
Likes For Kabuki12:
#21
Senior Member
Join Date: Jul 2018
Location: USA
Posts: 2,190
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 942 Post(s)
Liked 527 Times
in
349 Posts
Interesting take from another person I read. His thought is that it makes no sense for me to do this, as main reason people do these builds is to control every component they select. They know why make x/model x is better choice than make y/model y, Since I dont have than knowledge, there is no point of building it myself. While I never thought of it that way, it kinda does and does not make sense. I get what he is saying, but in all honesty I dont remember reading in any threads that main reason people built these bikes was because they can control each nut and bolt used. Is he correct in his view?
Thanks again for all the help and info so far.
Thanks again for all the help and info so far.
If you are willing to purchase used or NOS at a discount then you can save. You can find some pretty good deals on used groupsets, you just need to know what you are looking at and know where to look for damage as an indicator that it was laid down. Up to you if you think it is worth it. I got a great deal on Campagnolo Record 11 Ultra-Torque groupset and I slapped it on a used bike that I had purchased.
Likes For jadocs:
#22
In the wind
I think building your own is absolutely a good idea - but do your research first. I've built up several bikes over the years with variable degrees of success, but if the result is not to my liking I just sell the bike and move on. In most cases I break even and I don't consider my time to be a waste because I always learn something.
But research is important. The mechanics forum here is a good resource, but also check out the technical docs available from Shimano and other manufacturers. As mentioned before, when you are buying parts there are some very specific compatibility issues. I still have a brand new 1 1/8" threaded headset that I bought on clearance that I will probably never use.
The other piece of advice I can give: don't buy cheap tools.
But research is important. The mechanics forum here is a good resource, but also check out the technical docs available from Shimano and other manufacturers. As mentioned before, when you are buying parts there are some very specific compatibility issues. I still have a brand new 1 1/8" threaded headset that I bought on clearance that I will probably never use.
The other piece of advice I can give: don't buy cheap tools.
Likes For mercator:
#23
Senior Member
Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280
Bikes: Nashbar Road
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times
in
228 Posts
If you want an inexpensive build for now, and spread out the cost of upgrades over a year or two it's not a bad idea. I believe that it can be cheaper than buying new if you build on either end of the price spectrum. Either low end on the pricier parts, or buy a top level group set. Because high end bikes add a premium for style and cachet over parts cost, the full group of components is a smaller portion of the bike's price.
When I built mine, generic aluminum frame with generic components, it was just a few hundred dollars at first. Including tools. I already had some wheels and other bits like seat post and saddle, and it was very basic, 1x7 Sora basic. By the time I improved it, it cost about the same as the equivalent you'd see online.
It's very easy if you're mechanically inclined. CF builds have a few extra considerations, mainly applying correct torque but none of it is really difficult. The big gotcha is having incompatible specs on the various pieces. If you're like I was and don't at first really know all the eccentric details like pull ratios vs brakes and derailleur capacities and so on, research and double-check the research.
*edited1: BTW I went more upscale on parts like the headset and bottom bracket, because those remain on the bike for a long time before having to mess with them. Handlebars or stem or seat post, who cares. I think we need to balance being realistic and being discriminating.
*edited 2: We can have different reasons for wanting to build, but it is a good question because sometimes the reason in not realistic. In my case, it was pragmatic and design philosophy. My "road bike" was a starter bike that was universally reviled (at least a little justified) and I wanted a true road bike and didn't want to lay out much for it. Secondarily I didn't want to cheap out in the places where most of these entry-level bikes do, but rather in components that I'd replace eventually anyway. Other people have explained completely different reasons such as wanting to learn the mechanics of their bike, which seems to me to be perfectly reasonable. Expecting to cut our cost in half in the long run though, would be one of the unrealistic ones.
When I built mine, generic aluminum frame with generic components, it was just a few hundred dollars at first. Including tools. I already had some wheels and other bits like seat post and saddle, and it was very basic, 1x7 Sora basic. By the time I improved it, it cost about the same as the equivalent you'd see online.
It's very easy if you're mechanically inclined. CF builds have a few extra considerations, mainly applying correct torque but none of it is really difficult. The big gotcha is having incompatible specs on the various pieces. If you're like I was and don't at first really know all the eccentric details like pull ratios vs brakes and derailleur capacities and so on, research and double-check the research.
*edited1: BTW I went more upscale on parts like the headset and bottom bracket, because those remain on the bike for a long time before having to mess with them. Handlebars or stem or seat post, who cares. I think we need to balance being realistic and being discriminating.
*edited 2: We can have different reasons for wanting to build, but it is a good question because sometimes the reason in not realistic. In my case, it was pragmatic and design philosophy. My "road bike" was a starter bike that was universally reviled (at least a little justified) and I wanted a true road bike and didn't want to lay out much for it. Secondarily I didn't want to cheap out in the places where most of these entry-level bikes do, but rather in components that I'd replace eventually anyway. Other people have explained completely different reasons such as wanting to learn the mechanics of their bike, which seems to me to be perfectly reasonable. Expecting to cut our cost in half in the long run though, would be one of the unrealistic ones.
Last edited by wphamilton; 09-11-20 at 09:15 AM.
Likes For wphamilton:
#24
Senior Member
Thread Starter
While the idea of a clean-sheet build has a certain 'I made it myself' appeal, unless you've got a really specific plan, or a couple key 'signature' components, we've seen a lot of first-time builders get lost down the rabbit hole of availability or compatability that takes more time, money and/or skill to get out of than they want to spend. Getting the big parts like wheels, bars, and driveline is pretty easy, it’s the little stuff like seat posts, headsets, cable jewelry and other small parts that can nickel and dime a build to a standstill.
Take a look at what kind of riding you're doing with your current bike, and what it is and isn't good at. Maybe a whole other style of bike might be in order. A lot of today's niche bikes are very similar (functionally) to bikes that have been around for decades, if you do some mods and component swaps. Modding older bikes can also let you build a fleet of 'mission-specific' bikes for a fraction of the cost of new or nearly-new machines.
Fat-tire Drop-bar Fire-road / Adventure bike?An MTB from the 7/8/9 speed era would be a good start, there are a lot of them around, they’re sturdy, versatile, and many of them were pretty well spec’ed. If you can find an XC race bike (NORBA era) they'll be fast, light, and tough, too. Swap in some 'Dirt-Drop' bars, a short stem, and brifters or barcons, and you're ready to shred some gravel.
If a classy, swept-back cafe-racer / path-bike is what you’re after, then look for a Japanese road bike from the late 70’s -early 80’s, Add a Brooks saddle, and North Roads bars (or Moustache bars, if you're feeling daring) Filigree and pinstriping depends on whether you're going for the British, French or Italian style. Skinny Jeans will be required.
Need speed and style? Try updating a classic racing bike with modern wheels and running gear. There was a 1989 Cannondale Black Lightning on here a couple years back that had been updated to full (2017-spec) Shimano R5800 group (in black-on-black, of course) That bike was a rocket back in the day, but this made it not only faster, but easier to ride, too.
Actually, it's often easier to do a radical overhaul on an older race bike, because they were a little more 'standard' than modern, Aero / 'Superbikes' that may be designed to only use a specific component / group / setup.
Take a look at what kind of riding you're doing with your current bike, and what it is and isn't good at. Maybe a whole other style of bike might be in order. A lot of today's niche bikes are very similar (functionally) to bikes that have been around for decades, if you do some mods and component swaps. Modding older bikes can also let you build a fleet of 'mission-specific' bikes for a fraction of the cost of new or nearly-new machines.
Fat-tire Drop-bar Fire-road / Adventure bike?An MTB from the 7/8/9 speed era would be a good start, there are a lot of them around, they’re sturdy, versatile, and many of them were pretty well spec’ed. If you can find an XC race bike (NORBA era) they'll be fast, light, and tough, too. Swap in some 'Dirt-Drop' bars, a short stem, and brifters or barcons, and you're ready to shred some gravel.
If a classy, swept-back cafe-racer / path-bike is what you’re after, then look for a Japanese road bike from the late 70’s -early 80’s, Add a Brooks saddle, and North Roads bars (or Moustache bars, if you're feeling daring) Filigree and pinstriping depends on whether you're going for the British, French or Italian style. Skinny Jeans will be required.
Need speed and style? Try updating a classic racing bike with modern wheels and running gear. There was a 1989 Cannondale Black Lightning on here a couple years back that had been updated to full (2017-spec) Shimano R5800 group (in black-on-black, of course) That bike was a rocket back in the day, but this made it not only faster, but easier to ride, too.
Actually, it's often easier to do a radical overhaul on an older race bike, because they were a little more 'standard' than modern, Aero / 'Superbikes' that may be designed to only use a specific component / group / setup.
#25
Senior Member
Thread Starter
There is a lot of great info here, and I thank each and every one of you for taking time and providing it to this newbie. It definitely gives me lots to think about down the road, and things to consider than I may not have done before I posted this.
Likes For cvrle1:
