Bent derailleur hanger (claw adapter), maybe derailleur - AGAIN

Hi, just looking to bounce some ideas.

I have Shimano 1056 on my 88 Bianchi Strada, spread the rear from 126 to 130 to use modern wheels. Use an FSA 48-38 chainset, and 1056 8sp indexed rear dt shifters.

Yesterday on my way home, the chain dropped on a front shift, and all the sudden the rd was pulled almost into the wheel. I scootered the rest of the way home. I have been contemplating switching to an IGH on that bike anyway, but that's the second derailleur to get pulled around on that bike.

Any thoughts as to what might cause this?

Thanks.
Viich is offline
Old 06-14-19, 08:17 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,614

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
Chain suck up the rings' underside? Chain had a "wave" in it from the front drop off that traveled to the rear's cage and unshipped over the inner cage plate and caught on the spokes?

How worn are the rings and chain? Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 06-15-19, 06:06 AM
  #3
Viich
Hack
Thread Starter

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 756

Bikes: 88 Bianchi Strada (currently Sturmey'd), 90's Giant Innova (now with drop bars), FMF Race BMX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by Andrew R Stewart View Post
Chain suck up the rings' underside? Chain had a "wave" in it from the front drop off that traveled to the rear's cage and unshipped over the inner cage plate and caught on the spokes?

How worn are the rings and chain? Andy
Chain is probably ready for replacement, I'll measure. Rings should be OK, but I'll take a look a fire up a picture.
Viich is offline
Old 06-15-19, 10:05 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,224

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 654 Post(s)
Likes: 0
Liked 47 Times in 43 Posts
Please measure the chain with a ruler, not one of those useless (IMO) chain checkers, so that you are not misled.
dsbrantjr is offline
Old 06-15-19, 12:03 PM
  #5
Viich
Hack
Thread Starter

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 756

Bikes: 88 Bianchi Strada (currently Sturmey'd), 90's Giant Innova (now with drop bars), FMF Race BMX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by dsbrantjr View Post
Please measure the chain with a ruler, not one of those useless (IMO) chain checkers, so that you are not misled.
Always do. Chain was well into needing replacement - at 11 1/8


Chain Measurement

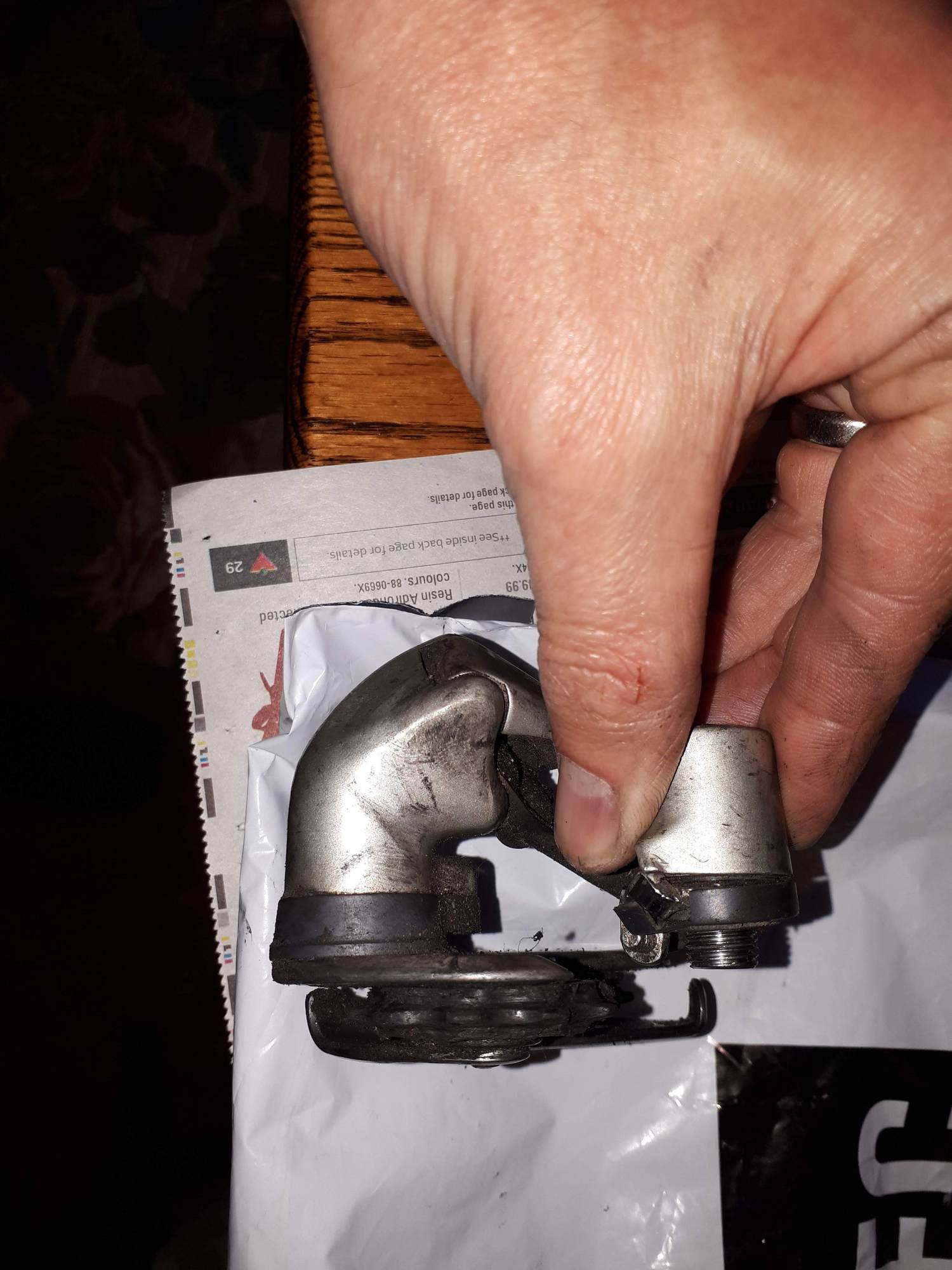

Derailleur


Derailleur

I think the derailleur should be fine - My outer ring though, looks to be done. Note to self to check chain more often.
Viich is offline
Old 06-15-19, 04:16 PM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,632

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6838 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
a new hanger must be aligned..

if 0 on ruler is on a pin center on the far end the chain is done

new chain pin centers are 1/2" and in 12" it would fall on the 12" line,,

'stretch' is sum of wear totaled over that length..

And clean that grimy derailleur...






....
fietsbob is offline
Old 06-15-19, 04:59 PM
  #7
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 5,427

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Liked 13 Times in 12 Posts
curbtender is offline
Old 06-16-19, 05:13 PM
  #8
Viich
Hack
Thread Starter

Join Date: Sep 2015
Location: Ottawa, Ontario, Canada
Posts: 756

Bikes: 88 Bianchi Strada (currently Sturmey'd), 90's Giant Innova (now with drop bars), FMF Race BMX

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by fietsbob View Post
a new hanger must be aligned..

if 0 on ruler is on a pin center on the far end the chain is done

new chain pin centers are 1/2" and in 12" it would fall on the 12" line,,

'stretch' is sum of wear totaled over that length..

And clean that grimy derailleur...






....
That bike is now home to a sturmey 3sp, which I was thinking about doing before this broke. The freehub wheels never fit properly anyway.
