H-Bar - Jones Loop Aluminum 710

Hello all. Has anyone changed out their standard drop bars with the Jones H-Bar Loops? I feel like it would provide me a more upright sitting positions when needed and a number of different hand positions. I wanted to see if anyone on the forum has done so and toured with these types of bars.

Thanks,

JT
ever1ast15 is offline
Old 07-25-18, 12:19 PM
  #2
ksryder
Senior Member

Join Date: May 2014
Posts: 1,817

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 727 Post(s)
Liked 63 Times in 35 Posts
Fairly popular option for Tour Divide racers. Also:

https://www.bikeforums.net/touring/1...s-touring.html
https://www.bikeforums.net/touring/1...g-2-5-bar.html
https://www.bikeforums.net/touring/8...es-h-bars.html
https://www.bikeforums.net/touring/9...es-h-bars.html
https://www.bikeforums.net/hybrid-bi...hese-bars.html
ksryder is offline
Old 07-25-18, 04:56 PM
  #3
seeker333
-

seeker333's Avatar

Join Date: Feb 2004
Posts: 3,752

Bikes: yes!

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 9 Times in 8 Posts
Originally Posted by ever1ast15 View Post
... Has anyone changed out their standard drop bars with the Jones H-Bar Loops? I feel like it would provide me a more upright sitting positions when needed and a number of different hand positions.
I am certain someone somewhere has exchanged every type of handlebar for every other type at some point in time. So, yes, you can do it.

Before you proceed, know that drop bars typically provide 3 or 4 different hand positions, 2 of which provide access to all controls. Jones H-bar will not improve upon these features. If you want a more upright posture, first try a shorter, steeper stem, at a fraction of the cost of a Jones bar conversion.

If you are considering the Jones bar for a Trek 520 Disc, be aware that the Hayes CX brake calipers are designed for (traditional) short-pull road levers, so you will need short-pull (cantilever) brake levers for the Jones bar - a std long-cable-pull MTB lever will not work.
seeker333 is offline
Old 07-26-18, 08:33 AM
  #4
skookum
cyclotourist

Join Date: Jul 2002
Location: calgary, canada
Posts: 882
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I put Jones bars on my Thorn Raven Nomad and didn't like them. They're not great for multiple hand positions, drop bars are better.
I have a Jones Plus bike and the bars work better on it. It is a more upright, less aero riding position, so less weight on the hands. I still would like a neutral
hand position, equivalent to the brake hoods position on drop bars.

I personally wouldn't switch from drops to Jones, you have to take the whole geometry of the bike into account, top tube length, stem rise, etc.

I really like the Jones, taken as a whole. I like my drop bar bike as well, they are just different beasts.
skookum is offline
Old 07-26-18, 08:50 AM
  #5
ever1ast15
Member
Thread Starter

Join Date: Jul 2013
Location: New Milford, NJ
Posts: 41

Bikes: Brompton M6R ( Navy/Orange), Trek 520 Disc

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thank you for the links. Good reading.
ever1ast15 is offline
Old 07-26-18, 09:26 AM
  #6
NoControl
Look Ma! No Hands!

NoControl's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 1,435

Bikes: Troll, Raleigh Twenty, Specialized Diverge

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 721 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by skookum View Post
I put Jones bars on my Thorn Raven Nomad and didn't like them. They're not great for multiple hand positions, drop bars are better.
I have a Jones Plus bike and the bars work better on it. It is a more upright, less aero riding position, so less weight on the hands. I still would like a neutral
hand position, equivalent to the brake hoods position on drop bars.

I personally wouldn't switch from drops to Jones, you have to take the whole geometry of the bike into account, top tube length, stem rise, etc.

I really like the Jones, taken as a whole. I like my drop bar bike as well, they are just different beasts.
Jones bars (710s) work well on my ECR. Love my Cowchippers on the Troll.
__________________
"I have never been lost, but I will admit to being confused for several weeks" -Daniel Boone

"You can't go back and change the beginning, but you can start where you are and change the ending" -C.S. Lewis

"Sobriety sucks." -Me
NoControl is offline
Old 07-26-18, 09:48 AM
  #7
DeadGrandpa
Senior Member

DeadGrandpa's Avatar

Join Date: Sep 2014
Location: Carolina
Posts: 694

Bikes: Trek 1120, Santa Cruz Tallboy 3CC, Fandango DC-9 MTB tandem, Jamis Renegade Expert, Bike Friday Pocket Llama, Santana Arriva tandem, Bridgestone RB-1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ever1ast15 View Post
Hello all. Has anyone changed out their standard drop bars with the Jones H-Bar Loops? I feel like it would provide me a more upright sitting positions when needed and a number of different hand positions. I wanted to see if anyone on the forum has done so and toured with these types of bars.

Thanks,

JT
I replaced the drop bars on my road bikes with trekking bars. The rolling hills where I ride kept my hands on the hoods all the time, and I got numbness. I replaced the stock flatbars on my Trek 1120 with Jones H bars, and I love them. I'm considering replacing the flat bars on my hardtail mtb tandem with Jones bars also. The only thing holding me back is the cost, because I would go carbon to reduce vibration. I'm trying other solutions for that before I spring for those.
DeadGrandpa is offline
Old 07-26-18, 06:38 PM
  #8
revcp
Senior Member

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,120

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Been using Jones on my Surly Troll

and I'm confused by the claim that they cut down on hand positions. With drops I have four hand positions: either side of the stem, the shoulders, brake hoods, drops. With the Jones I have... four hand positions (with under the bar shifters): either side of the stem, grips, joint where the stem bar and "loop" bar join, up front on the "loop". They are great for touring, commuting and singletrack.
revcp is offline
Old 07-26-18, 06:52 PM
  #9
zze86
Senior Member

Join Date: Oct 2016
Posts: 664
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Tried them but the sweep of the bars was too much for me. Found I preferred something with around 35deg sweep for this type of bar (but I still much prefer drop bars). I do like the support of the two bars when stretching out, its a bit like built in aero bars.

Try them out and see if you like them. They still command a fair price used so you won't lose out much on the bars if you find you don't like them.

Butterfly bars are another alternative you could try which can usually be had for much cheaper than Jones bars.
zze86 is offline
Old 07-26-18, 07:00 PM
  #10
zze86
Senior Member

Join Date: Oct 2016
Posts: 664
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by revcp View Post
and I'm confused by the claim that they cut down on hand positions. With drops I have four hand positions: either side of the stem, the shoulders, brake hoods, drops. With the Jones I have... four hand positions (with under the bar shifters): either side of the stem, grips, joint where the stem bar and "loop" bar join, up front on the "loop". They are great for touring, commuting and singletrack.
For me, the hand positioning felt very similar regardless of whether I was at the grips or up higher at the controls. I also felt more pressure with these bars also. Maybe it is as Skookum said, the frame geometry and rider needs to be a bit more upright. *shrug*
zze86 is offline
Old 07-26-18, 07:49 PM
  #11
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 5,227

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1177 Post(s)
Liked 41 Times in 29 Posts
I haven't really tried riding the bars yet but have played around with the Velo Orange Crazy Bars on a touring bike I am building for someone small (since it was a free frame but way too small for me and I cannot just sell a frame I gotta build a bike...come on). So far just holding them and testing out the positions I love it. Almost to the point where I might redo my touring bike but sadly not anytime soon as I just tuned it up and replaced cables and tape not that long ago.
veganbikes is offline
Old 07-26-18, 09:47 PM
  #12
HerrKaLeun
Senior Member

Join Date: Mar 2017
Location: Madison, WI
Posts: 1,377

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Likes: 0
Liked 23 Times in 19 Posts
You know they require MTB brakes/shifters? This may be a problem since you seem to have drops.

I have no touring experience, but recently converted my flatbar hybrid to Jonesbar (keeping same brakes/shifters). Basically 5 hand (and partially body) positions change things up. It also added an aero position (compared to my flat bar), which made me a quite bit faster on straights. It also adds an upright position (similar to comfort bike). It was a big improvement regarding comfort and aero. Not sure if the improvement % is the same if you come from drops.
HerrKaLeun is offline
Old 07-27-18, 09:19 AM
  #13
skookum
cyclotourist

Join Date: Jul 2002
Location: calgary, canada
Posts: 882
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by revcp View Post
and I'm confused by the claim that they cut down on hand positions. With drops I have four hand positions: either side of the stem, the shoulders, brake hoods, drops. With the Jones I have... four hand positions (with under the bar shifters): either side of the stem, grips, joint where the stem bar and "loop" bar join, up front on the "loop". They are great for touring, commuting and singletrack.
One of the most natural hand positions is analagous to riding the brake hoods on drops. Wrists in the vertical plane, about shoulder width apart. No equivalent on the Jones.
That is why bars like the moloko and crazy bars were developed. This may not matter to everybody, but I really notice it after a couple of hours of riding.
The Jones bars are great on more technical terrain like single track or very rough jeep tracks and mining roads. They give you that extra control that would be hard to get on drops
skookum is offline
Old 07-27-18, 01:04 PM
  #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6833 Post(s)
Likes: 0
Liked 214 Times in 178 Posts
BTW I have some Paul's top mounts to sell, they have a V pull option..
fietsbob is offline
Old 07-30-18, 07:32 PM
  #15
rifraf
Senior Member

Join Date: Apr 2011
Location: Perth Australia
Posts: 872

Bikes: Surly Ogre, Carry Freedom Y-frame, Extrawheel Trailer

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I added some to the bike I built up, which was a 2013 Surly Ogre frame.

I was worried about the initial investment given that the bars were pricy when I was looking at them and the postage, given I had to order them internationally, was horrendous.

To help determine whether I might like them, I first bought some much cheaper Titec J-bars which were made under license to Jones if memory serves.

Titek made both a J-bar and an H-bar and shared similar dimensions and look to the genuine Jone H-loop bar.

I picked up my J-bar I think for $25 from eBay and liking them, preceded to buy the genuine Jones bar.

Perhaps you too could find some of the Titec bars to trial to see if they suit OP.

Heres some info here: https://bikecarson.com/2010/10/25/ti...-final-review/

By the time I was prepared to splash out on the genuine article, they were available in Australia, which was just as well as like I said the postage from the US (Jones) or UK (charliethebikemonger) was very steep with the inherent risk of damage.

Last edited by rifraf; 07-30-18 at 07:51 PM.
rifraf is offline
Old 08-01-18, 06:32 AM
  #16
khutch
Sumerian Street Rider

khutch's Avatar

Join Date: Mar 2010
Location: Suburban Chicago
Posts: 661

Bikes: Dahon Mu P8, Fuji Absolute 1.0

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Personally I would not replace drop bars with the Jones bar. However, on a bike that comes with a straight, flat bar I would replace it with a Jones bar in a nanosecond! I've done that on a flat bar hybrid and I have ridden with them for 8 years. They are great! To me they provide the hand position advantages of a drop bar on a flat bar bike without the expense of having to change out all the controls that a change to a drop bar would entail.
khutch is offline
Old 08-01-18, 09:27 PM
  #17
boomhauer
Senior Member

boomhauer's Avatar

Join Date: Apr 2011
Posts: 655
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 3 Times in 1 Post
Jones bars are great for carrying a water bladder and a hose.
You just buy a $7 cargo net off of amazon and attach it around the opening then lay the bladder inside. No more reaching for a bottle to drink water.
boomhauer is offline
Old 08-02-18, 10:05 AM
  #18
mrv
BIKE RIDE

Join Date: Jun 2014
Location: Michigan
Posts: 914

Bikes: 198? Specialized RockHopper / 2013 KONA JtS / 1985 Asian Modification / and that's not ALL!

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 2 Times in 2 Posts
howdy - i undropped my MTB touring thing.
I've been using the Joneses (2.5 SG) since May. One long tour with them with a couple of very flat 90ish mile days.
So far I am liking them on this bike more than the drop bars.
As someone mentioned it depends on the whole bike. My old MTB has a very long top tube (60cm). I wanted to get more back and more up. So the 2.5in rise in the bars and the sweep back does that - without buying a new bike.

I find the angle coming back pretty comfortable, but I do agree that drop bars on the hoods is pretty natural also. As far as hand position variety - you only get the variety if you lean forward to the loop part, like if you wanna go aero. (aero on a 35lb bike.... !!)

- if you've already seen the pics a dozen time in other posts, I'll just say "sorry!" , I'm assuming the OP'r didn't see them.
CIAO!



undropped

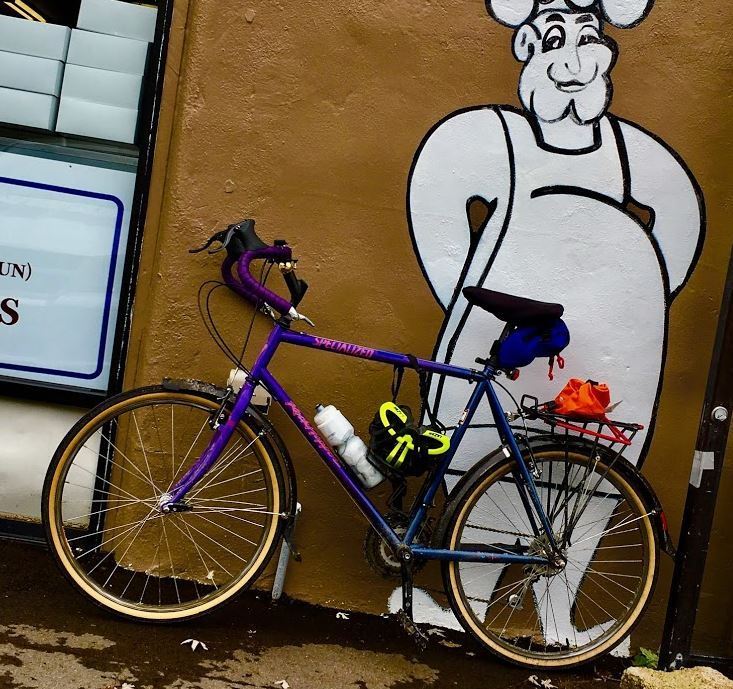

dropped
mrv is offline
Old 08-04-18, 12:11 PM
  #19
LeeG
Senior Member

Join Date: Sep 2008
Posts: 4,912
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by ever1ast15 View Post
Hello all. Has anyone changed out their standard drop bars with the Jones H-Bar Loops? I feel like it would provide me a more upright sitting positions when needed and a number of different hand positions. I wanted to see if anyone on the forum has done so and toured with these types of bars.

Thanks,

JT
I had a LHT set up with drop bars for commuting but did not like the slow speed handling and brake control with a heavy front load and maneuvering up ramps or slow drops off curbs. I donít think what I got was a Jones bar but a Titec bar. Either way my belly hasnít got smaller and aero position is moot with my loads and speed so these are it. Added short stubby clip ons for a more stretched out posture when desired. Also makes it easy to flip the bike upside down and not dig bar stuff on the ground.
LeeG is offline
Old 08-05-18, 12:09 PM
  #20
schoolboy2
Easily Led Astray

Join Date: Jan 2015
Location: Sonoma County, California
Posts: 51

Bikes: Trek 5200, Trek Domane 5.2, Surly Long Haul Trucker

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Not a fan of the H-Bar ...

I changed out my drops for a Jones H-Bar before my most recent tour. I rarely (like never) used the drop position, and it made sense to change to the "cruiser" style of the H-Bar. Of course I now also needed to change my shifters and brake levers too, but the cost wasn't that much so it all made sense to me.


I immediately had a problem with hand numbness. I have toured several thousands of miles on my drop bars with no issues, but after the first full day on the H-Bar, I had Ulnar nerve issues that have persisted for nearly three months. I had to suspend my tour after a couple of weeks as I lost the use of my right hand. My sports doc has me off the bike until the situation resolves itself. My fingers are slowly getting feeling back but it's been tough to see the summer pass by and not be able to ride.


My story may not be the same as others using an H-Bar as I've seen postings from people who successfully changed to the H-Bar. Perhaps it's a peculiarity of my hands, who knows... At any rate, I plan to replace my Jones H-Bar with drops so I have one to sell complete with MTB shifters and brake levers. Make me an offer!
schoolboy2 is offline
Old 08-05-18, 06:11 PM
  #21
mrv
BIKE RIDE

Join Date: Jun 2014
Location: Michigan
Posts: 914

Bikes: 198? Specialized RockHopper / 2013 KONA JtS / 1985 Asian Modification / and that's not ALL!

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by schoolboy2 View Post
I immediately had a problem with hand numbness.
Sorry to hear that! I've had a small bit of numbness, but I seem to with most flat bars / non-drop bars. But the H-bars gave me the middle loop as an option to spread my hands out. The big problem I see with the Jone-bars and all flat bars without bar ends, is they don't offer a nice way to ride with "palms - facing in", like riding on the hoods of drop bars do.
That's some the the OP'er should really think about. I think. I am going to keep my Jones Bars, as I've not had any serious problems. And I can get really up right with them when I want, or more down when I need.

Take care and hope you heal up quickly - YIKES!
mrv is offline
Old 08-06-18, 04:35 AM
  #22
HerrKaLeun
Senior Member

Join Date: Mar 2017
Location: Madison, WI
Posts: 1,377

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Likes: 0
Liked 23 Times in 19 Posts
Does anyone here use the Gnarwal or other aero bar with the H-lop? I'd think that would give a second aero position.

I'm curious if that would be useful on long tours or fast headwinds compared to the regular aero position on the loop (on front of loop)
HerrKaLeun is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Jarrett2
Clydesdales/Athenas (200+ lb / 91+ kg)
20
03-24-17 09:49 AM
kevmk81
Training & Nutrition
2
02-20-12 09:03 AM
BengeBoy
Pacific Northwest
2
01-07-11 12:17 AM
kdogkodiak
Road Cycling
8
12-30-06 07:27 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
