How to get this handlebar in the stem (or vice versa)

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to get this handlebar in the stem (or vice versa)

Old 06-27-20, 04:01 PM
  #1
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 126

Bikes: 1994 Cadex CFR3, 1993 Cannondale R600, 2006 Scott CR1 SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 14 Times in 11 Posts
How to get this handlebar in the stem (or vice versa)

They're both 25.4. But the curve on the handlebar seems too important, it kinda blocks the way. Bought this white stem to match a white fork but it really is getting on my nerves.

I guess the key is to widen the stem by inserting some kind of tool in the bolt gap? I tried it with a flat screwdriver and almost ripped open my front arm. Any other tip?


jonny7 is offline
Old 06-27-20, 04:11 PM
  #2
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,132

Bikes: A few too many

Mentioned: 27 Post(s)
Tagged: 1 Thread(s)
Quoted: 665 Post(s)
Liked 429 Times in 295 Posts
OP, Remove the stem and try starting over, do not force the stem on the bar, try rotating it into a position that it will rotate on easily.
All bars and stems have a sweet spot that allows you to get them into position.
Good Luck...take your time.
Ben
xiaoman1 is online now
Old 06-27-20, 04:22 PM
  #3
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 927

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 180 Posts

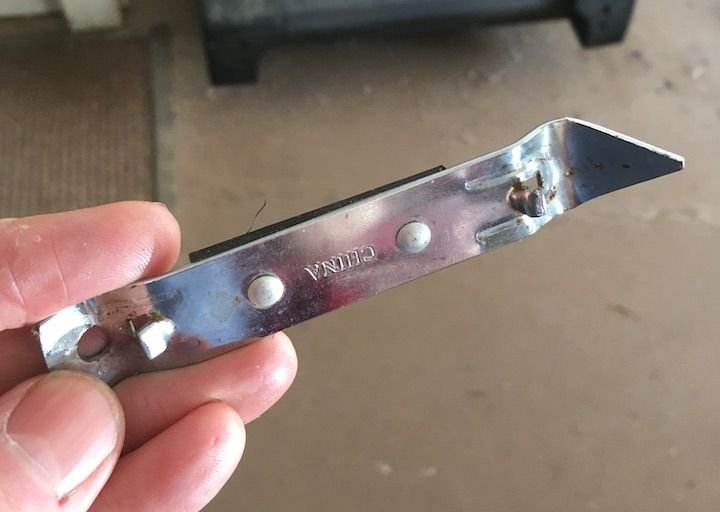

I had to do this a few days ago. I used a cheapo bottle opener to spread the stem to get it off the bars - one hand control of the squeeze and doesn't mar the edge of the stem clamp. As you can see from the edge of the clamp, I tried a screwdriver before I tried this)

Litespud is offline
Likes For Litespud:
Old 06-27-20, 04:32 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,747

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2257 Post(s)
Liked 654 Times in 441 Posts
Originally Posted by jonny7 View Post
They're both 25.4. But the curve on the handlebar seems too important, it kinda blocks the way.
Rotate the stem so that the narrow part of the clamp is on the inside of the handlebar's curve and you should be able to slide it through.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-27-20, 04:39 PM
  #5
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,248

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 495 Post(s)
Liked 239 Times in 172 Posts
If you have a thin jam nut and a dime, and it fits in the opening, you can hold the jam nut and just thread a bolt against the dime. I prefer using a nickel, but Iím not sure you have the space.

It works better if you were able to thread the bolt from the opposite direction, but you donít have that option.

John
70sSanO is offline
Old 06-27-20, 05:20 PM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,569

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 548 Times in 396 Posts
Originally Posted by JohnDThompson View Post
Rotate the stem so that the narrow part of the clamp is on the inside of the handlebar's curve and you should be able to slide it through.
+1, that is the narrow part of the clamp.
dsbrantjr is offline
Old 06-27-20, 06:21 PM
  #7
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 126

Bikes: 1994 Cadex CFR3, 1993 Cannondale R600, 2006 Scott CR1 SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 14 Times in 11 Posts
Originally Posted by 70sSanO View Post
If you have a thin jam nut and a dime, and it fits in the opening, you can hold the jam nut and just thread a bolt against the dime. I prefer using a nickel, but Iím not sure you have the space.

It works better if you were able to thread the bolt from the opposite direction, but you donít have that option.

John
That did it ! yay
jonny7 is offline
Old 06-27-20, 07:19 PM
  #8
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 126

Bikes: 1994 Cadex CFR3, 1993 Cannondale R600, 2006 Scott CR1 SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 14 Times in 11 Posts
The stem went through a rough time during the whole operation however. Do you think nail polish could improve the looks a bit? Never used it on a bike but I've seen this suggestion a few times on here.
​​​​​​​
jonny7 is offline
Old 06-27-20, 07:47 PM
  #9
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,248

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 495 Post(s)
Liked 239 Times in 172 Posts
At the risk of drawing the ire...

... I’d remove the stem, clean it up and either strip it and polish it, or re-paint it white. I’ve rattle canned a stem black to match the bike components.

John
70sSanO is offline
Likes For 70sSanO:
Old 06-27-20, 07:54 PM
  #10
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 126

Bikes: 1994 Cadex CFR3, 1993 Cannondale R600, 2006 Scott CR1 SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 14 Times in 11 Posts
Originally Posted by 70sSanO View Post
At the risk of drawing the ire...

... Iíd remove the stem
jonny7 is offline
Likes For jonny7:
Old 06-28-20, 12:05 PM
  #11
Pirkaus
Coffin Dodger

Pirkaus's Avatar

Join Date: Mar 2013
Location: New Hampshire
Posts: 2,124

Bikes: Motobecane Vent Noir, Lynskey R345, Serotta Nova Special X

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 787 Post(s)
Liked 270 Times in 137 Posts
Originally Posted by 70sSanO View Post
At the risk of drawing the ire...

... Iíd remove the stem, clean it up and either strip it and polish it, or re-paint it white. Iíve rattle canned a stem black to match the bike components.

John
Originally Posted by jonny7 View Post
Now you ask about paint?
Pirkaus is offline
