Go Back  Bike Forums > Bike Forums > Classic & Vintage
Reload this Page >

Freewheel vise

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Freewheel vise

Old 10-12-19, 07:52 AM
  #1
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,216
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Likes: 0
Liked 182 Times in 122 Posts
Freewheel vise

Anyone have experience with this tool?

https://www.ebay.ca/itm/Bicycle-Chai...8AAOSwjSldeSNE

Am I crazy for wanting to pry my freewheels apart? I've got about 10 that could probably use a good disassembly.
Narhay is offline
Old 10-12-19, 08:08 AM
  #2
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 370

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 66 Times in 49 Posts
Originally Posted by Narhay View Post
Anyone have experience with this tool?

https://www.ebay.ca/itm/Bicycle-Chai...8AAOSwjSldeSNE

Am I crazy for wanting to pry my freewheels apart? I've got about 10 that could probably use a good disassembly.
I have no experience with that one, but I made one myself years ago - kind of the same principle but way less complicated - that worked great. Personally I liked being able to disassemble the cogs. Also, I had a Regina CX freewheel that came in a "kit" - multiple cogs, body, remover tool - so I was, maybe, changing cogs more frequently that I really needed to (?) because I could. I don't have that "tool" now, but wish I did for ease of cleaning the cogs.
Bianchi84 is offline
Old 10-12-19, 08:12 AM
  #3
J.Higgins
Senior Member

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,064

Bikes: Bilenky Tourlite, Peter Mooney

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 223 Times in 160 Posts
That tool on eBay looks like a decent tool for short money. I personally pull all my freewheels apart using two chain whips, but that vise would certainly put some joy back into the task. You could always send them to Pastor Bob for the whole workup: https://www.freewheelspa.com/
__________________
"I have never been lost, but I will admit to being confused for several weeks" -Daniel Boone

"You can't go back and change the beginning, but you can start where you are and change the ending" -C.S. Lewis

"Sobriety sucks." -Me
J.Higgins is offline
Likes For J.Higgins:
Old 10-12-19, 08:14 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,499
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 334 Times in 295 Posts
-----

This is a new-to-me one.

It appears that one must bolt it down to a flat surface in order to use it: inconvenient.

Have VAR and Maeda on me workbench and they do just fine.

Their design is intended to drop into the jaws of a bench vise.

-----
juvela is online now
Old 10-12-19, 09:14 AM
  #5
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,024

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 259 Times in 180 Posts
I agree with NoControl . I have used Pastor Bob and for a very reasonable price he will take care of your freewheel needs. It is not something I do often enough to want to do for myself. Plus he has not only the tools but a bunch of spares, again at a very fair cost. He has done a couple of mine and the smoothness and range of cogs is perfect! Joe. joesvintageroadbikes.wordpress
Kabuki12 is offline
Old 10-12-19, 09:35 AM
  #6
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 431

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 110 Times in 80 Posts
that's an interesting tool and if you take freewheels apart may be handy to have. The main reason you'd want to do that is to replace cogs, so you'll then need to accumulate an inventory of cogs.

the modern Chinese made Shimano freewheels work pretty well, they are riveted together so this tool really is not needed.

Mark Petry
Bainbridge Island, WA USA

mpetry912 is offline
Old 10-12-19, 11:34 AM
  #7
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,847

Bikes: Yes, please.

Mentioned: 223 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Liked 768 Times in 431 Posts
Originally Posted by juvela View Post
-----

This is a new-to-me one.

It appears that one must bolt it down to a flat surface in order to use it: inconvenient.

Have VAR and Maeda on me workbench and they do just fine.

Their design is intended to drop into the jaws of a bench vise.

-----

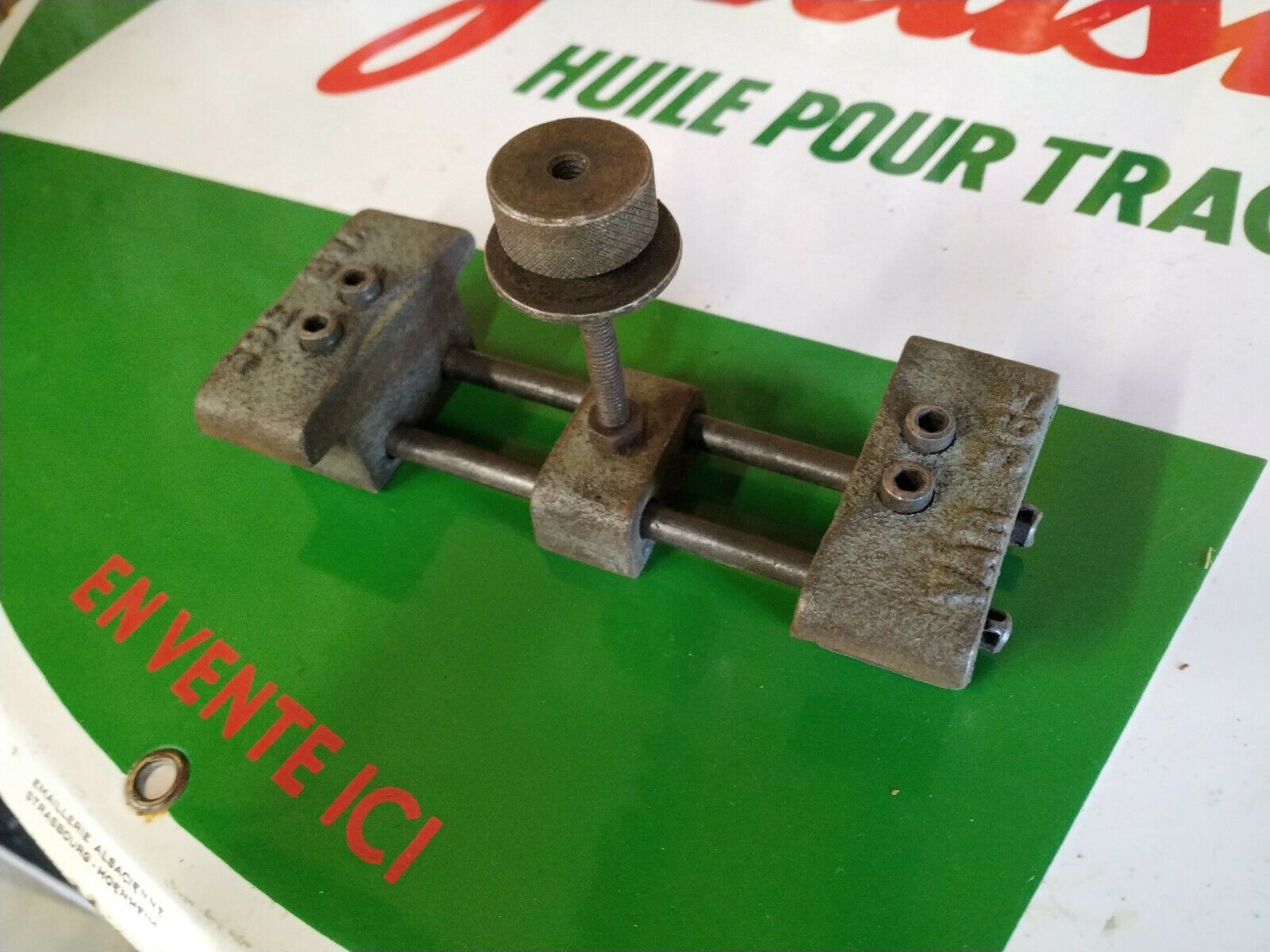

Is this the Maeda tool you're referring to?



Although I've never used it, I can see how a freewheel would fit:



It does seem to be able to do more than just hold a freewheel, but I haven't found out what yet.
non-fixie is online now
Old 10-12-19, 12:01 PM
  #8
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,615

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 210 Times in 128 Posts
I love my Bicycle Research freewheel tool. Up until very recently, you could buy direct for like $25. Seems like their site is no longer active. They are on eBay but pricey:
https://www.ebay.com/itm/VINTAGE-RAR...L/152780731660

__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 10-12-19, 12:09 PM
  #9
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,252

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 226 Times in 165 Posts
I like that one. You could just put some holes in your bench and use bolts as pins to keep the tool in place when in use. I've just used scrap wood and deck screws but always wanted an official tool.
Classtime is offline
Old 10-12-19, 12:12 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,499
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 334 Times in 295 Posts
Originally Posted by non-fixie View Post
Is this the Maeda tool you're referring to?



Although I've never used it, I can see how a freewheel would fit:



It does seem to be able to do more than just hold a freewheel, but I haven't found out what yet.

-----

Ja machen mein herr Oberst.

The semi-circular bits form an axle vise; two sizes for two diameters of axle.

---

Outillage VAR Nr. 365 -




-----

Last edited by juvela; 10-12-19 at 03:03 PM. Reason: insert image
juvela is online now
Old 10-12-19, 12:53 PM
  #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,983

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2167 Post(s)
Liked 387 Times in 293 Posts
Originally Posted by jeirvine View Post
I love my Bicycle Research freewheel tool. Up until very recently, you could buy direct for like $25. Seems like their site is no longer active. They are on eBay but pricey:
https://www.ebay.com/itm/VINTAGE-RAR...L/152780731660

That Bicycle Research tool was my usual go to BITD when making up custom freewheels, if I needed a freewheel vise. 9 of 10 times I used two chain whips, cuz it's faster. I think the shop where I worked had a VAR as well, and one other weird one I can't remember.

A freewheel vise isn't necessarily required. Two chain whips you will need regardless. I'd start with that and see how it goes. Might be enough. However, after several decades the freewheel cogs could well be much more stuck on that they were when new, and a vise will help with that.

Last edited by Salamandrine; 10-12-19 at 12:57 PM.
Salamandrine is offline
Old 10-12-19, 02:28 PM
  #12
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
I just use two chain whips. I clamp one to the bench and just yank on the other.

Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 10-12-19, 02:51 PM
  #13
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,699

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked 62 Times in 35 Posts
brian3069 is offline
Likes For brian3069:
Old 10-12-19, 02:52 PM
  #14
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,186

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 65 Times in 47 Posts
Narhay-

Not crazy, but no need for big expense. Get a slab of wood, place the freewheel and screw down (use 4 screws not just 2 as shown), use your chainwhip to loosen the locking cog and remove (after loosen the bearing cone). Disassemble.

bertinjim is offline
Old 10-12-19, 03:05 PM
  #15
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,847

Bikes: Yes, please.

Mentioned: 223 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Liked 768 Times in 431 Posts
Originally Posted by juvela View Post
-----

Ja machen mein herr Oberst.

The semi-circular bits form an axle vise; two sizes for two diameters of axle.

-----
Danke, Herr General!

I figured it would be something like that. Now I need to think of a reason to actually use it. It is a nice tool, BTW. Very elegant and minimalist. I like that. Very much.
__________________
Peace!
non-fixie is online now
Old 10-12-19, 03:16 PM
  #16
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,410

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2284 Post(s)
Likes: 0
Liked 698 Times in 485 Posts
The "Bicycle Chain Vise" of the OP's post looks like a real pain to use unless you use exactly one size biggest cog I have the VAR tool which is similar to the Maeda. With a good bench vise, it is a joy to use.

Ben
79pmooney is online now
Old 10-12-19, 04:26 PM
  #17
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,615

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 210 Times in 128 Posts
Originally Posted by Classtime View Post
I like that one. You could just put some holes in your bench and use bolts as pins to keep the tool in place when in use. I've just used scrap wood and deck screws but always wanted an official tool.
Mine is bolted to the wall, about chest height. Allows a lot of torque.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Likes For jeirvine:
Old 10-16-19, 07:36 PM
  #18
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,499
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 334 Times in 295 Posts
-----


On gear blocks where all of the cogs are threaded it can be a challenge to remove the last one.

For this VAR offers freeewheel vise Nr. 368 which clamps the cog threads on the body:



One seldom seen gear block vise is the VAR Nr. 03. Its tooth holders can be adjusted far enough apart to accept chainwheels. The chainwheel application has always seemed to me superfluous. It assembling or disassembling a set of chainwheels it is simple enough to place things on a flat surface and proceed. The one advantage is that it leaves both hands free; there is no need of steadying the parts. Purchased one new about forty-fives years back and have fired it up exactly twice - when it first arrived. Just to give it a try. It is oddly finished for a VAR tool in hammertone gold.



-----
juvela is online now
Old 10-17-19, 05:24 AM
  #19
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,163

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 436 Post(s)
Liked 119 Times in 74 Posts
Originally Posted by bertinjim View Post
Narhay-

Not crazy, but no need for big expense. Get a slab of wood, place the freewheel and screw down (use 4 screws not just 2 as shown), use your chainwhip to loosen the locking cog and remove (after loosen the bearing cone). Disassemble.

That will work if the cogs are a little bit too tight for the two-chainwhips approach, but it doesn't work if the cogs are really tight. I don't fool around anymore--I just go straight to the Suntour vise clamped in a big bench vise. It's never failed me.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 10-17-19, 07:48 AM
  #20
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,216
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Likes: 0
Liked 182 Times in 122 Posts
I was thinking of bolting it onto a piece of 2x6 and then placing in the jaws of my vise so it does not need to be out all the time.

I've tried two chain whips before and am jealous of you all that that was all the leverage one needed.
Narhay is offline
Old 10-17-19, 09:03 AM
  #21
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,765

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 18002 Post(s)
Liked 1,662 Times in 1,215 Posts
Originally Posted by Narhay View Post

Am I crazy for wanting to pry my freewheels apart? I've got about 10 that could probably use a good disassembly.
...for a long time I thought it was crazy to do all the work of changing out cogs on freewheels. That was when they cost ten bucks, and there were plenty of 5 and 6 speed close ratio freewheels available for purchase new. then there was a period when I could still find the smaller 5 speed ones with a 24 tooth largest cog in the used parts stream over at the co-op. So it still seemed like more work than I was willing to do.

Now the supply has grown thinner at the co-op, and they're selling for prices in the ridiculous range on e-bay. So it seems less crazy to me to have a box of old Suntour and Shimano freewheels to strip for usable cogs and to mix and match them to repair my old ones where one cog has gone bad. Fortunately I have one of those BSR tools, which works well as long as you also have a MAPP gas torch to apply some heat and a can of CRC Freeze Off. The majority of those I have worked on did not come apart easily.
3alarmer is offline
Old 10-17-19, 10:05 AM
  #22
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 431

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 110 Times in 80 Posts
Good post there 3 alarm. I am fortunate enough to have a lifetime supply of replacement cogs and bodies for what is arguably the best freewheel ever made (Dura Ace MF-7400) and the tools to disassemble and replace cogs. These units are very long lived. HOWEVER - I've done an A/B comparison of the DA freewheel and current issue chinese made Shimano freewheel - the kind you can find on ebay for under 20 bucks - and I gotta say that they are almost indistinguishable from a shifting / performance standpoint.

But I do take your point - that good quality freewheels in desireable ratios are bringing silly money on ebay.

Hopefully we won't need to resort to cryogenics or plasma cutters to keep our old freewheels on the road.

Mark Petry
Bainbridge Island, WA USA

Last edited by mpetry912; 10-17-19 at 10:08 AM.
mpetry912 is offline
Old 10-17-19, 11:49 AM
  #23
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,983

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2167 Post(s)
Liked 387 Times in 293 Posts
Originally Posted by Narhay View Post
I was thinking of bolting it onto a piece of 2x6 and then placing in the jaws of my vise so it does not need to be out all the time.

I've tried two chain whips before and am jealous of you all that that was all the leverage one needed.
Not that much to be impressed with in reality. Most of my cog swapping during the freewheel era was done making up new custom freewheels for people, using brand new cogs and bodies. Even when there was a need to swap cogs on used freewheels, they were typically only a few months old. Decades later, it's a different story. Lots of corrosion and decades of torque. Some sort of vise is a good idea, and BITD we did have them if needed. Even if you get a vise, IMO you should always have two chain whips. This was just sort of standard -- like how cone wrenches were always sold in pairs.

All that said, working regularly as a bike mechanic did tend to give you forearms like Popeye.
Salamandrine is offline
Old 10-17-19, 01:28 PM
  #24
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,852

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 818 Post(s)
Liked 173 Times in 139 Posts
Originally Posted by mpetry912 View Post
that's an interesting tool and if you take freewheels apart may be handy to have. The main reason you'd want to do that is to replace cogs, so you'll then need to accumulate an inventory of cogs.

the modern Chinese made Shimano freewheels work pretty well, they are riveted together so this tool really is not needed.
For decades I have custom built my own freewheels to obtain the ratio progressions I want. I use the Suntour tool in my bench vise, along with a chain whip -- the combination works like a champ.

Those pesky rivets in modern freehub cassettes are what Dremel tools are for. About a year ago I merged cogs from two of these "spiders" (one riveted, the other screwed) to make new 8-speed setup for my mountain bike.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is online now
Old 10-17-19, 01:32 PM
  #25
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 810

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Liked 390 Times in 235 Posts
Originally Posted by 3alarmer View Post
...for a long time I thought it was crazy to do all the work of changing out cogs on freewheels. That was when they cost ten bucks, and there were plenty of 5 and 6 speed close ratio freewheels available for purchase new. then there was a period when I could still find the smaller 5 speed ones with a 24 tooth largest cog in the used parts stream over at the co-op. So it still seemed like more work than I was willing to do.

Now the supply has grown thinner at the co-op, and they're selling for prices in the ridiculous range on e-bay. So it seems less crazy to me to have a box of old Suntour and Shimano freewheels to strip for usable cogs and to mix and match them to repair my old ones where one cog has gone bad. Fortunately I have one of those BSR tools, which works well as long as you also have a MAPP gas torch to apply some heat and a can of CRC Freeze Off. The majority of those I have worked on did not come apart easily.
This is so true. And of course all this is doubly true for French-threaded freewheels!!
scarlson is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
