Dishing/Centering tool

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Dishing/Centering tool

Old 06-07-20, 07:00 PM
  #1
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,183

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 153 Post(s)
Likes: 0
Liked 85 Times in 48 Posts
Dishing/Centering tool

I won't be building enough wheels to need a formal dishing tool.
Flipping the wheel in the truing stand, and the rudimentary method below, works for now.

67tony is offline
Old 06-07-20, 08:23 PM
  #2
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,730
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1486 Post(s)
Liked 564 Times in 433 Posts
So did the little Red Wings dude and/or the troll help you finish off the ice cream?
madpogue is offline
Old 06-07-20, 08:24 PM
  #3
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 819

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 203 Times in 153 Posts
Flipping the wheel works so well for me that I've never bothered with a dishing tool. I've built/rebuilt 7 sets of wheels so far this year alone and use the flip method. Wheels have been everything from tandem wheels with basic shimano hubs and rhino lite rims to King and White Industries hubs and 140.00 rims. I worked in a shop for several years building dozens of wheels each year and a light touch with a truing stand really does work. Key is to loosen the wheel lightly drop it back into the stand and only slightly snug it, loosen, pull out the wheel without touching and again lightly drop in and only slightly snug. Movement too or from the feelers is the measure as I'm sure you know but it can get incredibly accurate with a very light touch and if you happen to be off by less then .5mm no one will ever be able to tell or know. I've seen factory builds off my 4-5mm that people had no clue of when doing tune ups and riding for years. Its an appalling amount to be off by but the flipping method can get you as close as any dishing tool.
Russ Roth is offline
Old 06-07-20, 08:34 PM
  #4
jiangshi
Senior Member

Join Date: Jul 2013
Posts: 1,633
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 94 Times in 59 Posts
Dishing tools are cheap enough, easy to make, and a time saver. I'm a firm believer in having the tools to make a job faster and easier.

I used to go to the Olympia nearly every Sunday for the matinee games back in the early 1960's. I saw some great games and a whole lot of blood.

Last edited by jiangshi; 06-07-20 at 08:39 PM.
jiangshi is offline
Old 06-07-20, 09:20 PM
  #5
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,515

Bikes: old school 531c & Campy

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 743 Times in 457 Posts
Still using two stacks of cd jewel cases, a table, and a metric ruler up in here.
SurferRosa is offline
Old 06-07-20, 09:23 PM
  #6
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,344

Bikes: It's complicated.

Mentioned: 906 Post(s)
Tagged: 0 Thread(s)
Quoted: 2765 Post(s)
Liked 703 Times in 399 Posts
Two things are equally true: You don't need to have fancy tools to build a good wheel. Good tools make building a good wheel faster and easier.

Back in my LBS days I built a few hundred wheelsets. After getting married and having kids, I didn't make or have time for riding. When they got older I started having time to get back into cycling. Before I bought a truing stand I had a set of wheels to build, so I improvised.


10 cent truing stand
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 06-07-20, 09:57 PM
  #7
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,730
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1486 Post(s)
Liked 564 Times in 433 Posts
Originally Posted by jiangshi View Post
I used to go to the Olympia nearly every Sunday for the matinee games back in the early 1960's. I saw some great games and a whole lot of blood.
I only saw one game at Olympia, also saw Emerson Lake & Palmer there. Never saw a game at the Joe, and now even it's closed. Throwaway architecture.

Sorry, /hijack.
madpogue is offline
Old 06-07-20, 10:06 PM
  #8
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,157
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1123 Post(s)
Likes: 0
Liked 141 Times in 109 Posts
I've been thinking of buying a wheel dishing tool for some years now...... but cheapey cheapskate me just could not get myself to spend for even the cheapest I've found! So, I've been flipping wheels since I built my first one. Personally, I don't really see the sense in ever getting one at this point....
Fry cooks can flip burgers while C&V wheel builders can flip wheels....
Chombi1 is offline
Old 06-08-20, 02:38 AM
  #9
oneclick
Senior Member

Join Date: Feb 2020
Posts: 269
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
Originally Posted by 67tony View Post
I won't be building enough wheels to need a formal dishing tool.
Flipping the wheel in the truing stand, and the rudimentary method below, works for now.
If you're going to measure, measure from the locknut face.
oneclick is offline
Likes For oneclick:
Old 06-08-20, 05:16 AM
  #10
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,614

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 70 Times in 52 Posts
I made a dishing tool in about half an hour from a piece of scrap wood and a 3 inch bolt.
Pompiere is offline
Old 06-08-20, 05:30 AM
  #11
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,211
Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Likes: 0
Liked 180 Times in 121 Posts
https://www.amazon.com/Park-Tool-Por.../dp/B079YW26GQ

For $35 for the park tool it is hard to argue with having the proper tool. There may be other ones available. As @gugie mentioned you can do a lot without buying the tool but they make doing things easier. I see there are also some copycat tension meters on Amazon these days for dirt cheap. Not sure about accuracy but makes things easier.

https://www.amazon.com/gp/aw/d/B088Q...TF8&psc=1&th=1
Narhay is offline
Old 06-08-20, 08:05 AM
  #12
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,053

Bikes: Many, and the list changes frequently

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 351 Times in 218 Posts
Originally Posted by oneclick View Post
If you're going to measure, measure from the locknut face.
Yes indeed. This was the first thing I noticed.
Moe Zhoost is offline
Old 06-08-20, 08:29 AM
  #13
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,344

Bikes: It's complicated.

Mentioned: 906 Post(s)
Tagged: 0 Thread(s)
Quoted: 2765 Post(s)
Liked 703 Times in 399 Posts
Originally Posted by Narhay View Post
https://www.amazon.com/Park-Tool-Por.../dp/B079YW26GQ

For $35 for the park tool it is hard to argue with having the proper tool. There may be other ones available. As @gugie mentioned you can do a lot without buying the tool but they make doing things easier. I see there are also some copycat tension meters on Amazon these days for dirt cheap. Not sure about accuracy but makes things easier.

https://www.amazon.com/gp/aw/d/B088Q...TF8&psc=1&th=1
I went decades without using a spoke tensioner gauge, I don't think they were around in my LBS days yet. When I finally bought one, I found that my usual wheel build was 5-10% low on recommended tension, which isn't too terribly bad, but I had muscle memory from building a few hundred sets of wheels. A gauge is the one thing I'd buy if you were getting into more than a few wheel builds.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-08-20, 08:48 AM
  #14
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,483

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 264 Times in 203 Posts
Originally Posted by oneclick View Post
If you're going to measure, measure from the locknut face.
Yup.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 06-08-20, 12:32 PM
  #15
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,964

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 376 Times in 286 Posts
I've always found flipping a wheel in the stand to be pretty useless for determining dish. This goes for both shop grade Park stands, and any kind of home economy stand. They are too wiggly. At most you get a rough notion of dish. Using the bike itself and zip ties or the like works better.

An actual tool is nice to have, but if you're not working in a shop, you can work around it. In my LBS days, I most often used the campy dishing tool. VAR made a nice tool. These days I have the cheap Minoura tool. Good enough for me and my own bikes. A DIY dishing tool would be pretty easy to fabricate if you build a lot of wheels.
Salamandrine is offline
Old 06-08-20, 12:49 PM
  #16
Last ride 76
1/2 as far in 2x the time

Last ride 76's Avatar

Join Date: Nov 2013
Location: Northern Bergen County, NJ
Posts: 1,844

Bikes: Yes, Please.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 245 Times in 196 Posts
Originally Posted by madpogue View Post
So did the little Red Wings dude and/or the troll help you finish off the ice cream?
Where did you take garden ornament identification classes? 😜.... That's no troll, that's a gnome.
__________________
I seem to have lost what little mind I had left before this all started.
Last ride 76 is offline
Old 06-08-20, 01:28 PM
  #17
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts

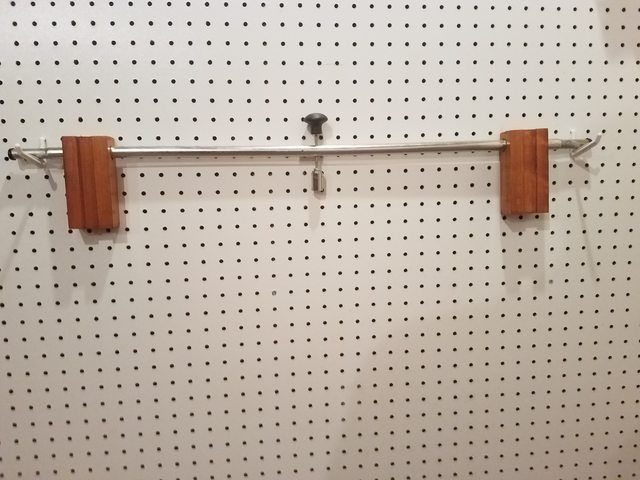

$0 - Crap on hand -- 2 pieces of scrap wood, an old socket, a nut, a piece of threaded rod, a drawer pull and a tent pole section from a defunct tent.
Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 06-08-20, 01:39 PM
  #18
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 6,977

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1341 Post(s)
Liked 518 Times in 292 Posts

Also made with scraps on hand.
AlmostTrick is offline
Likes For AlmostTrick:
Old 06-08-20, 03:49 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,730
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1486 Post(s)
Liked 564 Times in 433 Posts
Originally Posted by Last ride 76 View Post
Where did you take garden ornament identification classes? 😜.... That's no troll, that's a gnome.
Uh-oh, better home my gnome-dar.....
madpogue is offline
Old 06-09-20, 11:12 AM
  #20
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,183

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 153 Post(s)
Likes: 0
Liked 85 Times in 48 Posts
Originally Posted by Moe Zhoost View Post
Yes indeed. This was the first thing I noticed.
I thought of this too, but, after measuring, the axle protrudes from the outside of the lock nut exactly the same on each side.
67tony is offline
Old 06-09-20, 11:35 AM
  #21
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,183

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 153 Post(s)
Likes: 0
Liked 85 Times in 48 Posts
Originally Posted by madpogue View Post
I only saw one game at Olympia, also saw Emerson Lake & Palmer there. Never saw a game at the Joe, and now even it's closed. Throwaway architecture.
Olympia operated from 1927 until 1979, and you're right...that is unheard of nowadays.
The Joe was a great venue, and I saw many Wings games there as well as a kick-ass Kid Rock concert.

Early on I, too, went to weekend matinees at Olympia. I was pretty young, but remember the early Red Wings fondly. Ted Lindsay, Alex Delvecchio, Roger Crozier, Doug Gadsby, Norm Ullman, Doug Harvey, Pete Mahovlich, and of course the incomparable Mr. Hockey...Gordie Howe.

Born and raised in the Motor City cemented my allegiance, and I've been lucky to witness many memorable Red Wing moments, including their lean years, and the resurgence after naming Steve Yzerman a young captain. Since then we've seen the Russian Five, a President's Trophy record year, Sergie Federov, Vladimer Konstintinov, Nick Lidstrom, Pavel Datsyuk, and Henrik Zetterburg. My all-time favorite live event was Steve Yzerman's game 7 overtime goal against the Blues. I was right in the corner where they gathered to celebrate...epic!
67tony is offline
Old 06-10-20, 07:33 AM
  #22
67tony
Senior Member
Thread Starter

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 1,183

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 153 Post(s)
Likes: 0
Liked 85 Times in 48 Posts
Originally Posted by AlmostTrick View Post
This is very cool, and I also have most materials on hand.
Thanks for sharing the pic...

Last edited by 67tony; 06-10-20 at 08:23 AM.
67tony is offline
Old 06-10-20, 09:21 AM
  #23
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,243

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 840 Post(s)
Liked 225 Times in 164 Posts
I use a TS 2.2 with this. I can hold and adjust it one handed while flipping the wheel with the other hand. The saw blade bites into the Luann to hold its position.


__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 06-10-20, 12:09 PM
  #24
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,730
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1486 Post(s)
Liked 564 Times in 433 Posts
^^^^^ And you'll never lose it.....
madpogue is offline
Old 06-10-20, 04:42 PM
  #25
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,110
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Liked 160 Times in 106 Posts
Another diy. One set of screws for 26 wheels; the other for 700c. A t-nut for the feeler bolt. A scrap of 1 x 4.


due ruote is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
