1984 Specialized Sequoia components?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1984 Specialized Sequoia components?

Old 02-09-20, 02:15 PM
  #1
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
1984 Specialized Sequoia components?

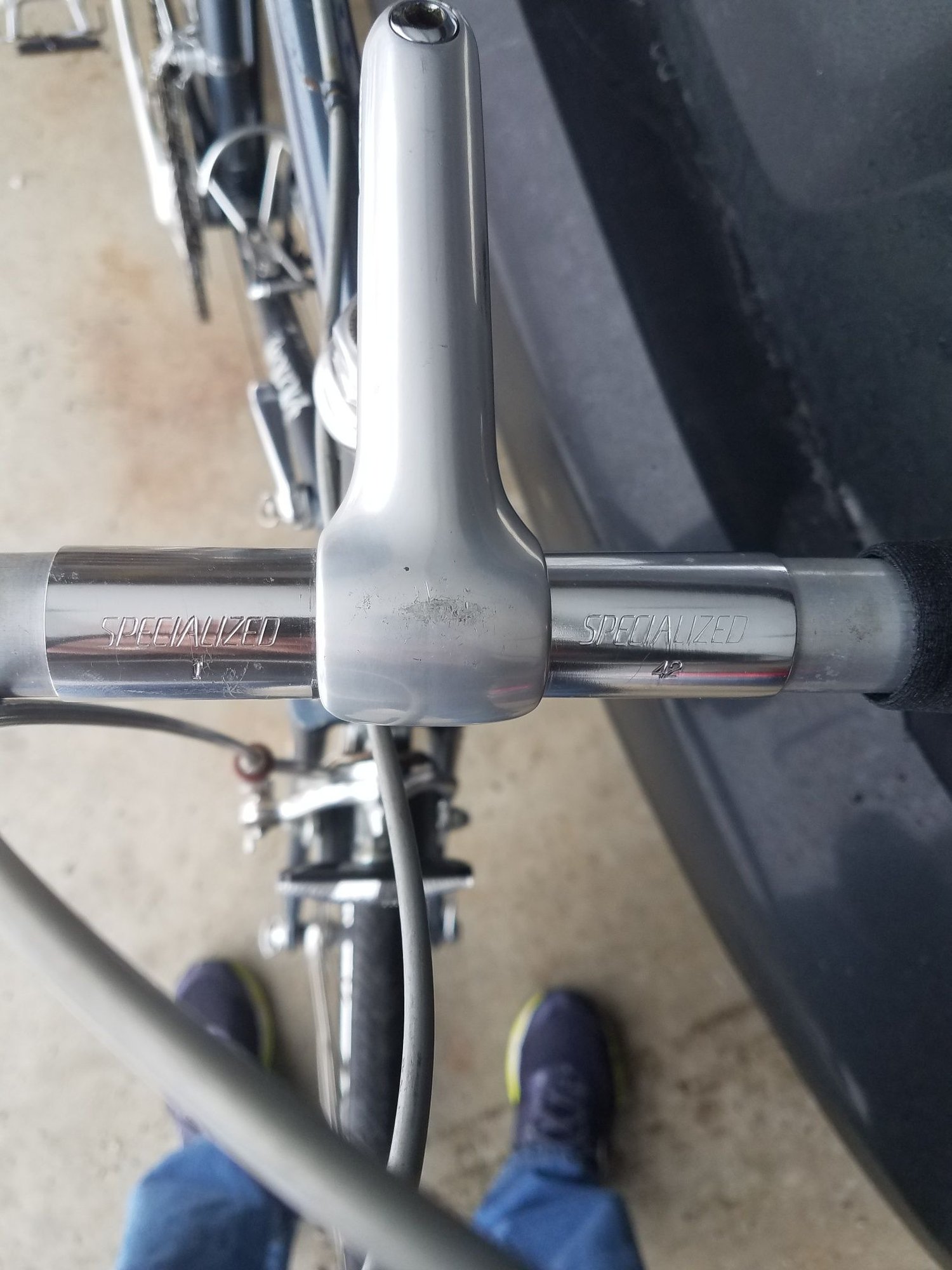

I've had this in my garage for some time now. Paid $150 for it over a year ago.









Finally took it to the local bike shop
and paid$50 to get the seat post unseized .The bike seems to be in great condition
and I'm wondering if all these components seem to be original. Right now I'm
waiting on the weather to warm up so I can clean it up a little more and see what else it needs
robertj298 is online now
Likes For robertj298:
Old 02-09-20, 02:32 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
$200 for this bike (cost plus labor) is a heck of a deal. This bike looks pretty much unmolested.
bikemig is offline
Old 02-09-20, 03:28 PM
  #3
orcas island
Senior Member

Join Date: Sep 2009
Posts: 670
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Likes: 0
Liked 116 Times in 57 Posts
Looks original to me. Probably came with clips and straps though...
orcas island is offline
Old 02-09-20, 03:54 PM
  #4
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
I'm curious. It's that a pump holder on the bottle holder?
robertj298 is online now
Old 02-09-20, 03:59 PM
  #5
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
That's probably an 85. Specialized Catalogue 1985 | Catalogues | Retrobike

The 84 had an Avocet saddle, Sugino AT crank, Cyclone MKII rear derailleur

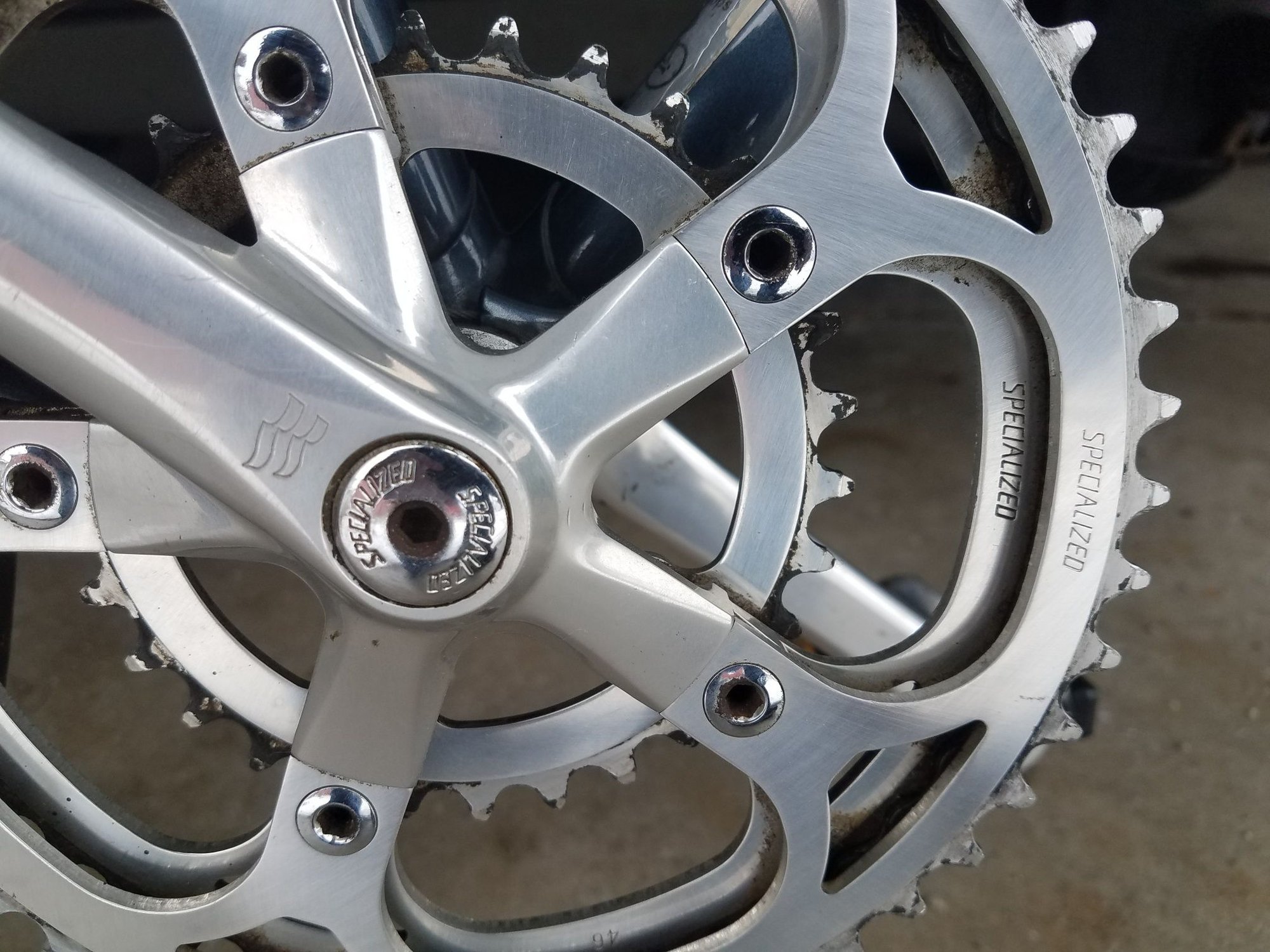

The 85 had a Specialized saddle, Specialized crank, Superbe GT rear derailleur
Vintage_Cyclist is offline
Old 02-09-20, 04:18 PM
  #6
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
Originally Posted by Vintage_Cyclist View Post
That's probably an 85. Specialized Catalogue 1985 | Catalogues | Retrobike

The 84 had an Avocet saddle, Sugino AT crank, Cyclone MKII rear derailleur
The 85 had a Specialized saddle, Specialized crank, Superbe GT rear derailleur

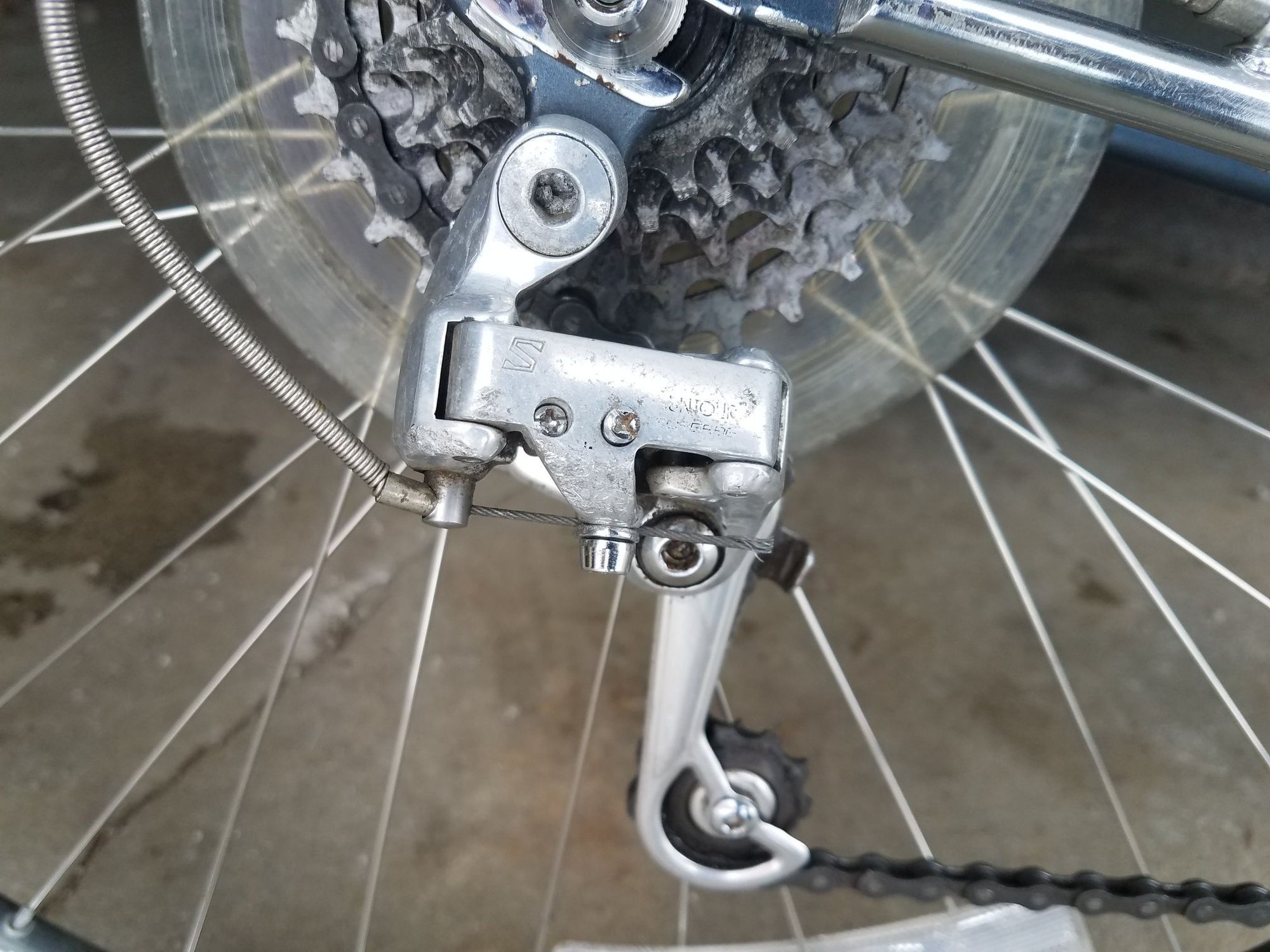

Strange. The serial# equates to 1984 and the rear derailleur is a cyclone MKll
robertj298 is online now
Old 02-09-20, 05:32 PM
  #7
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
Originally Posted by robertj298 View Post
Strange. The serial# equates to 1984 and the rear derailleur is a cyclone MKll
An 84 serial number would be the year the frame was made. It wouldn't be unusual for an 84 built frame to be marketed as an 85 bike.

The pictures above show a Cyclone MKII front derailleur, but a Superbe GT rear.
Vintage_Cyclist is offline
Old 02-09-20, 05:48 PM
  #8
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,111

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2017 Post(s)
Liked 336 Times in 235 Posts
Originally Posted by robertj298 View Post
Strange. The serial# equates to 1984 and the rear derailleur is a cyclone MKll
The rear derailleur is the rare Superbe GT.

That bike is really really sweet.

IMO- it's one of the finest "all-rounder" bikes ever.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 02-09-20, 06:37 PM
  #9
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
That bike looks to be in great shape. Another 1985 feature is the pump peg on the headtube.

Regarding the previously seized seatpost, that might have been caused by moisture getting down via the flutes on the seatpost, since the flutes are almost completely into the seatube. You might consider changing the seatpost to a smooth one so the issue doesn't recur. You can always hold onto the original, in case you sell the bike later.
Vintage_Cyclist is offline
Old 02-09-20, 07:55 PM
  #10
rgvg
Senior Member

Join Date: Aug 2017
Location: Vancouver, BC
Posts: 294

Bikes: Mostly japanese ones

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 11 Posts
I haven't seen any 84 catalogs, but I my Sequoia's serial starts with M4, and looks like the one in the picture (same fd, rd, cranks). If anyone has a catalog page for this one, I'd be keen to see it.
rgvg is offline
Old 02-09-20, 07:57 PM
  #11
rgvg
Senior Member

Join Date: Aug 2017
Location: Vancouver, BC
Posts: 294

Bikes: Mostly japanese ones

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 11 Posts
One more thing... 85 is supposed to have recessed brakes. Mine and this one does not.
rgvg is offline
Old 02-09-20, 09:14 PM
  #12
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,312
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 576 Post(s)
Liked 164 Times in 121 Posts
The rear quick-release is tightened wrong. You need to unscrew it and use the cam lever to hold the wheel in place.

It needs brake lever hoods, handlebar tape, new cables, and brake shoes front & rear.

Beyond that... sweet bike! For $200 out of pocket you have a bike many here lust for. I hope it fits you- the frame looks pretty large. (If it doesn't fit you... I'll take it off your hands. )
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 02-10-20, 02:35 AM
  #13
OutnBack
Senior Member

OutnBack's Avatar

Join Date: Jul 2013
Posts: 199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 21 Times in 15 Posts

Picked this one up last month for $75. M2 Serial #, Sugino AT Crank, Superbe Brakes, Shifters, & Pedals, & Cyclone MK-II Deraileurs.
OutnBack is offline
Likes For OutnBack:
Old 02-10-20, 06:15 AM
  #14
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,614

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 70 Times in 52 Posts
Originally Posted by robertj298 View Post
I'm curious. It's that a pump holder on the bottle holder?
Yes, it is meant to hold a compact pump.
Pompiere is offline
Old 02-10-20, 07:13 AM
  #15
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
Originally Posted by Jeff Wills View Post
The rear quick-release is tightened wrong. You need to unscrew it and use the cam lever to hold the wheel in place.

It needs brake lever hoods, handlebar tape, new cables, and brake shoes front & rear.

Beyond that... sweet bike! For $200 out of pocket you have a bike many here lust for. I hope it fits you- the frame looks pretty large. (If it doesn't fit you... I'll take it off your hands. )
I did use the lever to tighten it.
robertj298 is online now
Old 02-10-20, 01:15 PM
  #16
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,495

Bikes: Yes

Mentioned: 323 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Liked 345 Times in 185 Posts
Originally Posted by Vintage_Cyclist View Post
An 84 serial number would be the year the frame was made. It wouldn't be unusual for an 84 built frame to be marketed as an 85 bike.

The pictures above show a Cyclone MKII front derailleur, but a Superbe GT rear.
If the picture in the '85 catalog is to be believed (and I think it is), they changed the color of the Sequoias that year. The '85 catalog says the Sequoia is "Slate Blue Metallic" and the picture shows a fairly gray (slate?) looking frame. The earlier Sequoias, like the OPs, are more like the "Medium Blue" Rockhopper pictured in the '85 catalog.

Not having seen an '84 catalog, I don't see any reason to think the OP's bike isn't an '84 with the same components as an '85. Maybe they all had these, maybe they transitioned later in the year. Who knows?

I agree that Superbe GT rear derailleur is a nice item.

Edit: looking at the color again, I could be wrong. Lighting variations could be tricking my eyes.
__________________
My Bikes
Andy_K is offline
Old 02-10-20, 02:41 PM
  #17
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,767

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 530 Post(s)
Liked 140 Times in 88 Posts
Originally Posted by robertj298 View Post
I did use the lever to tighten it.
Jeff said that because your photo shows the cam lever in the "open" position, which would indicate that the lever was tightened incorrectly by turning it to tighten instead of the correct method which is to turn it to loosen slightly then flip it over to clamp the dropout. It's not uncommon for folks to not know how to properly use a quick release and then complain when the wheel shifts in the dropouts as a result.
davester is offline
Old 02-10-20, 02:53 PM
  #18
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
Originally Posted by davester View Post
Jeff said that because your photo shows the cam lever in the "open" position, which would indicate that the lever was tightened incorrectly by turning it to tighten instead of the correct method which is to turn it to loosen slightly then flip it over to clamp the dropout. It's not uncommon for folks to not know how to properly use a quick release and then complain when the wheel shifts in the dropouts as a result.
How can you tell the can lever is open? It will close no matter what position it is in.
robertj298 is online now
Old 02-10-20, 03:20 PM
  #19
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,767

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta, 1982 Raleigh "International"

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 530 Post(s)
Liked 140 Times in 88 Posts
Originally Posted by robertj298 View Post
How can you tell the can lever is open? It will close no matter what position it is in.
The concave curve of the lever is facing away from the wheel. This means that the quick release cam is open. The quick release can only be tightened incorrectly (i.e. by spinning the skewer using the lever) this way and will not be sufficiently tight. It will also close incorrectly (and loosely) if you spin the skewer so that the concave curve faces the wheel. The correct way is to rotate the skewer anticlockwise a turn or two then flip the lever over so that the cam engages and tightens the wheel (much more tightly than turning the skewer can achieve). Like this:
davester is offline
Likes For davester:
Old 02-10-20, 03:24 PM
  #20
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
That quick release is in the open position

Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 02-10-20, 04:10 PM
  #21
rgvg
Senior Member

Join Date: Aug 2017
Location: Vancouver, BC
Posts: 294

Bikes: Mostly japanese ones

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 11 Posts
My money's still on 1984 because 1) brakes aren't recessed 2) looks like mine which has a serial number prefix of M4H - April 1984 for the Miki format. It has a made in japan decal, so not Merida. It would also help if we knew what the serial is for the OP, even if just the first 3 character.
rgvg is offline
Old 02-10-20, 04:53 PM
  #22
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 544

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Likes: 0
Liked 106 Times in 57 Posts
Originally Posted by davester View Post
The concave curve of the lever is facing away from the wheel. This means that the quick release cam is open. The quick release can only be tightened incorrectly (i.e. by spinning the skewer using the lever) this way and will not be sufficiently tight. It will also close incorrectly (and loosely) if you spin the skewer so that the concave curve faces the wheel. The correct way is to rotate the skewer anticlockwise a turn or two then flip the lever over so that the cam engages and tightens the wheel (much more tightly than turning the skewer can achieve). Like this: https://www.youtube.com/watch?v=zHTyVSf8VlQ
My mistake. I thought I just put the front wheel on and I know how to do it and then I reread the post and noticed it said rear wheel.
I'm glad someone caught it because I bought it that way and never checked. I don't know how it was put on that way but I
had to take vise grips to get it loosened.
robertj298 is online now
Old 02-10-20, 04:59 PM
  #23
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,334

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 56 Times in 31 Posts
the 1985 catalog, posted above, shows brakes being nutted.



Vintage_Cyclist is offline
Old 02-10-20, 05:35 PM
  #24
rgvg
Senior Member

Join Date: Aug 2017
Location: Vancouver, BC
Posts: 294

Bikes: Mostly japanese ones

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 11 Posts
Touche! Yet the specs page lists it recessed. And april is still early in 1984, so not likely to have been 1985. But sure, it's questionable. That's really one reason I would like to see the 84 catalog. I guess until somebody posts it the best I can say is the frame is 84.
rgvg is offline
Old 02-10-20, 10:29 PM
  #25
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,312
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 576 Post(s)
Liked 164 Times in 121 Posts
Originally Posted by robertj298 View Post
My mistake. I thought I just put the front wheel on and I know how to do it and then I reread the post and noticed it said rear wheel.
I'm glad someone caught it because I bought it that way and never checked. I don't know how it was put on that way but I
had to take vise grips to get it loosened.
No worries- at least we caught it before you had to fix a flat tire!

Again, congratulations on a great find.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
