Can't remove non-driveside Stronglight crank

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Can't remove non-driveside Stronglight crank

Old 06-22-20, 07:02 AM
  #1
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Can't remove non-driveside Stronglight crank

I'm trying to move my cranks and bottom bracket over to a new frame. I've taken my driveside crank off a few times already, and that came off as expected. But the other crank is putting up a fight. When I start pushing with the extractor tool it slips out of the threading. Here's a video:
https://photos.app.goo.gl/d1A35cx8pjNAmuGA9

What can I do here? As I want to keep the crank, could I unscrew the BB now, leaving it on? Apologies if that question makes me sound like a moron, I haven't worked with bottom brackets before. I've already tried penetrating oil, doesn't seem to make a difference. ​​​​​​

​​​All pointers appreciated!

Last edited by Funktopus; 06-22-20 at 07:08 AM. Reason: Typo
Funktopus is offline
Old 06-22-20, 09:00 AM
  #2
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,461

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1379 Post(s)
Liked 400 Times in 277 Posts
Originally Posted by Funktopus View Post
I'm trying to move my cranks and bottom bracket over to a new frame. I've taken my driveside crank off a few times already, and that came off as expected. But the other crank is putting up a fight. When I start pushing with the extractor tool it slips out of the threading. Here's a video:
https://photos.app.goo.gl/d1A35cx8pjNAmuGA9

What can I do here? As I want to keep the crank, could I unscrew the BB now, leaving it on? Apologies if that question makes me sound like a moron, I haven't worked with bottom brackets before. I've already tried penetrating oil, doesn't seem to make a difference. ​​​​​​

​​​All pointers appreciated!
Well it's stripped. Sometimes we forget to check if there's a washer in the crank and that will do it. I can't tell which Stronglight crank you have but early ones used a proprietary 23.35 puller. What size is your puller?
Inexperienced mechanics will try a 23 mm TA puller because it 'feels' like a good fit but that will strip the threads as well.
clubman is offline
Old 06-22-20, 09:33 AM
  #3
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by clubman View Post
Well it's stripped. Sometimes we forget to check if there's a washer in the crank and that will do it. I can't tell which Stronglight crank you have but early ones used a proprietary 23.35 puller. What size is your puller?
Inexperienced mechanics will try a 23 mm TA puller because it 'feels' like a good fit but that will strip the threads as well.
Thanks. Washer definitely not in there. I have a Stronglight 300lx. Can't find anything about them online. This is the tool I'm using: https://www.ebay.co.uk/itm/382985761547

That tool has successfully taken the drive-side crank off several times, so I'd expect it to work here too. But I've done some research, and apparently you can remove the BB with the left hand crank attached. Sadly it seems my BB may be seized, as my hook spanner doesn't shift it when I turn it counter-clockwise.
Funktopus is offline
Old 06-22-20, 10:07 AM
  #4
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,910

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 810 Post(s)
Likes: 0
Liked 332 Times in 232 Posts
The Stronglight crank puller is larger in diameter than the one you have shown. I made this same mistake many years ago and, like you, ended up screwing up a crank.thread. Here is a Ebay auction number for the correct tool - 223975669464. I am pretty sure that you can find the same thing for a bit less, or a lot less, using your kungfugoogle skills. Hope that is helpful.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 06-22-20, 10:17 AM
  #5
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by randyjawa View Post
The Stronglight crank puller is larger in diameter than the one you have shown. I made this same mistake many years ago and, like you, ended up screwing up a crank.thread. Here is a Ebay auction number for the correct tool - 223975669464. I am pretty sure that you can find the same thing for a bit less, or a lot less, using your kungfugoogle skills. Hope that is helpful.
Thanks. After having used the wrong extractor did the correct one work for you? Or is mine likely toast?
Funktopus is offline
Old 06-22-20, 10:23 AM
  #6
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,958

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 373 Times in 284 Posts
Once you have stripped the crank threads, it's effectively toast.

That said, yeah, you could salvage it, but IMHO only do this for your personal use. Even then I recommend against it.

It's possible to remove the BB with the left crank attached, sure. If the adjustable cup ring is stuck, it needs either more force, a better tool, some penetrating lubricant, or, if desperate, heat cycling.

This was sort of a transitional time for Stronglight. They had moved from proprietary 23.3 Stronglight puller threads, to standard 22.0. I wonder if some cranks were still being made with the old larger threads. If it turns out that this crank is stronglight threaded, that would explain the problem, and you may still be able to salvage it with the correct puller.
Salamandrine is offline
Likes For Salamandrine:
Old 06-22-20, 10:34 AM
  #7
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Salamandrine View Post
Once you have stripped the crank threads, it's effectively toast.

That said, yeah, you could salvage it, but IMHO only do this for your personal use. Even then I recommend against it.

It's possible to remove the BB with the left crank attached, sure. If the adjustable cup ring is stuck, it needs either more force, a better tool, some penetrating lubricant, or, if desperate, heat cycling.

This was sort of a transitional time for Stronglight. They had moved from proprietary 23.3 Stronglight puller threads, to standard 22.0. I wonder if some cranks were still being made with the old larger threads. If it turns out that this crank is stronglight threaded, that would explain the problem, and you may still be able to salvage it with the correct puller.
Well some googling suggests that Stronglight moved away from the 23.35mm design in 1982. Although I can't find anything about the 300lx, everything else on the bike (including the frame) was released in or around '87. I would have thought these cranks were using the standardised threading.

There was rust in the threading area. Maybe the dirt and detritus is to blame.

I don't mind having to buy a new bb. I'm also not allergic to moving the bb over to the new frame with the crank permenantly attached. But I'd love to not have to buy a new crankset! So if both are stuck that's a worst case scenario. I think I might need a better tool. The hook spanner I have is a bit bargain bucket.
Funktopus is offline
Old 06-22-20, 11:23 AM
  #8
guy1138
Member

Join Date: Sep 2008
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 9 Times in 6 Posts
You can still remove the crank arm but you'll need a gear puller, usually found at ann auto parts store
guy1138 is offline
Old 06-22-20, 11:26 AM
  #9
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,590

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 634 Times in 433 Posts
Originally Posted by guy1138 View Post
You can still remove the crank arm but you'll need a gear puller, usually found at ann auto parts store
Better alternative is Jacob's chuck wedges. I forget which exact size at the moment.

https://www.amazon.com/Wedge-Sets-Se.../dp/B0067BSG9S
dedhed is offline
Likes For dedhed:
Old 06-22-20, 11:43 AM
  #10
oneclick
Senior Member

Join Date: Feb 2020
Posts: 269
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 94 Times in 63 Posts
Originally Posted by guy1138 View Post
You can still remove the crank arm but you'll need a gear puller, usually found at ann auto parts store
Pull the left side of the bb off, set it up in a vice, and drive the axle out with a punch. You'll have to hit it hard enough that you don't want your toes where the axle will land.
oneclick is offline
Old 06-22-20, 11:44 AM
  #11
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,049

Bikes: Many, and the list changes frequently

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Liked 350 Times in 217 Posts
Originally Posted by dedhed View Post
Better alternative is Jacob's chuck wedges. I forget which exact size at the moment.

https://www.amazon.com/Wedge-Sets-Se.../dp/B0067BSG9S
I use #6 wedges. You may need to add a shim if the space between the BB and crank is too wide. A pickle fork would work as well but they may damage the crank. See about 4 minutes into this video:

Moe Zhoost is offline
Old 06-22-20, 01:21 PM
  #12
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,775

Bikes: League Fuji

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 515 Post(s)
Liked 87 Times in 67 Posts
You asked about leaving crank attached and moving across to another bike.

Watched fellow do it at the co-op. He removed N drive side crank bolt and crank and locking ring and cup. Slide in D side wrench and loosened cup. He removed cup with spindle attached to crank with chain wheels still on. Out came old bearings, re-greased and new bearings. Removed frame from stand and installed 2nd frame. Installed D side then N drive side. He adjusted both side cups fine. I don't think he was 10 minutes total. I waited and after asked why? Said allen key hole on dust cap on D side was stripped and he wanted to save it.

Not what I'd do as not confident I wouldn't screw it completely but he seemed ok with it.
WGB is offline
Old 06-22-20, 01:41 PM
  #13
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by WGB View Post
You asked about leaving crank attached and moving across to another bike.

Watched fellow do it at the co-op. He removed N drive side crank bolt and crank and locking ring and cup. Slide in D side wrench and loosened cup. He removed cup with spindle attached to crank with chain wheels still on. Out came old bearings, re-greased and new bearings. Removed frame from stand and installed 2nd frame. Installed D side then N drive side. He adjusted both side cups fine. I don't think he was 10 minutes total. I waited and after asked why? Said allen key hole on dust cap on D side was stripped and he wanted to save it.

Not what I'd do as not confident I wouldn't screw it completely but he seemed ok with it.
I think this is plan a right now. Only issue is my bottom bracket seems to be stuck too. Letting some penetrating oil soak in before I try it again.
Funktopus is offline
Old 06-22-20, 02:04 PM
  #14
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,461

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1379 Post(s)
Liked 400 Times in 277 Posts
Originally Posted by Funktopus View Post
I think this is plan a right now. Only issue is my bottom bracket seems to be stuck too. Letting some penetrating oil soak in before I try it again.
If it's the lock ring, use big channel lock pliers. Lots of lock rings available.
clubman is offline
Old 06-22-20, 02:16 PM
  #15
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,329

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Likes: 0
Liked 246 Times in 192 Posts
Originally Posted by clubman View Post
If it's the lock ring, use big channel lock pliers. Lots of lock rings available.
I would add a toe strap to protect the ring from the jaws and squeeze at several points around the lockring. This should help un-stick the threads.

I found this cheap pickle fork available at the local auto parts outlet:
https://www.napaonline.com/en/p/BK_7...iABEgJW1_D_BwE

Usually the crankarm threads get stripped because the remover wasn't threaded in all the way because of dirt/corrosion.
The subject crank is 22mm threaded so your puller is correct.
dddd is offline
Old 06-22-20, 03:02 PM
  #16
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,958

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 373 Times in 284 Posts
Originally Posted by Funktopus View Post
Well some googling suggests that Stronglight moved away from the 23.35mm design in 1982. Although I can't find anything about the 300lx, everything else on the bike (including the frame) was released in or around '87. I would have thought these cranks were using the standardised threading.

There was rust in the threading area. Maybe the dirt and detritus is to blame.

I don't mind having to buy a new bb. I'm also not allergic to moving the bb over to the new frame with the crank permenantly attached. But I'd love to not have to buy a new crankset! So if both are stuck that's a worst case scenario. I think I might need a better tool. The hook spanner I have is a bit bargain bucket.
Yeah, the switch was in the early 80s, more or less. I'm 99% sure that crank has 22.0 threads. It's just that with frenchie stuff, prepare to be surprised. If it was 23.3 the puller would have felt really loose in there.

If there was dirt and detritus in the threads, yes that's a problem. Clean it out first. Also, the puller should be snugged in fairly hard. Finger tight is not enough.

Personally I'd write this one off. But it's up to you.
Salamandrine is offline
Old 06-22-20, 03:48 PM
  #17
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,501

Bikes: old school 531c & Campy

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Liked 739 Times in 455 Posts
Originally Posted by oneclick View Post
Pull the left side of the bb off, set it up in a vice, and drive the axle out with a punch. You'll have to hit it hard enough that you don't want your toes where the axle will land.
^ This is the best approach.

Pickle forks are great if you don't care about damage.

And heat can be used too, but away from the bike.

Originally Posted by WGB View Post
Watched fellow do it... He removed cup with spindle attached to crank... installed 2nd frame... He adjusted both side cups fine.
Fine? I dunno. I've never tried to adjust a bb with the arms attached. I'm not sure it would be adjusted as exactly.

I agree that the nds arm should only be used for your own bike. There would have to be special circumstance to use it at all.

​​​​​​​One last thing, that puller looks super cheap. ​​​​​​​Good ones may be found under $10us, but this is not a tool where you want to skimp.
SurferRosa is offline
Old 06-22-20, 04:17 PM
  #18
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Thanks for all the help guys, grateful for the wealth of information. Assuming nothing works and this crank arm is lost, I could just replace the arm (and BB) rather than find a new crankset. In an ideal world I'd get another Stronglight 300lx arm. But failing that, would anyone see any issues with this arm working as a stand-in: https://www.ebay.co.uk/itm/124230618677

Here are the technical details on my currently stuck arm:



Again, new to this, so if I've overlooked something obvious then shout.

Thanks!
Funktopus is offline
Old 06-22-20, 04:31 PM
  #19
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,958

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 373 Times in 284 Posts
Current arm appears to have French pedal threads - according to the markings. Ebay arm appears to be standard BSC pedal threads.

Secondly, DANG!!!! If those crank arms have never been rethreaded, then you have the elusive rare French thread Look pedals. Wow. I would have love to found some of those a few years back.

Also a possibility is that someone retapped the crankarms to 9/16". Are the pedals marked D and G or R and L?
Salamandrine is offline
Old 06-22-20, 05:45 PM
  #20
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,910

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 810 Post(s)
Likes: 0
Liked 332 Times in 232 Posts
Thanks. After having used the wrong extractor did the correct one work for you? Or is mine likely toast?
Nope, once those threads are stripped they will not be useful for removing the crank. The crank is still fine to use, just a pain to remove.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 06-23-20, 02:24 AM
  #21
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,044

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1081 Post(s)
Liked 629 Times in 436 Posts
A friend of mine had a stuck crankarm with stripped extractor threads. I took two headset wrenches, two old wood working chisels and a mallet to his place. Put the two headset wrenches behind the crankarm, place a chisel on either side of the spindle and between the headset wrenches, tapped each chisle in turn and the crankarm popped right off with no damage to anything.

Cheers
Miele Man is offline
Likes For Miele Man:
Old 06-23-20, 06:44 AM
  #22
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Salamandrine View Post
Current arm appears to have French pedal threads - according to the markings. Ebay arm appears to be standard BSC pedal threads.

Secondly, DANG!!!! If those crank arms have never been rethreaded, then you have the elusive rare French thread Look pedals. Wow. I would have love to found some of those a few years back.

Also a possibility is that someone retapped the crankarms to 9/16". Are the pedals marked D and G or R and L?

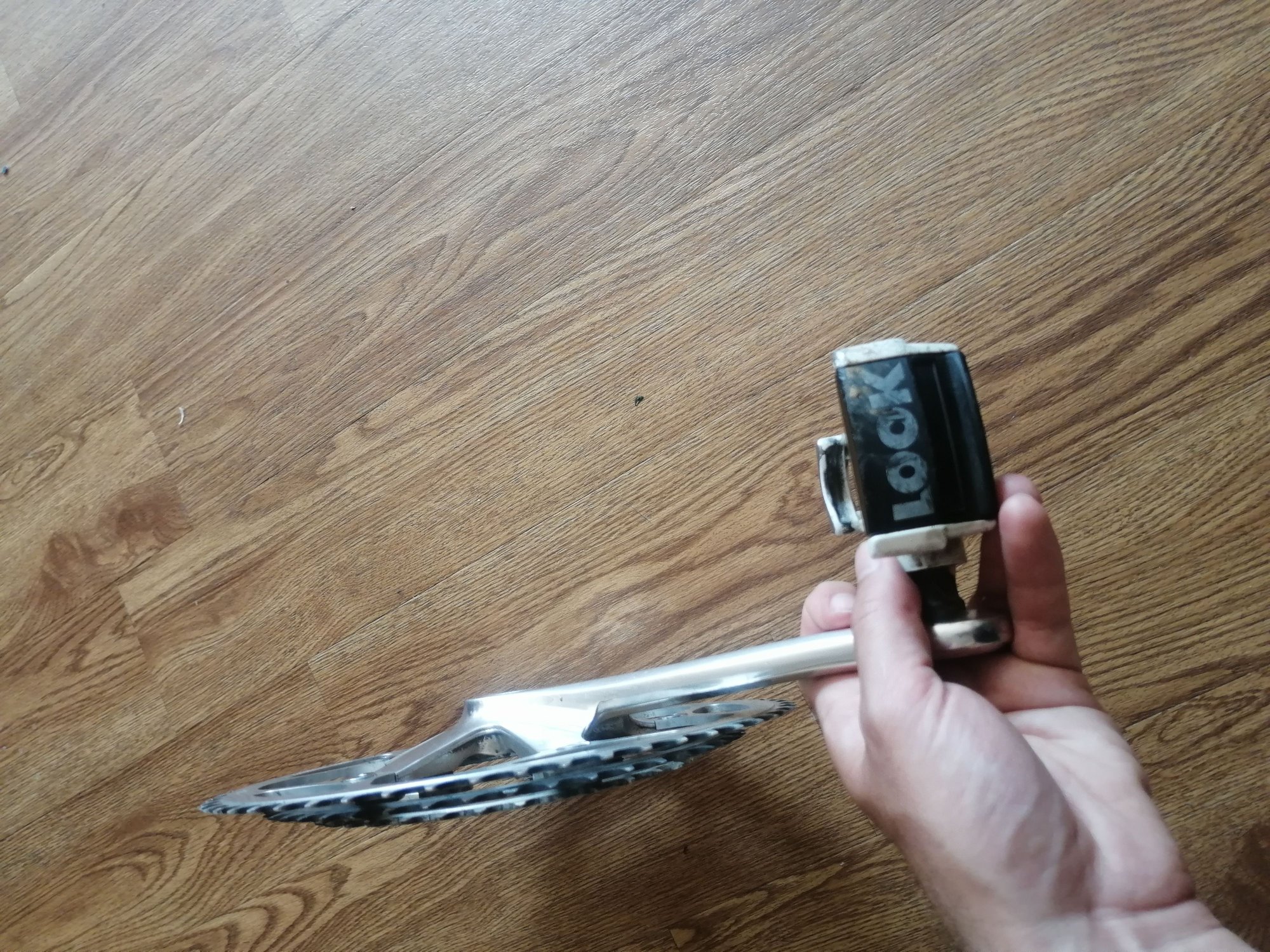

Oh, you mean these elusive Look pedals? 😉


No left or right markings on either of them in any language, it could be that I'm not looking in the right place, or they're just too worn.

Given the pedals have to stay put too its now looking like I should leave this crankset on this frame. I've been thinking of converting this frame to something more off-road anyway, so a triple crankset is really more suited to that.

The new frame, however, will be my long distance/adventure bike. Does anyone have any recommendations on a crankset? I don't know if I should be looking for a particular BCD or manufacturer. The freewheel that it will go with is a Sachs Maillard Aris 7 speed 13-21T. I'd like to sort out gearing that lets me go fast on flats and slight declines and zoom up 12% inclines at least. Is that possible with a double chain ring setup?

Here are a few I've found so far:


https://www.ebay.co.uk/itm/324202740152



https://www.ebay.co.uk/itm/224047478580



https://www.ebay.co.uk/itm/174320194794



https://www.ebay.co.uk/itm/303602482324



I'll be installing a new BB, so can get the appropriate model for whatever cranks are best. Seller says that "any BSA threaded bottom bracket will work", frame is a Vitus 787.

Last edited by Funktopus; 06-23-20 at 07:58 AM.
Funktopus is offline
Old 06-23-20, 08:34 AM
  #23
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,745

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17954 Post(s)
Liked 1,639 Times in 1,197 Posts
.
...if you are really attached to that crank set (and who does not love Stronglight cranks ?), you can buy one of these or look around for someone close to you who has one. I have one, but they don't work except in person. It's a solid tool, like everything Stein makes and sells. It's paid off for me, but I used to work at the co-op, where people regularly stripped nice cranks. I got tired of throwing them away.
3alarmer is offline
Likes For 3alarmer:
Old 06-23-20, 12:37 PM
  #24
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,958

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2162 Post(s)
Liked 373 Times in 284 Posts
Originally Posted by Funktopus View Post
Oh, you mean these elusive Look pedals? 😉


No left or right markings on either of them in any language, it could be that I'm not looking in the right place, or they're just too worn.

Given the pedals have to stay put too its now looking like I should leave this crankset on this frame. I've been thinking of converting this frame to something more off-road anyway, so a triple crankset is really more suited to that.

I'll be installing a new BB, so can get the appropriate model for whatever cranks are best. Seller says that "any BSA threaded bottom bracket will work", frame is a Vitus 787.

Yes, possibly. Those are first generation Look pedals, and they could be French threaded. The marking is usually on the spindle itself, not the pedal body. If you remove them from the crank arms, you can see if a standard pedal screws in. If it only goes in a couple threads and feels really tight, they are still French threaded. If they have been converted/re-tapped to standard/BSC(9/16"), then that single 200LX crankarm on ebay should work. You can also use a micrometer to measure. 14mm is .551" vs 9/16" which is .5625" in decimal.

If your Look pedals are French threaded, they may not exactly be valuable, but they are rather rare. I bet there's a forum member out there with an old French bike that they want to ride with actual cycling shoes who would love to have them. Maybe trade them with someone.

RE your bottom bracket, Vitus frames can be either French threaded or British(standard). Later ones are typically British. Since you have French threaded cranks, I'd guess your BB shell is French also. It should be marked on the bottom bracket cups. 35x1 means French. Find that out first before you buy any new BB or crank.
Salamandrine is offline
Old 06-23-20, 02:35 PM
  #25
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Salamandrine View Post
Yes, possibly. Those are first generation Look pedals, and they could be French threaded. The marking is usually on the spindle itself, not the pedal body. If you remove them from the crank arms, you can see if a standard pedal screws in. If it only goes in a couple threads and feels really tight, they are still French threaded. If they have been converted/re-tapped to standard/BSC(9/16"), then that single 200LX crankarm on ebay should work. You can also use a micrometer to measure. 14mm is .551" vs 9/16" which is .5625" in decimal.

If your Look pedals are French threaded, they may not exactly be valuable, but they are rather rare. I bet there's a forum member out there with an old French bike that they want to ride with actual cycling shoes who would love to have them. Maybe trade them with someone.

RE your bottom bracket, Vitus frames can be either French threaded or British(standard). Later ones are typically British. Since you have French threaded cranks, I'd guess your BB shell is French also. It should be marked on the bottom bracket cups. 35x1 means French. Find that out first before you buy any new BB or crank.
So there are two Vitus 787s here. The one that I was removing those cranks from, and the one that I intended to put them on. The bottom bracket on the original Vitus is 35x100, so that must be French. However the seller of the other 787 says the new one is BSA. So that means I can't move these cranks over unless I fix the stripped threading.

I'm thinking it needs to be new cranks at this point, I can find a use for these cranks on this bike. Just need to find a 7 speed 52/39 crankset that's as period correct as possible. Or use an 8, 9 or 10 speed chain on my 7 speed freewheel if I can't get a 7 speed crankset.
Funktopus is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
