Mercier Kilo TT Repair / Build

I was recently given a Mercier Kilo TT by a friend and am currently in the process of fixing it up.

It is missing handlebars, brakes, seat and needs crank adjustment.

I think I can figure out most things searching the forum but I am having trouble with the cranks. Currently, they do not line up. They are almost completely perpendicular instead of being parallel with each other.

Any idea how to fix this?

Photo - drive.google.com/file/d/1Jq47OUm2Kc72foQosRtcVh63_JWDIu0H/view?usp=sharing
scantino is offline
Old 08-07-20, 03:18 PM
  #2
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,553

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 540 Times in 391 Posts
Pull the non-drive side crank arm off and replace it in the correct orientation.
dsbrantjr is offline
Old 08-07-20, 03:19 PM
  #3
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
So... I decided to grab an allen wrench and jump right in.

However, after removing the cranks and having a little trouble getting them exactly parallel with each other, I noticed that the teeth inside of the crank seem to be somewhat worn down. Is this normal? Or is this the reason they were slipping?

Photos - drive.google.com/drive/folders/1UWVtPWDkQOyqYxkyzAGdF32lALY7lngy?usp=sharing

Really appreciate any help!
scantino is offline
Old 08-07-20, 03:35 PM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,807

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1300 Post(s)
Liked 706 Times in 486 Posts
What is the crankset and model #?
dedhed is offline
Old 08-07-20, 03:59 PM
  #5
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,059

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 2020 Post(s)
Liked 596 Times in 413 Posts
It's a Powerspline bottom bracket in your photo.

It sounds like time for a replacement crank arm.
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-07-20, 03:59 PM
  #6
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dedhed View Post
What is the crankset and model #?
Not sure of the model number. It says "truvativ powered by sram" on it. I believe the model is "Touro" but I can only see "TO" as the rest is worn off. Looking at photos online though that seems to match.
scantino is offline
Old 08-07-20, 04:00 PM
  #7
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dsbrantjr View Post
Pull the non-drive side crank arm off and replace it in the correct orientation.

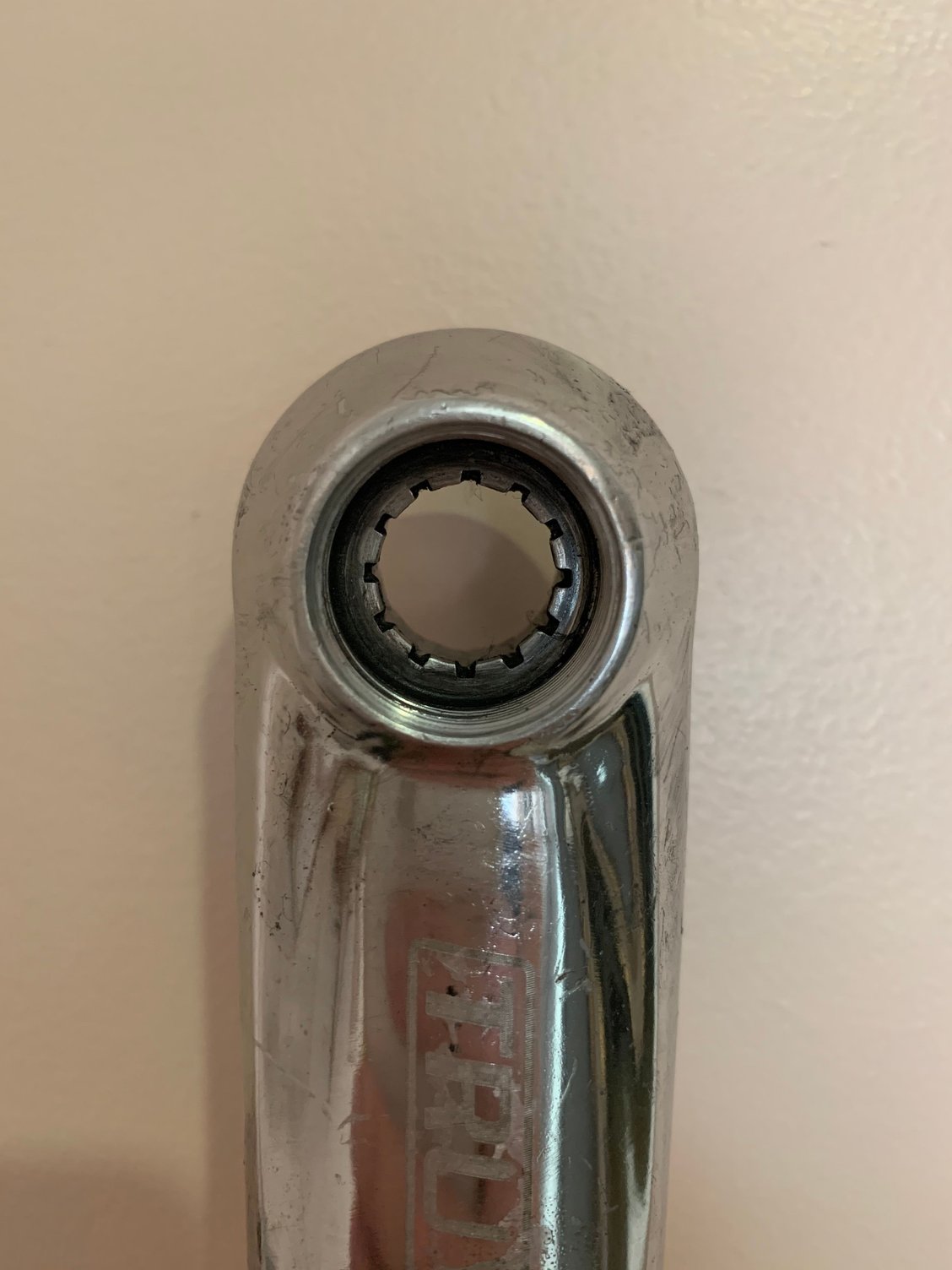

Thanks! That is exactly what I did... Seems like the teeth inside are worn out though?
scantino is offline
Old 08-07-20, 04:04 PM
  #8
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Darth Lefty View Post
It's a Powerspline bottom bracket in your photo.

It sounds like time for a replacement crank arm.
Gotcha. Are those teeth part of the other crank arm? Time to replace the entire thing? Sorry for the newbie questions....
scantino is offline
Old 08-07-20, 04:16 PM
  #9
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,059

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 2020 Post(s)
Liked 596 Times in 413 Posts
Originally Posted by scantino View Post
Gotcha. Are those teeth part of the other crank arm? Time to replace the entire thing? Sorry for the newbie questions....
No, the other side is the same.

Don't let me talk you out of replacing the whole thing if you are looking for an excuse...
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-07-20, 04:31 PM
  #10
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Darth Lefty View Post
No, the other side is the same.

Don't let me talk you out of replacing the whole thing if you are looking for an excuse...
Any recommendations on what to replace it with? I do have a spare crankset on an old 80s Fuji but I don't know if it is compatible or worth the trouble. Photo of spare crankset attached....


scantino is offline
Old 08-07-20, 06:59 PM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,807

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1300 Post(s)
Liked 706 Times in 486 Posts
https://www.universalcycles.com/shop...s.php?id=43135
dedhed is offline
Old 08-07-20, 09:23 PM
  #12
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,790

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 241 Times in 178 Posts
This is the crank picture
WizardOfBoz is offline
Old 08-08-20, 10:31 AM
  #13
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by WizardOfBoz View Post
This is the crank picture
Is this considered the crank or the bottom bracket? Sorry learning my terminology a bit..
scantino is offline
Old 08-08-20, 10:43 AM
  #14
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,807

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1300 Post(s)
Liked 706 Times in 486 Posts
Originally Posted by scantino View Post
Is this considered the crank or the bottom bracket? Sorry learning my terminology a bit..
Bottom Bracket
dedhed is offline
Old 08-08-20, 12:47 PM
  #15
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 533

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 162 Times in 106 Posts
The splined shaft and bearings inside the frame are considered to be the Bottom Bracket assembly (BB).

The BB splined shaft is steel and unlikely to have been damaged by the softer aluminium crank arms or more specifically the teeth/splines inside those crank arms.
Not fitting (torquing) a crank arm correctly can result in it spinning on the splined shaft and damaging the soft aluminium splines/teeth in the crank arm.
Riding a loose crank will accelerate the damage.

I'd suggest cleaning those splines on the shaft and crank arms. Then inspecting the crank splines for damage.
Given that you suffered some spinning it is likely you have damage inside one or both crank arms.
If the damage is limited to the Non Drive Side (NDS) (the side without the chain ring) then replacing just that crank could be a cheap fix.
If your inspection shows damage on the Drive Side (DS), well... time to pay up.

Whatever you choose to do regarding parts, do get the correct torque when performing the reassembly.
If I'm correct, it looks like about 30 foot/pounds. You are unlikely to achieve that using a ~6" allen wrench.

All the best

Barry
Barry2 is online now
Old 08-08-20, 12:59 PM
  #16
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dedhed View Post
Bottom Bracket
Thanks! Are they all the same size usually? Could I swap cranks/bottom bracket from my 80s Fuji?
scantino is offline
Old 08-08-20, 01:20 PM
  #17
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 533

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 162 Times in 106 Posts
Originally Posted by scantino View Post
Thanks! Are they all the same size usually? Could I swap cranks/bottom bracket from my 80s Fuji?
NO.... not even close!

The shaft design and size varies across brands.
EDIT: And even within a brand
Barry2 is online now
Old 08-08-20, 02:00 PM
  #18
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Barry2 View Post
NO.... not even close!

The shaft design and size varies across brands.
EDIT: And even within a brand
Good to know!
scantino is offline
Old 08-08-20, 02:08 PM
  #19
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Barry2 View Post
The splined shaft and bearings inside the frame are considered to be the Bottom Bracket assembly (BB).

The BB splined shaft is steel and unlikely to have been damaged by the softer aluminium crank arms or more specifically the teeth/splines inside those crank arms.
Not fitting (torquing) a crank arm correctly can result in it spinning on the splined shaft and damaging the soft aluminium splines/teeth in the crank arm.
Riding a loose crank will accelerate the damage.

I'd suggest cleaning those splines on the shaft and crank arms. Then inspecting the crank splines for damage.
Given that you suffered some spinning it is likely you have damage inside one or both crank arms.
If the damage is limited to the Non Drive Side (NDS) (the side without the chain ring) then replacing just that crank could be a cheap fix.
If your inspection shows damage on the Drive Side (DS), well... time to pay up.

Whatever you choose to do regarding parts, do get the correct torque when performing the reassembly.
If I'm correct, it looks like about 30 foot/pounds. You are unlikely to achieve that using a ~6" allen wrench.

All the best

Barry
Thanks, Barry! Very helpful. Does the bottom bracket look worn out to you? Or is it hard to tell? It looks worn out to me but I guess I don't really know what its supposed to look like in the first place.
scantino is offline
Old 08-08-20, 02:18 PM
  #20
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 533

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 162 Times in 106 Posts
Originally Posted by scantino View Post
Thanks, Barry! Very helpful. Does the bottom bracket look worn out to you? Or is it hard to tell? It looks worn out to me but I guess I don't really know what its supposed to look like in the first place.
As I said the BB teeth/splines are inlikely to have been damaged.
BB wear occurs in the bearings inside the frame.
It's not possible to judge from a picture.

Twist the shaft with your fingers, Does it feel smooth, does it bind up at all, does it have any play in it.
Even these tests are only an indication. It may be issues when actually under load.

Go look at your cranks first and determine if you are going to need to replace one or both.
It's possible the replacement cranks (if required) may require an entirely different BB. It may even come with one as a package.

Barry
Barry2 is online now
Old 08-08-20, 05:11 PM
  #21
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Barry2 View Post
As I said the BB teeth/splines are inlikely to have been damaged.
BB wear occurs in the bearings inside the frame.
It's not possible to judge from a picture.

Twist the shaft with your fingers, Does it feel smooth, does it bind up at all, does it have any play in it.
Even these tests are only an indication. It may be issues when actually under load.

Go look at your cranks first and determine if you are going to need to replace one or both.
It's possible the replacement cranks (if required) may require an entirely different BB. It may even come with one as a package.

Barry
Thanks, Barry. That is very helpful. The BB appears to be in good shape. It turns smoothly, doesn't bind up or have any play that I can notice.

The Drive Side Crank appears to be in good shape as well. I did not completely disassemble it but I used an allen and took off the cap and inspected the teeth inside. They seem in great shape and there is absolutely no play between the DS and BB.

Here are some photos of the NDS crank. My knowledge here is limited but the teeth do not seem to show excessive wear (?).
There is some wear to the interior (see second photo) but I don't know if this matters or not.

scantino is offline
Old 08-08-20, 05:32 PM
  #22
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 533

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 162 Times in 106 Posts
The "is some wear to the interior"..... is where the teeth used to, and are supposed to, be!
The teeth/splines are GONE in that crank
That sir is a dead crank.
The remaining teeth are furthest away from the BB and don't actually engage with the splines in the BB shaft. Which is why they are still there.

Assuming the DS has not suffered the same fate, you now know which side needs replacement.


All the best

Barry
Barry2 is online now
Old 08-08-20, 06:01 PM
  #23
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,940
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Liked 318 Times in 211 Posts
Originally Posted by Barry2 View Post
The "is some wear to the interior"..... is where the teeth used to, and are supposed to, be!
The teeth/splines are GONE in that crank
That sir is a dead crank.
The remaining teeth are furthest away from the BB and don't actually engage with the splines in the BB shaft. Which is why they are still there.

Assuming the DS has not suffered the same fate, you now know which side needs replacement.


All the best

Barry
I concur. That crank arm is dead. It has shuffled off this mortal coil. It has ceased to exist. The only solution would be to find an exact replacement of the some make and model. Unlikely, as this is a relatively specialised item. Time for a new crank and matching bottom bracket
alcjphil is offline
Old 08-08-20, 06:02 PM
  #24
scantino
Member
Thread Starter

Join Date: Jul 2020
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Barry2 View Post
The "is some wear to the interior"..... is where the teeth used to, and are supposed to, be!
The teeth/splines are GONE in that crank
That sir is a dead crank.
The remaining teeth are furthest away from the BB and don't actually engage with the splines in the BB shaft. Which is why they are still there.

Assuming the DS has not suffered the same fate, you now know which side needs replacement.


All the best

Barry
WOAH! Haha, I had no idea. No wonder. This is starting to make some sense to me now.

How would I check the DS crank? There isn't any play in it but want to be thorough. Do I need a crank puller?

This is all really helpful. Appreciate it. Hope I'm not boring you all too much!
scantino is offline
Old 08-08-20, 07:01 PM
  #25
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 533

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 162 Times in 106 Posts
You have to remove the DS crank. Same bolt in the middle as the NDS. It may come loose with a little tap... it may not.
But it's worth a try.

Although dedhed appears to be a man of few words, the link he provided is great!
Looks like it may prove to be just what you need. HOWEVER, you will need to check with someone in the know for Truactiv.

I'm more a Shimano kinda guy.
Even my fixed is shimano.

All the best

Barry

BTW on the inside of the crank will be a length in mm.
Usually between 165mm and 170mm
You will need to buy the correct length replacement crank.

Last edited by Barry2; 08-08-20 at 07:06 PM.
Barry2 is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
