BENOTTO CELO-CINTA: Got tips for wrapping transparent bar tape?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

BENOTTO CELO-CINTA: Got tips for wrapping transparent bar tape?

Old 12-03-19, 03:45 PM
  #26
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,467

Bikes: League Fuji, Ross Aristocrat and soon to be a Takara Tribute

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Likes: 0
Liked 29 Times in 25 Posts
Jyl asked how it looks on modern bike. I installed Cateye tape (which is very similar) on an orange Miyata 912 and it looked "off" and people on here suggested I replace it. Perhaps it was just the colour match. I've since sold the bike but can post a photo if you like. I have about 10 packs of Benotto bar tape just like this for a "rainy day". Just my view but I think it looks best on thinner bars like on old French bike such as Peugeots.
WGB is offline
Old 12-03-19, 04:08 PM
  #27
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 38,144

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 458 Post(s)
Tagged: 0 Thread(s)
Quoted: 5952 Post(s)
Liked 451 Times in 318 Posts
I loved Benotto tape back in the day, and I still love it. I was a shop mechanic when the Benotto tape craze came in, in late 1981. Up until that time, we preferred cloth tape, and we wrapped from top to bottom. When Benotto tape came in, we switched to bottom-to-top, because it worked well with the ends they supplied, and also, the pressure from our hands didn't mess up the edges. To end the tape, we held a burning match under the bar while pulling the tape with moderate pressure, not too hard, and not too soft. The heat would cut the tape and cause it to melt together with the tape on the bar. We discovered that we had to use matches because they provide more heat than a cigarette lighter does. Interesting, huh?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 12-03-19, 06:00 PM
  #28
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,523

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 469 Post(s)
Likes: 0
Liked 150 Times in 111 Posts
I always wrap this type of tape from the top to bottom..this was an old package I think from the late '70s and was still very pliable, just a little oily.
As can be seen, In the pic, the bottom is not tucked in yet..checking for fit.
Best, Ben

Candy Cane...Almost Christmas!

Last edited by xiaoman1; 12-03-19 at 06:51 PM.
xiaoman1 is offline
Likes For xiaoman1:
Old 12-03-19, 06:37 PM
  #29
mgopack42
Senior Member

Join Date: Apr 2018
Location: Central Valley, CA
Posts: 399

Bikes: 2011 Pinarello FP Quatro, 1994 Specialized Allez, cheap Scattante cross bike, Mid 80's Ciocc, 1985 Masi 3V..

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 32 Times in 27 Posts
^^^^^^^^^^^
il Tricolore!
mgopack42 is offline
Old 12-03-19, 07:01 PM
  #30
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,523

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 469 Post(s)
Likes: 0
Liked 150 Times in 111 Posts
Originally Posted by mgopack42 View Post
^^^^^^^^^^^
il Tricolore!
Si....Dolce, il migliore!
Ben
xiaoman1 is offline
Old 12-03-19, 11:05 PM
  #31
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 274

Bikes: 1970's Windsor Profesional, Pinarello Gavia TSX,Guerciotti SL,Basso Gap, Vintage Moser SL,Concorde TSX,Concorde TVT, Mondia Super,Vitus 979.Diamant SLX,60's Meteor

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 55 Times in 39 Posts
I used Benotto tape back in the early 80's, top to bottom NO heat and you use the bar end cap to secure the tape at the end, I preferred to use the rubber expandable screw type bar end as I tucked the excess tape into the handlebars and it held it in place.

Yes , you do put tension on the tape as you wrap it. I didnt know they still sold that stuff. I need some in White.
Manny66 is offline
Old 12-03-19, 11:47 PM
  #32
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,597

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Likes: 0
Liked 20 Times in 15 Posts
Originally Posted by WGB View Post
Jyl asked how it looks on modern bike. I installed Cateye tape (which is very similar) on an orange Miyata 912 and it looked "off" and people on here suggested I replace it. Perhaps it was just the colour match. I've since sold the bike but can post a photo if you like. I have about 10 packs of Benotto bar tape just like this for a "rainy day". Just my view but I think it looks best on thinner bars like on old French bike such as Peugeots.
Yes, photo please?!
jyl is offline
Old 12-04-19, 07:57 AM
  #33
Wildwood
Veteran/Pacifist/Resister

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 9,186

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 208 Post(s)
Tagged: 0 Thread(s)
Quoted: 2019 Post(s)
Liked 298 Times in 213 Posts
Good thing about some threads is that after contributing ...... sometimes ... it finally sinks in!?!
Hey, I’ve got some of that (one of those) stashed somewhere!

I should use it in this Winter refurb season.
What frame colors would work with Grey cello tape???

Ambrosio called their thin tape ‘ribbon’.
Even found a few rolls of Newbaums.



Not getting better with age.

Last edited by Wildwood; 12-04-19 at 08:31 AM.
Wildwood is online now
Old 12-04-19, 08:21 AM
  #34
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,009
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Likes: 0
Liked 64 Times in 56 Posts
Even so French Peugeot was using Benotto Celo tape in the 80's
I remember my 1982 PH10 having it in white, from the dealership. Made the bike really classy looking despite the bike being an entry level model. Didn't like the hard feel of it on the smaller diameter French bar though and replaced it after a short time with Grab-ons, which was also quite popular with recreational bikers back then. Didn't help that the installation of the celo tape was not well done, and it was developing bad gaps between winds after just a short time of use.
By 1984, the Benotto tapes replaced with white Ambrosio padded vinyl tapes on Peugeots, and celo tape was not cool anymore by that time.
Yes, a bit surprised how relatively quickly the celo tapes kinda came and went on the bike scene. Now lots of C&Vers are rediscovering the beautiful stuff.
Chombi1 is offline
Old 12-07-19, 01:22 PM
  #35
mgopack42
Senior Member

Join Date: Apr 2018
Location: Central Valley, CA
Posts: 399

Bikes: 2011 Pinarello FP Quatro, 1994 Specialized Allez, cheap Scattante cross bike, Mid 80's Ciocc, 1985 Masi 3V..

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 32 Times in 27 Posts

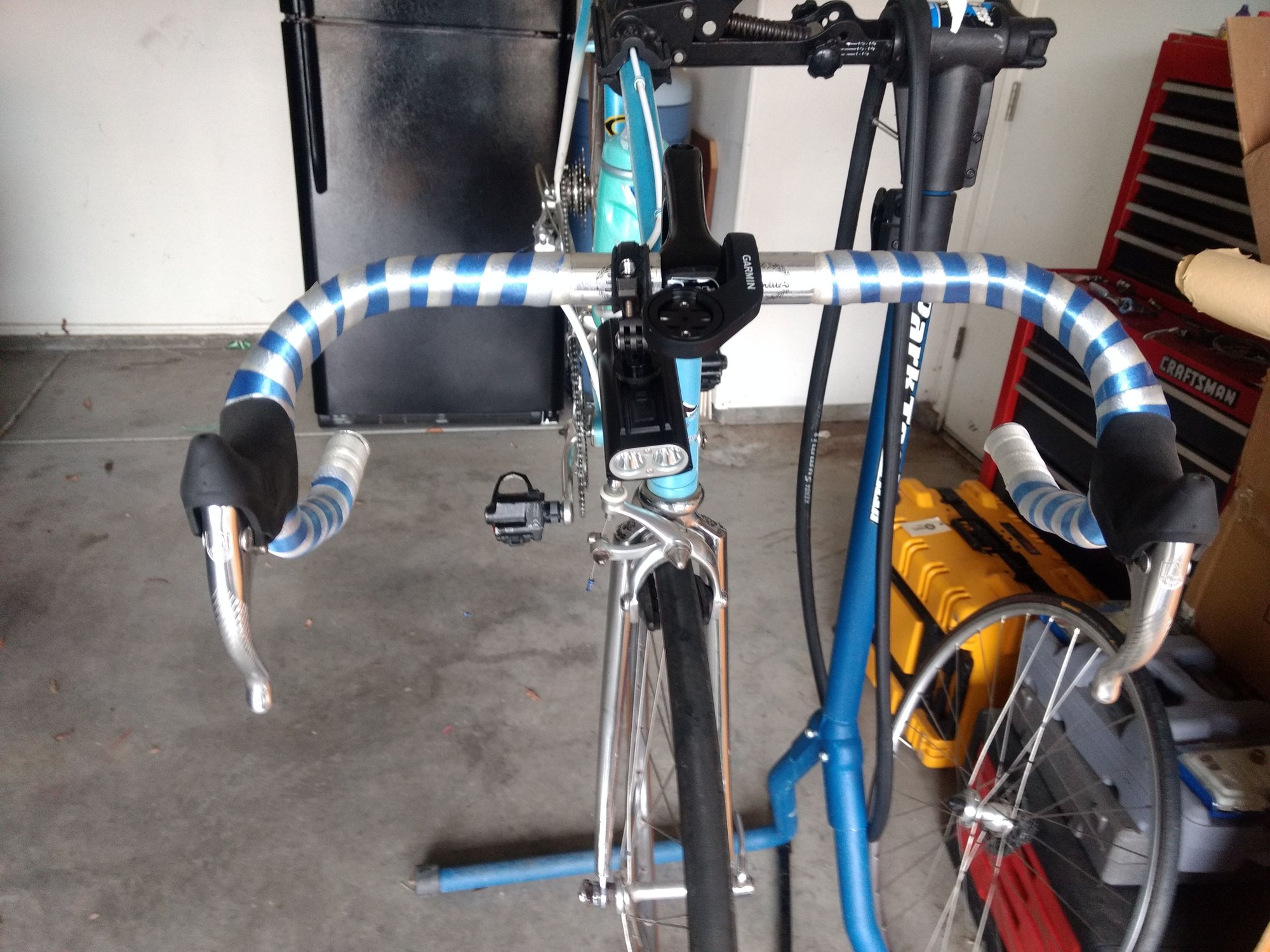

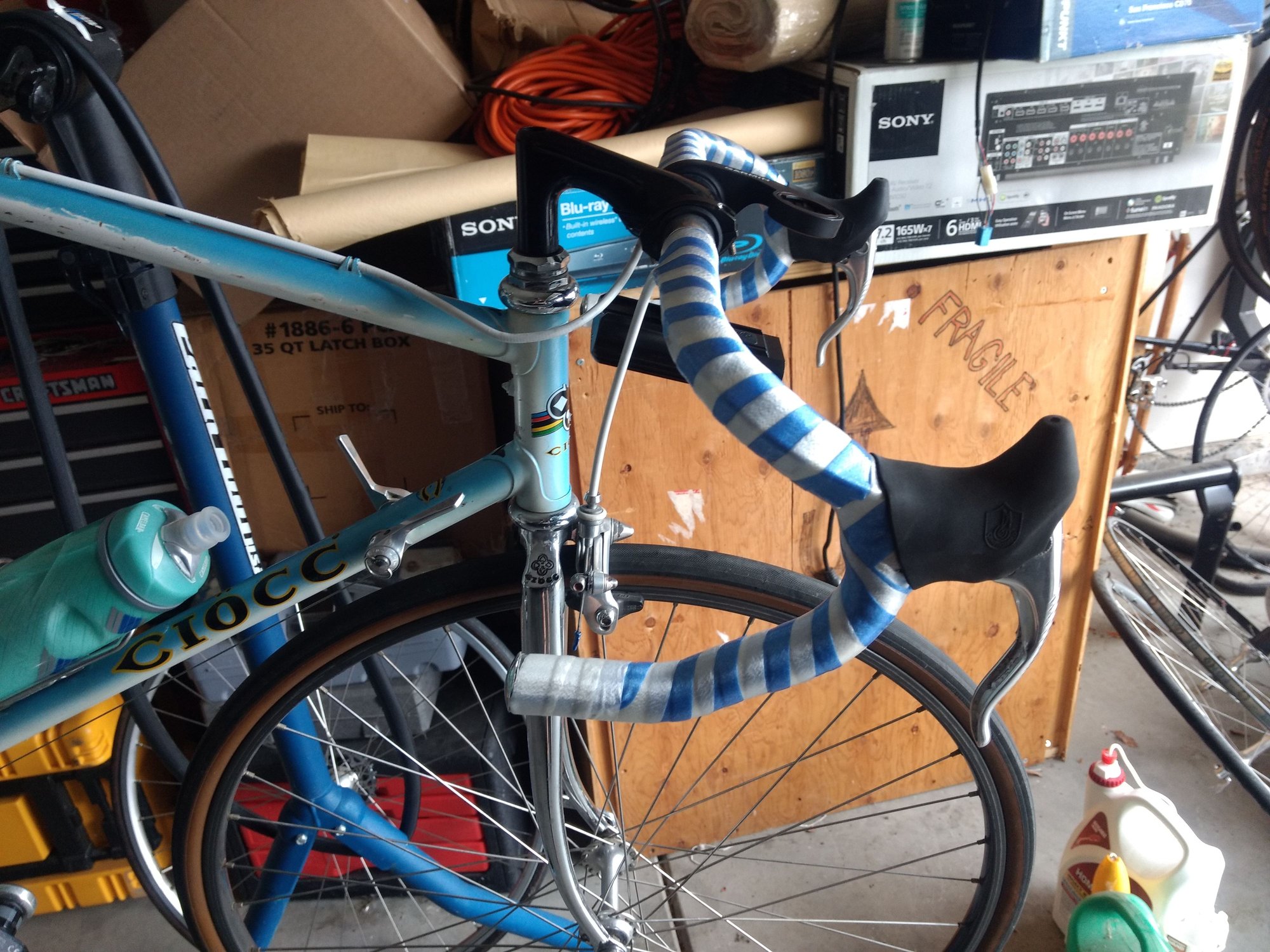

Finally got around to rewrapping my bars on the Ciocc. First time was a disaster. Whomever mentioned not to try Harlequin wraps was not freaking kidding. Wound up with pretty short rolls after ripping the tape. So I decided I could do a candy cane wrap... I was really good at those back in my bike shop days. Well it separated and looked like ass. Anyways, here is the rewrap...

i ran short on blue on the second side, so I re-finished the first side to match. I still need to put on the white brake hoods, and campy headset, but too lazy today. I also have 2 rolls of the blue from the box o' crap, but I am saving it for special!

I




Last edited by mgopack42; 12-07-19 at 02:13 PM.
mgopack42 is offline
Old 12-08-19, 09:15 PM
  #36
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 521

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 105 Times in 88 Posts
I found a source for the white on Flea bay and bought all they had. But I'm sure it will come back around. I have done all of the fancy wrap patterns with this tape and it is very easy to work with. My preference is what we uses in the 83 RAAM ride. Cork or vinyl tape wrap and then Benotto over it from top down. It will take two roles per side, and we finished it with a wine cork installed in the bar end. A fatter and more forgiving bar tape that still looks good today. The hardest part of restoring my bikes is drinking multiple bottles of wine to get the corks! Smiles, MH
Mad Honk is offline
Old 12-09-19, 06:19 AM
  #37
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,494

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 48 Times in 36 Posts
jyl This as modern as I can get, 2010 Langster. I was going for the patriotic look
P1030374, on Flickr
2010 Langster Steel 61cm, on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 12-09-19, 07:46 AM
  #38
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,847
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1136 Post(s)
Likes: 0
Liked 146 Times in 121 Posts
Originally Posted by deux jambes View Post
And the celo tape held in place well?

I’ve wrapped from top down once, but that was with cotton tape. The thick overlapping edges tended to curl forward under weight.

I suppose that as thin as the celo tape is, this shouldn’t be a worry as long as the wrap is good and tight?
the Benotto tape works best starting at the bar end. Cap first then usually we used old fashioned scotch tape to hold, wrap fully to secure- one side clockwise, the other counterclockwise. Your choice as to side preference.
the effort is to keep the tension uniform along with the overlap.
i left out the mention of a section to fill the gap as the tape passes the brake levers- assuming full hoods.

the problem are big bars- Cinelli model 66 in 42cm width for example- most likely you will end shy of the stem reinforcement sleeve.
it is possible to reduce the overlap but you may not like the appearance.

by starting at the bar end you have minimized the movement at the upper radii as your hands push the tape in use.

heat from a lighter and a clean leather work gloved hand can heat seal the tape effectively.
repechage is offline
