Peugeot UO8 bottom bracket conversion

Recently I got a 1972 (I think) Peugeot UO8 that had been the victim of an unsuccessful attempt to hammer out the crank cotters. A friend with a torch managed to get them out, but now I need to replace the crankset.

Id like to go to a cotterless square-taper spindle and use a vintage Stronglight or TA crankset. My immediate problem is that I dont know what size spindle to get 115mm, 118mm, or something else. Any advice?
katzenfinch is offline
Old 07-05-19, 08:10 AM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,008
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 770 Post(s)
Liked 125 Times in 95 Posts
Originally Posted by katzenfinch View Post
Recently I got a 1972 (I think) Peugeot UO8 that had been the victim of an unsuccessful attempt to hammer out the crank cotters. A friend with a torch managed to get them out, but now I need to replace the crankset.

Id like to go to a cotterless square-taper spindle and use a vintage Stronglight or TA crankset. My immediate problem is that I dont know what size spindle to get 115mm, 118mm, or something else. Any advice?
Spindle size depends on the crank you're using. Each crank has its own spindle size recommendation, although you can vary it slightly depending on the chainline and chainstay clearance. So choose a crank first and then choose your bottom bracket. VeloBase is a good resource for crank manufacturer recommendations on spindle size, although it doesn't have everything. You can also ask here once you get your crank if you can't find the BB length info online.
TenGrainBread is offline
Likes For TenGrainBread:
Old 07-05-19, 09:52 AM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,538

Bikes: A bunch of old bikes and a few new ones

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 3787 Post(s)
Liked 167 Times in 135 Posts
French cups are available on Amazon for all of $12:

https://www.amazon.com/Action-Bottom...gateway&sr=8-1

But then you still need to track down a spindle. You might be able to get away with using the existing cups.

Here is a thread on this:

https://www.bikeforums.net/classic-v...otterless.html
bikemig is offline
Likes For bikemig:
Old 07-05-19, 10:37 AM
  #4
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,467

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 90 Times in 60 Posts
Find yourself a copy of Sutherland's Handbook for Bicycle Mechanics. There is a chapter on bottom brackets that has a comprehensive discussion of spindle parameters and spindle/cup interchangeability. I can say that using your old cups with a new spindle may be complicated because spindles are designed for a certain cup thickness (which, no surprise, is not universal). There is way more info in Sutherland's than can be easily posted here.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 07-05-19, 10:47 AM
  #5
BikeWonder
Senior Member

Join Date: Oct 2018
Location: Calgary
Posts: 183
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Likes: 0
Liked 17 Times in 14 Posts
If you want to avoid the hassle, look into Velo Orange's French bottom bracket or threadless bottom bracket + spindle.
It's sealed and I would say affordable. Then all you would have to do is look for a crankset to match it.
But measure the spindle first.
BikeWonder is offline
Likes For BikeWonder:
Old 07-06-19, 09:40 AM
  #6
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 1,815
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 144 Post(s)
Liked 3 Times in 3 Posts
My AO-8 is my experiment bike - I swap stuff around on it all the time for fun. I first converted to cotterless in 1974 using a Sugino Mighty Comp crank. I still have the Sugino cups (marked P1x35), but found it easy to use the original cups. The spindle I use for cotterless is marked 3S2 and it measures 125mm from end of square taper to end of square taper, 53mm between bearing faces. Worked fine for decades.
markk900 is offline
Likes For markk900:
Old 07-07-19, 06:19 AM
  #7
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,467

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 90 Times in 60 Posts

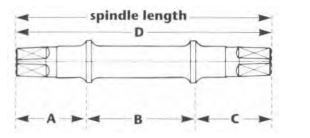

@katzenfinch: If you could measure your current spindle to get the dimension shown as "B" in the drawing below, I could look at my reference books and give you some ideas about what might work for you.




One thing to consider is that vintage TA and Stronglight cranks may not fit well on spindles of other manufacturers. The taper angle is the same, but the taper end size and the taper length may be different enough cause problems.

Last edited by Moe Zhoost; 07-07-19 at 06:52 AM.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 07-07-19, 09:34 AM
  #8
katzenfinch
Senior Member
Thread Starter

katzenfinch's Avatar

Join Date: Apr 2010
Location: Zionsville, Indiana
Posts: 200

Bikes: Chapman Rando, Rivendell Atlantis, Trek 2100, Bridgestone MB5, Burley Duet, Trek 614

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 1 Time in 1 Post
@Moe Zhoost: Thanks! It’s 55mm.
katzenfinch is offline
Old 07-08-19, 03:15 PM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,467

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 90 Times in 60 Posts
Originally Posted by katzenfinch View Post
@Moe Zhoost: Thanks! Its 55mm.
I found a reference for the Peugeot U08 spindle: 145 total length, 55 center, 43 left side, 47 right so that matches what you have. I found some spindles with a center measurement close to yours: Nervar 117 or 121, TA 344 or 373, or Stronglight 118/120/121/or 123; however there will be some issues using your same cups. First, the Peugeot spindles are slightly smaller in diameter at the shoulder of the bearing race. Second, the cup bearing races are smaller in diameter than other manufacturers. This will force the bearing balls to run on a different track on the spindle race. Certainly not optimum, though you may be able to get away with it.

The bottom line is that I'd recommend that you pick your crank first and then select a complete BB by the same manufacturer (though Stronglight cranks will work on TA axles). Proper spindle length will very between manufacturers since cranks don't mount a uniform distance on the taper. All of the spindle numbers I referenced above are for double cranks. The Stronglight 121 is specific to Peugeot with 5 arm cranks.

Hope this helps. Also, stay away from JIS spec bottom brackets if you plan to use TA or Stronglight Cranks, they just won't work.

Let us know how it goes.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 07-08-19, 07:17 PM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,621

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Likes: 0
Liked 32 Times in 31 Posts
Originally Posted by Moe Zhoost View Post
...Also, stay away from JIS spec bottom brackets if you plan to use TA or Stronglight Cranks, they just won't work...

I've never had any problem using a BB with JIS spindle with an old Stronglight crank, though the bigger taper will result in the spindle acting longer than it is to the tune of 2.5mm per side. Not always a bad thing when an older crankset's square taper holes may have enlarged very slightly from years of use.

However, typical aftermarket bottom brackets are symmetrical, unlike the original French ones which typically are offset slightly to the right side.

With all of this factored in, I got a perfect chainline fit with an old Stronglight 93 double crank using a 115mm Shimano bottom bracket, which was symmetrical.
Most cartridge bottom brackets allow for slight offsetting using a fixed-cup spacer of 1-2mm, so no need to err on the long side when selecting a bb, especially when the chainstays of the old UO8's have clearancing features pressed into them.
dddd is offline
Likes For dddd:
Old 07-09-19, 01:45 AM
  #11
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 865

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
If you could find them, the Stronglight TS crankset and bottom bracket from a uo10 should work on your uo8.
__________________
I.C.
