I suck at wrapping handlebars.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

I suck at wrapping handlebars.

Old 07-17-19, 07:42 PM
  #1
robertj298
Senior Member
Thread Starter

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 301

Bikes: 86 Miyata 912, 87 Ironman Expert, 89 Ironman Expert

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Likes: 0
Liked 17 Times in 8 Posts
I suck at wrapping handlebars.

No matter how many times I watch the video I take an hour and still seem to screw it up.
I have trouble getting the tape to lay flat no matter how hard I try. I think I'll just pay
the local bike shop $15 to do it for me.
robertj298 is offline
Old 07-17-19, 07:48 PM
  #2
t_e_r_r_y
Senior Member

t_e_r_r_y's Avatar

Join Date: Apr 2019
Location: oregon coast
Posts: 211
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 46 Times in 30 Posts
i'm not that great either. what helped me out was getting some non-sticky backed tape and wrapping and rewrapping a set of bars over and over. it got kind of tedious, but by the time i had wrapped those bars for the 10th time, i was much better than when i started.

practise makes the master!
t_e_r_r_y is offline
Old 07-17-19, 07:50 PM
  #3
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 449

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '71 Peugeot UO8, '78 Motobecane Grand Jubile, '79 Motobecane Grand Sprint, '87 Ironman Expert, '89 Puch Mistral Leader, '92 Trek 930

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 83 Times in 60 Posts
Originally Posted by robertj298 View Post
No matter how many times I watch the video I take an hour and still seem to screw it up.
I have trouble getting the tape to lay flat no matter how hard I try. I think I'll just pay
the local bike shop $15 to do it for me.
Nothing wrong with that.

The key is tension and patience. It can be tricky.

If it just ain't workin', there's a supply for your demand.
BFisher is offline
Old 07-17-19, 07:51 PM
  #4
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,007
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 769 Post(s)
Liked 125 Times in 95 Posts
I have a guaranteed way for getting good:

Quit your job and make $12/hr working at a bike shop.
TenGrainBread is offline
Likes For TenGrainBread:
Old 07-17-19, 08:09 PM
  #5
seedsbelize
necessary illusions

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,599
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4863 Post(s)
Liked 61 Times in 46 Posts
Time and practice. One of those things I thought I would never do well.
seedsbelize is offline
Old 07-17-19, 08:31 PM
  #6
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,855
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 28 Times in 24 Posts
Thing about wrapping bars is, ironically, it's not like riding a bike.... It does not all come back right away after you have not done it for a while...... At least for me, that's the case.....
Chombi1 is offline
Likes For Chombi1:
Old 07-17-19, 08:34 PM
  #7
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 555

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 14 Times in 11 Posts
Originally Posted by t_e_r_r_y View Post
i'm not that great either. what helped me out was getting some non-sticky backed tape and wrapping and rewrapping a set of bars over and over. it got kind of tedious, but by the time i had wrapped those bars for the 10th time, i was much better than when i started.

practise makes the master!
Exactly this, the best way to learn. It's an art. Don't do it on a stand either, on the ground with something holding the front wheel or fork well.
mechanicmatt is offline
Old 07-17-19, 09:01 PM
  #8
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,360

Bikes: A green one, "Ragleigh," or something.

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 1357 Post(s)
Liked 65 Times in 42 Posts
I'm Ok at it. I think I learned a lot of technique by wrapping with various types of wrap.

Cheap, fat, foam 'cork' tape is the hardest to get good results with. Cloth tape with a narrow width is the easiest. I have a couple of my favorite bikes wrapped with old-fashioned 1/2" cloth friction tape. Very easy and surprisingly satisfactory results, if you don't care about the padding.



__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●

Last edited by Lascauxcaveman; 07-17-19 at 09:11 PM.
Lascauxcaveman is offline
Old 07-17-19, 09:24 PM
  #9
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,080

Bikes: old school 531c & campy

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 459 Post(s)
Liked 118 Times in 71 Posts
Use Fizik. Makes it so easy. Start at the bottom. Wrap "out." Pull it taut. Make a figure-8 around the lever, like this:


Use a pen or marker to plan where you want to make your diagonal cut with scissors. Cut some finishing tape using 10mm electrical tape.

With cotton, first, use Newbaums which is plenty long. Don't make the figure-8 around the lever. Instead cut off from each roll two short strips of tape to cover the back of the lever clamp. Their ends go under the hoods. Then tape normally. When finishing, keep the backing on the Newbaums to make your scissor cut clean and easy.

Last edited by SurferRosa; 07-17-19 at 09:29 PM.
SurferRosa is online now
Old 07-17-19, 09:46 PM
  #10
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 492

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 20 Times in 20 Posts
@Lascauxcaveman, nice wrap job with no unnecessary finishing tape at the top.
Tim
tkamd73 is offline
Old 07-18-19, 12:18 AM
  #11
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,360

Bikes: A green one, "Ragleigh," or something.

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 1357 Post(s)
Liked 65 Times in 42 Posts
Originally Posted by tkamd73 View Post
@Lascauxcaveman, nice wrap job with no unnecessary finishing tape at the top.
Tim
Heh. Wrap from the top down, and the only finishing is putting the plugs in the bar ends

But I did put some unnecessary "finishing" on my Raleigh by adding an underlayer of complimentary colored hockey tape (again, wrapped top down):

__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Likes For Lascauxcaveman:
Old 07-18-19, 12:28 AM
  #12
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,450

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 2901 Post(s)
Liked 241 Times in 183 Posts
Cut an old tube into strips. Use it to practice wrapping. Also good as padding between the bar and nicer cosmetic tape.
canklecat is offline
Old 07-18-19, 12:49 AM
  #13
mattleegee
Senior Member

mattleegee's Avatar

Join Date: Jun 2015
Location: Kent, WA
Posts: 107

Bikes: 2019 Specialized Roubaix Comp Di2

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 12 Times in 10 Posts

I watched this a couple times and did a pretty good job my first time around, i think with the glue strip in the middle its easier to have perfect spacing between wraps
mattleegee is offline
Old 07-18-19, 03:06 AM
  #14
JaccoW
Tinkerer

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 970

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 44 Times in 40 Posts
Originally Posted by Lascauxcaveman View Post
Cheap, fat, foam 'cork' tape is the hardest to get good results with.
Try Brook's leather bar tape. Once I wear mine out I plan to replace it with anything but that.
JaccoW is offline
Old 07-18-19, 04:51 AM
  #15
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 NW of Philadelphia
Posts: 1,308

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 24 Times in 13 Posts
We had a kid in the shop one time who was frustrated at doing poor wraps - loose, uneven, sloppy. I looked over and noticed the short cut off from a his first wrap. I clamped that short piece in the vice and told him to try pulling on that until it broke. Did not happen and he learned how much tougher the stuff was than he expected. I reminded him about consistent steady tension on the tape as he wrapped. His next attempt was MUCH better.

I turn custom bar end plugs so I wrap bottom up. I finish with two very neat wraps of electrical tape near the stem (55mm from the bar clamp on each side) ending on the bottom of the bar. I then heat up the soldering iron and "dab" that cut end in three spots - just a dab. It heats and seals the end to the layer below. Does not come loose. On my Nishiki I used yellow tape to synchronize with the yellow bar tape. Otherwise black tape. On the Pro I over wrapped that tape with pale blue yarn then coated that with water based polyurethane.

Horses for courses......
Prowler is offline
Old 07-18-19, 04:59 AM
  #16
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,273

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 152 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 83 Times in 69 Posts

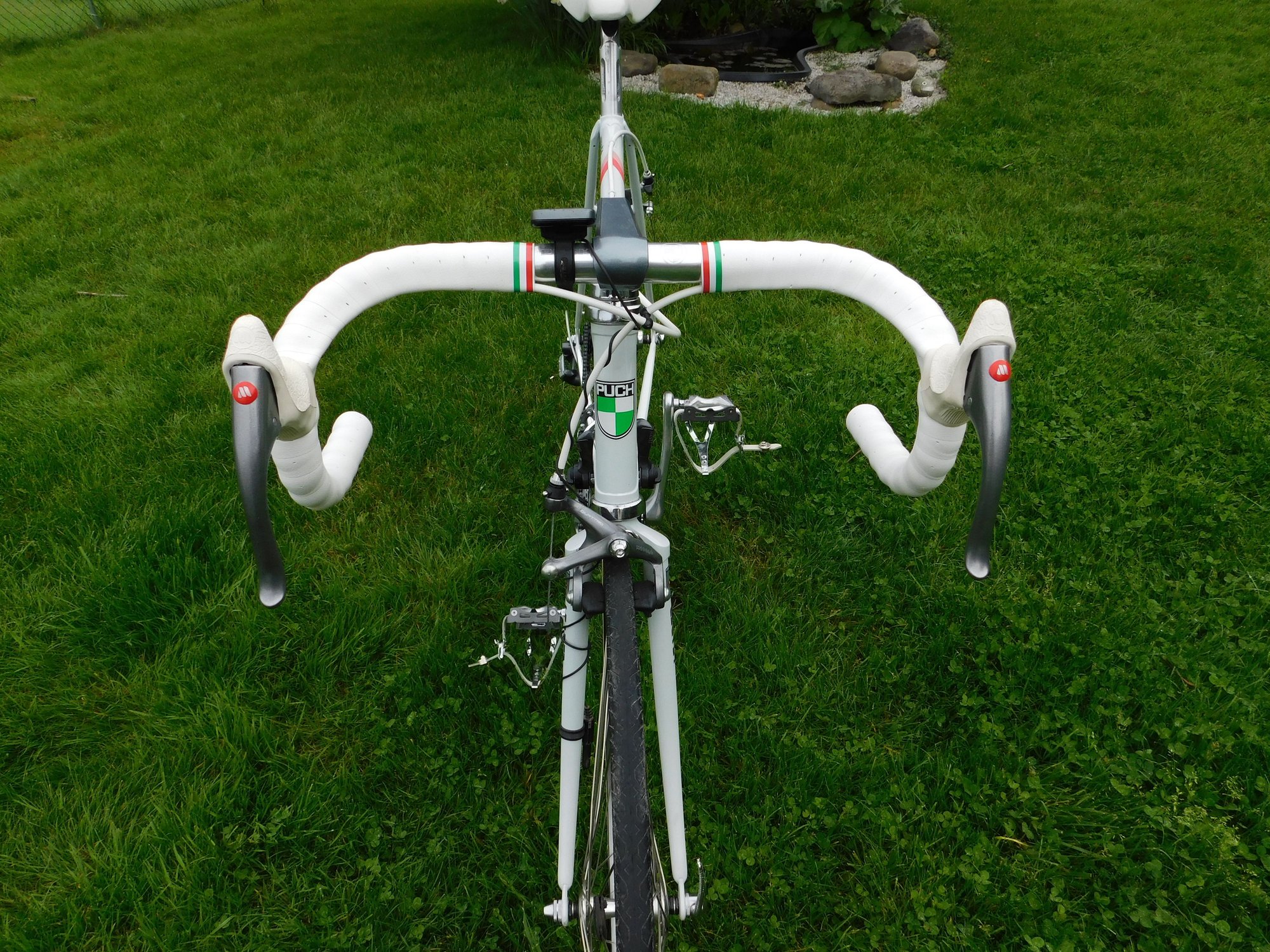

Get some cheat bar wrap on Ebay. By cheap, I mean two or three dollars (shipping included) for stuff that looks like this...


Armed with a set of that wrap, follow the ideas suggested in an article I published years ago - Taping Handlebars.

Since then, I have learned to position my brakes exactly where I want them. Once in place, I sticky tape the clamps into position and then remove the brake levers, leaving only the clamps in place. Then wrap away. You get an easily achieved clean look around the brake levers. This is an example of that method and works really well when half hoods (thanks Mafac) are used...


But start with the cheap rubber stuff suggested. It is easy to work with and, should you go a bit off, just unwrap a bit and do it over and over until it looks good to you. Then do the other side to match the first one. Big tip...

Always, always keep considerable tension on the wrap. Look at the completion of each wrap to ensure uniformity of wraps (appearance) and check to ensure that there are no gaps or loose edges. I really like the little clamps to facilitate the entire task - get a couple.

All that said, this is an easy skill to learn and perfect. Learning to do it will set you back less than ten bucks and prepare you for other wraps in days to come. And, when ending the wrap on each side, you might even want to pretty up the end (actually middles) by using this idea, called Rand's Wrap, which I put on the internet a long time ago.
__________________
"98% of the bikes I buy are projects". Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Likes For randyjawa:
Old 07-18-19, 06:27 AM
  #17
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 449

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '71 Peugeot UO8, '78 Motobecane Grand Jubile, '79 Motobecane Grand Sprint, '87 Ironman Expert, '89 Puch Mistral Leader, '92 Trek 930

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 83 Times in 60 Posts
Loads of good advice, all.

The biggest mistakes I see made with bar wrap are poor tension and uneven spacing, both of which can be corrected with practice by most anybody.

My favorite tapes are bike ribbon:



...and cotton:



I enjoy wrapping them all, but the ribbon and the cloth seem to just lay nicer. Bike ribbon has those nice thin edges that rest in the valleys when you wrap it nice and tight. Cotton tape shows the layer underneath with each rotation - a look I really appreciate. And with cotton, there are multiple ways of finishing it off nicely. I prefer a bottom-up wrap and hot glued ends. On the one pictured above, I took the French flag ribbon that came on a Christmas gift - a cocotte - and applied it to my tape, hot gluing it out of sight.
BFisher is offline
Old 07-18-19, 06:40 AM
  #18
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 315

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘85 Trek 460

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by JaccoW View Post
Try Brook's leather bar tape. Once I wear mine out I plan to replace it with anything but that.
I really didn’t have any issues wrapping with the Brooks leather besides the seams. There were two in what I think was a 6 inch section. Pretty rough.

Ill probably twine that section, tape off and shellack. No need to have premature death because of that one spot.
natterberry is offline
Old 07-18-19, 10:28 AM
  #19
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 492

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 20 Times in 20 Posts
Originally Posted by Lascauxcaveman View Post
Heh. Wrap from the top down, and the only finishing is putting the plugs in the bar ends

But I did put some unnecessary "finishing" on my Raleigh by adding an underlayer of complimentary colored hockey tape (again, wrapped top down):

Yeah, I wrap top down too, cause that’s the way the shop mech showed me back in the 70s, when I asked how.
Love the underlying tape idea, will try that in my next cloth tape wrap.
Tim
tkamd73 is offline
Old 07-18-19, 12:33 PM
  #20
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,275

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 877 Post(s)
Liked 75 Times in 59 Posts
i sympathize with you
__________________
Looking for more time to ride what I have
squirtdad is offline
Old 07-18-19, 01:30 PM
  #21
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 5,538

Bikes: G.L. Maillot Juane & Ventoux,Schwinn Circuit, Prologue,PDG Paramount,Paramount,Tempo,Jake The Snake,LeMond Zurich & Tourmelet,Giordana XL Super & Antares,Puegeot U08,Bob Jackson,Fuji S12-S,Opus III,Orbea Cabestany,Bianchi Campione,Basso Gap

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 1219 Post(s)
Liked 160 Times in 97 Posts
I'm not that good at it either but also don't stress much about it. I'm riding them and comfort and grip matter to me more than whether or not it looks good. .
jamesdak is online now
Likes For jamesdak:
Old 07-18-19, 01:38 PM
  #22
seedsbelize
necessary illusions

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,599
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4863 Post(s)
Liked 61 Times in 46 Posts
Blasphemy!!^^^^
seedsbelize is offline
Likes For seedsbelize:
Old 07-18-19, 01:59 PM
  #23
the sci guy
bill nyecycles

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 2,736
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 34 Times in 18 Posts
Oh my god this thread makes me feel so much better. It takes me about an hour to wrap bars as well because I always end up having to back up and rewrap and it takes like 4 tries to get the figure 8 around the hoods correct (though it doesn’t work with old hoods you can’t roll up the grippy part on).

I prefer a mix of comfort padding and style so I usually go with a $20-30 corkish tape with some cush. I have no brand loyalty. Whoever has the color and feel I want.
the sci guy is offline
Old 07-18-19, 02:08 PM
  #24
ksryder
Senior Member

Join Date: May 2014
Posts: 2,180

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 953 Post(s)
Liked 238 Times in 142 Posts
About every 10th attempt I do a phenomenal job... but then I can never remember exactly what I did that time that made it good.
ksryder is offline
Old 07-18-19, 02:36 PM
  #25
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,790

Bikes: Schwinn Varsity

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Liked 95 Times in 63 Posts
Usually takes me a bottle of wine.
I start from top.
trailangel is offline
Likes For trailangel:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
