UK style ceiling LED wiring connector HELP

Hi, I am in a ex-British colony. Anyone familiar with UK-style home lighting wiring connectors?

Question 1.

People here use these wierd “choc block” connectors to connect wires. No body here use the twist-on connectors so common in the States.

I am replacing the LED driver for the bathroom LED light (15 watt).
Problem is the new LED driver have teenie weenie gauge wires.
I got smallest “choco block” (3 mm)...but the wire is so small, I am scared the connection is not secured enough. I went ahead and installed it as is...but am worried.



Last edited by mtb_addict; 06-07-20 at 07:38 AM.
mtb_addict is offline
Old 06-07-20, 02:58 AM
  #2
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 155
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3225 Post(s)
Liked 64 Times in 56 Posts
Question 2.

I went back to the electrical store, and asked the lady there. She recommend these “quick release” style connector. It is spring acting...no screw.

Are these acceptable on very small wires for ceiling lights 15w? I read that these connector is designed for speaker wiring.



Last edited by mtb_addict; 06-07-20 at 07:16 AM.
mtb_addict is offline
Old 06-07-20, 03:05 AM
  #3
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 155
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3225 Post(s)
Liked 64 Times in 56 Posts

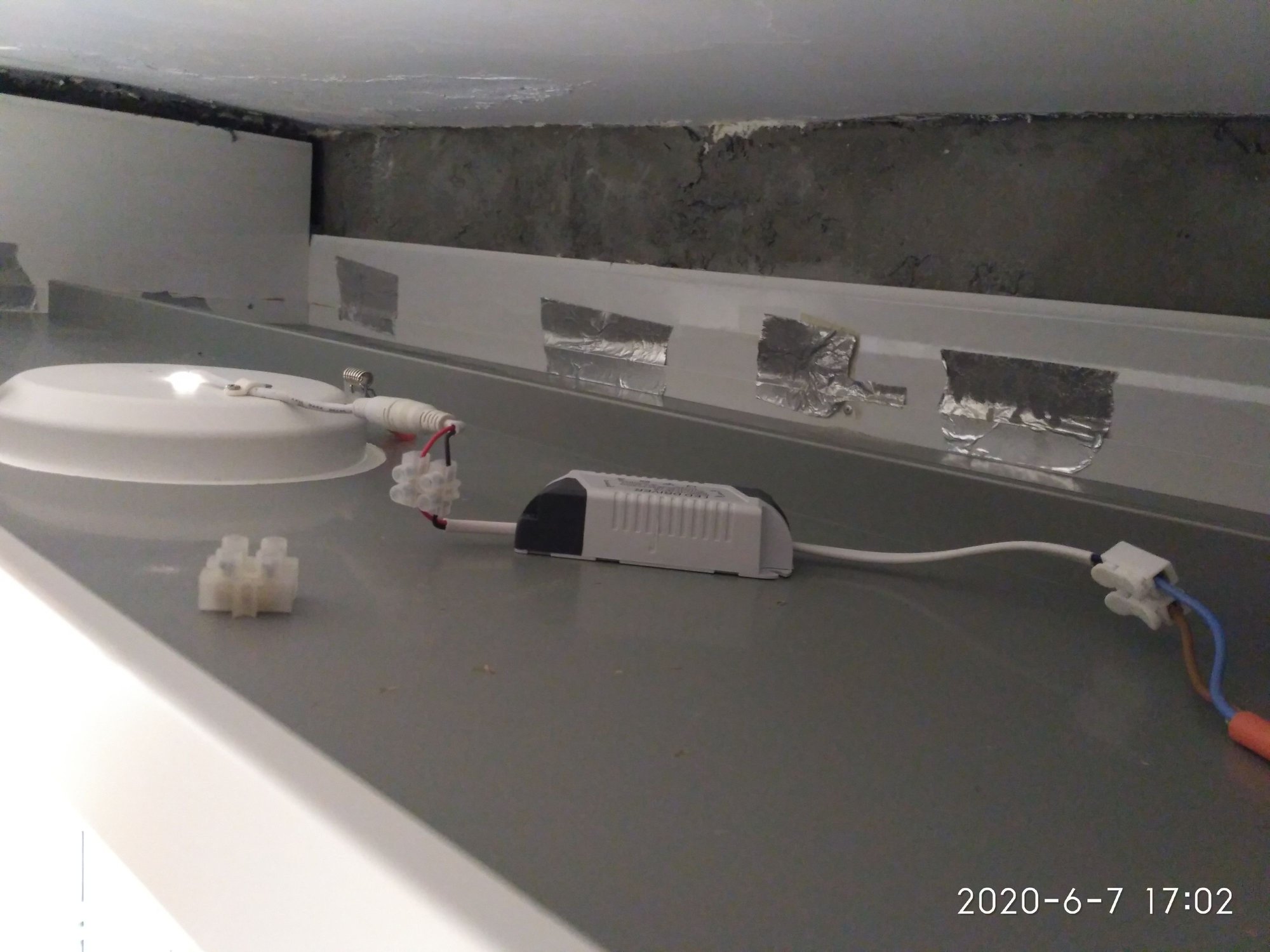

here is my complete wiring...

On the right is the “quick release” connector.

Between the LED light and the driver is a “choc block” connector.

The driver wires are so thin, that I feel the connectors might not be secure enough, if i really yank hard.

Like if some ham fisted handyman is working near this setup.


Last edited by mtb_addict; 06-07-20 at 07:18 AM.
mtb_addict is offline
Old 06-07-20, 04:51 AM
  #4
ahsposo
Turgid Member

ahsposo's Avatar

Join Date: Jan 2010
Location: Hypertonic State
Posts: 7,126

Bikes: A Home Built All Rounder, Bianchi 928, Specialized Langster, Dahon Folder

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 4379 Post(s)
Liked 1,095 Times in 679 Posts
You're good. The worst that could happen is the handyman gets electrocuted, bursts into flames and eventually the entire neighborhood burns. I'll be fine even though I am also in a former British colony.
__________________
Originally Posted by CarlJohnson View Post
i dont care who he is cos im carl and im awesome
ahsposo is offline
Old 06-07-20, 05:12 AM
  #5
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 155
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3225 Post(s)
Liked 64 Times in 56 Posts
Our former colonial master made everyone use these choc block, which seems like a pita. When i turn the screw down, the wire wants to move to the side where it does not get clamp. i have to center the wire carefully, so the screw push down center of wire.
mtb_addict is offline
Old 06-07-20, 05:23 AM
  #6
ahsposo
Turgid Member

ahsposo's Avatar

Join Date: Jan 2010
Location: Hypertonic State
Posts: 7,126

Bikes: A Home Built All Rounder, Bianchi 928, Specialized Langster, Dahon Folder

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 4379 Post(s)
Liked 1,095 Times in 679 Posts
Probably designed for multistrand wire, if the gauge of singlestrand you are using isn't too big try doubling it back a little so you have a double strand at the tip. Good luck.
__________________
Originally Posted by CarlJohnson View Post
i dont care who he is cos im carl and im awesome
ahsposo is offline
Likes For ahsposo:
Old 06-07-20, 08:27 AM
  #7
Hondo Gravel
Viking Berserker

Hondo Gravel's Avatar

Join Date: Jan 2018
Location: Hondo,Texas
Posts: 1,818

Bikes: Too many Motobecanes

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1256 Post(s)
Liked 1,110 Times in 714 Posts
Originally Posted by ahsposo View Post
You're good. The worst that could happen is the handyman gets electrocuted, bursts into flames and eventually the entire neighborhood burns. I'll be fine even though I am also in a former British colony.
convict colony
Hondo Gravel is online now
Old 06-07-20, 08:57 AM
  #8
skidder
Bipsycorider

Join Date: Sep 2012
Location: Orange County, California
Posts: 1,079

Bikes: Why yes, I do have a few! Thank you for asking!

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
Liked 139 Times in 113 Posts
As long as the wires don't pull out with a simple tug they should be fine. Do you know what the wire's gauge and rating is? That would be more crucial than the connector. The 'chock-block' connectors look like the 'Molex'-style used in electrical equipment here in the USA. We'd run equipment using far more than 15W of power through those. I also note you have the different 'commonwealth' color-coded cable (Blue/Brown/Yellow?); make sure those are properly connected (hot, neutral, ground).
skidder is offline
Old 06-07-20, 09:13 AM
  #9
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 155
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3225 Post(s)
Liked 64 Times in 56 Posts
Originally Posted by skidder View Post
As long as the wires don't pull out with a simple tug they should be fine. Do you know what the wire's gauge and rating is? That would be more crucial than the connector. The 'chock-block' connectors look like the 'Molex'-style used in electrical equipment here in the USA. We'd run equipment using far more than 15W of power through those. I also note you have the different 'commonwealth' color-coded cable (Blue/Brown/Yellow?); make sure those are properly connected (hot, neutral, ground).
I dont know the gauge rating, but the copper wire is very thin. It is like half as thin as the pic below. I folded the tip back to “double” the thickness.

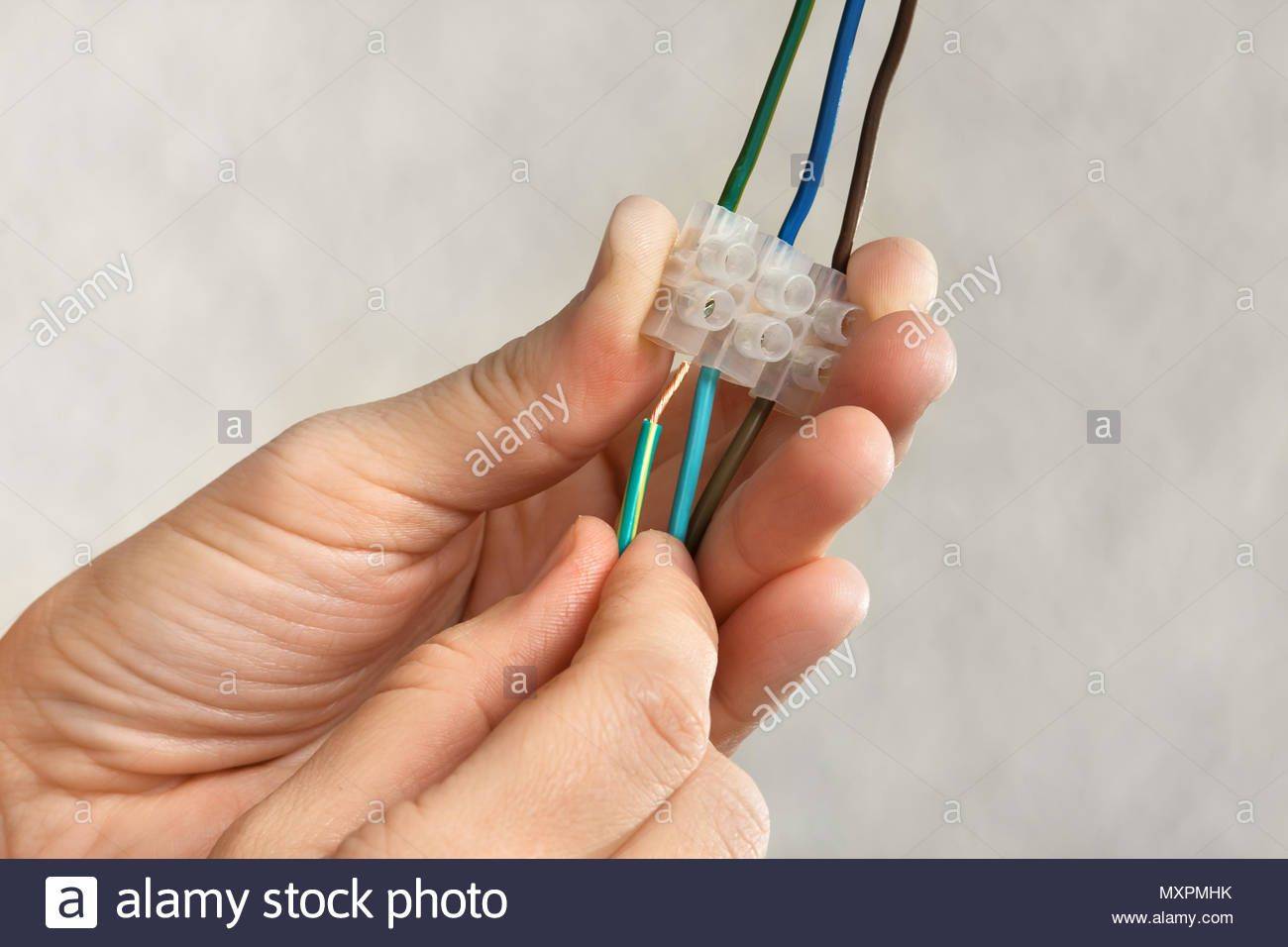

Molex? No. The choc block has a screw to tighten... is like this...



Last edited by mtb_addict; 06-07-20 at 09:21 AM.
mtb_addict is offline
Old 06-07-20, 09:41 AM
  #10
ahsposo
Turgid Member

ahsposo's Avatar

Join Date: Jan 2010
Location: Hypertonic State
Posts: 7,126

Bikes: A Home Built All Rounder, Bianchi 928, Specialized Langster, Dahon Folder

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 4379 Post(s)
Liked 1,095 Times in 679 Posts
And in addition to thin it's prolly single strand, right? Or is it multi strand? In the picture that is multistrand.
__________________
Originally Posted by CarlJohnson View Post
i dont care who he is cos im carl and im awesome
ahsposo is offline
Old 06-07-20, 09:43 AM
  #11
ahsposo
Turgid Member

ahsposo's Avatar

Join Date: Jan 2010
Location: Hypertonic State
Posts: 7,126

Bikes: A Home Built All Rounder, Bianchi 928, Specialized Langster, Dahon Folder

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 4379 Post(s)
Liked 1,095 Times in 679 Posts
Originally Posted by Hondo Gravel View Post
convict colony
Yes, convicted of having convictions...
__________________
Originally Posted by CarlJohnson View Post
i dont care who he is cos im carl and im awesome
ahsposo is offline
Old 06-07-20, 09:53 AM
  #12
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 155
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3225 Post(s)
Liked 64 Times in 56 Posts
Originally Posted by ahsposo View Post
And in addition to thin it's prolly single strand, right? Or is it multi strand? In the picture that is multistrand.
multi strand.
mtb_addict is offline
