Centre-pull hangers are all too short, so...

I made my own.

It's just a nut, drilled and tapped M6x1, silver-soldered to a bent spoke. It goes around the seatpost clamp bolt.

AND they all rust except the Mafac stainless ones - this won't: Brass and stainless and silver.

Anybody else want one?




oneclick is offline
Likes For oneclick:
Old 11-24-20, 09:32 AM
  #2
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,454

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 474 Times in 303 Posts
@oneclick - Show us the application please.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 11-24-20, 09:39 AM
  #3
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts
Originally Posted by SJX426 View Post
@oneclick - Show us the application please.
Rear brake (thot that was implied by "seatpost clamp bolt).
oneclick is offline
Likes For oneclick:
Old 11-24-20, 10:18 AM
  #4
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,032

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 67 Times in 50 Posts
Great idea for thinking outside the box. Hmm, I have no idea what the tension load is on the part under hard braking... those connections will hold?
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 11-24-20, 10:53 AM
  #5
squarenoise
Senior Member

squarenoise's Avatar

Join Date: Feb 2010
Location: Tucson, AZ
Posts: 97

Bikes: 80 Raleigh Competition, 83 Freschi Supreme, 84 Miyata 610, 84 Miyata 1000, 86 Miyata 1000, 89 Marin Pine Mountain, 93 Specialized Stumpjumper, Soma Smoothie, Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 77 Times in 31 Posts
I have one of these on my Surly Cross Check: https://surlybikes.com/parts/cable_hanger

squarenoise is offline
Likes For squarenoise:
Old 11-24-20, 11:06 AM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,076
Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 244 Times in 201 Posts
I also would like to see how it installs, but yes, I am interested! Always appreciate it when C&Vers are also skilled DIYers, we have had many examples over the years!
unworthy1 is offline
Old 11-24-20, 11:09 AM
  #7
mrv
BIKE RIDE

Join Date: Jun 2014
Location: Michigan
Posts: 1,090

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 52 Times in 39 Posts
Originally Posted by tiger1964 View Post
... those connections will hold?
the SURLY looks like a weld. The OP is using a braze.
It would be easy enough to insert a bolt and pull on it test it. I'm guessing a person could go full 200lb of body weight on the SURLY welded part and just hang out for a good long time.

A possible improvement to the OP's hack would be a tall nut to get more brazed length. Maybe bend the spoke around the nut a bit. Maybe put a flat on the spoke to get more surface area.

Found this trying to get a best guess on brazed joint shear strength: https://lucasmilhaupt.com/EN/Brazing...ndamentals.htm
see table 1 here: https://app.aws.org/wj/supplement/WJ_1975_08_s276.pdf

... next question: fatigue cycles associated with braking (which would lead to breaking....)

i should really get back to work....
anyway, I'll vote HACK (not a bodge.....)

cheers.
mrv is offline
Likes For mrv:
Old 11-24-20, 11:33 AM
  #8
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,454

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 474 Times in 303 Posts
@oneclick - I implied a picture with my request.
Such as:
075_PaTrek on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 11-24-20, 11:34 AM
  #9
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,129

Bikes: Too Many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 37 Times in 31 Posts
I've made several of these with spokes and cable stop braze-ons. They are perfectly strong. To the OP, nice thinking on using a brass nut.
Cynikal is offline
Likes For Cynikal:
Old 11-24-20, 02:25 PM
  #10
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts
Originally Posted by mrv View Post
A possible improvement to the OP's hack would be a tall nut to get more brazed length. Maybe bend the spoke around the nut a bit. Maybe put a flat on the spoke to get more surface area.
a) yes
b) yes
c) no, I already file a groove into the nut, and I check for full-fillets (see pic 1 & 3, below).

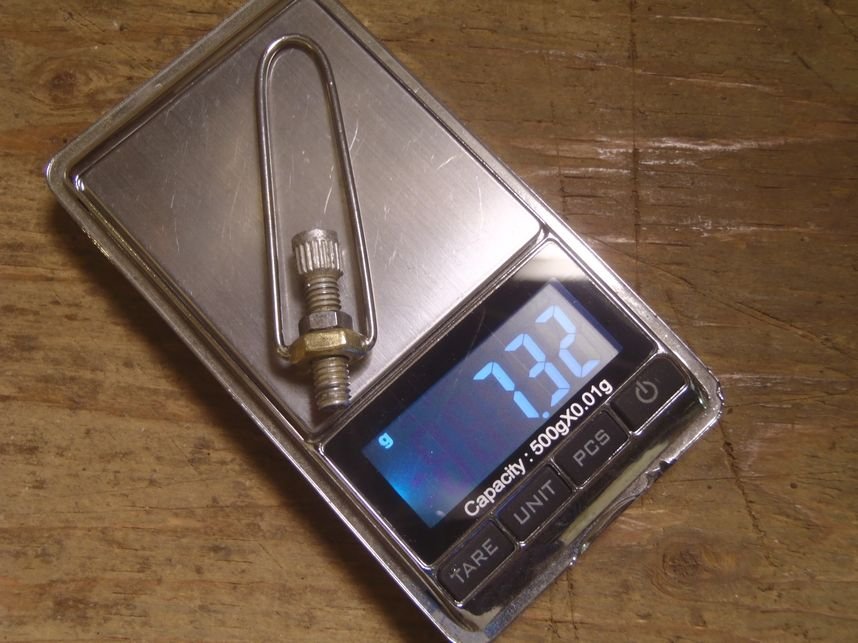

Mk II:




oneclick is offline
Likes For oneclick:
Old 11-24-20, 02:37 PM
  #11
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,454

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 474 Times in 303 Posts
Good work!
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 11-25-20, 06:02 AM
  #12
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,461

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 624 Post(s)
Liked 277 Times in 182 Posts
I would take 2 or 3
bwilli88 is offline
Old 11-25-20, 07:35 AM
  #13
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts
Originally Posted by bwilli88 View Post
I would take 2 or 3

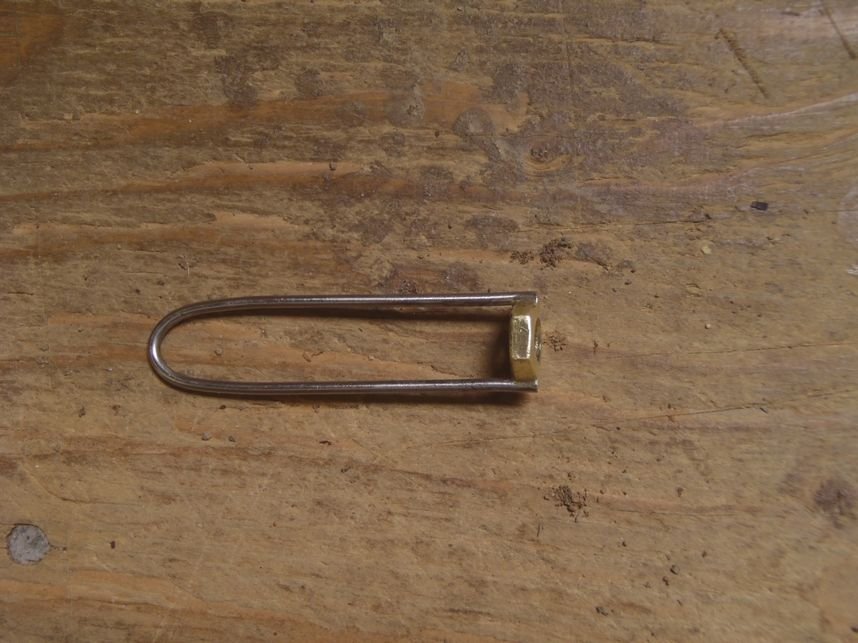

How about 3 of Mk III (pictured below) for $30 and I'll pay postage. You only get the hanger, you'll have to supply your own adjuster.

This one has the plain nut, but it has two holes cross-drilled into the edges and the spoke is bent 90 degrees and silver-soldered into the holes. I think this is (so far) the best solution, it's lighter than Mk II, the thread engagement for the adjuster is longer. It's a 2mm spoke, if you have a seat-lug with a show-off thin kerf it may not fit; I can make one with a thinner spoke if that's the case.

Just to be clear, this is *real* silver solder, the same as used in jewellery, not that "silver-bearing" stuff sold in hardware stores. It melts at medium-red heat and has a bulk UTS of around 50 KSI, the hardware stuff you can do with a soldering iron and is more like 10 KSI. It's not coming apart.



Last edited by oneclick; 11-25-20 at 09:17 AM.
oneclick is offline
Old 11-25-20, 08:10 AM
  #14
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,567

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 512 Post(s)
Tagged: 0 Thread(s)
Quoted: 1762 Post(s)
Liked 252 Times in 171 Posts
I made something similar for my Holdsworth Gugifacazione, but instead of a nut soldered to the spoke, i have a piece of aluminum. The ends of the spoke go all the way through the aluminum piece and are then bent to a J shape, the end of which goes back into a second hole in the aluminum. Ive used this for a few years, no problems.


Last edited by rhm; 11-27-20 at 01:23 PM.
rhm is offline
Old 11-27-20, 01:20 PM
  #15
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts

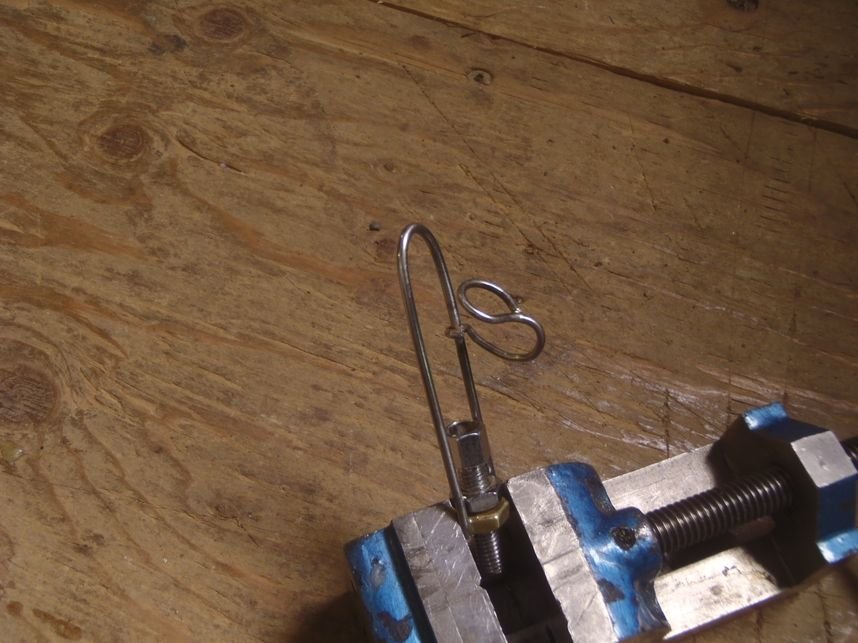

Mk IV prototype...

This was too much trouble to make the way it is. If I do anymore like this it'll probably just have a separate ring, not be formed from one piece:


oneclick is offline
Likes For oneclick:
Old 11-28-20, 01:52 AM
  #16
squarenoise
Senior Member

squarenoise's Avatar

Join Date: Feb 2010
Location: Tucson, AZ
Posts: 97

Bikes: 80 Raleigh Competition, 83 Freschi Supreme, 84 Miyata 610, 84 Miyata 1000, 86 Miyata 1000, 89 Marin Pine Mountain, 93 Specialized Stumpjumper, Soma Smoothie, Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 77 Times in 31 Posts
Originally Posted by oneclick View Post
This was too much trouble to make the way it is. If I do anymore like this it'll probably just have a separate ring, not be formed from one piece:


Now THIS is a great upgrade!! Such a smart/elegant solution to help alight the cable housing and relieve that pressure right at the adjuster.
squarenoise is offline
Likes For squarenoise:
Old 11-28-20, 05:50 AM
  #17
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts
Originally Posted by rhm View Post
I made something similar for my Holdsworth Gugifacazione, but instead of a nut soldered to the spoke, i have a piece of aluminum. The ends of the spoke go all the way through the aluminum piece and are then bent to a J shape, the end of which goes back into a second hole in the aluminum. Ive used this for a few years, no problems.
That's a great no-heat solution.

But maybe something like this would keep that cable-outer from rubbing:



Last edited by oneclick; 11-28-20 at 01:06 PM.
oneclick is offline
Old 11-28-20, 08:01 AM
  #18
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,678

Bikes: More than I care to admit

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 169 Times in 119 Posts
There’s no end to the creativity found in this forum - kudos!
mountaindave is offline
Old 11-28-20, 12:29 PM
  #19
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,032

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 67 Times in 50 Posts
Originally Posted by oneclick View Post
This was too much trouble to make the way it is. If I do anymore like this it'll probably just have a separate ring, not be formed from one piece:
The expensive part might be the custom wrench for that locknut. I don't even think an ignition wrench (remember those?) would fit. OTOH, I could be proven wrong...

Or mount the locknut underneath?
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 11-28-20, 01:04 PM
  #20
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts
Originally Posted by tiger1964 View Post
The expensive part might be the custom wrench for that locknut. I don't even think an ignition wrench (remember those?) would fit. OTOH, I could be proven wrong...

Or mount the locknut underneath?
It's no trouble really, you can get at the outermost flats easily with pretty much any spanner, and you just turn your adjuster the max 30 degrees either way to get it lockable.

I do have a nice little channel-lock-type set of pliers, the jaws are about 3/32" thick and about 3/4" long, it works no matter where the adjuster is.
oneclick is offline
Old 11-28-20, 01:08 PM
  #21
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,747

Bikes: https://www.theheadbadge.com

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1204 Post(s)
Liked 1,216 Times in 744 Posts
Maybe bend the spoke pear-shaped around the adjuster? Might be wise to braze in a curved reinforcement to prevent it from straightening out.
__________________







cudak888 is offline
Old 11-28-20, 07:16 PM
  #22
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,783

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 998 Post(s)
Liked 405 Times in 298 Posts
Old cable housing adjusters had mere knurling on their (usually round) locknut, so didn't rely on anything more than finger-tightening.

I find that they tend never to loosen on their own!
dddd is offline
Old 11-30-20, 09:58 AM
  #23
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 648
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 214 Times in 138 Posts

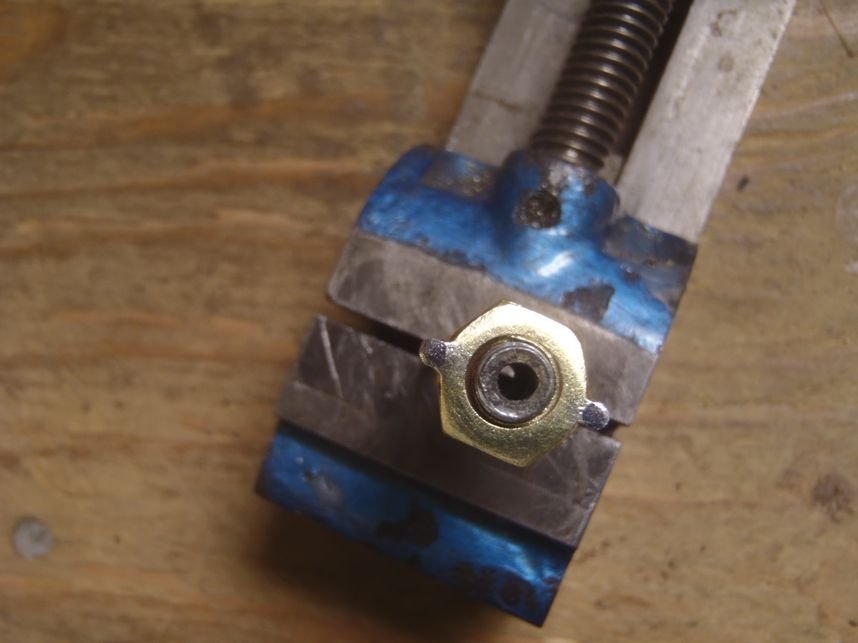

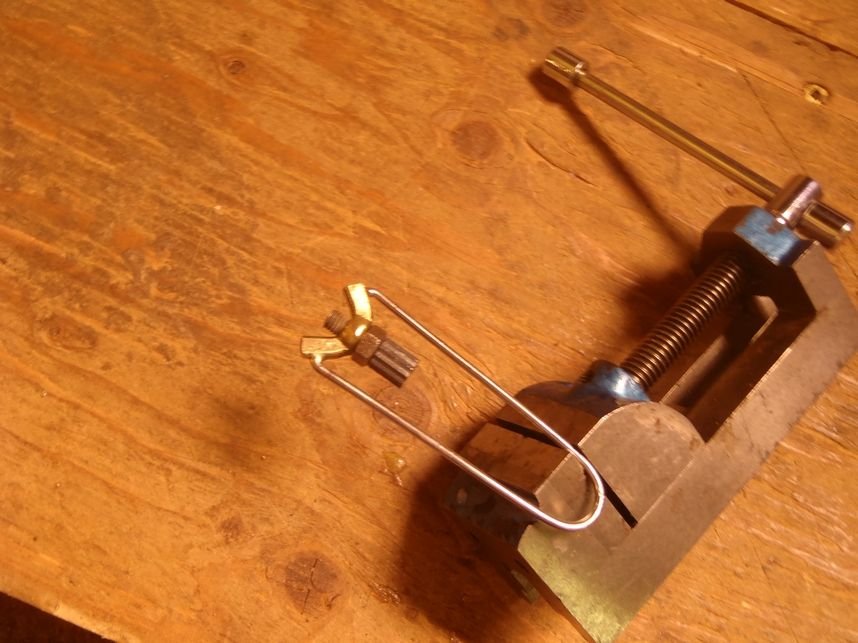

5mm/wingnut version

I had to get more brass nuts to make more of these things. I knew that the flat nuts I had would not work for a 5mm adjuster; either the existing hole was too big or the nut outside was too small. Then I saw my local hardware store had 8-32 brass wingnuts:




The nut costs more but that's not a big factor, it's just as easy to make. I got some 10-24 wingnuts and will make a few 6mm versions like this.
oneclick is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
