Deraileur extension

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Deraileur extension

Old 10-18-19, 08:51 PM
  #1
CycleryNorth81
Senior Member
Thread Starter

Join Date: Jun 2014
Posts: 495

Bikes: custom Cyclery North (Chicago), Schwinn Circuit

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 22 Times in 14 Posts
Deraileur extension

Has anybody use these rear derailleur extension? These extension are suppose to increase the large cog capacity of your derailleur. Do they work well?


Last edited by CycleryNorth81; 10-18-19 at 09:11 PM. Reason: correction
CycleryNorth81 is offline
Old 10-18-19, 09:19 PM
  #2
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 4,778

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 153 Times in 100 Posts
They seem to work well - there was a pretty good dsicussion on the "do this" Coppi thread.
thinktubes is offline
Likes For thinktubes:
Old 10-18-19, 09:20 PM
  #3
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 5,680

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 588 Post(s)
Liked 77 Times in 60 Posts
They do as advertised...

https://www.wolftoothcomponents.com/products/roadlink
curbtender is offline
Likes For curbtender:
Old 10-19-19, 11:37 AM
  #4
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,544

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 730 Post(s)
Liked 57 Times in 52 Posts
That is an interesting and elegantly simple contraption. It should work pretty well for us half step gearing fans, since we don't have a large drop up front to exacerbate the chain wrap issue.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 10-19-19, 04:25 PM
  #5
CycleryNorth81
Senior Member
Thread Starter

Join Date: Jun 2014
Posts: 495

Bikes: custom Cyclery North (Chicago), Schwinn Circuit

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 22 Times in 14 Posts
Originally Posted by John E View Post
That is an interesting and elegantly simple contraption. It should work pretty well for us half step gearing fans, since we don't have a large drop up front to exacerbate the chain wrap issue.
This contraption seems like a great idea. It would let us keep our short cage derailleur on a bigger cog.
CycleryNorth81 is offline
Old 10-20-19, 07:16 AM
  #6
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,948

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Liked 17 Times in 11 Posts
Most people, I'm sure, are already aware of this, but the adaptor doesn't in increase chain wrap. In other words, it does let you use a bigger cog in back, but the total capacity of your rear derailleur doesn't change.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 10-20-19, 08:24 AM
  #7
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 9,096

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '87 Schwinn Prelude, Black Mountain Cycles Monstercross V4, '89 Novara Trionfo, '18 Diamondback Syncr

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 3393 Post(s)
Liked 410 Times in 282 Posts
I used the original Wolftooth Roadlink on my 11sp gravel bike for a few years. It's easy to install, solid once installed, and simple.
I ended up passing it along to another rider for the Coppi. Neat that it works well for c&v speed drivetrains too.

As for the generic/knockoff versions, I would assume they work as long as they are the same geometry and measurements as the Roadlink. It's a simple piece of machined aluminum, not complicated, so tough to mess up copying it.
mstateglfr is offline
Old 10-20-19, 08:41 AM
  #8
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 26,001

Bikes: Too many to list here check my signature.

Mentioned: 115 Post(s)
Tagged: 2 Thread(s)
Quoted: 1398 Post(s)
Liked 142 Times in 99 Posts
Someone recently posted a bike with one of those on it and I could't really figure out what it was.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 10-20-19, 09:04 AM
  #9
hokiefyd
Senior Member

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 2,534

Bikes: 2018 Redline Zander, 2018 Giant Roam 2, 1997 Trek 750, 1981 Peugeot PBN10, 1970 Peugeot UO-18

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 865 Post(s)
Liked 121 Times in 97 Posts
These work well, and even work in combination with a claw adapter, if you have one of those. I have one (of the cheap eBay ones) on my '70 Peugeot.


hokiefyd is offline
Old 10-20-19, 10:10 AM
  #10
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,091
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Liked 345 Times in 191 Posts
I have two friends who use the Wolf Tooth version, one of which has it on a Campy set up despite the company saying they can't guarantee results with Campy. The ones pictured in the OP look like the knock off versions I've seen on an internet auction site.
nomadmax is offline
Old 10-20-19, 12:58 PM
  #11
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,233

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 2395 Post(s)
Liked 311 Times in 230 Posts
In retrospect, it's interesting that this sort of thing is only catching on now. Think of all the riders decades ago wished they get get a bigger cog under their racing derailleur.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 10-20-19, 01:25 PM
  #12
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 230

Bikes: 1970's Windsor Professional, Pinarello Gavia TSX,Guerciotti SL,Basso Gap, Vintage Moser SL,Concorde TSX,Concorde TVT, Mondia Super,Vitus 979.Diamant SLX

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 35 Times in 28 Posts
I recently bought a Wolfstooth for my old Super Record equipped bike, I havent installed it yet but if it works that Great. If not, well it was only $19.

Im wondering if my chain length will be aqdequate for the bigger rear cog, but I have a few chains laying around that should work.
Manny66 is offline
Old 10-20-19, 04:06 PM
  #13
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,429
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 358 Post(s)
Liked 522 Times in 332 Posts
The Roadlink adds 25mm clearance. It is simple and easy to install.

Pro's: seems to work with everything from 6sp to 11sp (on my stuff, anyway).
Con's: tt can pivot on the RD hanger if not mounted correctly. (on a Y-Foil).

I have no idea if the Chinese "We-Don't-Care-About-Patents-Copyrights-or-Intellectual-Property-Rights-We-Copy-Anything-We-Feel-Like-and-our-Goverment-Subsidizes-It" versions work the same.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Likes For RobbieTunes:
Old 10-20-19, 05:23 PM
  #14
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,948

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Liked 17 Times in 11 Posts
Originally Posted by ThermionicScott View Post
In retrospect, it's interesting that this sort of thing is only catching on now. Think of all the riders decades ago wished they get get a bigger cog under their racing derailleur.
That's a really good point that hadn't occurred to me. There was no cheap CNC machining in those days, but it would have been even easier to just stamp them out like derailleur claws. It's not like people recoiled in horror from stamped-steel parts in those days.

Unlikely as it seems, I guess it just hadn't been thought of yet. You'd think it would have occurred to someone.

[note to self: think of another gizmo like this and become wealthy.]
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 10-20-19, 07:06 PM
  #15
hokiefyd
Senior Member

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 2,534

Bikes: 2018 Redline Zander, 2018 Giant Roam 2, 1997 Trek 750, 1981 Peugeot PBN10, 1970 Peugeot UO-18

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 865 Post(s)
Liked 121 Times in 97 Posts
Originally Posted by jonwvara View Post
That's a really good point that hadn't occurred to me. There was no cheap CNC machining in those days, but it would have been even easier to just stamp them out like derailleur claws.
Or even stamp longer claws! I recently asked about different lengths of hangers for this very reason. The (correct) answer is there is really only one length of those claws. I acknowledge that most nicer bikes use integrated hangers, and have done so for the last four decades or so...but it still is curious that this was "never a thing" back in the day.

Of course, back then, a "big" freewheel or cassette sprocket was 24t...real cyclists rode a maximum of 21t, right? (And only on the 53t ring!)
hokiefyd is offline
Old 10-20-19, 09:42 PM
  #16
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,797

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Likes: 0
Liked 233 Times in 143 Posts
I have a "real" Roadlink on my modernish Roubaix with 105 long cage. Works great. I keep meaning to try one on my old school Campy Gran Sport which maxes out at 28t. Anybody done that?
Slightspeed is offline
Old 10-20-19, 11:03 PM
  #17
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,082

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Likes: 0
Liked 154 Times in 106 Posts

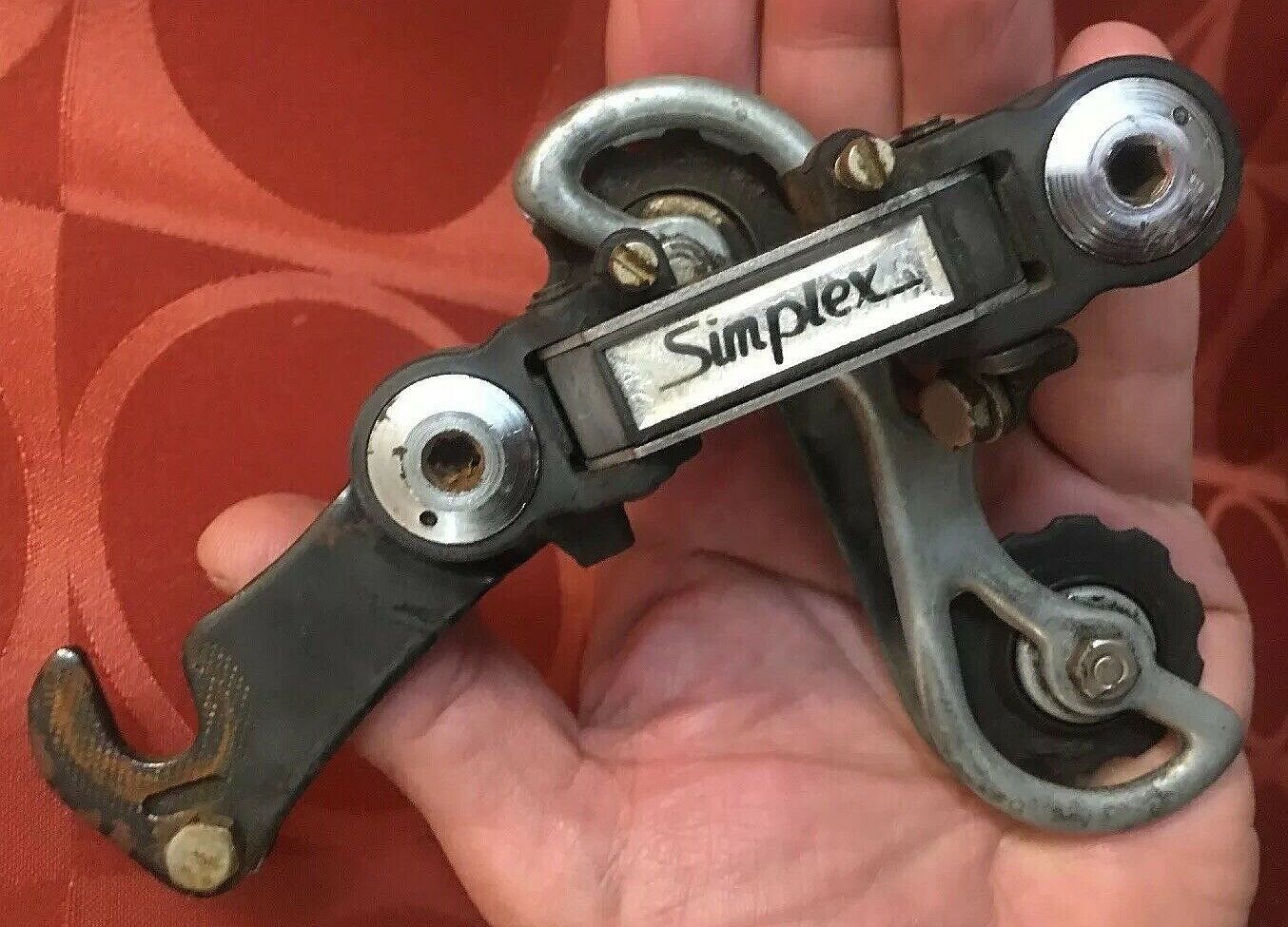

Simplex Maxi Prestige Long Arm Derailleur

Originally Posted by hokiefyd View Post
Or even stamp longer claws! I recently asked about different lengths of hangers for this very reason. The (correct) answer is there is really only one length of those claws. I acknowledge that most nicer bikes use integrated hangers, and have done so for the last four decades or so...but it still is curious that this was "never a thing" back in the day.

Of course, back then, a "big" freewheel or cassette sprocket was 24t...real cyclists rode a maximum of 21t, right? (And only on the 53t ring!)
au contraire mon frere

Alpine Gearing found on most non racing bike boom models had 14-28T 5sp FWs with 52-42T, 52-40T or 52-36T cranks. The standard Simplex Prestige RDs could usually handle those range gears.

Simplex Maxi Prestige ca 1972-73. They had a long claw attachment plus a long arm pulley cage. I only saw a few of them in the steel. They were on "touring" mixte bikes, usually with 14-32 5sp FWs.

There were many different length claw hangers depending on brand but few/none as long as these.




1972-73 Simplex catalog page from velo-pages.com showing the Simplex Maxi Presitge front and rear derailleurs.


verktyg

Last edited by verktyg; 10-20-19 at 11:09 PM.
verktyg is offline
Likes For verktyg:
Old 10-21-19, 12:24 AM
  #18
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 2,951
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1312 Post(s)
Liked 115 Times in 74 Posts
Originally Posted by CycleryNorth81 View Post
Do they work well?
They do what they're supposed to do, i.e. move the derailleur downward so that it can clear a bigger cog. Sometimes this can result in slightly balkier rear shifting than using a derailleur which is actually designed to sweep across the intended cluster. Depending on the specifics of the situation it may or may not actually matter.

People mostly seem to end up happy with them.
HTupolev is online now
Old 10-21-19, 07:58 AM
  #19
CycleryNorth81
Senior Member
Thread Starter

Join Date: Jun 2014
Posts: 495

Bikes: custom Cyclery North (Chicago), Schwinn Circuit

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 22 Times in 14 Posts
Originally Posted by HTupolev View Post
People mostly seem to end up happy with them.
Glad to hear that. Thanks for the feedback.
CycleryNorth81 is offline
Old 10-21-19, 08:15 AM
  #20
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,429
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 358 Post(s)
Liked 522 Times in 332 Posts
Originally Posted by Slightspeed View Post
I have a "real" Roadlink on my modernish Roubaix with 105 long cage. Works great. I keep meaning to try one on my old school Campy Gran Sport which maxes out at 28t. Anybody done that?
@speedevil mounted one on an older (stunning) Masi. Works well.

Originally Posted by HTupolev View Post
They do what they're supposed to do, i.e. move the derailleur downward so that it can clear a bigger cog. Sometimes this can result in slightly balkier rear shifting than using a derailleur which is actually designed to sweep across the intended cluster. Depending on the specifics of the situation it may or may not actually matter. People mostly seem to end up happy with them.
Yep. They are not happy with a lot of chain tension. For example, my DA7700GS RD ("medium cage") was not a real fan of climbing a mountain under a 39t front and 32t rear, but it handled the 30T just fine. "Balky" is a perfect description.

I added the Roadlink, and it's much quieter and less balky now, even running 53t front and 34t rear. But when I say much quieter, I don't mean it's groovy smoothy quiet. On the small ring up front, no issues, and that's what it's for, anyway, but when I'm lazy stupid climbing, I sometimes forget my left hand exists, and go big/big. It would be disaster on the standard setup, but with the Roadlink, there is forgiveness and redemption. I'll take it where I can get it.

There is also a company that alters Di2 RD's to clear up to 40t rear cogs. As the cycling crowd ages, they are moving towards staying more relaxed and more aerobic while climbing. This is leading to larger rear cassettes as people spin up the ascents while watching their HR monitors, etc.

Given my recent foray into never-never-HR land, I understand this.
Attached Images
File Type: jpg
HR graph.JPG (21.3 KB, 51 views)
File Type: jpg
HR 2.JPG (13.0 KB, 51 views)
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 10-21-19 at 08:36 AM.
RobbieTunes is offline
Old 10-21-19, 10:44 AM
  #21
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,773

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 446 Post(s)
Tagged: 0 Thread(s)
Quoted: 5769 Post(s)
Liked 316 Times in 221 Posts
@ascherer put one of these on his bike, and he's happy. Right, Andy?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 10-21-19, 10:51 AM
  #22
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan
Posts: 1,119

Bikes: 1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1966 Raleigh Sports

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 66 Times in 39 Posts
Originally Posted by Slightspeed View Post
I have a "real" Roadlink on my modernish Roubaix with 105 long cage. Works great. I keep meaning to try one on my old school Campy Gran Sport which maxes out at 28t. Anybody done that?
I used one on my International with a Nuovo Record to clear a 30 or 32 in back, I forget which. No issues.
__________________
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mk.I, 1966 Raleigh Sports
ascherer is offline
Old 10-21-19, 11:10 AM
  #23
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,797

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Likes: 0
Liked 233 Times in 143 Posts
Thanks, guys. Good to know. I've got 34t Megarange Freewheels on two Raleighs with VGT Luxe RDs, but I'd like to try something like that on my '64 Legnano with old Campy Gran Sport for Eroica. The good thing is that it's easily reversible, unless you get to like it too much. 😉
Slightspeed is offline
Old 10-21-19, 01:51 PM
  #24
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,091
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Liked 345 Times in 191 Posts
Originally Posted by hokiefyd View Post
Or even stamp longer claws! I recently asked about different lengths of hangers for this very reason. The (correct) answer is there is really only one length of those claws. I acknowledge that most nicer bikes use integrated hangers, and have done so for the last four decades or so...but it still is curious that this was "never a thing" back in the day.

Of course, back then, a "big" freewheel or cassette sprocket was 24t...real cyclists rode a maximum of 21t, right? (And only on the 53t ring!)
If someone showed up with a 13-21 freewheel at a team ride or club race they had to endure the shame of riding with a "pie plate"
nomadmax is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
