Old 10-07-22, 09:29 AM
  #26
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,839

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 1,144 Times in 685 Posts
I believe it is an Ideale saddle clamp. Some pics of a nice one here:
https://sidelineswap.com/gear/bikes/...-w-25-4mm-post
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is online now
Old 10-07-22, 10:55 AM
  #27
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Thanks Classtime , but i believe i need a 26.2 mm . My toughts is to buy only seatpost - a nice one ,and buy a new Brooks saddle - have some really nice vintage options. I have found some Simplex or Strongligjt seatpost .
Sorin is offline
Old 10-10-22, 03:27 AM
  #28
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Hei guys,

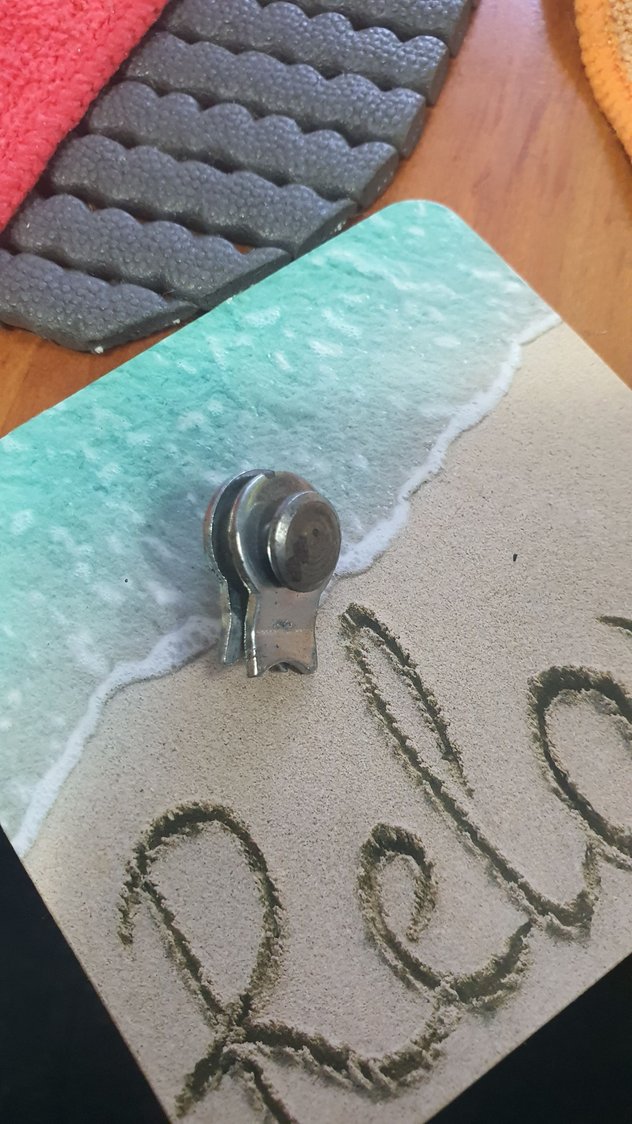

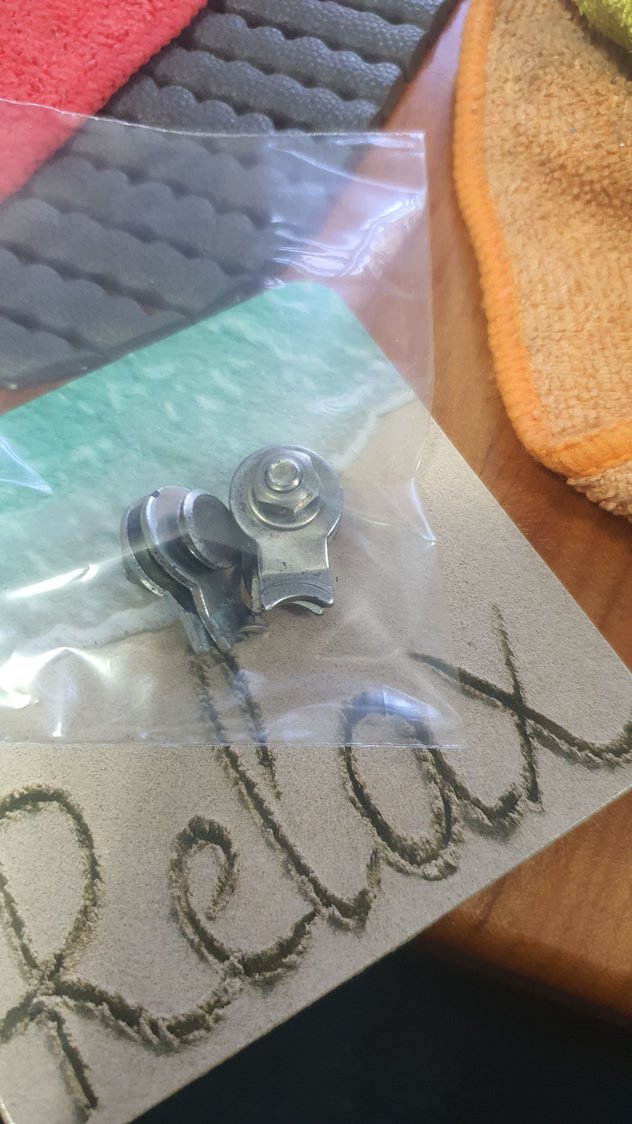

Can anyone help me and tell what is this for? Seems some cables hanger , but?

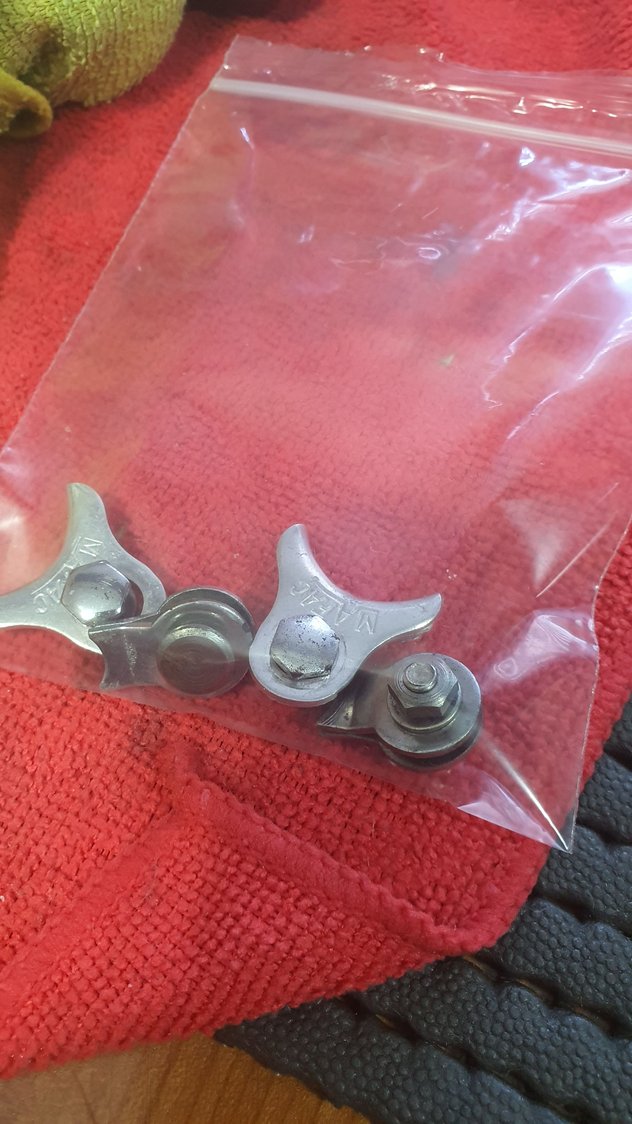

For break cable hanger i have these , but what about others? 😅

Thanks!
Sorin is offline
Old 10-10-22, 06:32 AM
  #29
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 1,143

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 825 Times in 428 Posts
ehcoplex is online now
Likes For ehcoplex:
Old 10-10-22, 06:33 AM
  #30
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 1,143

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 825 Times in 428 Posts
& the ones marked Mafac are the centerpull straddle-cable hangers.
ehcoplex is online now
Old 10-10-22, 06:52 AM
  #31
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Wow , thank you! Verry important parts !

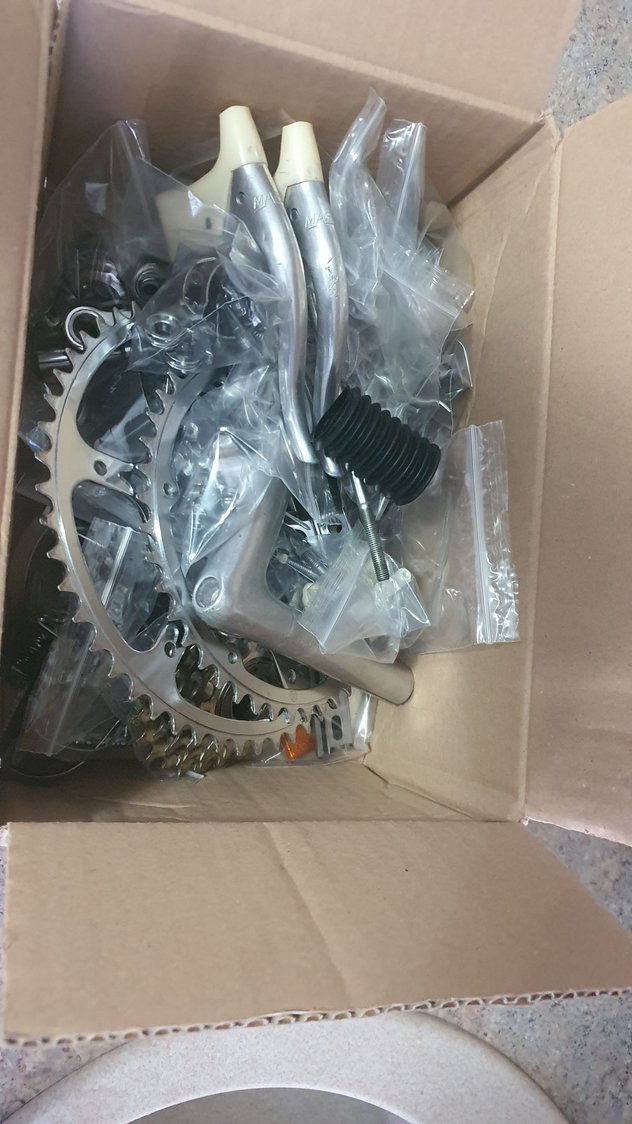

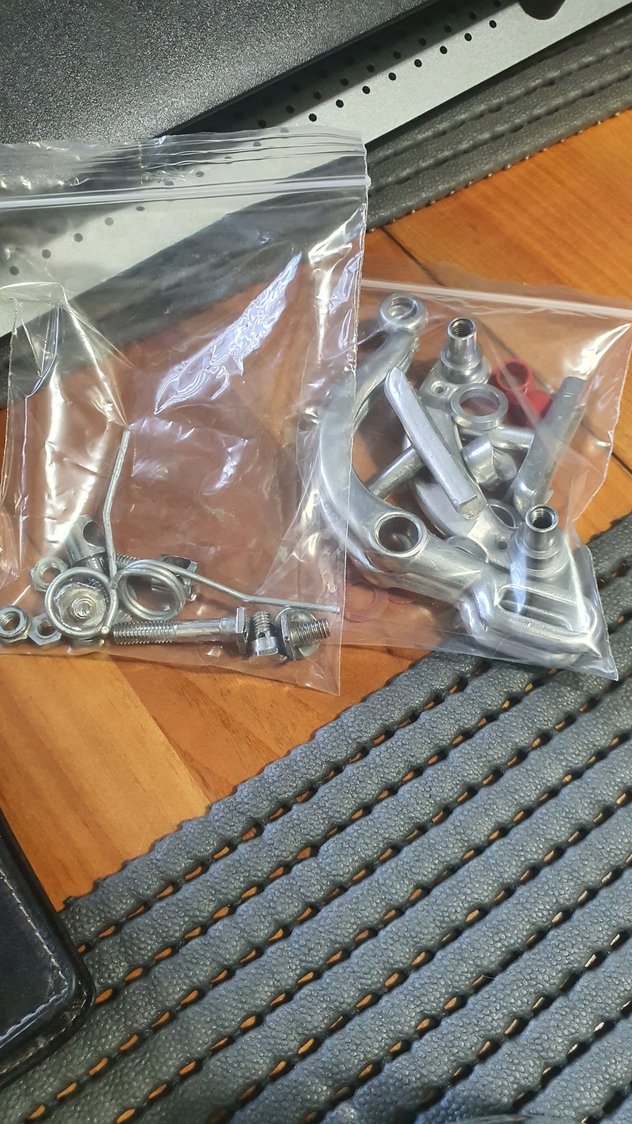

I have finnished clean all the parts and box them :

& weight in grams :

Washers from friction shifters doesn't look too good, metal parts waiting for a citric acid bath toghether with all bolts and nuts ....and all metalic parts that have some surface rust. I miss 2nd pcs from the right top corner 😓. I found it in France with all the parts from the photo , NOS ....like 40$ all of them 🤦


Break has come really well , except the fact i miss 2 break pad holders from the back . As for pads will go with KoolStop .


Next days i hope to finnish with frame and fork cleaning then order some clay bar and polish compound to see how they come. Cheers!
For tubulars i will go with Veloflex , Vittoria Corsa or Specialized
Sorin is offline
Old 10-10-22, 10:29 AM
  #32
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,839

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 1,144 Times in 685 Posts
Of course, you have some Kool-stop brake pads on the way?
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is online now
Old 10-10-22, 01:36 PM
  #33
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Nope, i want to find a single shop and buy them all at once to save for shipping . Need to do some research...i think bike24 have everything i want , but 1st need to see if i can find anything locally.
Sorin is offline
Old 10-10-22, 01:37 PM
  #34
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Double post

Last edited by Sorin; 10-10-22 at 01:38 PM. Reason: Double post
Sorin is offline
Old 10-10-22, 02:08 PM
  #35
Trakhak
Senior Member

Trakhak's Avatar

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,613
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 1,403 Times in 814 Posts
The OP's contributions and those of all who have posted here have made this thread a pure pleasure to read.
Trakhak is online now
Likes For Trakhak:
Old 10-11-22, 04:59 AM
  #36
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts

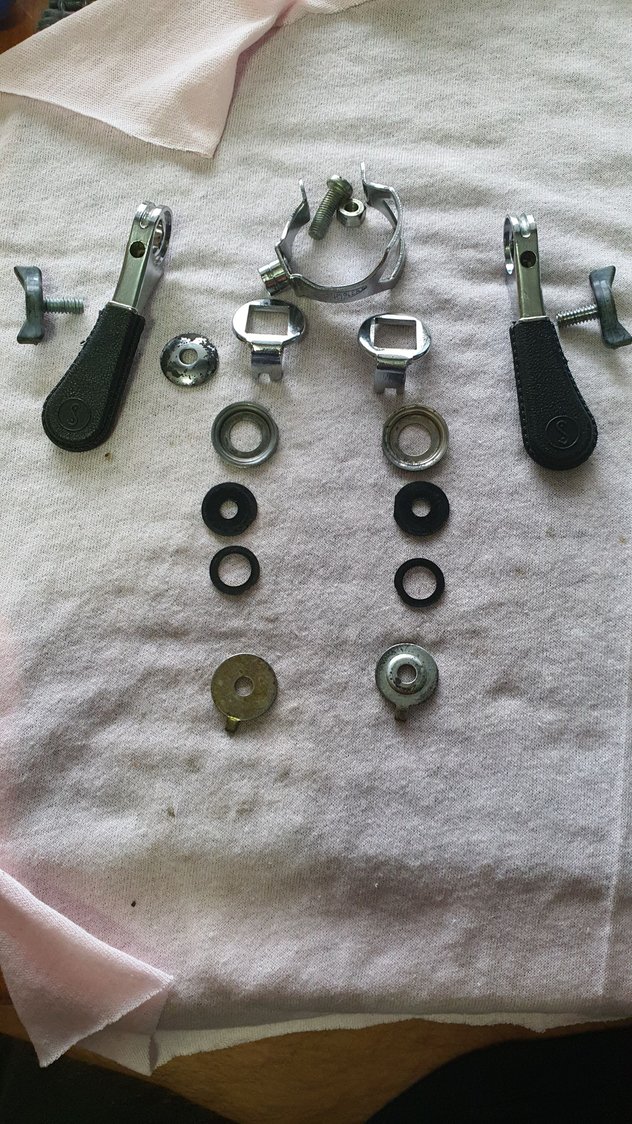

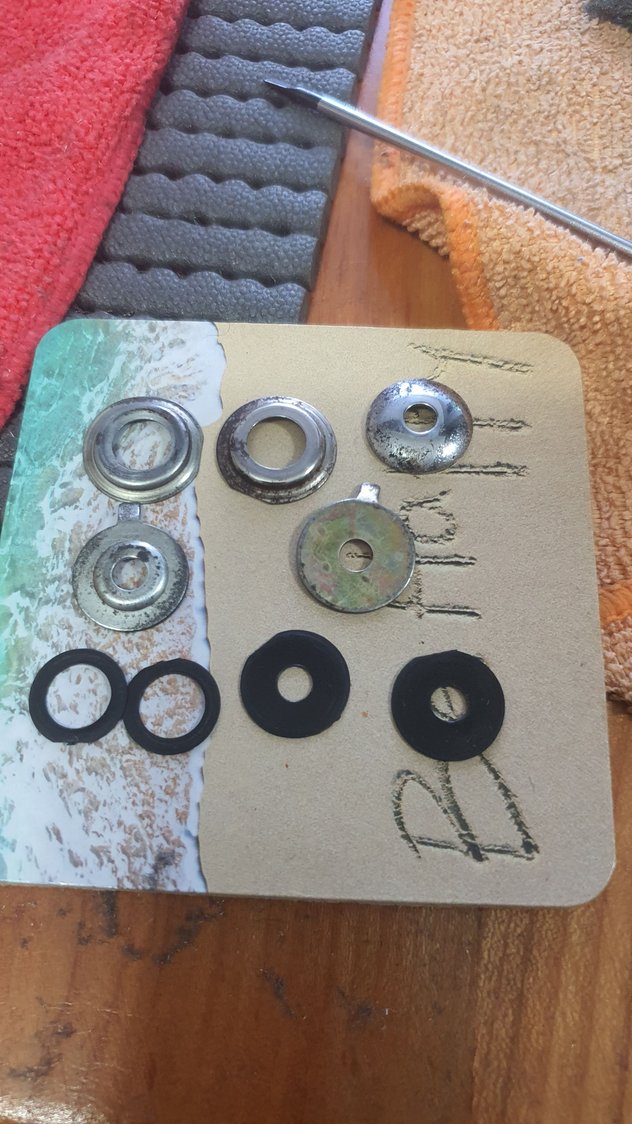

Hello guys, another question, if you can help : - about friction shifters :
This is all i have :

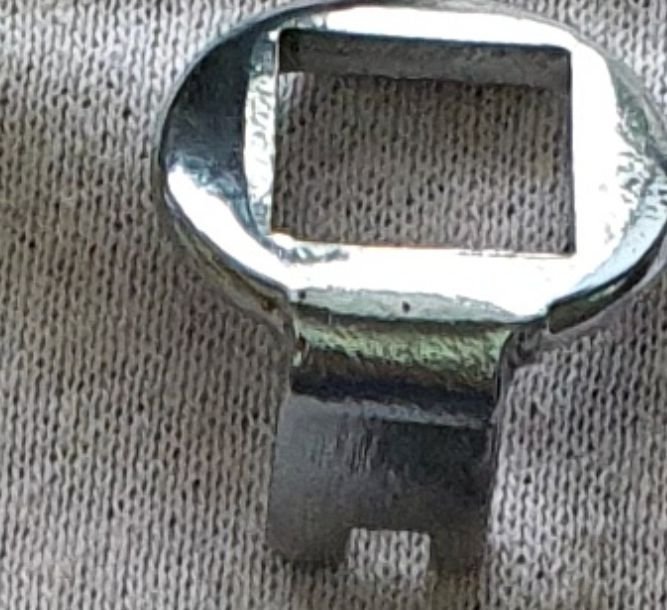

Seems last metal washers are not the same ...so maybe this is the reason i miss the 2nd pcs of rounded metal chromed washer who came right after the wingnut. I have studied some diagram of this shifters and seems i have all parts but 1 . Can anyone confirm please ? And i have seen some models with some cable hangers like this :

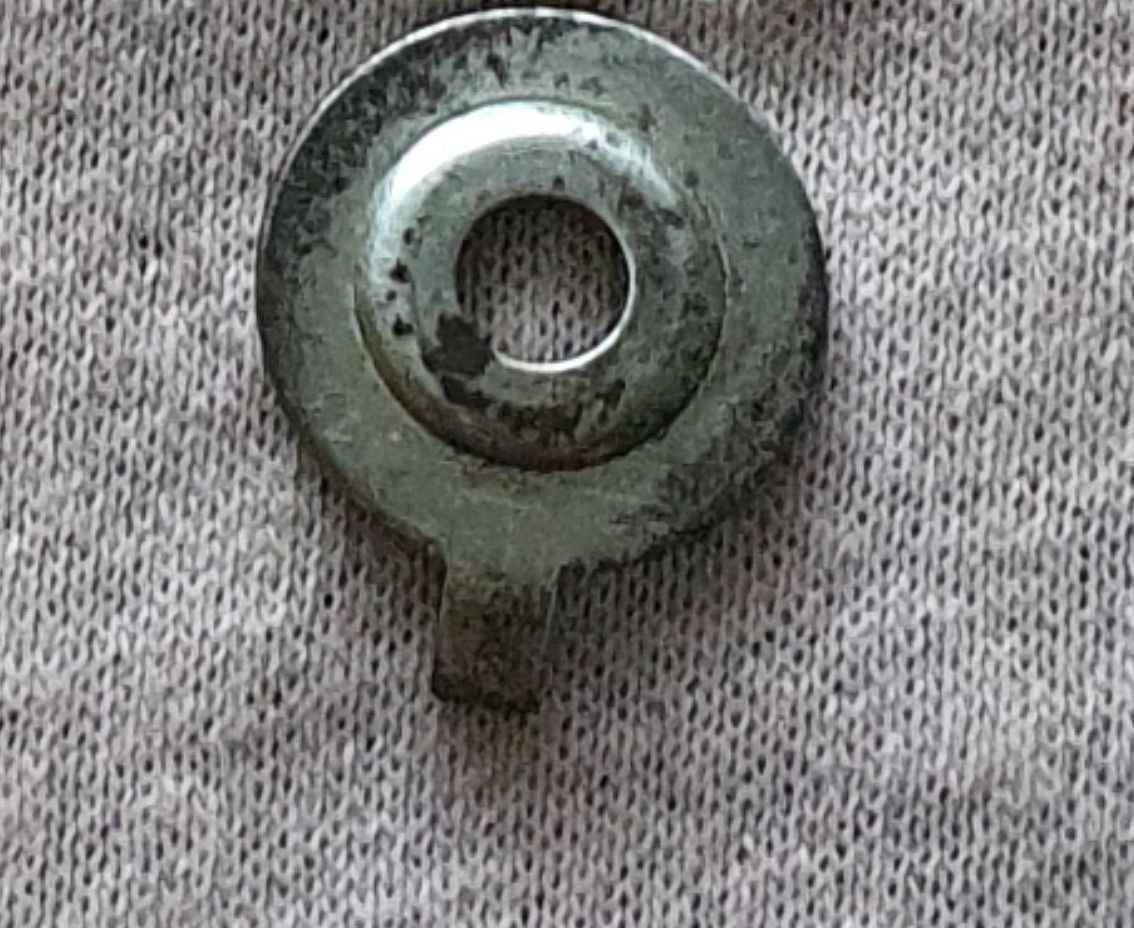

I don't have this one at all...it is mandatory? It depends on the frame? Thank you in advance!
Sorin is offline
Old 10-11-22, 06:09 AM
  #37
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 1,143

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 825 Times in 428 Posts
It looks like the shifter clamp you have is for a 1x setup (ie, a 5-speed with no front derailleur...)- you'll need a clamp with studs for 2 levers, and the domed washer. Your best bet is probably to just find another set of Criterium shifters, rather than trying to find just the clamp and the missing domed washer. Here's one on ebay.fr, with the down-tube cable guide.... Though you may have luck finding one at a bike shop that's been around a while- the sort of shop that has drawers of random old stuff. These shifters came on 100,000's of bikes.
As far as the DT cable guide, unless your frame has brazed-on guides, you will need one. The Delrin one pictured I believe was standard with the Delrin derailleurs- there is also a chrome Simplex one, too, that may have usually come with the 'all-metal' Simplex mechs. Either will work.
ehcoplex is online now
Old 10-11-22, 06:37 AM
  #38
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Originally Posted by ehcoplex View Post
It looks like the shifter clamp you have is for a 1x setup (ie, a 5-speed with no front derailleur...)- you'll need a clamp with studs for 2 levers, and the domed washer.
Noo, the other one is on the frame 😅. If you look to some diagrams you will see there are different clamps. About the cable giude i think i don't need it cause i don't see any marks on the frame, but who knows...i asked just to be sure. Cheers!
Sorin is offline
Likes For Sorin:
Old 10-11-22, 10:22 AM
  #39
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,466
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 424 Times in 226 Posts
Look here to see the correct layout of the shift levers. It looks like you are missing the second "domed" piece, and perhaps there is a mix of parts in there but everything should work if you get that last missing piece.....

https://www.disraeligears.co.uk/site...le_scan_2.html

(I know you have the nicer levers but I had a set and all the other pieces were identical to the crappy plastic wrapped with metal levers).....

Here's an even better diagram of your levers.....



Last edited by markk900; 10-11-22 at 10:27 AM.
markk900 is offline
Old 10-11-22, 10:35 AM
  #40
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts

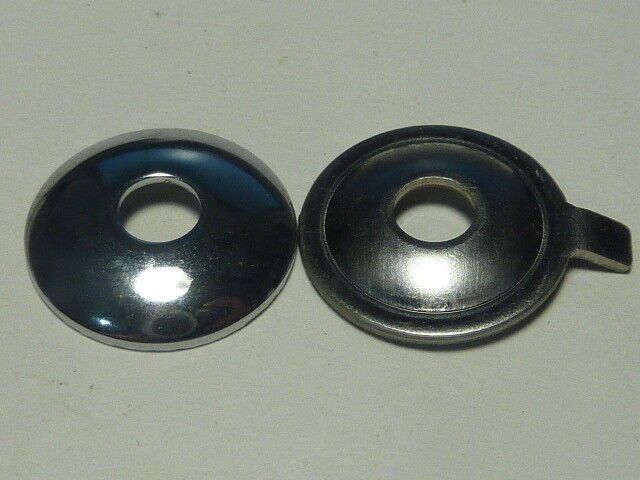

markk900 i have found all the pieces on Ebay.fr , but instead 2324 seller have 3781L :
: https://www.ebay.de/itm/284326348698...&segname=11051 .

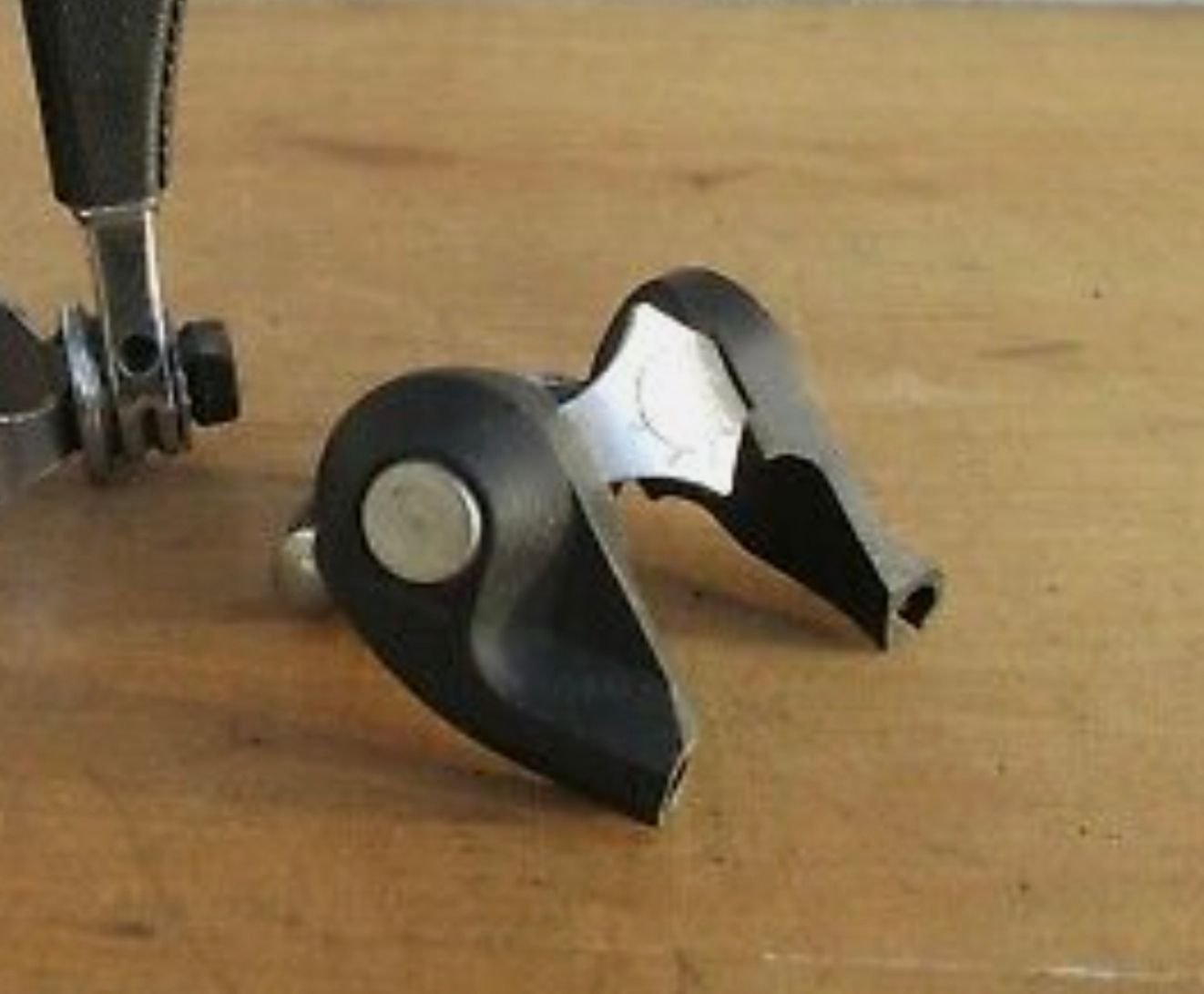

He send me a picture :

Mine is this one:

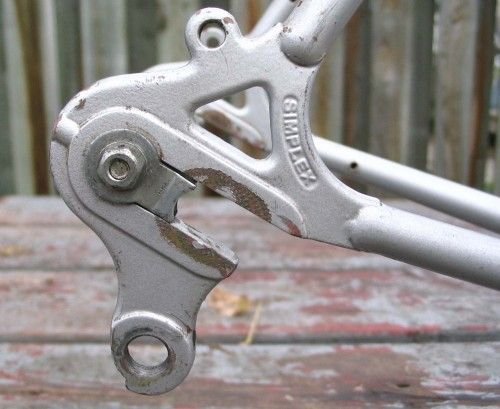

I think 3781L can work for me only if can fit here :

Need to check this and then i can order them .
Sorin is offline
Old 10-11-22, 10:51 AM
  #41
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,466
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 424 Times in 226 Posts
I am not an expert, but I believe the only part you need is 2284 (the domed cap on the left of your first picture); I *think* the flat vs indented keyed washer (2324) keyed washer won't matter. You can check by assembling one side of your shifter with all the parts for one side (start with the flat keyed washer) plus 2284, and see if the shifter moves smoothly. Then assemble the other side with the indented keyed washer you already have plus 2284 and see if that side works well. If both work you only need 2284.

Edit: I found a diagram that shows that simplex may have simplified the arrangement later: combining 2284 and 2324 into the single part 3781....and the one you already have may be an earlier version of that. You could try assembling the shifters with the parts you have - the indented part of the piece you already have goes to the outside it seems.



Last edited by markk900; 10-11-22 at 11:00 AM. Reason: Additional information
markk900 is offline
Old 10-12-22, 01:48 PM
  #42
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,972

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 459 Times in 272 Posts
Let me ask a question or two, which I hope do not offend.

Why would you deep clean a bike like this knowing that if you ride it, it will be relatively filthy again after just one ride? Is this to be a "wall hanger"?

What triggered that thought was the black goo residue you still have on the freewheel cogs. I have no idea why that triggered the question.

Bagging and tagging everything, IPA cleaning,... it is all overkill.

Plus, if you clean every bit of oil off the surfaces, you are facilitating corrosion. You need to follow the cleaning with a surface corrosion protection.

Like I said, I'm not trying to offend, just trying to reconcile these issues in my own thinking on this thread.
Bad Lag is offline
Likes For Bad Lag:
Old 10-12-22, 02:21 PM
  #43
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Originally Posted by Bad Lag View Post
Let me ask a question or two, which I hope do not offend.

Why would you deep clean a bike like this knowing that if you ride it, it will be relatively filthy again after just one ride? Is this to be a "wall hanger"?

What triggered that thought was the black goo residue you still have on the freewheel cogs. I have no idea why that triggered the question.

Bagging and tagging everything, IPA cleaning,... it is all overkill.

Plus, if you clean every bit of oil off the surfaces, you are facilitating corrosion. You need to follow the cleaning with a surface corrosion protection.

Like I said, I'm not trying to offend, just trying to reconcile these issues in my own thinking on this thread.
Thank you for your imput , and thanks for all the question , i will try to answer all of them

- A bike like this ? Is my bike! 😅😅😅 - it will be filthy but not full of rust and mechanically destroyed. This bike has stayed for like 15 years in a box ...headset was almost stuck, no break or shifter cables, no tyre on the front wheel ...break pads was finnished . For me is like a therapy working on my free time on this byke . So i have say...why not putting back on road. I know is not a collectible or have high lvl gear on it , and maybe is not worth even 100$ but when i was riding was damn awsome + i am tired of my MTB🤪.
- Freewheel is not clean yet cause i don't have the tool to remove sprokets and need to go back to a bike shop and 2nd is because i intended to change it to a higher teeth sproket - still looking for a Suntour or Atom ....or Shimano with 26 or 28.
- Bagging have only 1 purpose - to remember how to put them back and not came here with 1000 questions of how to that ..how to other ..😉. IPA is intented to use on breaking surface after polish wheel and for cleaning polish residue before waxing paint..nothing unusual.
- All parts was sprayed with WD40 after cleaning, then clean the exces with a rag, so i am not affraid of rust back too soon - you have any better ideea here, please? If they are fully sprayed they atract dirt much faster.

Regards,
Sorin.
Sorin is offline
Old 10-12-22, 02:39 PM
  #44
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,839

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 1,144 Times in 685 Posts
Bad Lag Black Goo**********? Overkill**********? Give me a break. I and maybe you have never cleaned a bike like this but every C&V ride that I have ever participated in had the majority of bikes in "wall hanger" condition.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is online now
Old 10-12-22, 09:27 PM
  #45
AdventureManCO
Senior Member

Join Date: Jul 2008
Location: Front Range CO
Posts: 618

Bikes: '88 Novara Randonee, 1981 Trek 957, 1968 Peugeot PX-10, 1972 Gitane Tour de France, 1973 Raliegh Super Course, 1987 Centurion Ironman Expert, 1987 Trek 560 Pro Series, 1972 Dawes Galaxy, 1996 Schwinn Homegrown, 1996 Trek 990

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 350 Times in 165 Posts
I'm looking forward to seeing this bike get built back up! That is the plan, yes? I hope so!
AdventureManCO is offline
Old 10-12-22, 11:14 PM
  #46
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,972

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 459 Times in 272 Posts
Originally Posted by Sorin View Post
Thank you for your imput , and thanks for all the question , i will try to answer all of them

- A bike like this ? Is my bike! 😅😅😅 - it will be filthy but not full of rust and mechanically destroyed. This bike has stayed for like 15 years in a box ...headset was almost stuck, no break or shifter cables, no tyre on the front wheel ...break pads was finnished . For me is like a therapy working on my free time on this byke . So i have say...why not putting back on road. I know is not a collectible or have high lvl gear on it , and maybe is not worth even 100$ but when i was riding was damn awsome + i am tired of my MTB🤪.
- Freewheel is not clean yet cause i don't have the tool to remove sprokets and need to go back to a bike shop and 2nd is because i intended to change it to a higher teeth sproket - still looking for a Suntour or Atom ....or Shimano with 26 or 28.
- Bagging have only 1 purpose - to remember how to put them back and not came here with 1000 questions of how to that ..how to other ..😉. IPA is intented to use on breaking surface after polish wheel and for cleaning polish residue before waxing paint..nothing unusual.
- All parts was sprayed with WD40 after cleaning, then clean the exces with a rag, so i am not affraid of rust back too soon - you have any better ideea here, please? If they are fully sprayed they atract dirt much faster.

Regards,
Sorin.
Very good, now I better understand.

Therapy,... that part I can relate to. IPA for braking surfaces, WD-40 for metal parts. Without something like WD-40, I was concerned you'd have a lot of rust in no time.

What I meant was, "to deep clean like this", in recognition of the depth of detail and effort put into the cleaning. I did not intend the meaning to be "a bike like this", thereby disparaging the bike in some way. The bike is great!

As I said, no offense was intended. I just wanted to better understand.

Ride it in good health and may it bring you to or keep you in good health. Riding is life.

Last edited by Bad Lag; 10-12-22 at 11:19 PM.
Bad Lag is offline
Old 10-13-22, 12:27 AM
  #47
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Originally Posted by AdventureManCO View Post
I'm looking forward to seeing this bike get built back up! That is the plan, yes? I hope so!
Yep, just need time to find all the parts .

Originally Posted by Bad Lag View Post
Very good, now I better understand.

Therapy,... that part I can relate to. IPA for braking surfaces, WD-40 for metal parts. Without something like WD-40, I was concerned you'd have a lot of rust in no time.

What I meant was, "to deep clean like this", in recognition of the depth of detail and effort put into the cleaning. I did not intend the meaning to be "a bike like this", thereby disparaging the bike in some way. The bike is great!

As I said, no offense was intended. I just wanted to better understand.

Ride it in good health and may it bring you to or keep you in good health. Riding is life.
Np Bad Lag, too many words and put them in certain topic can be difficult for me to understand , cause English is not my main language 😅, as you all see i make alot of grammars mistakes and some words are not even write correctly . Cheers!

& quick question to all please , i have read some things about tubulars tires , i have no reason to use glue instead that dedicated Tufo tape ? And about the widh - my rims have 20mm , how big the tubular can be ? 22...25 at max ? And tape is 19mm and 22 mm, so rims being curved will fit the 22mm tape, right? Many thanks!
Sorin is offline
Old 10-13-22, 06:11 AM
  #48
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,839

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 1,144 Times in 685 Posts
Glue.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is online now
Old 10-15-22, 11:26 AM
  #49
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Hello guys , Anyone have an ideea how to modify a normal 6 speed Suntour to fit my 120mm Peugeot frame ?I have found a nice condition Suntour New Winner 13-26T , 6 speed available and i am thinking to buy it for my Peugeot restauration project.- i have a few option - find necesary spacers - but in Europe is extremly hard to find them- remove 1 sprocket- file the available spacers ???- cold set the frame
Honestly last option i want to avoid it ..What do you think?Regards, Sorin.
This parts are so hard to find or they have a really high price.
Sorin is offline
Old 10-20-22, 01:51 AM
  #50
Sorin
Junior Member
Thread Starter

Join Date: Sep 2022
Posts: 80
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 9 Posts
Small update - some goodies arrive to clean / prep the frame


- APC/degreaser as a prewash
- shampoo wasing
- Iron/Fallout remover - to remove any irons particle from the paint
- Clay Bar - to remove any others particles of dirt before polish
- 3in1 polish at the end - cut -> polish->wax

About touching up paint i am still undecided - i don't have the skills to do that and i think it will came up worst . I will see how fast the rust will came back after cleaning or i will use some kind of phosforic acid /rust converters on exposed parts.
I have order new 6 speed freewheel too, Kool Stop Mafac style break pads, missing parts from the shifters and waiting also break pads holders from markk900 who i want to public thank you for he's kindness.
Little by little it will start look like a bike - soon, i hope.

Last edited by Sorin; 11-21-22 at 04:47 AM.
Sorin is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
