Was this wheel laced correctly?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Was this wheel laced correctly?

Old 02-23-21, 03:26 PM
  #51
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,502

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2286 Post(s)
Liked 2,915 Times in 1,589 Posts
I would use cotton rim tape.
SurferRosa is offline
Likes For SurferRosa:
Old 02-23-21, 03:46 PM
  #52
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,815
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Likes: 0
Liked 698 Times in 425 Posts
Originally Posted by polymorphself View Post
I picked up the wheel. They grinded the spokes down and they seem to be an OK length now. That being said, almost the entire length of the rim is scratched now and I assume it’s from the grinder. This is annoying but purely cosmetic and of course not somethin to that can be seen so I’m over it. Likely won’t be going back for anything other than item purchases though, if even.

Any worrisome last minute things I should check for before mounting these?

Yes.

Feel *every* spoke end. One sharp edge is too many.

Feel every spoke's tension. I grab pairs each side and squeeze towards each other, you go around a few times and you can tell if any are much looser or tighter than the rest on that side - rears have dish and so feel different each side, front should be the same. This is not expert-feel stuff, once around every pair and you'll know what you're doing.

Make sure it's true - if it's not and you assume it is and you ride it and find out later, well, you'll never know.

And just in case they adjusted the bearings, check them.
oneclick is offline
Old 02-23-21, 03:54 PM
  #53
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,140
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Liked 1,072 Times in 410 Posts
Originally Posted by Bill Kapaun View Post
I'd venture to guess they got the indexing off one hole when they started the 2nd set.
That will result in alternating spokes being too long.
I thought this was a pretty clever suggestion but when I looked closely at pictures it looked like to me that the spokes were in the right relationship. There wasn't a picture where I could look straight down to see if 2 spokes from each flange where in the right order. This is an easy place for a mistake to happen like you suggested.
Doug Fattic is offline
Old 03-04-21, 03:01 AM
  #54
geeteeiii
Senior Member

Join Date: Dec 2020
Location: Estonia
Posts: 94

Bikes: HVZ Meteor 1979, HVZ Champion 1962, HVZ SS Moskva80 1981, Dürkopp 1936

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 168 Times in 42 Posts

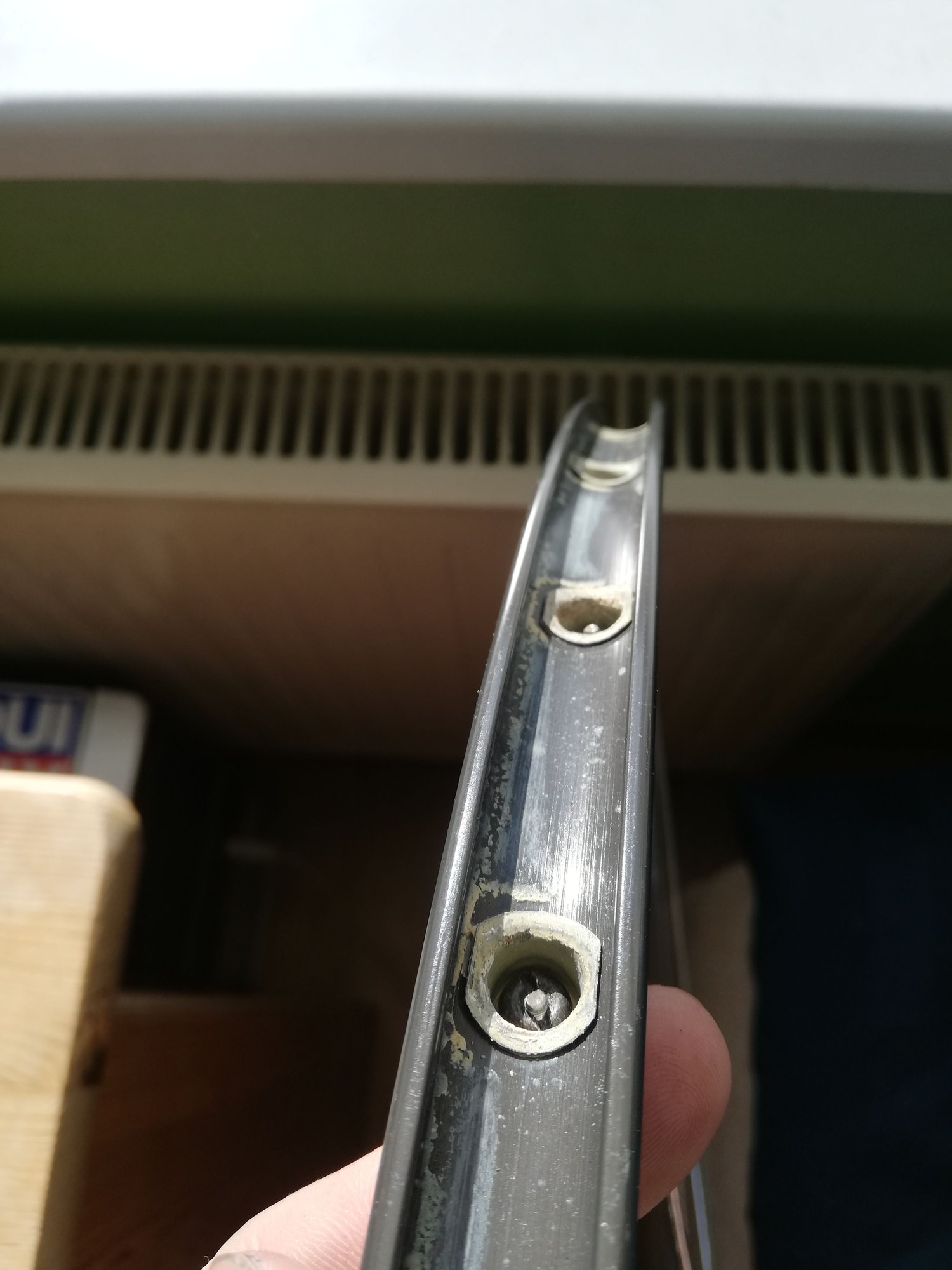

Just built my first wheel with some spokes that i had laying around, they ended up a bit long, these should be changed/ground down right?
geeteeiii is offline
Old 03-04-21, 04:37 AM
  #55
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,815
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Likes: 0
Liked 698 Times in 425 Posts
Originally Posted by geeteeiii View Post
Just built my first wheel with some spokes that i had laying around, they ended up a bit long, these should be changed/ground down right?
Not necessary - the wheel can be used as is - as long as none of the spokes extend past the surface the base tape sticks to; none look to, but check.

Grinding them down in situ would be challenging.

Yes they should be changed - you need the practice.
oneclick is offline
Likes For oneclick:
Old 03-04-21, 07:52 PM
  #56
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 15,428

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 104 Post(s)
Tagged: 1 Thread(s)
Quoted: 7079 Post(s)
Liked 894 Times in 609 Posts
Originally Posted by polymorphself View Post
For those echoing the sentiment of learning to build them myself, I hear ya! In the years since joining this forum I've learned to handle most of my own bicycle needs and I'm very grateful for it. I will likely dive into wheel building, but my hopes for this wheel set was a quick turn-around with no room for error as I want to get the bike loaded up for a few camping trips as soon as possible. I assumed tackling the build myself would take lots of time and practice and possible result in failure on a trip. But alas...
But alas.... My first wheel, built 11 years ago, is still going strong. It's become my favorite aspect of bike wrenching.
I can also recommend Roger Musson's book. I printed the whole thing.

Last edited by seedsbelize; 03-04-21 at 07:58 PM.
seedsbelize is offline
Old 03-06-21, 10:51 AM
  #57
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,504
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 244 Times in 163 Posts
Pretty good results for spokes you just had lying around. Well done.

Just be careful: The rim strip will deform slightly into the grommets when the tube is inflated. (With a cloth rim tape you can see the persisting dimpling when you remove the tube.). Sometimes the tube can herniate just far enough into the dimple to contact the spoke end. Even through the interposed rim strip this can puncture the tube if you hit a bump just right. It can be an infuriatingly obscure cause of punctures.

Suggest you use a cloth rim strip for better padding if you have any doubt about how much clearance you have in there. If you have to use plastic strip to get the tire to go on, consider this cause if you get punctures on the rim side of the tube over a spoke hole. A fix would be to place nipple washers under each nipple to bring the head of the nipple up to the end of the spoke. I’ve never had to do this but I imagine it’s easier and cheaper than relacing the wheel with new, shorter spokes.

Do this only if you get punctures. It’s probably fine.
conspiratemus1 is offline
Likes For conspiratemus1:
Old 03-06-21, 11:51 AM
  #58
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,815
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Likes: 0
Liked 698 Times in 425 Posts
Originally Posted by conspiratemus1 View Post
Pretty good results for spokes you just had lying around. Well done.

Just be careful: The rim strip will deform slightly into the grommets when the tube is inflated. (With a cloth rim tape you can see the persisting dimpling when you remove the tube.). Sometimes the tube can herniate just far enough into the dimple to contact the spoke end. Even through the interposed rim strip this can puncture the tube if you hit a bump just right. It can be an infuriatingly obscure cause of punctures.

Suggest you use a cloth rim strip for better padding if you have any doubt about how much clearance you have in there. If you have to use plastic strip to get the tire to go on, consider this cause if you get punctures on the rim side of the tube over a spoke hole. A fix would be to place nipple washers under each nipple to bring the head of the nipple up to the end of the spoke. I’ve never had to do this but I imagine it’s easier and cheaper than relacing the wheel with new, shorter spokes.

Do this only if you get punctures. It’s probably fine.
About washers -

a) he'd need 3 or more washers each to get the nipples far enough away to hide the spoke ends;
b) normal nipple washers won't fit in the eyelet socket; and
c) taking each spoke off to get the washers on the nipple and putting the whole fiddly arangement back would be more work than just taking each spoke off and replacing it with a shorter one.

Last edited by oneclick; 03-06-21 at 11:54 AM.
oneclick is offline
Old 03-06-21, 04:19 PM
  #59
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,228
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2329 Post(s)
Liked 1,249 Times in 940 Posts
Originally Posted by geeteeiii View Post
Just built my first wheel with some spokes that i had laying around, they ended up a bit long, these should be changed/ground down right?
No, but you have less margin to true the wheel later on.
repechage is offline
Old 03-06-21, 04:21 PM
  #60
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,228
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2329 Post(s)
Liked 1,249 Times in 940 Posts
Originally Posted by polymorphself View Post
I picked up the wheel. They grinded the spokes down and they seem to be an OK length now. That being said, almost the entire length of the rim is scratched now and I assume it’s from the grinder. This is annoying but purely cosmetic and of course not somethin to that can be seen so I’m over it. Likely won’t be going back for anything other than item purchases though, if even.

Any worrisome last minute things I should check for before mounting these?

they took the cheap and easy way out. disappointing. Leaves you to remove the tire in my view to anything more but the most delicate truing.
repechage is offline
Old 03-07-21, 05:59 AM
  #61
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,941

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 391 Post(s)
Liked 562 Times in 268 Posts
Originally Posted by nlerner View Post
Hozan makes a tool for nipping those excess threads.
Sort of an aside here but a friend has a pile of old bike tools, many that he does not understand. One, I realized, is a vintage Eldi spoke nipper. Odd looking tool with a pair of round heads that look badly misaligned. Once I realized what is was I tried it. Very impressive. I was careful to cut across the slot in the spoke nipple (vs along the slot) and it cut clean and easy. I could then unscrew the spoke without any need to dress the cut end.

As mentioned recently, using a too long spoke then nipping the protruding end off sounds nice but you then may not have the threads you need for tension adjustment later. So there is a trade off. Think first. Measure twice and cut once.
Prowler is offline
Old 03-07-21, 02:47 PM
  #62
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Originally Posted by repechage View Post
they took the cheap and easy way out. disappointing. Leaves you to remove the tire in my view to anything more but the most delicate truing.
I was more worried about the marks left in the rim by the grinder.
I bought a new 1979 Raleigh Super Course where the factory had ground down all the spoke ends in the rear wheel. I was having mystery flats for some time before I found sharp burrs in the aluminum of the Weinmann Concave A124 rims that were left by the coarse grinding wheel. I had to sand out the inside of the rim and was left feeling disgusted by their careless oversight having ruined so many rides by that point. The only good thing about this was that I ended up working at the shop where I had been going for all the patches and tubes. They were a Fuji dealer and my next bike ended up being a Fuji S12S built from shop remnants after my Super Course got stolen. I don't think they were happy that I repainted it without the Fuji Branding (I just wanted it to be silver instead of burgundy).
dddd is offline
