Screw up at the Carré atelier?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Screw up at the Carré atelier?

Old 01-28-22, 11:16 AM
  #1
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
Screw up at the Carré atelier?



It appears that the drilling for the brake bolt is off kilter. If you are not familiar with how Mafacs mount, the arms should be pretty much parallel with the stay. I have tried other brakes and different mountings with the same result. The question...Is this an issue or much ado about nothing?
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 01-28-22, 11:21 AM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,728
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2829 Post(s)
Liked 1,364 Times in 999 Posts
-----

i would think so but happily defer to those more knowledgeable

have had several frames exhibiting this trait pass through me workshop o'er the years

the one instance where it can be a snag is if the caliper one wishes to employ is at the limit of its reach and the angle has the effect of increasing the brake reach beyond what the caliper can offer...

input from il perpetratore di gugieficazione would seem to be appropriate here...

gugie


-----

Last edited by juvela; 01-28-22 at 02:04 PM. Reason: addition
juvela is offline
Likes For juvela:
Old 01-28-22, 11:44 AM
  #3
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,809

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 3154 Post(s)
Liked 2,677 Times in 1,362 Posts
Certainly not an issue for stopping if the brake bridge is secure and the pads strike the brake track well.
Wildwood is offline
Old 01-28-22, 12:02 PM
  #4
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
There are two types of brake bridges.
1. Cheap piece of tubing with a hole in it.

This is why they call me the Bike Butcher of Portland. In this case I'm hacking the bridge out prior to removing the seat stays for a repair.

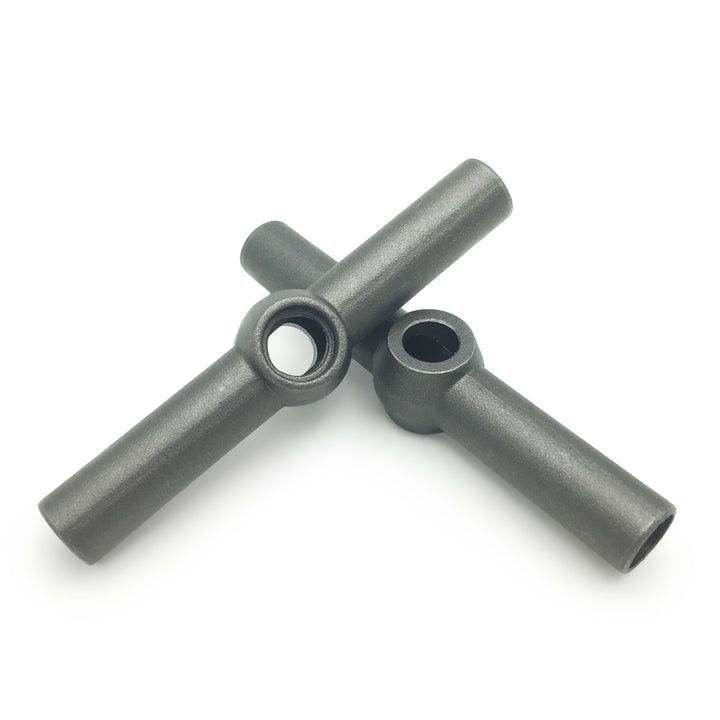

Then there's the nice ones that are cast with flats on each side.


Recessed bolt version from framebuildersupply.com - just one of many examples

The first kind typically has some slop in it, you can rotate the brakes a bit due to the hole being oversized. They use conical washers on each side for the bolt and nut to have flat purchase on . The second type has a flat that the brake bolts up against, no slop.

Lynn, yours appears to be the first type. You might try loosening the nut, swivelling the brake and tightening it down. Braking forces will make the brake want to rotate back in the direction you want. Indeed, most centerpull brakes tend to touch the seat stays for this very reason.

If the hole isn't tangential to the rim, and the brake bolt limits how far you can rotate it, I wouldn't worry about it. Looks to me that it's an aesthetic issue. If it really bugs you, take a rat tail file and carefully remove some material so that the entire brake is perpendicular to the rim.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Likes For gugie:
Old 01-28-22, 12:03 PM
  #5
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
Originally Posted by juvela View Post
-----

i would think so but happily defer to those more knowledgeable

input from il perpetratore di gugieficazione would seem to be appropriate here...

gugie
-----
So now I'm a perp?

Don't let my parole officer know...
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Old 01-28-22, 12:23 PM
  #6
El Chaba
Senior Member

Join Date: Dec 2016
Posts: 341
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 114 Times in 38 Posts
Shouldn’t be a problem since the brake pads are easily adjustable in that plane anyway….If it helps, think of it as a little extra toe in….Photos are needed of the entire bike, btw….
El Chaba is offline
Old 01-28-22, 01:30 PM
  #7
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
Originally Posted by gugie View Post
There are two types of brake bridges.

The first kind typically has some slop in it, you can rotate the brakes a bit due to the hole being oversized. They use conical washers on each side for the bolt and nut to have flat purchase on . The second type has a flat that the brake bolts up against, no slop.

Lynn, yours appears to be the first type. You might try loosening the nut, swivelling the brake and tightening it down. Braking forces will make the brake want to rotate back in the direction you want. Indeed, most centerpull brakes tend to touch the seat stays for this very reason.

If the hole isn't tangential to the rim, and the brake bolt limits how far you can rotate it, I wouldn't worry about it. Looks to me that it's an aesthetic issue. If it really bugs you, take a rat tail file and carefully remove some material so that the entire brake is perpendicular to the rim.
Thanks to all for responding. I considered doing the file but was concerned that the bridge might be compromised as a result. It bugs me enough that I shared it, so it will get resolved. I am also thinking that not fixing will lead to brake noise. Enough potential for that without the funky arm angle.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 01-28-22, 02:19 PM
  #8
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,318

Bikes: Too many to list here check my signature.

Mentioned: 154 Post(s)
Tagged: 2 Thread(s)
Quoted: 2321 Post(s)
Liked 1,348 Times in 805 Posts
You need to get a 3D printer and Unicorn bone to make a wedge washer to get the brake at the proper angle
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 01-28-22, 02:25 PM
  #9
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,688

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 644 Times in 314 Posts
Originally Posted by CV-6 View Post
...

...

I need to see the seatstay caps to give an answer.... and the headtube, fork, better yet. A full bike photoshoot?
Dylansbob is offline
Likes For Dylansbob:
Old 01-28-22, 02:29 PM
  #10
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
Originally Posted by CV-6 View Post
Thanks to all for responding. I considered doing the file but was concerned that the bridge might be compromised as a result. It bugs me enough that I shared it, so it will get resolved. I am also thinking that not fixing will lead to brake noise. Enough potential for that without the funky arm angle.
Not sure how this would instigate brake noise.

Why not just try riding it and see what happens?? Rear braking power isn't super critical anyway.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Likes For gugie:
Old 01-28-22, 03:26 PM
  #11
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 797
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 454 Post(s)
Liked 710 Times in 356 Posts
If it were mine I'd file it, because it's an easy job and we're not taking off enough to hurt the function in any way. Otherwise it would bug me. Once fixed, you can forget about it forever. The tiny surfaces that are now unpainted could rust, but with a smear of grease and covered with the radius washers any rust will be minimal, years down the road, and never seen.

I would use a chainsaw sharpening file. They are untapered and fairly fine of tooth. I would use a 1/4" file even though the hole is nominal 6 mm, slightly less than 1/4", so you may have to open the hole slightly with a smaller file first to get the 1/4" file in. The holes are often a little oversized already though so the 1/4" file may go right in.

Just a few strokes should do it, so keep checking with the brake. Going too far would be a tragedy. Well, that can be fixed too, but generally by brazing in a "top hat" reinforcement, which requires a repaint, at least locally.

Another request for a photo shoot! Please?

Mark B
bulgie is offline
Old 01-28-22, 03:56 PM
  #12
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
Originally Posted by gugie View Post
Not sure how this would instigate brake noise.

Why not just try riding it and see what happens?? Rear braking power isn't super critical anyway.

Mafacs use any excuse to make noise. But my thinking is that the plate not firmly on the stay will allow more flex.


Photos. Not yet. When it is done. I have already shared the frame.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 01-28-22, 04:09 PM
  #13
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
Originally Posted by CV-6 View Post
Mafacs use any excuse to make noise. But my thinking is that the plate not firmly on the stay will allow more flex.


Photos. Not yet. When it is done. I have already shared the frame.
True that!

If the backing plate touches the seat stays, you eliminate one place that it will flex, which is why I suggested filing out the brake bridge hole so the brake can rotate and touch the seat stays.

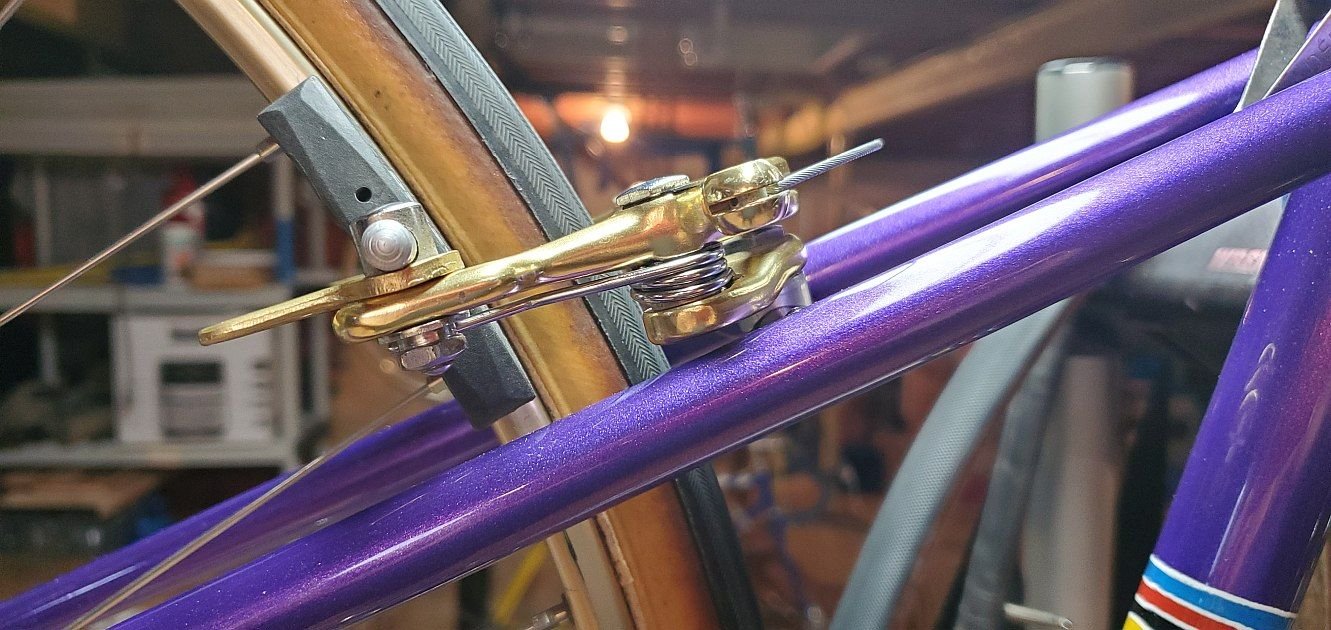

I've got a set of those golden MAFAC 2000's on my Pimp Eroica Grand Sport - which has a very oversized hole in the brake bridge, so it was easy to rotate it and get the backing plate touching the seat stays. They howl like a banshee going down super steep hills, like the backside of Cypress at Eroica California, or Sullivan Hill at Cino, but otherwise only give a light squeal when in use.


Don't mind the saddle angle, I've fixed that - rode into work a few years ago with the saddle adjustment a bit loose.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Old 01-28-22, 07:41 PM
  #14
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 57 Times in 41 Posts
I wouldn't worry about it and would just adjust the brake pads to run properly with the rim. I see no functional problem here. In my experience you only see consistent perfect finish and dimensions on frames by the elite of mostly American custom builders.
Feldman is offline
Old 01-28-22, 09:33 PM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,776

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 815 Post(s)
Liked 1,066 Times in 574 Posts
Originally Posted by bulgie View Post
I would use a chainsaw sharpening file. They are untapered and fairly fine of tooth. I would use a 1/4" file even though the hole is nominal 6 mm, slightly less than 1/4", so you may have to open the hole slightly with a smaller file first to get the 1/4" file in. The holes are often a little oversized already though so the 1/4" file may go right in.
+1 on this recommendation, I love those chainsaw files for elongating holes for exactly the reasons you specify.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is online now
Old 01-28-22, 10:56 PM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,261
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2342 Post(s)
Liked 1,263 Times in 951 Posts
Buy a rivnut that fits the bore, push it in.
now you have a choice.

my route would be file with a small Chainsaw file ( constant diameter ) the hole so that it is the direction you want.
then decide how to fit the backside.
you may have to counterbore the spacer immediate to the brake caliper to get things to nest.
I have done this, after you are done, no visible witness.
repechage is offline
Old 01-28-22, 10:56 PM
  #17
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
Originally Posted by bulgie View Post
If it were mine I'd file it, because it's an easy job and we're not taking off enough to hurt the function in any way. Otherwise it would bug me. Once fixed, you can forget about it forever. The tiny surfaces that are now unpainted could rust, but with a smear of grease and covered with the radius washers any rust will be minimal, years down the road, and never seen.

I would use a chainsaw sharpening file. They are untapered and fairly fine of tooth. I would use a 1/4" file even though the hole is nominal 6 mm, slightly less than 1/4", so you may have to open the hole slightly with a smaller file first to get the 1/4" file in. The holes are often a little oversized already though so the 1/4" file may go right in.

Just a few strokes should do it, so keep checking with the brake. Going too far would be a tragedy. Well, that can be fixed too, but generally by brazing in a "top hat" reinforcement, which requires a repaint, at least locally.

Another request for a photo shoot! Please?

Mark B
The above is the route I am taking. A little on Carré. His shop often used a piece of sheet metal rolled into a tube for the brake bridge on just about anything. I have at least two Lejeune 531 frames (and this frame) where this was done. At least the shop also stuck a piece of tubing in the bolt hole for strength. I have already progressed to being close.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 01-28-22, 10:57 PM
  #18
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
Originally Posted by Feldman View Post
I wouldn't worry about it and would just adjust the brake pads to run properly with the rim. I see no functional problem here. In my experience you only see consistent perfect finish and dimensions on frames by the elite of mostly American custom builders.

It just does not look right. And I would bet that a good many of you would look at it and say the same thing.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 01-31-22, 04:59 PM
  #19
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,415

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Likes: 0
Liked 451 Times in 222 Posts
I may do some fine tuning.


__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Likes For CV-6:
Old 01-31-22, 05:40 PM
  #20
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 7,086

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Peugeot UE-8, '75 Peugeot PR-10L, '80 Colnago Super, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 1,136 Times in 343 Posts
The angle does give a little extra tire clearance below the caliper. I did a workaround on my recently built Colnago. The 30mm tubulars just barely skimmed the bottom of the caliper. I filed a thick washer so it was thin on top. Once installed, it created a slight angle similar to what was shown originally. I’m not saying it was done intentionally on your frame, but if clearance is an issue, that angled bolt hole has its advantages.
gaucho777 is offline
Likes For gaucho777:
Old 01-31-22, 05:57 PM
  #21
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 781
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Liked 80 Times in 57 Posts
Originally Posted by gugie View Post
So now I'm a perp?

Don't let my parole officer know...
Maybe he meant “proprietore”….
elcraft is offline
Old 01-31-22, 06:05 PM
  #22
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
Originally Posted by elcraft View Post
Maybe he meant “proprietore”….
Well, I did resemble the remark.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Old 01-31-22, 06:13 PM
  #23
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,298

Bikes: It's complicated.

Mentioned: 1133 Post(s)
Tagged: 0 Thread(s)
Quoted: 3862 Post(s)
Liked 3,040 Times in 1,374 Posts
Originally Posted by CV-6 View Post
I may do some fine tuning.


I measure that off by 0.02 degree from parallel. I'd be happy to take it off your hands, heck I'll even pay shipping for that clearly damaged frame.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Likes For gugie:
Old 01-31-22, 10:54 PM
  #24
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,261
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2342 Post(s)
Liked 1,263 Times in 951 Posts
Originally Posted by gaucho777 View Post
The angle does give a little extra tire clearance below the caliper. I did a workaround on my recently built Colnago. The 30mm tubulars just barely skimmed the bottom of the caliper. I filed a thick washer so it was thin on top. Once installed, it created a slight angle similar to what was shown originally. I’m not saying it was done intentionally on your frame, but if clearance is an issue, that angled bolt hole has its advantages.
one of the silent issues with Colnago is the fork crown on an early 70's bike is quite short front to back. Mount the caliper direct and the only way to use the Campagnolo brake center bolt flats is to remove the wheel. I tried a steel bushing and got brake pulsation. Flex in the system. So it goes.
repechage is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
