Ideas for integrating SC-MT800 into bar/stem?
11-15-21, 10:52 PM
#1
bike whisperer
Thread Starter
Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,455
Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1471 Post(s)
Liked 683 Times
in
483 Posts
Ideas for integrating SC-MT800 into bar/stem?
Further to this post, I'm gonna step it up a notch and use one of these bad boys:

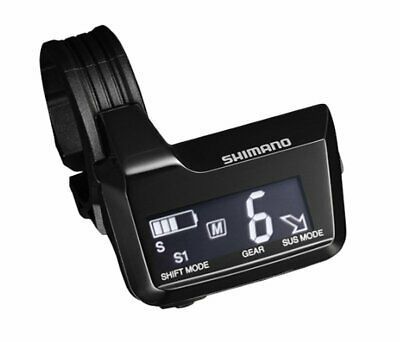

And I want to get one of these:
And gut it, with just the display visible on the stem. Charging port is deleted (charging via spare e-tube plug on shifter), and the button is remote, just under the back of the right hood. Gonna have to cut a hole in the clamp, where most stems have a big one (this one is blank there), for the wire to pass into the steerer... Was thinking maybe I could jam most of the A junction in there, with just the LCD on top with a bead of black silicone around it, with ribbon wire for the LCD twisted to go through a small hole...?
Seems pretty sketchy though, and so much depends on what I find when I cut the SC-MT800 open. Could use some ideas...
And I want to get one of these:
And gut it, with just the display visible on the stem. Charging port is deleted (charging via spare e-tube plug on shifter), and the button is remote, just under the back of the right hood. Gonna have to cut a hole in the clamp, where most stems have a big one (this one is blank there), for the wire to pass into the steerer... Was thinking maybe I could jam most of the A junction in there, with just the LCD on top with a bead of black silicone around it, with ribbon wire for the LCD twisted to go through a small hole...?
Seems pretty sketchy though, and so much depends on what I find when I cut the SC-MT800 open. Could use some ideas...
__________________
Sheldon Brown's bike info ~~~ Park Tools repair help
Half-step triple, using double gear ~~~ 6400 STI rebuild walkthrough ~~~ Want 8/9/10s @126mm OLD? OCR. ~~~ Shimano cassette body overhaul ~~~ Ergopower Escape wear repair ~~~ PSA: drivetrain wear
List of US/Canada bike co-ops ~~~ Global list
Sheldon Brown's bike info ~~~ Park Tools repair help
Half-step triple, using double gear ~~~ 6400 STI rebuild walkthrough ~~~ Want 8/9/10s @126mm OLD? OCR. ~~~ Shimano cassette body overhaul ~~~ Ergopower Escape wear repair ~~~ PSA: drivetrain wear
List of US/Canada bike co-ops ~~~ Global list
11-16-21, 08:59 AM
#2
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,103
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3360 Post(s)
Liked 1,998 Times
in
1,310 Posts
"Seems pretty sketchy though, and so much depends on what I find when I cut the SC-MT800 open" kimmo
Seems to me the sketchy part is more what you will find when you cut into the stem/bar unit.
My suggestion is to get a second set of stem/bars and find out how strong the results might be (or not be...) after carving out a spot for the control unit. Andy
Seems to me the sketchy part is more what you will find when you cut into the stem/bar unit.
My suggestion is to get a second set of stem/bars and find out how strong the results might be (or not be...) after carving out a spot for the control unit. Andy
__________________
AndrewRStewart
AndrewRStewart
11-16-21, 12:10 PM
#3
MotuekaCascadeChinook
Join Date: Jul 2017
Location: Mississippi
Posts: 10,329
Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4166 Post(s)
Liked 2,694 Times
in
1,877 Posts
Maybe just 3d print another clamp to hold it to the bars in a more aero looking shape. Or eliminate what you can on it's backside and 3d a bezel to go around it and hold the bezel down with the tape you wrap the bars with.
You know that your Garmin device can give you that same screen and more if you have the wifi option. Maybe Wahoo and others do too. I set my top button on my STI's to let me control the screens shown on my Garmin 530.
You know that your Garmin device can give you that same screen and more if you have the wifi option. Maybe Wahoo and others do too. I set my top button on my STI's to let me control the screens shown on my Garmin 530.
11-16-21, 03:07 PM
#4
bike whisperer
Thread Starter
Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,455
Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1471 Post(s)
Liked 683 Times
in
483 Posts
I don't use a computer on my bike, but I thought a gear display would be nice... Gonna stuff an A junction in this thing one way or another, which means cutting a hole for it in the clamp and putting a little hole in the top at least for the LED on the normal A junction... Thought it might be possible to use the XT one without carving up the stem any more than that.
One thing that turns me off it though, even if I got it as slick as I hope, there'd be this blank bit on the right of the LCD for the unused suspension settings...
One thing that turns me off it though, even if I got it as slick as I hope, there'd be this blank bit on the right of the LCD for the unused suspension settings...
