thin wrench for hubs
#26
Senior Member
Join Date: Sep 2004
Location: Chicago area
Posts: 2,114
Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 352 Times
in
258 Posts
Here's a possible exception. Nexus hubs have a 17mm nut on the non-drive side, which is amenable to a normal ("thick") wrench especially with the wheel out of the frame. However, with a roller brake module in place, and the wheel in the frame, only a cone wrench will fit. The nut has to be tightened *after* the brake module's torque link is attached to the chainstay, which has to be done after the wheel is positioned for proper chain tension. I suppose the nut could be left a bit loose, as it's not actually locking the NDS cone, but I like it to be tight. A 17mm Park wrench is ideal for this.
#27
Senior Member
Thread Starter
Join Date: Jan 2020
Location: San Jose
Posts: 724
Bikes: Blur / Ibis Hakka MX
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 289 Post(s)
Liked 172 Times
in
129 Posts
look at my post #9. on my wheel you need a thin wrench to hold the bottom nut in place so you can loosen the top nut. It will spin freely other wise.

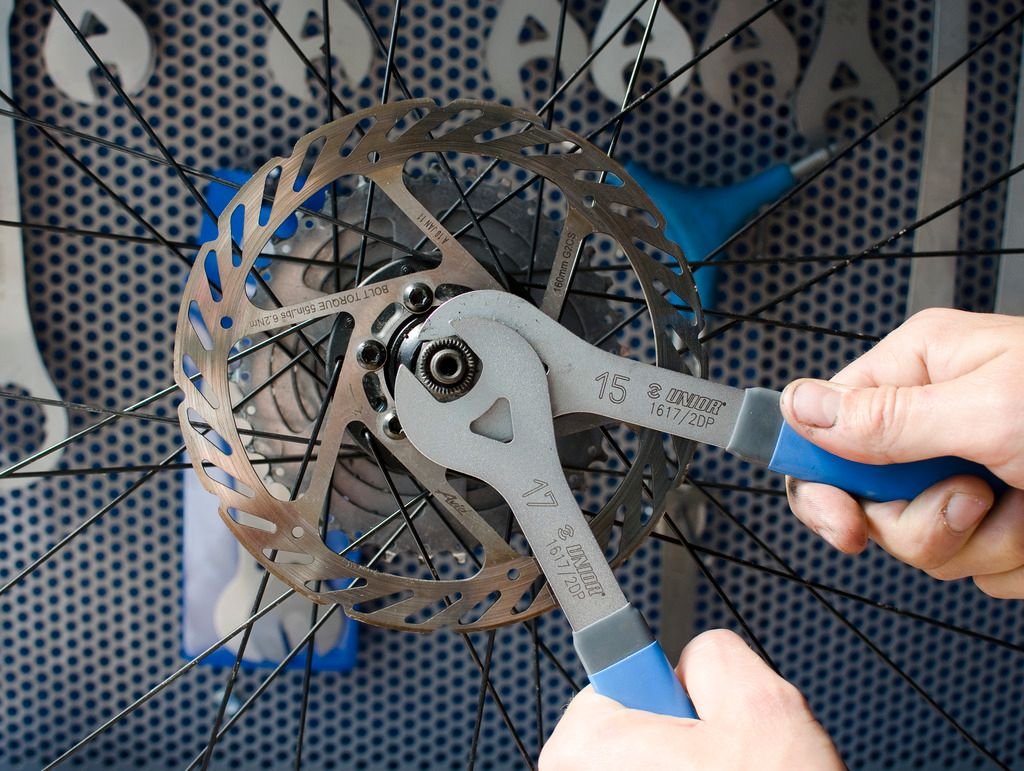

kind of like this
kind of like this

#28
Senior Member
Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,629
Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1259 Post(s)
Liked 1,269 Times
in
698 Posts
The pair of Park wrenches were really soft. I can't recommend them. I found some in a garage sale that are chrome, hard enough not to deform like the Park tools.
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
#29
Senior Member
Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,248
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1187 Post(s)
Liked 1,098 Times
in
640 Posts
That's an example of what was mentioned earlier in the thread - while a cone wrench is needed for the cone, a box wrench, or even an adjustable wrench, would work fine for the lock nut.
#30
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 23,653
Bikes: Several, mostly not name brands.
Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3004 Post(s)
Liked 2,110 Times
in
1,255 Posts
#31
Really Old Senior Member
#32
Really Old Senior Member
Likes For Bill Kapaun:
#33
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 23,653
Bikes: Several, mostly not name brands.
Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3004 Post(s)
Liked 2,110 Times
in
1,255 Posts
Likes For JohnDThompson:
#35
Senior Member
Join Date: May 2005
Location: SFBay
Posts: 2,230
Bikes: n, I would like n+1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Likes: 0
Liked 99 Times
in
79 Posts
Every day I browse the mechanics sub and am always amazed that this thread, which has long since solved the OP’s issue, continues to gain new posts. When ever will it die?
Based on other comments, it seems likely that the OP knows when they can use a standard wrench. I’d guess they also have some thoughts about the use of adjustable hammers, AKA adjustable wrenches.
Based on other comments, it seems likely that the OP knows when they can use a standard wrench. I’d guess they also have some thoughts about the use of adjustable hammers, AKA adjustable wrenches.
Likes For jccaclimber:
#37
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 23,653
Bikes: Several, mostly not name brands.
Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3004 Post(s)
Liked 2,110 Times
in
1,255 Posts
No, I only know what you wrote. And in post #12, all you wrote about locknuts is that "most (it seems) lock nuts are 17mm. Since the lock nut is on the end, you don't need a thin wrench. (with the wheel removed)." The Campagnolo Record hubs I referenced above use a 14mm cone wrench for both the cone and the locknut. The flats on the locknut are too narrow to accept anything else. Other high-end hubs are similar.
