Here's Why the Bridgestone Grandtech is an Interesting Bike

THIS ... is a 1984 Bridgestone Grandtech GR-27:



I believe it is one of the coolest folding bikes ever built. Back in the eighties Bridgestone made some really cool and weird stuff: the Blouson, the Montecarlo and this Grandtech.

According to The Folding Cyclist the design was conceived by two Bridgestone engineers, Ritsuo Nishimura and Nobuaki Shimada and patented in 1983. It won the Good Design Award in 1984 and appeared in the Bridgestone catalog from '86 to '88.

In this thread, I am going to show you all of the Quirks and Features of the original Bridgestone Grandtech.



I found the bike courtesy of a thread on another forum on the Italdesign Bridgestone Montecarlo. Thinking I'd like me one of those, I started a search but instead of a Montecarlo this Grandtech popped up. For sale, near me.

I knew of the bike, as I have a copy of Michael Embacher's Bikepedia:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 11:46 AM
  #2
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
The crank set is a single ring affair, a Sugino No. 3. The pedals are really cool: pull the what looks like the dust cap and it folds flat:



The rear mech is a SunTour AR, defended by a chromed bracket, which seems like a good idea if you're going to be schlepping this bike around on buses and trains. More interestingly, the shifter cable is plastic-covered. I only discovered this when I replaced it with a new cable. In hindsight I shouldn't have replaced it, as it still moved pretty smoothly:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 11:51 AM
  #3
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts

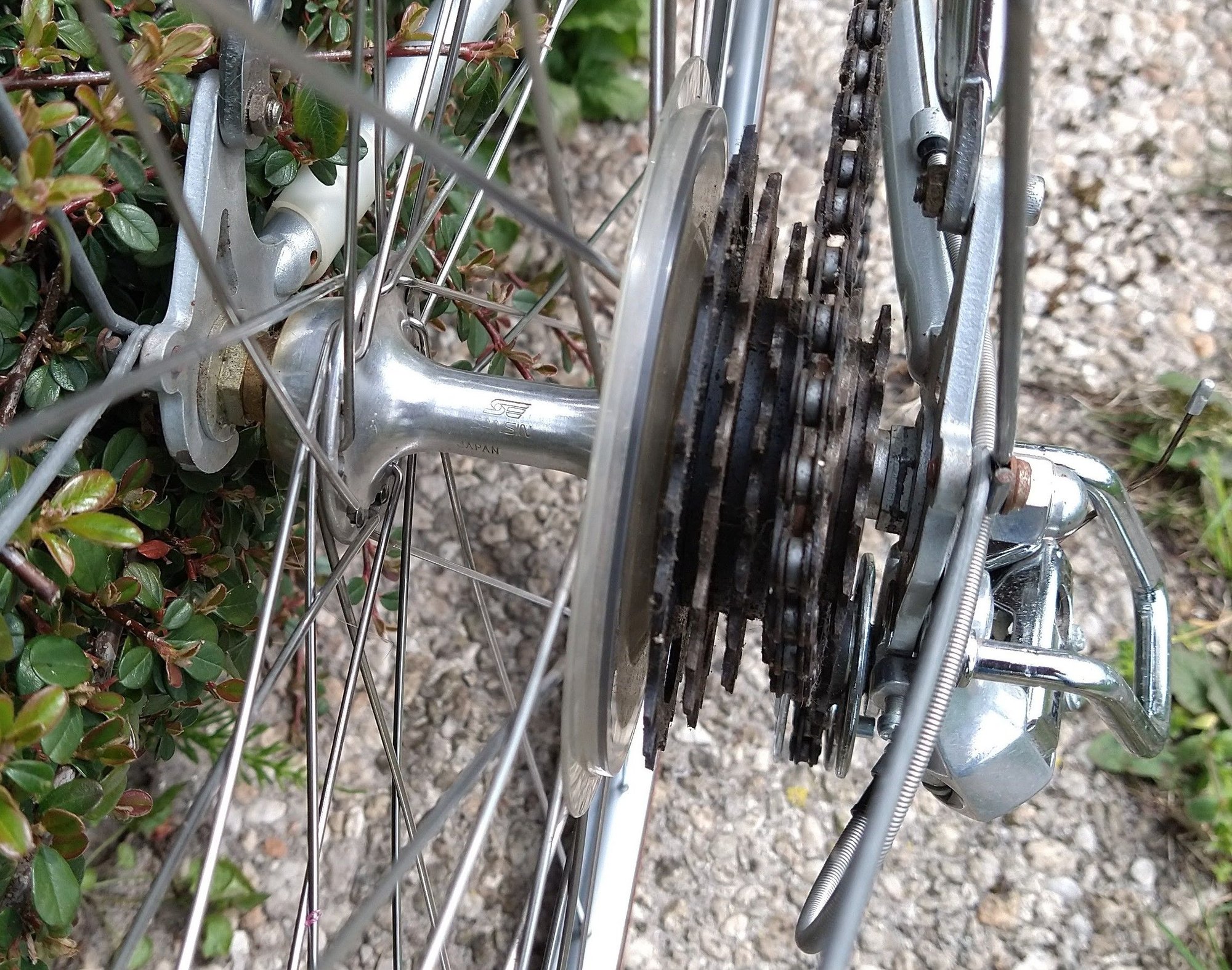

The hubs are from Sansin, and the freewheel is a SunTour Perfect:




Shifts are performed with the aid of a SunTour Power Thumb Shifter. It works as well as it sounds:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 11:57 AM
  #4
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts

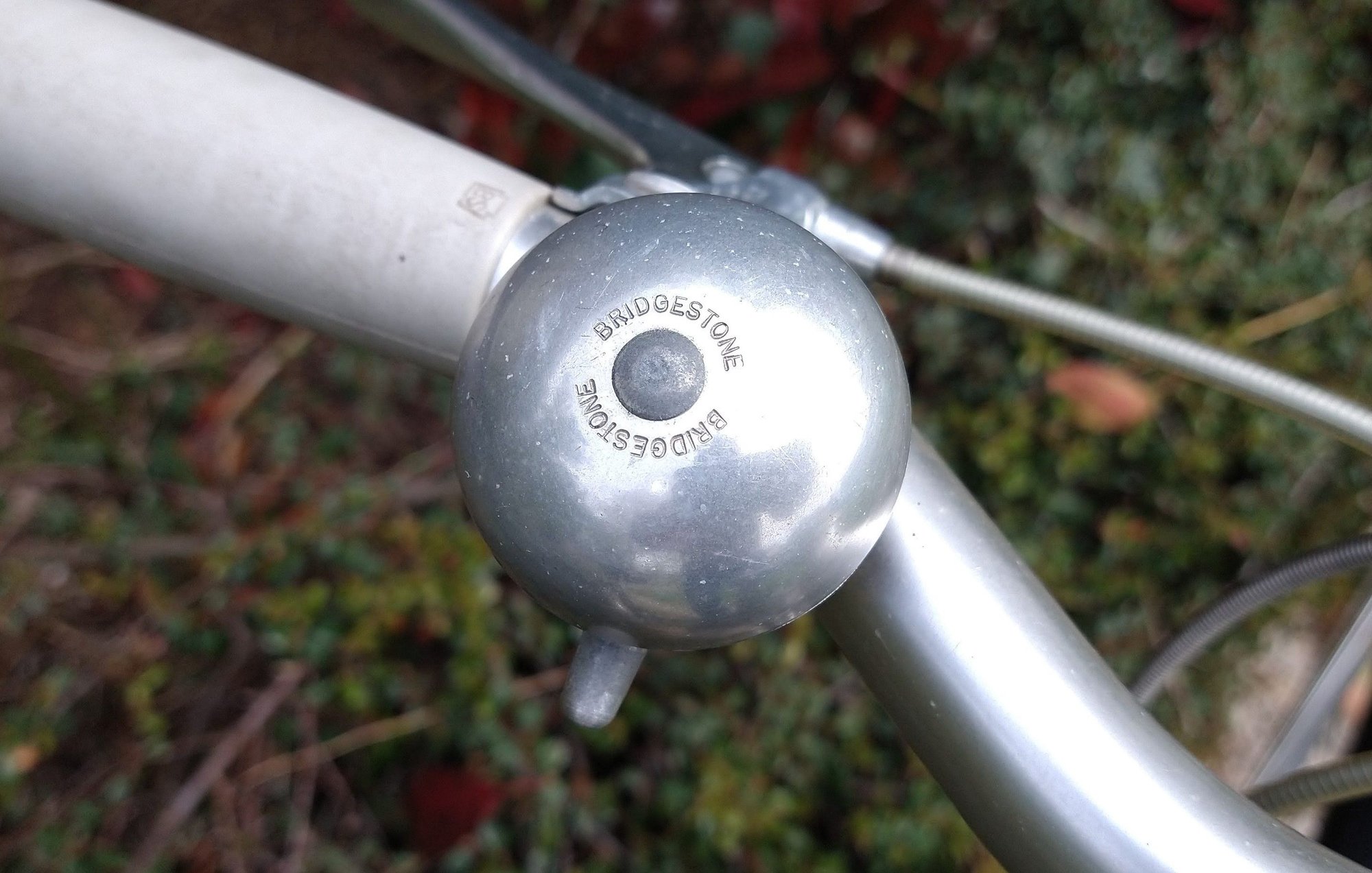

For when you need to warn other road users of your eminent approach, there is an official Bridgestone bell:



When you need to turn the handlebars for transport, no tools are needed. There is a convenient lever that does the job:

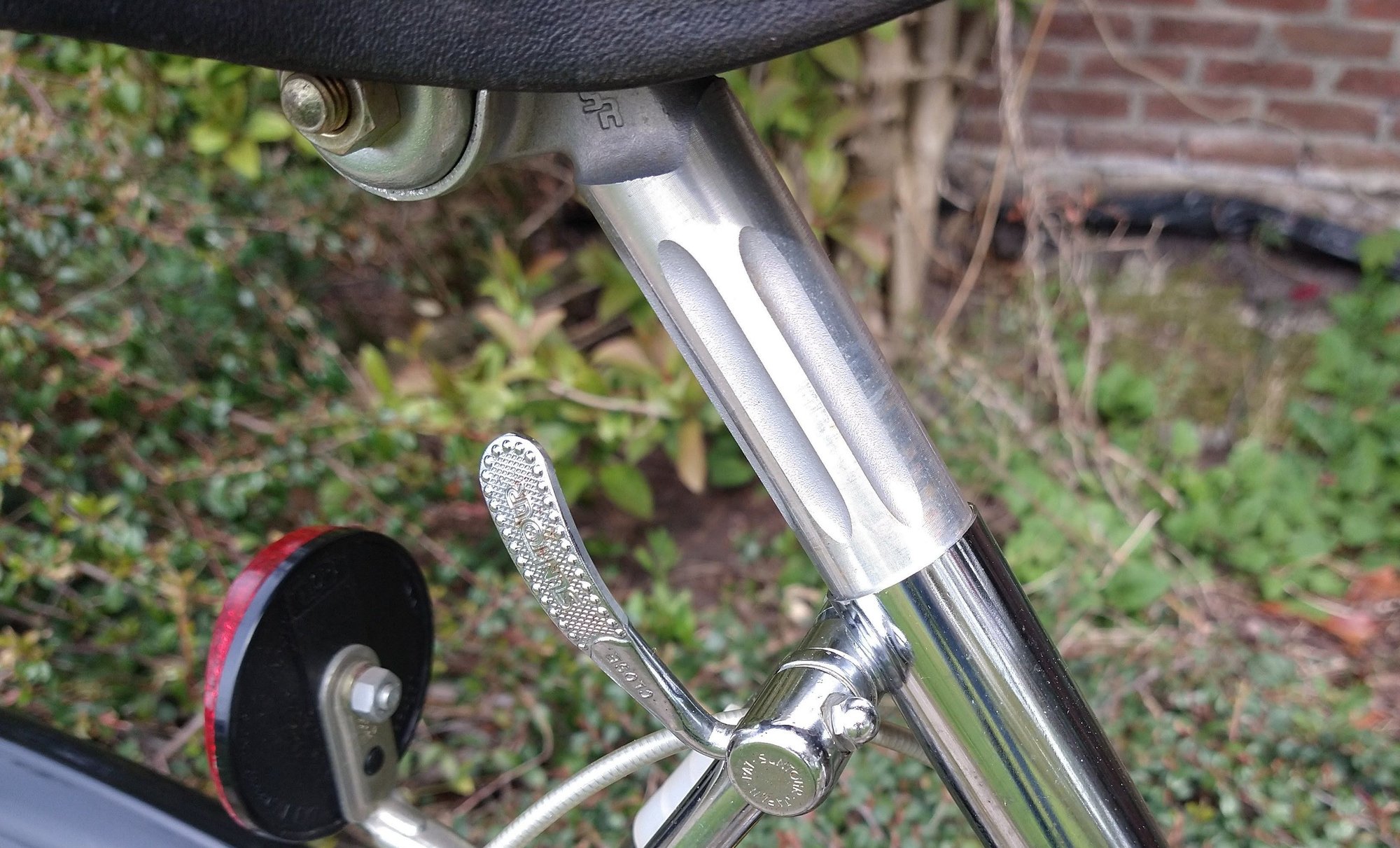

Lowering the saddle is just as easy:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 12:00 PM
  #5
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
This is what it looks like when folded:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 12:05 PM
  #6
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts

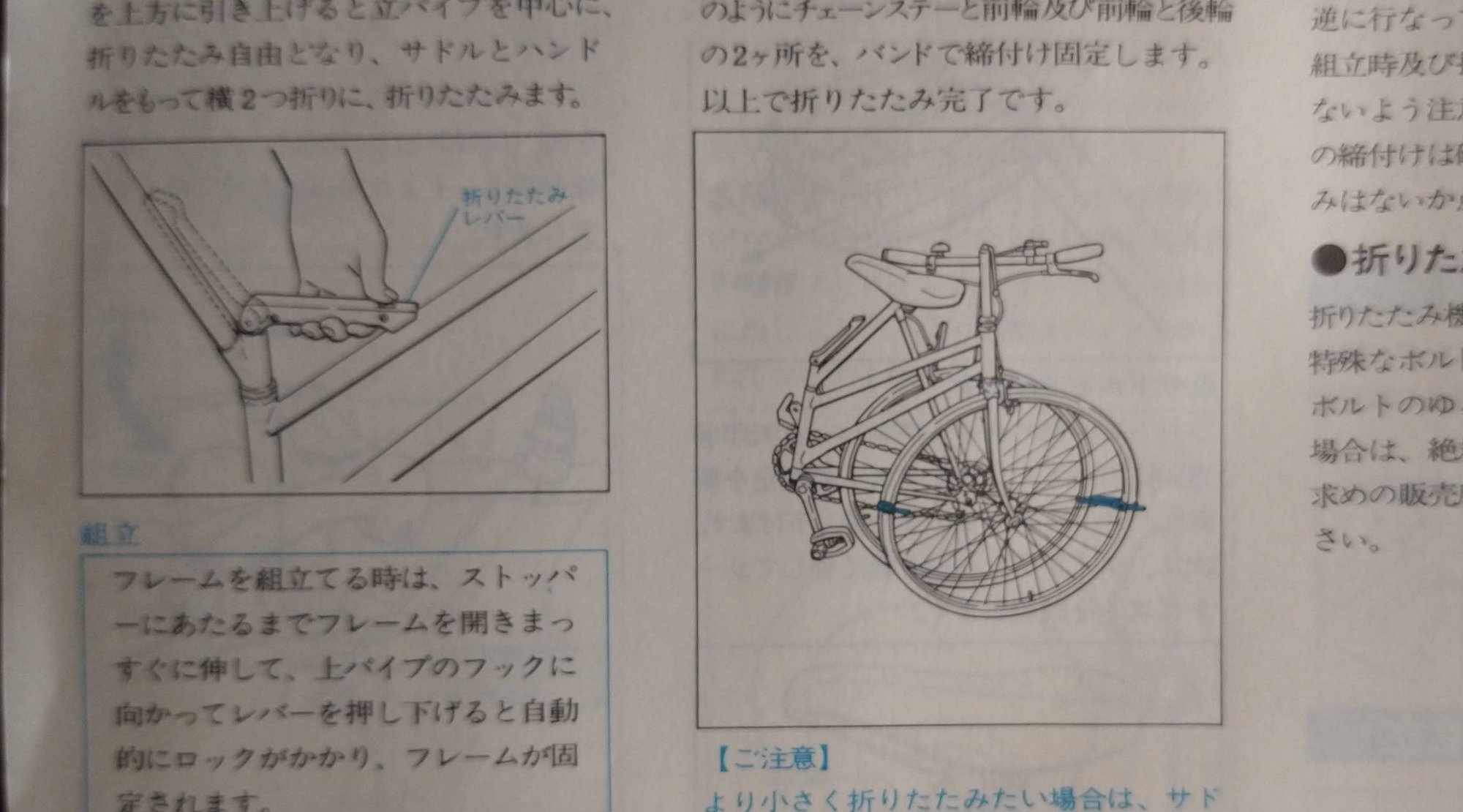

The bike came to me with what looks like the original documentation: an accessories catalog, a warranty booklet, the instruction manual, a booklet on cycling safety and even the original price tag.



The straps are meant to secure the bike during transport, according to the instruction manual:

__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-24-21, 02:02 PM
  #7
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,401

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 636 Post(s)
Liked 770 Times in 435 Posts
Wow, that's so cool! The golden age of Japanese mechanical engineering.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 04-24-21, 10:16 PM
  #8
Gold Country
Junior Member

Join Date: Apr 2021
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 1 Time in 1 Post
Dang, that’s cool
Gold Country is offline
Likes For Gold Country:
Old 04-25-21, 05:26 AM
  #9
Chuck M
Well Oiled

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 404

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 122 Post(s)
Liked 286 Times in 145 Posts
I think that is the coolest post I'll see today.
__________________
Chuck M is online now
Likes For Chuck M:
Old 04-25-21, 08:34 AM
  #10
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,822 Times in 1,051 Posts
Fascinating.

Curious - when folded, will the serrated locking assembly lock the two halves in their folded state? Can't tell from the photos, and I'm always curious about the amount of effort put into maintaining the folded state of any given folded bike.

-Kurt
__________________







cudak888 is offline
Old 04-25-21, 11:53 AM
  #11
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Memphis, TN
Posts: 1,072

Bikes: A few. Define "few".

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 379 Post(s)
Liked 246 Times in 138 Posts
You're making me hate myself more and more for not trying to find one while I was in Kyoto a couple of years back, too much going on and it didn't occur to me at the time. Oh well, there may be a return visit in a year or two and if so...
PilotFishBob is offline
Old 04-25-21, 12:04 PM
  #12
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,078

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 250 Post(s)
Tagged: 0 Thread(s)
Quoted: 2817 Post(s)
Liked 1,828 Times in 1,025 Posts
With the manuals, a good way to brush-up your Japanese.

Another unique bike brought to us by @non-fixie.

Was it distributed outside Japan? Never ever seen even a pic.
Wildwood is offline
Old 04-25-21, 12:24 PM
  #13
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,482

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 42 Times in 32 Posts
That's pretty cool!

I'm looking at it, though, and wondering why the seatstays are bolted onto the rear dropout... Is it just for some further compact disassembly? Maybe I'm missing something. Looks, though, that in the folded state it's all still bolted together.
DiegoFrogs is offline
Old 04-25-21, 12:30 PM
  #14
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
Originally Posted by Wildwood View Post

Was it distributed outside Japan? Never ever seen even a pic.
Smaller-wheeled versions were distriibuted in Asia from 2013 onward, I've read, but at the time? I don't think so. Not on any sort of scale, anyway. This one was sold by a local shop in Tilburg, Holland. No clue yet how they managed to lay their hands on it.

The only reason I knew it existed was that it was in Michael Embacher's collection, and I have his book in my bathroom.
__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-25-21, 02:21 PM
  #15
fabiofarelli
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 202

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 263 Times in 97 Posts
A folding lady ... no, serious, lovely bike!
fabiofarelli is offline
Old 04-25-21, 03:58 PM
  #16
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
The bike is fitted with nutted axles, and one quirk I came across, as I was servicing the bearings, is that the front wheel nuts are 14mm, while the rears are 15mm. Luckily a standard open wrench comes in 14-15mm ... which I'll have to carry along to be able to replace an inner tube.


So, how does it ride?

After replacing the gummed-up grease, the 22mm 35-year old Hutchinson tires and the too narrow (for mrs non-fixie) saddle, we took it for a ride.



It was supposed to be a short shakedown ride, as we wanted to watch La Doyenne as well, but we stayed out for over an hour. She liked the way it rides: very much like any lightweight sports bike. The only thing that requires further investigation are the semi-flat handlebars. The offer only one hand position, which makes them less attractive for longer rides.

All in all, it got a thumbs-up from its new owner.
__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Likes For non-fixie:
Old 04-25-21, 04:05 PM
  #17
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
Originally Posted by cudak888 View Post
Fascinating.

Curious - when folded, will the serrated locking assembly lock the two halves in their folded state? Can't tell from the photos, and I'm always curious about the amount of effort put into maintaining the folded state of any given folded bike.

-Kurt
According to the picture in the manual the bike is not locked into its folded position (the lever is in the "up" position). Apparently that's what the two straps are for.
__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Likes For non-fixie:
Old 04-25-21, 07:15 PM
  #18
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,516

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 297 Times in 204 Posts
Very nice! That's possibly the most elegant folding bike I've ever seen.
Not surprised, Bridgestone was always quietly innovative, and very, very Japanese.
Ironfish653 is online now
Old 04-25-21, 07:42 PM
  #19
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,305

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Liked 455 Times in 239 Posts
Nice design, but I'm not exactly digging the way the seat stays are attached to the rear drop outs. It looks like an M5 nut and bolt, and I'm no engineers, but it seems like a lot of stress to put on two little bolts.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 04-26-21, 06:04 AM
  #20
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,113
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2634 Post(s)
Liked 966 Times in 751 Posts
-----

wonderful thread non-fixie ; thank so much for sharing this mount!

me too has been wondering anent the reason for the bolt-on seat stays

have you figured it out?

you may find steerer to exhibit the Bridgestone keystone symbol


-----
juvela is offline
Old 04-26-21, 07:11 AM
  #21
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,822 Times in 1,051 Posts
Bolt-on stays would have allowed the BB/chainstay section to get compacted quite small, if disassembled. Perhaps a trick for long-distance breakdown/touring? @gugie, any ideas? I remember you mentioned a fender mod popular in Japan for touring bike transportation.

-Kurt
__________________







cudak888 is offline
Old 04-26-21, 09:51 AM
  #22
non-fixie
Shifting is fun!
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,712

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,733 Times in 845 Posts
Originally Posted by DiegoFrogs View Post
That's pretty cool!

I'm looking at it, though, and wondering why the seatstays are bolted onto the rear dropout... Is it just for some further compact disassembly? Maybe I'm missing something. Looks, though, that in the folded state it's all still bolted together.
My thinking is that the bolts are not meant for disassembly but to provide a couple of pivot points that allow the "seat tubes" to un-clamp for folding. There would be too much tension on the clamp if the rear triangle were solid.
__________________
The Upsetter is gone ... too late to check him out








non-fixie is offline
Old 04-26-21, 07:37 PM
  #23
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,451

Bikes: It's complicated.

Mentioned: 1028 Post(s)
Tagged: 0 Thread(s)
Quoted: 3401 Post(s)
Liked 1,856 Times in 925 Posts
Originally Posted by juvela View Post
-----

wonderful thread non-fixie ; thank so much for sharing this mount!

me too has been wondering anent the reason for the bolt-on seat stays

have you figured it out?

you may find steerer to exhibit the Bridgestone keystone symbol


-----
Originally Posted by cudak888 View Post
Bolt-on stays would have allowed the BB/chainstay section to get compacted quite small, if disassembled. Perhaps a trick for long-distance breakdown/touring? @gugie, any ideas? I remember you mentioned a fender mod popular in Japan for touring bike transportation.

-Kurt
Originally Posted by non-fixie View Post
My thinking is that the bolts are not meant for disassembly but to provide a couple of pivot points that allow the "seat tubes" to un-clamp for folding. There would be too much tension on the clamp if the rear triangle were solid.
All I can add is

@cudak888, the fender mod you're thinking of is commonly referrered to as part of the "rinko" solution, which allows a standard bike to be broken down fairly quickly into a carrying bag of a certain size, which allows said bike to be brought into a Japanese train without extra charge. It's handy when boxing and shipping a bike with fenders.

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
