Understanding gearing ratios for least cadence differences

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Understanding gearing ratios for least cadence differences

Old 06-21-21, 11:46 AM
  #1
Awesomeguy
Senior Member
Thread Starter

Join Date: Nov 2020
Posts: 105
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 6 Times in 5 Posts
Understanding gearing ratios for least cadence differences

I have a 46/30 X 11-36 9 speed.
I'm mostly riding in the 46 ring, but i want understand , how do i learn\figuire out the gearing, to shift in a way, so there is list difference in the gears and cadence.
I feel like i have to go in the small ring sometimes up front, and shift down to smaller cog in the back, for lesser difference in cadence, so i want to know , to shift in way, with least difference in cadence.

Is their some sort of reference chart i can look at ?
.
Awesomeguy is offline
Old 06-21-21, 12:22 PM
  #2
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 35,495

Bikes: R3 Disc, Haanjo

Mentioned: 346 Post(s)
Tagged: 1 Thread(s)
Quoted: 17383 Post(s)
Liked 6,112 Times in 3,148 Posts
You can pop your chainring/cassette info in to a number of gearing calculators online (like this one here - https://mike-sherman.github.io/shift/) to show your speed in a given gear combination and cadence range - it should give you a good idea of how your gearing overlaps between the two chainrings with your cassette.

I don't know how practical this is when you're actually out riding, though. Are you really going to have the presence of mind to remember that (for instance) when you're in your 46/21 that the next step up is the 30/12? I wouldn't. Hell, most of the time, I don't even know what gear I'm in, let alone which would be next highest in terms of gear ratio.

If the gaps in your gearing are bothering you, I think that the more practical thing to do would be to use the above chart to look at new cassettes, with tighter spacing, while ensuring that you still have the necessary gearing covered for your terrain (if you don't have any hills steep/long enough to warrant the 30/36, go with a cassette that tops out at 28 or 30, for instance).
WhyFi is offline
Likes For WhyFi:
Old 06-21-21, 12:33 PM
  #3
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,819

Bikes: '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Liked 1,318 Times in 709 Posts
Sheldon Brown's Bicycle Gear Calculator

Set up the chart in whatever format is instructive for you. I prefer gear-inches, because that's the way I was taught way back when.

I've run a simple representation of yours, and it looks like 2 clicks on the right will correct for one change for the left (in the same direction, meaning larger left, then two larger right gives the next available gear).
Phil_gretz is offline
Old 06-21-21, 01:18 PM
  #4
spelger
Senior Member

spelger's Avatar

Join Date: Jul 2015
Location: reno, nv
Posts: 1,037

Bikes: yes, i have one

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Liked 474 Times in 279 Posts
Originally Posted by WhyFi View Post
You can pop your chainring/cassette info in to a number of gearing calculators online (like this one here - https://mike-sherman.github.io/shift/) to show your speed in a given gear combination and cadence range - it should give you a good idea of how your gearing overlaps between the two chainrings with your cassette.

I don't know how practical this is when you're actually out riding, though. Are you really going to have the presence of mind to remember that (for instance) when you're in your 46/21 that the next step up is the 30/12? I wouldn't. Hell, most of the time, I don't even know what gear I'm in, let alone which would be next highest in terms of gear ratio.

If the gaps in your gearing are bothering you, I think that the more practical thing to do would be to use the above chart to look at new cassettes, with tighter spacing, while ensuring that you still have the necessary gearing covered for your terrain (if you don't have any hills steep/long enough to warrant the 30/36, go with a cassette that tops out at 28 or 30, for instance).
same same.
spelger is offline
Likes For spelger:
Old 06-21-21, 01:22 PM
  #5
John Valuk
Senior Member

Join Date: Oct 2020
Posts: 126
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 61 Times in 48 Posts
I like this one: Bicycle Gear Calculator.

I like the way that I can visualize what's available for different combinations of chainring and cassette gearing. Very nice for comparing, for example, two different cassettes with everything else staying the same.

One can also compare two completely different setups (including tire size). As an example, here's a comparison of my 3x7 hybrid to a 2x9 road bike that I'm working on:


John Valuk is offline
Likes For John Valuk:
Old 06-21-21, 02:42 PM
  #6
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 9,196
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2587 Post(s)
Liked 2,881 Times in 1,530 Posts
I agree. If you don't need the 36t, go for a tighter range. Some obsessive who rides the same 20 mile loop every day, alone, might switch front rings back and forth while watching his cadence read out. Nobody else would, even with Di2 to facilitate.
shelbyfv is offline
Old 06-21-21, 03:01 PM
  #7
c_m_shooter
Senior Member

c_m_shooter's Avatar

Join Date: Sep 2006
Location: Paradise, TX
Posts: 1,975

Bikes: Soma Pescadero, Surly Pugsley, Salsa Fargo, Schwinn Klunker, Gravity SS 27.5, Monocog 29er

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 179 Times in 129 Posts
11-36 is crazy wide for a road bike. I have used a 12-26 with 36/46 for years. I put an 11-32 on for loaded touring, but swap it back as soon as I get home. Don't overthink this. Use big ring for flats and downhill, the small ring for extended climbs and headwinds.
c_m_shooter is offline
Likes For c_m_shooter:
Old 06-21-21, 03:59 PM
  #8
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,303

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 125 Post(s)
Tagged: 1 Thread(s)
Quoted: 4291 Post(s)
Liked 1,804 Times in 1,096 Posts
Originally Posted by Awesomeguy View Post
I have a 46/30 X 11-36 9 speed.
I'm mostly riding in the 46 ring, but i want understand , how do i learn\figuire out the gearing, to shift in a way, so there is list difference in the gears and cadence.
I feel like i have to go in the small ring sometimes up front, and shift down to smaller cog in the back, for lesser difference in cadence, so i want to know , to shift in way, with least difference in cadence.

Is their some sort of reference chart i can look at ?
.
I also like the Dirk Feeken’s calculator. It’s fairly easy to see how the gears work together. Here’s your gearing with the MPH over the gear combinations. At a given cadence, match the speed and you’ll see which gear you should shift to to maintain speed and cadence. Remember that when you shift, you are usually changing speed anyway. So, for example, if you were riding in the 40/21 gear at 90 rpm and downshifted to the 24 on the back, you’d lose about 2 MPH. If you downshift on the front, you’ll lose 4 MPH which will feel a more jarring than the 2MPH transition. If you upshift one gear, the transition is similar to the 40/24 gear that you would end up with on just a rear cassette shift. This, of course, necessitates a double shift if you go that route. It’s a bit more fiddly because of the large difference between the outer and inner ring. You can play with the gearing to see if there is a better combination that doesn’t result in quite as large a transition.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 06-21-21, 04:07 PM
  #9
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,303

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 125 Post(s)
Tagged: 1 Thread(s)
Quoted: 4291 Post(s)
Liked 1,804 Times in 1,096 Posts
Originally Posted by c_m_shooter View Post
11-36 is crazy wide for a road bike. I have used a 12-26 with 36/46 for years. I put an 11-32 on for loaded touring, but swap it back as soon as I get home. Don't overthink this. Use big ring for flats and downhill, the small ring for extended climbs and headwinds.
What works for you may not work for others. A 46/36 12-26 can be crazy narrow for a road bike depending on the rider, terrain, and preferences. In Kansas, it might work. Colorado, not so much. Climbing would be much more difficult with that gearing.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 06-21-21, 06:47 PM
  #10
50PlusCycling
Senior Member

50PlusCycling's Avatar

Join Date: Mar 2018
Posts: 451
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 119 Times in 69 Posts
Don't break your brain. You should be able to ride in the big ring for general riding, and shift your rear gears to the most comfortable ratio. There is no rule. For myself, I tend to use a gear which allows me to use a quicker cadence, this is easier on the knees. I shift down as I come to a stop, then shift up as I accelerate, just as I would on a motorcycle or when driving a car. Use your gears, that is what they are there for. When I worked as a bike mechanic, I was always surprised how many people bought multi-speed bikes, but only used one gear.
50PlusCycling is offline
Old 06-22-21, 06:42 AM
  #11
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 377

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 83 Times in 70 Posts
IMHO, the simplest way to “visualize” what the OP wants to know is using the Sheldon Brown Gear Calculator. I use the “gear inch” mode. After inputting specific wheel size and crank length, enter the number of chainring teeth (small to large) and the number of cog teeth (large to small) in the provided “boxes” and then click “calculate”. The result will be columns of numbers that can be used to compare the relationships of the gear (chainring to cog) combinations to one another. In the OP’s situation, the left column will go from 22 to ~72 and the right column from ~34 to ~110. When looking at these columns of numbers, one will see that several of the gear combinations are very similar in value. (The OP’s bike doesn’t have 18 different gears!) These numbers DO have meaning but to me, the difference between them is the most meaningful. While maintaining a given cadence, going between gear combinations with the smallest “number” difference will be the smoothest transition. Unfortunately, doing so may require “double shifting” and more than one cog decrease or increase. I’ve been mocked for this before but I’ve printed out the “gear inch” chart and taped it to the stem on several of my bikes. At a glance, I can see the gear combination that has the smallest difference (without being nearly identical) when shifting to a higher or lower gear. I suppose a person could memorize the “progression” but that’s too much work for me!
sovende is offline
Old 06-22-21, 06:51 AM
  #12
Reflector Guy
Senior Member

Reflector Guy's Avatar

Join Date: Jul 2020
Location: Chicago
Posts: 863

Bikes: Bianchi Via Nirone

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 743 Times in 349 Posts
Originally Posted by WhyFi View Post

I don't know how practical this is when you're actually out riding, though. Are you really going to have the presence of mind to remember that (for instance) when you're in your 46/21 that the next step up is the 30/12? I wouldn't.
This, exactly.

Once I am on the large chainring, I stay there until circumstances require me to switch to the small one. Such as, if I have to stop and then dart across a busy street, for example. Or stop and navigate a curb or something. Once I get moving enough that I can switch into the large chainring, I shift into it and I don't go back-and-forth large-small at all.
Reflector Guy is offline
Old 06-22-21, 07:05 AM
  #13
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 35,495

Bikes: R3 Disc, Haanjo

Mentioned: 346 Post(s)
Tagged: 1 Thread(s)
Quoted: 17383 Post(s)
Liked 6,112 Times in 3,148 Posts
Originally Posted by sovende View Post
I’ve been mocked for this before but I’ve printed out the “gear inch” chart and taped it to the stem on several of my bikes. At a glance, I can see the gear combination that has the smallest difference (without being nearly identical) when shifting to a higher or lower gear.
I can understand why - this is madness, IMO. I can't imagine a gearing gap intrusive enough that referencing a chart mid-ride world be a lesser evil. If I felt that strongly about gaps, and I couldn't narrow them satisfactorily with a new cassette and/or chain rings, I'd pony up for electronic shifting with a sequential mode.
WhyFi is offline
Likes For WhyFi:
Old 06-22-21, 07:17 AM
  #14
L134
Senior Member

Join Date: Dec 2015
Location: San Diego
Posts: 478

Bikes: 1978 Bruce Gordon, 1977 Lippy, 199? Lippy tandem, Bike Friday NWT, 1982 Trek 720, 2012 Rivendell Atlantis, 1983 Bianchi Specialissima?

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 51 Times in 33 Posts
A triple half-step plus granny is my solution. I don't use the half step for progressive shifting but use it for fine tuning cadence. The challenging part is that the best half stepping comes with a 3 tooth difference between the middle and outer ring if one is using rings in the 40's and finding odd tooth count rings can be a real challenge these days. A 4 tooth difference may be better than nothing but 3 is ideal.
L134 is offline
Old 06-22-21, 11:46 AM
  #15
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 377

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 83 Times in 70 Posts
Originally Posted by WhyFi View Post
I can understand why - this is madness, IMO. I can't imagine a gearing gap intrusive enough that referencing a chart mid-ride world be a lesser evil. If I felt that strongly about gaps, and I couldn't narrow them satisfactorily with a new cassette and/or chain rings, I'd pony up for electronic shifting with a sequential mode.
Well, it’s hardly “madness” but I’ll acknowledge that it’s your opinion. I was providing an answer to the OP’s query on how to figure out a way to understand/use the gears available on the bike that he has. The fact that the Sheldon Brown Gear Calculator actually provides a printable chart to “reference mid-ride” (actually while riding), tells me it’s not madness at all!
sovende is offline
Old 06-22-21, 01:09 PM
  #16
spelger
Senior Member

spelger's Avatar

Join Date: Jul 2015
Location: reno, nv
Posts: 1,037

Bikes: yes, i have one

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Liked 474 Times in 279 Posts
a chart seems rather academic at best. i can't see using it while riding. after a while you just figure out what gear you need to be in based on feel. i've been told once or twice that there are things i don't know that i don't know. i think this is one of those times where that is a good thing.
spelger is offline
Old 06-22-21, 01:39 PM
  #17
xroadcharlie
Senior Member

Join Date: Apr 2019
Location: Windsor Ontario, Canada
Posts: 384

Bikes: 2018 Giant Sedona

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked 70 Times in 63 Posts

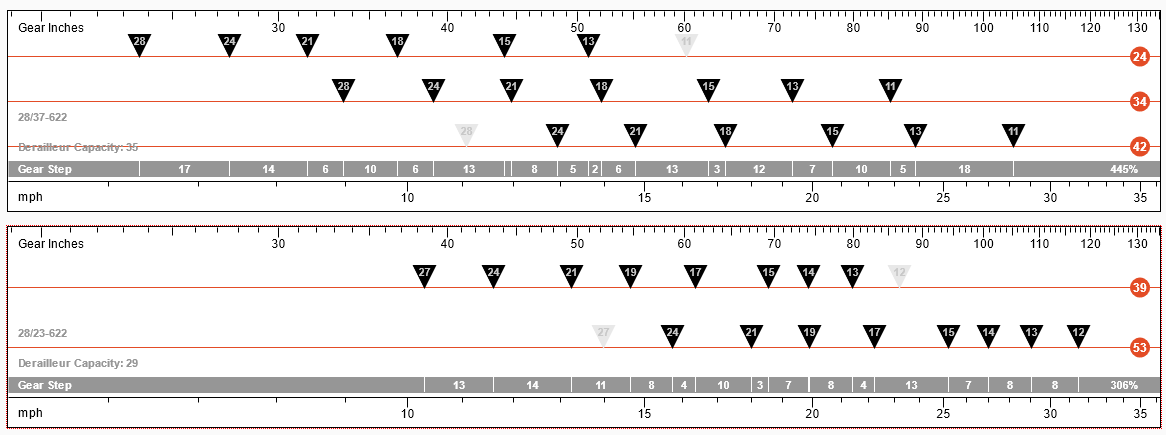

What the "Bicycle gear calculator" showed me is that 8 of the the 21 gears on my 3 x 7 speed comfort bike are pretty much redundant. More importantly it showed me the best progression to utilize it without spending endless hours experimenting. I suspect this is what the op is looking for. When I'm on the 48t chainring and in 2'nd gear @52 gear inches If I switch to the 38t ring and move 2 cogs up, I'm in between gears.

This tool is very useful when comparing a new bike or proposed gearing changes. For a bike we already have we needn't over think this. Just plug in the numbers to find a progression that works best. All I need to know is 2 shift points. The 28t to 38t shift and the 38 to 48t shift.
xroadcharlie is offline
Old 06-22-21, 01:40 PM
  #18
fredlord
Senior Member

Join Date: Apr 2021
Posts: 160
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 99 Post(s)
Liked 89 Times in 51 Posts
I reckon part of "getting to know" a particular bike is coming to grips with its gears and your favourite cadences. A lot of the fun of riding a geared bike is the feeling that you're becoming more efficient at moving through space, and that boils down to your fitness and your understanding of your machine. For me, that understanding comes down to feel rather than number-crunching.
fredlord is offline
Old 06-22-21, 01:49 PM
  #19
Reflector Guy
Senior Member

Reflector Guy's Avatar

Join Date: Jul 2020
Location: Chicago
Posts: 863

Bikes: Bianchi Via Nirone

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 743 Times in 349 Posts
Originally Posted by sovende View Post
.... a printable chart to “reference mid-ride” (actually while riding)
I wonder if he meant that tongue-in-cheek.
Reflector Guy is offline
Likes For Reflector Guy:
Old 06-22-21, 02:43 PM
  #20
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 35,495

Bikes: R3 Disc, Haanjo

Mentioned: 346 Post(s)
Tagged: 1 Thread(s)
Quoted: 17383 Post(s)
Liked 6,112 Times in 3,148 Posts
Originally Posted by sovende View Post
Well, it’s hardly “madness” but I’ll acknowledge that it’s your opinion. I was providing an answer to the OP’s query on how to figure out a way to understand/use the gears available on the bike that he has. The fact that the Sheldon Brown Gear Calculator actually provides a printable chart to “reference mid-ride” (actually while riding), tells me it’s not madness at all!
Then we must ride bikes in an entirely different manner - either my effort is too hard for me to faff about with charts or my effort is light enough that it's not necessary.
WhyFi is offline
Old 06-22-21, 02:44 PM
  #21
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 3,922
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1788 Post(s)
Liked 961 Times in 473 Posts
Originally Posted by sovende View Post
I suppose a person could memorize the “progression” but that’s too much work for me!
Interesting. I sometimes make charts, but mostly to plan builds or explain gearing to others. Referencing a chart mid-ride has always sounded very cumbersome to me.

Even if I was going to tape something to my stem, it would probably not be this...



...but instead something along the lines of this:



But I mostly have the latter in my head anyway.
HTupolev is offline
Old 06-22-21, 03:30 PM
  #22
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,514

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 339 Times in 274 Posts
I use sram axs 12 speed with the widest range 10-36 cassette with a 48/31 crank. I don't have to remember much. If I shift to the little ring, I will have waited to become a little bogged down in my 48/32, make the chain ring shift and immediately follow with a shift two sprockets smaller. Another trick is to pedal standing in the big ring, then sit and shift to the little ring with no compensating shifts between sprockets. In the little ring I'll shift up if my speed gets much over 15 mph. Shift to the big ring, then 2 sprockets larger. With axs, I can set a 2 sprocket limit if a shift lever is held for a multishift.

I ride a 52 mile loop with 3000 feet of climbing in the first 20 miles. I can ride that twenty miles in the big ring, by pedaling standing in several of the steeper sections. After that, there's 2 miles with grades in the 6-12% range where the little ring is a must. After 22 miles, it's mostly down hill and big ring only.
DaveSSS is offline
Old 06-22-21, 03:51 PM
  #23
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14441 Post(s)
Liked 2,428 Times in 1,810 Posts
You're going to drive yourself bonkers trying to remember...

Single step upshift is usually Up in the front, down two in the rear, or down in the front, up three in the rear. Plus, that may not be uniform across the cassette. And, you'll be cross-chaining.

I generally use the front derailleur to select "high range" (flat, descents), or "low range", hill climbing. Then step up or down with the rear as needed.

So, to do tighter single-step gearing, either pick a smaller rear cassette. Say 11/23 or 11/25.

Or try a half-step chairing setup. So, for example use a 46/44 chainring setup. That way each shift will involve moving the front either up or down, and half the time moving the rear in one direction.
CliffordK is offline
Old 06-22-21, 05:43 PM
  #24
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 377

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 83 Times in 70 Posts
Originally Posted by HTupolev View Post
Interesting. I sometimes make charts, but mostly to plan builds or explain gearing to others. Referencing a chart mid-ride has always sounded very cumbersome to me.

Even if I was going to tape something to my stem, it would probably not be this...



...but instead something along the lines of this:



But I mostly have the latter in my head anyway.

Of course you are joking with the crazy decimal fractions . I like the “dot” diagram but I’d have to put it on the top tube! My “chart” is much simpler:
41 (50)
47 59
54 67
63 78
71 88
(81)100

left side small chainring, right side large chainring
top of column large cog, bottom of column small cog
Parentheses indicate cross-chain combinations

Individuals can ride their bikes however they please BUT that wasn’t what the OP asked. The OP wanted a way to quantify his set up. My reply did so. A good share of the others did not!
sovende is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
