Framebuilder Question: Never seen a weld on this area before

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Framebuilder Question: Never seen a weld on this area before

Old 11-13-21, 09:48 AM
  #1
vxchtx
Junior Member
Thread Starter

Join Date: Sep 2020
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Framebuilder Question: Never seen a weld on this area before

cheers everybody,


recently I stumbled upon quite a nice steel frame on the net. however I realised that the seat tube was welded in an interesting way that I have never seen before.

maybe someone can explain to me why they chose to weld the seat tube like they did.

thanks in advance

:-)


Last edited by vxchtx; 11-13-21 at 10:20 AM.
vxchtx is offline
Old 11-13-21, 10:40 AM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,546
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,102 Times in 1,500 Posts
That's there because many sizes of tubes are not available in convenient sizes to fit easily available seat posts. Or more likely, the tubes that fit the easily available seat posts are too heavy. So builders weld in a collar.

You can shop all the seat tube collars that paragon machine makes on this page https://www.paragonmachineworks.com/...t+tube+collars
unterhausen is offline
Likes For unterhausen:
Old 11-13-21, 02:57 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,136

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3376 Post(s)
Liked 2,025 Times in 1,325 Posts
Not an uncommon way to get the top of the seat tube to a spec ID, as Eric mentions. Seen a lot of TI frames and some steel ones done this way. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 11-14-21, 06:17 AM
  #4
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,069
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 635 Post(s)
Liked 579 Times in 362 Posts
I use seat collars like that to make some of my MTB seat tubes to fit dropper posts or to make a seat tube out of a tube intended for a different purpose. I sometimes use a tube intended to be a bent downtube for a seat tube and that leaves me with a 34.9mm tube with a .6mm wall where I cut the tube to the proper length for a seat tube. In order to get the tube to fit a 30.9 or 31.6 seat post and have enough strength to weld the top tube and seat stays to it, I attach a 4" section of a much thicker walled tube to the top of it.

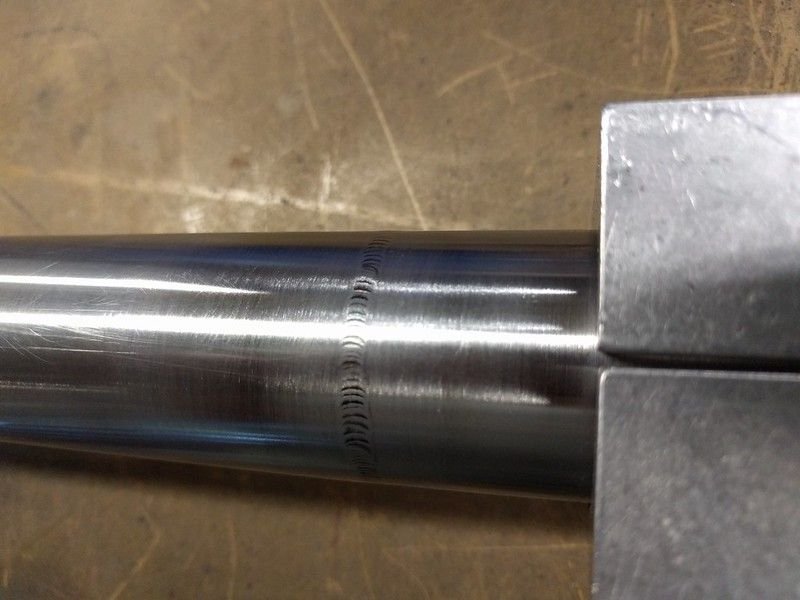

This is a 4" section of 4130 tube that I turned with a step to fit the inside of the 34.9 x .6mm wall tube and the interior dimension to fit a 31.6 seat tube.



That tube section fusion welded into the seat tube. If the fit is tight enough, it can be fusion welded and the weld just about disappears under powder coat.

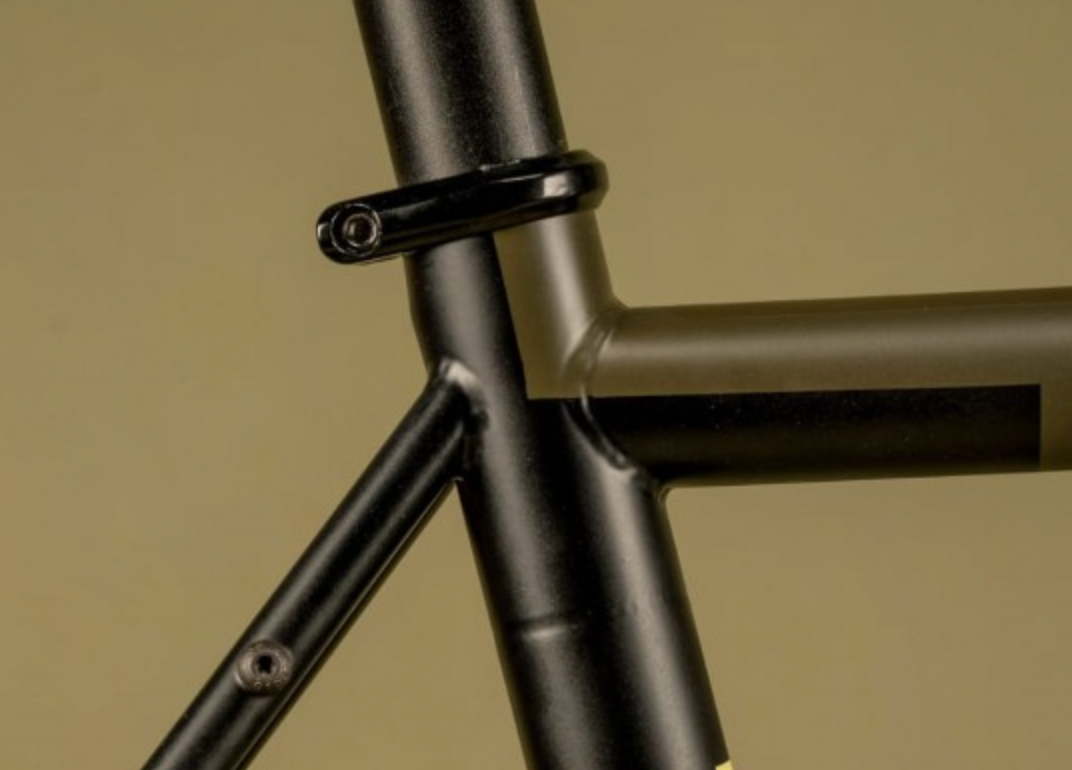

This is the finished frame with that seat tube.
dsaul is offline
