Canti Bosses Prep

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Canti Bosses Prep

Old 12-01-21, 08:29 PM
  #1
Andrew R Stewart
Senior Member
Thread Starter

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,121

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3367 Post(s)
Liked 2,008 Times in 1,314 Posts
Canti Bosses Prep

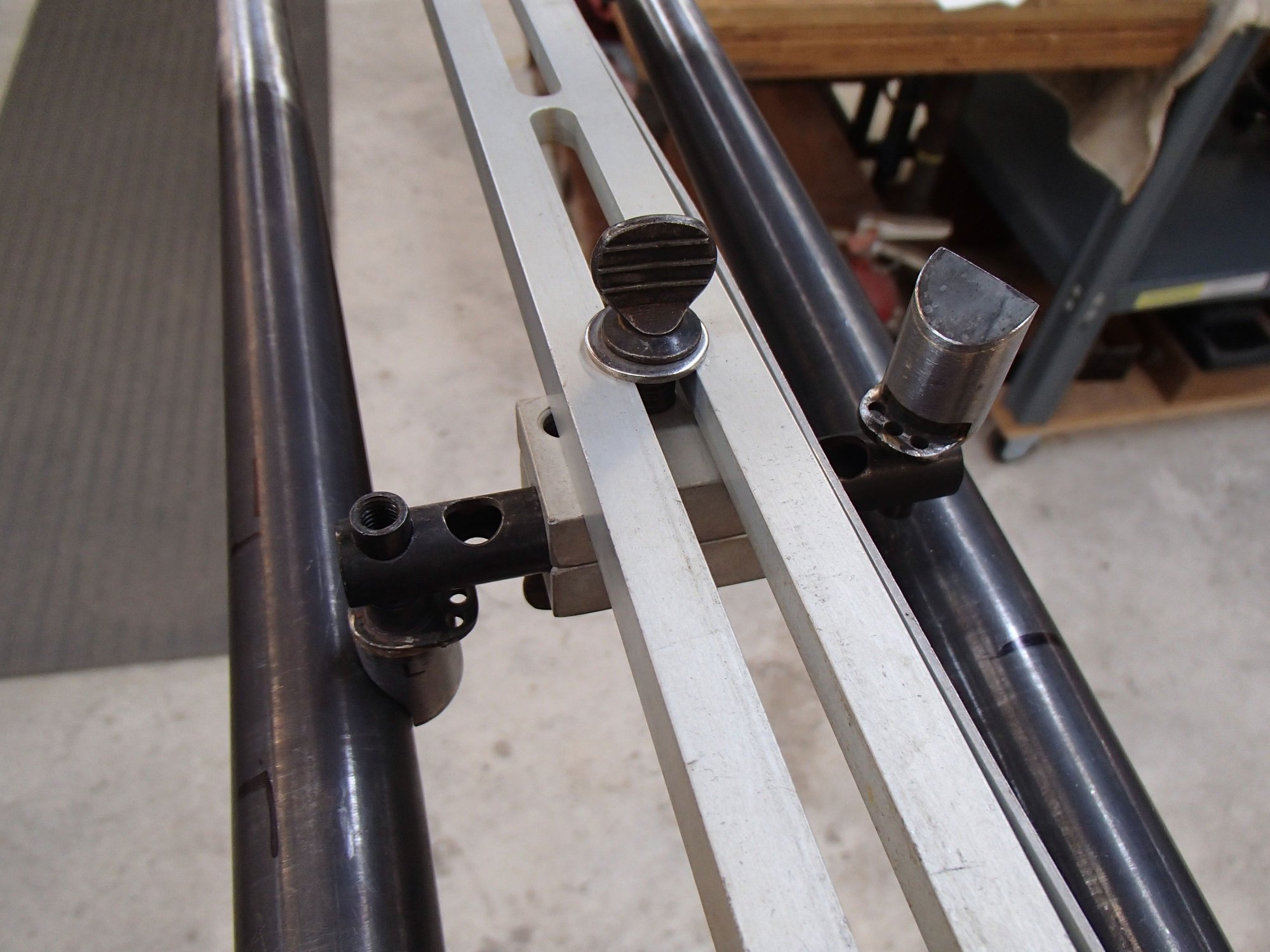

Since sort of retiring I've done a bunch of frame work but nothing ready for the public but for this point in time while making the second unicrown fork I've done. With about 85mm between the insides of the Columbus blades and a goal of about 82mm between the canti posts the contact area they share is small. So I sleeved the canti base to increase the OD and added a cap to what will be the big open "mouth" under the sleeve. BTW I used my bench grinder to do most of the sleeve's mitering. Andy


__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 12-01-21, 09:11 PM
  #2
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,243

Bikes: Too Many

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 102 Times in 68 Posts
I like that idea of sleeving the canti boss. I'll make a note of that.
__________________
I'm not one for fawning over bicycles, but I do believe that our bikes communicate with us, and what this bike is saying is, "You're an idiot." BikeSnobNYC
Cynikal is offline
Old 12-02-21, 02:14 AM
  #3
guy153
Senior Member

Join Date: Dec 2019
Posts: 780
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 193 Times in 161 Posts
Very nice! A common problem nowadays as people want such wide tyres and don't expect anyone to still be using rim brakes. Caps always look neater. I also cap the bottom of the steerer under the unicrown. Should probably drill a drainage hole but it's surely better than what normally happens which is that whole area gets filled with mud.
guy153 is offline
Old 12-02-21, 09:26 AM
  #4
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,147
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 1,086 Times in 415 Posts
Nicely done, Andy!
Doug Fattic is offline
Old 12-07-21, 10:36 PM
  #5
Andrew R Stewart
Senior Member
Thread Starter

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,121

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3367 Post(s)
Liked 2,008 Times in 1,314 Posts


Thought I'd follow up on this thread. Here's the backside of the fork with the bosses capping shown. You can see how far off blade the bosses are and why I sometimes increase the boss base diameter. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 12-09-21, 12:41 AM
  #6
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 790
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Liked 702 Times in 352 Posts

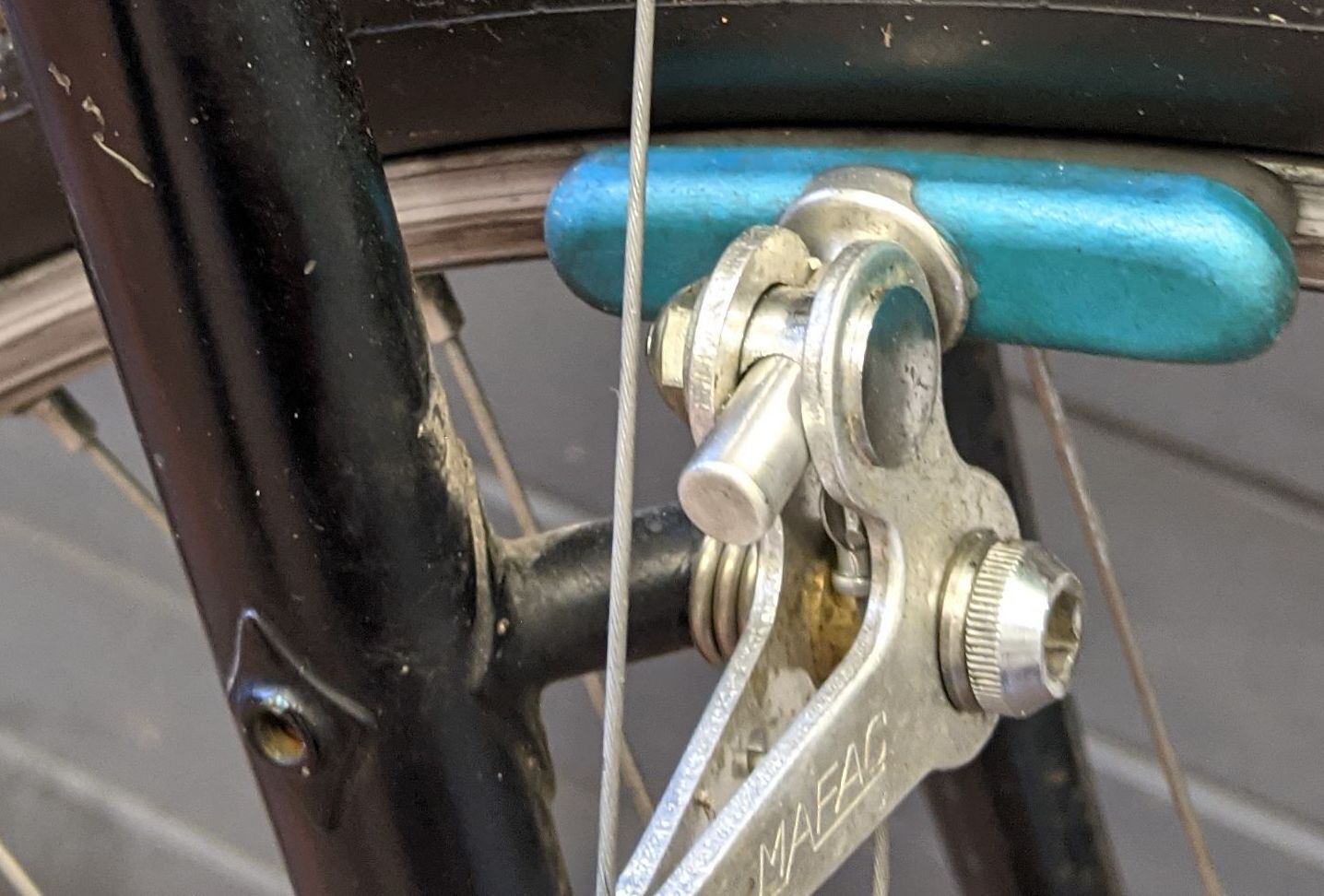

Another option is angling the stand-off tubes. Then you have a full miter and no gap to cap off.



Sorry about the dirty fork with a rattle-can paintjob. Fork made in '84 and modified (longer steerer) in the '90s, too cheap for a proper respray.
Also sorry if the angled standoffs idea is too obvious to bother mentioning.

Mark B
bulgie is offline
Likes For bulgie:
Old 12-09-21, 02:57 AM
  #7
guy153
Senior Member

Join Date: Dec 2019
Posts: 780
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 193 Times in 161 Posts
Not too obvious at all. Wish I'd thought of that when I made my first fork with canti bosses. I couldn't think of a solution and re-made the whole fork to be narrower!
guy153 is offline
Old 12-09-21, 09:22 AM
  #8
Andrew R Stewart
Senior Member
Thread Starter

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,121

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3367 Post(s)
Liked 2,008 Times in 1,314 Posts
I did something like that a long time ago. But I had a short 1/2" tube coming off the blade at 90* and the base of the boss also at a 90* with the support tube. A "repair" on a MtB fork when they were rigid and the rims were skinny. I like your angled supporting tube, much nicer. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
