Cannondale Brake Lug Thread

I recently bought a like-new 2009 Cannondale Road Tandem 2. It has disk brakes, but it also has lugs on the fork and stoker seat stays that are apparently for rim brakes. I want to use one of the lugs on the stoker seat stays to mount an accessory.

An 8mm-1.25mm bolt will screw easily into either of the lugs on the fork. However, that same bolt binds up if I try to screw it into either of the lugs on the stoker seat stays. The threads seem to be clean. It's hard to imagine that the fork lug threads would be different than the seat stay threads, but I really hesitate to force the bolt into the seat stay lug.

I would appreciate it if anyone has any experience or thoughts about this generation of Cannondale.

Thanks!

mwandaw is offline
Old 12-03-21, 03:25 PM
  #2
LV2TNDM
Senior Member

Join Date: Apr 2005
Location: Northern CA
Posts: 615

Bikes: Cannondale tandems: '92 Road, '97 Mtn. Mongoose 10.9 Ti, Kelly Deluxe, Tommaso Chorus, Cdale MT2000, Schwinn Deluxe Cruiser, Torker Unicycle, among others.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 135 Times in 88 Posts
The picture you show is the cantilever post mounting spot. These are very coarse threads. I've never tried to find a bolt for these because canti posts always screws into those. I can't imagine you have matching bare holes on the fork you mention. The cantilever boss bolts that screw into the posts are finer machine threads. I assume you're easily screwing those into the fork cantilever bosses. (They're posts that stick out from the fork blades, right?)
If this is the case, you DEFINITELY need to find bolts for the frame's seat stays that match the thread count and pitch. I have no idea what it is. 8 X 1.25mm sounds about right, though.
OK, if that's the case and you do have bare holes on the fork blades that are 8 X 1.25mm and it doesn't match the frame, then I'd bet the frame threads are SAE. Cannondale's been making their frames like this for ever, so it wouldn't surprise me if they're standard thread and not metric. I would NOT try to tap these holes to match the bolts you have. Find bolts that thread in easily. Sorry I'm not more help, but that's probably what's going on.
LV2TNDM is offline
Old 12-03-21, 11:44 PM
  #3
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,144

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4797 Post(s)
Liked 2,354 Times in 1,392 Posts
Originally Posted by mwandaw View Post
I recently bought a like-new 2009 Cannondale Road Tandem 2. It has disk brakes, but it also has lugs on the fork and stoker seat stays that are apparently for rim brakes. I want to use one of the lugs on the stoker seat stays to mount an accessory.

An 8mm-1.25mm bolt will screw easily into either of the lugs on the fork. However, that same bolt binds up if I try to screw it into either of the lugs on the stoker seat stays. The threads seem to be clean. It's hard to imagine that the fork lug threads would be different than the seat stay threads, but I really hesitate to force the bolt into the seat stay lug.

I would appreciate it if anyone has any experience or thoughts about this generation of Cannondale.

Thanks!

I didn’t check the fork (the tandem is hanging up and I’m too lazy to take it down) but the rear on mine takes a 5/16” x 18 TPI thread. I’ve seen some posts elsewhere that says an M8 is close but won’t fit. The 5/16” x 18 threads in nicely.

Nice tandem, by the way. Got one just like it. Small stoker?
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.

Last edited by cyccommute; 12-03-21 at 11:58 PM.
cyccommute is offline
Old 12-05-21, 02:43 AM
  #4
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 5,046
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1883 Post(s)
Liked 389 Times in 279 Posts
I could be wrong but the threaded hole shown should be the receiver for the cantilever (v-brake?) bosses. The bosses themselves are quite long and likewise threaded internally to receive the brake arm mounting bolts. Accessories meant to mount on v-brake bosses will not attach directly to the receiver threads in the frame. If this is a think outside of the box hack then all bets are off. I would contact Cannondale as perhaps the quickest way to determine what is threaded with what. It would have been nice to see the fork and how things are handled at that end of the bike.
Leisesturm is offline
Old 12-05-21, 03:23 AM
  #5
jccaclimber
Senior Member

Join Date: May 2005
Location: SFBay
Posts: 2,129

Bikes: n, I would like n+1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 59 Times in 51 Posts
Assuming it isn’t one of the suggestions above, the easiest way to test this might be to ride down to the hardware store and see what fits smoothly by hand.
Alternatively, I agree that those look like where you would thread in the brake bosses, perhaps those are available as a part.
jccaclimber is offline
Old 12-05-21, 08:49 PM
  #6
mwandaw
Half Fast
Thread Starter

mwandaw's Avatar

Join Date: Sep 2010
Location: Southern California
Posts: 677

Bikes: A road bike and a tandem road bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 3 Times in 1 Post
I tried several bolts and never could find one that fit. As others have mentioned, maybe the threads were compromised some time before I bought the bike.

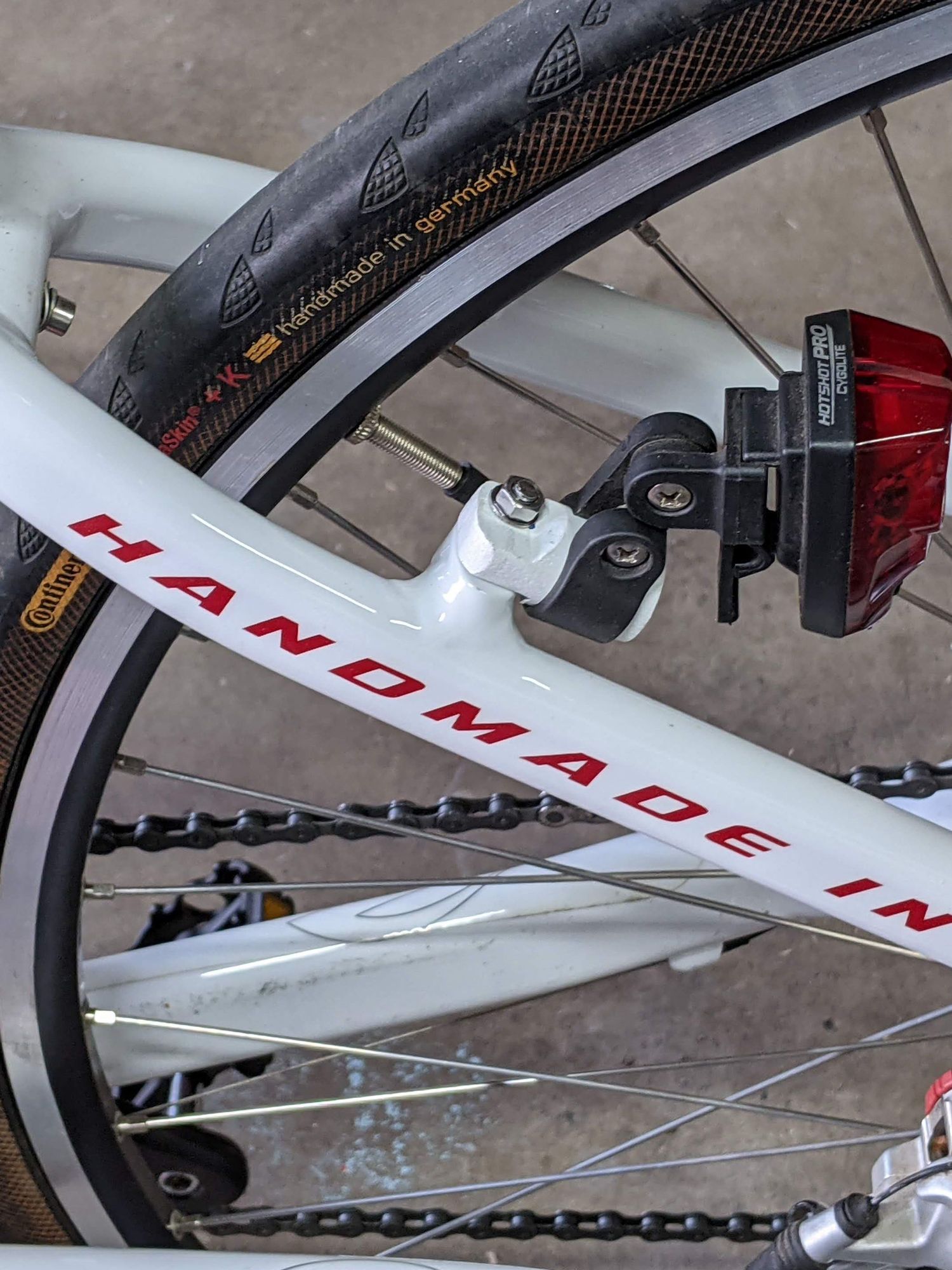

Eventually I decided to take a different approach to mounting the accessory (a taillight). I used a bolt that was smaller than the hole in the lug. I put the head of the bolt on the bottom side of the lug and secured an adapter I made to the top of the lug with a nut. The taillight is so light that the clamping force from this set up will most likely be more than enough needed to keep everything in place.

Thanks for the help and suggestions!
mwandaw is offline
Old 12-05-21, 11:28 PM
  #7
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 5,046
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1883 Post(s)
Liked 389 Times in 279 Posts
Originally Posted by mwandaw View Post
I tried several bolts and never could find one that fit. As others have mentioned, maybe the threads were compromised some time before I bought the bike.
I've missed the threads saying that. It certainly isn't my take. Those threads are just fine. Here is how you find out for certain. Locate (no need to buy) some cantilever brake bosses and screw them in! Incidentally, when you have some genuine brake bosses in hand (that screw in) you will know exactly the diameter and thread pitch of the bolt you would need to use that mounting. But, to that point, and while I am still in curmudgeon mode, might I observe that putting a lasher in that spot wastes it's potential. Unless twinned, and that just adds extra weight and expense. The hot setup these days when the seatpost location is too passe is the seat itself. Or the back of the helmet. A location that is high and central is the best location for a flasher. FWIW.
Leisesturm is offline
Old 12-06-21, 09:12 AM
  #8
Alcanbrad
Senior Member

Alcanbrad's Avatar

Join Date: Apr 2015
Location: New Jersey
Posts: 388

Bikes: '14 CoMo Carrera, '11 CoMo Primera co-pilot, '98 Santana Visa, a Plethora of road bikes, A commuter/Gravel beast (and 1 MTB)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked 34 Times in 29 Posts
This should be classified under “Hey Alcanbrad, get a life 😁”, however I believe you have the tire mounted backwards. The tread pattern should be oriented to drive captured water away from the wheel, not in towards the contact zone. There should be a rotation direction arrow on the sidewall, though it is always hard to find.

Also, great hack on mounting the rear light. Looks like it was meant to be that way.
Alcanbrad is offline
Old 12-06-21, 11:23 AM
  #9
mwandaw
Half Fast
Thread Starter

mwandaw's Avatar

Join Date: Sep 2010
Location: Southern California
Posts: 677

Bikes: A road bike and a tandem road bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 3 Times in 1 Post
Originally Posted by Alcanbrad View Post
...I believe you have the tire mounted backwards...
Thanks for the tip. The bike is very new to us, and I haven't looked closely at the tires. I will now!
mwandaw is offline
Old 12-07-21, 12:17 AM
  #10
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,144

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4797 Post(s)
Liked 2,354 Times in 1,392 Posts
Originally Posted by mwandaw View Post
Thanks for the tip. The bike is very new to us, and I haven't looked closely at the tires. I will now!
Pssst! It doesn’t matter. It just drives the OCD people crazy. It won’t make any difference with regard to trapped water. Bicycles can’t hydroplane unless you get to really stupid speeds.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 12-07-21, 08:54 AM
  #11
DangerousDanR
Senior Member

Join Date: May 2018
Location: Fargo ND
Posts: 375

Bikes: Lynskey R350, Ritchey Breakaway, Ritchey Double Switchback, Lynskey Ridgeline, ICAN Fatbike

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 184 Times in 104 Posts
From Schwalbe: https://www.schwalbe.com/en/profil


What do the direction arrows mean?
Most Schwalbe tire sidewalls are marked with a “ROTATION” arrow, which indicates the recommended rolling direction. When in use, the tire should run in the direction of the arrow. Older tires have the marking “DRIVE”, but it has the same
meaning.

Many MTB tires are marked with a “FRONT” and a “REAR” arrow. The “FRONT” arrow indicates the recommended rolling direction for the front wheel and respectively the “REAR” arrow is the direction for the rear wheel.

Why are so many treads direction dependant?
In the case of a road tire the rolling direction is mainly important for aesthetic considerations. Tires marked with arrows simply look more dynamic..

Off road, the rolling direction is far more important, as the tread ensures optimumconnection between the tire and the ground. The rear wheel transmits the driving force and the front wheel transmits the braking and steering forces. Driving and braking forces operate in different directions. That is why certain tires are fitted in opposite rotating directions when used as front and rear tires.

There are also treads without a specified rotating direction.

Last edited by DangerousDanR; 12-07-21 at 09:22 AM. Reason: Misleading nformation
DangerousDanR is offline
Old 12-07-21, 09:02 AM
  #12
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,144

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4797 Post(s)
Liked 2,354 Times in 1,392 Posts
Originally Posted by DangerousDanR View Post
Tire direction makes a difference for mountain bikes. For road tires, not so much. The interaction of the tread with pavement is minimal and traction isn’t a problem. For mountain bikes, there is much more interaction with the riding surface and having directional tread helps…mostly with steering.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 12-07-21, 09:21 AM
  #13
DangerousDanR
Senior Member

Join Date: May 2018
Location: Fargo ND
Posts: 375

Bikes: Lynskey R350, Ritchey Breakaway, Ritchey Double Switchback, Lynskey Ridgeline, ICAN Fatbike

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 184 Times in 104 Posts
Stuart:
thanks for the input. I forgot to copy the other section in the link I pasted.
DangerousDanR is offline
Likes For DangerousDanR:
Old 12-07-21, 09:28 AM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,144

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4797 Post(s)
Liked 2,354 Times in 1,392 Posts
Originally Posted by DangerousDanR View Post
Stuart:
thanks for the input. I forgot to copy the other section in the link I pasted.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 12-07-21, 06:42 PM
  #15
Alcanbrad
Senior Member

Alcanbrad's Avatar

Join Date: Apr 2015
Location: New Jersey
Posts: 388

Bikes: '14 CoMo Carrera, '11 CoMo Primera co-pilot, '98 Santana Visa, a Plethora of road bikes, A commuter/Gravel beast (and 1 MTB)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked 34 Times in 29 Posts
Originally Posted by cyccommute View Post
Tire direction makes a difference for mountain bikes. For road tires, not so much. The interaction of the tread with pavement is minimal and traction isn’t a problem. For mountain bikes, there is much more interaction with the riding surface and having directional tread helps…mostly with steering.
I would tend to agree with your point of view for most riding conditions cyccommute. I would not expect a bike to hydroplane while going straight, but I would not be surprised if the point of loss of traction while turning at speed could vary based on tread orientation.

That said, I would ask, would you be willing to back up your claim by riding fast with a loaded tandem at high speeds on wet roads and recording the speed where the wheels lose grip while cornering to compare the loss of grip based on tread orientation? I am razzing you a bit here, but with the lack or real world data, I would give Continental's engineering the benefit of the doubt and follow their recommendation. It certainly wouldn't hurt. Hopefully, none of us will ever find out the real difference.
