Is 6 vent holes in a fork enough? And, is this drunk monkey business repairable?

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Is 6 vent holes in a fork enough? And, is this drunk monkey business repairable?

Old 12-17-21, 08:01 PM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
Is 6 vent holes in a fork enough? And, is this drunk monkey business repairable?

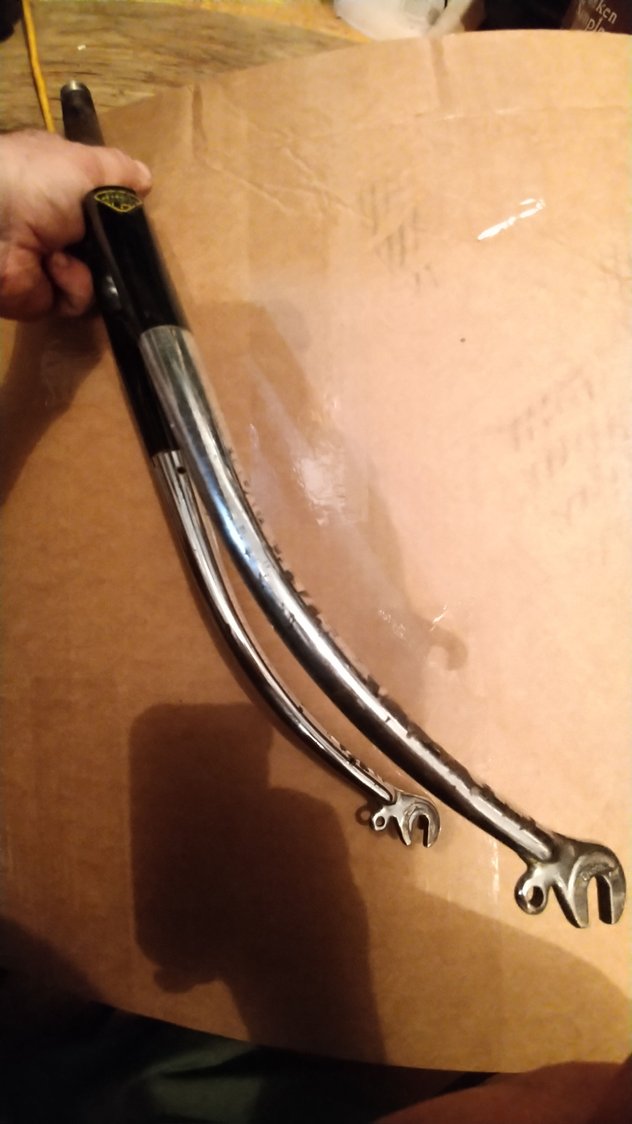

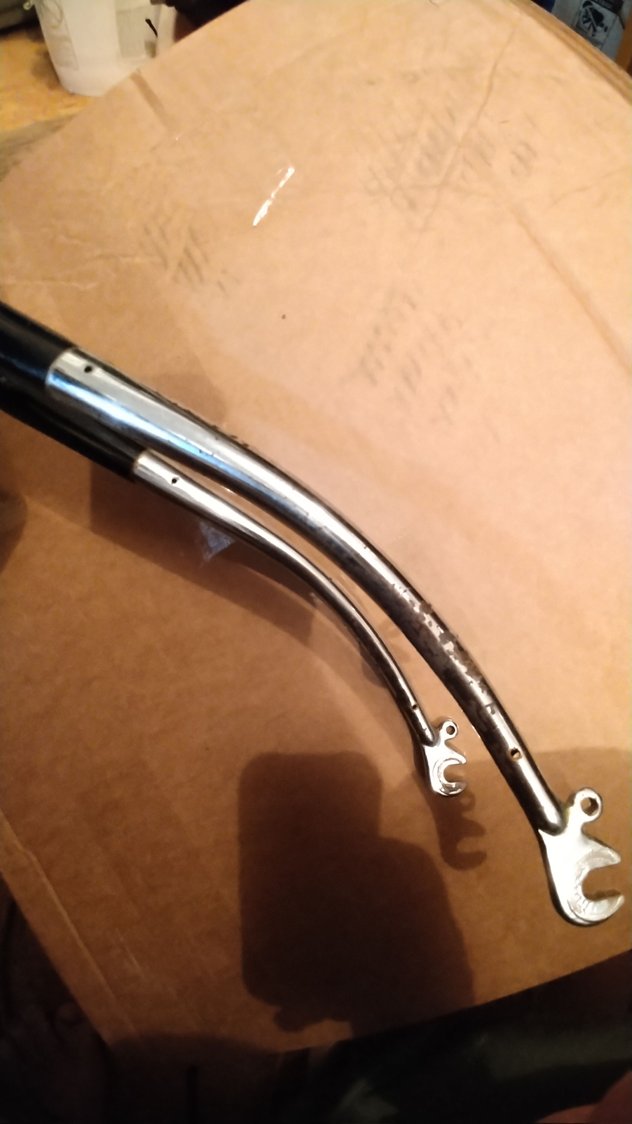

​​​​​​"Won" a Raleigh Competition on Ebay. On closer inspection there are 4 extra vent sized holes drilled through the fork blades. They don't particularly line with each other. The Ebay seller-pro-bike-flipper-guy thinks I'm being fussy.... Theoretically would it be sufficient to strip the chrome and fill the random holes with brass?

Last edited by bark_eater; 12-17-21 at 08:10 PM.
bark_eater is offline
Old 12-17-21, 09:00 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,107

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3362 Post(s)
Liked 2,002 Times in 1,311 Posts
Given the early 1970s bike boom demands and Raleigh's known consistency issues then I have no surprise at the holes not lining up.

What's the goal w/ this fork? Why do the holes have to be gone? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-17-21, 09:08 PM
  #3
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
My concern is that there a 4 extra unnecessary holed drilled willy nilly in the fork, besides the standard 2 vents. 3 of the additions are in the middle of the blade. Even if they lined up like there was a plan, I would be concerned about stress risers and such. If they don't pose structural problem, I still really don't like having a bunch of random holes drilled through a fork.

Last edited by bark_eater; 12-17-21 at 09:25 PM.
bark_eater is offline
Old 12-17-21, 09:22 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,107

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3362 Post(s)
Liked 2,002 Times in 1,311 Posts
The second issue is how the fork was offered. Were the holes shown or mentioned? If so than you have no claim. If not then maybe. IIRC the usual was for a hole up near the crown and another near the drop out for a total of 4 holes between the two blades. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-17-21, 09:50 PM
  #5
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
Went and stared at it again, and looked at another Raleigh fork that has a total of 4 vents, 2 at the bottom and 2 up higher, above the chrome line. So it could be a factory drunk monkey feature. Perhaps after the fork was made with 2 right side blades, and the fix was to drill 2 extra holes...

So I can fill these with brass?
bark_eater is offline
Old 12-18-21, 03:54 AM
  #6
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 790
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Liked 700 Times in 352 Posts
Originally Posted by bark_eater View Post
Went and stared at it again, and looked at another Raleigh fork that has a total of 4 vents, 2 at the bottom and 2 up higher, above the chrome line. So it could be a factory drunk monkey feature. Perhaps after the fork was made with 2 right side blades, and the fix was to drill 2 extra holes...

So I can fill these with brass?
Yes, remove a little chrome and paint in the vicinity. Either silver in a piece of rod the same diameter as the hole, or just blob some brass on it, either works fine. Braze the hole quickly as you can, but if doing brass I'd probably wave the flame over it just a bit after I was done to slow the cooling a bit. With such a small braze, the self-quench can be fast enough to get a local hard spot. Silver (done right) doesn't get the steel hot enough for the self-quench to matter, so no extra time needed, get in and out about as fast as you can, and don't burn the flux! Faster brazing = smaller heat-affected zone in the steel, and less burnt paint.

File & sand it down, hit it with some black rattlecan and ride proudly.

Don't worry about strength, those blades are plenty thick.

Mark B
bulgie is offline
Old 12-18-21, 09:42 AM
  #7
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
Originally Posted by bulgie View Post
. With such a small braze, the self-quench can be fast enough to get a local hard spot. Silver (done right) doesn't get the steel hot enough for the self-quench to matter, so no extra time needed
Mark B
I hadn't thought about creating a hard spot. With that in mind, would it be a good idea to do any blade rakeing and alignment work before filling the holes?

From the loss of chrome and the miss alignment of the drop outs I'm going to guess the fork blades have been tweeked already a bit.

The steerer tube threads are also a bit suspect with a huge not so "flat" filed into the steerer, and a bit of previous cross threading sign.

The frame itself, I've only noted one absolutely cockeyed braze on and what might be a bulge seat tube at the bottom bracket. That could just be a lump of brass under the paint.

The seller offered me a partial refund, which is fine I guess, as he is certainly not responsible for Raleigh's quality control lapses, or to advertise the bike as a "breath taking example of bike boom drunk monkey nuttery"....
bark_eater is offline
Old 12-18-21, 02:18 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,107

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3362 Post(s)
Liked 2,002 Times in 1,311 Posts
Interesting that the OP has concerns about common vent hole but not re raking

I suggest doing any mods to the fork before using heat on it. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-18-21, 02:34 PM
  #9
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
I think we've determined that 4 are common. 6 are exceptional. Be nice or I'll ask you to do the work...

It looks like the steerer threads went off axis when someone chased them, so that's something else to check as far as my evaluation..
bark_eater is offline
Old 12-18-21, 06:58 PM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,107

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3362 Post(s)
Liked 2,002 Times in 1,311 Posts
I hope the steerer's cross threading is from a race or top nut, only mushing the threads about, and not a die that cuts. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-18-21, 08:27 PM
  #11
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
Originally Posted by Andrew R Stewart View Post
I hope the steerer's cross threading is from a race or top nut, only mushing the threads about, and not a die that cuts. Andy
Its die cut. Theres a distinct transition between the old threads and new and the Raleigh branded threaded cup stops on it.

I'll clean the head set up and put it back together with new ball bearings and see if it binds.
bark_eater is offline
