What exactly will happen if your hubs have a little play?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What exactly will happen if your hubs have a little play?

Old 12-11-17, 04:36 PM
  #151
wphamilton
Senior Member

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2932 Post(s)
Liked 333 Times in 223 Posts
Originally Posted by jack002 View Post
I've always thought that the QR affects the bearing preload. I had a '78 Motobecane and with the poor rear axle design I learned how to replace axles often. I soon learned to leave the races a tiny bit loose when building the wheel. Every time the QR took up the slack and made it perfect. I'd think all of you here who build wheels would know that. 0.2mm? I'd believe it.
They all know that. Someone was arguing that an axle can't compress, someone pointed out that it might bend slightly whether or not it compresses, etc etc but it's all trivial to the point that the QR tightens up the cones.
wphamilton is offline
Old 12-12-17, 11:19 AM
  #152
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,595
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2148 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by sweeks View Post
LoL... I'd need about 6 of them!
Seriously, that's at the top of my list next time I need to actually buy a saddle. I have a nice assortment!
/hijack!
Steve
Hey Steve,

I saw that you PMed me, but being new I can only post 5 timers per day and have to send 10 posts before I can PM. I'll get you later today, hopefully.
Kontact is offline
Old 12-12-17, 12:07 PM
  #153
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,737

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 683 Post(s)
Liked 193 Times in 149 Posts
Originally Posted by Kontact View Post
Hey Steve,

I saw that you PMed me, but being new I can only post 5 timers per day and have to send 10 posts before I can PM. I'll get you later today, hopefully.
No worries!
Steve
sweeks is offline
Old 08-09-20, 03:41 PM
  #154
RowdyTI
Senior Member

Join Date: Aug 2017
Posts: 176
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by Racing Dan View Post
You should err slightly on the loose side. A tiny bit of play at the rim, when the wheel is mounted is fine.
Agreed. Bearings are loaded when you get on the bike. If there's more than slight preload before you get on the bike, the load on the bearings is going to be excessive and cause premature wear. The more loaded, the more rapid the wear.


RowdyTI is offline
Old 08-09-20, 04:28 PM
  #155
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 9,144
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2568 Post(s)
Liked 2,822 Times in 1,507 Posts
shelbyfv is offline
Likes For shelbyfv:
Old 08-09-20, 06:18 PM
  #156
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,737

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 683 Post(s)
Liked 193 Times in 149 Posts
Originally Posted by davidad View Post
You can remove the QR and tread it through a nut large enough to go over the axle and install it on the right side of the hub. When you close the QR it compress the axle as it would be on the bike. Adjust the cone until there is a slight amount of drag on the bearing and tighten the lock nut. When the QR is opened there will be a small amount of play at the axle.
I used an improvised set-up for years, and eventually bought one of THESE, which makes the job much easier.
sweeks is offline
Old 08-09-20, 06:35 PM
  #157
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,737

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 683 Post(s)
Liked 193 Times in 149 Posts
Originally Posted by Andrew R Stewart View Post
Axle bending would help support field evidence of only localized pitting along the ball track's circumference being the typical damage spots. Andy
Well, since someone woke the Dead Thread, I was looking it over.
Wouldn't the fact that the load on the cone's bearing surfaces is applied radially account for the wear being asymmetric on the races?
sweeks is offline
Old 08-09-20, 08:11 PM
  #158
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
The load on the cones isn't radial. Typical bearing contact angles are 20-30* and with the angular forces that a wheel sees during pedaling alternate sides of the bike as well as turns the cones see various non radial forces. My point (if I can think that far back) is that when the cones are miss aligned axially, as with a bowed axle, the balls track both at an angle to the cone axis and that the ball tracks will see more loading where the two cone tracks are closer together. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-10-20, 09:00 PM
  #159
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,737

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 683 Post(s)
Liked 193 Times in 149 Posts
Originally Posted by Andrew R Stewart View Post
...when the cones are miss aligned axially, as with a bowed axle, the balls track both at an angle to the cone axis and that the ball tracks will see more loading where the two cone tracks are closer together.
I agree... it's complicated! Maybe I should have said that there is a *component* of radial loading that is not symmetrical around the race.
If you imagine a loaded wheel which is not rotating, the balls in the top half of the bearing could be completely removed without changing the loading of the balls in the bottom half, which are supporting the entire load. There are those other loads that you mentioned, but there is more load on the bottom of the cone than on the top. This would explain why the bearing cones always (in my admittedly limited experience) start wearing on one half of their circumference. It's also consistent with the change in cone orientation with axle flex during wheel loading. This hypothesis would be confirmed if the orientation of the cones could be known... of course, it never is, so it's nothing more than a reasonably plausible explanation.
Would it be correct to say that this is a justification for having a very slight pre-load (or at least *zero* free play) on the bearings? It seems to me that if the bearing was loose enough, the entire load might be carried on one ball at a time as they rotate in position. This would account for increased wear on bearings that are too loose.
Or... maybe I'm over-thinking this! But there should be no doubt that axle compression occurs under quick-release pressure, and this is sufficient to change bearing adjustment.
sweeks is offline
Old 08-10-20, 09:19 PM
  #160
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
An axle could be marked to track it's rotational position WRT the frame. Sounds like a "science" project for some one here to do.

I've adjusted thousands of hubs and other bearings over the years and have spent some many moments thinking about this stuff over and over (like each time I adjust a bike's front wheel bearings, the wheel that is already off the bike when initially assembled and it's bearing access is so easy to deal with, yet so many are rough and notchy miles/years later. My belief is that most hubs are not properly adjusted during the shop assembly and that most are left way too much preloaded.) If someone does a study on cone rotational position and ball trach wear I will pay attention. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-11-20, 08:05 AM
  #161
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,822

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1136 Post(s)
Liked 969 Times in 638 Posts
The issue with hub play will never be completely resolved as long as manufacturers fail to include acceptable lateral tolerances for an installed wheel.

It is possible to use a dial indicator and determine the amount of lateral play. While I understand that any wheel, just by its construction, can be forced laterally, it would be helpful if a tolerance, just as an example, of .001” to .003” is maintained.

The hub adjustment “feel” and QR test are really based on people’s experience as to what works best. But I’m not sure that obtaining .000” of play is better than .003” for longevity. So a “perfectly” adjusted hub may in fact not be so perfect.

But in the end it is probably just moot. I remember replacing front wheel bearings with a little bit of play and a crown retainer that was anything but precise. Then jumping in and going 70mph on the freeway. Lol!

John
70sSanO is offline
Old 08-11-20, 08:48 AM
  #162
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 525 Post(s)
Likes: 0
Liked 130 Times in 110 Posts
Originally Posted by RowdyTI View Post
Agreed. Bearings are loaded when you get on the bike. If there's more than slight preload before you get on the bike, the load on the bearings is going to be excessive and cause premature wear. The more loaded, the more rapid the wear.


Bearings should have a slight amount of preload or they wear out sooner.
davidad is offline
Old 08-11-20, 12:07 PM
  #163
RowdyTI
Senior Member

Join Date: Aug 2017
Posts: 176
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by Andrew R Stewart View Post
My belief is that most hubs are not properly adjusted during the shop assembly and that most are left way too much preloaded
Exactly. This is my conclusion as well. Even having zero preload, even some clearance -- even a lot of clearance -- is better for bearing life than excessive preload, and it doesn't take much preload before it becomes excessive. Do up the QR or thru axle tightly and you're adding more preload, and you're adding more load just getting on the bike and riding it.

There's a forum member named rydabent who is adamant against preload of any kind. He knows what he's talking about too.
RowdyTI is offline
Old 08-11-20, 01:06 PM
  #164
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 9,144
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2568 Post(s)
Liked 2,822 Times in 1,507 Posts

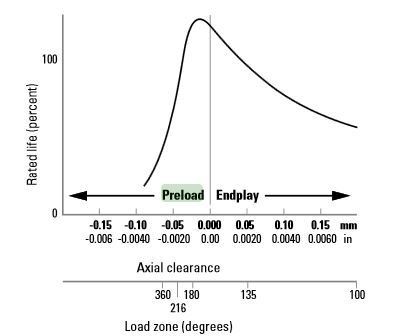

Originally Posted by RowdyTI View Post
Do up the QR or thru axle tightly and you're adding more preload...
Is this still true with cartridge bearing hubs?

Last edited by shelbyfv; 08-11-20 at 01:12 PM.
shelbyfv is offline
Old 08-11-20, 06:30 PM
  #165
RowdyTI
Senior Member

Join Date: Aug 2017
Posts: 176
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by shelbyfv View Post
Is this still true with cartridge bearing hubs?
Yes, it is still true.
RowdyTI is offline
Old 08-11-20, 09:03 PM
  #166
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
Me thinks it depends on the design of the cartridge bearings, "cartridge" being a term of assembly more then actual bearing design. The usual reference of cartridge bearings is for radial contact designs, I would say this is the vast majority of cartridges we see in the bike world. But angular contact types, like what Chris King specs, exist and do take a somewhat different set up. I'll also say that what a bearing designer stipulates and what any specific hub's tolerances are can and do drift. So that the axial end play (which with radial contact designs is not an indication of lacking preload) that many radial contact cartridge bearings are designed around doesn't happen very often for a few reasons. Axle compression/bowing from QR tightening, drop out miss alignment, hubshell/axle bearing seats/shoulders not being exactly the same are all frequent aspects of "fudge", let along the hubs that have threaded axles with a sleeve supporting the bearing's ID. With new and fresh bearings it can be very hard to really know of the true peloads and what direction they are being applied in.

Years ago Southerlands' manual gave a good start to radial cartridge bearing application in our bike world. But after so many decades of adjustable angular contact cup and cone designs we all have as out base line the thought of bearing end plat as felt at the rim is still thought as "wrong" Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-12-20, 01:42 PM
  #167
rydabent
Senior Member

rydabent's Avatar

Join Date: Apr 2010
Location: Lincoln Ne
Posts: 9,088

Bikes: RANS Stratus TerraTrike Tour II

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 2444 Post(s)
Liked 732 Times in 433 Posts
"preload" means you are deforming the bearing races at all times. that is not good.
rydabent is offline
Likes For rydabent:
Old 08-12-20, 02:11 PM
  #168
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
Originally Posted by shelbyfv View Post
FAKE! Shadows in the wrong direction cf. the moon. No gravestone shadow.
madpogue is offline
Likes For madpogue:
Old 08-12-20, 02:20 PM
  #169
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 9,144
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2568 Post(s)
Liked 2,822 Times in 1,507 Posts
Well, it was the best I could find at the time. Figured it was more polite than "Why did some moron dredge up a three year dead thread...." BF should have a flag of some sort or alert saying "Do you really want to do this?" for necro-threaders.
shelbyfv is offline
Old 08-12-20, 03:34 PM
  #170
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
Originally Posted by shelbyfv View Post
BF should have a flag of some sort or alert saying "Do you really want to do this?" for necro-threaders.
If they ever add this functionality, they should incorporate your graphic.
madpogue is offline
Likes For madpogue:
Old 08-12-20, 04:02 PM
  #171
RowdyTI
Senior Member

Join Date: Aug 2017
Posts: 176
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by rydabent View Post
"preload" means you are deforming the bearing races at all times. that is not good.
Exactly. I've read many of your posts and you know what you're talking about. Also just getting on the bike and riding it adds a lot of extra load versus freely spinning the wheels in the stand. Those bearings will heat up and expand as well. A heavy application of quality grease will be for naught if the load on the bearings is excessive. It's clearly documented excessive preload destroys the ability of the grease to do its job.
RowdyTI is offline
Old 08-12-20, 04:50 PM
  #172
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO
Posts: 2,192

Bikes: 2016 Fuji Tread

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 222 Times in 164 Posts
On the other hand, endplay means your hub is not contacting all the balls, with too much load on too few balls. It's not hard to achieve zero endplay with good technique.

And it's easy enough to avoid excessive preload. Hitting that sweet spot on the curve just to the left of zero is the goal.
andrewclaus is offline
Old 08-12-20, 04:59 PM
  #173
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,822

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1136 Post(s)
Liked 969 Times in 638 Posts
With all this deforming and heavy loads are we still talking about bikes?

You know... two wheels, handlebars, kids ride and abuse them all over town.

John
70sSanO is offline
Old 08-12-20, 05:53 PM
  #174
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 9,144
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2568 Post(s)
Liked 2,822 Times in 1,507 Posts
Originally Posted by 70sSanO View Post
With all this deforming and heavy loads are we still talking about bikes?

You know... two wheels, handlebars, kids ride and abuse them all over town.

John
Yeah, maybe a little context. Necro-man posted a half dozen threads related to his reluctance to tighten his thru axle to spec. That seems to have expanded to a general fear of anything more than finger tight. I don't have any explanation for the choice of rydabent as a mechanical reference.
shelbyfv is offline
Old 08-12-20, 08:48 PM
  #175
RowdyTI
Senior Member

Join Date: Aug 2017
Posts: 176
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by 70sSanO View Post
With all this deforming and heavy loads are we still talking about bikes?

You know... two wheels, handlebars, kids ride and abuse them all over town.

John
The bikes we ride are precision instruments, not bikes for little kids. None of us want to ride deformed bearings that don't roll optimally. rydabent has decades of experience as an industry professional. His knowledge is sound and corroborated by other professional sources.
RowdyTI is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
