How hard is it to build a wheel with a dynamo?

Notices
Electronics, Lighting, & Gadgets HRM, GPS, MP3, HID. Whether it's got an acronym or not, here's where you'll find discussions on all sorts of tools, toys and gadgets.

How hard is it to build a wheel with a dynamo?

Old 05-31-21, 07:09 PM
  #1
Alligator
Senior Member
Thread Starter

Alligator's Avatar

Join Date: Sep 2011
Location: Minneapolis, MN
Posts: 170

Bikes: Too many. I’m constantly selling and buying new bikes.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 14 Times in 11 Posts
How hard is it to build a wheel with a dynamo?

I’m considering building my own wheel with a dynamo to power some new lights (Schmidt Edelux II for the front, SON for the rear). I’m not sure what dynamo to get, and it will ultimately go on this Linus bike (https://www.linusbike.com/collection...13276107898903). I’ve never built a wheel before, but have done a fair amount of work on my bikes.

How hard would it be? Is it worth it? Any tips?



Last edited by Alligator; 05-31-21 at 07:10 PM. Reason: Added photo of the bike.
Alligator is offline
Old 05-31-21, 07:37 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,625 Times in 1,167 Posts
There are lots of resources online for learning to build a wheel. It's not something you can easily digest into a forum post.

There is a vendor of dyno wheels on ebay that people like, idc1947. You can get pre-built dyno wheels from other sources. I think that's the way to go unless you really want to start building wheels regularly.
unterhausen is offline
Old 05-31-21, 07:43 PM
  #3
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,673

Bikes: 5 good ones, and the occasional project.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 859 Post(s)
Liked 452 Times in 278 Posts
It's the same as any other wheel build. Hub, rim, a bit of math or an online calculator, spokes. Add in a bit of time & a truing stand. That's it.

Son hubs are great if money isn't a concern. Shutter Precision is good if you don't mind drop shipping from China at ⅓ to ¼ the cost. I've never been impressed by Shimanos' dynamo offerings, but have never really been disappointed either.

You'll want to get a 6 volt, 3 watt hubs if you have a choice about things. Even with modern LED's that don't draw very much, the extra capacity over lesser offerings leaves precious "head space" at slower speeds or USB charging options available for the future.

Anyone who says they can detect a noticable drag from a hub dynamo is lying. It's imperceptible at best in real world riding.

Go nuts!
base2 is offline
Old 06-01-21, 05:59 AM
  #4
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 8,474

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2346 Post(s)
Likes: 0
Liked 591 Times in 486 Posts
It is like building any other wheel, maybe easier than a rear wheel because building a dished rear wheel takes a bit more time to master.

If you can't true up a wheel, learn that first. If you see a cheap or free wheel at a coop or on the curb in the garbage, grab it and try to learn truing up wheels from that.

A good tutorial on wheel building at:
https://www.sheldonbrown.com/wheelbuild.html

I worked in a bike shop decades ago. We did not have a lot of extra truing stands around, so I learned how to true up wheels in the bike frame. I still do not have a truing stand and have no real need for one. A couple of my wheels I had a friend that volunteers time at a bike charity to check the tension on my spokes, I do not have a tension gauge. I think for a beginner it is probably adequate to get the spokes as tight as they are on similar wheels by feel, but getting a gauge or access to one would be better, you be the judge on that.

If you build up a wheel for that bike, that bike has rim brakes. Consider paying a couple extra dollars to get a hub that can also work on disc brakes, that makes the wheel more likely to be used on another bike if you trade up later. And for that reason, I suggest you put your old wheel from that bike in storage in case you sell that bike later, you can keep the complete new wheel. But do not forget you have the old wheel, a friend of mine had a new dynohub wheel built up four years ago, I advised him to have a complete new wheel built and keep his old front wheel in case he later got rid of the bike. He recently sold the bike but forgot he had the original wheel for it in storage, so he now has an old used wheel and no dyno fitted wheel, that was a big ooooops.

That said, the world is going to through axles. So, to truly future proof a wheel build, it would be best to build up a through axle wheel with adapter to work on a conventional quick release fork. But that is more costly. I built up another dynohub wheel in late winter for a rim brake bike. I paid about three Euros more for a disc hub, but I chose not to pay the much larger fee to buy the through axle dynohub and the adapter to use that on a rim brake bike.

Wiring up the lights, Peter White website has very good information on wiring. He is the USA distributor for some of the dynohubs and European light companies. That said, I usually buy that sort of thing from Germany internet sellers, much cheaper but they have a big up front shipping fee so you want to minimize the number of orders if possible.

Good luck.
Tourist in MSN is offline
Old 06-01-21, 07:59 AM
  #5
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,935

Bikes: Fuji Touring, Novara Randonee

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Liked 842 Times in 523 Posts
Lots of questions in a short post, but I'll throw in a few answers and some more comments.

Is is worth it? If you're commuting regularly, a dyno light setup is da bomb. You'll never need to worry about "did I remember to charge my lights?" or "I wonder if the backup blinky batteries are still good" again.

TBH, I've never built a dyno wheel, but I've re-trued a couple when spokes loosened. Dyno drag on the bike is un-noticeable. Dyno "humps" on the truing stand are noticeable. It's slightly more difficult than working on a free-spinning hub.

Buy or build is probably going to be a wash, cost-wise, if you're starting from scratch on wheel tools. Labor on the one hand, truing stand, spoke wrench, and perhaps a tensiometer on the other. I'd buy and read a copy of Brandt's "The Bicycle Wheel" before starting. You can get most of the same information from Sheldon Brown's web site, but this old dinosaur has benefitted from having a physical book to refer to. (Although nowadays you may be able to get by with a tablet, though I'd hate to have to clean oil, grease and shellac from the tablet face.)

Building up your first wheel, you should probably plan on a couple evenings. The challenging parts are lacing the wheel, and then final true and tension balancing, and those take more concentration than anything else.

Which hub? I've got a Shimano and a Schmidt. I got the Schmidt for my backup (rain bike) commuter. The Schmidt is supposedly better for moisture intrusion, although the Shimano's probably seen similar amounts of rain. I haven't seen much difference in 10 and 9 years, respectively, between the two. The Shimano is marginally easier to disconnect when I have a flat.
pdlamb is offline
Old 06-01-21, 08:30 AM
  #6
GhostRider62
Senior Member

Join Date: Apr 2021
Posts: 867
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 534 Post(s)
Liked 406 Times in 251 Posts
Is it worth it financially? No.

Very good wheel builders might charge $60 labor to build a wheel. I think minimally you need a stand, Jobst Brandt's book, and a tensiometer. All together will cost more than 60 bucks. Of course, one could make a truing stand, read online, and try to learn to tone of 125kg. I think most new DIY builders under tension wheels and reason a meter might be needed. You can get away without a dishing tool, just flip it in the stand.

Is it worth it from a personal satisfaction?

I used to build my own wheels and sometimes still do. I think a front wheel is easy to build. I get satisfaction knowing I can do all the repairs on my bike or can easily build up a new one. I have a few tools that will never pay for themselves. If your motivation is along those lines, yes, it is probably worth it. From a cost perspective? very doubtful
GhostRider62 is offline
Old 06-04-21, 11:22 AM
  #7
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 6,603

Bikes: 1980 Mike Melton, 1982 Stumpjumper, 1982 Santana, 1984 Alex Moulton AM, 2008 BikeFriday tikit T-♾, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2019 Surly ½DT14, 2021 Motobecane Turino 1x12

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 847 Post(s)
Liked 379 Times in 245 Posts
You'll earn your spurs building a true, well tensioned wheel using an old (1938-1982) Sturmey Dynohub.
tcs is offline
Old 06-04-21, 06:07 PM
  #8
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
I say do it! I now have two bikes with dynamo hubs.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 07-13-21, 03:18 PM
  #9
Harhir
Senior Member

Harhir's Avatar

Join Date: Oct 2003
Location: Plano, TX
Posts: 517

Bikes: ‘94 Fahrradmanufaktur Trekking Bike, ‘88 Gazelle Primeur, ‘00 Lightning Phantom, ‘99 and ‘01 bikeE, ‘9x bikeE2 and more to come.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 48 Times in 31 Posts
Building is not difficult. I have build several wheels. With and without dynamos. A truing stand is really handy when you do so. As for the dynamo: I have two bikes with Shimano dynamos and one bike with a SON 28. Yes the SON is quieter and has less resistance but it is not that noticeable. The expensive parts can be the spokes when you build yourself. My local bike store charged $1.50 per spoke. At 36 spokes this added up to over $60 with tax just for the spokes. Add the rim and a decent dynamo the price can easily exceed $150 for the whole wheel.

Also check ebay for complete wheels. I found a 700c wheel with a Shimano hub dynamo here in the US some time ago. It was brand new. The seller took it off a new bike. Came with a cheap front light and all the cables. I paid $70 for it. Yes the rim might look a bit different than the other rim but I did not care at that price.
Harhir is offline
Old 07-15-21, 02:55 PM
  #10
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
Building a wheel with a dynamo hub is a tiny, tiny bit more difficult than with a normal hub, only because it's heavier. Sometimes I hold the whole wheel up by one spoke, and I have to support the weight of the extra 500 grams. Not a big deal.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-19-21, 09:09 AM
  #11
Harhir
Senior Member

Harhir's Avatar

Join Date: Oct 2003
Location: Plano, TX
Posts: 517

Bikes: ‘94 Fahrradmanufaktur Trekking Bike, ‘88 Gazelle Primeur, ‘00 Lightning Phantom, ‘99 and ‘01 bikeE, ‘9x bikeE2 and more to come.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 48 Times in 31 Posts
This guy on ebay sells complete 700C wheels with hub dynamo for $125. It is hard to get a wheel built at that price. Free shipping out of CA.
https://www.ebay.com/itm/28417102098...4AAOSwcTJgGoH0
Harhir is offline
Likes For Harhir:
Old 07-20-21, 09:00 PM
  #12
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
Originally Posted by Harhir View Post
This guy on ebay sells complete 700C wheels with hub dynamo for $125. It is hard to get a wheel built at that price. Free shipping out of CA.
https://www.ebay.com/itm/28417102098...4AAOSwcTJgGoH0
I'm glad to see he's back in business! I bought one of his wheels in 2014, and it is flawless. I prefer to build my own wheels, but I couldn't do it this cheaply.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-20-21, 09:13 PM
  #13
znomit
Zoom zoom zoom zoom bonk

znomit's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 4,336

Bikes: Giant Defy, Trek 1.7c, BMC GF02, Fuji Tahoe, Scott Sub 35

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 422 Post(s)
Liked 491 Times in 248 Posts
Originally Posted by Harhir View Post
This guy on ebay sells complete 700C wheels with hub dynamo for $125. It is hard to get a wheel built at that price. Free shipping out of CA.
https://www.ebay.com/itm/28417102098...4AAOSwcTJgGoH0
Rosebikes out of Germany do good deals too.
znomit is offline
Old 07-21-21, 11:42 AM
  #14
ted_major
Senior Member

ted_major's Avatar

Join Date: Oct 2008
Location: Tuscaloosa, Ala.
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 18 Times in 14 Posts
Jobst Brandt’s book is really great for understanding how bicycle wheels work, but as a novice wheel builder, I found Roger Musson’s book more useful. It’s a more practical step-by-step guide. I’m glad I have both, but if I had to pick one, Musson’s is easier to follow.
ted_major is offline
Old 08-02-21, 05:18 PM
  #15
ironwood
Senior Member

Join Date: Nov 2009
Location: Boston area
Posts: 1,928

Bikes: 1984 Bridgestone 400 1985Univega nouevo sport 650b conversion 1993b'stone RBT 1985 Schwinn Tempo

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 481 Post(s)
Liked 81 Times in 54 Posts
There seems to be a consensus that the SON dynamo hubs are the best. I've built two wheels with Kasai dynamos and have had not problems. At $137 from Rivendell they are half the price of a SON dynamo.

Having a dynamo is so convenient; You always have light when you want it.
ironwood is offline
Old 08-02-21, 05:24 PM
  #16
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,625 Times in 1,167 Posts
I'm not sure why people keep posting in this thread, OP never came back.
unterhausen is offline
Likes For unterhausen:
Old 08-08-21, 07:01 AM
  #17
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,743

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
Originally Posted by unterhausen View Post
I'm not sure why people keep posting in this thread, OP never came back.
Yes, but the information may be useful to others.

I started using dynohubs on my folding bikes before getting involved with building wheels with them. Eventually I built a wheel for my road bike using a Shutter Precision hub I got on sale (probably because it's red...). I had several thousand miles of good performance out of a later-generation Joule hub on my Tern folder. This hub was also made by SP, so when the rim wore out, I built a new wheel with the existing hub. I used a different rim, so new spokes were required. This hub has almost 10,000 miles on it now.

The reference I use mainly is Roger Musson's Professional Guide to Wheel Building. I also refer to Sheldon Brown, Jobst Brandt and Park Tools, but Musson's book is clear and straightforward and I've annotated my own printed-out copy over the years so I have my own tips and tricks at my fingertips. I don't build wheels often enough to remember all the details between builds!

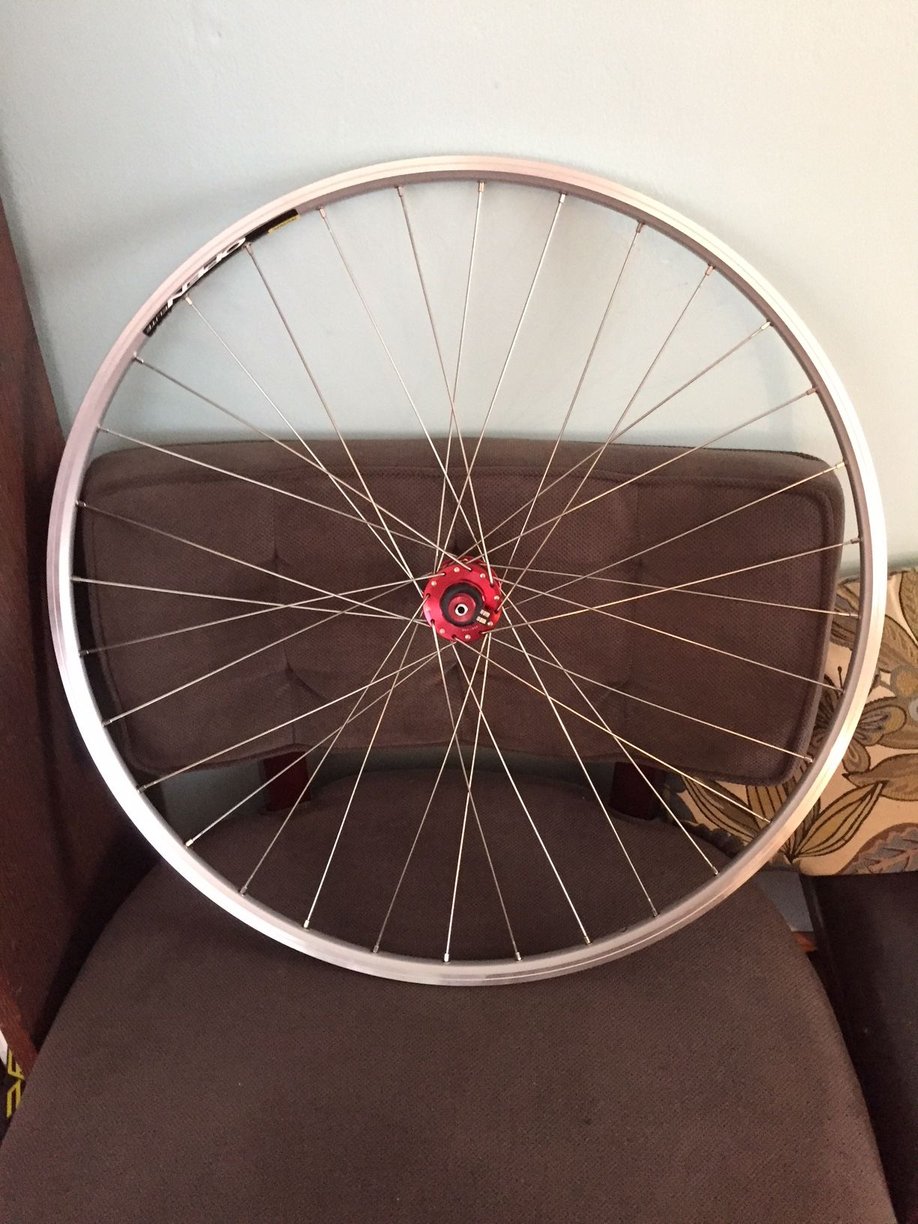

Built this 7ooc wheel while laid up with a broken ankle. :-)

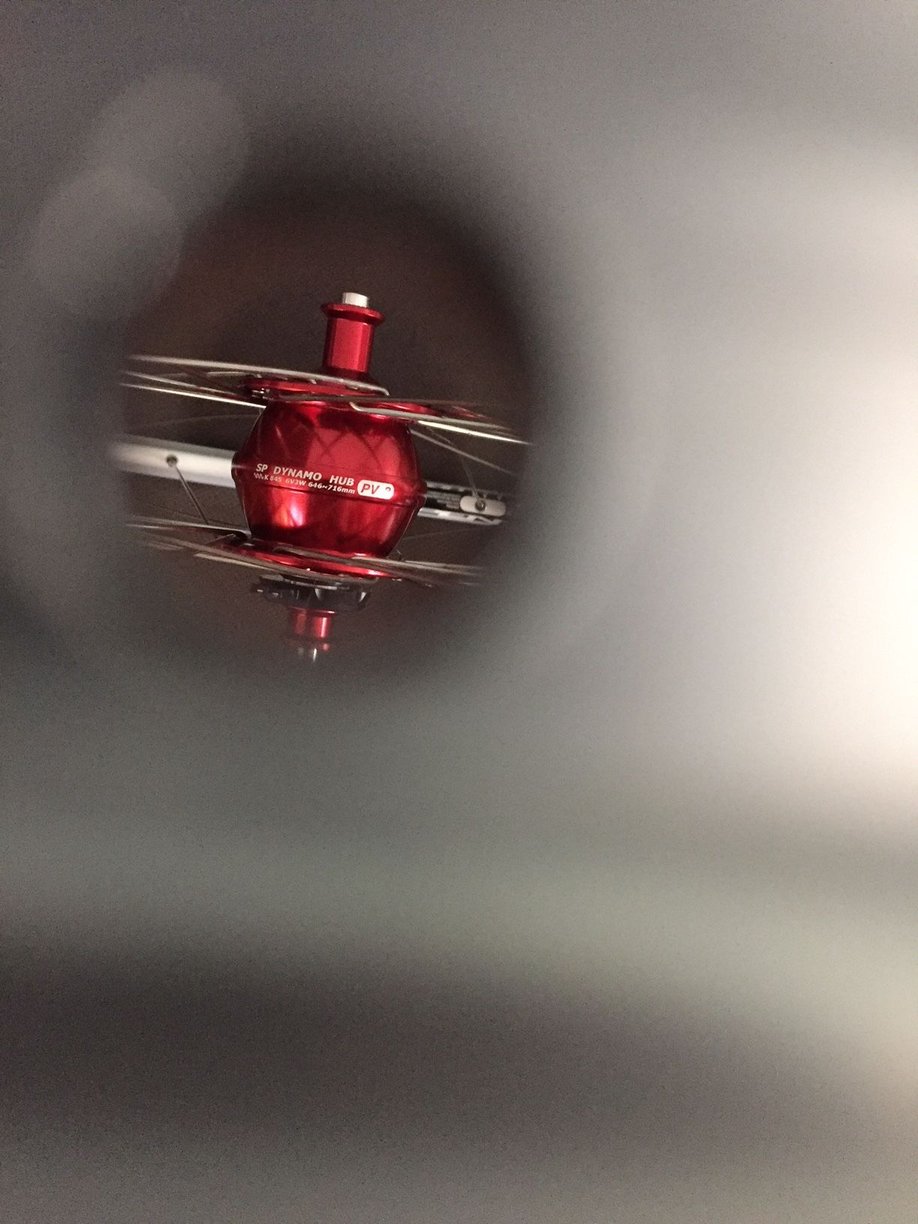

Hub maker's mark viewed through valve hole.

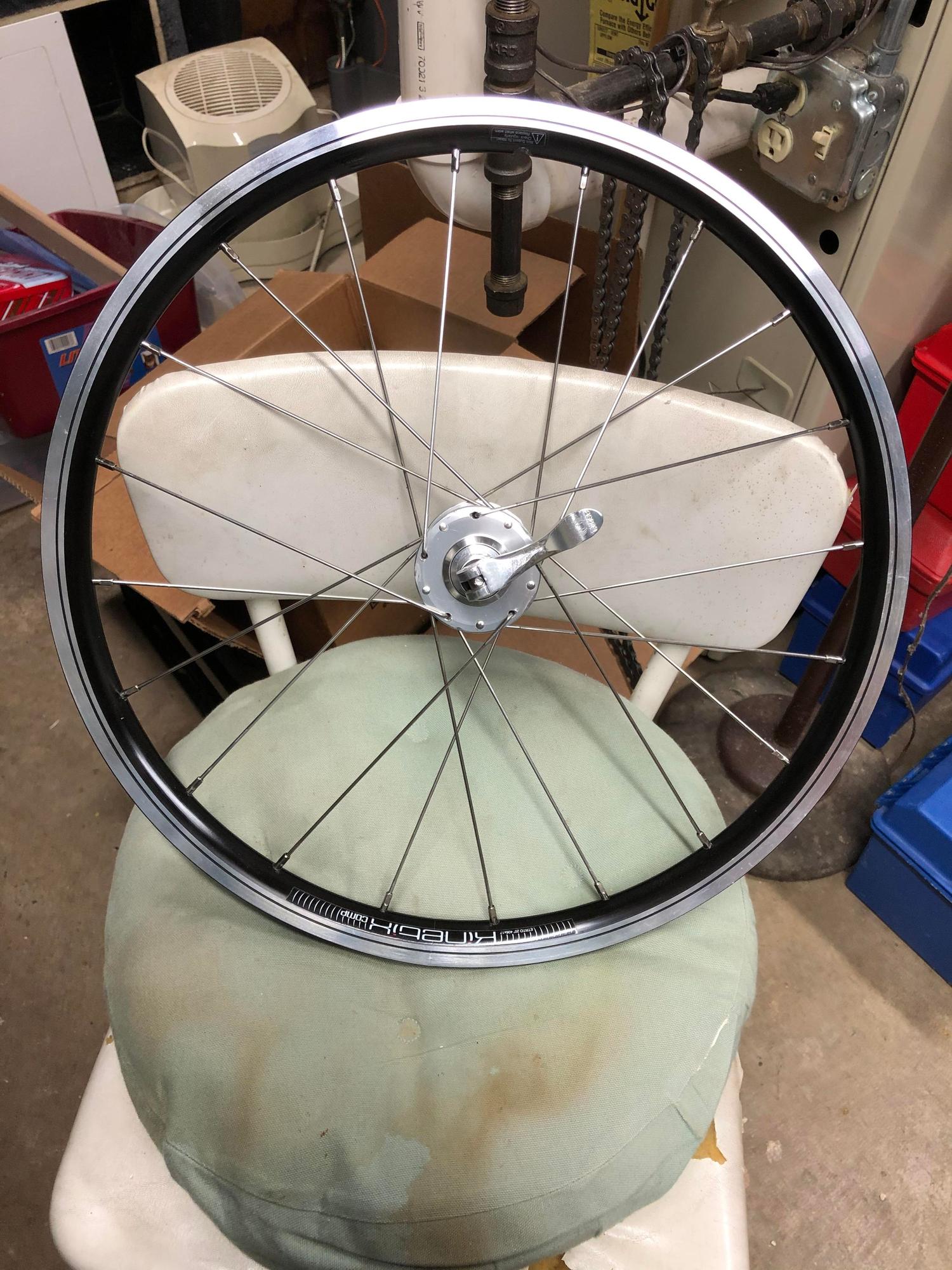

New rim and spokes on well-used SP hub.
sweeks is offline
Likes For sweeks:
Old 08-08-21, 07:27 AM
  #18
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,625 Times in 1,167 Posts
Unless you want to build a number of wheels, even the minimum investment isn't worth it. My favorite wheel building story is when I was working as a mechanic in the '70s, someone came in and wanted to build a wheel. Which was borderline insane, because our charge to build a wheel was way too low. He said, "I'll be able to figure it out because I'm a mechanical engineering grad student." I told him I was a mechanical engineering undergrad, and that he would be back. Surprisingly, he came back when he couldn't figure it out. In his defense, this was before the availability of wheel building books and the internet.

Even with all the info out there nowadays, people don't really build very good wheels a lot of times. This is true of some people that work in bike shops.
unterhausen is offline
Old 08-08-21, 08:17 AM
  #19
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,743

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
Originally Posted by unterhausen View Post
Even with all the info out there nowadays, people don't really build very good wheels a lot of times. This is true of some people that work in bike shops.
Heh... the incident that got me started building my own wheels was a disappointment with a bike shop. I needed a new rim on a 20" wheel with an internally-geared hub. I took it to a well-regarded bike shop for a re-build. When I got it back, I found that the mechanic had built it with spokes crossing over the valve hole. I *could* get the pump head on the valve stem, but just. I took the wheel back to the shop and was told that the mechanic had quit to work elsewhere, so he couldn't re-do the work... and the shop manager declined to make it right. So I did it myself! The wheel lasted until it needed another rim, and I've been doing my own wheels ever since.
For the record, I am not a mechanical engineer... I was a chemistry major.
sweeks is offline
Old 08-08-21, 09:16 AM
  #20
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 8,474

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2346 Post(s)
Likes: 0
Liked 591 Times in 486 Posts
Originally Posted by unterhausen View Post
...
Even with all the info out there nowadays, people don't really build very good wheels a lot of times. This is true of some people that work in bike shops.
You probably recall on any threads on Rohloffs, I always point out that the wheel builder needs to read the Rohoff instructions before they build the wheel.

A few years ago I was in a bike shop, I had my Rohloff bike with me.

A mechanic saw it and went over to look at the bike for several minutes. Then he asked why the wheel was built two cross, and before I could answer he said he was going to build a Rohloff wheel for a customer but was waiting for the spokes to come in as they did not stock those shorter spokes, and he of course would do it right with three cross.

I already knew the answer, but I asked the question, had he read the Rohloff instructions for wheel building? He said he had built wheels before, he did not need to read any instructions. I told him if he had read the instructions, he would know why it was two cross. I have no clue what he did, but I suspect that his customer has had lots of broken spokes.

I am not a mechanical engineer, or chemist I am a geological engineer (retired). I worked in a bike shop before I went to college, back in the pre-internet days of punch cards and punched paper tape. I am pretty good at trig, but the few times I thought about the math to figure out spoke lengths, I gave up.
Tourist in MSN is offline
Likes For Tourist in MSN:
Old 08-08-21, 11:30 AM
  #21
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,625 Times in 1,167 Posts
I probably made the 2x/3x mistake on my last wheel, just made it 3x out of habit. We'll see how that works out. BITD, we always used 3x on high flange hubs and it worked fine, 4x also works fine. There is no doubt 2x is better though.

Most mechanical engineers are not particularly mechanically inclined. Half of the department works in thermal systems. The other half works on dynamics. Very few profs work in anything mechanically related. Structural design is either in the civil engineering department or the aero department. The mechanical engineering department had a "product dissection" lab for a while. It was pretty embarrassing, to be honest. I think at least 1/3 of the class was taking a bike apart and putting it back together. Lots of ruined tools, especially pedal wrenches.
unterhausen is offline
Likes For unterhausen:
Old 08-08-21, 01:16 PM
  #22
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 8,474

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2346 Post(s)
Likes: 0
Liked 591 Times in 486 Posts
Originally Posted by unterhausen View Post
I probably made the 2x/3x mistake on my last wheel, just made it 3x out of habit. We'll see how that works out. BITD, we always used 3x on high flange hubs and it worked fine, 4x also works fine. There is no doubt 2x is better though.

Most mechanical engineers are not particularly mechanically inclined. Half of the department works in thermal systems. The other half works on dynamics. Very few profs work in anything mechanically related. Structural design is either in the civil engineering department or the aero department. The mechanical engineering department had a "product dissection" lab for a while. It was pretty embarrassing, to be honest. I think at least 1/3 of the class was taking a bike apart and putting it back together. Lots of ruined tools, especially pedal wrenches.
For most things, three and maybe four cross is ok, but with a Rohloff the flanges are so wide and so far apart that the spoke angle at the nipple is far from perpendicular. Plus, the way the Rohloff flange is designed, if a builder is not careful they can lace it in such a way that where the shell splits and the side plate (held on with 8 or 9 Torx screws), the spokes would be bent on the side plate if they laced it wrong.

I have worked with some mechanical engineers that seemed to be very good at what they did, but they were unable to fix their car door or something simple like that.
Tourist in MSN is offline
Likes For Tourist in MSN:
Old 08-08-21, 05:22 PM
  #23
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,725
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1010 Post(s)
Liked 943 Times in 499 Posts
Originally Posted by unterhausen View Post
........ Surprisingly, he came back when he couldn't figure it out. In his defense, this was before the availability of wheel building books and the internet.
there were sources back then that shared the methods of building wheels. I think I learned it from Sloan's "Complete Book of Bicycling", with a bit of help from the Cyclo-Pedia catalog (or was it the other way around?). Either way, it was around 1974 when I was in 9th grade that I built my first set of wheels. The only tool was a Cyclo spoke wrench, I think. Sunshine hubs and Weinmann dimpled rims, with Robergel spokes. Nothing fancy, but I was very happy with the results.

Steve in Peoria
steelbikeguy is offline
Old 08-09-21, 04:52 AM
  #24
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 8,474

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2346 Post(s)
Likes: 0
Liked 591 Times in 486 Posts
Originally Posted by steelbikeguy View Post
..., with a bit of help from the Cyclo-Pedia catalog (or was it the other way around?). ...
The bike shop I worked at was Wheel Goods in Minneapolis. If that is the catalog I think you are citing, the shop I worked at produced and sold stuff from that catalog. The owner of the store also had a number of distribution contracts with European manufacturers. If you bought a Raleigh in Iowa or a Gitane in Indiana, the owner of our shop made money. It was a big operation.

That was half a century ago so I do not remember much in detail, but I think wheel building was reserved for about three mechanics that were keepers of the secret arts. Everybody trued wheels, but with the shortage of truing stands, most of use just used the bike frame or fork and rim brake pads as our truing stands. To this day I do not own or use a truing stand. The catalog did not have any spoke wrenches in it, but it had a wide variety of nipple grippers.
Tourist in MSN is offline
Old 08-09-21, 06:33 AM
  #25
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,725
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1010 Post(s)
Liked 943 Times in 499 Posts
Originally Posted by Tourist in MSN View Post
The bike shop I worked at was Wheel Goods in Minneapolis. If that is the catalog I think you are citing, the shop I worked at produced and sold stuff from that catalog. The owner of the store also had a number of distribution contracts with European manufacturers. If you bought a Raleigh in Iowa or a Gitane in Indiana, the owner of our shop made money. It was a big operation.

That was half a century ago so I do not remember much in detail, but I think wheel building was reserved for about three mechanics that were keepers of the secret arts. Everybody trued wheels, but with the shortage of truing stands, most of use just used the bike frame or fork and rim brake pads as our truing stands. To this day I do not own or use a truing stand. The catalog did not have any spoke wrenches in it, but it had a wide variety of nipple grippers.
Cyclo-Pedia was run by Gene Portuesi in Cadillac, Michigan. The catalog says he started his importing business in the 30's. Not sure when he started the catalog. I liked it because it was a handy way to mail-order European stuff, especially the little bits.
The first catalog that I had (and still have) was the 11th edition, dating to around the mid 70's. The catalog doesn't have prices printed in it. Instead, there was a separate price sheet.
The cover of this edition of the catalog:



The wheel building instructions were typical of the era... heavy on text, and light on graphics. Still, that was good enough, and I don't recall struggling with the concepts much. Here are the first two pages ......




Steve in Peoria
steelbikeguy is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
