Steelman Cyclocross Frame - Salvageable?

Hey Framebuilders,

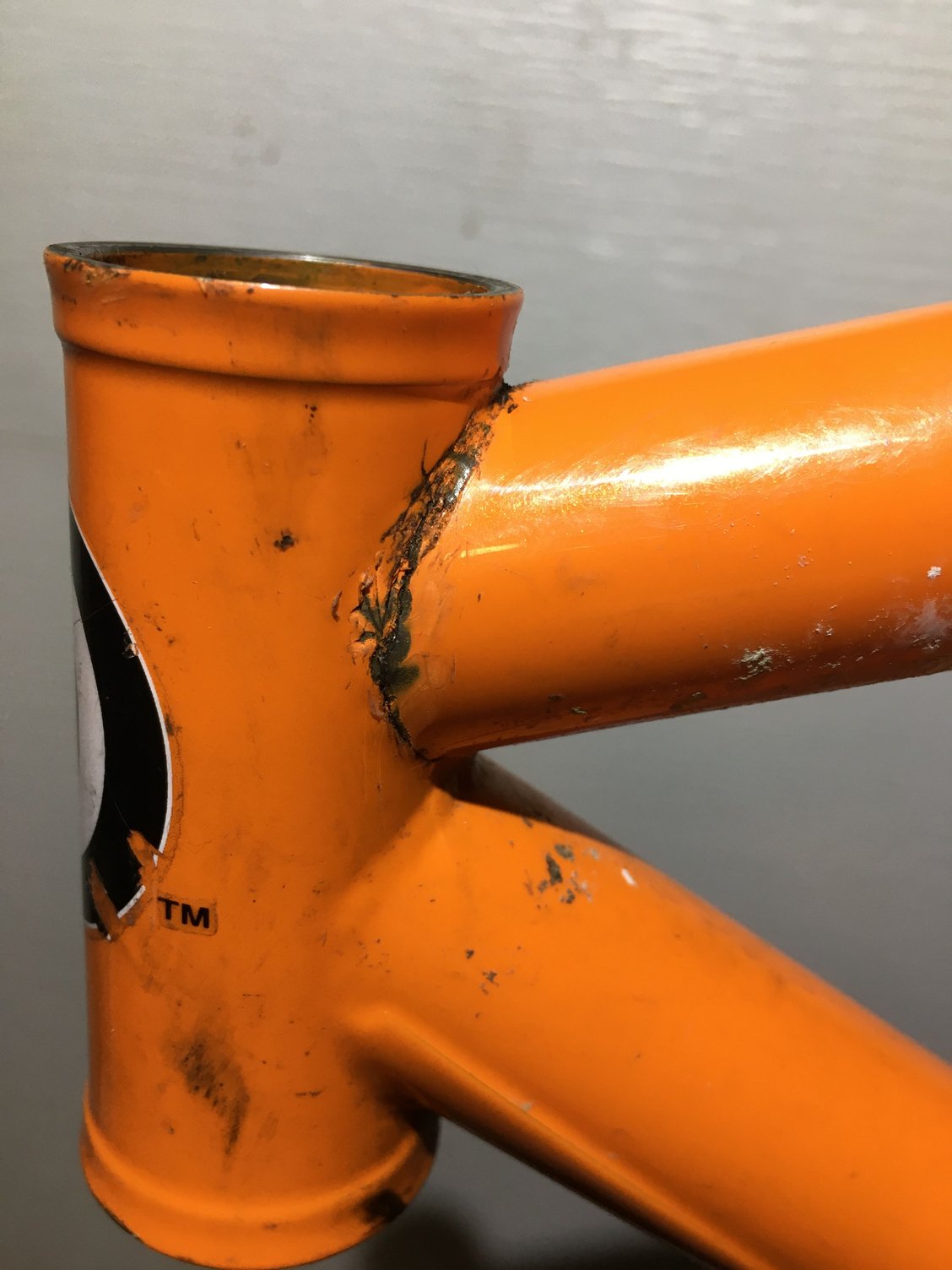

I found this Steelman frame in the scrap pile at the dump today, and Iím wondering if itís wall art, or could it be repaired? Also, weíre used to seeing the gusset on the downtube, but this one cracked at the toptube; what causes that? I guess the downtube gusset protects against the stresses of aggressive riding, but maybe this frame was ridden into a wall?

Any info would be enlightening.

Thanks!






JacobLee is offline
Old 07-08-21, 12:27 AM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,026
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,627 Times in 1,169 Posts
The reason it was at the dump is that there is no way to economically repair that.
unterhausen is offline
Likes For unterhausen:
Old 07-08-21, 01:38 AM
  #3
guy153
Senior Member

Join Date: Dec 2019
Posts: 606
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 123 Times in 101 Posts
Frame is toast. But you could replace the TT which might be a fun project. Why did it fail there? Probably also just from hard use (and maybe it would have failed at the DT if it hadn't been for the gusset). It looks more like fatigue than brick wall to me because there are no ripples, it's just cracked without apparently deforming first. Steel isn't brittle like that.
guy153 is offline
Old 07-08-21, 03:51 AM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,053
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14466 Post(s)
Liked 2,435 Times in 1,812 Posts
Does that have a horizontal top tube,or a sloping top tube?

I'm not sure about competitive cyclocross, but if it was a road bike the based on the seat post, I'd choose a frame 1" or 2" taller.

I wonder if the short head tube caused stress to the area.
CliffordK is online now
Old 07-08-21, 06:34 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,026
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,627 Times in 1,169 Posts
It could have started because of a front hit, but more likely it had a defect in the weld due to the lack of real estate on the head tube. I would have thought it would start between the tubes, but it appears to have started at the top.

You might find someone to repair it, it shouldn't be cheap. Some people give away their labor though.
unterhausen is offline
Likes For unterhausen:
Old 07-08-21, 09:00 AM
  #6
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 505

Bikes: More Than Enough

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 209 Post(s)
Liked 274 Times in 133 Posts
Thanks, everyone. Iím pretty sure this is from the horizontal top tube era, when cross frames still had dt shifter bosses. They also usually had a matching steel fork, so thatís why a front impact seemed likely. Maybe someone rode it with a different fork until the frame crack appeared. Who knows. Itís way too small for me, so I doubt Iíll go to great lengths to fix it. At least if I put it back in the scrap pile, it wonít have a perfectly smooth UN-71 bb and a bunch of other cool parts left on it!
JacobLee is offline
Old 07-08-21, 09:44 AM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,026
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,627 Times in 1,169 Posts
There is an advantage to level top tubes with cx bikes because they are easier to shoulder. Dual water bottle cages argue against it being a pure CX bike though.
unterhausen is offline
Old 07-08-21, 11:14 AM
  #8
pwyg
Member

Join Date: May 2013
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Yes it is

A top tube replacement is as basic as it gets. The biggest issue is you do not want to tig it again as tig characteristics are even poorer on the second weld. It will have to be a fillet repair which will take away the hardening aspect of tig welding. I would check the frame for internal corrosion to ensure it has not checked out on the inside due to lack of ventilation which is common with many builders.
pwyg is offline
Old 07-08-21, 12:34 PM
  #9
headwind15
Bikeable

headwind15's Avatar

Join Date: Jan 2011
Posts: 216
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Likes: 0
Liked 61 Times in 42 Posts
Cutting the top tube out is really easy if you use a 4.5" angle grinder with a 1/16" disc cutting wheel, making small cuts just behind the tig weld all the way around.
headwind15 is offline
Old 07-08-21, 01:16 PM
  #10
guy153
Senior Member

Join Date: Dec 2019
Posts: 606
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 123 Times in 101 Posts
Originally Posted by pwyg View Post
A top tube replacement is as basic as it gets. The biggest issue is you do not want to tig it again as tig characteristics are even poorer on the second weld. It will have to be a fillet repair which will take away the hardening aspect of tig welding. I would check the frame for internal corrosion to ensure it has not checked out on the inside due to lack of ventilation which is common with many builders.
The HT and the top of the ST are pretty thick though and you're replacing the TT. So it would probably be all right.
guy153 is offline
Old 07-08-21, 06:20 PM
  #11
GrayJay
Senior Member

GrayJay's Avatar

Join Date: Sep 2009
Location: EagleRiver AK
Posts: 1,254
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 9 Times in 6 Posts
The frame does have a lot of neat features and craftsmanship that could justify saving it. A repair could be made in which you cut the existing broken TT several inches forward from the seat cluster, fashion the remains of the existing TT stub into a lug shape to mimic the similar lug layer at top of the seattube. The existing (broken) TT looks a bit oversize so you could replace it with a slightly smaller (1"?) tube that would slip into the newly formed lug and then get brazed together. Benefit of this approach would be less disruption, re-welding of the frame at the seat cluster area. The miter at front end at the head tube (where the break was) could be fillet brazed (after cutting & grinding away all of the old broken TT) or else fabricate another similar bi-laminate lug at front to match the back of the TT.
GrayJay is offline
Old 07-08-21, 07:30 PM
  #12
JacobLee
Senior Member
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 505

Bikes: More Than Enough

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 209 Post(s)
Liked 274 Times in 133 Posts
Wow, lots of cool ideas. Iíll probably try to pass this frame along to someone who might actually be able to execute the repair! If anyone around Portland, Or, is interested, let me know.
JacobLee is offline
Old 07-09-21, 09:21 AM
  #13
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 376
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Liked 62 Times in 39 Posts
Originally Posted by GrayJay View Post
The frame does have a lot of neat features and craftsmanship that could justify saving it. A repair could be made in which you cut the existing broken TT several inches forward from the seat cluster, fashion the remains of the existing TT stub into a lug shape to mimic the similar lug layer at top of the seattube. The existing (broken) TT looks a bit oversize so you could replace it with a slightly smaller (1"?) tube that would slip into the newly formed lug and then get brazed together. Benefit of this approach would be less disruption, re-welding of the frame at the seat cluster area. The miter at front end at the head tube (where the break was) could be fillet brazed (after cutting & grinding away all of the old broken TT) or else fabricate another similar bi-laminate lug at front to match the back of the TT.
In practice this would be hard. The ID of existing tube as a lug won't likely match the OD of a new tube with gaps suitable for brazing. It wouldn't be a hard fix really to cut the tube out and fillet braze a new one in with a bi-lam treatment on the HT to add some strength back. This would be a bit tricky due to the short HT but, if silver brazed and use fillet pro for the fillet, I think it could work. And I'm a fan of Steelman so I would say it's worthwhile for someone who could do the repair themselves.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com

Last edited by duanedr; 07-09-21 at 09:33 AM.
duanedr is offline
Old 07-09-21, 09:42 AM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,053
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14466 Post(s)
Liked 2,435 Times in 1,812 Posts
What if one just cleaned it up and rewelded. Grinding down the original weld some (V-grind the crack if possible). Especially grind a V in the gusset.

It may not bring the frame back to 100%. I wouldn't do competitive cyclocross on it. However, it should be usable for typical city/commuter riding, and certainly could extend the life of the frame for some time.

Personally I have troubles getting a good weld in a deep V between tubes, and that could be a weak spot, although the gussets should help.

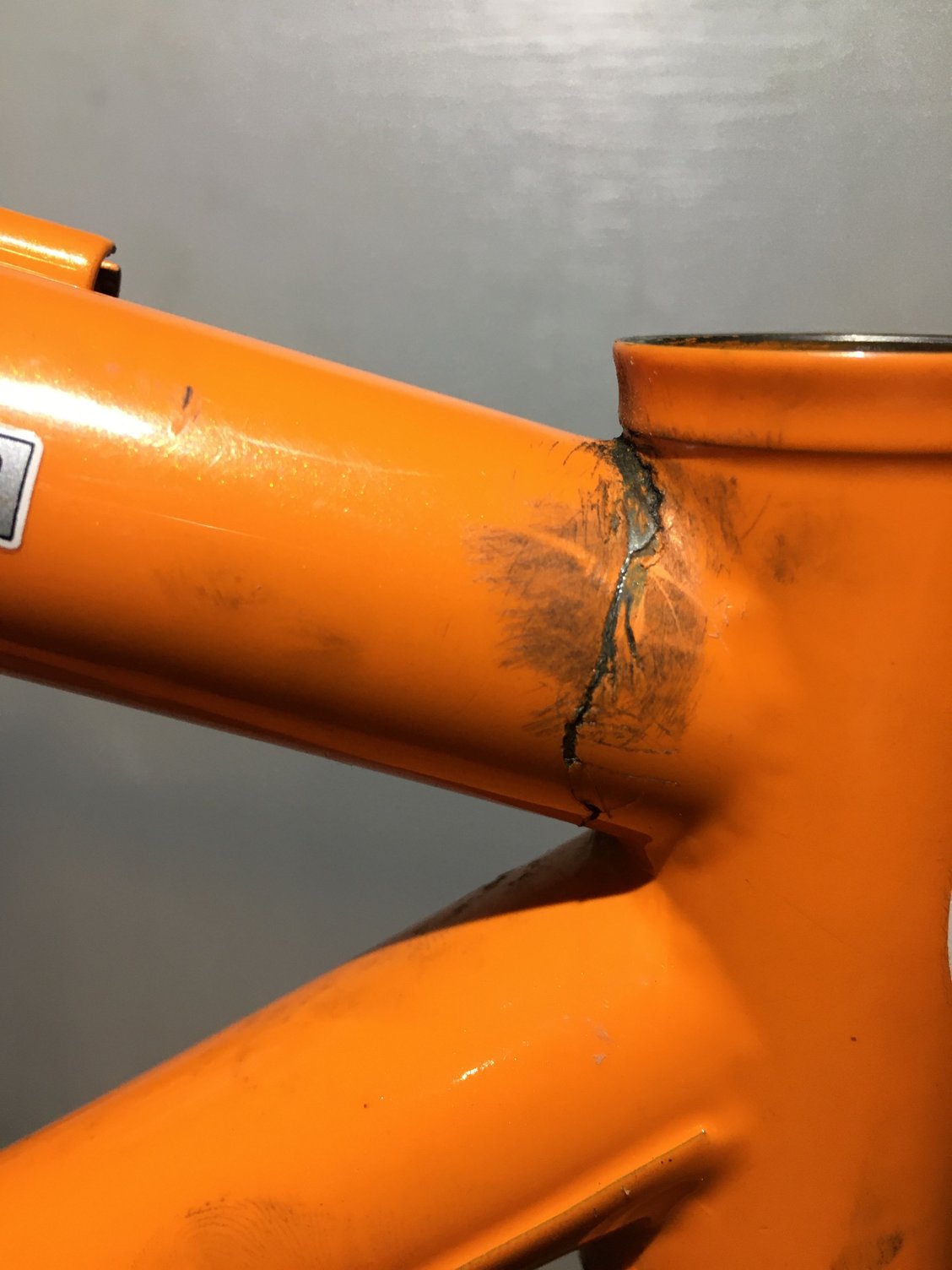

On the right side, the crack does deviate from the head tube, but still should be weldable,and still should be within the double butting if the tubes are double butted.
CliffordK is online now
Old 07-09-21, 10:10 AM
  #15
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,026
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,627 Times in 1,169 Posts
Sure, just get the stick welder out
unterhausen is offline
Old 07-09-21, 08:23 PM
  #16
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,860

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2691 Post(s)
Liked 1,401 Times in 871 Posts
I suspect economical repair is not possible unless you're willing and able to do the work yourself.
JohnDThompson is offline
Old 07-09-21, 08:57 PM
  #17
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,336 Times in 934 Posts
I've seen plenty of welded repairs over the years. As much as I am not a fan of welded joining I have to say most of the repairs were still "working" when I have seen them.

My repair would involve partial TT replacement. I have a lathe so can turn an internal sleeve. Or an external one.

The first thing to do is to strip off the paint from the HT and a few inches of BOTH the TT and DT. Then look really well for other issues before going forward. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-11-21, 01:59 AM
  #18
guy153
Senior Member

Join Date: Dec 2019
Posts: 606
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 123 Times in 101 Posts
Originally Posted by CliffordK View Post
What if one just cleaned it up and rewelded. Grinding down the original weld some (V-grind the crack if possible). Especially grind a V in the gusset.

It may not bring the frame back to 100%. I wouldn't do competitive cyclocross on it. However, it should be usable for typical city/commuter riding, and certainly could extend the life of the frame for some time.

Personally I have troubles getting a good weld in a deep V between tubes, and that could be a weak spot, although the gussets should help.

On the right side, the crack does deviate from the head tube, but still should be weldable,and still should be within the double butting if the tubes are double butted.
It can be rewelded fine IMO. But what you would do is cut out the whole TT and sand the HT and ST ends back to smooth metal. No grooves or anything, just get rid of the entire original tube and the welds. Since both those tubes are quite thick (HT probably 1.3mm, that ST lug probably more) there's plenty of good metal to weld to. Then just mitre a new tube and TIG weld it in and it will look like new.

You can see Brodie did this with some CS:


The BB shell is also thick enough to just grind it back and reweld onto it. In fact with the exception of where the ST joins the ST all the joints on a bike frame are thin to thick and the thick end will stand rewelding.
guy153 is offline
Old 07-11-21, 02:02 AM
  #19
guy153
Senior Member

Join Date: Dec 2019
Posts: 606
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 123 Times in 101 Posts
Originally Posted by unterhausen View Post
Sure, just get the stick welder out
Well at least then you won't have any difficult dilemmas about whether to save the frame or not... After five minutes of going at it with the stick it won't even be wall-art any more.
guy153 is offline
Old 07-11-21, 09:19 AM
  #20
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,026
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,627 Times in 1,169 Posts
I think I see evidence that the head tube has cracked. At some point you just have to cut your losses. Or find someone to replace the whole front triangle. The previous owner decided it wasn't worth saving, that's a pretty good data point for me.

The OP is a self answering question in my way of thinking. Either you know it can be saved because you can do it yourself, or it's probably too expensive. Although like I said up-thread, there are people that do repairs for cheaper than the same work on a new frame. Which always has bothered me.
unterhausen is offline
Likes For unterhausen:
Old 07-11-21, 01:25 PM
  #21
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,993

Bikes: Homebuilt steel

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked 145 Times in 114 Posts
If that frame were mine I'd cut off the top tube and dress it back in similar fashion to that show in the Brodie video. Look for cracks in the head tube as unterhausen suspects after the metal is clean. If it looks okay, then the light is green to replace the tube. I think the frame alignment should be checked and adjusted before mitering the new tube. After that though, it's a fairly simple matter to install a new tube. Steelman frames are cool so to me it would be a worthily project.
Nessism is online now
Likes For Nessism:
