Minimum Carbon steerer tube insertion into stem

I'd like to gain some height on my handle bars, but currently my steerer tube is just proud (1-2mm) of the top of the stem (40mm stack height). I've read that the top of the steerer tube needs to be at minimum, level with the top bolt of a 2-bolt stem. Now that was for aluminum or a chromo-fork. That could be different for a carbon steerer tube because of the location of compression plug used to connect the top cap and the steerer tube.

My question is can I add a spacer under my stem to gain a little height?

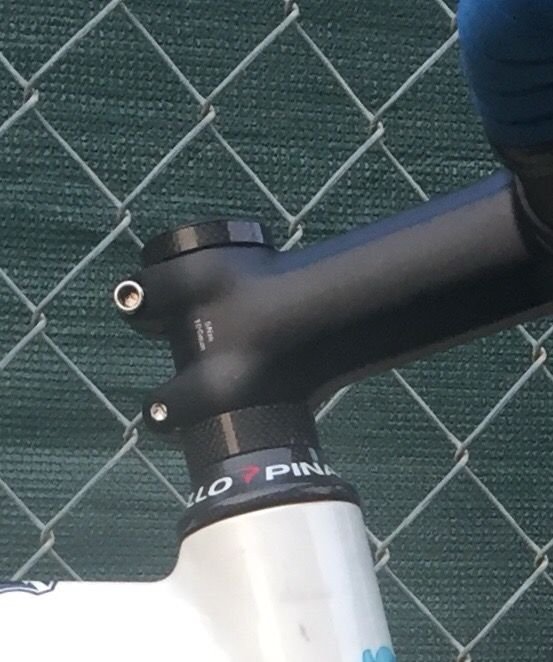

See pic.

lyle.coop is offline
Old 07-20-21, 08:55 AM
  #2
cuevélo
Senior Member

Join Date: Jun 2007
Location: Maine
Posts: 214

Bikes: '20 Scott Addict RC 30, '13 Trek Soho Deluxe, '91 Greg Lemond Maillot Jaune, Mid '70s Cuevas

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 46 Times in 21 Posts
If you want more height, flip your stem instead. That will affect your reach as well, but it will be a starting point to try out.

Stem Comparison Tool | yojimg.net
cuevélo is offline
Likes For cuevélo:
Old 07-20-21, 09:04 AM
  #3
aliasfox
Senior Member

Join Date: Aug 2019
Posts: 211
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 42 Times in 35 Posts
My understanding is that you should always have a spacer above your stem for a carbon fiber steerer. The issue (as I've read) is that if you put the top bolt of the stem too close to the edge of the CF, you may end up crimping the unsupported, open end of the steerer. With an alloy/steel steerer tube, you could always have your stem be 2-3mm above the top of the steerer and be fine.

But yes, in this case, flipping your stem is likely a better option for minute changes. I currently run with a 10mm spacer above my stem, and a 5mm spacer below my stem, which allows me to go 5mm up or 5mm down from my current position. I had 20mm extra sticking out before (for a total of 30mm above the stem), but that was definitely excessive.
aliasfox is offline
Likes For aliasfox:
Old 07-20-21, 09:49 AM
  #4
Broctoon
Super-duper Genius

Broctoon's Avatar

Join Date: Aug 2016
Location: Muskrat Springs, Utah
Posts: 986
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked 229 Times in 139 Posts
They say the steerer is more likely to crack if you don’t have it protruding at least 10mm above the top of the stem.

So that’s what I did with the last one I cut (the only carbon one I’ve ever gotten new).

I bought a fork with the carbon steerer already cut, and to get the stem height I want, I positioned spacers so there’s 5mm of protrusion. Figure at least it’s not flush or below the stem top. I’m going to see what happens. (I know, I like living on the edge.) So far, my bike has not exploded.


Broctoon is offline
Likes For Broctoon:
Old 07-20-21, 09:55 AM
  #5
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 10,720

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T Lab X3

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 734 Times in 456 Posts
I don’t run any steerer above my stem; I always cut just under flush, but I also use use a long expander plug, specifically Deda plugs, so the entire clamp area is supported.

Assuming use of such a plug in this case, yeah, you could probably add a 3mm spacer, but what are you going to gain from 3mm? I wouldn’t bother. I’d change the stem to get the rise I wanted.
chaadster is offline
Likes For chaadster:
Old 07-20-21, 10:02 AM
  #6
lyle.coop
Senior Member
Thread Starter

Join Date: Jul 2021
Location: NYC
Posts: 50

Bikes: Specialized Allez Comp Double, Canfield Balance, Giant Glory Advanced 0, GT Ruckus DJ

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by chaadster View Post
I don’t run any steerer above my stem; I always cut just under flush, but I also use use a long expander plug, specifically Deda plugs, so the entire clamp area is supported.

Assuming use of such a plug in this case, yeah, you could probably add a 3mm spacer, but what are you going to gain from 3mm? I wouldn’t bother. I’d change the stem to get the rise I wanted.
Yeah 3mm isn't gonna make a difference. For now I'm going to flip the stem (90mm, 10 degree) and move some of the spacers under the stem to above the stem.
lyle.coop is offline
Likes For lyle.coop:
Old 07-20-21, 11:55 AM
  #7
Broctoon
Super-duper Genius

Broctoon's Avatar

Join Date: Aug 2016
Location: Muskrat Springs, Utah
Posts: 986
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked 229 Times in 139 Posts
For preventing cracks, it’s probably more important to ensure there are no irregularities inside the stem’s clamp area, like burrs or trapped debris.
Broctoon is offline
Old 07-20-21, 11:59 AM
  #8
datlas
Beyond Bogus

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 35,799

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 502 Post(s)
Tagged: 2 Thread(s)
Quoted: 15573 Post(s)
Liked 3,528 Times in 1,763 Posts
Originally Posted by lyle.coop View Post
I'd like to gain some height on my handle bars, but currently my steerer tube is just proud (1-2mm) of the top of the stem (40mm stack height). I've read that the top of the steerer tube needs to be at minimum, level with the top bolt of a 2-bolt stem. Now that was for aluminum or a chromo-fork. That could be different for a carbon steerer tube because of the location of compression plug used to connect the top cap and the steerer tube.

My question is can I add a spacer under my stem to gain a little height?

See pic.

No. Flip stem upwards to start as suggested above.
__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is online now
Old 07-20-21, 12:16 PM
  #9
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 6,834

Bikes: Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 3468 Post(s)
Liked 3,692 Times in 1,863 Posts
Doesn't he need a spacer under the stem so the top cap is acting on the STEM, not bottoming out on the steerer? Or am I missing something?
__________________
"Don't take life so serious-it ain't nohow permanent."
genejockey is online now
Likes For genejockey:
Old 07-20-21, 12:25 PM
  #10
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 817

Bikes: Cannondale Synapse, Trek FX 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 211 Times in 167 Posts
Originally Posted by genejockey View Post
Doesn't he need a spacer under the stem so the top cap is acting on the STEM, not bottoming out on the steerer? Or am I missing something?
That was what I thought too, that the top of the stem (or the spacer above the stem) must be about 2 mm higher than the top edge of the steerer, so that tightening the top cap preloads the steerer tube bearings.
SoSmellyAir is offline
Likes For SoSmellyAir:
Old 07-20-21, 12:31 PM
  #11
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 817

Bikes: Cannondale Synapse, Trek FX 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 211 Times in 167 Posts
Originally Posted by aliasfox View Post
The issue (as I've read) is that if you put the top bolt of the stem too close to the edge of the CF, you may end up crimping the unsupported, open end of the steerer. With an alloy/steel steerer tube, you could always have your stem be 2-3mm above the top of the steerer and be fine.
My bike does not permit spacers above the stem, because the carbon steerer tube is supported by the metal top cap (at the top stem bolt) and by an expander plug (at the bottom stem bolt), and the distance between the top cap and the expander plug is adjustable (to account for the stack height of the stem).
SoSmellyAir is offline
Old 07-20-21, 01:32 PM
  #12
topflightpro
Senior Member

topflightpro's Avatar

Join Date: Jul 2007
Posts: 7,416
Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1797 Post(s)
Liked 581 Times in 364 Posts
It used to be that carbon steertube forks commonly suggested putting a spacer above the stem. That is no longer really the case, and many manufacturers now stipulate their should be no spacers above the stem. It really depends on the model and manufacturer.

OP, you can probably add a 2-5mm spacer under your stem and be fine. It looks like you actually need another spacer to give you the ability to compress your headset with the top cap. Though, as already noted, if you need to raise your bars, flipping the stem is a great idea. It will shorten the reach though. This site is great for seeing how your reach and drop will change by flipping your stem: Stem Comparison Tool | yojimg.net
topflightpro is offline
Old 07-20-21, 03:09 PM
  #13
aliasfox
Senior Member

Join Date: Aug 2019
Posts: 211
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 42 Times in 35 Posts
Originally Posted by SoSmellyAir View Post
My bike does not permit spacers above the stem, because the carbon steerer tube is supported by the metal top cap (at the top stem bolt) and by an expander plug (at the bottom stem bolt), and the distance between the top cap and the expander plug is adjustable (to account for the stack height of the stem).
Hmm. I don't think I've seen a setup quite like that, but it doesn't sound like a standard compression plug. Good to know that something like that's an option though.
aliasfox is offline
Old 07-20-21, 03:29 PM
  #14
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 10,720

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T Lab X3

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 734 Times in 456 Posts
Originally Posted by genejockey View Post
Doesn't he need a spacer under the stem so the top cap is acting on the STEM, not bottoming out on the steerer? Or am I missing something?
No, not if preload was set with a spacer on top of the stem. Once preload is set and the stem bolts tightened, the top cap and the spacer below it can be removed, which is what I’d assume we’re looking at in that picture. I’d probably run a top cap— the kind with an apron which overlaps the steerer— rather than run with the uncovered look, but for the ultimate weight-weenie, “a gram saved is a watt earned,” I suppose.

Last edited by chaadster; 07-20-21 at 03:37 PM.
chaadster is offline
Old 07-20-21, 03:37 PM
  #15
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 6,834

Bikes: Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 3468 Post(s)
Liked 3,692 Times in 1,863 Posts
Originally Posted by chaadster View Post
No, not if preload was set with a spacer on top of the stem. Once preload is set and the stem bolts tightened, the top cap and the spacer below it can be removed, which is what I’d assume we’re looking at in that picture. I’d probably run a top cap— the kind with an apron which overlaps the steerer— rather than run with the uncovered look, but for the ultimate weight-weenie, “a gram saved is a watt earned,” ai suppose.
Given the nature of the questions the OP is asking I would not make that assumption.
__________________
"Don't take life so serious-it ain't nohow permanent."
genejockey is online now
Old 07-20-21, 03:39 PM
  #16
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 10,720

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T Lab X3

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 734 Times in 456 Posts
Originally Posted by genejockey View Post
Given the nature of the questions the OP is asking I would not make that assumption.
You think they’re riding around with a loose headset? The question was about adding a spacer below, not adjusting the headset preload.
chaadster is offline
Old 07-20-21, 03:56 PM
  #17
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 6,834

Bikes: Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 3468 Post(s)
Liked 3,692 Times in 1,863 Posts
Originally Posted by chaadster View Post
You think they’re riding around with a loose headset? The question was about adding a spacer below, not adjusting the headset preload.
Those are not unrelated.
__________________
"Don't take life so serious-it ain't nohow permanent."
genejockey is online now
Old 07-20-21, 04:17 PM
  #18
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 10,720

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T Lab X3

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 734 Times in 456 Posts
Originally Posted by genejockey View Post
Those are not unrelated.
No…
chaadster is offline
Old 07-20-21, 04:37 PM
  #19
bahula03
Senior Member

Join Date: Sep 2012
Posts: 318
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 38 Times in 22 Posts
Originally Posted by SoSmellyAir View Post
That was what I thought too, that the top of the stem (or the spacer above the stem) must be about 2 mm higher than the top edge of the steerer, so that tightening the top cap preloads the steerer tube bearings.
For "standard" carbon steerer/threadless setup, having the top of the steerer 1-2mm below the top of the stem is correct. The sometimes needed spacer above the stem is there to make sure that the compression from the top cap is following the correct "path" and that the bottom of the top cap doesn't contact the top of the compression plug before there's adequate preload. Given how much variance there is in the design of this stuff, if you aren't sure, the easy/smart thing to do is ask the company that made your bike

Originally Posted by SoSmellyAir View Post
My bike does not permit spacers above the stem, because the carbon steerer tube is supported by the metal top cap (at the top stem bolt) and by an expander plug (at the bottom stem bolt), and the distance between the top cap and the expander plug is adjustable (to account for the stack height of the stem).
That seems like an...interesting design. Makes me wonder why they didn't just go with a compression plug long enough to cover the length of the stem clamp.
bahula03 is offline
Old 07-20-21, 09:17 PM
  #20
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,396

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1377 Post(s)
Liked 607 Times in 430 Posts
As long as there's compression plug bearing on the steerer behind both bolts, you should be able to get away with whatever, but I'd be uncomfortable with anything more than 2mm below the top of the stem.
Kimmo is offline
