How much pitting is too much? Pedals

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How much pitting is too much? Pedals

Old 07-27-21, 08:24 PM
  #1
AJI125
Senior Member
Thread Starter

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 333

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 134 Times in 83 Posts
How much pitting is too much? Pedals

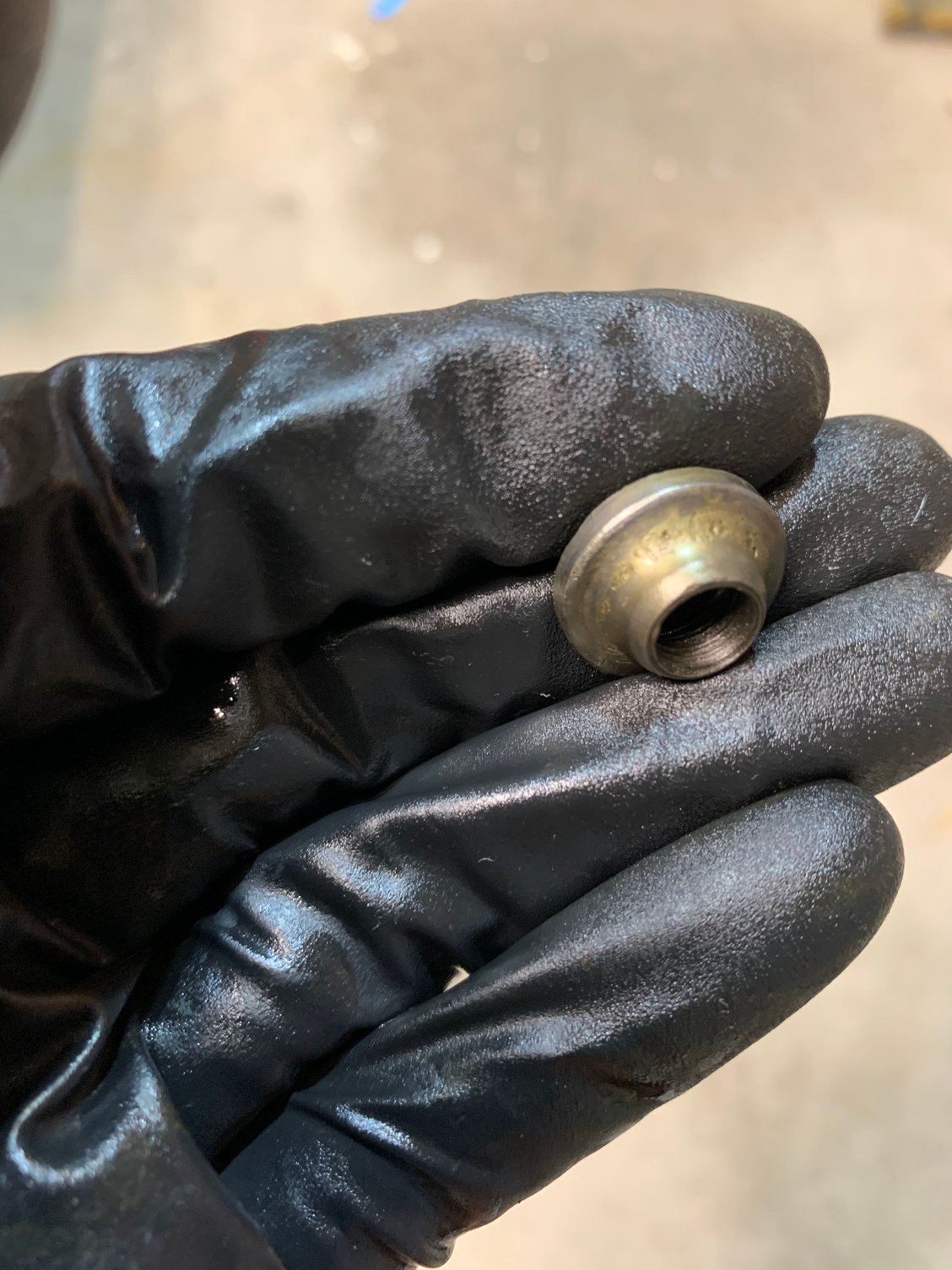

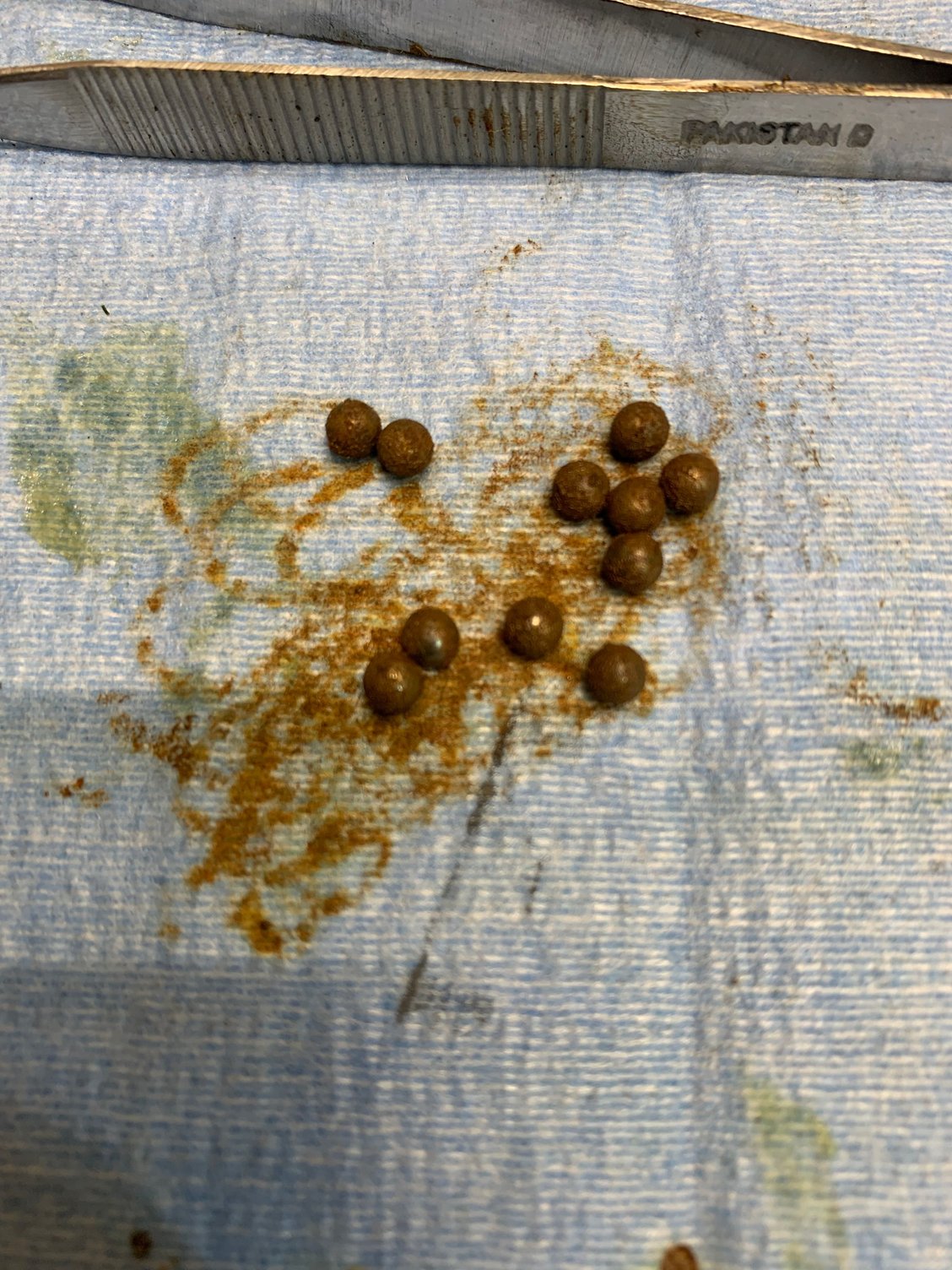

Only torn down one pedal so far and derusted. I was hoping to use these OEM pedals but itís not looking good. These are the outer bearing surfaces (inners arenít too bad). Is this just not worth messing with any further? Or would I maybe get decent life out of them if the inner bearing surfaces arenít bad? Havenít really dealt with much pitting in my bike ventures to this point - figure I should toss these in the bin for spare parts but if anyoneís got ideas Iím all ears. Of course Iíd use new balls if I do rebuild them, just donít want to waste my time and lose my bearingsÖ







AJI125 is offline
Old 07-27-21, 09:17 PM
  #2
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 897
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 160 Times in 117 Posts
I'd be looking for some new pedals. You might get a few more miles out of these while you look but they're well on there way out. Actually, they're gone.

Last edited by Hobbiano; 07-27-21 at 09:19 PM. Reason: added some words
Hobbiano is offline
Old 07-28-21, 12:04 AM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,370

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 162 Post(s)
Tagged: 0 Thread(s)
Quoted: 2546 Post(s)
Liked 1,819 Times in 1,224 Posts
Originally Posted by AJI125 View Post
Only torn down one pedal so far and derusted. I was hoping to use these OEM pedals but itís not looking good. These are the outer bearing surfaces (inners arenít too bad). Is this just not worth messing with any further? Or would I maybe get decent life out of them if the inner bearing surfaces arenít bad? Havenít really dealt with much pitting in my bike ventures to this point - figure I should toss these in the bin for spare parts but if anyoneís got ideas Iím all ears. Of course Iíd use new balls if I do rebuild them, just donít want to waste my time and lose my bearingsÖ







Agreed with these being pretty bad, BUT new bearings are cheap, like our own labor.

I often use regular thick axle grease and set these up just a bit loose when a build or a bike doesn't warrant or I don't want to give up on a part like this.

You can get a lot of life out of these if you want, albeit with a little compromise.

Never say die!
merziac is offline
Likes For merziac:
Old 07-28-21, 12:57 AM
  #4
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,646

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1905 Post(s)
Liked 2,154 Times in 1,203 Posts
Depends what the purpose is. How many bikes do you have? You can usually get some really good Japanese pedals for fairly cheap ($20).

I would fully overhaul these, polish the cages, and use them on a flip. I wouldn't adjust them loose, because loose pedals tend to knock, which is incredibly annoying even if it's slight.

@Mad Honk would file the cone and maybe the race as well.
SurferRosa is offline
Old 07-28-21, 01:10 AM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,370

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 162 Post(s)
Tagged: 0 Thread(s)
Quoted: 2546 Post(s)
Liked 1,819 Times in 1,224 Posts
Originally Posted by SurferRosa View Post
Depends what the purpose is. How many bikes do you have? You can usually get some really good Japanese pedals for fairly cheap ($20).

I would fully overhaul these, polish the cages, and use them on a flip. I wouldn't adjust them loose, because loose pedals tend to knock, which is incredibly annoying even if it's slight.

@Mad Honk would file the cone and maybe the race as well.
Like I said, a bit loose, tiny bit, no knock, minimal grind, patience grasshopper.
merziac is offline
Old 07-28-21, 01:15 AM
  #6
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,646

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1905 Post(s)
Liked 2,154 Times in 1,203 Posts
Originally Posted by merziac View Post
a bit loose, tiny bit, no knock, minimal grind, patience grasshopper.
I have no patience for loose pedals!

"Now snatch the [pedal] from my hand."
SurferRosa is offline
Likes For SurferRosa:
Old 07-28-21, 04:31 AM
  #7
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 930

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 80 Times in 67 Posts
Originally Posted by merziac View Post
Agreed with these being pretty bad, BUT new bearings are cheap, like our own labor.

I often use regular thick axle grease and set these up just a bit loose when a build or a bike doesn't warrant or I don't want to give up on a part like this.

You can get a lot of life out of these if you want, albeit with a little compromise.

Never say die!
This. Likely last years and you won't notice anything.
What have you got to lose?
blamester is offline
Likes For blamester:
Old 07-28-21, 05:20 AM
  #8
AJI125
Senior Member
Thread Starter

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 333

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 134 Times in 83 Posts
Originally Posted by merziac View Post
Agreed with these being pretty bad, BUT new bearings are cheap, like our own labor.

I often use regular thick axle grease and set these up just a bit loose when a build or a bike doesn't warrant or I don't want to give up on a part like this.

You can get a lot of life out of these if you want, albeit with a little compromise.

Never say die!
Sounds like I need to go get some axle grease and give this a try. Thanks!

AJI125 is offline
Likes For AJI125:
Old 07-28-21, 05:28 AM
  #9
AJI125
Senior Member
Thread Starter

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 333

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 134 Times in 83 Posts
Originally Posted by SurferRosa View Post
Depends what the purpose is. How many bikes do you have? You can usually get some really good Japanese pedals for fairly cheap ($20).

I would fully overhaul these, polish the cages, and use them on a flip. I wouldn't adjust them loose, because loose pedals tend to knock, which is incredibly annoying even if it's slight.

@Mad Honk would file the cone and maybe the race as well.
As I was messing with this first pedal and looking at the bearing surfaces I thought of his headset thread too. Currently enough rideable bikes and this is an early 70s mostly period correct build in mind. And enough spare pedals laying around to get me moving at least. I think this is worth a shot but not stuck on these for the build, as it seems easy enough to find MKS and KKT pedals from the 1970s or so, and these are just (neat looking and OEM) steel cage MKS Unique Road quills.
AJI125 is offline
Likes For AJI125:
Old 07-28-21, 06:49 AM
  #10
onyerleft
Senior Member

onyerleft's Avatar

Join Date: Jan 2018
Posts: 1,056

Bikes: Pedaling for the Lord!

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Likes: 0
Liked 185 Times in 132 Posts
I'd stick with the pedals. Pitting adds character. Just sayin'.
onyerleft is offline
Old 07-28-21, 11:45 AM
  #11
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,117
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1960 Post(s)
Liked 800 Times in 620 Posts
Toast.
But, I would measure and see if you could remove the race and sub a annular contact cartridge bearing. will need a jam nut to replace the cone.
repechage is offline
Old 07-28-21, 04:37 PM
  #12
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,719
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Liked 939 Times in 495 Posts
It might be an interesting experiment to see just how long it takes for the pitting to advance to a stage where there is no question about whether they are suitable for use. Make sure you keep track of the miles and check the pedal regularly.

Practically... I wouldn't use them for rides of any length, but I've got plenty of spare pedals that are in good shape.

Steve in Peoria
steelbikeguy is offline
Old 07-28-21, 07:07 PM
  #13
Mr.Toolbox
Senior Member

Join Date: Sep 2015
Posts: 59
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Put in new balls and new grease (new cones if you have ) and ride on. I have pedals that are worn as well but I just ride on.
Mr.Toolbox is offline
Old 07-28-21, 07:22 PM
  #14
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,848

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2688 Post(s)
Liked 1,397 Times in 868 Posts
What pedals are those? I've found that Campagnolo pedal cones can often be found, and will interchange with some other cones, e.g. Gipiemme, Ofmega, Miche. The cups in the pedal body appear to be in decent condition.
JohnDThompson is offline
Old 07-28-21, 07:53 PM
  #15
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,585

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 689 Post(s)
Liked 577 Times in 438 Posts
As the few around here have said I would look at the cones and races carefully and determine if they are bad enough to toss the pedals. The biggest problem is the amount of weight per ball bearing used during a ride. The pedals are normally pretty durable and I have even talked wit a fellow who switched to Ceramic balls in his pedals. He is riding cross country on his bike and goes from co-op to co-op to get around. Ceramic balls need no lubrication but cost $5+ to start. But the upside is no maintenance. With old school pedals it is not always an option to grind the soft metal of the cones down to get them smooth again. Being soft steel they may not hold the polishing well. The outer races can be easily polished but the cones are a bit problematic. Smiles, MH
Mad Honk is offline
Old 07-28-21, 08:26 PM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,117
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1960 Post(s)
Liked 800 Times in 620 Posts
Originally Posted by SurferRosa View Post
I have no patience for loose pedals!

"Now snatch the [pedal] from my hand."
prehistoric float
repechage is offline
Likes For repechage:
Old 08-10-21, 08:59 PM
  #17
AJI125
Senior Member
Thread Starter

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 333

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 134 Times in 83 Posts
Finally got some axle grease and rebuilt with new bearings (had a week vacation mixed in there too). Needed to get them done and off the workbench. The bad one shown in the pictures is going to need more adjustment (or maybe just toast). It either knocks slightly or grinds. The other pedal was surprisingly great with little pitting if any and spinning smoothly now. These are MKS Unique Road pedals from around 1972 (Campy copies apparently).

I also found some interesting 1970s MKS Unique Royal pedals on the Ďbay for relatively cheap so Iím gonna check them out and see how they compare, and maybe swap a cone if theyíre built the same (or just use them).
AJI125 is offline
