1969 Paramount questions and build thread

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1969 Paramount questions and build thread

Old 10-29-22, 07:05 PM
  #1
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
1969 Paramount questions and build thread

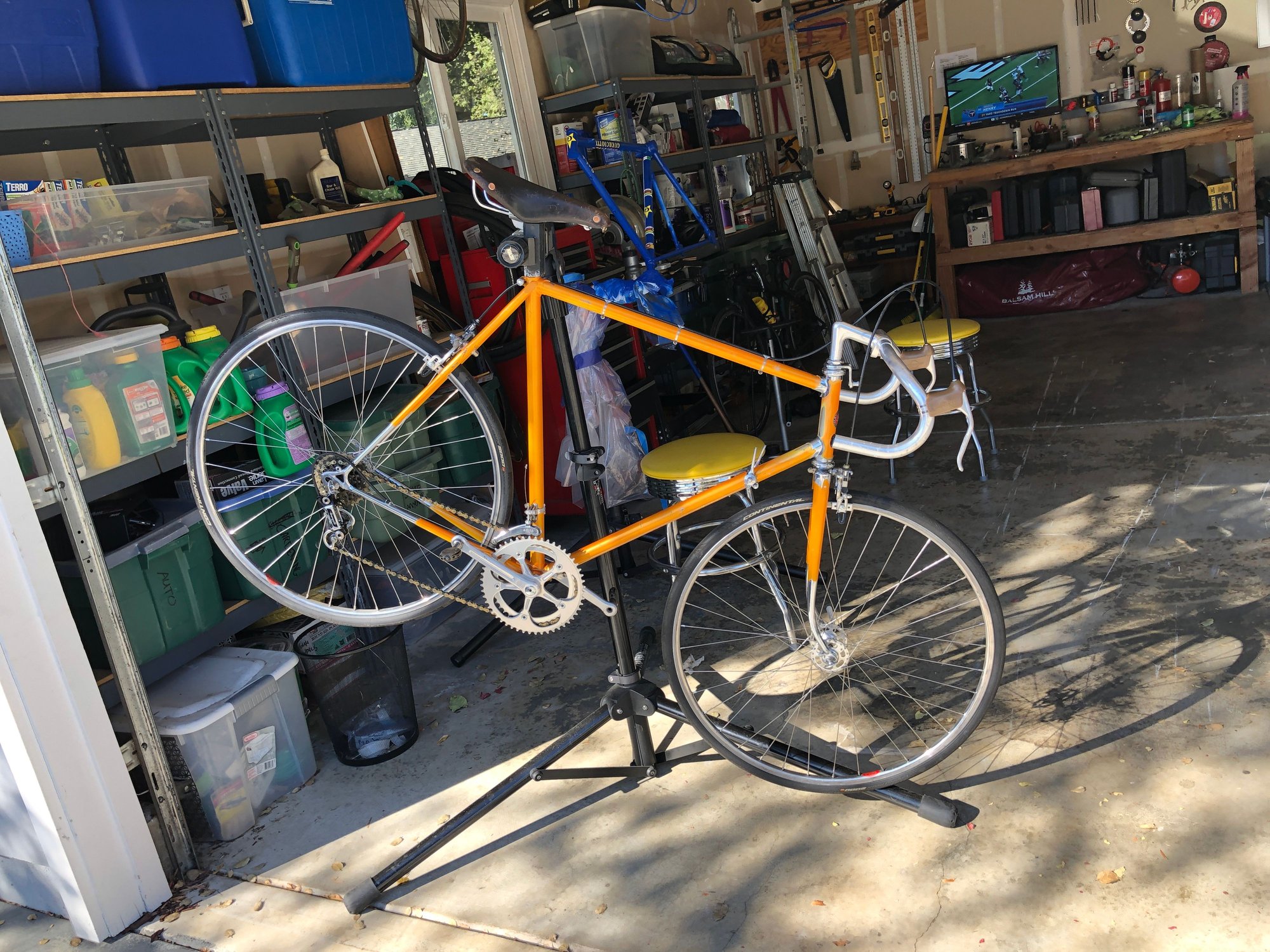

I picked this up earlier this week after seeing it on the eBay CL thread. It was advertised as an early 70ís paramount.

serial number of K942. Based on the Waterford guide I think itís from October of 1969. Am i interpreting this correctly or could it be something else?

Would this have come with Nouvo Tipo hubs and 27Ē Fiamme rims?

is there a way to tell what model Paramount this is?




SwimmerMike is offline
Old 10-29-22, 07:35 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
-----

congratulations on the new arrival...looking good...luv the colour

have never heard of any model of Paramount of any year coming with NT hubs or FIAMME wired-on rims

the curved lever QR skewers that are in there did not exist in 1969

pedals are Sheffield Nr. 655 which also came on no Paramount of any year

that pesky Acer-Mex has now taken the place of the Guerc as an explosives specialist


-----
juvela is offline
Likes For juvela:
Old 10-29-22, 08:14 PM
  #3
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
Originally Posted by juvela View Post
-----

congratulations on the new arrival...looking good...luv the colour

have never heard of any model of Paramount of any year coming with NT hubs or FIAMME wired-on rims

the curved lever QR skewers that are in there did not exist in 1969

pedals are Sheffield Nr. 655 which also came on no Paramount of any year

that pesky Acer-Mex has now taken the place of the Guerc as an explosives specialist


-----

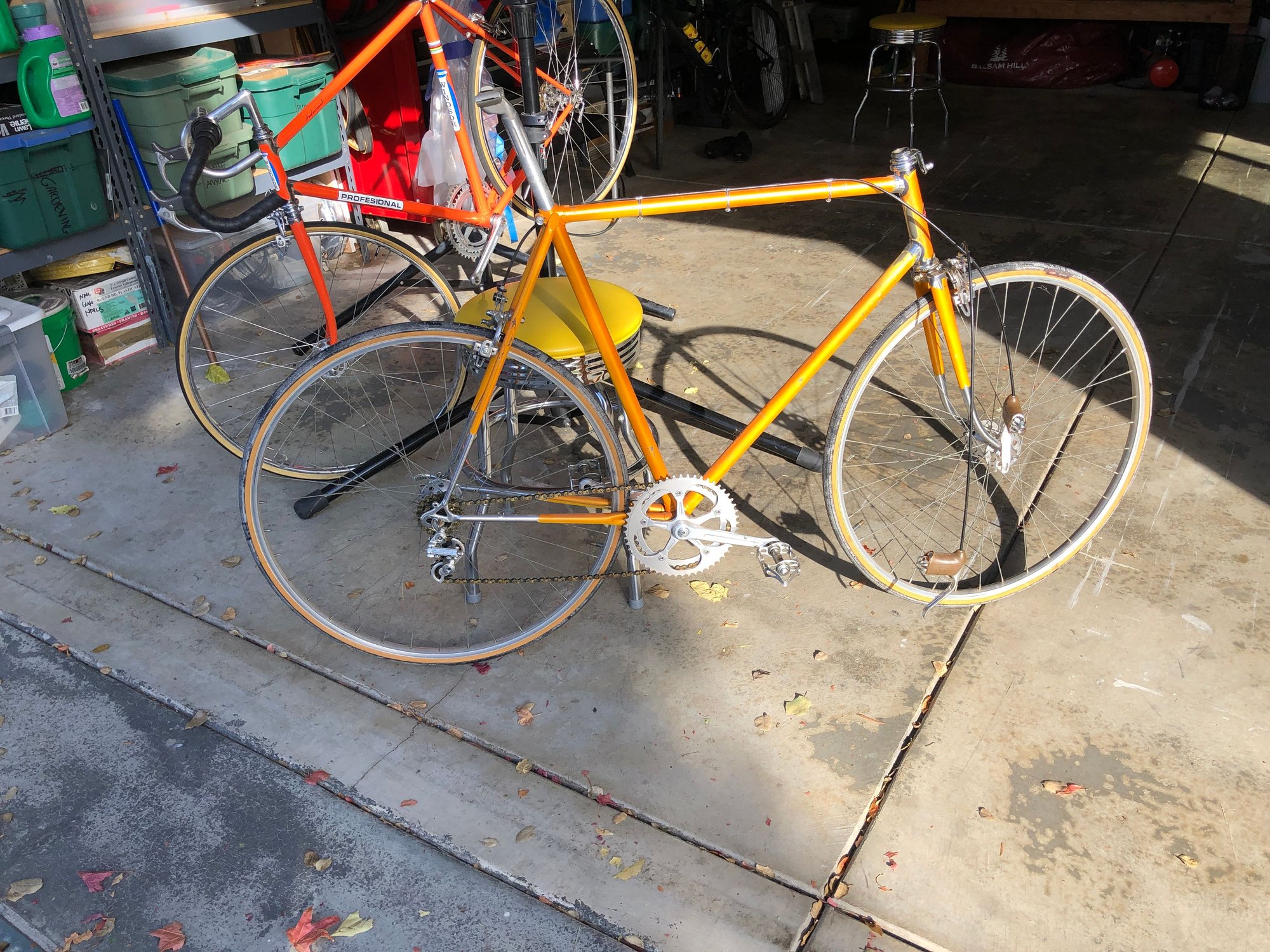

Unfortunately the colt is a really bad rattle can job. So itíll have to go. But that does give me a clean slate to work with.

I figured the NT hubs didnít belong, but they are close to period correct (as opposed to the cyclone RD).

Iím thinking only the top tube cable clamps, headset, bottom bracket and crank arms are original.

Iím going to try some 700c wheels with HF NR hubs I have. It feels like it should be a full NR build. Iíll finish up a quick build from supplies on hand as I figure out what to do long term.

Iím going to have to talk to the bikes. This photo bombing is getting ridiculous.
SwimmerMike is offline
Likes For SwimmerMike:
Old 10-30-22, 05:59 AM
  #4
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,338

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1107 Post(s)
Liked 1,175 Times in 568 Posts
The different lugs (begin with a Pr.....) point to 1969 as the correct date. P-13 is most likely the model number.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 10-30-22, 06:21 AM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
Originally Posted by pastorbobnlnh View Post
The different lugs (begin with a Pr.....) point to 1969 as the correct date. P-13 is most likely the model number.
-----



lug pattern is Prugnat 62/s

employed on Paramount 1967-71


-----

Last edited by juvela; 10-30-22 at 11:15 AM. Reason: addition
juvela is offline
Likes For juvela:
Old 10-30-22, 06:25 AM
  #6
Kabuki12
Senior Member

Join Date: Jan 2016
Posts: 2,681
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked 1,464 Times in 859 Posts
Really nice find. I am curious to see what you do with it. I like the idea of a full NR build , in particular the wheel/ hub choice. From what I have seen , these earlier Paramounts were sometimes built up with a mix of components . Maybe folks would change them up somewhere after purchase. Also, how did the ride go on that orange bike?
Kabuki12 is offline
Likes For Kabuki12:
Old 10-30-22, 06:43 AM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,278

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1245 Post(s)
Liked 900 Times in 607 Posts
Regarding the rear derailleur, you'll have to weigh function against form. As the owner of several specimens of each, I can easily vouch for SunTour slant planograph derailleurs as out-shifting their NR counterparts. Having said that, I have retained the OEM NR derailleurs on my Bianchi, just because they look right and do the job reasonably well.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-30-22, 06:52 AM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,639

Bikes: A bunch of old bikes and a few new ones

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 5544 Post(s)
Liked 2,511 Times in 1,614 Posts

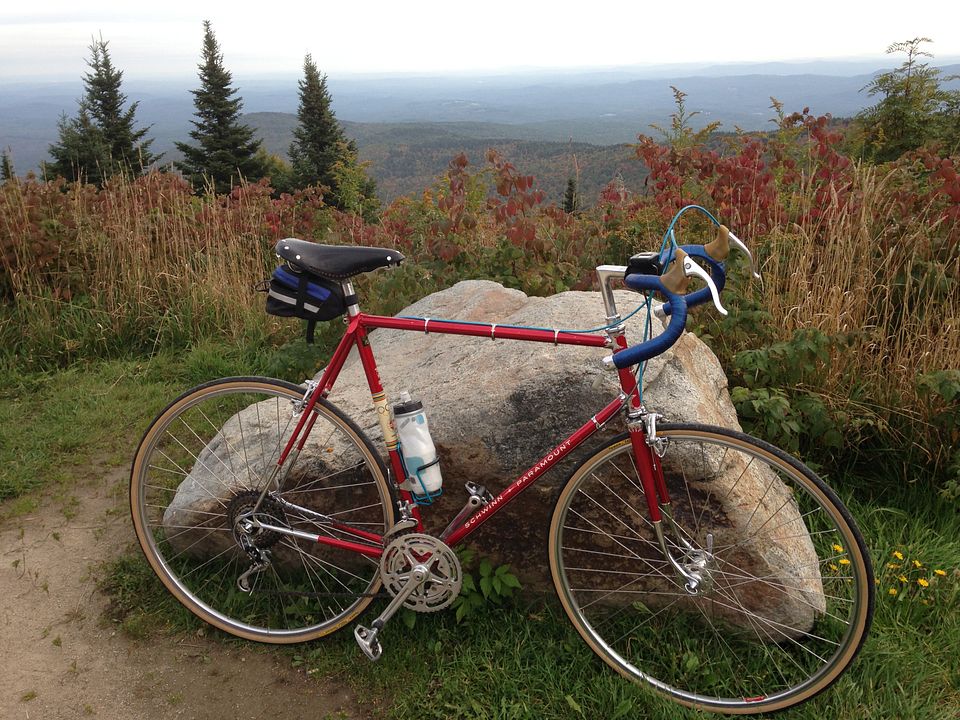

Very nice find. I have a '68 Schwinn Paramount that I have not yet rebuilt but it did come to me with the original parts. It was set up as a tourist though with flat bars.

https://www.bikeforums.net/classic-v...paramount.html
bikemig is offline
Likes For bikemig:
Old 10-30-22, 03:56 PM
  #9
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
So I did a wick build from the parts bin. The handlebars are 38ís and Cinelli criteriums (the last set of drop bars I have). The bars will need to be replaced but they allowed me to do a short ride.

I put some wheels NR HF hubs and some clincher rigida rims. The brake reach is borderline but works. Iíll file the slots later.

The rest of the build is NR except for the SR RD.

Iíll need to ride it a lot more but first impressions were great.


SwimmerMike is offline
Old 10-30-22, 04:01 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
-----



ride - would expect it to be somewhat more forgiving than the A-M

frame might be a few grams lighter as well...


-----
juvela is offline
Likes For juvela:
Old 10-30-22, 07:19 PM
  #11
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
Originally Posted by juvela View Post
-----



ride - would expect it to be somewhat more forgiving than the A-M

frame might be a few grams lighter as well...


-----
Yes, very different rides. To compound the differences the Windsor is on my limit on the small size and the Paramount is right at my top end. In addition I had my lightest racing wheels (with high end Vitoria tubulars) on the Windsor and did the test ride on the paramount with the Nouvo Tipo wheelset with non racing tires. I have the NR wheels on now with GP 5000 tires. Iím hoping to get a ride in this week around work and travel.
SwimmerMike is offline
Old 10-30-22, 07:19 PM
  #12
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
Originally Posted by juvela View Post
-----



ride - would expect it to be somewhat more forgiving than the A-M

frame might be a few grams lighter as well...


-----
Yes, very different rides. To compound the differences the Windsor is on my limit on the small size and the Paramount is right at my top end. In addition I had my lightest racing wheels (with high end Vitoria tubulars) on the Windsor and did the test ride on the paramount with the Nouvo Tipo wheelset with non racing tires. I have the NR wheels on now with GP 5000 tires. Iím hoping to get a ride in this week around work and travel.
SwimmerMike is offline
Old 10-31-22, 10:14 AM
  #13
pnwgopher
Newbie

Join Date: Oct 2022
Location: Seattle
Posts: 25

Bikes: 89 Paramount, 650b'ed 86 trek 400, All-City Space Horse

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 10 Posts
Beautiful.
pnwgopher is online now
Likes For pnwgopher:
Old 11-19-22, 09:29 PM
  #14
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
I'm working on the next iteration of the build. I'd like to build it up to pretty close to what it would have been back in '69. I have some 3TTT 40's on it (pulled off the Windsor I posted before), much better! I'm hoping to replace the SR RD with a NR and start working on polishing the crank. I'm thinking of a half-step, with the cranks and chainrings polished. I'll also be switching out the brake calipers to NR this week.

As I was working in the garage today I noticed the seat clamp was pretty "pinched" and measured the seat post. It came in as 26.8. I was thinking that this should be 27.2. Can anyone with a similar era Paramount let me know their seat post size? I know I can "try" a 27.0 and a 27.2 but it seems better to know the right size before I try fitting the seat post.
SwimmerMike is offline
Old 11-19-22, 09:42 PM
  #15
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
-----

yes to XXVII.II

see that you are now getting bombed by those pesky Tennessee Titans!



all best to our capnjonny


-----
juvela is offline
Likes For juvela:
Old 11-19-22, 10:08 PM
  #16
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
-----

build note -

forgot to mention above...

if you are going to go NR it would likely be best to go with Weinmann CP brakes

if you were going to go Campag you would have to go with "no names" to be correct which are big bucks

also you would definitely need a dropbolt for the rear...perhaps even a custom one

Cinelli 1A had launched by this date so that would be a stem/bar option if wished

bottom bracket assembly should be Record rather than NR

-----
juvela is offline
Old 11-19-22, 10:19 PM
  #17
SwimmerMike
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 567

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 586 Times in 253 Posts
Originally Posted by juvela View Post
-----

build note -

forgot to mention above...

if you are going to go NR it would likely be best to go with Weinmann CP brakes

if you were going to go Campag you would have to go with "no names" to be correct which are big bucks

also you would definitely need a dropbolt for the rear...perhaps even a custom one

Cinelli 1A had launched by this date so that would be a stem/bar option if wished

bottom bracket assembly should be Record rather than NR

-----
thanks @juvela. Thanks for providing the details for the ďend stateĒ. This is one that I will probably try to get there.

I do see it as a journey. My goal is to get it close and ride it. Then work toward the end state over time.
SwimmerMike is offline
Likes For SwimmerMike:
Old 11-20-22, 12:26 AM
  #18
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,271

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1610 Post(s)
Liked 2,194 Times in 1,081 Posts
No expert but the 72 my son has takes 27.2. also that suntour rear mech looks just fine to me. I have a Windsor pro and frame to frame the paramount is definitely lighter. Also with great clearance you have massive wheel and tire options. 700cx35 should fit easy but if course isn't necessary. That's a retirement bike. Just adjust the fit and riding position as you age!
52telecaster is offline
Likes For 52telecaster:
Old 11-20-22, 01:43 AM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,811

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3689 Post(s)
Liked 4,247 Times in 2,539 Posts
Originally Posted by 52telecaster View Post
No expert but the 72 my son has takes 27.2. also that suntour rear mech looks just fine to me. I have a Windsor pro and frame to frame the paramount is definitely lighter. Also with great clearance you have massive wheel and tire options. 700cx35 should fit easy but if course isn't necessary. That's a retirement bike. Just adjust the fit and riding position as you age!
Great analysis and commentary, couldn't agree more.
merziac is offline
Likes For merziac:
Old 11-20-22, 02:27 AM
  #20
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,271

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1610 Post(s)
Liked 2,194 Times in 1,081 Posts
Originally Posted by merziac View Post
Great analysis and commentary, couldn't agree more.
I'm recovering from the flu and jonesing for a ride.
52telecaster is offline
Likes For 52telecaster:
Old 11-20-22, 03:38 AM
  #21
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
-----

build note addendum(b) -

stem/bar -

if you elect to go with 3TTT it would need to be Gran Prix as the Record did not launch until mid-'71

one option you may not have considered is Titan, they were original equipment on many Paramounts during the 1960's.

the Record front mech needs to be the first one without the housing stop; it is the generation which lacks the e-ring at the rear of the pivot post which keeps the cage assembly from working its way off the back of the post. of all the Record/NR front mech iterations this is probably the worst.

in case you elect to build tubular wheels for it at some point the OEM tubular rims at this time were Weinmann wood-filled with the national colours stripes label.

have good fun!


-----
juvela is offline
Old 11-20-22, 04:40 AM
  #22
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,811

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3689 Post(s)
Liked 4,247 Times in 2,539 Posts
Originally Posted by 52telecaster View Post
I'm recovering from the flu and jonesing for a ride.
Glad you're on the mend, I have no sense of humor about this, scary stuff now days.
merziac is offline
Likes For merziac:
Old 11-20-22, 08:18 AM
  #23
Sierra
Uff Da!

Join Date: Sep 2003
Posts: 1,147
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 119 Times in 64 Posts
'69 sounds right based on the head lugs, but wouldn't a '69 model originally have had cable guides brazed on the top tube for the rear brake cable?
I thought that those didn't go away on the P13 until ca. '72-'73 when the P13 was revamped and the old P13 became the P10.
Sierra is offline
Old 11-20-22, 09:43 AM
  #24
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,481
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3106 Post(s)
Liked 1,877 Times in 1,332 Posts
Originally Posted by Sierra View Post
'69 sounds right based on the head lugs, but wouldn't a '69 model originally have had cable guides brazed on the top tube for the rear brake cable?
I thought that those didn't go away on the P13 until ca. '72-'73 when the P13 was revamped and the old P13 became the P10.
-----

keep in mind they could be ordered however the customer wanted them

possible this example may be a bespoke one


-----
juvela is offline
Likes For juvela:
Old 11-20-22, 09:54 AM
  #25
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,338

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1107 Post(s)
Liked 1,175 Times in 568 Posts
Originally Posted by Sierra View Post
'69 sounds right based on the head lugs, but wouldn't a '69 model originally have had cable guides brazed on the top tube for the rear brake cable?
I thought that those didn't go away on the P13 until ca. '72-'73 when the P13 was revamped and the old P13 became the P10.
To add a data point, my March 1971 P13 lacks the brazed-on cable guides and uses the 27.2mm seat post. The '66 P13 I did own also had a 27.2mm seat-post, and cable guides brazed on.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Likes For pastorbobnlnh:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
