1977 Peugeot PRN10 E rescue

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1977 Peugeot PRN10 E rescue

Old 12-12-20, 10:28 AM
  #1
KenNC
Senior Member
Thread Starter

KenNC's Avatar

Join Date: Oct 2013
Posts: 407
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 105 Times in 59 Posts
1977 Peugeot PRN10 E rescue

This was on our local Craigslist for $50 for nearly two weeks. Noticed the crankset and remnants of a Reynolds frame decal. I figured I had a seatpost and stem left over from a prior project that would probably fit so I picked it up at asking price. One bonus was, the seller included, in a separate bag, the original Simplex rear derailleur and drop-out spacers. Will post some more details shortly.
KenNC is offline
Old 12-12-20, 12:15 PM
  #2
KenNC
Senior Member
Thread Starter

KenNC's Avatar

Join Date: Oct 2013
Posts: 407
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 105 Times in 59 Posts
So the good news was the PRN10 had a nice original wheelset with Super Champion clincher rims that hold a nice pressure, as well as the Stronglight 49D crankset, and the Simplex SX410 rear derailleur. But then also some odd original parts imho: The LARGE spoke protector with a 14-24 freewheel, and the steel Lyotard pedals, both seem on the heavy side for the bike. I kept the drive-train all Simplex, but with an earlier style shifter than the original, and a later style "alpha" front derailleur than the original. Along with a new KMC7Z chain it is actually shifting crisply and quietly, to my pleasant surprise! Gave it a good clean and polish, repacked all the bearings, replaced cables, hoods, tape and tires. Replaced pedals with Lyotard alloy pedals, which I think look good with this, though I've been made aware that they can have a fracture/failure problem and may look for something else. It isn't my size but I just enjoy putting survivors like this back into service in some semblance of their original form. I'll keep it for a loaner, or try to find a good home for it..

Also noticed that the fit of the rear tire is quite close, even with 27x1 tires. Understand it originally came with 27 x 1 1/4, which I can't picture fitting well at all. Wonder if the frame is really more optimum for 700 x 23-25, may pop in some of those at some point just out of curiosity....





KenNC is offline
Likes For KenNC:
Old 12-12-20, 12:19 PM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,281

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5411 Post(s)
Liked 2,209 Times in 1,431 Posts
You did a really pretty job on this bike. I'm surprised that 27 x 1 is a tight fit on this bike. These bikes tend to have fairly generous tire clearance.
bikemig is offline
Likes For bikemig:
Old 12-12-20, 12:25 PM
  #4
Shp4man
Senior Member

Shp4man's Avatar

Join Date: Jan 2010
Location: San Diego
Posts: 1,047

Bikes: 1989 Schwinn World Sport. 1994 Diamond Back Response Elite MTB. 1964 Schwinn Typhoon. 1974 Bridgestone Sprinter, 2015 Scott Sub 10 Citybike.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1687 Post(s)
Liked 72 Times in 32 Posts
I restored a similar bike a few years ago. Rode it a while, it was a very comfortable ride. Sold it for pretty good money. It was a little too big for me.

Shp4man is offline
Likes For Shp4man:
Old 12-12-20, 12:49 PM
  #5
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,487

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2280 Post(s)
Liked 2,906 Times in 1,584 Posts
Originally Posted by KenNC View Post
The fit of the rear tire is quite close, even with 27x1. Understand it originally came with 27 x 1 1/4... Wonder if the frame is really more optimum for 700c.
Can you remove the rear wheel with its tire fully inflated? I couldn't do that with a 27x1" tire on a '73 PR10. Your pics show the pads might reach 700c.
SurferRosa is offline
Old 12-12-20, 01:17 PM
  #6
KenNC
Senior Member
Thread Starter

KenNC's Avatar

Join Date: Oct 2013
Posts: 407
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 105 Times in 59 Posts
Originally Posted by SurferRosa View Post
Can you remove the rear wheel with its tire fully inflated? I couldn't do that with a 27x1" tire on a '73 PR10. Your pics show the pads might reach 700c.
I have to pop off the straddle cable to do that--no big inconvenience there. Here are a couple pics showing the tire spacing. The brakes seem set at the top of their range (same for front) so I definitely think they could be adjusted down to 700. Note also where the tire sits in relation to the chain stay inner wall indentations, which also makes me think it is more optimized for a 700 wheel.

KenNC is offline
Old 12-12-20, 02:33 PM
  #7
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,487

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2280 Post(s)
Liked 2,906 Times in 1,584 Posts
Originally Posted by KenNC View Post
I have to pop off the straddle cable to do that.
Ah. The issue with my Peugeot I mentioned was clearing both the long horizontal dropouts and the chainstay bridge. Had to deflate the tire. But I ran it like that. Just couldn't inflate it before mounting after fixing a roadside flat. A tricky thing when relying on one CO2.
SurferRosa is offline
Old 12-12-20, 11:36 PM
  #8
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,919

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1133 Post(s)
Liked 670 Times in 473 Posts
Originally Posted by bikemig View Post
You did a really pretty job on this bike. I'm surprised that 27 x 1 is a tight fit on this bike. These bikes tend to have fairly generous tire clearance.
My 1980 PKN-10 (successor to the PR-10) is a bit tight with 27" wheels, but can handle 700Cx32, which is what my son uses with it now.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 12-13-20, 03:56 PM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,344

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 688 Times in 485 Posts
It looks like in the past someone perhaps tried removing the rear derailer by turning the hex bolt, thus fracturing the spring in the mounting pivot.
Fully half of the world's Simplex derailers have been lost to such occurrences.
On some of these, the end of the hollow mounting bolt has simply sheared free of the stop plate, giving hope that the bolt can be re-tensioned by turning it clockwise, and then securing this position by tightening the lock-screw on the reverse end of the mounting bolt (located at the inside surface of the dropout).

I'm surprised that this frame would have been fitted with 27" wheels at the factory, but remembering that typical 27x1" "racing" tires of that era were typically only 20mm wide!

This bike appears to have very steep geometry, and if so will likely ride very twitchy using a shorter and/or raised stem. But being a smaller frame, the headtube angle may be moderate despite the appearance of relatively straight fork legs.

Last edited by dddd; 12-13-20 at 04:05 PM.
dddd is offline
Likes For dddd:
Old 12-15-20, 11:06 AM
  #10
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,253

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 738 Post(s)
Liked 793 Times in 410 Posts

As bought, funky brake levers, missing broken Simplex FD, replaced by Shimano Exage, works fine.

Current set up. Fun bike.



I ran a Sugino AT 52/34 as an interim set up till I found the Srronglight 99.

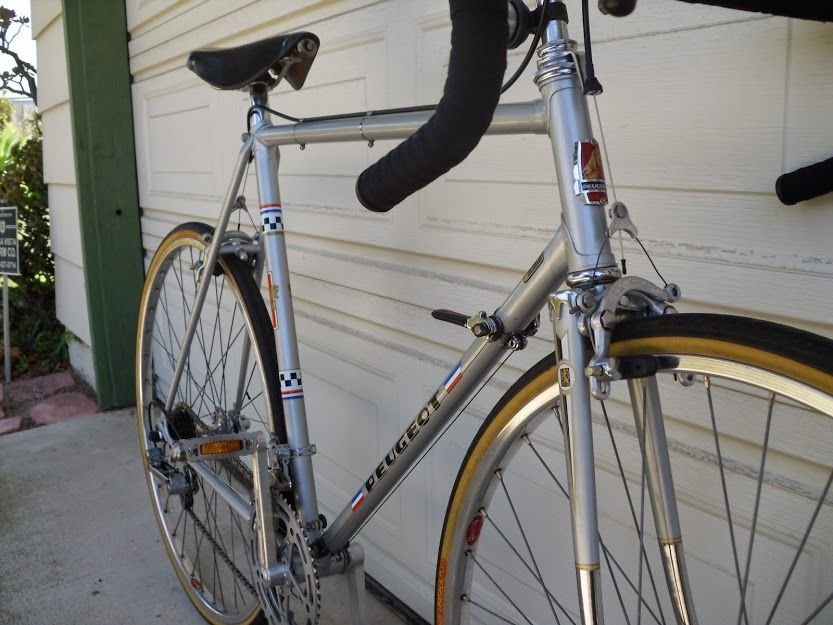

Pretty bike. I found this '78 PR10 with nearly perfect paint and decals, and paid the CL asking price of $400. It had incorrect funky brake levers, so I put on a couple of Campy aeros that I had, and swapped the crank to an English thread Stronglight 99, 52/40. It's a fun ride. I'd like to find an alloy seat post someday. Mine came with 700c Mavic MA40, on Normandy hubs. I'm running Pasela 28s, with no clearance issues, but I do have to disconnect the Mafac straddle cable to remove them.

Last edited by Slightspeed; 12-15-20 at 11:14 AM.
Slightspeed is offline
Likes For Slightspeed:
Old 12-24-20, 10:58 AM
  #11
KenNC
Senior Member
Thread Starter

KenNC's Avatar

Join Date: Oct 2013
Posts: 407
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 105 Times in 59 Posts
Originally Posted by dddd View Post
It looks like in the past someone perhaps tried removing the rear derailer by turning the hex bolt, thus fracturing the spring in the mounting pivot.
Fully half of the world's Simplex derailers have been lost to such occurrences.
On some of these, the end of the hollow mounting bolt has simply sheared free of the stop plate, giving hope that the bolt can be re-tensioned by turning it clockwise, and then securing this position by tightening the lock-screw on the reverse end of the mounting bolt (located at the inside surface of the dropout)..
I am glad you pointed this out. It was shifting smoothly on the stand and I didn't notice it, but yes the pulleys are very close to the 24t freewheel. I've fiddled with a couple of these derailleurs in the past, so took it back off. Nothing seemed broken, so I pried off the back plate, rotated the thru-bolt 180 degrees, and put the back plate back on (a bit of a PITA but do-able). Re-mounted it on the frame and it appears to have more tension. Don't know if it was assembled incorrectly at the factory, or if the spring had weakened over time. Anyway, thanks again!
KenNC is offline
Likes For KenNC:
Old 12-24-20, 11:43 AM
  #12
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,281

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5411 Post(s)
Liked 2,209 Times in 1,431 Posts
That is a radical looking stem. I like it. Also superchampion clincher rims are a big bonus. You did well at $50 for this bike.
bikemig is offline
Old 12-24-20, 09:45 PM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,344

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 688 Times in 485 Posts
Originally Posted by KenNC View Post
I am glad you pointed this out. It was shifting smoothly on the stand and I didn't notice it, but yes the pulleys are very close to the 24t freewheel. I've fiddled with a couple of these derailleurs in the past, so took it back off. Nothing seemed broken, so I pried off the back plate, rotated the thru-bolt 180 degrees, and put the back plate back on (a bit of a PITA but do-able). Re-mounted it on the frame and it appears to have more tension. Don't know if it was assembled incorrectly at the factory, or if the spring had weakened over time. Anyway, thanks again!
I'm glad that you fiddled with it, and that the parts were all usable!

I fear that too many of these get tossed because owners may not investigate fully.

Anyway, great job on the derailer (and especially on the bike!).
dddd is offline
