WTB: Shimano 14T or 15T 2nd Position UniGlide Sprocket

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

WTB: Shimano 14T or 15T 2nd Position UniGlide Sprocket

Old 07-04-20, 03:56 PM
  #1
verktyg
verktyg
Thread Starter

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,035

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Mentioned: 207 Post(s)
Tagged: 0 Thread(s)
Quoted: 1036 Post(s)
Liked 1,236 Times in 653 Posts
WTB: Shimano 14T or 15T 2nd Position UniGlide Sprocket FOUND

FOUND A 14T SPROCKET ON EBAY

EDIT: Further research, these were only used on Dura Ace Uniglide freehubs.


I'm looking for a 14T or 15T Shimano DURA ACE 6, 7 or 8 speed "twist tooth" UniGlide 2nd position cassette sprocket, the one that goes behind the screw-on sprocket.

These came in 2 styles: Type 1 with the the splines on the rear, towards the hub and Type 2 with the splines on the outside face.

I need type 1.



Here's a 15T for use with a 7 or 8 speed UNIGLIDE cassette and freehub.



These 7-8 speed UNIGLIDE sprockets are 5mm thick. The 6 speeds are 5.5mm thick but 0.5mm (0.20") isn't going to make that much difference.



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 08-22-20 at 01:58 AM.
verktyg is offline
Old 07-05-20, 08:15 AM
  #2
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 15,428

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 104 Post(s)
Tagged: 1 Thread(s)
Quoted: 7081 Post(s)
Liked 901 Times in 612 Posts
But they're reversible. Doesn't that make them all the same?
__________________
Originally Posted by Bah Humbug
Auto-pause is a honey-tongued devil whispering sweet lies in your ear.


seedsbelize is offline
Old 07-05-20, 04:01 PM
  #3
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100° with 110% humidity
Posts: 1,277

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 275 Times in 128 Posts
What # of speeds are you shooting for?

I have a 15T Uniglide cog and your choice of a 6 or 7 spd spacer. Cog measures .073” thick. Spacers measure .141” for 6 spd, and .123” for 7 spd.

Not sure if this meets your requirements...



Last edited by tyler_fred; 07-05-20 at 04:38 PM.
tyler_fred is offline
Old 07-05-20, 07:13 PM
  #4
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 9,582

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 786 Post(s)
Liked 1,706 Times in 620 Posts
I will check I may have one of these in my collection in ok shape.does it need to be a 15tr would 13t second ring be OK.?
zukahn1 is offline
Old 07-07-20, 08:20 PM
  #5
verktyg
verktyg
Thread Starter

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,035

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Mentioned: 207 Post(s)
Tagged: 0 Thread(s)
Quoted: 1036 Post(s)
Liked 1,236 Times in 653 Posts
WTB: DuraAce Uniglide 14T or 15T 2nd Postion Sprocket

Thanks for the responses....

When Shimano introduced the DuraAce 11T sprockets/cassettes they also made special freehubs with a smaller 31.9mm-33mm diameter threaded section (vs. the standard 33.5mm threaded freehubs).





NOTE; There was a period of time when Hyperglide was being introduced that Shimano made freehubs with both external and internal threads for use with either style cassette.

From Sheldon RIP Brown's website:


Originally Posted by seedsbelize
But they're reversible. Doesn't that make them all the same?
No. Uniglide sprockets for both standard and DuraAce cassettes are 1.85mm - 2mm thick and are reversible for longer wear life.

The 2nd position DuraAce sprockets have a built in spacer and are: 6 speed - 5.5mm thick, 7 & 8 speed - 5.0mm thick. They are not reversible.



I'm looking for a 14T or 15T Dura Ace 2nd Position sprocket that has spines towards the hub side like this one. They only fit over about ~2mm of the splines on the end of the freehub.





Originally Posted by tyler_fred
What # of speeds are you shooting for?

I have a 15T Uniglide cog and your choice of a 6 or 7 spd spacer. Cog measures .073” thick. Spacers measure .141” for 6 spd, and .123” for 7 spd. Not sure if this meets your requirements...

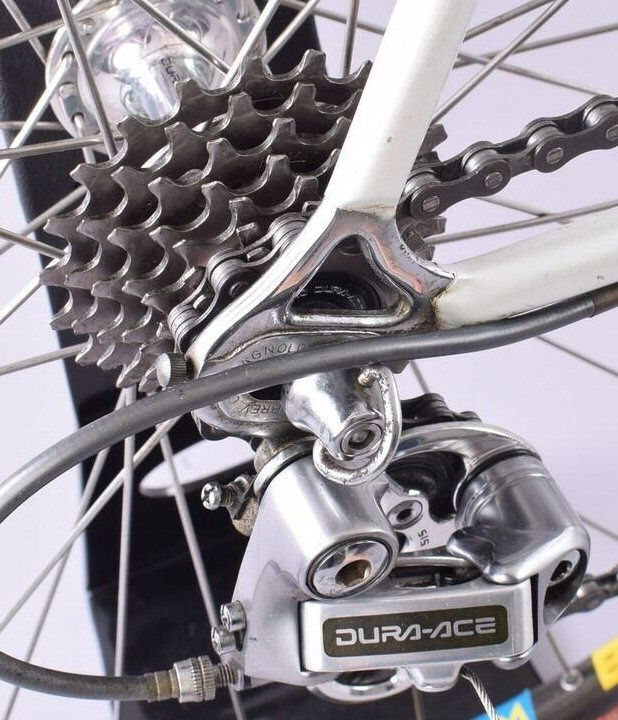

Thanks tyler_fred 7 speeds. I'm trying to put together a 13-28T cassette. Last month I got a low mileage 1985-86 all Dura Ace bike with a 12-23T cassette and 53-42T chainrings. At 76, I have no need for 120" gearing!




I changed the chainrings to 50-38T and the cassette to 12-13-15-18-21-24-28T...

There aren't enough long straight hills with tailwinds around here to run the 50T-12T combo, so I essentially have a 6 speed cassette.

I have 13T and 14T screw on sprockets. A 13-14T or 13-15T small sprocket combo would give me more usable gearing.



Originally Posted by zukahn1
I will check I may have one of these in my collection in ok shape.does it need to be a 15t, would 13t second ring be OK.?
zukahn1 thanks for the offer. I already have 12T-13T small sprockets. If you have a 14T or 15T 2nd position ring like pictured above that would be great.

I have Uniglide freewheels and cassettes on a number of bikes. They have a nice crisp feel when they shift. Not as nice a ramped Hyperglide but adequate.

Changing the freehub over to Hyperglide is more work and $$$ than it's worth to me. Done it before... Same with filing down the splines on a Hyperglide cassette. Plus I want to keep it all Uniglide.

Being a Luddite, I didn't have any cassette bikes until 2007 - freewheels and friction shifting only.

In my first venture into indexing in 2007 I built a set of road wheels using Shimano Deore XT MTB hubs.with a 6 speed freehub.

I changed the spacers on a 7 speed Hyperglide cassette and filed down the wide spines inside the sprocket. Finished it off with a 13T Uniglide screw on sprocket. It's worked great as a 7 speed!



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 07-07-20 at 08:32 PM.
verktyg is offline
Old 07-08-20, 06:35 PM
  #6
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 9,582

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 786 Post(s)
Liked 1,706 Times in 620 Posts
I will dig into my cogs and look I have a several DA 2nd cogs similar to what you want but there likely the 6 speed that had seperate spacer.
zukahn1 is offline
Old 07-11-20, 01:46 PM
  #7
Last ride 76
1/2 as far in 2x the time

Last ride 76's Avatar

Join Date: Nov 2013
Location: Northern Bergen County, NJ
Posts: 1,935

Bikes: Yes, Please.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 499 Post(s)
Liked 285 Times in 222 Posts
This is the easier way?* Yikes!


*Cross with the confessions thread.
Hope you find what you're looking for
__________________
I seem to have lost what little mind I had left before this all started.
Last ride 76 is offline
