Chain Not Seating on Chainring Properly, Wrong Pitch?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Chain Not Seating on Chainring Properly, Wrong Pitch?

Old 07-09-21, 09:44 PM
  #1
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Chain Not Seating on Chainring Properly, Wrong Pitch?

Hello folks, I've recently encountered an interesting problem. In trying to replace the chain on my neighbor's singlespeed, I've found that the chain I put on will not properly mesh with the teeth of the chainring. The chain is a standard singlespeed chain with internal width of 1/8". Rather than an issue of being the wrong width however, I think this is an issue with the pitch of the chain. It's as if the chain has too short a distance between rollers for this chainring. I thought all bicycle chains were always 1/2" between rollers, but with this one, it seems as if they need to be further apart to allow it to actually seat on the chainring correctly. What are people's thoughts on this? Any ideas what the problem may be? From what I've read online, people seem to diagnose this as a worn chainring, but I'm not entirely sure that makes sense to me. Wouldn't a worn chainring have wear on the teeth such that there is excess space both in front of and behind each tooth and still be able to let the chain on, just loosely? I've attached a picture, sorry for the low quality. Thanks for any help you can offer.

Rainbow83 is offline
Old 07-09-21, 10:03 PM
  #2
alo
Senior Member

Join Date: Feb 2020
Posts: 1,060
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 529 Post(s)
Likes: 0
Liked 255 Times in 185 Posts
Measure across as many links as you can, and divide it by the number of links. See if it is a standard sized chain.

Another option would be to hold another chain against it, and see if the links are the same length.
alo is offline
Likes For alo:
Old 07-09-21, 10:39 PM
  #3
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,023

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3707 Post(s)
Liked 2,548 Times in 1,667 Posts
I'm betting worn chainring. Look to see if the teeth in line with the cranks are the same shape and width as the teeth at right angles. If they are not identical, the difference is wear. A chain fitting loosely is a worn out ("stretched" chain on a newer chainring.)

Do you still have the old chain? Pull it tight (nothing radical needed; just need to pull out all the play) and measure the distance between pins 12 pairs of links apart with a steel tape measure or ruler. If the length is 12 3/32" or more, there's your answer. A new chain won't run on a cog/chainring that's worn to match a chain that stretched. (Well it might but it will be a poor experience.)
79pmooney is online now
Likes For 79pmooney:
Old 07-09-21, 11:05 PM
  #4
Racing Dan
Senior Member

Racing Dan's Avatar

Join Date: Aug 2015
Posts: 2,103
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1242 Post(s)
Liked 274 Times in 186 Posts
"The chain is a standard singlespeed chain ..."

Is it? Looks like a chain from a moped or go cart.
Racing Dan is offline
Old 07-10-21, 01:45 AM
  #5
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 695
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 320 Post(s)
Likes: 0
Liked 313 Times in 216 Posts
3/32" (geared, but most singlespeed MTBs use it) chain on 1/8" (bmx) chainring would be my 1st guess. Just asking for a singlespeed chain can be a crapshoot, and if you get the wrong one, it no workee. Getting it wrong in the opposite direction also doesn't work, but if memory serves, fails the other way... the chain won't stay on the ring, whereas yours won't go on in the first place.

As already suggested, it could be a worn chainring, but it doesn't look bad enough to do that. It looks like a steel ring?

--Shannon
ShannonM is offline
Likes For ShannonM:
Old 07-10-21, 02:43 AM
  #6
Lazyass
Senior Member

Join Date: Jul 2008
Location: Minas Ithil
Posts: 9,335
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2430 Post(s)
Liked 628 Times in 388 Posts
Originally Posted by ShannonM View Post
3/32" (geared, but most singlespeed MTBs use it) chain on 1/8" (bmx) chainring would be my 1st guess.
Yes, it looks like he needs a 1/8 chain.
Lazyass is offline
Likes For Lazyass:
Old 07-10-21, 03:10 AM
  #7
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 845

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 193 Times in 137 Posts
Agreed, worn chainring, the slots that the chain links would fit into have elongated (larger) so pitch is effectively > 1". If you have another chainring around, try it or compare the two. I would also check the gear on the rear wheel, it most likely is also very worn.
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com





Last edited by JoeTBM; 07-11-21 at 02:13 AM.
JoeTBM is offline
Likes For JoeTBM:
Old 07-10-21, 06:24 AM
  #8
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,585

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 594 Post(s)
Liked 475 Times in 312 Posts
That's not a new chain, is it? It looks like the chain has elongated at least a half link (1/2") in the 32-tooth (16") circumference of the ring, or about 3%. Acceptable wear is about 0.5%.
andrewclaus is offline
Old 07-10-21, 07:29 AM
  #9
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by Racing Dan View Post
"The chain is a standard singlespeed chain ..."

Is it? Looks like a chain from a moped or go cart.
It's a new chain that was in an unopened SRAM box that said "single speed" on it, so I'm pretty sure it's for a bike. It's definitely wider than a 6/7/8 chain though.
Rainbow83 is offline
Likes For Rainbow83:
Old 07-10-21, 07:30 AM
  #10
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by Racing Dan View Post
"The chain is a standard singlespeed chain ..."

Is it? Looks like a chain from a moped or go cart.
It came in a sealed SRAM box that said "single speed" so I'd be surprised if it wasn't for a bike. It is definitely wider than a 6/7/8 speed chain

Originally Posted by 79pmooney View Post
I'm betting worn chainring. Look to see if the teeth in line with the cranks are the same shape and width as the teeth at right angles. If they are not identical, the difference is wear. A chain fitting loosely is a worn out ("stretched" chain on a newer chainring.)

Do you still have the old chain? Pull it tight (nothing radical needed; just need to pull out all the play) and measure the distance between pins 12 pairs of links apart with a steel tape measure or ruler. If the length is 12 3/32" or more, there's your answer. A new chain won't run on a cog/chainring that's worn to match a chain that stretched. (Well it might but it will be a poor experience.)
That's a clever way to check the wear. Thank you

Last edited by Rainbow83; 07-10-21 at 07:34 AM.
Rainbow83 is offline
Old 07-10-21, 07:32 AM
  #11
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Thanks for all the suggestions. I'll have a look at it again tonight after work. Hopefully it won't be too hard to get ahold of a new crank if it needs it.
Rainbow83 is offline
Old 07-10-21, 07:52 AM
  #12
Racing Dan
Senior Member

Racing Dan's Avatar

Join Date: Aug 2015
Posts: 2,103
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1242 Post(s)
Liked 274 Times in 186 Posts
Originally Posted by Rainbow83 View Post
It's a new chain that was in an unopened SRAM box that said "single speed" on it, so I'm pretty sure it's for a bike. It's definitely wider than a 6/7/8 chain though.
Weird. Looks like the pitch is too short for the chain wheel and it also doesnt look like a SRAM chain. Get a better picture for identification.
Racing Dan is offline
Old 07-10-21, 07:59 AM
  #13
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,937

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4891 Post(s)
Liked 3,411 Times in 2,364 Posts
All bicycles for a very long time have been made with the exact same pitch. 1/2 inch.

So the issue is not pitch. In fact chain comes in pitches that are exactly 1/8" apart from each other. That chain doesn't have a 25% difference in pitch.

So you issue is likely a worn chain ring. Unless a roller for some reason is not in the right position or some of the side plates are tight not letting the link swing fully into position. Which on chains from days long gone has been an issue. But they fix themselves after the chain is used a little.

Last edited by Iride01; 07-10-21 at 08:04 AM.
Iride01 is online now
Old 07-10-21, 08:05 AM
  #14
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,144
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
How about checking to see if the chain fits the rear cog. If it fits the cog then your problem is with the chainring.
Crankycrank is offline
Likes For Crankycrank:
Old 07-10-21, 09:47 AM
  #15
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,433

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1812 Post(s)
Liked 1,949 Times in 1,195 Posts
The thing with single speeds, especially less expensive ones, is the chain tension is not consistent throughout the entire revolution of the crank.

If it was originally setup with the chain too tight at one point, I’m guessing it will not only stretch the chain, it will probably wear (bend?) the teeth more at that point. And Lord knows, the rider will make that crank turn.

John
70sSanO is online now
Old 07-10-21, 10:17 AM
  #16
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,585

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 594 Post(s)
Liked 475 Times in 312 Posts
On a freewheel bike, a worn chainring usually has a "shark fin" pattern, or teeth are ground down to points. Look online for examples. If this is a fixed gear bike, with no brakes, and a very tight chain, perhaps that could explain the worn chainring without the usual wear.

Last edited by andrewclaus; 07-10-21 at 11:44 AM.
andrewclaus is offline
Old 07-10-21, 10:39 AM
  #17
base2
Doesn't brain good.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 2,275

Bikes: 5 good ones, and the occasional project.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1241 Post(s)
Liked 918 Times in 538 Posts
You need an "Exotic" 5/32 bike chain.


Perhaps "BMX" & not "single speed" would get you the results you want? Maybe call it a "415" chain...

Last edited by base2; 07-10-21 at 10:55 AM.
base2 is online now
Old 07-10-21, 02:08 PM
  #18
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by 70sSanO View Post
The thing with single speeds, especially less expensive ones, is the chain tension is not consistent throughout the entire revolution of the crank.

If it was originally setup with the chain too tight at one point, Iím guessing it will not only stretch the chain, it will probably wear (bend?) the teeth more at that point. And Lord knows, the rider will make that crank turn.

John
Definitely a possibility, this is not a nice bike.

Originally Posted by andrewclaus View Post
On a freewheel bike, a worn chainring usually has a "shark fin" pattern, or teeth are ground down to points. Look online for examples. If this is a fixed gear bike, with no brakes, and a very tight chain, perhaps that could explain the worn chainring without the usual wear.
Yeah, the rear sprocket doesn't have the typical shark teeth wear, but what you're saying, along with what I quoted above, all makes sense.
Rainbow83 is offline
Old 07-12-21, 06:20 AM
  #19
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,946

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Liked 646 Times in 488 Posts
Originally Posted by Rainbow83 View Post
It's a new chain that was in an unopened SRAM box that said "single speed" on it, so I'm pretty sure it's for a bike. It's definitely wider than a 6/7/8 chain though.
Is it a SRAM PC-1? The PC-1 on SRAM's website definitely does not look like this chain. What do the markings on the actual chain say? Is there anything that confirms a manufacturer or a model number? I'm nearly certain that's not a SRAM chain...at least not a current production one.

The ring just doesn't look that worn to me. It appears to be a very heavy steel ring and it doesn't show the typical wean patterns associated with a ring that's severely worn. A worn ring should still have a 1/2" pitch between the tops of the teeth, right? Sure, they'll be ramped and it'll be easier to skip a chain, but I think the pitch would be maintained. The pitch of the ring and pitch of the chain appear to be unsynchronized by about half of a link around half the circumference. That seems awfully strange.

I'm looking forwarding to hearing back on the identity of this chain and if it appears like it really does have a true 1/2" pitch.
hokiefyd is offline
Likes For hokiefyd:
Old 07-12-21, 10:55 AM
  #20
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,398

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 934 Times in 502 Posts
Originally Posted by hokiefyd View Post
The ring just doesn't look that worn to me. It appears to be a very heavy steel ring and it doesn't show the typical wean patterns associated with a ring that's severely worn. A worn ring should still have a 1/2" pitch between the tops of the teeth, right? Sure, they'll be ramped and it'll be easier to skip a chain, but I think the pitch would be maintained. The pitch of the ring and pitch of the chain appear to be unsynchronized by about half of a link around half the circumference. That seems awfully strange.
Agreed. Even if the chain ring was worn the pitch wouldn't change and the correct chain would still fit the teeth.

I say correct chain because a 3/32 chain on a 1/8 inch ring will look like what you got going on here because it will not fully seat on the teeth.
AlmostTrick is offline
Likes For AlmostTrick:
Old 07-12-21, 12:25 PM
  #21
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts

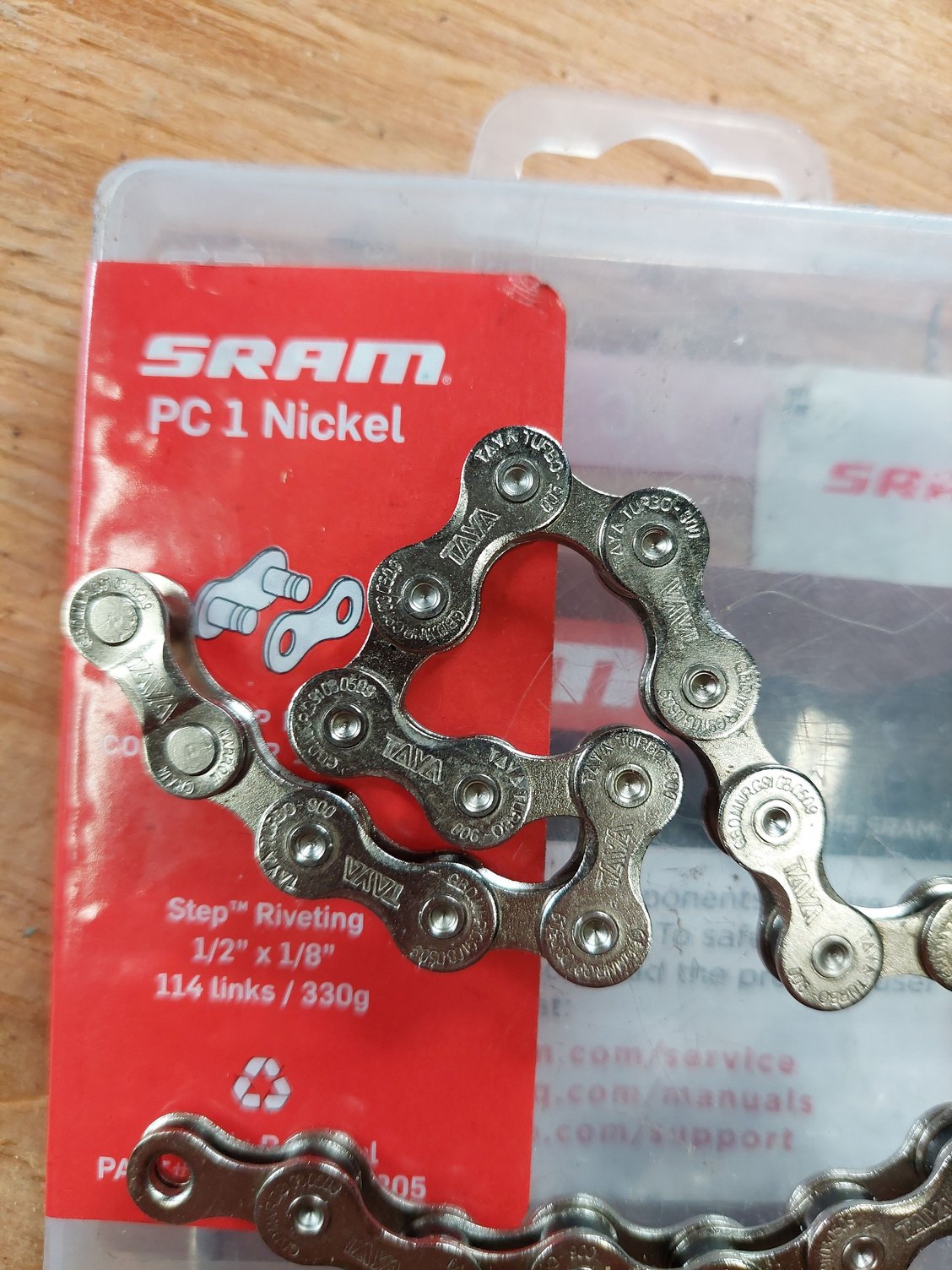

Wow, I'm shocked. I got a pair of calipers to measure the chain. As expected, the pitch is 1/2". The width however, was not 1/8". It was in fact 3/32". And further, having looked at the markings on the chain, it is very much not a SRAM chain, which is really odd, because I bought it new from my bike shop and it was in a SRAM box and everything. I'll put pics of the box, a section of excess chain, and the caliper measurement below. Sorry to have troubled you all with this. I really thought I had a 1/8" chain, after all, that is what the box said. I guess the lesson here is to always double check and make sure you're actually dealing with what you think you are.


The box it came in, labelled SRAM PC-1, what I thought I had.

An excess piece of chain, the markings say TAYA, not SRAM.

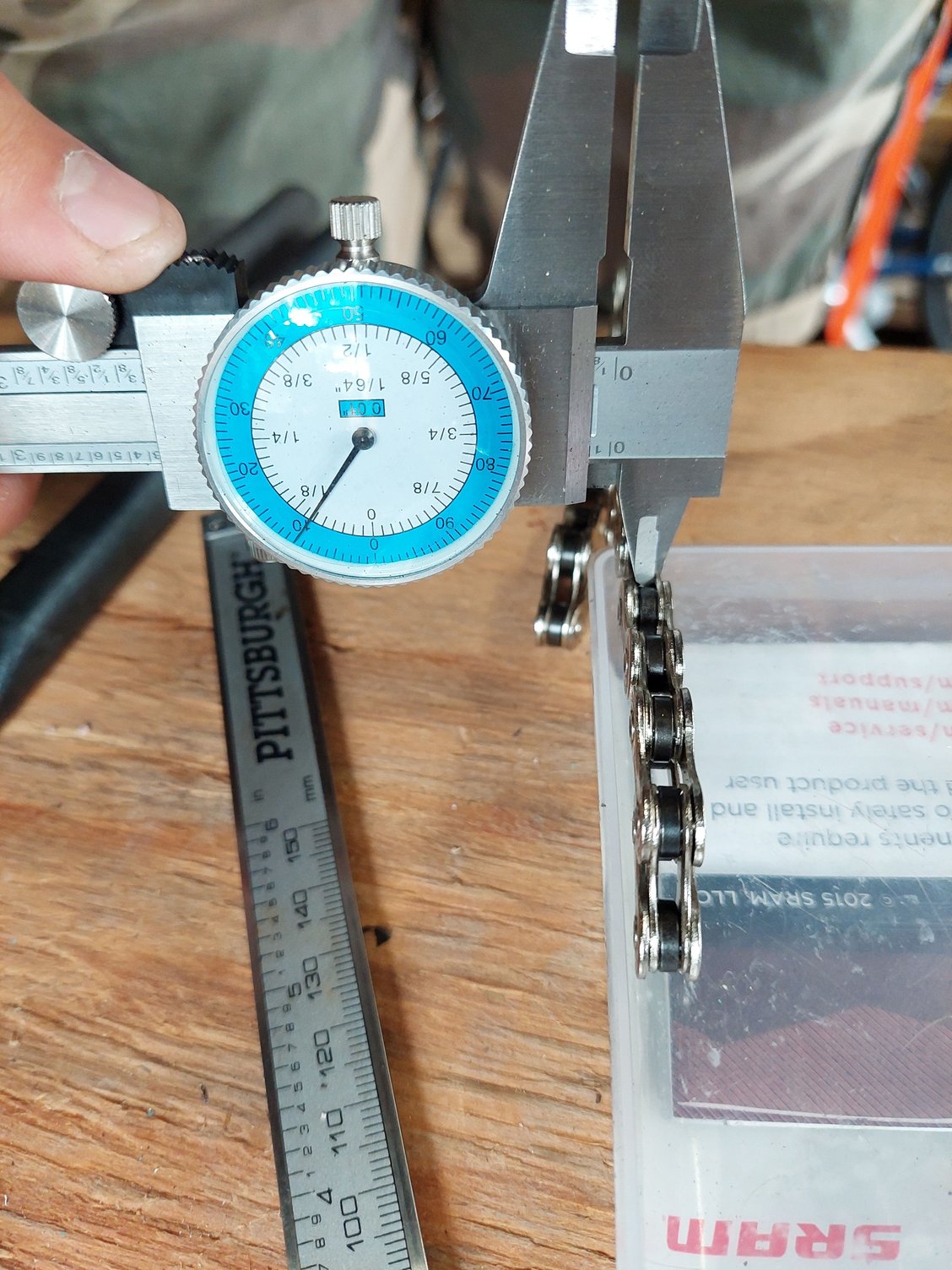

The measurement of the internal width of the chain, it's definitely 3/32", not 1/8"
Rainbow83 is offline
Old 07-12-21, 04:41 PM
  #22
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,080

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3644 Post(s)
Liked 2,092 Times in 1,327 Posts
Mystery solved! I wonder if the bike shop got out two chains at once to install, and accidentally put this one back in the wrong box.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 07-13-21, 07:50 AM
  #23
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,250
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2118 Post(s)
Liked 1,260 Times in 906 Posts
^^^^^^ Back in 2015, quite possibly.....
madpogue is offline
Likes For madpogue:
Old 07-16-21, 03:50 PM
  #24
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,268
Mentioned: 215 Post(s)
Tagged: 0 Thread(s)
Quoted: 16744 Post(s)
Liked 3,735 Times in 2,773 Posts
I think you found the problem a few days ago with the 3/32 chain causing the chain to right slightly high. Hopefully it is now fixed.

I thought I'd post this Wippermann chart from a couple of years ago. Ignoring the wear (they have done quite a few more tests since this time).



What I found unique was that the initial length of all the chains were slightly different. And, the Campagnolo Record chain measured slightly short.
CliffordK is online now
Old 07-18-21, 01:40 PM
  #25
Rainbow83
Member
Thread Starter

Join Date: Dec 2020
Location: New England
Posts: 40

Bikes: 1979 Motobecane Grand Jubilee, 1988 Univega Range Rover 18, 1983(?) Novara Randonee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by CliffordK View Post
I think you found the problem a few days ago with the 3/32 chain causing the chain to right slightly high. Hopefully it is now fixed.

I thought I'd post this Wippermann chart from a couple of years ago. Ignoring the wear (they have done quite a few more tests since this time).

What I found unique was that the initial length of all the chains were slightly different. And, the Campagnolo Record chain measured slightly short.
Very interesting, thanks for sharing.
Rainbow83 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
