Dura-Ace FD bracket break, repairable ?

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Dura-Ace FD bracket break, repairable ?

Old 05-02-21, 01:54 PM
  #1
joesch
Senior Member
Thread Starter

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 939

Bikes: 83 Colnago Super, 87 50th Daccordi, 79 & 87 Guerciotti's, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 08 Lemond Filmore FG SS, 12 Cervelo R3, 20/15 Surly Stragler & Steamroller

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 193 Times in 141 Posts
Dura-Ace FD bracket break, repairable ?

Dura-Ace FD bracket cracked.
Would this be a candidate weld fix ?
Its in great condition and vintage.
Maybe easier and/or cheaper just to find another ?
If I could weld then I would probably know the answer and do it if possible.

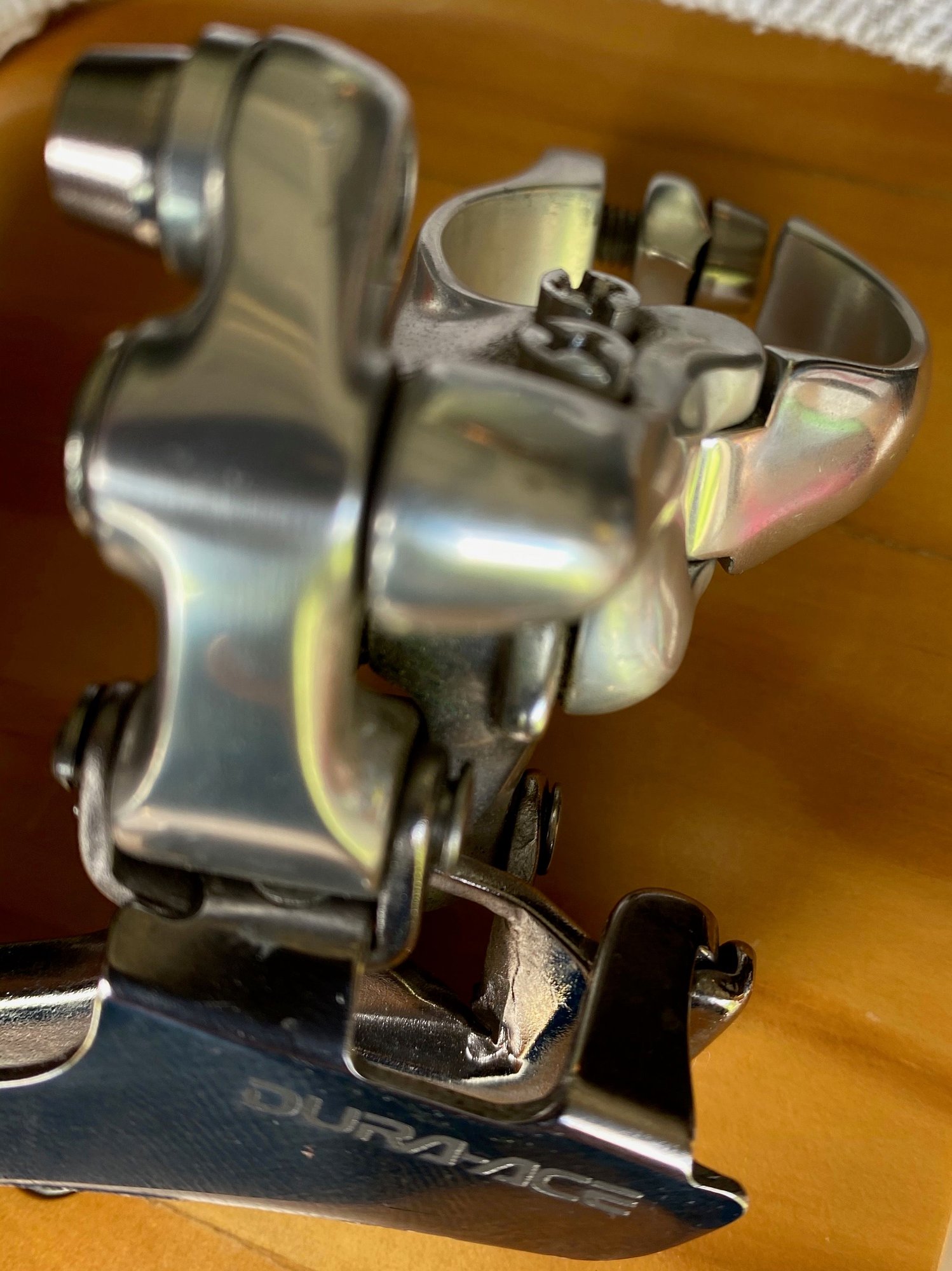

These pix show the break


joesch is offline
Old 05-02-21, 02:37 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,351 Times in 978 Posts
Do you have any idea what aluminum those are made from? I am somewhat skeptical due to any number of reasons.
unterhausen is offline
Old 05-02-21, 04:20 PM
  #3
joesch
Senior Member
Thread Starter

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 939

Bikes: 83 Colnago Super, 87 50th Daccordi, 79 & 87 Guerciotti's, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 08 Lemond Filmore FG SS, 12 Cervelo R3, 20/15 Surly Stragler & Steamroller

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 193 Times in 141 Posts
Originally Posted by unterhausen View Post
Do you have any idea what aluminum those are made from? I am somewhat skeptical due to any number of reasons.
Im not really sure but the answer is probably too low of quality AL. Why not use that airplane grade AL that some of the better frames are made out of ? Im thinking Colnago Dream bikes. Ofcourse I did not use a torque wrench but I dont think that I was going too tight, I have hand tightened most all (not CF) over of the decades.
joesch is offline
Old 05-02-21, 04:49 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,351 Times in 978 Posts
The problem with not knowing what grade aluminum is that it would be a crap shoot finding the right filler.
unterhausen is offline
Old 05-02-21, 07:50 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,050

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,260 Times in 883 Posts
What Eric said and the anodizing will need removal too. The tiny cross section and minimal clearance with the clamping bolt further make a repair challenging. I suggest finding a replacement der, or a donner one to use the front and hinged part and see if the hinge pin can be removed. I have seen many examples of this type of breakage. I have yet to see a repair that was welded. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-02-21, 08:35 PM
  #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,351 Times in 978 Posts
getting that pin out is going to be difficult, since it's blind from one side. I'm happy to say I have never done this to a derailleur, although I know it's not uncommon.
unterhausen is offline
Old 05-03-21, 08:30 AM
  #7
joesch
Senior Member
Thread Starter

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 939

Bikes: 83 Colnago Super, 87 50th Daccordi, 79 & 87 Guerciotti's, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 08 Lemond Filmore FG SS, 12 Cervelo R3, 20/15 Surly Stragler & Steamroller

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 193 Times in 141 Posts
Originally Posted by Andrew R Stewart View Post
What Eric said and the anodizing will need removal too. The tiny cross section and minimal clearance with the clamping bolt further make a repair challenging. I suggest finding a replacement der, or a donner one to use the front and hinged part and see if the hinge pin can be removed. I have seen many examples of this type of breakage. I have yet to see a repair that was welded. Andy
Yes I figured this type of weld would be too complicated and better to just find a replacement. Just a shame that the unit is in such nice condition. This is an example of AL fatigue / fracture and why most preferred steel frames.
joesch is offline
Old 05-03-21, 10:46 AM
  #8
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,351 Times in 978 Posts
The failure was not due to fatigue, as far as I can tell. Your pictures aren't great, but fatigue on something like this would show some amount of discoloring on the fracture surface. From what I can see, the fracture surface shows only evidence of rupture, i.e. the bolt was overtightened. Rupture surfaces are rough. Fatigue is smoother.

Most of these break due to careless mechanics at work.

I don't have the equipment to build aluminum frames, and I'm not sure I would do it if I did have the equipment. But on the occasions where I'm buying a bike, I buy aluminum frames if it's an option. Steel is a premium option nowadays, so the less expensive steel frames are more expensive than aluminum frames on what is otherwise the same bike. I prefer to pay less for a lighter aluminum frame.
unterhausen is offline
Likes For unterhausen:
Old 05-03-21, 12:53 PM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,698

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2638 Post(s)
Liked 1,301 Times in 813 Posts
Originally Posted by Andrew R Stewart View Post
I suggest finding a replacement der, or a donner one to use the front and hinged part and see if the hinge pin can be removed. I have seen many examples of this type of breakage. I have yet to see a repair that was welded.
I've successfully replaced the clamp piece on Huret Jubilee front derailleurs, but the problem I see with this Dura-Ace unit is that the hinge pin appears to be set in a blind hole. That makes extracting the current pin difficult.

I agree that a welded repair is unlikely to be satisfactory.
JohnDThompson is offline
Old 05-03-21, 01:02 PM
  #10
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,351 Times in 978 Posts
I am afraid I threw away my Jubilee with a worn out cage. I never realized people broke the clamp so often or I would have tried to fix it. I always thought it as the most elegant FD.
unterhausen is offline
Old 05-03-21, 02:16 PM
  #11
GrayJay
Senior Member

GrayJay's Avatar

Join Date: Sep 2009
Location: EagleRiver AK
Posts: 1,248
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by JohnDThompson View Post
I've successfully replaced the clamp piece on Huret Jubilee front derailleurs, but the problem I see with this Dura-Ace unit is that the hinge pin appears to be set in a blind hole. That makes extracting the current pin difficult.
Might be possible to drill out the hinge pin, source a replacement clamp from a worn donor then improvise a new pin?
GrayJay is offline
Old 05-03-21, 04:04 PM
  #12
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,978

Bikes: Homebuilt steel

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 100 Times in 78 Posts
The aluminum bits on the busted clamp could be ground down with a dremel until you get down the pin, then it could be cut in half and pulled out with vice grips. Something to that effect anyway. No clue where someone would find a suitable replacement clamp though.
Nessism is offline
Likes For Nessism:
Old 05-03-21, 08:31 PM
  #13
joesch
Senior Member
Thread Starter

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 939

Bikes: 83 Colnago Super, 87 50th Daccordi, 79 & 87 Guerciotti's, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 08 Lemond Filmore FG SS, 12 Cervelo R3, 20/15 Surly Stragler & Steamroller

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 193 Times in 141 Posts
Originally Posted by unterhausen View Post
The failure was not due to fatigue, as far as I can tell. Your pictures aren't great, but fatigue on something like this would show some amount of discoloring on the fracture surface. From what I can see, the fracture surface shows only evidence of rupture, i.e. the bolt was overtightened. Rupture surfaces are rough. Fatigue is smoother.

Most of these break due to careless mechanics at work.

I don't have the equipment to build aluminum frames, and I'm not sure I would do it if I did have the equipment. But on the occasions where I'm buying a bike, I buy aluminum frames if it's an option. Steel is a premium option nowadays, so the less expensive steel frames are more expensive than aluminum frames on what is otherwise the same bike. I prefer to pay less for a lighter aluminum frame.
Did not know that fatique "would show some amount of discoloring on the fracture surface".
Will surely be more careful now with tightening and max torque.
joesch is offline
