Old 08-29-20, 11:34 PM
  #76
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Originally Posted by Andrew R Stewart View Post
Depends on what you want your joints to look like. Most want the smooth look, not the gobby one that is now what I see.

Reason i asked about prep, flux and cleaner is the amount of blackening in the flux. Could be from poor cleaning, too much heat or too long a heat cycle (or any combo). Andy
Right, I see. Most of the black stuff is as unterhausen are saying from the flux. I can post some pictures with the flux removed. I definitely went too hot so thereís some black spots etc for sure though 😊

Yeah I definitely want to go with as smooth joints as I can manage. I guess my question was more about if itís alright to actual heat it up again to fix it if I didnít do a good enough job on the first try. I understand itís not ideal but whatever makes it the most safe to ride in the long run is what I want. Thanks!
Aldatroid is offline
Old 08-30-20, 01:24 AM
  #77
guy153
Senior Member

Join Date: Dec 2019
Posts: 574
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 116 Times in 94 Posts
Originally Posted by Aldatroid View Post
Right, I see. Most of the black stuff is as unterhausen are saying from the flux. I can post some pictures with the flux removed. I definitely went too hot so thereís some black spots etc for sure though 😊

Yeah I definitely want to go with as smooth joints as I can manage. I guess my question was more about if itís alright to actual heat it up again to fix it if I didnít do a good enough job on the first try. I understand itís not ideal but whatever makes it the most safe to ride in the long run is what I want. Thanks!
Reheating is one of those things one worries about but I don't think it actually does much harm especially with Cromoly. Better to make sure there's enough filler, but I think it will be obvious if there is or not as you sand it down a bit. As I think you said the area of potential concern is the bit right under the TT which is a place where frames can fail sometimes.

How are you going to do the filing/sanding? I recently made a fake fillet brazed frame (TIG braze over TIG welds-- plenty of reheating involved!) and sanded/filed them as best I could but I wish I'd seen Paul Brodie's videos which hadn't come out yet. He uses a kind of christmas tree shaped thing on a dremel-like tool (his is probably air-powered) followed by a dynafile-style belt-sander. There was a thread on this recently but good advice is be super careful with the power tools not to gouge out the steel and if in doubt use a hand-file in the tighter spots.

The joints look pretty good to me but I've never done this style of brazing.
guy153 is offline
Old 08-30-20, 02:58 AM
  #78
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Originally Posted by guy153 View Post
Reheating is one of those things one worries about but I don't think it actually does much harm especially with Cromoly. Better to make sure there's enough filler, but I think it will be obvious if there is or not as you sand it down a bit. As I think you said the area of potential concern is the bit right under the TT which is a place where frames can fail sometimes.

How are you going to do the filing/sanding? I recently made a fake fillet brazed frame (TIG braze over TIG welds-- plenty of reheating involved!) and sanded/filed them as best I could but I wish I'd seen Paul Brodie's videos which hadn't come out yet. He uses a kind of christmas tree shaped thing on a dremel-like tool (his is probably air-powered) followed by a dynafile-style belt-sander. There was a thread on this recently but good advice is be super careful with the power tools not to gouge out the steel and if in doubt use a hand-file in the tighter spots.

The joints look pretty good to me but I've never done this style of brazing.
Thanks for the reply.

hehe yeah I saw Brodieís video. He makes it look so easy as well Iím planning on attacking it with hand tools for now, donít trust myself with the power tools just yet 😊 Not that I own any either but I guess a regular power drill with that cone abrasive tool would work.

Iíll clean it up so we can have a proper look at the joint.
Aldatroid is offline
Likes For Aldatroid:
Old 08-30-20, 08:28 AM
  #79
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,349 Times in 977 Posts
Good choice not to use power tools. I always figure if I need to use a file, it's because the universe thought I needed to pay penance for not brazing that well.
unterhausen is offline
Old 08-30-20, 12:01 PM
  #80
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 45 Times in 31 Posts
[QUOTE=Aldatroid;21668432]Right, I see. Most of the black stuff is as unterhausen are saying from the flux. /QUOTE]
I don't particularly like the Cycle Design LFB flux for this reason. The Gasflux "blue stuff" goes clear when up to temp which makes seeing through it while brazing easier.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Old 08-30-20, 12:36 PM
  #81
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,349 Times in 977 Posts
I have a sample and it got rock hard before I got a chance to use it. I keep intending to try it, maybe on a trial joint.
unterhausen is offline
Old 08-30-20, 08:17 PM
  #82
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,050

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,259 Times in 882 Posts
I would not suggest a power grinder or Dynafile type tool for the initial clean up due to the OP's lack of experience. A rat tail hand file that's smaller then the fillet's wanted size is what I would go to. The trick is to keep the file off the tubes, better to file away a tad too much brass then any tube at this point. Work the fillet's center then carefully out to the tubes. It won't take too long to see the highs and low points of the fillet. Long before anything getting close to a finished fillet I would expect the want to revisit the joint with the torch and filler. Of course till then more practice is always a good idea. There's a reason why even accomplished musicians do their scales frequently. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-30-20, 08:21 PM
  #83
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,190

Bikes: Too Many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 75 Times in 51 Posts
If you haven't already, watch Paul Brodie's last video. While he is using power tools he does a good job of showing how to carve the initial grove to start the radius. Of course he makes it look really easy.

Edit: He just posted a new video so watch the second video in the series to rebuild the Romax.
__________________
I'm not one for fawning over bicycles, but I do believe that our bikes communicate with us, and what this bike is saying is, "You're an idiot." BikeSnobNYC

Last edited by Cynikal; 08-30-20 at 08:40 PM.
Cynikal is offline
Likes For Cynikal:
Old 08-31-20, 05:18 AM
  #84
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,349 Times in 977 Posts
I thought the attaching the chainstays video was pretty interesting. Never seen a well-known framebuilder show his alignment process before.
unterhausen is offline
Likes For unterhausen:
Old 08-31-20, 05:47 AM
  #85
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Love it! Watched it during lunch and man he makes everything look so easy indeed and yeah, interesting with the alignment process. I need to get something sturdier in my garage, maybe bolted to the floor, so I can push and pull the frame at some point, heh.
Aldatroid is offline
Old 08-31-20, 01:29 PM
  #86
David Tollefson
Senior Member

Join Date: Dec 2012
Location: Puyallup, WA
Posts: 148

Bikes: Many... Up to 9 in the stable now

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 10 Times in 8 Posts
I use a chainsaw chain file -- thinner, and does a very nice job, easy to find that shape then fair it out to the tube. Also, you can drop some silver (Fillet Pro works well) in those low spots without causing much of a heat cycle.
David Tollefson is offline
Likes For David Tollefson:
Old 08-31-20, 07:03 PM
  #87
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,050

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,259 Times in 882 Posts
Originally Posted by David Tollefson View Post
I use a chainsaw chain file -- thinner, and does a very nice job, easy to find that shape then fair it out to the tube. Also, you can drop some silver (Fillet Pro works well) in those low spots without causing much of a heat cycle.

I too use a chain saw sharpening file but more for final finishing the roughing out lumpy fillets. I too use silver for filling small pocks and low spots. But silver doesn't build up much (unless you have really nice heat control or go to 45%) Still good advise to try. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 09-01-20, 06:08 PM
  #88
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 45 Times in 31 Posts
Originally Posted by unterhausen View Post
I have a sample and it got rock hard before I got a chance to use it. I keep intending to try it, maybe on a trial joint.
Mine did the same and worked fine after adding water. I don't see any benefit over Gasflux.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Old 09-01-20, 06:10 PM
  #89
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 45 Times in 31 Posts
Originally Posted by unterhausen View Post
I thought the attaching the chainstays video was pretty interesting. Never seen a well-known framebuilder show his alignment process before.
https://www.youtube.com/watch?v=Wf0Zm0FBTFU
I haven't seen it yet!! No spoiler posts!!! I want to know how it turns out!!
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Old 09-01-20, 08:05 PM
  #90
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,349 Times in 977 Posts
Originally Posted by duanedr View Post
Mine did the same and worked fine after adding water. I don't see any benefit over Gasflux.
yeah, I figured it would be fine. I usually let my gasflux dry up by mistake and have to reconstitute it.
unterhausen is offline
Likes For unterhausen:
Old 09-02-20, 02:37 AM
  #91
guy153
Senior Member

Join Date: Dec 2019
Posts: 574
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 116 Times in 94 Posts
Originally Posted by duanedr View Post
I haven't seen it yet!! No spoiler posts!!! I want to know how it turns out!!
Well you know it's going to turn out well whatever he does
guy153 is offline
Old 09-03-20, 08:55 AM
  #92
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 45 Times in 31 Posts
Originally Posted by guy153 View Post
Well you know it's going to turn out well whatever he does
Wow! Real cliffhanger! I was on the edge of my seat! I can't wait for the seatstay episode! The videos are actually really well done and he's very enjoyable to watch. I'm hoping he does a couple episodes covering those motorcycles!
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Old 09-03-20, 09:10 AM
  #93
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,190

Bikes: Too Many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 75 Times in 51 Posts
Originally Posted by duanedr View Post
Wow! Real cliffhanger! I was on the edge of my seat! I can't wait for the seatstay episode! The videos are actually really well done and he's very enjoyable to watch. I'm hoping he does a couple episodes covering those motorcycles!
If you listen to the Cobra Framebuilding podcast, Paul did one where he goes into the motos in detail. Pretty cool stuff.
__________________
I'm not one for fawning over bicycles, but I do believe that our bikes communicate with us, and what this bike is saying is, "You're an idiot." BikeSnobNYC
Cynikal is offline
Likes For Cynikal:
Old 09-08-20, 02:06 AM
  #94
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts

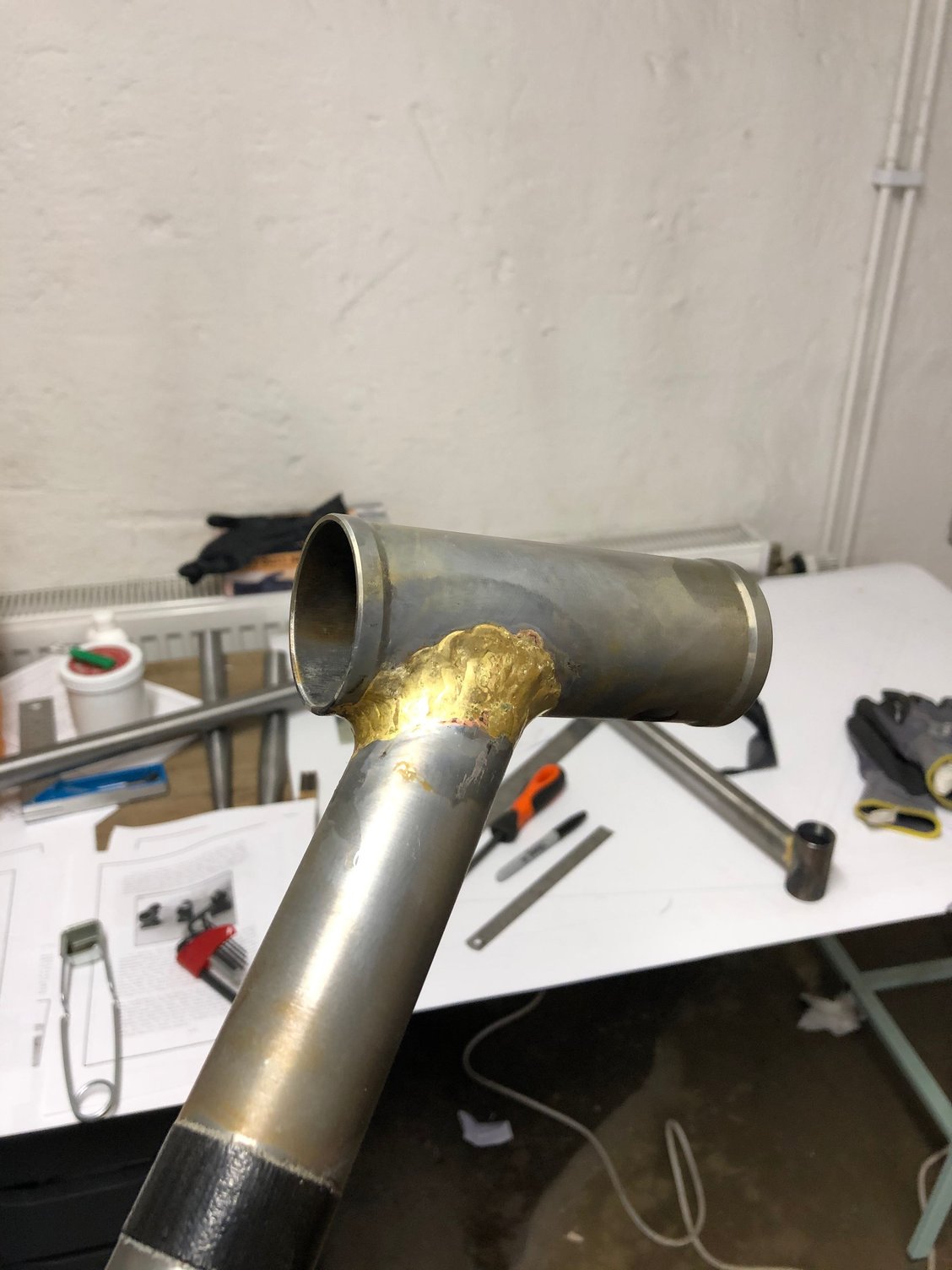

Cleaned it up and yes, it didnít take more than five minutes or so to realize the fillet was way too small. Did take any pictures from that state but this is what it looks like now. Feels a lot better.
Aldatroid is offline
Likes For Aldatroid:
Old 09-08-20, 09:49 AM
  #95
guy153
Senior Member

Join Date: Dec 2019
Posts: 574
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 116 Times in 94 Posts
That looks really good!

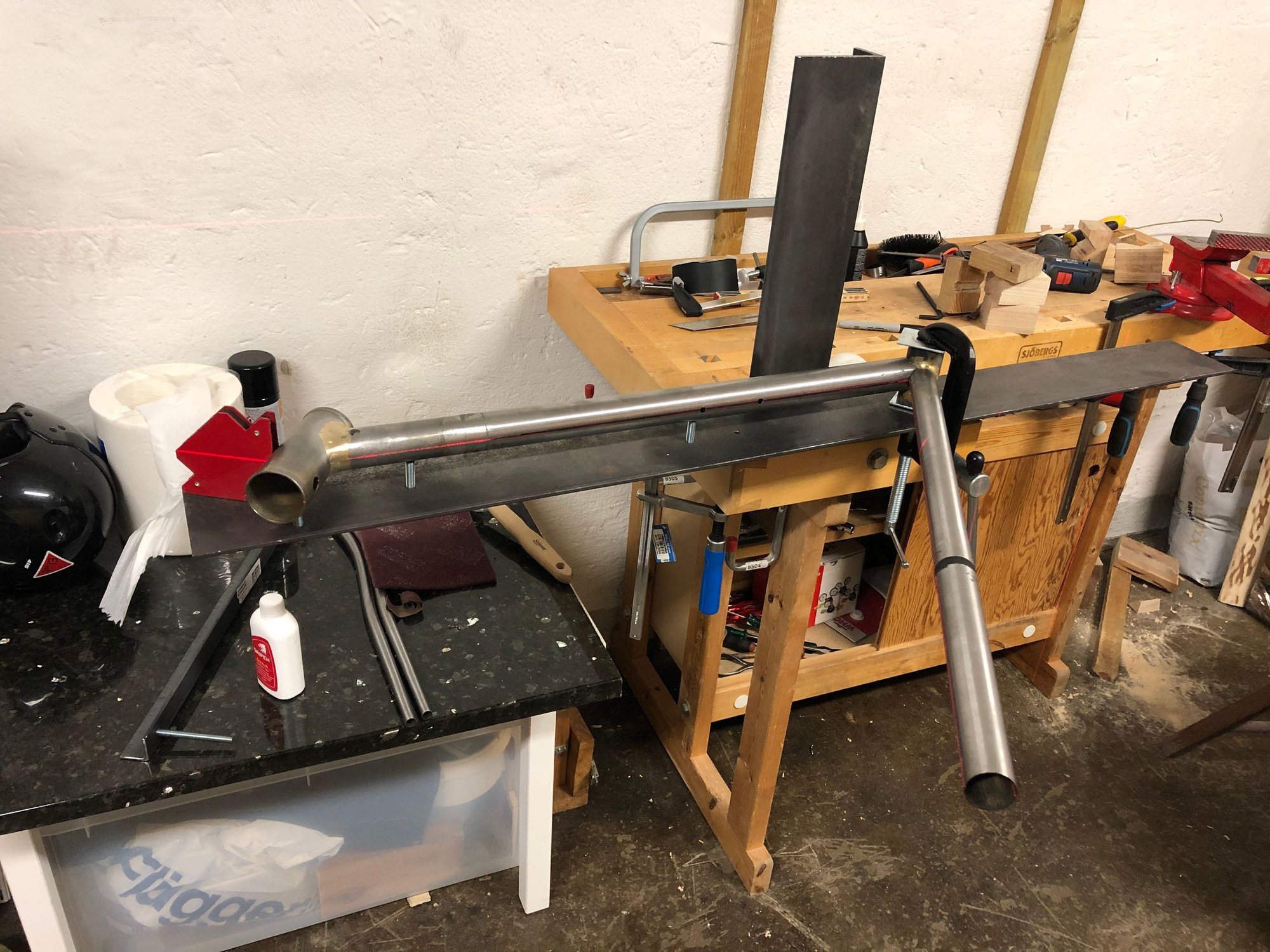

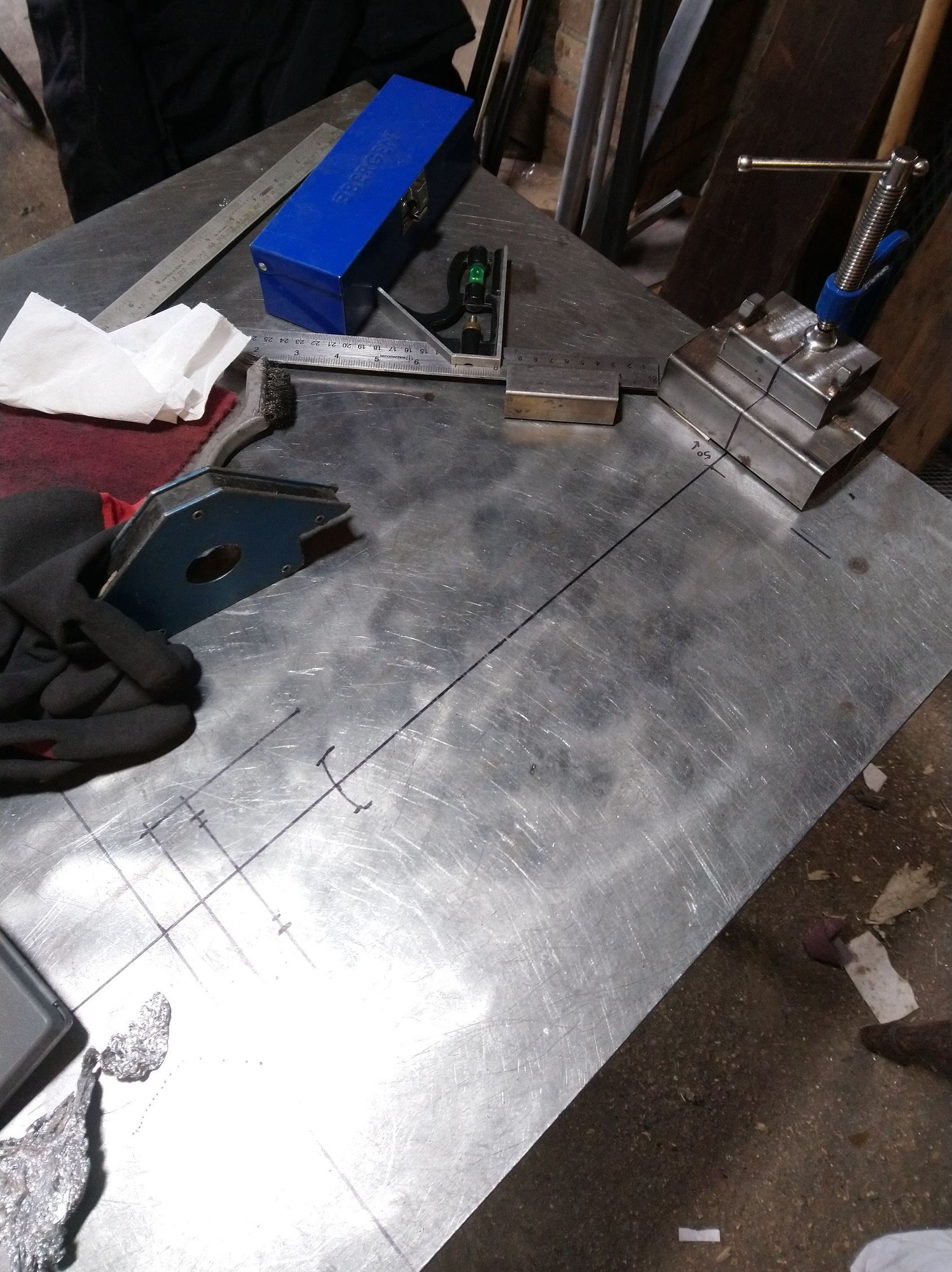

I was talking about my rear triangle "jig" earlier in this thread. I had this setup for another frame yesterday and took a picture. As you can see it's very simple, mainly just consisting of a couple of nuts brazed onto some square tube which gets clamped at one end of the table. That holds a bit of threaded rod that is pretending to be the axle. I've drawn the tyre and chainring on the table.

The long line across the table at the far end is where a piece of angle iron is clamped that the BB shell is butted up against. I should have taken a picture with the frame in there but I was in too much of a hurry to crack on with welding it

You have to do a bit of math to work out the angle the ST should be at. My CAD software tells me that the angle of the CS plane to the ST in this case was 10.16 degrees, and I could work that in the jig it was 6 degrees. So the ST needed to be at 73 + 4 (for a 73 degree seat angle).

guy153 is offline
Likes For guy153:
Old 09-08-20, 10:56 AM
  #96
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Hey!

Thanks and thanks for showing your setup for the rear triangle!

My biggest hurdle right now is to figure out a way to get the DT and ST brazed together straight, with a straight HT et the end of that DT. I donít have any v blocks etc so canít do the Paterek setup but Iím doing something similar to the ďalmost jiggless framebuildingĒ on Instructable. I have two pieces of angle iron that Iíve tapped in a couple of places so I can adjust the height along the DT and ST. With the tube lying down I use a cross laser to make sure theyíre straight. Super finicky but I think itíll work. HT twist is the hardest to check with this setup but I havenít optimized it yet so might figure something better out 😊
Aldatroid is offline
Old 09-08-20, 12:12 PM
  #97
guy153
Senior Member

Join Date: Dec 2019
Posts: 574
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 116 Times in 94 Posts
Originally Posted by Aldatroid View Post
Hey!

Thanks and thanks for showing your setup for the rear triangle!

My biggest hurdle right now is to figure out a way to get the DT and ST brazed together straight, with a straight HT et the end of that DT. I donít have any v blocks etc so canít do the Paterek setup but Iím doing something similar to the ďalmost jiggless framebuildingĒ on Instructable. I have two pieces of angle iron that Iíve tapped in a couple of places so I can adjust the height along the DT and ST. With the tube lying down I use a cross laser to make sure theyíre straight. Super finicky but I think itíll work. HT twist is the hardest to check with this setup but I havenít optimized it yet so might figure something better out 😊
Before I made my non-precision jig I was thinking of offsetting things off the table like that with angle iron with bolts going through it. I think it should work fine. The mitres help you a lot-- if you got them all "clocked" correctly the frame won't fit together properly unless it's right. The only thing any jig needs to be able to do is hold things together while you tack them. Once it's tacked it's not too hard to check, even by eye, but I really like the cross laser for the rear triangle, because it can really do your head in trying to work out what's wrong otherwise. It seems odd to me that you completely attached the DT to the HT but maybe this is the Paterek method or something I guess if you put the DT onto the ST and tack it you can then fairly easily twist it a bit to make sure the HT and ST are parallel. But I would want to tack in the TT at that point and then braze the whole lot. With welding it's best to do the bits inside and outside the triangle first and then the edges at the end but I also put three or four tacks on each joint before welding anything fully.

I also always leave a dummy axle bolted into the rear and on the front if making a fork. The better you can tie things down the less they move, although they will still move. But it's a compromise with the rear triangle of allowing for final adjustments. SS last is definitely the way to go. The CS will move more without the SS tacked in, but they're very easy to move back. The main triangle is not so easy to correct so it's much better not to have to (or only to make very minor changes).
guy153 is offline
Old 09-08-20, 12:25 PM
  #98
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Thanks for the feedback guy153.

Yeah Iím more or less following Paterekís order for this build.
Aldatroid is offline
Old 09-15-20, 02:59 PM
  #99
Aldatroid
Member
Thread Starter

Join Date: Aug 2020
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 19 Times in 11 Posts
Hey!

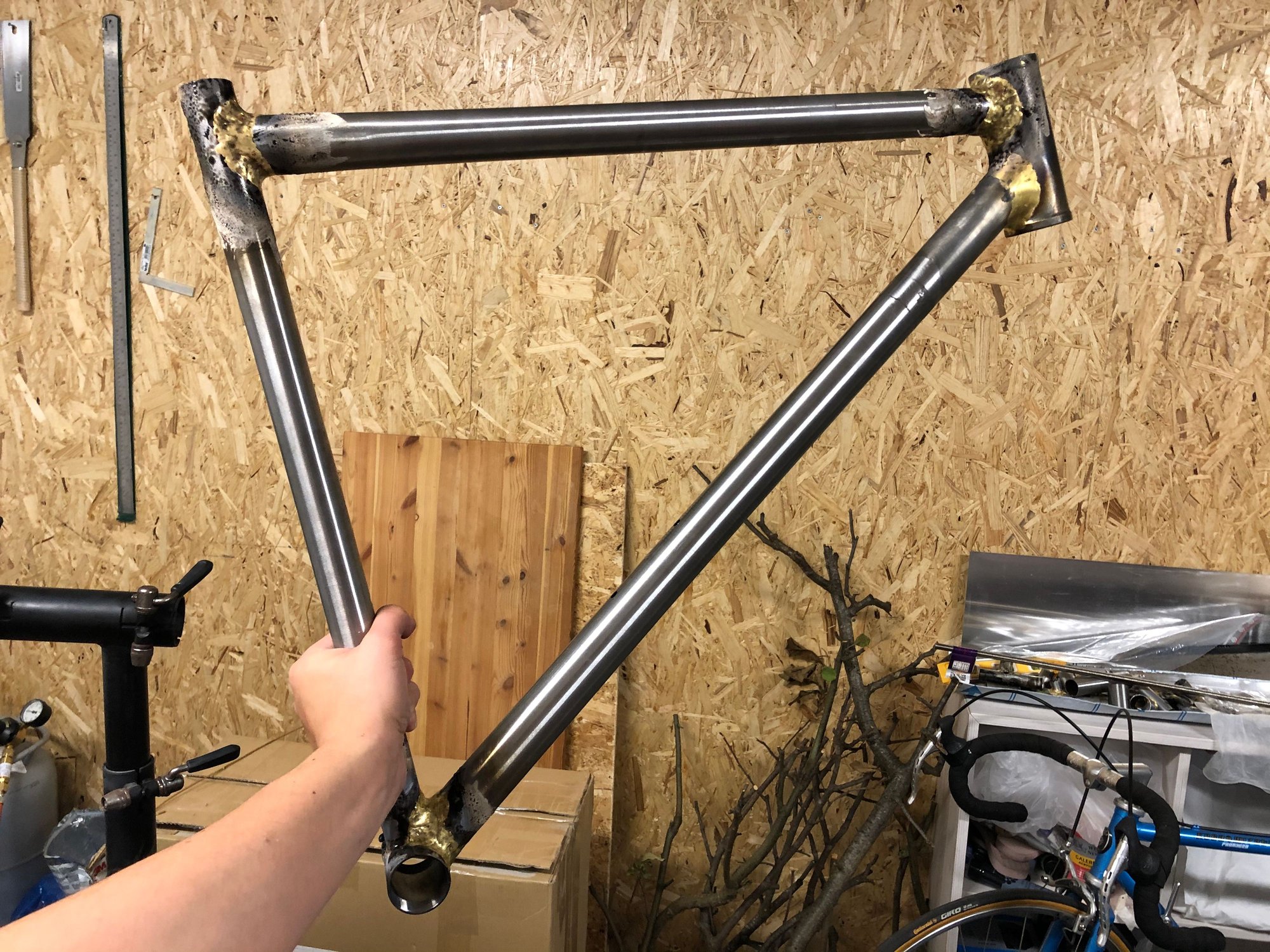

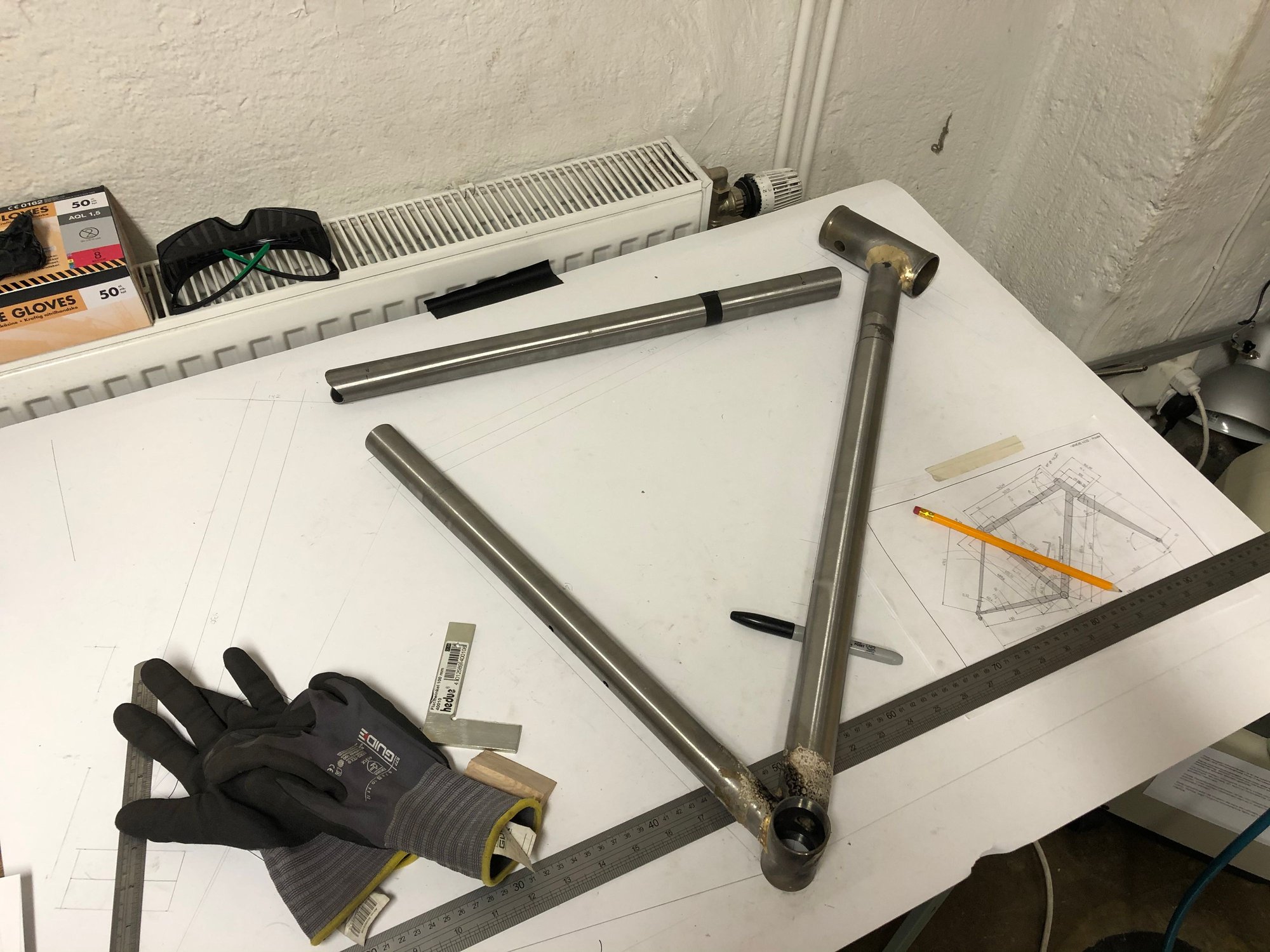

Spent some time garage the last couple
of days and managed to get the main triangle together and what looks to me to be fairly straight. The HT angle got pushed a little though... havenít checked with how much but letís just say that my trail will be larger than calculated 63.8.

The HT was also noticeable twisted after tacking but after that debacle I went ahead and brazed all the joints. Much trickier than I anticipated but Iím OK with the fillets for now. Weíll have to see what they look like after som filing. Heat control is obviously still an issue and I think I know what Iím doing wrong. Staying way too long in each area due to my inexperience brazing. I also forget to move the flame away from the tube more often then not etc :/ Anyway.... work in progress. Did a bunch of practice fillets with mixed result.

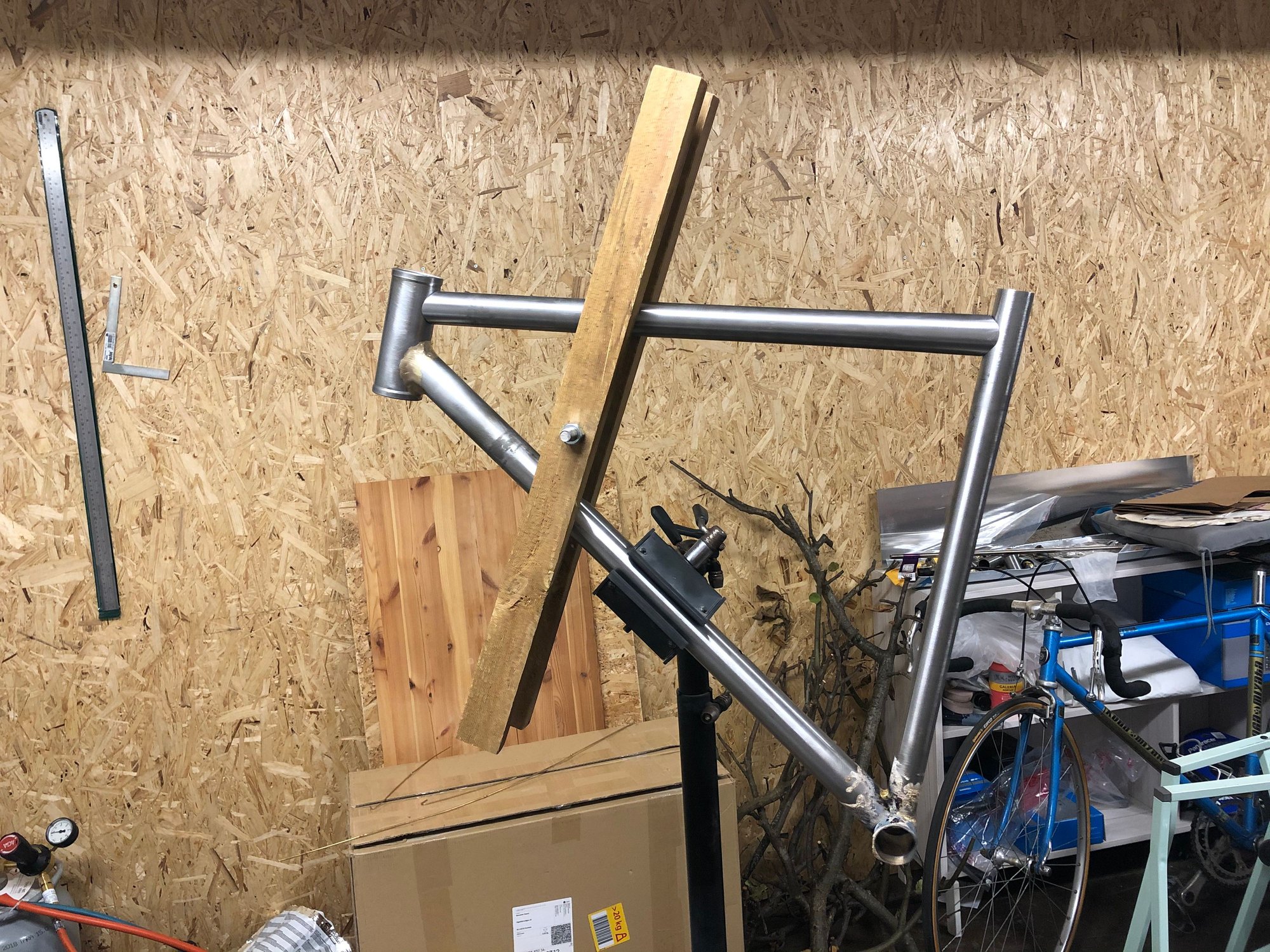

Here are a couple of pictures of my recent adventures 😊

Oh and Iím currently going through all the experience you guys shared in regards to the rear triangle now to set something up.








I do have one question regarding filing and sanding the joints. Iím really scared touching the tubes when Iím working on the fillets which in turn doesnít produce anything near smooth
fillets. How should I approach that? You might be able to see in some of the pictures that the HT and HT joint is pretty lumpy still. Spent quite some time on it as well.... heh

Thanks for stopping by!
Aldatroid is offline
Likes For Aldatroid:
Old 09-15-20, 05:22 PM
  #100
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,349 Times in 977 Posts
It's pretty tricky, that's why many pros that use fillet a lot have worn out fingers. Got to keep the file from hitting the tube.

My goal when filleting is to produce a smooth edge that doesn't need to be touched with a file. It's not easy.
unterhausen is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
