The most elusive Park Tool has surfaced. Bent headtubes, take note.



I've spoken about this tool in the past. I saw it mentioned here once; it was shown in an age-old Park Tools catalog.

Some said it was foolhardy, others said it wouldn't work. Nevertheless, the discussion disappeared into the BF archives, the catalog photo never resurfaced, and an example of one never showed its face since.

Until today.

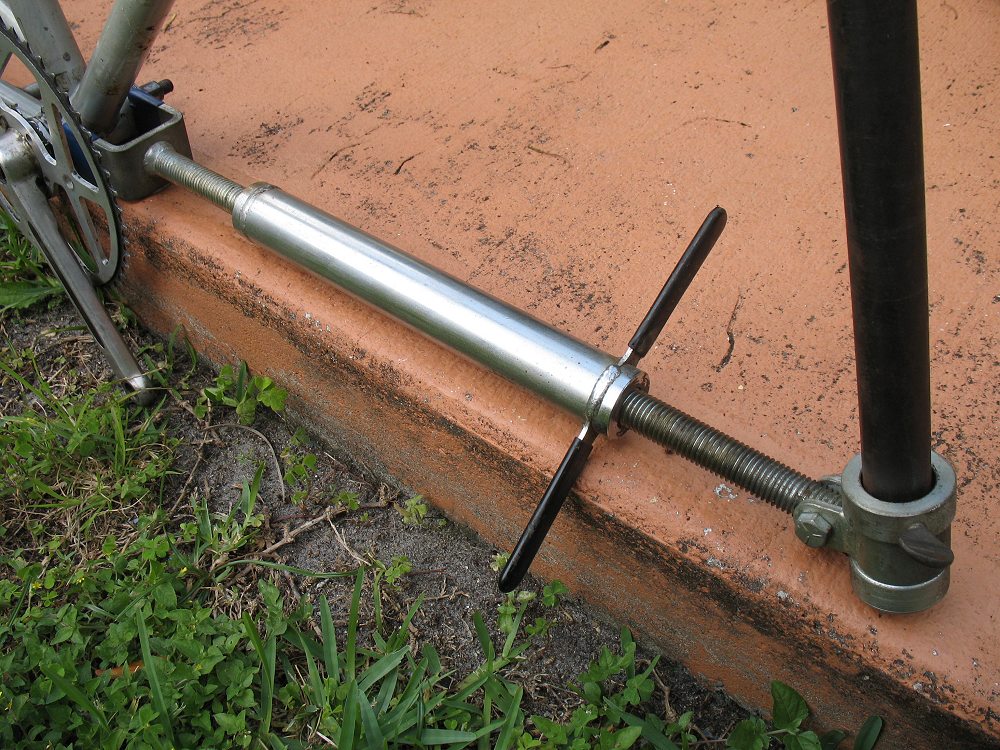

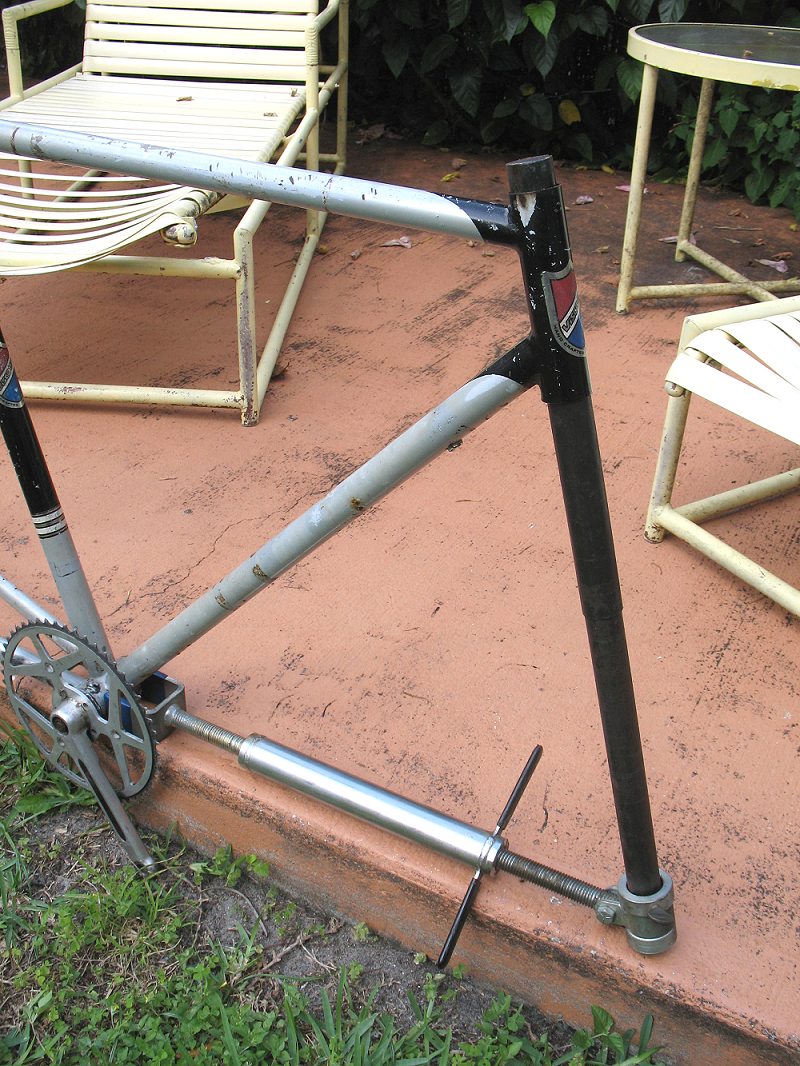

If you're wondering what this thing is designed to do, this photo should explain it all:

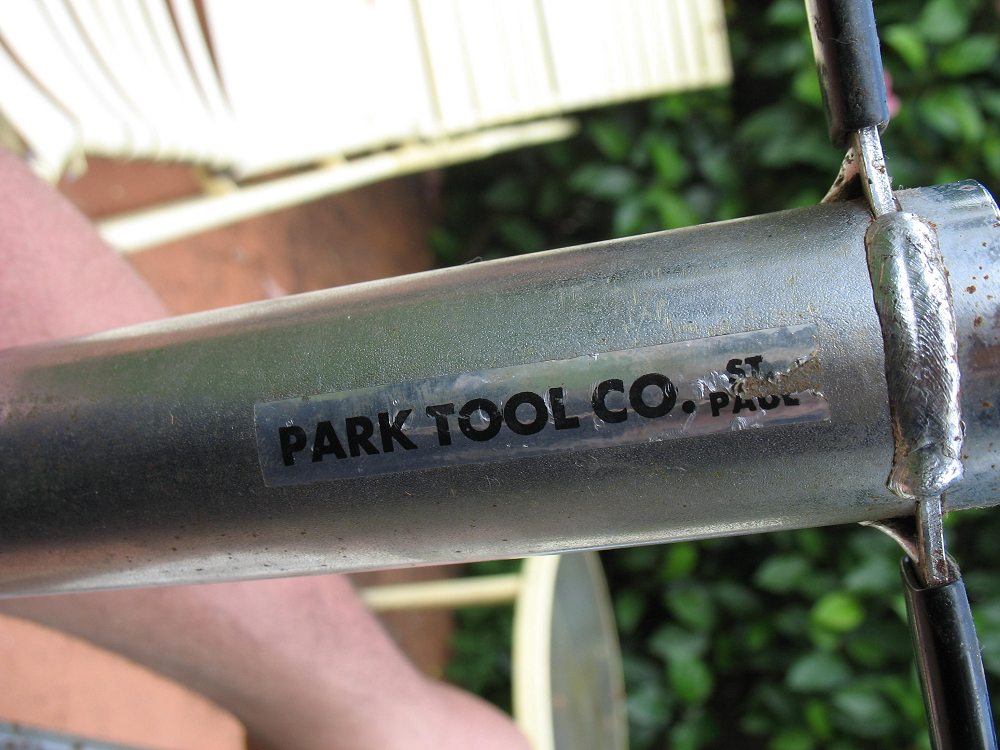

Yes, its a Park headtube straightener, and I'll find out, first-hand, this week, whether it really works (using a 753 Jan Legrand Raleigh Pro as a starting point).









-Kurt

__________________








Last edited by cudak888; 07-31-12 at 08:24 AM.
cudak888 is offline
Likes For cudak888:
Old 04-25-10, 02:52 PM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,904

Bikes: Too many to list here check my signature.

Mentioned: 166 Post(s)
Tagged: 2 Thread(s)
Quoted: 2577 Post(s)
Liked 1,847 Times in 1,059 Posts
very nice. every frame is safe from the scrapyard now
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 04-25-10, 02:59 PM
  #3
divineAndbright
Senior Member

divineAndbright's Avatar

Join Date: Aug 2005
Location: ontario
Posts: 2,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Looking at that I can see no reason why it wouldnt work, looks like a pretty beefy tool though, and you have to wonder what kind of stress it will be unleashing on the frame. how did you come by it?
divineAndbright is offline
Old 04-25-10, 03:06 PM
  #4
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,406

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 803 Post(s)
Liked 539 Times in 299 Posts
Looks like it could work, but seems intended to straighten top and downtube rather than headtube.
Reynolds is online now
Old 04-25-10, 03:06 PM
  #5
Kommisar89
Bottecchia fan

Join Date: Aug 2003
Location: Colorado Springs, CO
Posts: 3,508

Bikes: 1959 Bottecchia Milano-Sanremo (frame), 1966 Bottecchia Professional (frame), 1971 Bottecchia Professional (frame), 1973 Bottecchia Gran Turismo, 1974 Bottecchia Special, 1977 Bottecchia Special (frame), 1974 Peugeot UO-8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 7 Times in 6 Posts
That certainly is an interesting gadget. Seems like you'd need to use those dent removal things that clamp around the tube as well to completely fix it. Can't wait to see your results.
__________________
1959 Bottecchia Milano-Sanremo(frame), 1966 Bottecchia Professional (frame), 1971 Bottecchia Professional (frame),
1973 Bottecchia Gran Turismo, 1974 Bottecchia Special, 1977 Bottecchia Special (frame),
1974 Peugeot UO-8, 1988 Panasonic PT-3500, 2002 Bianchi Veloce, 2004 Bianchi Pista
Kommisar89 is offline
Old 04-25-10, 03:17 PM
  #6
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 14,086
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Likes: 0
Liked 86 Times in 66 Posts
Back in my shop days I used one that had a mechanism similar to an old car jack on the bottom section.
miamijim is offline
Old 04-25-10, 03:30 PM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,934

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3120 Post(s)
Liked 2,360 Times in 1,392 Posts
Originally Posted by cudak888 View Post


I've spoken about this tool in the past. I saw it mentioned here once; it was shown in an age-old Park Tools catalog. . . .
Yes, its a Park headtube straightener, and I'll find out, first-hand, this week, whether it really works (using a 753 Jan Legrand Raleigh Pro as a starting point).
I don't suggesting trying it on a 753 frame. We tried it at Trek once on a 753 team frame and the tubes buckled completely before it got straight.
JohnDThompson is offline
Likes For JohnDThompson:
Old 04-25-10, 03:51 PM
  #8
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,288

Bikes: Mostly English - predominantly Raleighs

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 1205 Post(s)
Liked 567 Times in 374 Posts
Now how to straighten those Schwinn forks?...
__________________
In search of what to search for.
USAZorro is offline
Old 04-25-10, 04:46 PM
  #9
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by divineAndbright View Post
Looking at that I can see no reason why it wouldnt work, looks like a pretty beefy tool though, and you have to wonder what kind of stress it will be unleashing on the frame. how did you come by it?
Purely by accident, mucking about in the back room of the LBS. I'd never seen one of these things in person; my eyes were first drawn to a Park fork alignment checker near a Suntour cog board. I caught sight of the C-shaped BB fitting of this tool sitting immidiately behind it, which I had remembered from the Park catalog/manual scan.

Ironically enough, I thought about this very tool - for a split second - no less then an hour before I saw it. During Bike Miami, I failed to avoid (though I did "go light" at the last minute) a gigantic pothole with the '61 Paramount. I was nearly convinced that I wouldn't make it through without crunching the front end, though I came out of it with little more then a scare and a dislodged water bottle.


Originally Posted by Reynolds View Post
Looks like it could work, but seems intended to straighten top and downtube rather than headtube.
That it does, though the headtube angle is changed in the process.


Originally Posted by JohnDThompson View Post
I don't suggesting trying it on a 753 frame. We tried it at Trek once on a 753 team frame and the tubes buckled completely before it got straight.
This 753 frame has already buckled quite badly - there isn't any hope for it one way or another. I've already located another slightly bent frame to give it the full try.


Originally Posted by Chuckk View Post
Bingo. Didn't realize they had a discontinued tools list. They're missing the CCP-1.

Manual notes that those sleeves are not the right way around, supposedly.

-Kurt
__________________







cudak888 is offline
Old 04-25-10, 05:05 PM
  #10
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by miamijim View Post
Back in my shop days I used one that had a mechanism similar to an old car jack on the bottom section.
I recall you mentioned that.

Funny how the mock-up I did in that thread looks quite similar to the actual tool - I didn't miss that much:





-Kurt
__________________







cudak888 is offline
Old 04-25-10, 05:48 PM
  #11
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,431 Times in 801 Posts
Works well if you're careful...

I was lucky enough to get a few frame tools a while back, and the frame straightener was one of them. More importantly, I have already used it to correct some distortion on an old Peugeot. Have a look at the results and/or read more about this bike and how it turned out.

randyjawa is offline
Old 04-25-10, 06:04 PM
  #12
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by randyjawa View Post
I was lucky enough to get a few frame tools a while back, and the frame straightener was one of them. More importantly, I have already used it to correct some distortion on an old Peugeot. Have a look at the results and/or read more about this bike and how it turned out.
I'm feeling good and overconfident already

-Kurt
__________________







cudak888 is offline
Old 04-25-10, 06:18 PM
  #13
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,479

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Likes: 0
Liked 532 Times in 257 Posts
Originally Posted by JohnDThompson View Post
I don't suggesting trying it on a 753 frame. We tried it at Trek once on a 753 team frame and the tubes buckled completely before it got straight.
+1 on that. 753 is not a good candidate to try it on. If you want to send it to me, I can try it on an Ishiwata frame for you.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 04-25-10, 06:21 PM
  #14
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Likes: 0
Liked 16 Times in 16 Posts
I hope I never need one.
Grand Bois is offline
Old 04-25-10, 06:36 PM
  #15
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by Grand Bois View Post
I hope I never need one.
You're missing out on a lot of potentially good stuff if you don't have one.

-Kurt
__________________







cudak888 is offline
Old 04-25-10, 06:37 PM
  #16
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by CV-6 View Post
+1 on that. 753 is not a good candidate to try it on. If you want to send it to me, I can try it on an Ishiwata frame for you.
I've got a mid-range Italian frame on its way for the job, but I'm still going to give the 753 a shot. That Raleigh is already buckled so badly behind the shifter mounts that the tube has crumpled.

-Kurt
__________________







cudak888 is offline
Old 04-25-10, 07:31 PM
  #17
StephenH
Uber Goober

StephenH's Avatar

Join Date: Sep 2007
Location: Dallas area, Texas
Posts: 11,759
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 37 Times in 28 Posts
I remember over on the ratrod bike site, someone mentioning about straightening bent forks. I would be curious, though, for what that tool was actually made. More to the point, it might be intended for hi-ten cruiser frames, and not so useful on any kind of high-end road-bike frame or something.

https://ratrodbikes.com/forum/viewtopic.php?f=3&t=9364
__________________
"be careful this rando stuff is addictive and dan's the 'pusher'."

Last edited by StephenH; 04-25-10 at 07:35 PM.
StephenH is offline
Old 04-25-10, 07:39 PM
  #18
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by StephenH View Post
and not so useful on any kind of high-end road-bike frame or something.
Randyjawa has already proved its usefulness once.

-Kurt
__________________







cudak888 is offline
Old 04-26-10, 10:04 AM
  #19
Glennfordx4
Holy Spokes it's Batsman!

Glennfordx4's Avatar

Join Date: Nov 2008
Location: South Jersey
Posts: 1,961

Bikes: Too many Bicycles to list

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 63 Times in 44 Posts
That's the tool we were talking about to fix my Schwinn New World, so now the question will you rent it to me to try and fix this.


Glenn
Glennfordx4 is offline
Old 04-26-10, 10:09 AM
  #20
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Likes: 0
Liked 16 Times in 16 Posts
Originally Posted by cudak888 View Post
You're missing out on a lot of potentially good stuff if you don't have one.

-Kurt
I've got more stuff than I need already.
Grand Bois is offline
Old 04-26-10, 10:18 AM
  #21
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by Glennfordx4 View Post
That's the tool we were talking about to fix my Schwinn New World, so now the question will you rent it to me to try and fix this.
Hmm. I'm really not sure if it would straighten an EF frame. So far, I've got an SL frame, a 1020 Windsor, and the 753 frame lined up; I might be able to dig up an EF to see if it does anything.

That said though, if I do buy the tool, I'm not willing to ship it out. I wouldn't have anything against doing the frame here though, and considering the tool's size and the weight, the shipping for either would probably be about the same.


Originally Posted by Grand Bois View Post
I've got more stuff than I need already.
Same here.

-Kurt
__________________







cudak888 is offline
Old 04-26-10, 10:33 AM
  #22
RogerB
Senior Member

Join Date: Jun 2008
Location: Snohomish, WA
Posts: 723

Bikes: Ridley Fenix Disc '15, Centurion Ironman '86, Raleigh Team '90, Bianchi Nyala '93

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Kommisar89 View Post
dent removal things that clamp around the tube
Yes, that. That's what I need. I have a straight but dinged head tube. Any more info on this?
RogerB is offline
Old 04-26-10, 10:39 AM
  #23
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,517

Bikes: https://www.theheadbadge.com

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1903 Post(s)
Liked 2,741 Times in 1,458 Posts
Originally Posted by RogerB View Post
Yes, that. That's what I need. I have a straight but dinged head tube. Any more info on this?
If you have a dented headtube, just run a pipe/seatpost the size of its inside diameter straight down the tube, it'll knock the dent out. Sometimes works for seattubes, usually straight gauge.

-Kurt
__________________







cudak888 is offline
Old 04-26-10, 11:17 AM
  #24
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,190

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 495 Post(s)
Tagged: 0 Thread(s)
Quoted: 7026 Post(s)
Liked 1,797 Times in 1,114 Posts
We would straighten frames this way:

Take a long heavy rod, similar to the one in the Park tool. Insert one end of the rod in the head tube. Insert the other end of the rod between two buildings. (Buildings in NYC are made of concrete or brick, so this serves as a good vise.) Using the frame as a lever, bend the frame against the rod.

Bending isn't really the hard part. It takes force, that's all. The hard part is measuring the alignment.

I did this with my UO-8 frame. I got it mostly straight. It still has a little toe-clip overlap. And it's off to one side, so riding no-hands requires leaning a bit to one side, but that's not very noticeable. It's not noticeable when you hold the handlebars. I rode this bike for years. I retired it about two years ago.

Anyone want this frame? It's a 54 cm. The fork is straight. I'm willing to part it out: frame, fork, crank, headset.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 04-26-10, 11:37 AM
  #25
lotek
Senior Member

lotek's Avatar

Join Date: Dec 2001
Location: n.w. superdrome
Posts: 17,688

Bikes: 1 trek, serotta, rih, de Reus, Pogliaghi and finally a Zieleman! and got a DeRosa

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
hey is that my old Viscount aerospace pro???
__________________
Sono più lento di quel che sembra.
Odio la gente, tutti.


Want to upgrade your membership? Click Here.
lotek is offline
