Tenacious stem

Hi
I have a tenacious stem which refuse to leave its hole.
It moves, up and down, turns right or left, but refuses to come out.
I tried gentle, I tried some force.
Nothing.
Any ideas?
Thanks
ConnoisseurEqua is offline
Old 09-19-22, 06:57 PM
  #2
jethin
Senior Member

jethin's Avatar

Join Date: Oct 2009
Posts: 993
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 231 Post(s)
Liked 189 Times in 102 Posts
Try a lil tenderness?
jethin is offline
Likes For jethin:
Old 09-19-22, 07:55 PM
  #3
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 7,230

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Peugeot UE-8, '75 Peugeot PR-10L, '80 Colnago Super, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 736 Post(s)
Liked 1,490 Times in 426 Posts
How far up does it go? Could it be the wedge is catching on the headset locknut? Maybe tighten the stem bolt a little (but not too tight to move) so the wedge nut stays in line with stem shaft, or try unscrewing the headset locknut?
gaucho777 is offline
Likes For gaucho777:
Old 09-19-22, 08:26 PM
  #4
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts
It's an extra long stem. It goes all the way in. The nut must be 40cm long. Most of it comes out.

I've removed the wedge nut. No change.
I've removed the headset locknut. Removed all bearings for access. No change.

It could be as you said the wedge catching on something but can't see what.

Last edited by ConnoisseurEqua; 09-19-22 at 08:29 PM.
ConnoisseurEqua is offline
Old 09-19-22, 09:58 PM
  #5
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,157

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 1,063 Times in 634 Posts
Could you post a couple of pics? I’m stumped. Maybe head badge rivets?
noobinsf is offline
Old 09-20-22, 06:57 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,229
Mentioned: 629 Post(s)
Tagged: 1 Thread(s)
Quoted: 4702 Post(s)
Likes: 0
Liked 2,964 Times in 1,840 Posts
Based on the title, I was expecting to see a photo of the mega-rare Phil Wood handlebar stem.

Seriously though, it seems strange that the stem comes most of the way out, then stops.
T-Mar is offline
Likes For T-Mar:
Old 09-20-22, 07:25 AM
  #7
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,093

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Liked 907 Times in 592 Posts
Originally Posted by noobinsf View Post
Maybe head badge rivets?
How would head badge rivets pass through the head tube and into the steerer??
smd4 is offline
Likes For smd4:
Old 09-20-22, 07:26 AM
  #8
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,292

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
Liked 386 Times in 286 Posts
Originally Posted by ConnoisseurEqua View Post
It's an extra long stem. It goes all the way in. The nut must be 40cm long. Most of it comes out.

I've removed the wedge nut. No change.
I've removed the headset locknut. Removed all bearings for access. No change.

It could be as you said the wedge catching on something but can't see what.
40cm might be the length of the quill not a nut. Pictures would help. Your quill stem has a binder bolt and a wedge, both now removed, correct? You have removed the headset locknet, any spacers/keyed washers and the headset threaded top race from the steerer, correct?
easyupbug is offline
Old 09-20-22, 10:11 AM
  #9
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,157

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 1,063 Times in 634 Posts
Originally Posted by smd4 View Post
How would head badge rivets pass through the head tube and into the steerer??
Oh good lord, it was a long day -- clearly a brain fart. Whoops.
noobinsf is offline
Old 09-20-22, 10:15 AM
  #10
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts

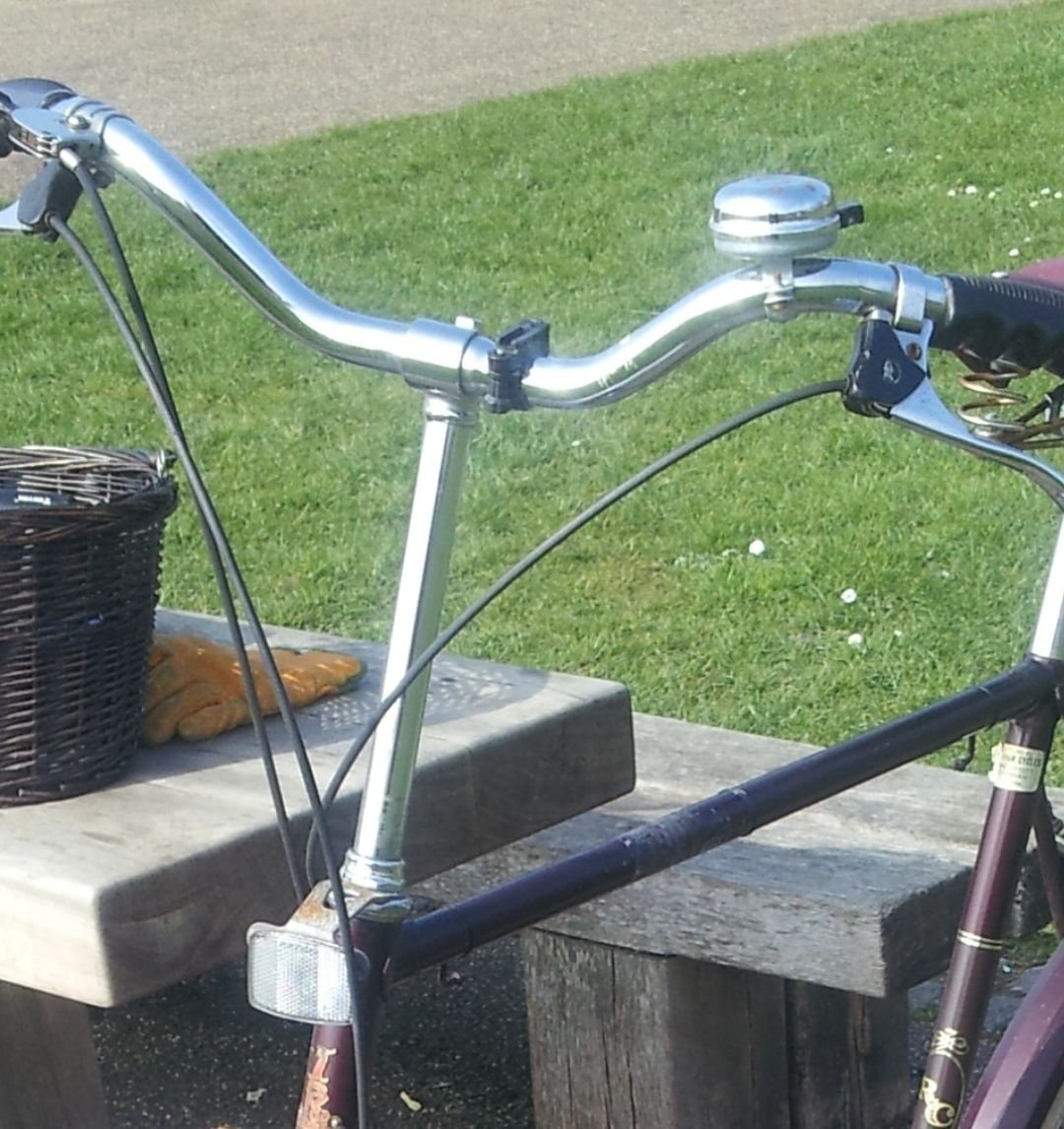

This is the stem I'm trying to remove.
I cannot find them anymore so it has to come out.
I will take pics of the stem with everything removed.

ConnoisseurEqua is offline
Old 09-20-22, 10:16 AM
  #11
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,047
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 3559 Post(s)
Liked 2,335 Times in 1,387 Posts
Originally Posted by noobinsf View Post
Oh good lord, it was a long day -- clearly a brain fart. Whoops.
We've all had those.
himespau is offline
Old 09-20-22, 10:17 AM
  #12
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts
ConnoisseurEqua is offline
Old 09-20-22, 10:17 AM
  #13
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 992

Bikes: You had me at rusty and Italian!!

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 606 Times in 338 Posts
Are the cables keeping it from lifting out?
RustyJames is offline
Likes For RustyJames:
Old 09-20-22, 10:29 AM
  #14
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,925
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 418 Times in 283 Posts
Originally Posted by RustyJames View Post
Are the cables keeping it from lifting out?
Those brake cables are stretched to their limit. Cables can be surprisingly restrictive. I'd unhook those cables and go from there.
tricky is offline
Likes For tricky:
Old 09-20-22, 10:33 AM
  #15
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,157

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 1,063 Times in 634 Posts

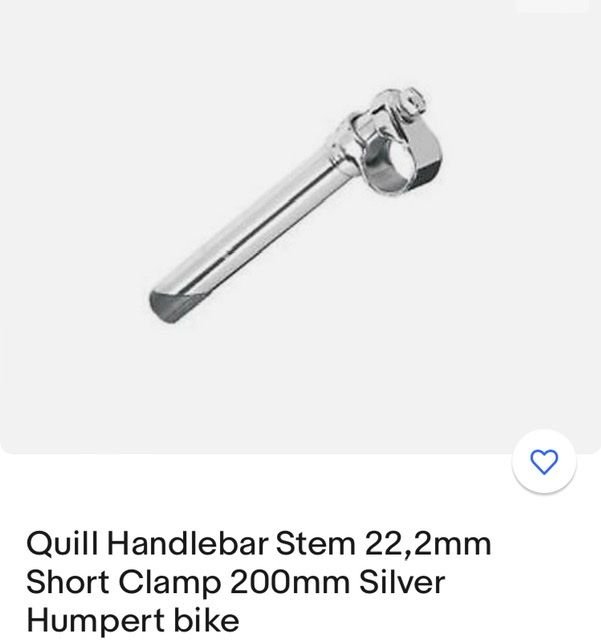

It looks like this type of Humpert stem (taller than the one in the pic I’m posting, which comes from evilbay). Looks like a traditional wedge, no surprises. Yes, if you have not disconnected the cables yet, I agree that this is likely the cause, since you’re able to get all kinds of movement.


noobinsf is offline
Old 09-20-22, 10:44 AM
  #16
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts

ConnoisseurEqua is offline
Old 09-20-22, 10:46 AM
  #17
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts
As one can see all cables removed. Nothing should stop it to come out.
As I mentioned earlier, it moves free, not without effort though.
ConnoisseurEqua is offline
Likes For ConnoisseurEqua:
Old 09-20-22, 10:55 AM
  #18
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 907
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked 641 Times in 290 Posts
If you put the bolt back in, does it drop down all the way?
__________________
droppedandlost is offline
Old 09-20-22, 10:58 AM
  #19
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,925
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 418 Times in 283 Posts
Originally Posted by ConnoisseurEqua View Post
As one can see all cables removed. Nothing should stop it to come out.
As I mentioned earlier, it moves free, not without effort though.
Well, you should have said so! You are holding back some details! Have you already used penetrant? It looks like that rust is wet with something.

When you thread the bolt in, are you able to tell if the wedge is loose? If not, smack the bolt with a hammer (with some wood inbetween if you want to keep the bolt looking nice) to get it fully loose. It might be stuck to the bottom of the stem just enough to be keeping the stem locked in the steerer.
tricky is offline
Old 09-20-22, 10:59 AM
  #20
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,093

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Liked 907 Times in 592 Posts
For me, this would be the time to man-handle that thing out.
smd4 is offline
Likes For smd4:
Old 09-20-22, 11:07 AM
  #21
ConnoisseurEqua
Newbie
Thread Starter

ConnoisseurEqua's Avatar

Join Date: Sep 2014
Location: London, UK
Posts: 53

Bikes: Raleigh, Hercules

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 9 Times in 4 Posts
I applied WD-40 on both side. The rust is the WD-40 with some rust dust.

I will try to bold it in again and use my rubber mallet. But I don't recall hearing the bottom of the stem moving freely.
ConnoisseurEqua is offline
Old 09-20-22, 11:16 AM
  #22
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 992

Bikes: You had me at rusty and Italian!!

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 606 Times in 338 Posts
If aesthetics arenít paramount, lots of WD-40 and spin and pull. Iím leaning towards rust on the stem or inside the steerer tube holding things up.
RustyJames is offline
Old 09-20-22, 03:54 PM
  #23
Lattz
Senior Member

Join Date: Aug 2017
Location: Germany
Posts: 696

Bikes: 80s Alan Super Record, 79' Somec Special, 90s Rossin(?) Columbus Ego Triathlon, previously: Bianchi SBX Reparto Corse (stolen) and so on...

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 511 Times in 431 Posts
I thought 40cm was a typo...
Lattz is offline
Old 09-20-22, 06:14 PM
  #24
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 4,043

Bikes: Indeed!

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1217 Post(s)
Liked 2,239 Times in 749 Posts
Originally Posted by tricky View Post
...When you thread the bolt in, are you able to tell if the wedge is loose? If not, smack the bolt with a hammer (with some wood inbetween if you want to keep the bolt looking nice) to get it fully loose. It might be stuck to the bottom of the stem just enough to be keeping the stem locked in the steerer.
This is my guess also. Stems like this are locked in place by a wedge-shaped piece of steel which slides on an angled cut at the bottom of the stem. The way to remove the stem is to loosen the stem bolt three or four turns then give the bolt head a good downward smack with a hammer.

At this point you should thread the bolt back into the wedge a few turns and then smack it with a hammer to loosen the wedge. Your rubber mallet may not work, but a dead-blow hammer or a steel hammer should do the job. As mentioned above you can protect the finish on the bolt head with a piece of lumber between the hammer and the bolt.
Brent
obrentharris is offline
Likes For obrentharris:
Old 09-20-22, 06:43 PM
  #25
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,250
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2118 Post(s)
Liked 1,258 Times in 905 Posts
Wait, I thought the wedge was already out of the equation, based on post # 4. But now it's sounding more like a garden-variety broken stem. If the wedge has NOT been removed (well, "released" would be more accurate, I suppose), and is still engaged with the bolt, AND the stem proper is broken in two pieces below what we can see, you'll experience just what you're describing. The bottom bit of the broken stem will "affiliate" with the wedge and not want to turn or come out, even while you're lifting and wrestling with the rest of the stem. It's happened to me, but only with aluminum stems, never with steel. That said, never say never....

Try this - Pull upward gently on the stem, and continue turning the bolt counter-clockwise. That upward pressure should (well, might) hold the broken bit / wedge from rotating, and you might eventually get the bolt to unthread entirely from the wedge, releasing it, and the busted bit of stem, to fall into the steerer. Then the main part of the stem should just pull out, and you should be able to flip the bike over and the rest will drop out.

If that's not it, you might also shed some light on your situation by looking from underneath; you may even want to remove the brake bolt, just for a better visual sense of what's going on.
madpogue is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
