Show Your Oddball Shifter/Brake Configurations

Old 10-21-19, 01:29 PM
  #1
steelrider58
Member
Thread Starter

steelrider58's Avatar

Join Date: Sep 2019
Location: 63114
Posts: 37

Bikes: 90's Specialized Crossroads

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 24 Times in 11 Posts
Show Your Oddball Shifter/Brake Configurations

I searched a good long while on BF and couldn't find a thread devoted to modified, weird or "inverted" shifters and/or brakes. If you're like me, you think it's so cool when someone uses their ingenuity to solve a problem...without having to resort to buying all new parts (although that doesn't sound too bad).

So, if you've found that "sweet spot" with your bike's shifters or brakes (but it's not how the manufacturer intended), show them off here.

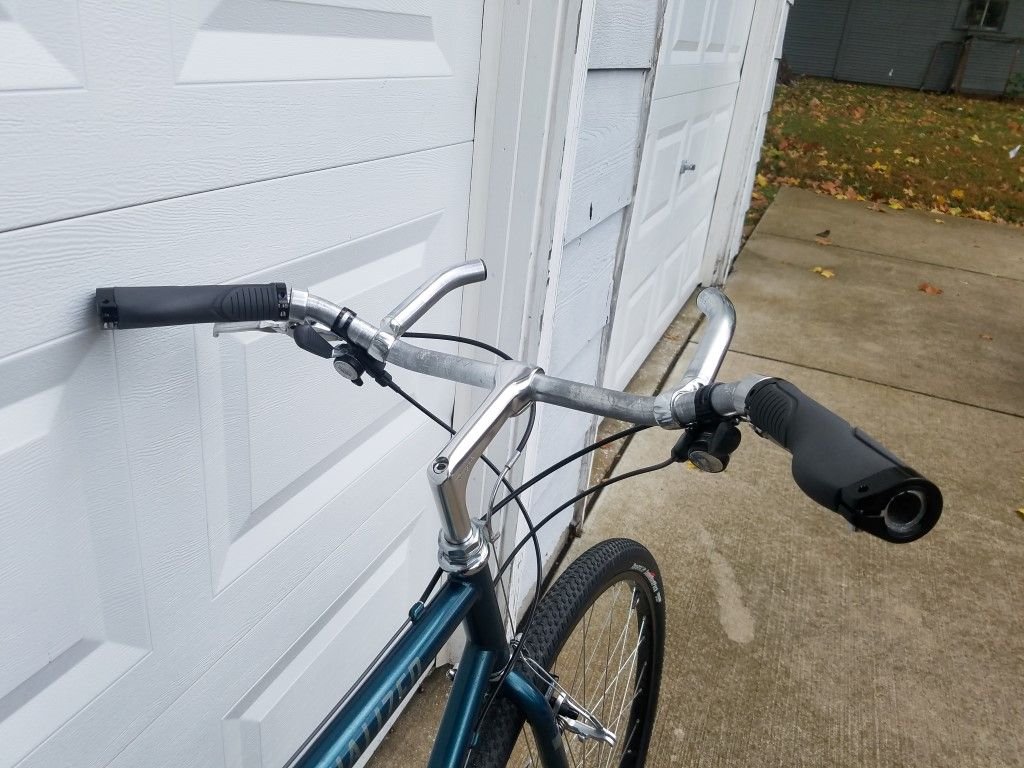

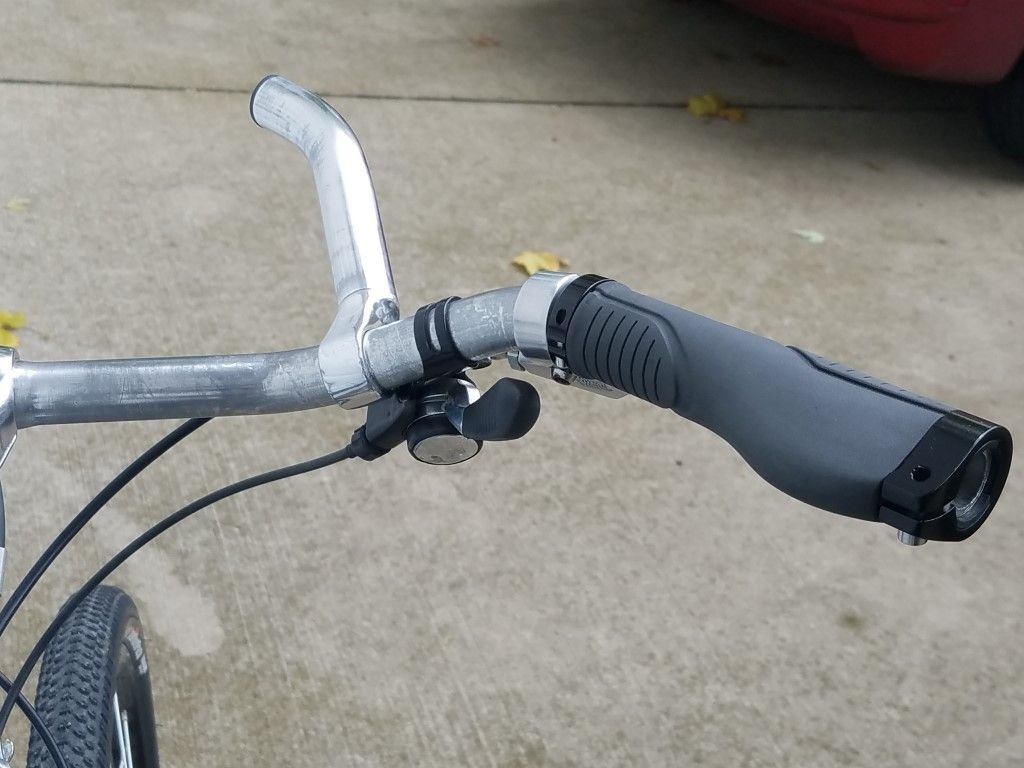

Here's mine...underbar mounted thumb shifters, a la Rivendell. Mine are Deore DX thumbies swapped left to right and mounted below the handlebar. The right side shifter still controls the rear and the left side controls the front. Of course, this only works in friction mode, which is fine by me. I did this so I could free up the top of my handlebar for resting my arms down (when grabbing the bar ends). Seems to work OK for now.



steelrider58 is offline
Old 10-24-19, 10:43 AM
  #2
RideLugged
Junior Member

Join Date: Aug 2019
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 4 Times in 2 Posts
A roommate of mine who is mostly into MTB riding decided to get into road(ish) biking and configured the following setup:

A threaded quill stem and aluminum bullhorn bars are the foundation for all this. Reverse pull brake levers, which are common on bullhorns. At the 90 degree angle in the bullhorn he put some MTB bar ends (cut short) to mimic the feel of flat bars when not in pursuit position. Then flanking the stem on either side are interruptor levers to enable braking when in the "flat bar" position, a la MTB. Wrapped around the stem is a set of Shimano friction shift levers, also cut short.

Once I reach my 10 post minimum, I'll see if I can get a picture to really show off this one-of-a-kind setup. Oh, and the bars are a bright, deep blue anodized color which makes it that much more unique
RideLugged is offline
Old 10-24-19, 11:00 AM
  #3
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 6,048

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 881 Post(s)
Liked 1,702 Times in 702 Posts
thinktubes is online now
Likes For thinktubes:
Old 10-24-19, 12:20 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,157

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 1,063 Times in 634 Posts

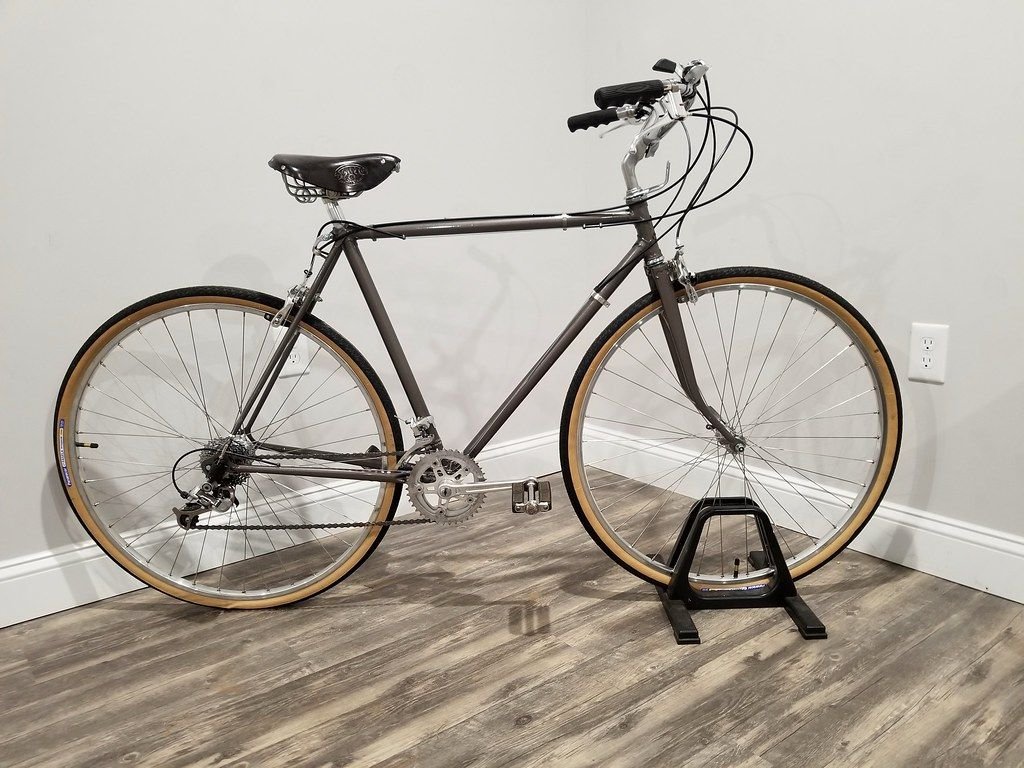

I also used the "Rivendell mount" for some Suntour thumbies:



noobinsf is offline
Likes For noobinsf:
Old 10-24-19, 01:17 PM
  #5
amillhench
TXHC

amillhench's Avatar

Join Date: Mar 2008
Location: El Paso, TX
Posts: 422
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 24 Times in 17 Posts
Does the Riv mount interfere with grip space when the shifter is pointed straight to the grip? My Paul thumbies have to be be spaced back when top mounted so the shifter doesn’t stab me when it’s pointed out. I’m curious if the bottom mount helps at all with this?
amillhench is offline
Old 10-24-19, 01:49 PM
  #6
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,157

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 1,063 Times in 634 Posts
Originally Posted by amillhench View Post
Does the Riv mount interfere with grip space when the shifter is pointed straight to the grip? My Paul thumbies have to be be spaced back when top mounted so the shifter doesn’t stab me when it’s pointed out. I’m curious if the bottom mount helps at all with this?
For me, since mine is a city bike, I shift the rear often enough that I like having my fingers hover over the shifter. So, even though the shifter is in the field of contact, I don't perceive it as obstructive. Even on the left/front, which does not move as often, the shifter only juts as far as my index finger and thumb in the "straight out" position, so I can let my fingers hover comfortably as well. It is a different feel from push/pull trigger shifters, which stay where your finger/thumb rest and provide a comfortable platform, but I am getting to really enjoy friction now that I have learned how to tune shifting and am using high quality friction derailleurs and shifters.

Last edited by noobinsf; 10-24-19 at 01:52 PM.
noobinsf is offline
Old 10-24-19, 02:03 PM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,198

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1219 Post(s)
Liked 839 Times in 572 Posts
The brake lever configuration on my mountain bike is not unusual, but I do like the ability to operate the long motorcycle-style 4-finger brake levers with my 4th and 5th fingers while my hands are on the extensions.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-24-19, 02:43 PM
  #8
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,182

Bikes: Seriously downsizing.

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 419 Times in 206 Posts
I wish I had a picture of the set-up I rode with my left arm in a sling: 3x7 drivetrain with a brifter on the right to shift the rear and a DT shifter mounted on a Kelly Take-Off to shift the front with the right thumb. Actually worked pretty well.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 10-24-19, 02:57 PM
  #9
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,308

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4426 Post(s)
Liked 2,512 Times in 1,628 Posts

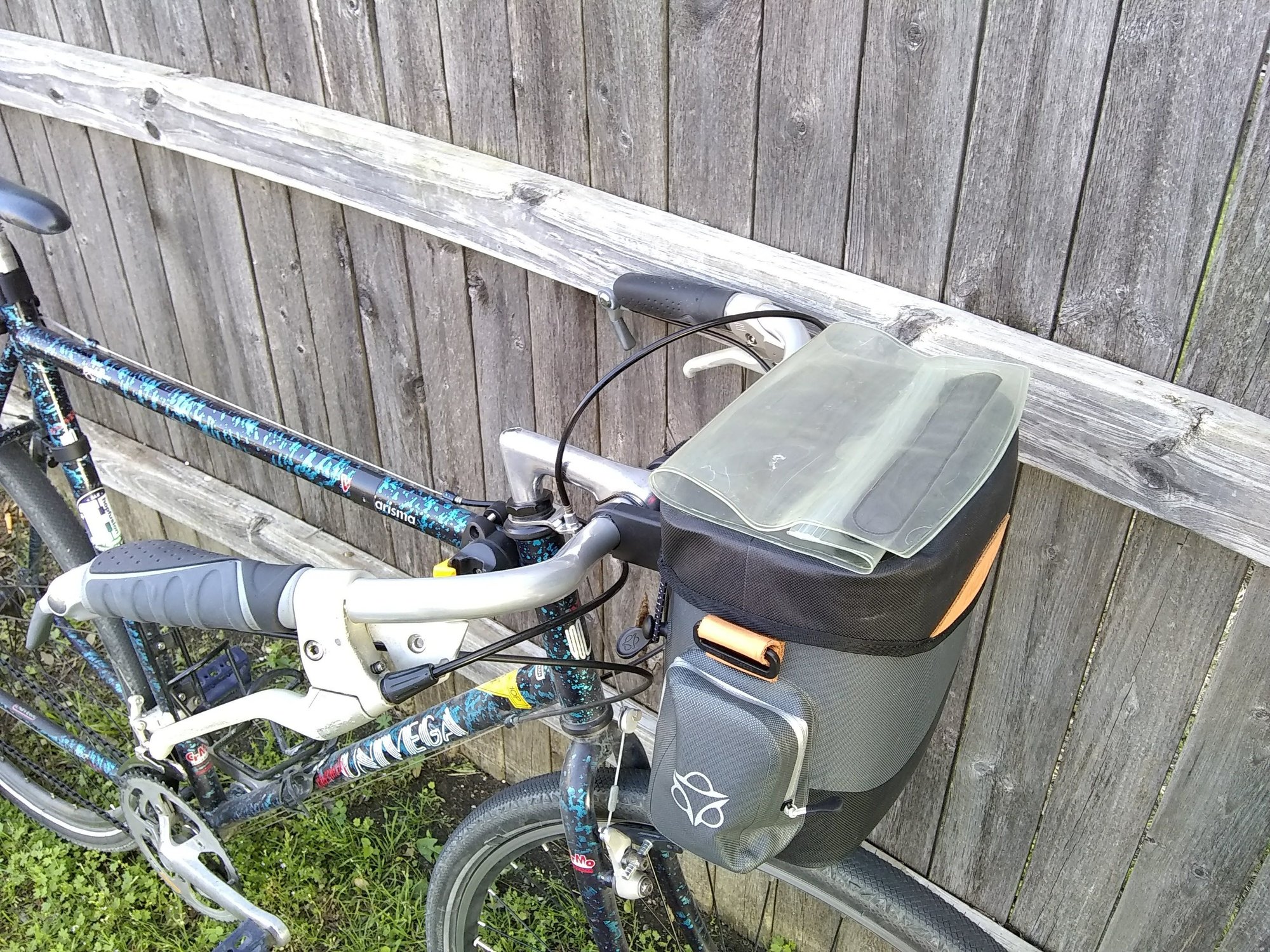

Here's my early 1990s Univega Via Carisma that's in a continuous state of flummox. I keep modifying and tweaking it every few months.

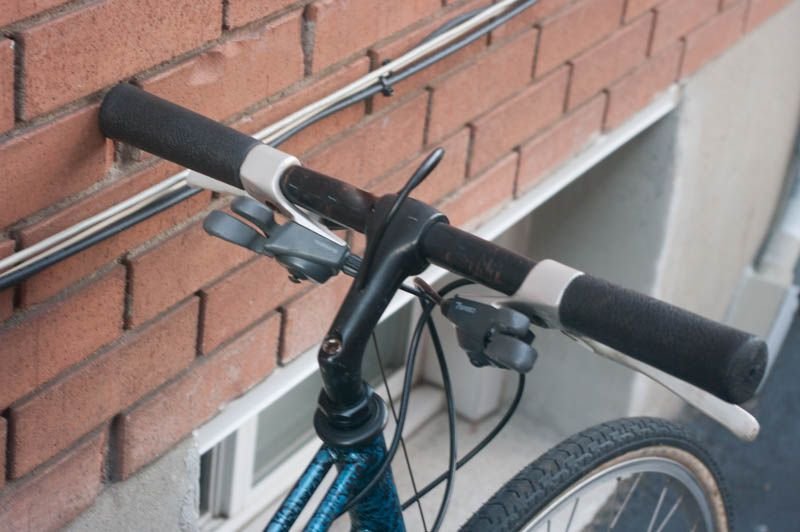

It began with a cockpit like this mixte version (not my photo), same flat bar and modular shifters that mounted to a metal plate on the brakes, rather than directly to the handlebar. The bike's component group was Shimano Exage (most of which later morphed into Deore -- the earlier Exage 500 CX long cage rear derailleur and later Deore LX are nearly identical, including model numbers).

But I'm not sure about the brake/shifter group -- it's Shimano but there's no model designation. Both sides indexed, thumb operated only. Unfortunately both shifters failed the same way about a year apart -- wear to pins and holes prevented reliable shifting. Disassembly, cleaning and relubing didn't help.

I used cheap SunRace SLM-10 friction thumb shifters for about a year, then switched to Shimano bar-end shifters -- friction for the front derailleur, index or friction for the rear. With the original 7-speed rear derailleur it'll cover an 8-speed 11-32 cassette in friction mode only, but won't hold the last click securely in indexed mode. With a 30T small chainring and 28T cog I rarely need the 32T cog anyway, even with the bike loaded with groceries.

I kept the brakes but the metal mounting plate for the original shifter no longer serves any purpose. I considered mounting lights to the plates but would need an adjustable mount like a ballhead to make it work. Eventually I'll replace the brakes with more streamlined levers.

***



Original setup, with indexed thumb shifters mounted to a plate attached to the brakes. That flat bar would be considered too narrow nowadays.


First variation back in 2016-2017, riser bar, same brake/shifter combo. The left shifter failed after a few months and was replaced by a friction shifter. Later I used the SunRace SLM-100 friction thumbies on both sides.


More or less the current setup since 2018. Nitto Albatross bar, original brakes, now with Shimano bar-end shifters. Very good setup for this bike, with long top tube and stretched out riding position with the original bars.


More or less the current setup since 2018. Nitto Albatross bar, original brakes, now with Shimano bar-end shifters. Very good setup for this bike, with long top tube and stretched out riding position with the original bars.


More or less the current setup since 2018. Nitto Albatross bar, original brakes, now with Shimano bar-end shifters. Very good setup for this bike, with long top tube and stretched out riding position with the original bars.


More or less the current setup since 2018. Nitto Albatross bar, original brakes, now with Shimano bar-end shifters. Very good setup for this bike, with long top tube and stretched out riding position with the original bars.
canklecat is offline
Old 10-24-19, 05:37 PM
  #10
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,761

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1829 Post(s)
Liked 1,574 Times in 953 Posts
Nothing odd. but i really like thumb shifters on top (I have a 1x8 setup) totally easy to use very natural
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 10-25-19, 02:31 AM
  #11
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,083

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 797 Post(s)
Liked 723 Times in 403 Posts
I have one bike with wide bars, an Ultegra 10 speed flat bar rear shifter and brake levers with a Dura Ace DT front shifter.
bwilli88 is offline
Old 10-25-19, 02:52 AM
  #12
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,384

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 322 Times in 228 Posts
Not too oddball (to me) but you don’t see this arrangement all that often on a road bike:



This is the Accushift Command 7/8 speed shifter mated to an 8 speed cassette (all SunTour BTW) - shifts great. Also I mounted mine below, not above the brake lever for a racier look/feel and they are fine.


The housing was re-done by me, then had to be re-done again since it was about 1.5” too short, arghh!


I do like the Cane Creek aero levers and how positively they brake with the re-built 7403 dual pivots.
masi61 is offline
Old 10-27-19, 04:07 PM
  #13
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 2,007

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 416 Post(s)
Liked 657 Times in 300 Posts

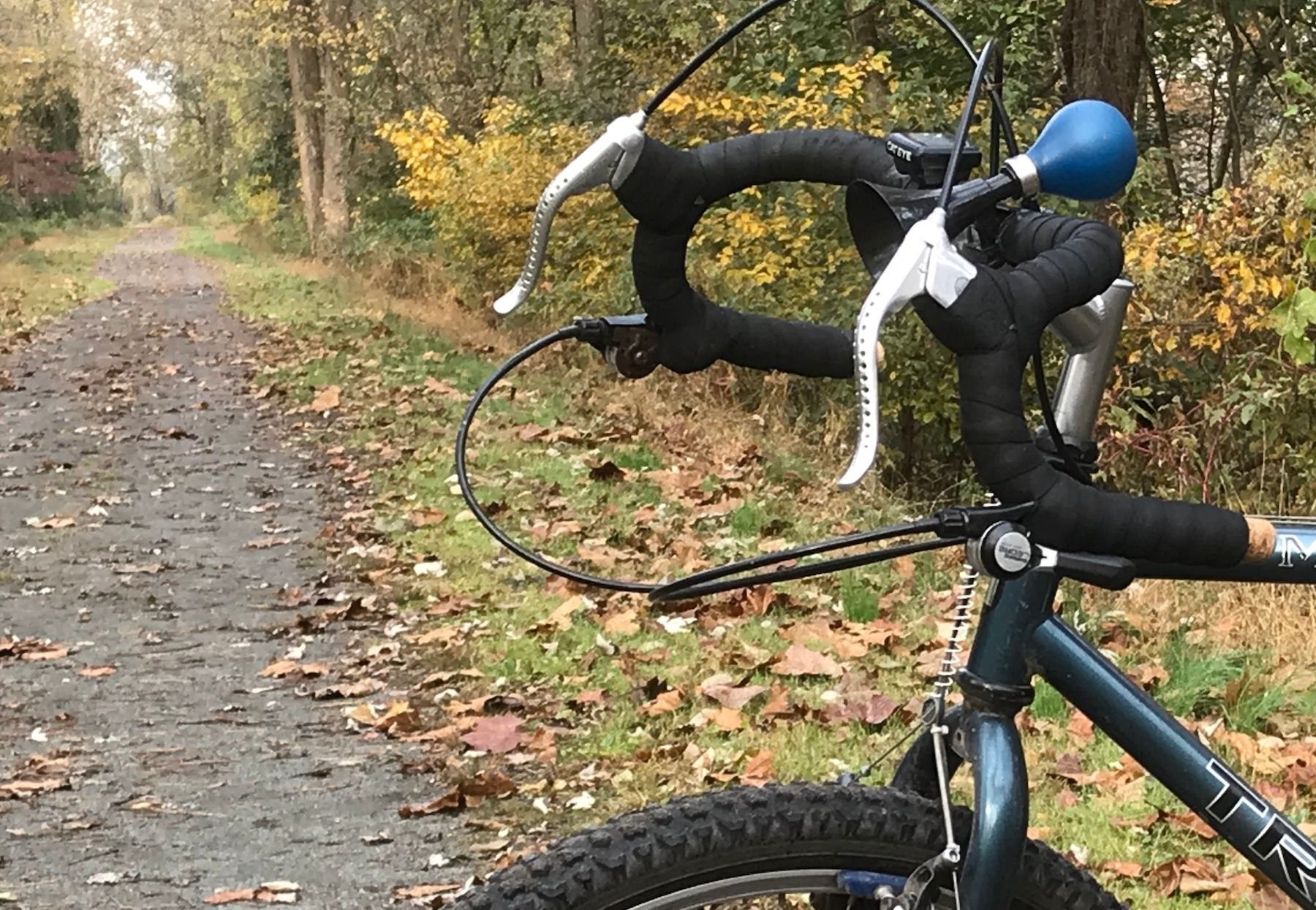

I finally remembered to post my oddball shifter config. When I did the drop bar conversion on my Trek 850 I decided to mount the thumbies on the drops - sort of a compromise between DT shifters and bar ends. I do have to reach a bit for them but I'm still right on the bars. I've ridden this bike a lot over the past couple of years and this position really works for me. I've not seen another like this.



These are 3x7 Deore indexed. Someone had pitched them into the garbage so I snagged em and restored. They work just fine, real well actually.

Lovely to be out in the Pennsylvania woods these days, hmmm? Oh, like my kids bike "clown horn"? It sure does get folks attention. I honked a women yesterday who jerked her head up and scanned the sky. I assume she thought it was a hawk or something. Dogs love this horn.
Prowler is offline
Likes For Prowler:
Old 11-02-19, 01:55 PM
  #14
steelrider58
Member
Thread Starter

steelrider58's Avatar

Join Date: Sep 2019
Location: 63114
Posts: 37

Bikes: 90's Specialized Crossroads

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 24 Times in 11 Posts
Originally Posted by noobinsf View Post
I also used the "Rivendell mount" for some Suntour thumbies:



Thanks for sharing this. I wasn't sure how this particular shifter would work as undermount. I am considering switching to the old power ratchets.
steelrider58 is offline
Old 11-02-19, 02:07 PM
  #15
steelrider58
Member
Thread Starter

steelrider58's Avatar

Join Date: Sep 2019
Location: 63114
Posts: 37

Bikes: 90's Specialized Crossroads

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 24 Times in 11 Posts
Originally Posted by squirtdad View Post
Nothing odd. but i really like thumb shifters on top (I have a 1x8 setup) totally easy to use very natural
Nice. 1x8 setups are underrated, IMO.
steelrider58 is offline
Old 11-02-19, 02:23 PM
  #16
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 40,165

Bikes: everywhere

Mentioned: 70 Post(s)
Tagged: 1 Thread(s)
Quoted: 9497 Post(s)
Liked 4,429 Times in 2,332 Posts
Suntour wishbone shifters, out on the barends, making the barends the main position.


controls on barends view from the saddle by Lester Luallin, on Flickr


controls on barends viewed from front of bike by Lester Luallin, on Flickr
LesterOfPuppets is offline
Old 11-02-19, 04:55 PM
  #17
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,222

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2443 Post(s)
Liked 1,210 Times in 698 Posts
I've got a few bikes with Command Shifters as well- these have been modified to 10s.


IMG_2402 by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-02-19, 06:05 PM
  #18
Nemosengineer
Hair Ball

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 431

Bikes: Teledyne Titan, Bob Jackson World Tour, AlAn Record Ergal, 3Rensho Katana.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 342 Times in 161 Posts

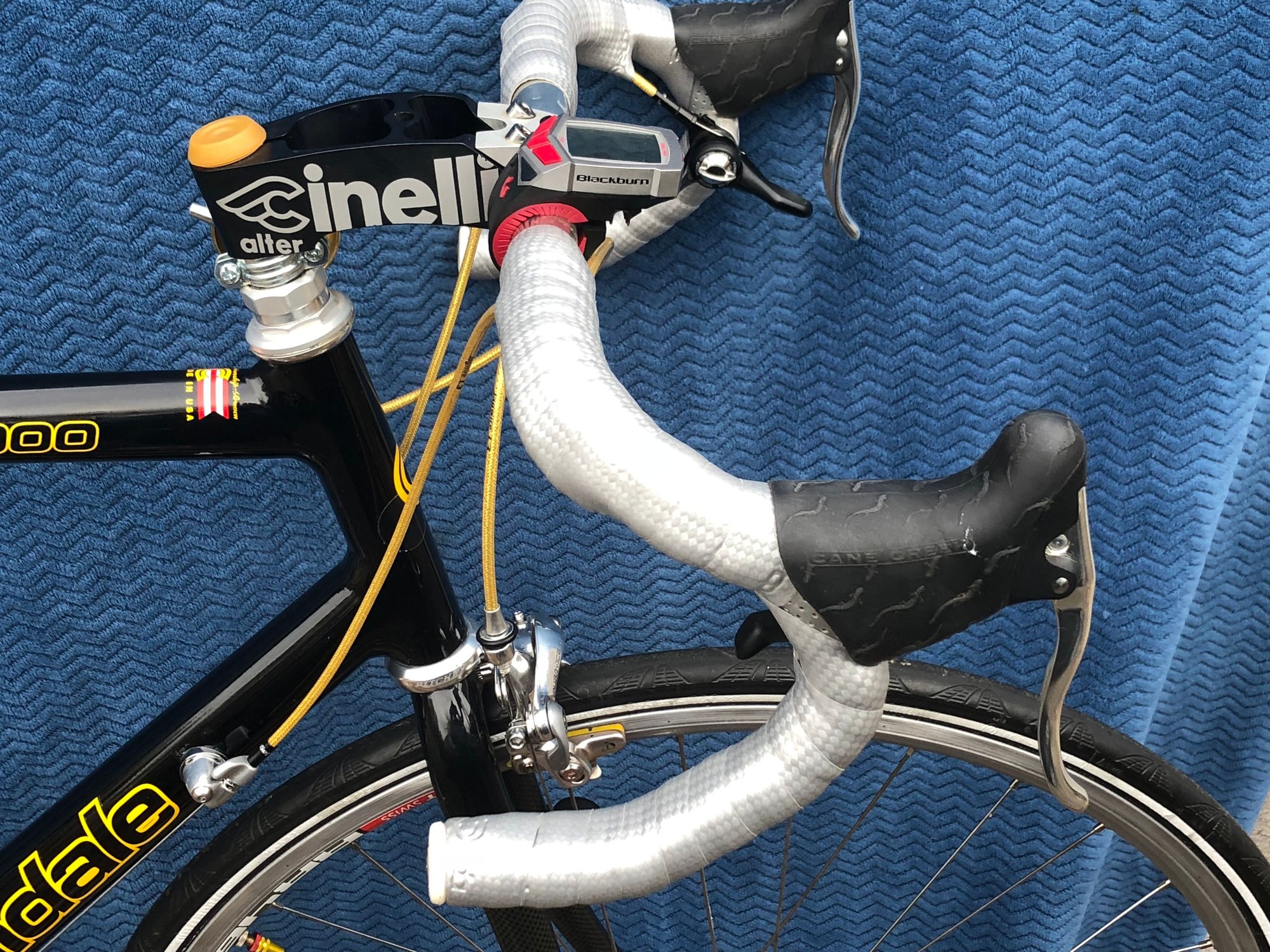

This is starting to come together, Dura Ace/Gevenalle Audax levers.

Nemosengineer is offline
Old 11-02-19, 06:17 PM
  #19
Retoocs
Junior Member

Join Date: Feb 2016
Posts: 130
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 16 Times in 13 Posts
Does Mavic Mektronic wireless shifters working with a Zap derailleur count?

Retoocs is offline
Old 11-02-19, 06:26 PM
  #20
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,285

Bikes: Mostly English - predominantly Raleighs

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 561 Times in 372 Posts
Well, there's no telling what Sheldon Brown would have achieved by now, were it not for his very untimely passing. This contraption is a bit of a tribute to his inspiration, and to my roots. The refinished 81-speed SuperCourse (with remarkably few duplicate gearing combination as a 3x3x9) is a reality.






__________________
In search of what to search for.
USAZorro is offline
Old 11-02-19, 11:27 PM
  #21
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,610

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1304 Post(s)
Liked 896 Times in 616 Posts

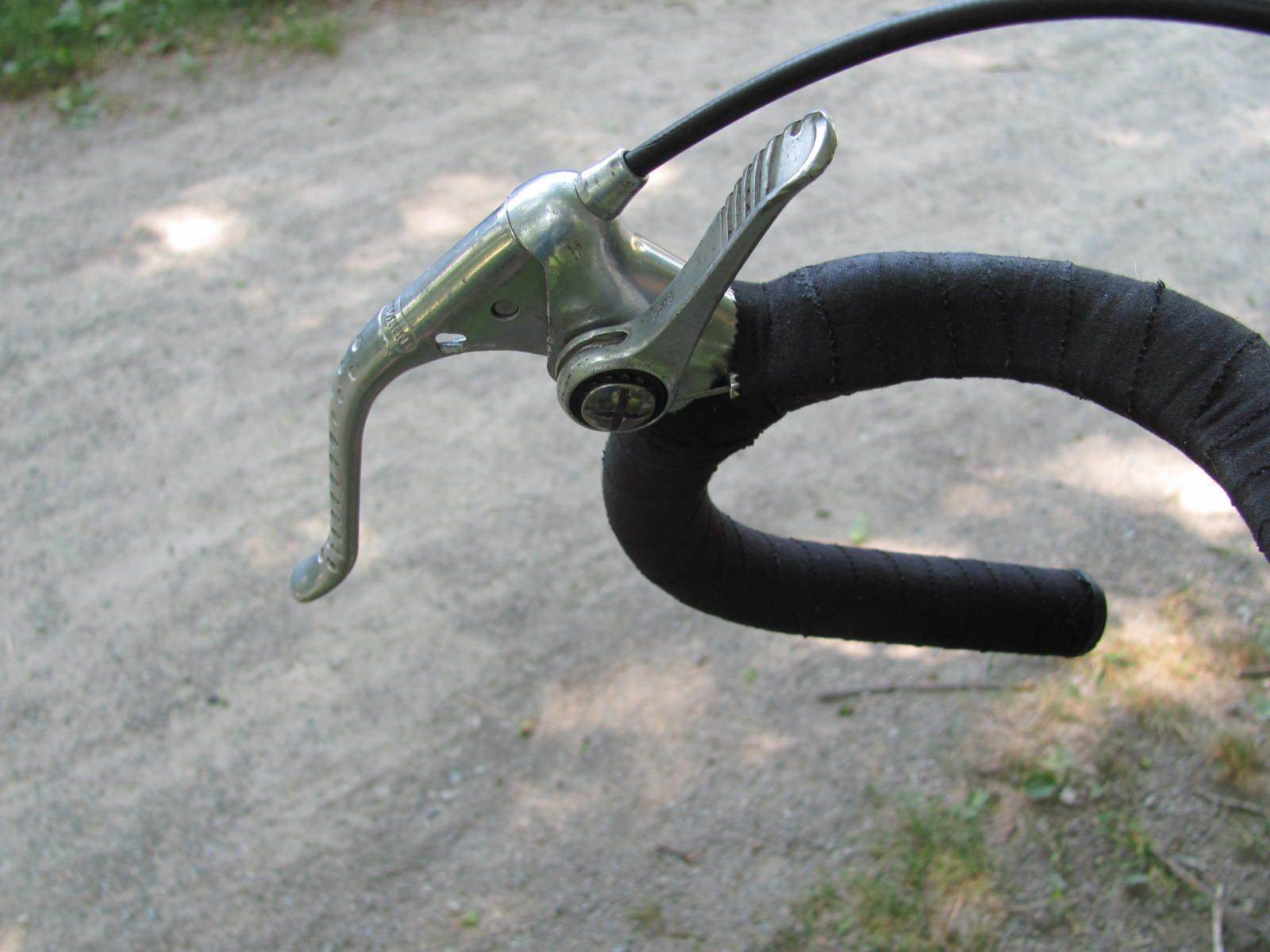

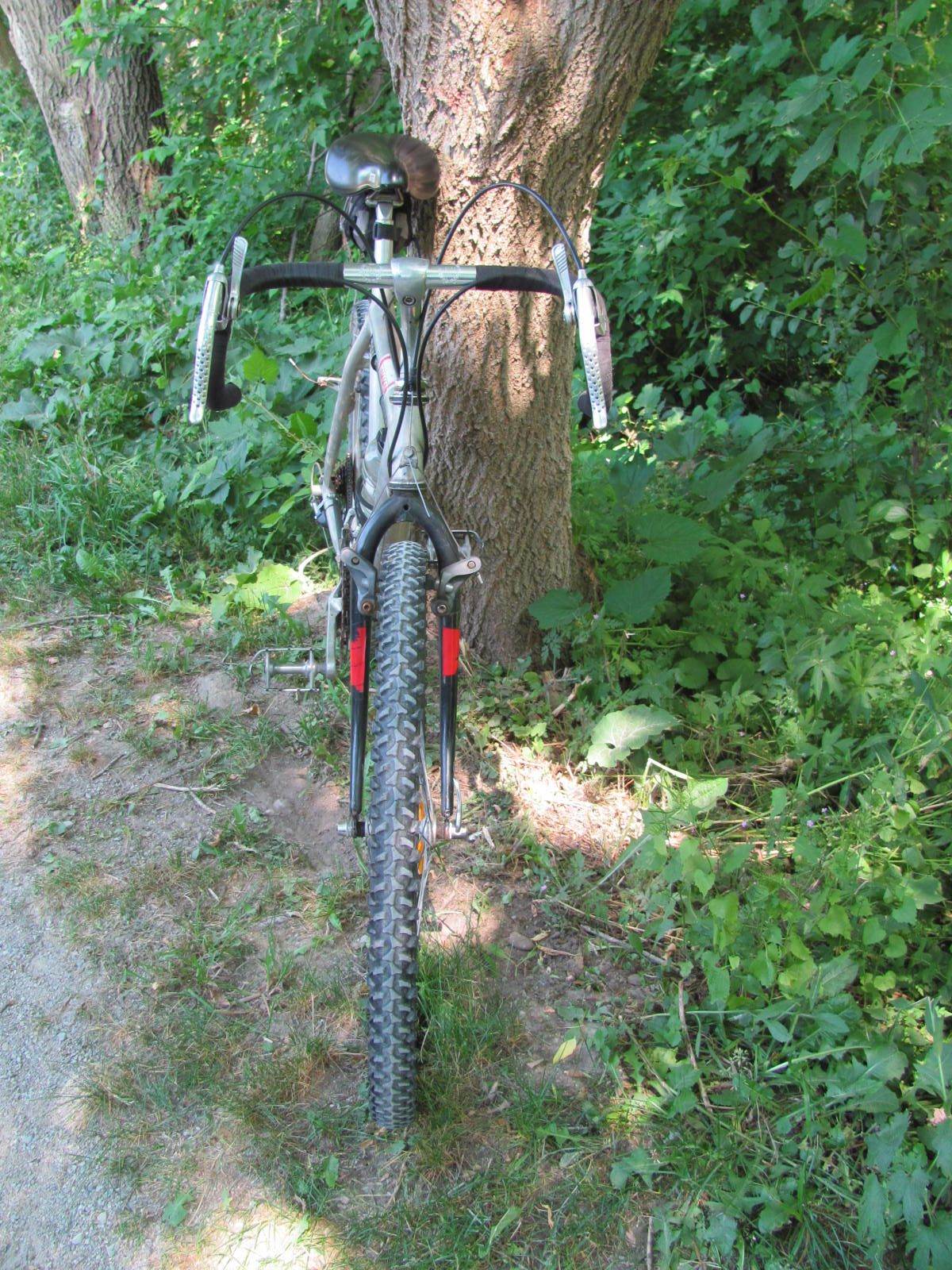

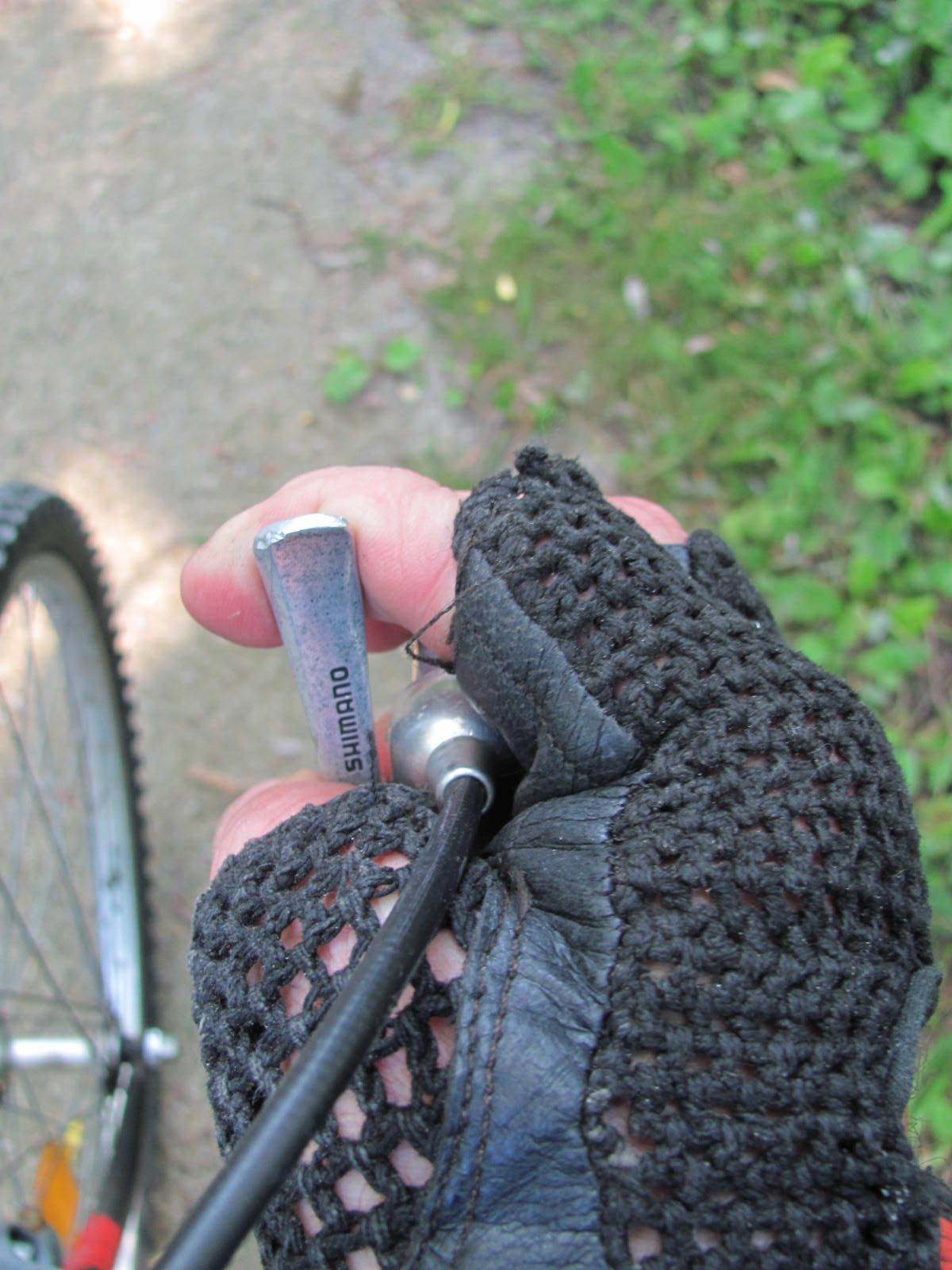

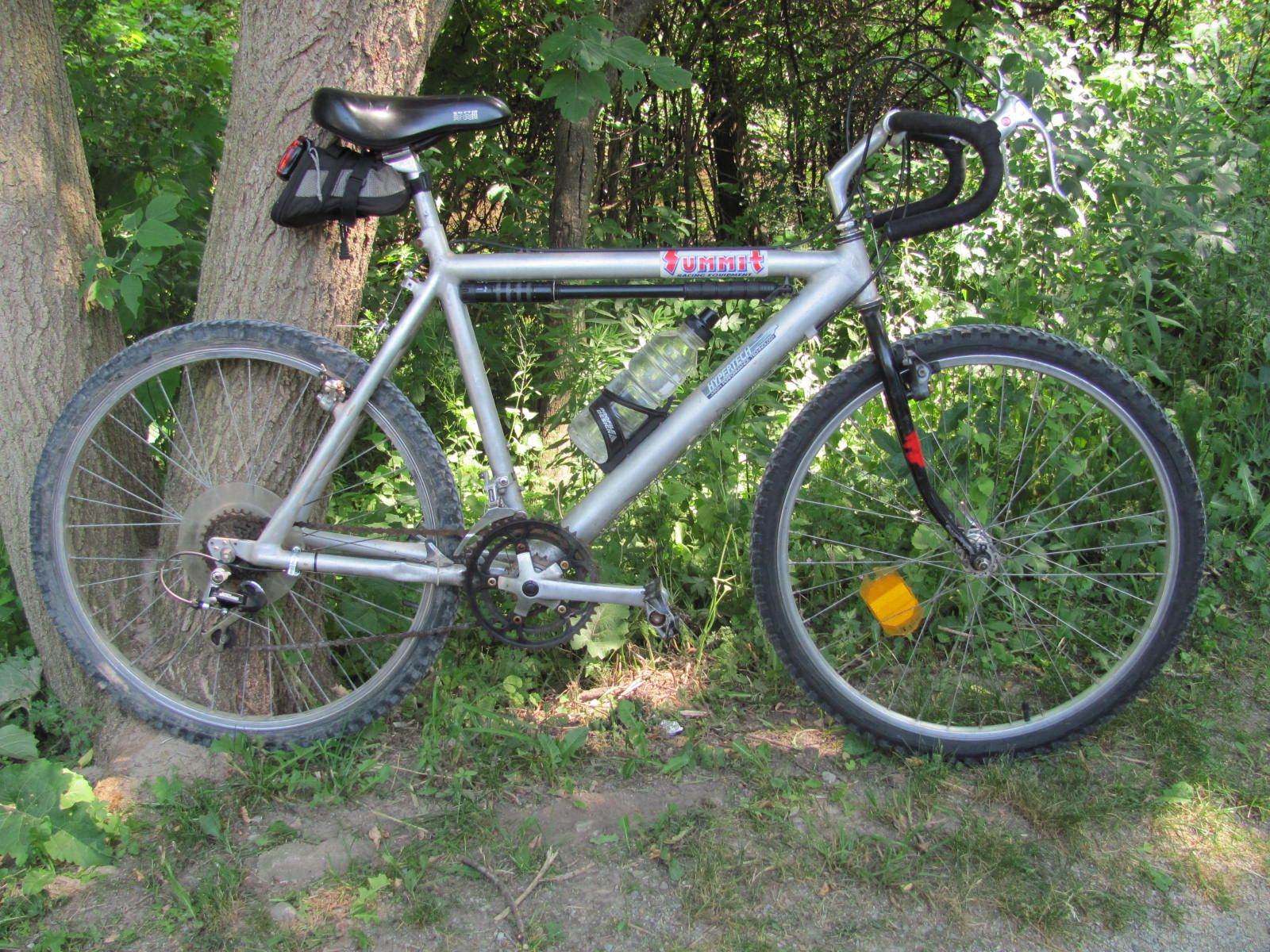

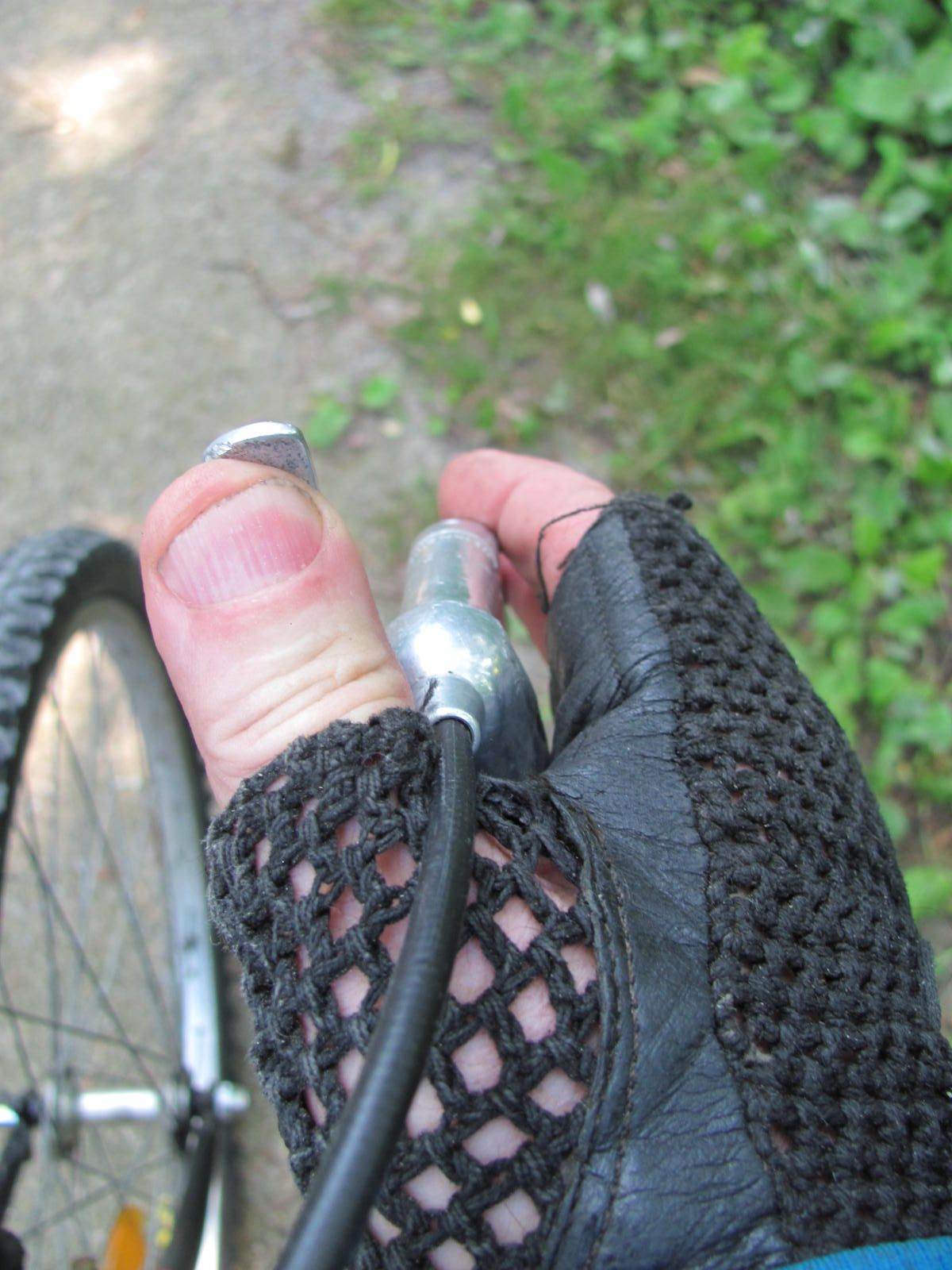

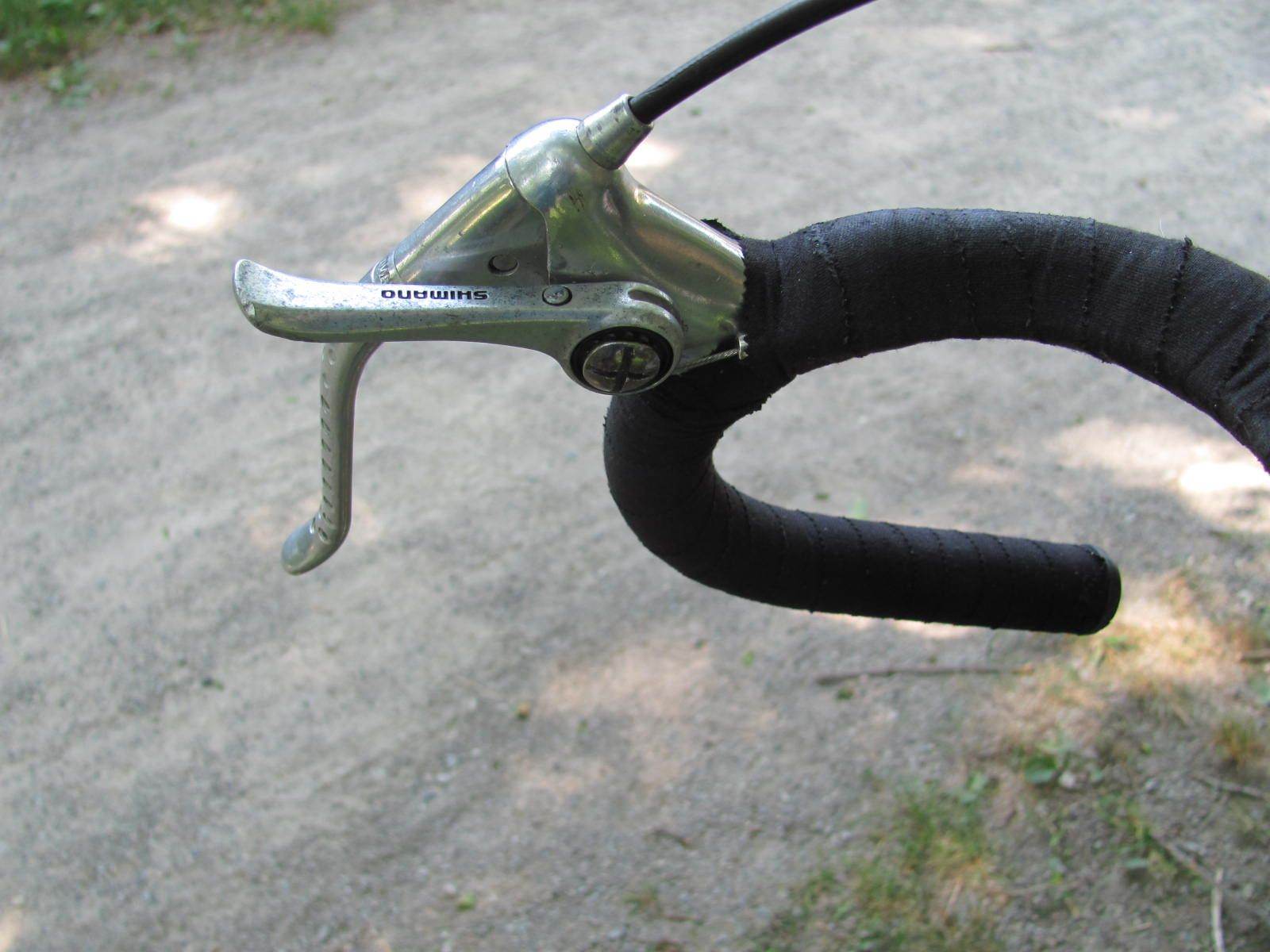

I put a pair of downtube or stem mount shifters onto modified Suicide Brake lever protrusions where the Suicide Brake lever used to go.










Cheers
Miele Man is offline
Old 11-03-19, 10:10 AM
  #22
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,190

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 495 Post(s)
Tagged: 0 Thread(s)
Quoted: 7026 Post(s)
Liked 1,796 Times in 1,114 Posts
This has nothing unusual about the shifters, but here is a bike with a quirky brake setup. It might be hard to notice, so see if you can figure it out. The picture is from about 1982. The bike is a 70s Atala Competizione, repainted by Cyclart and built up by me.

__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 11-03-19, 10:22 AM
  #23
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,427 Times in 801 Posts
This is as odd as I got and how I done got it...





__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 11-03-19, 10:42 AM
  #24
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,802

Bikes: It's complicated.

Mentioned: 1197 Post(s)
Tagged: 0 Thread(s)
Quoted: 4186 Post(s)
Liked 3,916 Times in 1,704 Posts
From an old build. I've dealt with a pinched nerve in my neck for a long time, when I got back into cycling I used upright bars exclusively - holding my head up on rides would cause my arm to go numb. This on an early 70's Raleigh International:



As I rode more I found that the pinched nerve to somehow start "healing." It's interesting that the cure and rehab for most injuries the past few decades is to get on my bike, and everything got drop bars from then on. I'd always been intrigued by SunTour Command shifters, but putting them below the brake levers meant having to bend over into the drops to shift. If you put them above the brake levers, they're right at your fingertips when riding the hoods, but interfere with aero cable routing. No problem, there's a solution for that:

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-03-19, 12:52 PM
  #25
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,610

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1304 Post(s)
Liked 896 Times in 616 Posts
Originally Posted by gugie View Post
From an old build. I've dealt with a pinched nerve in my neck for a long time, when I got back into cycling I used upright bars exclusively - holding my head up on rides would cause my arm to go numb. This on an early 70's Raleigh International:



As I rode more I found that the pinched nerve to somehow start "healing." It's interesting that the cure and rehab for most injuries the past few decades is to get on my bike, and everything got drop bars from then on. I'd always been intrigued by SunTour Command shifters, but putting them below the brake levers meant having to bend over into the drops to shift. If you put them above the brake levers, they're right at your fingertips when riding the hoods, but interfere with aero cable routing. No problem, there's a solution for that:

Do you ride that bike with the quick-release on the brake lever engaged like in your photo?

Cheers
Miele Man is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
