chain derailment caused broken and bent spokes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

chain derailment caused broken and bent spokes

Old 06-12-21, 12:49 PM
  #1
preventec47
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
chain derailment caused broken and bent spokes

Trying to skip over too many sprockets too fast caused rear wheel derailment and when the chain got wedged in between the large sprocket and spokes,
two spokes were broken and four or five bent a little. I was able to mount the chain and ride home with a wobbly wheel. Now that I have the wheel off
I am wondering if I can only replace the damaged spokes. I dont have the experience or tools to do the job so I will be taking the rim to bike shop.

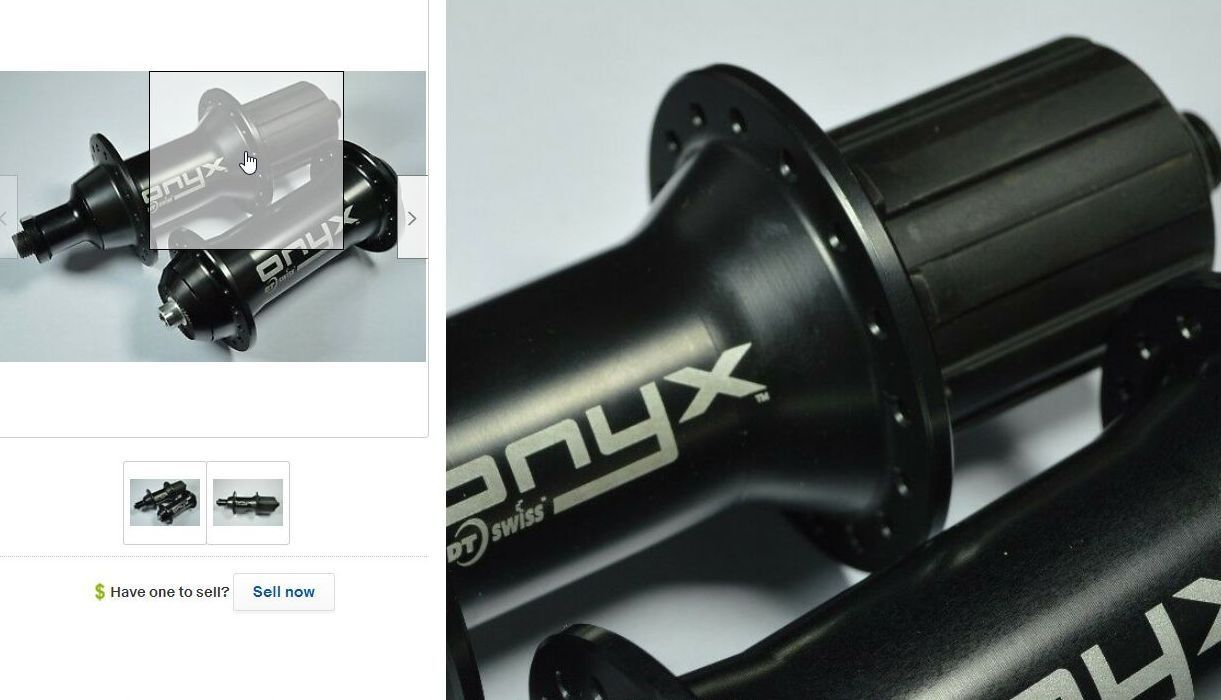

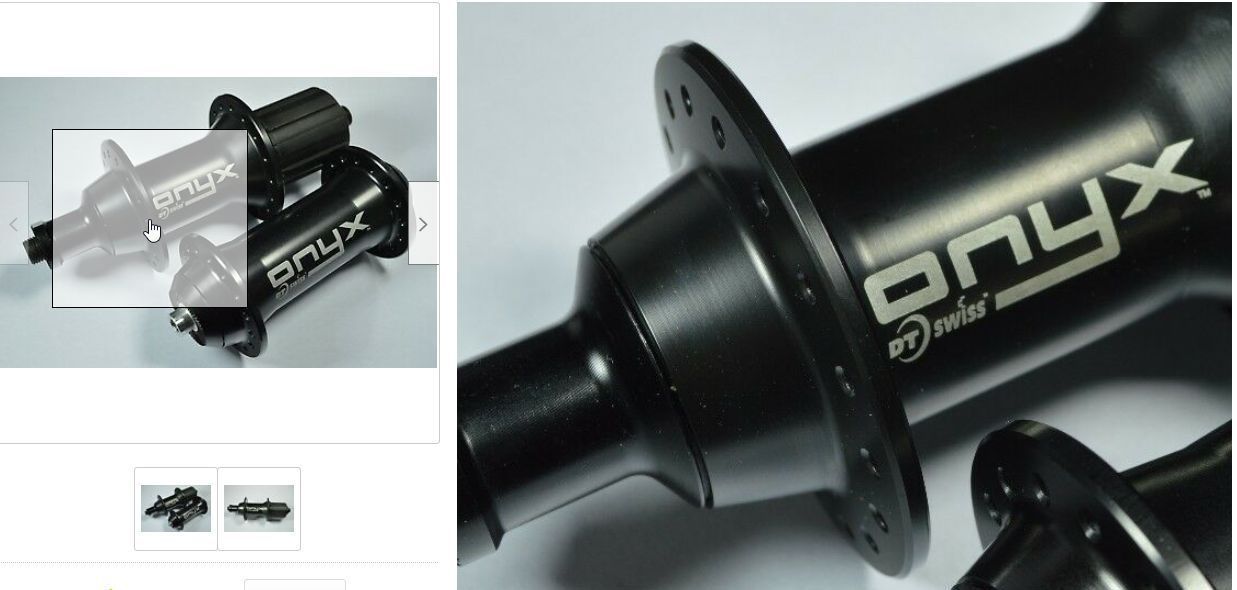

This wheel was off a factory bike bought in Switzerland in 2005 and has a hub model make of ONYX by DT SWISS. picture attached. The rim is a stout

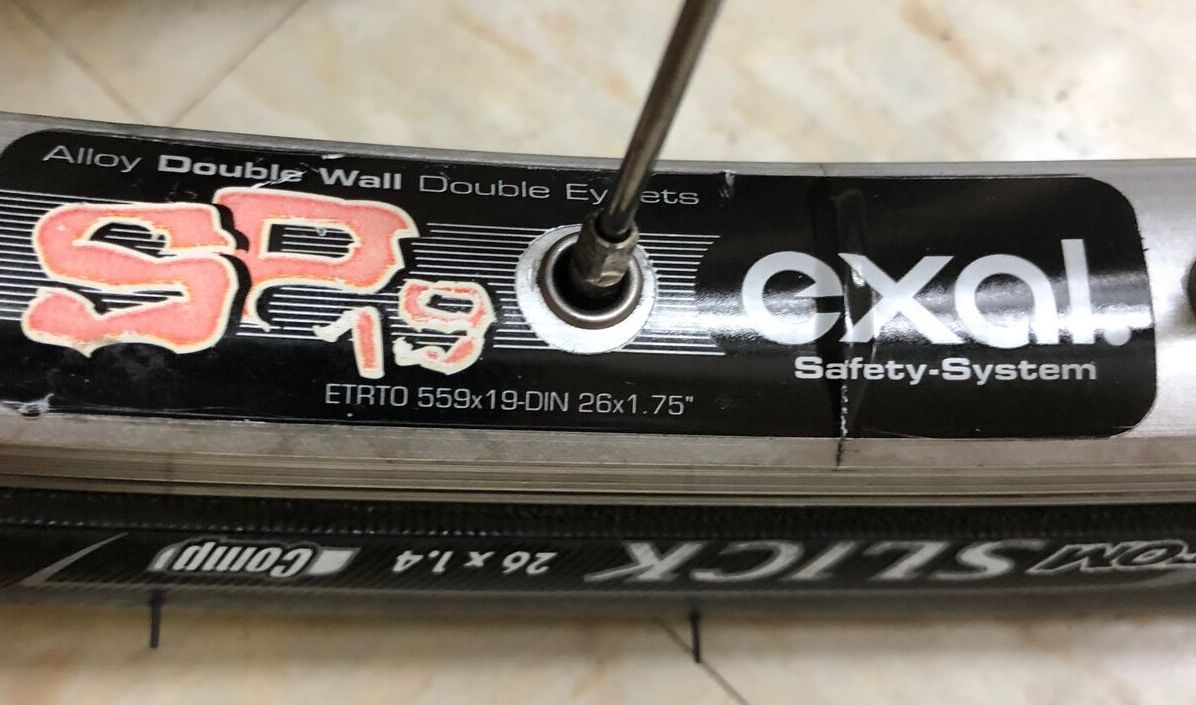

double wall rim "EXAL SP-19" in 559 size. . I assume the 9 gear cassette will have to come off and then a good spoke is going to have to be removed
to ascertain the size of replacement spokes needed. It so happens that only the spokes on one side of the wheel are damaged.... ( the sprocket side of course )
so I think the other side spokes are all good and can be left alone other than adjustments needed for alignment when new spokes are installed.

Am I understanding this mostly correctly? I know there is the rachet mechanism and bearings to think about but if the bearings are available and cheap, just replace them or otherwise just clean and re-lube.... am I right ? The question is how can I know if new components are avialable ? I need factory specs
or info related to the model of my HUB.... which I do have but I cannot find any technical info on the ONYX by DT SWISS. I assume long ago discontinued
and google search does not come up with much.

It was a stupid stupid mistake and I will never do it again. I tried to switch from probably a 17 tooth to the 34 tooth gear quickly skipping over too many and
it threw the chain right off. Normally as I approach a steep hill I downshift while spinning and coasting but this time I forgot.

Is the bike shop likely to have spokes like I need or will they probably need to measure and special order..... Or should I do that ?


preventec47 is offline
Old 06-12-21, 01:27 PM
  #2
alo
Senior Member

Join Date: Feb 2020
Posts: 1,060
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 529 Post(s)
Likes: 0
Liked 254 Times in 185 Posts
Originally Posted by preventec47 View Post
Is the bike shop likely to have spokes like I need or will they probably need to measure and special order
Ask them.
alo is offline
Old 06-12-21, 01:33 PM
  #3
Rick
Senior Member

Join Date: Feb 2007
Posts: 911
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 383 Post(s)
Likes: 0
Liked 245 Times in 158 Posts
Replace the damaged spokes and adjust the derailleur so there is no repeat problem.
Rick is offline
Old 06-12-21, 01:37 PM
  #4
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,123
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Liked 999 Times in 584 Posts
Bring the entire bike into the shop, not just the wheel. If the derailleur hanger is bent, which is highly probable, the shop should realign it to reduce the likelihood of a repeat of the derailleur-into-spokes incident.
Trakhak is offline
Likes For Trakhak:
Old 06-12-21, 03:07 PM
  #5
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,587
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 150 Times in 121 Posts
This is the reason for a spoke protector. A fast spinning downshift can cause a chain dump regardless if the der. is properly adjusted or not.
davidad is offline
Old 06-12-21, 03:15 PM
  #6
preventec47
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
A spoke protector would not help unless it purely filled up the space between the sprocket and the spokes. The reason for the damage is the space existing
is too narrow for the chain to slide down between the spokes and the sprocket. and when I peddeled, it forced the chain down in between like a hammer and
wedge breaking the spokes. I could envision another sprocket without any teeth that was slightly larger to keep the chain from coming off the last biggest sprocket
I am not aware of anything like that existing ? ? ?
preventec47 is offline
Old 06-12-21, 03:21 PM
  #7
Ihmemies
Junior Member

Join Date: Jun 2021
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 0 Times in 0 Posts
You probaly need to replace all the outer spokes. If you have 36 spokes that means 9 spokes. I destroyed my wheel that way last week thanks to badly adjusted real deraileur. My mistake
Bike shop fixed the wheel and now it's good again. I did not ride the wheel tho I walked the bike home.

I'd buy a dork disc but no one has one for sale.
Ihmemies is offline
Old 06-12-21, 03:24 PM
  #8
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,429

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4202 Post(s)
Liked 2,728 Times in 1,901 Posts
Use a bike shop that has a decent wheel person. It'll be easier, they might figure out why your chain came off even though you seem to blame your rapid shifting. I don't blame you on that, I grab multiple gears quickly on my bikes and don't have that issue.

Your wheels might need some attention any how just to have spokes readjusted properly and add back any true you might have lost over the years.
Iride01 is offline
Old 06-12-21, 03:34 PM
  #9
preventec47
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
Originally Posted by Ihmemies View Post
I'd buy a dork disc but no one has one for sale.
Are you joking ? or is there such a thing as a dork disk ? I do have something like that for my front triple sprockets that blocks the chain from coming off
the big sprocket.
preventec47 is offline
Old 06-12-21, 03:39 PM
  #10
VicBC_Biker
Senior Member

Join Date: May 2021
Posts: 219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 69 Times in 51 Posts
Originally Posted by Ihmemies View Post
I'd buy a dork disc but no one has one for sale.
Look up 'spoke protector' - many available
VicBC_Biker is offline
Old 06-12-21, 04:27 PM
  #11
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,248

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 3317 Post(s)
Liked 2,044 Times in 1,330 Posts
That hub takes standard spokes. A shop will just measure the thickness and length and replace the damaged ones with similar. (I doubt all the spokes of that side need replacing unless you actually did scratch/gouge them all.)

Do have the hanger looked at for alignment. They rarely survive this staying straight. The derailleur also usually takes a hit when this happens. Sometimes it can be bent back or the damaged half lifted off another derailleur.

A fast shift shouldn't do this. Still, now you know the consequences. I set my derailleur limit screw so that it just shifts reliably on to the big sprocket, no more to keep this from happening. (And I do this riding the bike. not on a stand.) It looks like you got off fairly lightly. Take this as a learning experience. You can injure yourself and destroy frames doing this. (And a dork disc might have stopped this. Might have had just enough push to keep the chain from falling off. I cannot say from first hand experience. I've never bought a bike that came with one - and in my younger days, it would have been the first thing I would have taken off.)

Last, welcome to the club! (Rather large membership but many are quite secretive about it.)
79pmooney is offline
Likes For 79pmooney:
Old 06-13-21, 08:35 AM
  #12
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,229

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 976 Times in 666 Posts
Originally Posted by VicBC_Biker View Post
Look up 'spoke protector' - many available
You just need to select the correct one for the number of spokes you have so that the mounting clips fall between the spokes correctly.
dsbrantjr is offline
Old 06-13-21, 12:34 PM
  #13
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,587
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 150 Times in 121 Posts
Originally Posted by 79pmooney View Post
That hub takes standard spokes. A shop will just measure the thickness and length and replace the damaged ones with similar. (I doubt all the spokes of that side need replacing unless you actually did scratch/gouge them all.)

Do have the hanger looked at for alignment. They rarely survive this staying straight. The derailleur also usually takes a hit when this happens. Sometimes it can be bent back or the damaged half lifted off another derailleur.

A fast shift shouldn't do this. Still, now you know the consequences. I set my derailleur limit screw so that it just shifts reliably on to the big sprocket, no more to keep this from happening. (And I do this riding the bike. not on a stand.) It looks like you got off fairly lightly. Take this as a learning experience. You can injure yourself and destroy frames doing this. (And a dork disc might have stopped this. Might have had just enough push to keep the chain from falling off. I cannot say from first hand experience. I've never bought a bike that came with one - and in my younger days, it would have been the first thing I would have taken off.)

Last, welcome to the club! (Rather large membership but many are quite secretive about it.)
Please stop calling it a dork disc.
davidad is offline
Likes For davidad:
Old 06-13-21, 12:40 PM
  #14
VicBC_Biker
Senior Member

Join Date: May 2021
Posts: 219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 69 Times in 51 Posts
Originally Posted by davidad View Post
Please stop calling it a dork disc.

Agree.
'Brifters' are OK with me, but not 'dork disk'.
VicBC_Biker is offline
Old 06-13-21, 12:54 PM
  #15
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,429

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4202 Post(s)
Liked 2,728 Times in 1,901 Posts
I call them dork disc's. I even called them that when I owned and rode bikes with a dork disc for some 40 odd years. What's the deal?
Iride01 is offline
Old 06-13-21, 12:57 PM
  #16
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,248

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 3317 Post(s)
Liked 2,044 Times in 1,330 Posts
Originally Posted by davidad View Post
Please stop calling it a dork disc.
Probably not going to happen. But you will also not hear me saying that those who use the discs are the dorks.
79pmooney is offline
Old 06-13-21, 12:59 PM
  #17
10 Wheels
Galveston County Texas

10 Wheels's Avatar

Join Date: Nov 2007
Location: In The Wind
Posts: 32,505

Bikes: 02 GTO, 2011 Magnum

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1187 Post(s)
Liked 853 Times in 415 Posts
Originally Posted by Iride01 View Post
I call them dork disc's. I even called them that when I owned and rode bikes with a dork disc for some 40 odd years. What's the deal?
Best to use Proper part names when conversing with REAL Mechanics.
__________________
Fred "The Real Fred"

10 Wheels is offline
Likes For 10 Wheels:
Old 06-13-21, 01:21 PM
  #18
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,429

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4202 Post(s)
Liked 2,728 Times in 1,901 Posts
Originally Posted by 10 Wheels View Post
Best to use Proper part names when conversing with REAL Mechanics.
So brifters are out too. I never cared for that term and don't use that.

I like the little blurb in wikipedea for Shimano Total integration, hover your pointer over the citation needed at the end of the first paragraph.

while often used on ******, no one that has a clue about bikes calls them this (June 2020)
Iride01 is offline
