Help with understanding chain wear and what I'm doing wrong

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Help with understanding chain wear and what I'm doing wrong

Old 06-03-22, 09:19 AM
  #1
jxpowers
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 114
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Help with understanding chain wear and what I'm doing wrong


Hi guys, i bought a bike exactly 2 weeks ago today, its brand new, with a sram force groupset.
Its a 1x11 with a MTB cassette ( not sure if this is relevant)

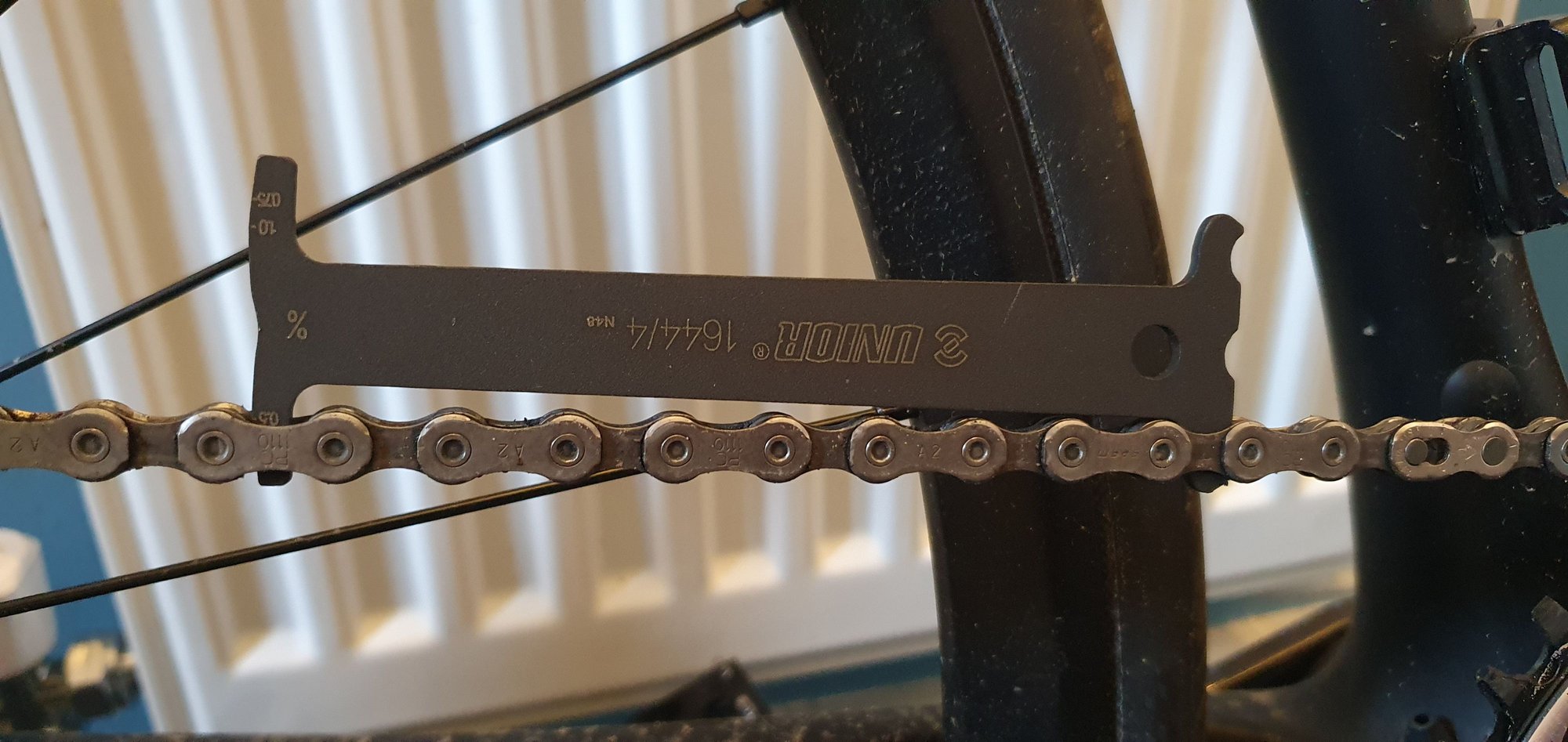

Ive done 10 commutes to work in sunny dry weather and in that time ive degreased and lubed the chain once with finish line dry lube.

Milage on the bike so far must have been close to 100 miles.
My question is, is this worn considering Ive only ridden it for 100miles?

Ive read that for 11spd chains you need to change the chain once it hits .5% wear, according to my chain checker am i almost/already at .5% wear?

Does riding style dictate how fast your chain will wear? Eg intense pedalling?

Ive read somewhere chains last around 2000 miles before people change it.

im also very concious about cross chaining, i mostly use the middle of the cassette and i always let off the pedals when changing gears so that they arent changing under pressure or crunching.
jxpowers is offline
Old 06-03-22, 09:24 AM
  #2
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,254

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
Liked 2,384 Times in 1,232 Posts
Use a ruler to measure chain wear. I promise that you haven't put any measurable wear on that chain in a week.
cxwrench is offline
Old 06-03-22, 09:34 AM
  #3
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 15 Times in 11 Posts
Yep, no wear in a week unless you bathe it in sand first.
Contaminants in the oil grinding the chain's component parts are what cause wear.

Keep that chain clean and lubed (just 1 drop per roller) and it won't wear for thousands of miles.
Edit: here's a chain flushed out with carb cleaner so you can see the crap from the road.


Last edited by Tawraste666; 06-03-22 at 09:37 AM.
Tawraste666 is offline
Old 06-03-22, 09:47 AM
  #4
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,782

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1884 Post(s)
Liked 655 Times in 383 Posts
Why degrease a new chain?
Why carb cleaner down the drain?
trailangel is offline
Likes For trailangel:
Old 06-03-22, 09:51 AM
  #5
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 15 Times in 11 Posts
Originally Posted by trailangel View Post
Why degrease a new chain?
Why brake cleaner down the drain?
Agreed, no need to clean a brand new chain. As for the carb cleaner down the drain, thats my cleaning regime:
250 miles, flush with carb carb cleaner then relube with ACF-50.
Both my chains are on 4000 miles. They look super shiny at all times and have ridiculously minimal wear.
Hooray.
Tawraste666 is offline
Old 06-03-22, 10:06 AM
  #6
jxpowers
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 114
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by cxwrench View Post
Use a ruler to measure chain wear. I promise that you haven't put any measurable wear on that chain in a week.
Youre 100% correct. Why didnt i know about this. Why is my chain checker way off. What a waste of money
jxpowers is offline
Old 06-03-22, 10:07 AM
  #7
jxpowers
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 114
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by trailangel View Post
Why degrease a new chain?
Why carb cleaner down the drain?

Just wanted some thing to do 🤣 no particular reason apart from boredom
jxpowers is offline
Likes For jxpowers:
Old 06-03-22, 10:11 AM
  #8
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by Tawraste666 View Post
Agreed, no need to clean a brand new chain.
For most novice riders, that would be fine, but most enthusiasts will remove the default (thick and heavy) shipping grease that is on all new chains, and re-lube with their favorite lube.
soyabean is offline
Likes For soyabean:
Old 06-03-22, 10:22 AM
  #9
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 15 Times in 11 Posts
Originally Posted by soyabean View Post
For most novice riders, that would be fine, but most enthusiasts will remove the default (thick and heavy) shipping grease that is on all new chains, and re-lube with their favorite lube.
I quite agree, but thought it simpler to not break down into every variant. The OP had already done it, I thought I would look like a tool calling him a novice.
I also thought I would look rude if I undermined trailangel as senior member.
Tawraste666 is offline
Old 06-03-22, 11:10 AM
  #10
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,962

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 4422 Post(s)
Liked 2,965 Times in 2,064 Posts

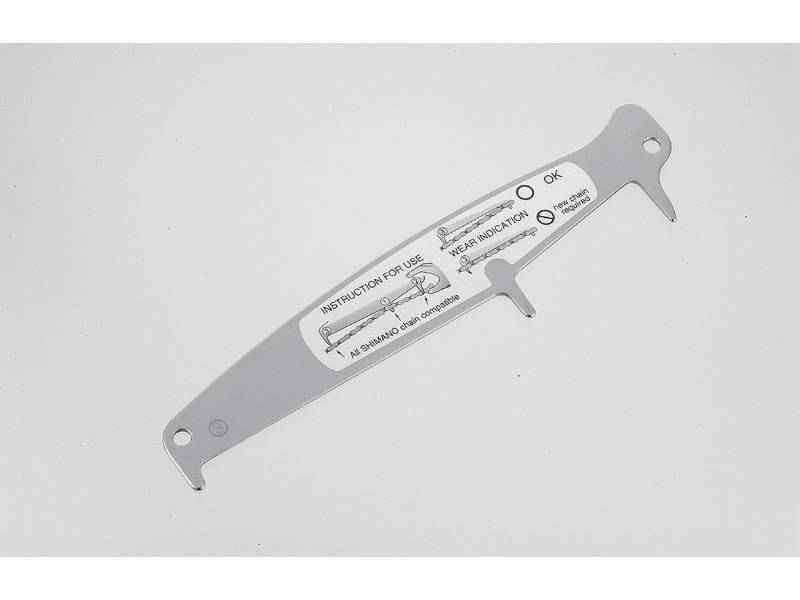

The common Chain checkers only measure between the opposite sides of the two rollers. And that really doesn't matter as much since they'll "float" into place as they engage the cog. Shimano and a few others make a chain checker that measures more accurately to the same side of each roller.

However with my Park chain checker, it's always been close enough and I use it for a quick check, then when it shows the chain wearing to the point yours is, I'll double check with a steel scale or tape and measure to the same side of the pins to see how far beyond 12" they are apart. A 1/16 inch more than 12 inches is almost .5% wear. 12 x 0.005 = 0.06 and 1/16" = 0.0625

Does riding style dictate how fast your chain will wear? Eg intense pedalling?
I'd expect someone that puts a lot of power into the pedals to wear out the chain faster. Lugging up a hill in high gears using all your leg muscle particularly bad, IMO. Also, if you cross chain in the large front and large rear, that might add more wear.

Regardless, I'd consider anything under 2000 miles as bad chain life. I usually get 4000 or more out of a 11 speed. My older bikes with 5 and 6 speeds would see 8000 miles... but that admittedly is just a guess.
Iride01 is offline
Likes For Iride01:
Old 06-03-22, 11:29 AM
  #11
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,090

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1497 Post(s)
Liked 759 Times in 557 Posts
Since you have a Quik Link, remove the chain and measure a 3' section. (3X better resolution than measuring 12")
Use that as a reference to calibrate your chain checker.
On my CC, I know if it reads .5% that it's actually still good.
IF it reads .75%, THEN I'll grab the tape measure. I just haven't gotten to that point yet.

So, your CC can be useful for a quick check to prove the chain is good.
To prove it's bad can take a bit more research for your specific CC.
Bill Kapaun is offline
Old 06-04-22, 08:57 AM
  #12
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,619
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 158 Times in 127 Posts
Originally Posted by trailangel View Post
Why degrease a new chain?
Why carb cleaner down the drain?
Do not remove the original lube, it is the best your chain will see. It is Fuch from Germany. Get rid of that chain checker it is not accurate. Use a ruler and replace the chain when the measurement. shows 1/16" elongation in 12" of chain.. Park Tool and Pedros make a chain checker that is a copy of the shimano model and eliminates the play in the rollers that screw up the measurement.
davidad is offline
Old 06-04-22, 09:28 AM
  #13
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,727

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23532 Post(s)
Liked 7,031 Times in 5,013 Posts
Originally Posted by jxpowers View Post
Youre 100% correct. Why didnt i know about this. Why is my chain checker way off. What a waste of money
...a ruler or a steel tape measure is far and away the most accurate way to measure this, but the do make some chain checker tools that work a little better than the one you bought. The better ones have a couple of extra hooks, that serve to pull a section of the chain into tension, before the measuring indicator is inserted into a link. They look like this, if you're interested.


__________________
3alarmer is offline
Likes For 3alarmer:
Old 06-06-22, 03:01 PM
  #14
BCRider
Senior Member

BCRider's Avatar

Join Date: Mar 2008
Location: The 'Wack, BC, Canada
Posts: 5,541

Bikes: Norco (2), Miyata, Canondale, Soma, Redline

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 41 Times in 31 Posts
I'd suggest a good quality steel ruler. Tapes and cheap rulers have wider marks that make it tougher to see small differences. That's fine for building houses or bigger stuff. But in this case you're looking for smaller amounts. That's where a nice steel ruler with fine engraved lines is nice to have. And a good ruler like that has other similarly accurate uses too. So it's not just a specialty bicycle thing.

Here's a low cost but what looks pretty good cheap set of 6 and 12" options. Includes metric too which will be handy since bike stuff is almost wholly metric other than some things like the chains or very old vintage stuff. To be fair though I suspect that these are stamped and not etched. But they look decent in the closeups and are hardened stainless.

Mr. Pen Steel Rulers, 6 inch and 12 inch Metal Rulers, Pack of 2 - - Amazon.com

If you don't mind spending slightly more to ensure top quality this one has it all. Hardened stainless and photo etched and black filled markings. Those features neatly check off the whole list of goodies for a top notch steel machinist's ruler.

Shinwa 12" 300 mm English Metric Rigid (1.250 wide x .040 thick) Zero Glare Satin Chrome Stainless Steel E/M Machinist Engineer Ruler/Rule with Graduations in 1/64, 1/32, mm and .5mm Model H-3412C - - Amazon.com

And when checking the wear with a ruler where there's nothing built in to tension the chain be sure to measure across the upper run of the chain while you hold some tension on the crank arm so the chain is under tension. If you want both hand free use a bungee cord from the rear wheel spokes to the pedal with the crank on the low side to tension the chain up.
BCRider is offline
Old 06-06-22, 10:33 PM
  #15
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,630
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 501 Times in 332 Posts
Originally Posted by Tawraste666 View Post
Agreed, no need to clean a brand new chain. As for the carb cleaner down the drain, thats my cleaning regime:
250 miles, flush with carb carb cleaner then relube with ACF-50.
Both my chains are on 4000 miles. They look super shiny at all times and have ridiculously minimal wear.
Hooray.
Is it non-toxic carb cleaner? I understand they make such products now, but I'm not familiar with them.
Camilo is offline
Old 06-06-22, 11:36 PM
  #16
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 15 Times in 11 Posts
Originally Posted by Camilo View Post
Is it non-toxic carb cleaner? I understand they make such products now, but I'm not familiar with them.
Indeed it is. The data sheet states not considered a danger to the environment or to aquatic organisms.
Apparently the really toxic stuff was all outlawed years ago.
That said, the sink is in a garage where I have a large bucket of sawdust I can put beneath the trap to create a dry residue I can dispose of at the local tip.
Tawraste666 is offline
Old 06-07-22, 07:04 AM
  #17
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,608

Bikes: Fuji Touring, Novara Randonee

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1922 Post(s)
Liked 1,188 Times in 753 Posts
Originally Posted by BCRider View Post
I'd suggest a good quality steel ruler. Tapes and cheap rulers have wider marks that make it tougher to see small differences. That's fine for building houses or bigger stuff. But in this case you're looking for smaller amounts. That's where a nice steel ruler with fine engraved lines is nice to have. And a good ruler like that has other similarly accurate uses too. So it's not just a specialty bicycle thing.
In the tape measure's defense, you can measure between 1" and 13 1/16" for a 12" span. My better tapes have plenty of space between 1/16" markings, so they're fine to use. It might be easier to find the Park spoke ruler, which has 12 1/6" and 12 1/8" markings than a 15" steel rule. 1/64" markings on a good machinist's rule are just noise for this application.

And when checking the wear with a ruler where there's nothing built in to tension the chain be sure to measure across the upper run of the chain while you hold some tension on the crank arm so the chain is under tension. If you want both hand free use a bungee cord from the rear wheel spokes to the pedal with the crank on the low side to tension the chain up.
Or you can simply measure the bottom run, where the derailer (should your bike be equipped with such a thing) keeps the chain tensioned.
pdlamb is online now
Old 06-07-22, 10:36 PM
  #18
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,630
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 501 Times in 332 Posts
Originally Posted by Tawraste666 View Post
Indeed it is. The data sheet states not considered a danger to the environment or to aquatic organisms.
Apparently the really toxic stuff was all outlawed years ago.
That said, the sink is in a garage where I have a large bucket of sawdust I can put beneath the trap to create a dry residue I can dispose of at the local tip.
I have a gallon can of carb cleaner with a basket in which objects to be cleaned are put and soaked in the gallon of liquid. I think this gallon must be at least 15 years old, because it's been at least that long since I was rebuilding a very old mercury outboard and had to soak the carb parts to get it running again. My first thought when I saw your post was geeze, even the 1970s me wouldn't put that stuff in a drain (I won't tell you what 1970s stupid me did with waste oil...I said stupid, remember that). Nide to hear the technology has advanced.
Camilo is offline
Likes For Camilo:
Old 06-07-22, 10:38 PM
  #19
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,630
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 501 Times in 332 Posts
Originally Posted by soyabean View Post
For most novice riders, that would be fine, but most enthusiasts will remove the default (thick and heavy) shipping grease that is on all new chains, and re-lube with their favorite lube.
In the past I left it on (other than cleaning the outer surfaces) Nowadays, I've switched over to liquid wax based stuff because it's so much cleaner and we do a lot of loading the bikes in and out of cars and such and got tired of greasy tatoos on skin, clothing and everywhere else. Since we almost exclusively ride in dry conditions, it's working fine. But that factory lube - whatever it is - sure worked well and lasted a long time.
Camilo is offline
Old 06-07-22, 10:42 PM
  #20
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,630
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 501 Times in 332 Posts
Originally Posted by BCRider View Post
I'd suggest a good quality steel ruler. ...

...And when checking the wear with a ruler where there's nothing built in to tension the chain be sure to measure across the upper run of the chain while you hold some tension on the crank arm so the chain is under tension. If you want both hand free use a bungee cord from the rear wheel spokes to the pedal with the crank on the low side to tension the chain up.
Originally Posted by pdlamb View Post
...Or you can simply measure the bottom run, where the derailer (should your bike be equipped with such a thing) keeps the chain tensioned.
I take my chains off every once in a while to do a deep soak cleaning in mineral spirits. I have a little nail in the edge of a shelf in the garage. I hang the chains from that nail and measure a foot with a steel ruler. In between times, which is almost always, I use the fancier type of chain checkers shown above. I think I have a Pedros and a Shimano. They work about the same.. If I have any question at all, I just dangle the chain and measure with a ruler.
Camilo is offline
Old 06-07-22, 10:48 PM
  #21
Frenzen
Senior Member

Join Date: Jun 2017
Location: Montreal, QC, Canada
Posts: 127
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 7 Times in 5 Posts
Chain

I use a citrus degreaser concentrate and add water to it and soak my chain in it for an hour or so and lube it once itís on the bike. Not sure why but I do ride my bike daily and need to lube it weekly! Will look into carb cleaner as the degreaser isnít good for the environment.

I need to look up this method of using a steel ruler as I was going to buy a tool for chain wear. I have made a mistake of taking off a chain because I thought it had surface rust and it meant that it was worn down!
Frenzen is offline
Old 06-08-22, 04:40 AM
  #22
GhostRider62
Senior Member

Join Date: Apr 2021
Posts: 2,659
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,302 Times in 814 Posts
I hang the old chain along side a new chain on my garage door frame. I measure the entire length. Super fast, easy, and accurate.

0.5% of 12 inches is 1/16 of an inch. Not so easy to be accurate.

0.5% of 116 links is a touch over 1/4 of an inch. I measure the difference between the new and old chain at full length. The only problem with this approach is wear isn't always uniform but I replace at 0.4%
GhostRider62 is offline
Old 06-08-22, 11:11 AM
  #23
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,619
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 158 Times in 127 Posts
Originally Posted by soyabean View Post
For most novice riders, that would be fine, but most enthusiasts will remove the default (thick and heavy) shipping grease that is on all new chains, and re-lube with their favorite lube.
That's a silly notion. You will never put a better lube on your chain than the factory job. Wipe the excess off of the outer parts of the chain and ride. I've ridden as much as 1000 miles before removing, cleaning and lubing a new chain.
davidad is offline
Old 06-08-22, 11:15 AM
  #24
Koyote
Senior Member

Join Date: Sep 2017
Posts: 5,323
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 5078 Post(s)
Liked 7,428 Times in 3,225 Posts
Originally Posted by cxwrench View Post
Use a ruler to measure chain wear. I promise that you haven't put any measurable wear on that chain in a week.
As Mr. Wrench notes, the ruler is most accurate. But for a quick and dirty check, it's probably better to use a longer chain checker than that stubby little thing in the OP's photo.
Koyote is offline
Old 06-08-22, 11:17 AM
  #25
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,619
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 158 Times in 127 Posts
Originally Posted by Iride01 View Post
The common Chain checkers only measure between the opposite sides of the two rollers. And that really doesn't matter as much since they'll "float" into place as they engage the cog. Shimano and a few others make a chain checker that measures more accurately to the same side of each roller.

However with my Park chain checker, it's always been close enough and I use it for a quick check, then when it shows the chain wearing to the point yours is, I'll double check with a steel scale or tape and measure to the same side of the pins to see how far beyond 12" they are apart. A 1/16 inch more than 12 inches is almost .5% wear. 12 x 0.005 = 0.06 and 1/16" = 0.0625


I'd expect someone that puts a lot of power into the pedals to wear out the chain faster. Lugging up a hill in high gears using all your leg muscle particularly bad, IMO. Also, if you cross chain in the large front and large rear, that might add more wear.

Regardless, I'd consider anything under 2000 miles as bad chain life. I usually get 4000 or more out of a 11 speed. My older bikes with 5 and 6 speeds would see 8000 miles... but that admittedly is just a guess.

Chain care, wear and skipping by Jobst Brandt (sheldonbrown.com)
davidad is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
